Please read this manual carefully before installing and starting up the device, and store it in a safe place. If the device is passed on to another person, this manual must also be handed over with it.

Table of contents

1 Notes on using the manual 8
2 General safety instructions 8
3 Scope of delivery 12
4 Accessories 12
5 Intended use 12
6 Technical description 12
7 Mounting the stove....14
8 Using the stove 16
9 Cleaning and maintaining the stove....18
10 Guarantee 19
11 Disposal 19
12 Technical data 19

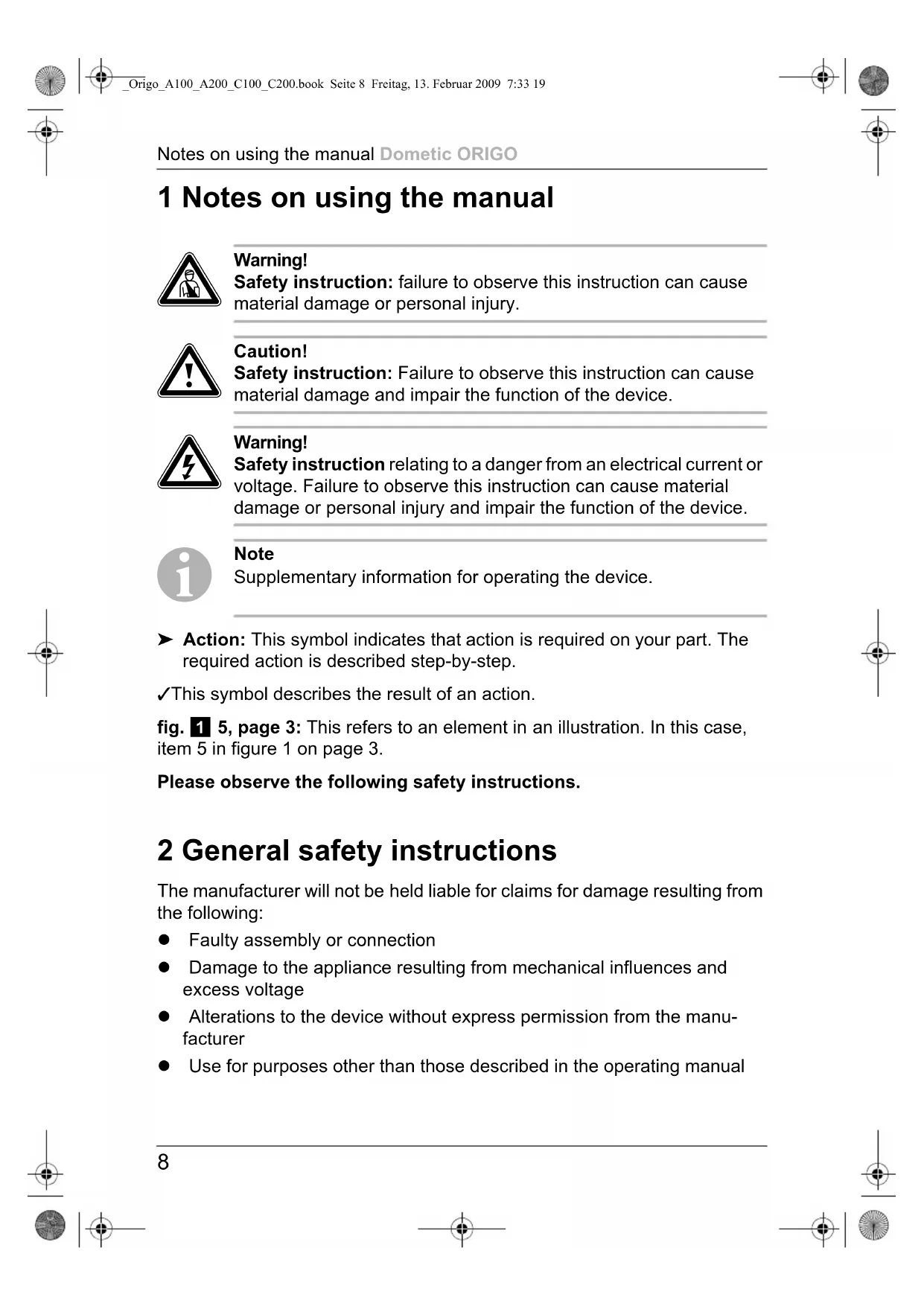

Notes on using the manual Dometic ORIGO

1 Notes on using the manual

Warning!

Safety instruction: failure to observe this instruction can cause material damage or personal injury.

Caution!

Safety instruction: Failure to observe this instruction can cause material damage and impair the function of the device.

Warning!

Safety instruction relating to a danger from an electrical current or voltage. Failure to observe this instruction can cause material damage or personal injury and impair the function of the device.

Note

Supplementary information for operating the device.

▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.

√This symbol describes the result of an action.

fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

Please observe the following safety instructions.

2 General safety instructions

The manufacturer will not be held liable for claims for damage resulting from the following:

● Faulty assembly or connection
● Damage to the appliance resulting from mechanical influences and excess voltage
● Alterations to the device without express permission from the manufacturer
● Use for purposes other than those described in the operating manual

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Dometic ORIGO General safety instructions

Please observe the following basic safety information when using electrical devices to protect against:

Electric shock
- Fire hazards
- Injury

2.1 General safety

• Use denatured alcohol only. Do not use other fuels such as gasoline, diesel, methanol, propane or charcoal lighter.
  ● Danger of asphyxiation!

Before starting the device, ensure that the area is sufficiently ventilated.

- Place a class A fire extinguisher (for alcohol fires) in reaching distance.

Ensure the fire extinguisher is regularly checked by qualified personnel.

• Persons whose physical, sensory or mental capacities prevent them from using this device safely should not operate it without the supervision of a responsible adult.
  ● Electric devices are not toys

Keep electrical appliances out of reach of children or infirm persons. Do not let them use the appliances without supervision.

● Use the stove only as intended.

Dometic ORIGO alcohol/electric stoves C100 and C200 only

- Place a class B-1 fire extinguisher (for electric fires) in reaching distance.

Ensure the fire extinguisher is regularly checked by qualified personnel.

● Always disconnect the power supply when working on the device.
● Maintenance and repair work may only be carried out by qualified personnel who are familiar with the risks involved and the relevant regulations.

General safety instructions Dometic ORIGO

- If the connection cable is damaged, it must be replaced by qualified personnel.

Inadequate repairs can lead to considerable hazards.

• If the stove is not fitted with an accessible plug, all pole disconnection must be incorporated in the fixed wiring.
• Inform yourself how to power-off the circuit breaker or the fuse in the event of an emergency.

2.2 Safety precautions when handling denatured alcohol

• Keep inflammable substances apart from heating and cooking devices and other light and heat sources.
• Store alcohol in suitable containers only and in sufficient distance from the stove.
• Eliminate all sources of sparks or flames where the alcohol is stored or filled-in.
  ● Never fill the canisters while still in the stove. Never pour fuel through the burner openings in top of the stove (fig. 1, page 2).
  ● Overfilling, spilt alcohol and hot objects can cause severe burns.
• Denatured alcohol burns with almost invisible flame, so great damage can arise before you notice the danger.

• Mop up any spilt alcohol immediately to prevent uncontrollable burning.
• Do not smoke when handling alcohol or when operating the stove.
• Fill the canister to the maximum capacity only. Alcohol expands in the canister when heated. Overfilled alcohol can cause uncontrollable burning inside the stove.

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Dometic ORIGO General safety instructions

2.3 Operating the device safely

• If the voltage of the built-in 12 V lighter is insufficient, use long matches or long lighters to light the burner.
  Quickly remove your hand as soon as the burner ignites.
  ● Wear proper clothing when operating the stove.
  Do not wear hanging garments which can catch fire.

- Let the stove cool down to ambient temperature before you touch it with bare hands.

- Keep the area surrounding the stove and interior parts free of grease, fat, alcoholic substances, plastic or inflammable cloths (for instance curtains, towels, kitchen utensils).

- Use only pots and pans with flat bottoms and with a maximum diameter of 23 cm (9"). The pots and pans should be large enough to cover the heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper sized utensils will also improve efficiency.

- When cooking ensure that pans and pots are securely in position. Recommended is the use of pot holders (fig. 2 2, page 2, accessory).

- Never allow pot handles to extend beyond the edge of the stove. Turn pot handles inward, but not extending over other burners. This will minimize the possibility of spillage, ignition of flammable materials and/or serious burns.

- Be careful when heating grease or oil. Grease and oil catch fire when exposed to great heat.

- Use only dry pot cloths to prevent the formation of steam. Do not use towels or the like instead of pot cloths as these can catch fire.

- Never leave the stove unattended when cooking. Pots boiling over can cause smoke and fires.

- Move the burner control (fig. 2 1, page 2) to the off position before removing the pot.

- Do not use the stove to heat the environment.

- Dometic Origo C100 and C200 only: Never use alcohol and electrical burners simultaneously to prevent overheating which can destroy the heating element.

Scope of delivery Dometic ORIGO

- Dometic Origo C100 and C200 only: Operating electrical burners at a high setting without a filled pot can damage the stove.

3 Scope of delivery

• Stove
• Operating Manual

4 Accessories

Description Item no.

A100 A200 C100 C200

Pot Holder 958148110 958148110

5 Intended use

The Dometic ORIGO stoves are designed for use in vehicles or boats.

6 Technical description

6.1 Function

The stove is made of stainless steel and uses the absorption principle. The canister has a capacity of 1.2 l. Denatured alcohol is used as fuel. The burner is ignited by a built-in 12 V lighter.

Alcohol is absorbed into a non-flammable material in the canister. It is not equipped with fuel valve or fuel lines, which can develop leaks, or with other such components requiring regular service.

The Dometic ORIGO alcohol/electric stoves C100 and C200 are equipped with a 1200 W (EU) or 1100 W (US) element. They can alternatively be operated with alcohol or 120 V or 220–240 V.

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Dometic ORIGO Technical description

6.2 Specifications for the device variants

Various stove versions are available.

● A100 and C100: single-burner unit
● A200 and C200: double-burner unit
● C100 and C200: additional heating element for alternative operation at the 120 V or 220–240 V mains

Each version is available with and without glass lid.

To define your device see the item number on the type plate located on the right side of the stove.

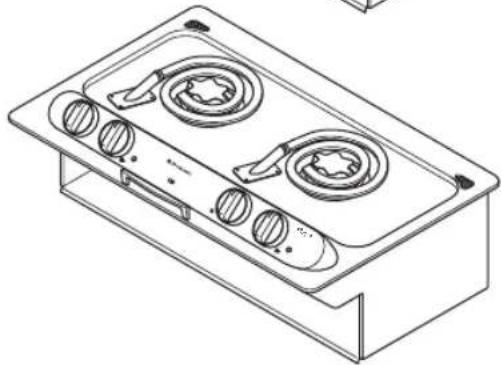

6.3 Operating elements

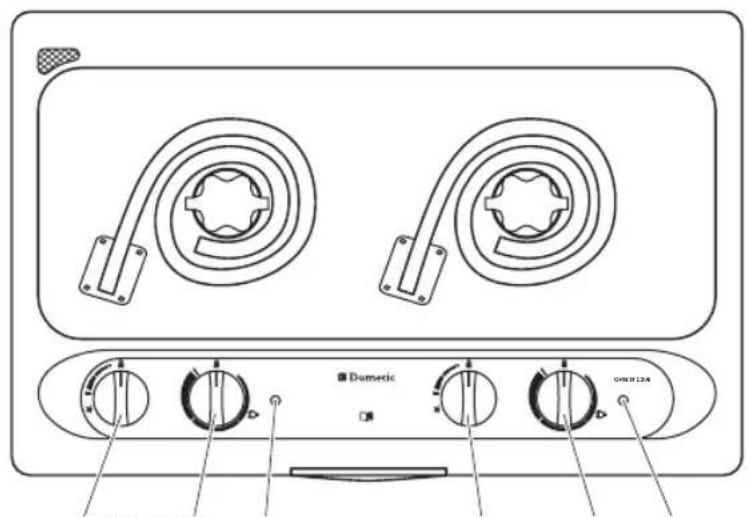

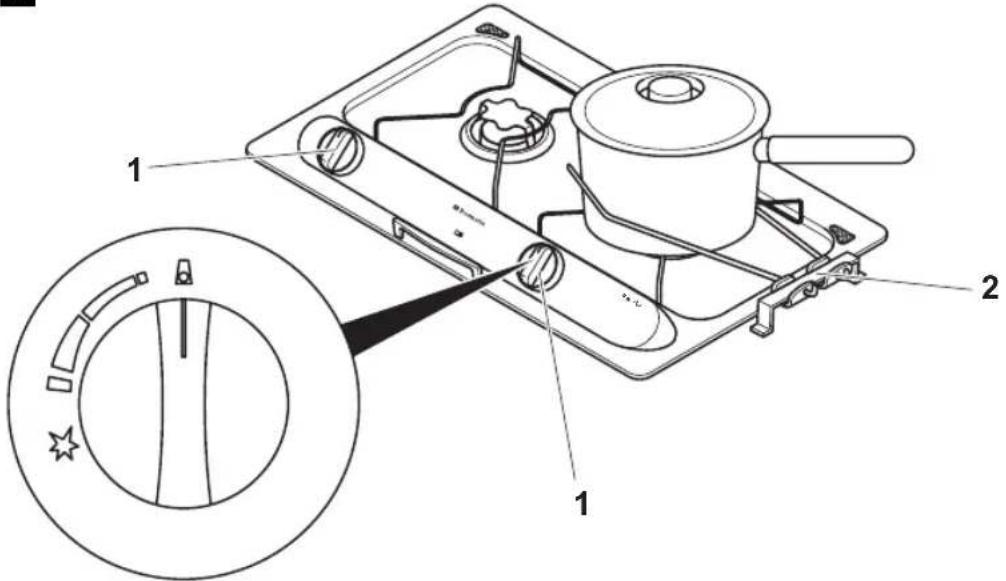

Operating elements for operation with denatured alcohol (fig. 2, page 2):

No. Description

1 Control knob, continuously adjustable Turn counter-clockwise to increase the burner's flame

2 Pot holder (accessory)

Operating elements for operation at 120 V or 220–240 V mains (fig. 3, page 3) (Dometic ORIGO C100 and C200)

No. Description

1 Status LED The LED is lit when the electrical power is turned on.

2 Power setting knob Turn clockwise to increase the heating element's power setting

Mounting the stove Dometic ORIGO

7 Mounting the stove

You can fit the stove into the countertop of your kitchen.

7.1 Selecting the installation location

When selecting the installation location, observe the following instructions:

• Select a well-ventilated location for the device.

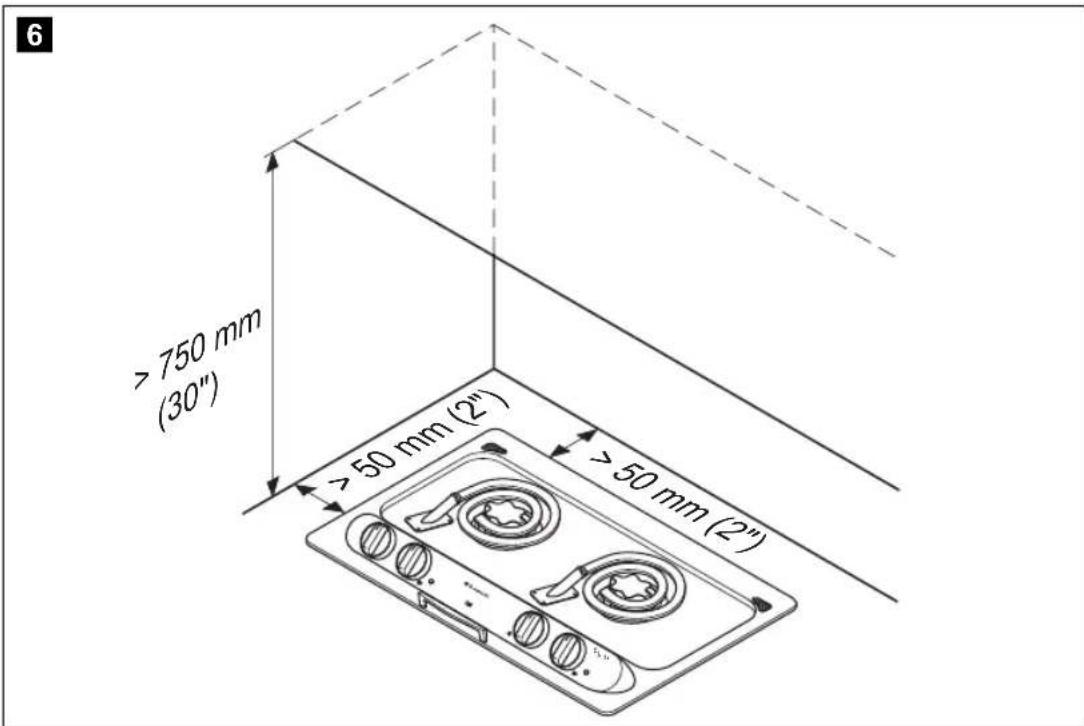

• Ensure a minimum distance (fig. 6, page 4) of
• 50 mm (2") to side and back walls
• 750 mm (30") between stove coil element and horizontal surface above the stove
• Avoid draft at the installation location. If you fit the stove in an open cockpit or other open areas mount an additional wind protection.
  ● Avoid cabinet storage space above the stove.
  Otherwise you risk burns and fire when reaching over the stove.
• Do not operate the device in spaces where danger of explosion is present.

7.2 Installing the stove

Caution – Danger of damaging the device!

Before drilling any holes, make sure that no electrical cables or other parts of the vehicle can be damaged by drilling, sawing and filing.

▶Cut a rectangular hole into the countertop (dimensions see following table):

Model	Dimensions W x D x H
A100 255 x 150 x 340 mm 10" x 6" x 13	^3/_8"
A200 485 x 150 x 340 mm 19	^1/_8" x 6" x 13 ^3/_8"
C100 255 x 150 x 340 mm 10" x 6" x 13	^3/_8"
C200 485 x 150 x 340 mm 19	^1/_8" x 6" x 13 ^3/_8"

▶Open the top and remove the canisters.

▶Open up the hinge part in the back of the stove.

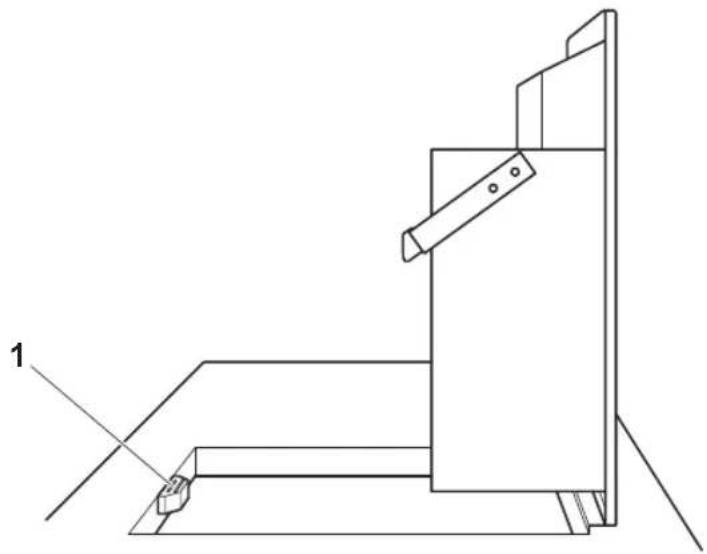

▶ Place the stove according to fig. 4, page 3.

- Open the top and remove the canisters. - Open up the hinge part in the back of the stove. - Place the stove according to fig. 4, page 3.

Dometic ORIGO Mounting the stove

▶Mark the drill holes.
Use the fastening holes in the hinge as a template.
▶Pre-drill the holes into the countertop where marked.
▶ Fasten the stove by screwing flat head screws through each drill hole in the hinge (fig. 5 2, page 4).
▶ Install the magnetic locker in the front of the cutout (fig. 4 1, page 3).

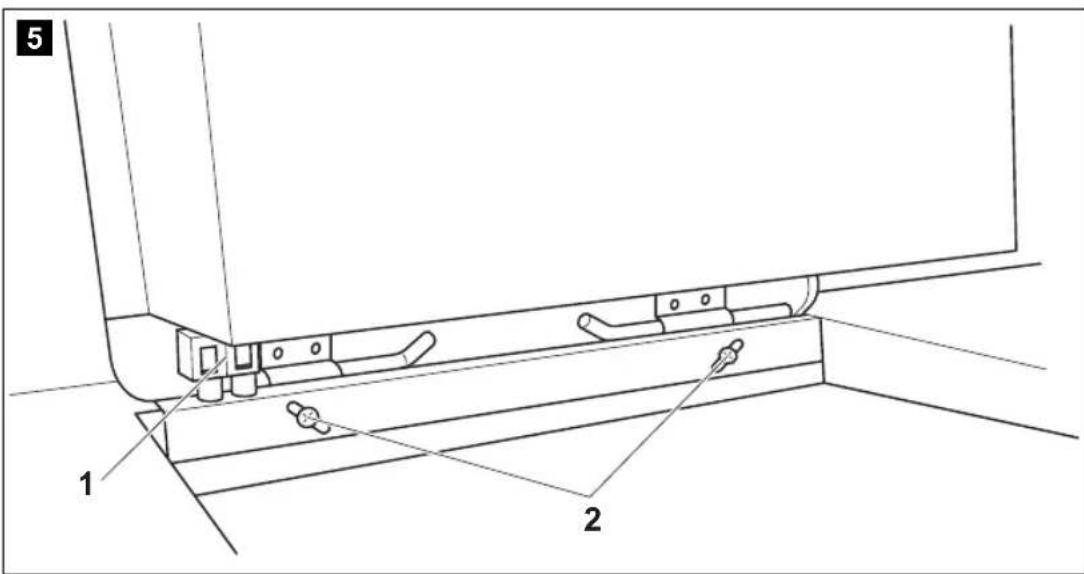

Connect the built-in lighter's terminal connection (fig. 5 1, page 4) to 12V==.
▶Place a class B-1 fire extinguisher in reaching distance.

7.3 Connecting the stove electrically (Dometic ORIGO C100 and C200 only)

Warning! Danger of injury!

The stove may only be connected by a qualified specialist. The following information is intended for technicians who are familiar with the guidelines and safety precautions to be applied.

Observe the following safety instructions for the electrical connections:

● Warning, risk of short circuit!

Always use sockets which are grounded and secured by residual current circuit breakers.

• If you have to feed cables through metal walls or other walls with sharp edges, use ducts or tubes to prevent damage.
• Do not lay cables which are loose or bent next to electrically conductive material (metal).
• Fasten the cables securely.
• Do not pull on the cables.
• Lay the cables so that they cannot be tripped over or damaged.

▶Check the type plate on the right side of the stove to ensure that the voltage of the unit matches the voltage of the source.
▶ Connect the three conductors of the connection cable to the AC mains.
▶Secure the cable with a clamp.

Using the stove Dometic ORIGO

8 Using the stove

8.1 Filling-in denatured alcohol

Warning! Danger of injury!

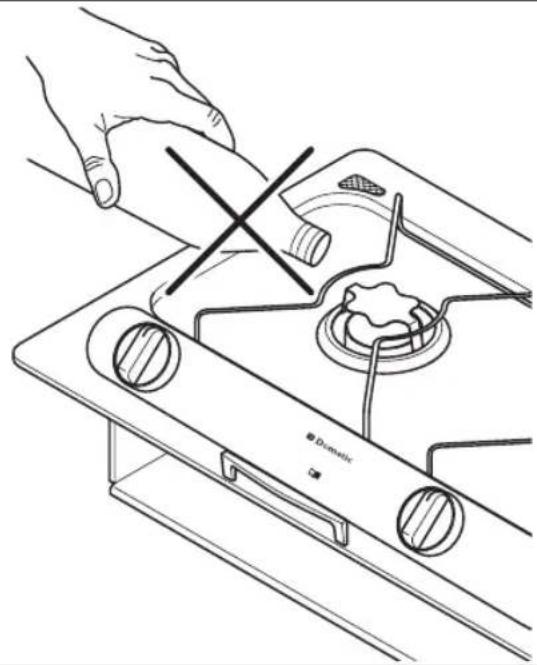

Never pour fuel through the burner openings in top of the stove (fig. 1, page 2).

Overfilling, spilt alcohol and hot objects can cause severe burns.

▶Ensure all burners are turned off:

– operation with denatured alcohol: turn the control knob to the Off position
- operation at the 120 V or 220–240 V mains (C100 and C200 only): switch heating elements off

▶Ensure the stove is cooled down to room temperature.
▶ Open the stovetop (fig. 7, page 5).
▶Take out the canister.
▶Check canister opening ensuring there's neither fire nor glow.
▶Make sure the canister is cool enough to be held in your bare hand before filling.

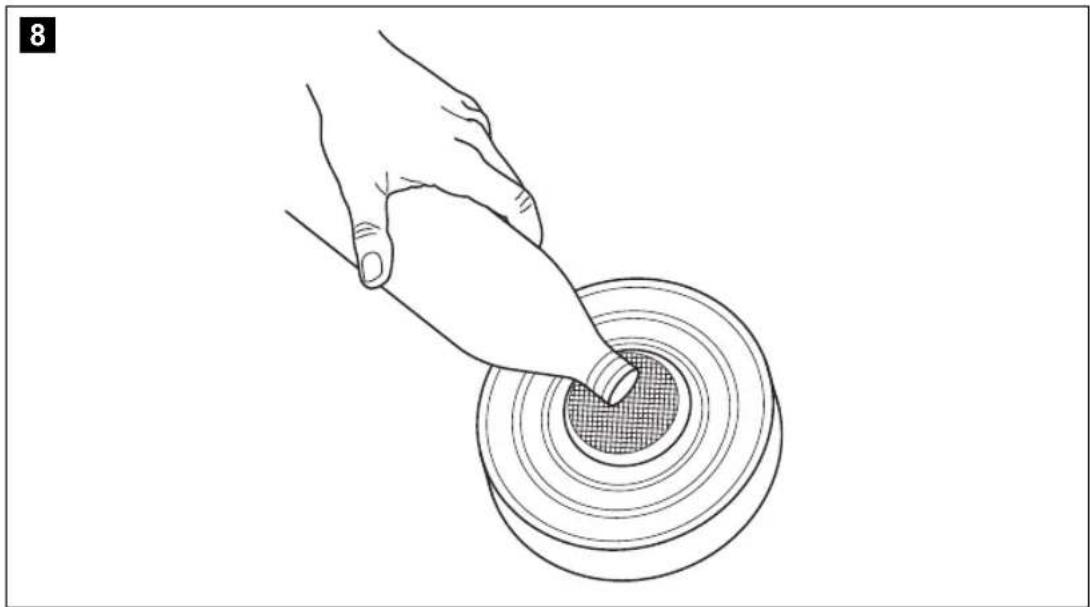

▶ Hold the canister tilted down (fig. 8, page 5).
▶ Fill the denatured alcohol through the wire mesh into the opening of the canisters.

The maximum capacity per canister must not exceed 1.2 l.

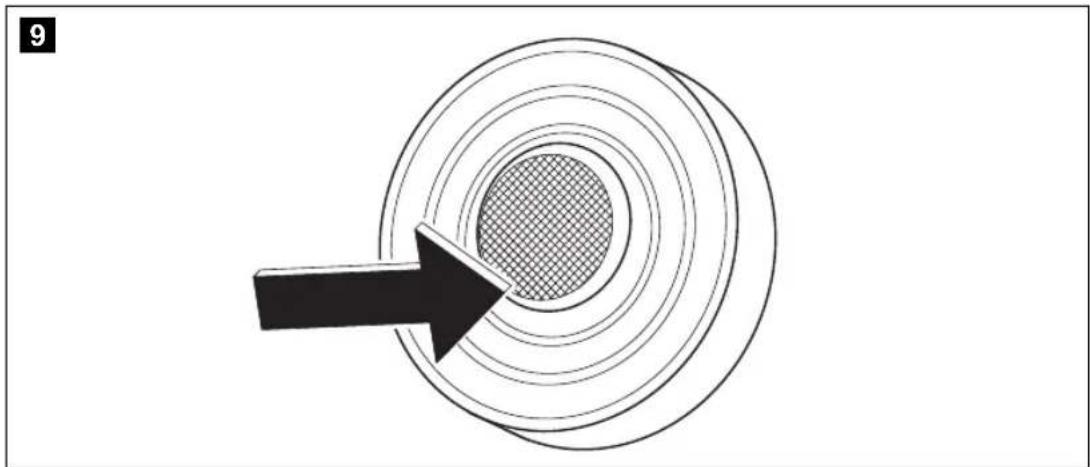

▶ Check the fuel level by tilting the canister vertically (fig. 9, page 5).

Keep it in this position for 20 s, to make sure it's not overfilled. In addition, in the case of accidental overfilling you can get rid of the surplus fuel.

√The maximum fuel level is reached when the fuel is visible at the bottom of the opening.

Note

The stove will operate even if the canister isn't filled with the maximum capacity.

▶ Wipe possible spilt alcohol off the outside of the canister.

Dometic ORIGO Using the stove

▶Replace the canister.

Check that the stovetop gets level and is not blocked in any way.

▶Close the stovetop until the magnetic lock engages.

8.2 Lighting the stove

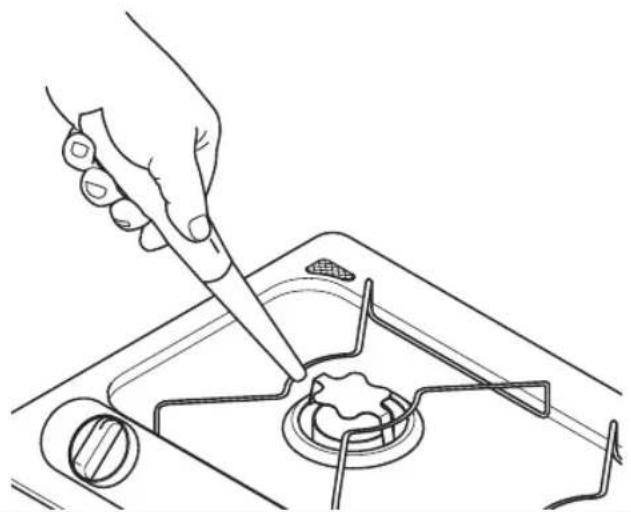

▶ Turn the control knob counter-clockwise to the ignition position.
√ The built-in 12 V lighter is activated and the burner is ignited. Depending on temperature and the canister filling level, the time required may vary.

Note

If the voltage of the built-in 12 V lighter is insufficient, light the stove by placing a long match or a long lighter to the burner opening (fig. 10, page 6).

Quickly remove your hand as soon as the burner ignites.

▶Adjust the flame so it does not extend beyond the edge of the pot.
▶Choose the desired power setting via control knob.

Note

If the stove hasn't cooled down from previous use, the burner may ignite but immediately extinguish. In this case blow air into the burner opening to dissipate vapour.

Afterwards light the stove as described above.

8.3 Extinguish the flame

▶Turn the control knob to the Off position.
√The burned is closed.
▶Wait about five seconds.
▶Turn the control knob to the Maximum position to make sure the flame is extinguished.
√The burner is open.
▶Turn the control knob to the Off position.
√The burner is closed.
▶ If applicable, wait until the stove has cooled down completely before replacing the glass lid.

Cleaning and maintaining the stove Dometic ORIGO

8.4 Using the heating element (Dometic ORIGO C100 and C200 only)

Caution!

Never use alcohol and electrical burners simultaneously to prevent overheating which can destroy the heating element.

▶If applicable, lift the glass lid.
To switch on the heating element push and turn the power setting knob clockwise.
▶Choose the desired power.
To switch off the heating element turn the power setting knob to the Off position.
▶Let the element cool down completely, before you close the glass lid or touch the stove top or let flammable material contact the stove top.

9 Cleaning and maintaining the stove

Caution!

Do not use any sharp or hard objects for cleaning since they may damage the device.

▶Remove the grate from the stovetop.
▶ Clean the stovetop. In particular remove carefully sticky grease and oil.
▶ C100 and C200 only: Lift the heating element until you feel a resistance. Clean the stove underneath the heating element.
▶Never use a steam cleaner for cleaning the stove.

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Dometic ORIGO Guarantee

10 Guarantee

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

● A copy of the receipt with purchasing date
● A reason for the claim or description of the fault

11 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the device, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

	Dometic ORIGO stove
	A100 A100 GL A200 A200 GL
Item no.: 958147000 95814	7001 9581470	10 95814701	1
Number of burners: 1 2
Burning duration:	approx. 4.5 h
Power of burner:	2000 W
Lighter voltage:	12 V=
Lighter current:	1 – 2.4 A
Cooking time for 1 l water:	10 min
Canister capacity:	1.2 l
Dimensions (W x H x D):	270 x 190 x 365 mm( 10^5/_8 " x 7^1/_2 " x 14^3/_8 ")		500 x 190 x 365 mm( 19^11/_8 " x 7^1/_2 " x 14^3/_8 ")
Weight:	3.5 kg	4.5 kg	6.5 kg	8 kg

Technical data Dometic ORIGO

	Dometic ORIGO stove
	C100 C10	0 GL C200 C	200 GL
Item no.: 958147021 95814	7030 9581470	40 958147041
Number of burners: 1 2
Burning duration: approx. 4.5 h
Power of burner: 2000 W
Lighter voltage: 12 V=
Lighter current: 1 – 2.4 A
Input voltage: 120 V or 220–240 V
Power of heating element: EU: 1200 W/elementUS: 1100 W/element
Cooking time for 1 l water: 10 min
Canister capacity:	1,2 l
Dimensions (W x H x D):	270 x 190 x 365 mm( 10^5/_8 " x 7^1/_2 "x 14^3/_8 ")		500 x 190 x 365 mm( 19^11/_8 " x 7^1/_2 " x 14^3/_8 ")
Weight:	4 kg	5 kg	7.5 kg	9 kg

Variations, technical improvements and delivery options reserved.

Pure geometric diagram with crosshair and circular pattern (no text or symbols)

Dometic ORIGO

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular pattern (no text or symbols)

Dometic ORIGO Remarques concernant ce manuel

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

Dometic ORIGO Description technique

6 Description technique

6.1 Fonctionnement

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Dometic ORIGO

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Dometic ORIGO Datos técnicos

12 Datos técnicos

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

Dometic ORIGO

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Dometic ORIGO Kooktoestel monteren

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Dometic ORIGO Technische gegevens

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Dometic ORIGO Montaggio del fornello

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Dometic ORIGO Montaggio del fornello

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular pattern (no text or symbols)

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Dometic ORIGO Tekniset tiedot

	Dometic ORIGO -keitin
	C100 C100 GL C200 C200 GL
Tuote nro: 958147021 9581	47030 958147	040 9581470	41
Poltinten määrä: 1 2
Palamisen kesto: noin 4,5 h
Polttimen teho: 2000 W
Sytyttimen jännite: 12 V==
Sytyttimen virta: 1 – 2.4 A
Syöttöjännite: 120 V tai 220	-240 V
Lämmityselementin teho: EU: 1200 W/elementtiUS: 1100 W/elementti
Keittoaika 1 litralle vettä: 10 min
Kanisterin tilavuus:	1,2 l
Mitat (L x K x S):	270 x 190 x 365 mm( 10^5/_8 " x 7^1/_2 "x 14^3/_8 ")		500 x 190 x 365 mm( 19^11/_8 " x 7^1/_2 " x 14^3/_8 ")
Paino:	4 kg	5 kg	7,5 kg	9 kg

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Dometic ORIGO Teknisk data

① WAECO Italcold SRL

Overseas + Middle East

AUS WAECO Pacific Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

[phone]

[phone]

Mail: [e-mail]

CH Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang (Zürich)

[phone]

吕 [phone]

Mail: [e-mail]

N Dometic Norway AS

Skolmar 24

N-3232 Sandefjord

[phone]

[phone]

Mail: [e-mail]

(HK) WAECO Impex Ltd.

Suites 3210-12 · 32/F · Tower 2

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

Hong Kong

[phone]

[phone]

Mail: [e-mail]

DK Dometic Denmark A/S

Nordensvej 15, Taulov

DK-7000 Fredericia

[phone]

吕 [phone]

Mail: [e-mail]

NL Dometic Benelux B.V.

Ecustraat 3

NL-4879 NP Etten-Leur

[phone]

吕 [phone]

Mail: [e-mail]

ROC WAECO Impex Ltd.

Taipei Office

2 FL-3 · No. 56 Tunhua South Rd, Sec 2

Taipei 106, Taiwan

[phone]

[phone]

Mail: [e-mail]

E Dometic Spain S.L.

Camí del Mig, 106

Poligono Industrial Les Corts

E-08349 Cabrera de Mar

(Barcelona)

[phone]

吕 [phone]

Mail: [e-mail]

s Dometic Scandinavia AB

Gustaf Melins gata 7

UAE WAECO Middle East FZCO

R/A 8, SD 6

Jebel Ali, Dubai

[phone]

[phone]

Mail: [e-mail]

F Dometic S.N.C.

Dometic House · The Brewery

Blandford St. Mary

Dorset DT11 9LS

[phone]

[phone]

Mail: [e-mail]

USA Dometic Environmental Corporation

2000 N. Andrews Ave. Ext.

Pompano Beach, FL 33069

[phone]

FIN Dometic Finland OY

Mestarintie 4

FIN-01730 Vantaa

[phone]

吕 [phone]

Mail: [e-mail]

www.waeco.com
