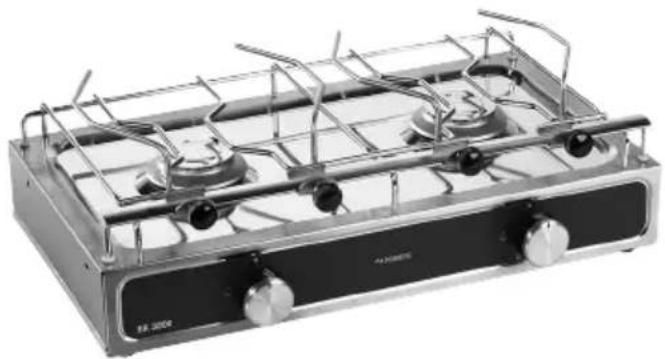

Exterior view of a gas stove with three burners and control panel (no text or symbols visible)

EK1600, EK3200

EN Marine gas hob

Installation and Operating Manual.....6

DE Marine Gaskocher

Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Contents

1 Explanation of symbols....7
2 General safety instructions....7
3 Scope of delivery 9
4 Accessories 9
5 Intended use ....10
6 Technical description ....10
7 Installing the hob....11
8 Using the hob....13
9 Hob maintenance....15
10 Cleaning the hob 15
11 Guarantee....16
12 Disposal....16
13 Technical data....17

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

2 General safety instructions

The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and excess voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual

2.1 General safety

WARNING!

• Only use category I_3 liquid gas (propane/butane). Do not use any other fuel sources.
• Keep a suitable fire extinguisher in the immediate vicinity. Ensure that the fire extinguisher is regularly checked by a specialist.
• This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.

NOTICE!

• Use the hob only as intended.

2.2 Safety precautions when handling liquid gas

WARNING!

• Keep combustible materials away from heating or cooking devices and other light or heat sources.
  • Danger of suffocation!

Ensure that the surrounding area is sufficiently ventilated before switching on the device. During operation, air vents with a free cross-section of at least 150 cm^2 must be present in the installation space. These vents can be closed, but must be kept open when the device is in use (see sign located above the hob).

• Compare the pressure information on the type plate with the pressure information on the propane or butane gas bottle.
  • Never store liquid gas bottles in unventilated areas.

• Keep liquid gas bottles away from direct sunlight. The temperature may not exceed 50 °C.
  • If you smell gas:

• Open all windows and leave the room.

• Do not touch any electrical devices or switches and do not use naked flames (risk of gas ignition).
• Close the valve on the gas bottle and keep it closed until the error is rectified.
• Never attempt to find a gas leak with a naked flame.

- The hob must not be operated in garages, on ferries or when refuelling.

2.3 Operating the device safely

WARNING!

- Use long matches or a suitable lighter. The complete ignition process must be visible from above and must not be hidden by pots placed on top of the hob.

Remove your hand quickly as soon as the burner is lit.

- Wear suitable clothing when using the hob.

Do not wear loose, hanging clothing which may catch fire.

NOTICE!

- Let the hob cool down to room temperature before touching it with bare hands.

• Keep the area around the hob free from fat, alcoholic substances, plastic and flammable materials (e.g. curtains, cloths or kitchen materials).
• Only use pots and pans with an even base and a diameter not larger than the grids on the hob. Pots and pans must be large enough to cover the flame, otherwise items of clothing could catch fire.

Pots and pans of the correct size also improve the efficiency of the hob.

• Ensure that pots and pans are stable when cooking. Use the pot holder provided to ensure that pots and pans stand firmly.
• Never allow pot or pan handles to protrude over the edge of the hob. Turn the handles inwards, making sure that they are not positioned over other burners. This reduces the danger of spillage, the ignition of flammable materials and serious scalding injuries.
• Proceed with caution when heating oil or fat, as they can ignite under excessive heat.
• Only use dry pot holders to avoid steam build-up. Do not use towels or cloths as these can catch fire.
• Never leave the hob unattended during operation. Pots which boil over can cause smoke and fires.
• Set the control knob (fig. 1 1, page 3) to the zero setting before removing the pot or pan.
  • Do not use the hob to heat the room.

3 S c o p e o f d

• Hob
• Pot holder
  • Installation and operating manual

4 A c c e s s o r i

Available as accessories (not included in the scope of delivery):

Description Ref. no.

Gimbals

9103303827

5 Intended use

EK1600 and EK3200 liquid gas hobs from Dometic are intended for installation in vehicles and boats.

6 Technical description

6.1 Function

The hob is made from stainless steel. Category l_3 liquid gas (propane/butane) is used as fuel.

6.2 Specifications for the device versions

The hob is available in different versions.

• EK1600: Hob with one burner
• EK3200: Hob with two burners

The device type can be determined from the model description on the front of the hob.

6.3 Control elements

No. in fig. 1, page 3 Description

1 Control knob with three settings (zero, large flame and small flame)Turn the knob anti-clockwise to open the gas cock.Turn the knob clockwise up to the stop to close the gas cock.
2	P	o	t	h	o

7 Installing the hob

The hob can be installed in your kitchen worktop.

7.1 Selecting the installation location

When selecting the installation location, observe the following instructions:

• Select a well-ventilated location for the device.

• Ensure the following minimum clearances (fig. 2, page 3):

• 150 mm to the side walls

• 170 mm to the back wall
• 500 mm between the burner and horizontal surface above the hob
• 10 mm between the bottom of the hob and the surface base.

- Ensure that there are no draughts in the installation location.

If the hob is installed in an open cockpit or other exposed location, then also install an additional wind guard.

- Do not operate the device in rooms that are potentially explosive.

• If gimbals (accessories) are used, ensure that the stove can swing freely.

- Ensure you have ample room to swing the gimballed range (accessories).

7.2 Installing the hob

NOTICE! Risk of damage!

Before drilling any holes, make sure that no electrical cables or other parts of the vehicle can be damaged by drilling, sawing and filing.

If you don't use gimbals, mount the stove as follows:

▶Fasten the hob in place using four screws.

Mount the gimbals (accessories) as follows (fig. 5, page 5):

▶ Fasten the gimbal sideplates (1) to the lower body of the stove (3) using the enclosed nuts and bolts.

NOTE

The gimbal arms (2) can be turned to enable the stove (3) to be lowered forwards or backwards.

Before mounting the gimbal arms (2), make a test by attaching them to the gimbal sideplates (1) in order to determine which alternative is right for your boat. Ensure the installation is done according to fig. 5, page 5.
▶ Place the fibre washers (4) with round holes on the gimbal arms (2).
▶ Lift the stove into position.
▶ Place the fibre washers (5) with oblong holes on the gimbal sidearms (2).
▶Fasten the screws (6).
▶Adjust the tension of the screws to the desired friction.

7.3 Connecting the hob to the gas supply

WARNING! Risk of injury!

Only use propane or butane gas bottles with an approved pressure reduction valve and suitable top part. Compare the pressure information on the type plate with the pressure information on the propane or butane gas bottle.

Observe the following instructions during connection:

• Use gas lines made from steel ( 8 × 1 mm – welded, seamless or stainless steel), that are flush-mounted with a cutting ring screw assembly.
• Fasten the pipes on the side or rear wall of the surrounding furniture parts so that no loads are exerted on the actuators.
• The connection must only be able to be released using tools. Observe the technical regulations on DVGW worksheets G607 and G608.
  • The entire pipe system must be free of stress.
• Keep the hose connection between the gas appliance and the liquid gas supply system as short as possible, and no longer than 750 mm.

• The entire hose connection must be accessible for inspection purposes.

• If mounted with gimbals (accessories): In particular, ensure that the hose does not affect the functionality of the gimbal (no stress or kinks in all operating conditions).

• During operation, air vents with a free cross-section of at least 150 ~cm^2 must be present in the installation space. These vents can be closed, but must be kept open when the device is in use.

▶Connect the hob to the gas supply.

▶Attach a sign above the hob with the following text:

"WARNING!

When cooking, it is necessary to provide additional ventilation, e.g. by opening windows in the vicinity of the grill, hob or oven.

These devices must not be used for heating the room."

▶Make sure that the hose line:

– Is not crushed or kinked.
– Is a safe distance from the burner.

▶Open the valve on the gas bottle.

WARNING! Risk of injury!

Never check for leaks with a naked flame or near sources of ignition.

▶Check all connections with leak spray.

There are no leaks if no bubbles form.

8 Using the hob

8.1 Lighting the hob

WARNING! Risk of injury!

Never leave the hob unattended during operation.

The complete ignition process must be visible from above and must not be hidden by pots placed on top of the hob.

NOTE

If mounted with gimbals (accessories): If the stove is mounted with gimbals located in down position, the stovetop must be raised to full upright position in order to remove the fuel tanks for filling.

▶Open the valve on the gas bottle.
▶Open the shut-off valve on the hob.
▶ Turn the control knob of the desired burner anti-clockwise from the zero setting to the large flame setting.
▶Depress the control knob and hold it in this position.
Light the burner with a match or suitable lighter. Remove your hand quickly as soon as the burner is lit.
After ignition, you can release the knob after approximately 10 seconds.

▶Set the flame so that it does not exceed the base of the pot.

▶Turn the control knob to the desired position: Large flame (1.6 kW) or small flame (ca. 0.5 kW).

8.2 Switching off the hob

▶Turn the control knob to the zero setting.
√The burner goes out.
▶Close the shut-off valve on the hob.
▶If the hob is not used for long periods, then close the valve on the gas bottle.

8.3 Replacing the gas bottle

WARNING! Risk of injury!

Only change the gas bottle in well ventilated areas.

Make sure that there are no ignition sources in the vicinity.

Only change the gas bottle when the hob is switched off.

▶ Switch the hob off by turning the control knob clockwise to the zero setting.
▶Completely close the valve on the gas bottle.
▶Unscrew the pressure reducing valve from the bottle.
▶Check the condition of the hose line.
Replace the hose line if the material is brittle or porous.
▶ Tightly screw the pressure reducing valve onto the new bottle.

9 H o b m a i n t

For safety reasons, it is necessary to have the device inspected annually by a specialist for correct functionality and necessary repairs.

▶ During the annual check of the device, pay particular attention to the following functions:

• Check for gas leaks
• Check of burn and flame stability
• Check of fresh air supply
• Check of safety and regulation devices (burner taps)

▶Check that the installation location conforms to local regulations.

▶ Check the following components for contamination and clean, if necessary:

– Gas outlets on the burner
- Burner heads
- Thermal element

▶ Check the correct distance between the burner head and thermal element (ca. 1–3 mm).

10 Cleaning the hob

NOTICE!

Do not use any sharp or hard objects for cleaning since they may damage the device.

Only use standard cleaning agents.

▶Allow the device to cool down sufficiently before cleaning it.
▶Remove the grids from the hob.
▶Clean the hob surface. Pay special attention to removing sticky fat and oil residue.
▶ Do not use a steam cleaner to clean the hob under any circumstances.

11 Guarantee

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see the back of the instruction manual for the addresses).

For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault

12 Disposal

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

13 Technical data

	Dometic EK1600 Dometic EK3200
Ref. no.: 9103300517 9103300518
Gas consumption: 115 g/h 230 g/h
Gas category: Category I	3, propane/butane
Connection pressure: AT, DE,	EE, LT, LV, MT, PL: 30 mbarBE, CH, ES, FR, GB, GR, IE, IT, LU: 28 – 30/37 mbarCY, CZ, DK, FI, HU, IS, NL, NO, SE, SI, SK:28 – 30 mbar
Number of burners: 1 2
Burner output:	1600 W	3200 W
Cooking time for 1 litre of water:	Approx. 10 min.(depending on the ambient conditions and pot used)
Dimensions:	fig. 3, page 4	fig. 4, page 4
Weight:	2.9 kg	4.2 kg
Inspection/certification:	CE

6 Description technique

6.1 Fonctionnement

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

1800 212121

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

Neudorferstraße 108

A-2353 Guntramsdorf

[phone]

[phone]

Mail: [e-mail]

BENELUX

Dometic Branch Office Belgium

Zincstraat 3

B-1500 Halle

[phone]

[phone]

Mail: [e-mail]

BRAZIL

Dometic DO Brasil LTDA

Avenida Paulista 1754, conj. 111

SP 01310-920 Sao Paulo

[phone]

[phone]

Dometic Group Asia Pacific

Suites 2207-11 · 22/F · Tower 1

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

[phone]

[phone]

Mail: [e-mail]

HUNGARY

Dometic Zrt. Sales Office

Kerékgyártó u. 5.

H-1147 Budapest

[phone]

[phone]

Dometic Italy S.r.l.

Via Virgilio, 3

I-47122 Forlì (FC)

[phone]

[phone]

Mail: [e-mail]

JAPAN

Dometic KK

Maekawa-Shibaura, Bldg. 2

2-13-9 Shibaura Minato-ku

Tokyo 108-0023

[phone]

[phone]

Mail: [e-mail]

MEXICO

Circuito Médicos No. 6 Local 1

Colonia Ciudad Satélite

CP 53100 Naucalpan de Juárez

Estado de México

[phone]

[phone]

Mail: [e-mail]

NETHERLANDS

Dometic Benelux B.V.

Ecustraat 3

NL-4879 NP Etten-Leur

[phone]

[phone]

Mail: [e-mail]

NEW ZEALAND

Dometic New Zealand Ltd.

PO Box 12011

Penrose

Auckland 1642

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

∅sterøyveien 46

N-3232 Sandefjord

[phone]

[phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

PL-02-801 Warszawa

[phone]

[phone]

Mail: [e-mail]

PORTUGAL

Dometic Spain, S.L.

Komsomolskaya square 6-1

RU-107140 Moscow

[phone]

[phone]

Mail: [e-mail]

SINGAPORE

Dometic Pte Ltd

18 Boon Lay Way 06-140 Trade Hub 21

Singapore 609966

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Dometic Slovakia s.r.o. Sales Office Bratislava

Nádražná 34/A

900 28 Ivánka pri Dunaji

/ [phone]

Mail: [e-mail]

SOUTH AFRICA

Dometic (Pty) Ltd.

Regional Office

South Africa & Sub-Saharan Africa

2 Avalon Road

West Lake View Ext 11

Modderfontein 1645

Johannesburg

[phone]

[phone]

Mail: [e-mail]

SPAIN

Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang

[phone]

[phone]

Mail: [e-mail]

UNITED ARAB EMIRATES

Dometic Middle East FZCO

P.O.Box17860

S-D 6, Jebel Ali Freezone

Dubai

[phone]

[phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House, The Brewery

Blandford St. Mary

Dorset DT119LS

[phone]

[phone]

Mail: [e-mail]

USA

Dometic RV Division

1120 North Main Street

Elkhart, IN 46515

[phone]
