USER MANUAL HBG 3440 DOMETIC

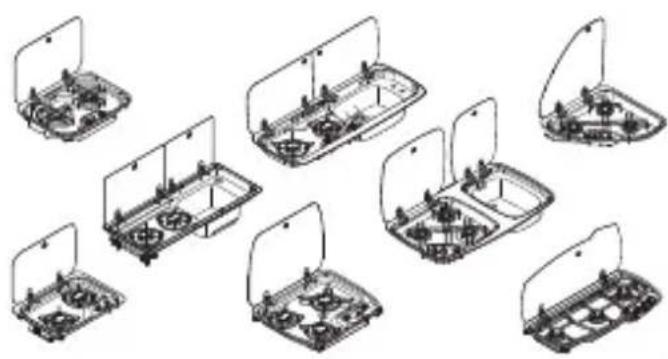

HOT AND COOKING HOBS AND COMBINATIONS

Technical line drawings of various electrical heating devices and circuit boards (no text or symbols)

CE99-DF (HBG3445), CE99-ZF (HBG2335), KSK2007R, MO7103, MO7123, MO9222L (HSG2370L), MO9222R (HSG2370R), MO9722L, MO9722R, PI8002, PI8022, PI8023, PI9003, PI9023

EN

Cooktops and combinations

Installation and Operating Manual ..... 20

DE

© 2023 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

NOTICE

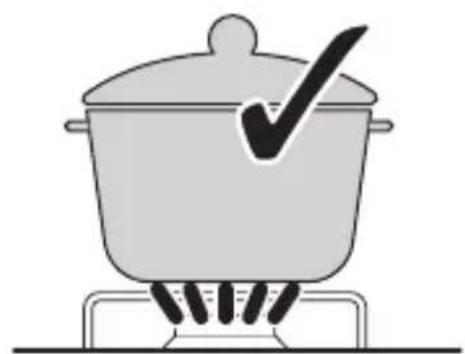

Simple line drawing of a cooking pot with a checkmark inside, placed on a gas stove (no text or symbols)

Simple line drawing of a pot on a stove with a crossed X mark symbol (no text or labels)

1

Line drawing of a gas stove with four heating units (no text or symbols)

Warning symbol sequence with icons and arrows indicating action, flame, and explosion

Simple black flame icon on white background (no text or symbols)

Line drawing of a mechanical knob with a curved handle and two flame-like cutouts (no text or symbols)

2 ≥ 135 ≥ 500 ≥ 135 ≥ 135

3 PI80x2 R30 233 233 R30 179179 135° 248 135° 248 358 R70 466 R70

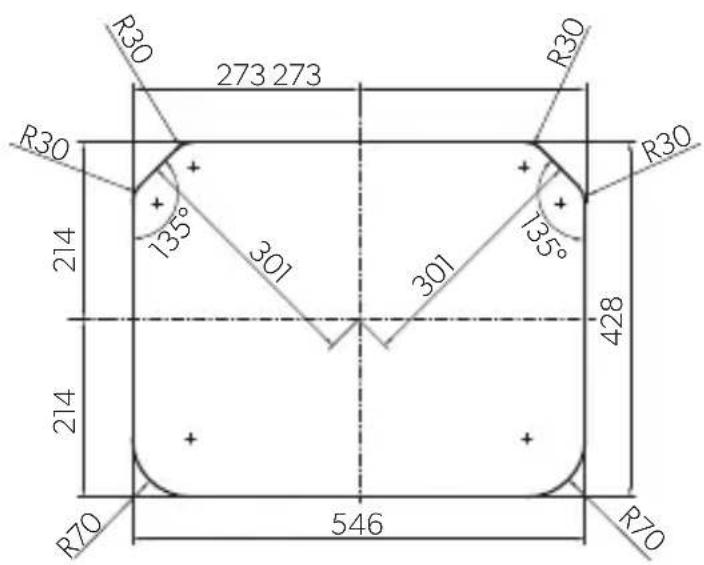

4 PI80x3 (HBG3440)

R30 273 273 R30 135° 301 301 135° 214 214 428 R70 546 R70

5

6
MO71x3

671 18863 33 R60.5 33 A R60.5 R1036.5 135° 151.5163 R20 A 196 155 151.5163 448.9 R2280.5 212.1196 325 204.6 R56.6 23.7 57.9 193.1 23.7 R56.6 394 394 90° A-A 13 8.5 12

8

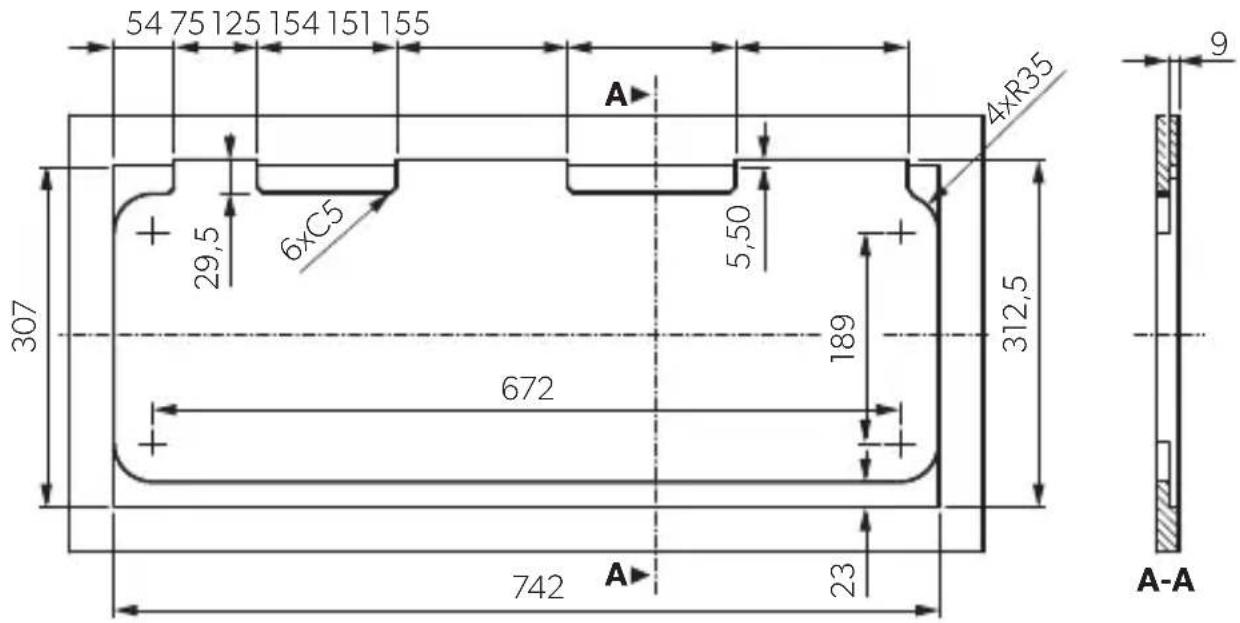

MO9722R

5475125154151155 9 A 4xR35 6xC5 29,5 307 312,5 189 672 23 742 A-A

MO9722L

54 75 125 154 151 155 A 4xR35 9 29,5 6xC5 5,50 307 189 312,5 672 742 23 A-A

9

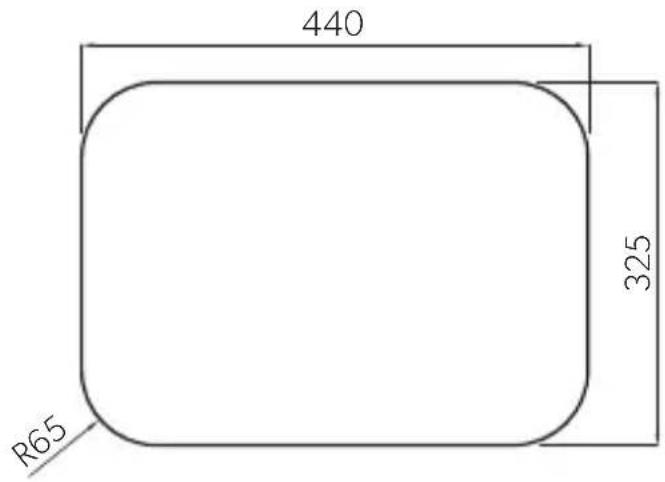

CE99-ZF (HBG2335)

440 325 R65

10

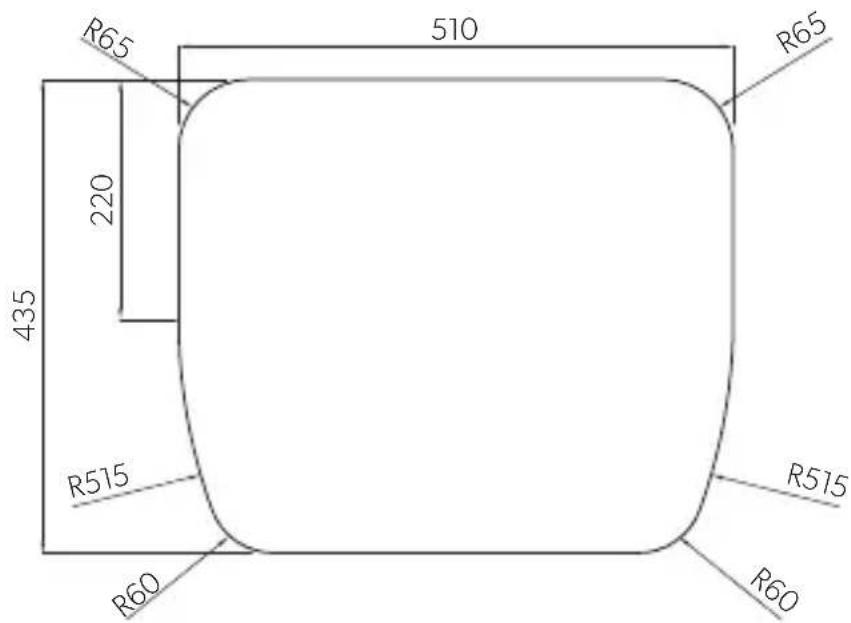

CE99-DF (HBG3445)

R65 510 R65 220 435 R515 R515 R60 R60

11
KSK2007R

12

A 4x h= ≥ 21 mm ≤ 25 mm B 4x h= ≥ 16 mm ≤ 21 mm PI80x2 PI80x3

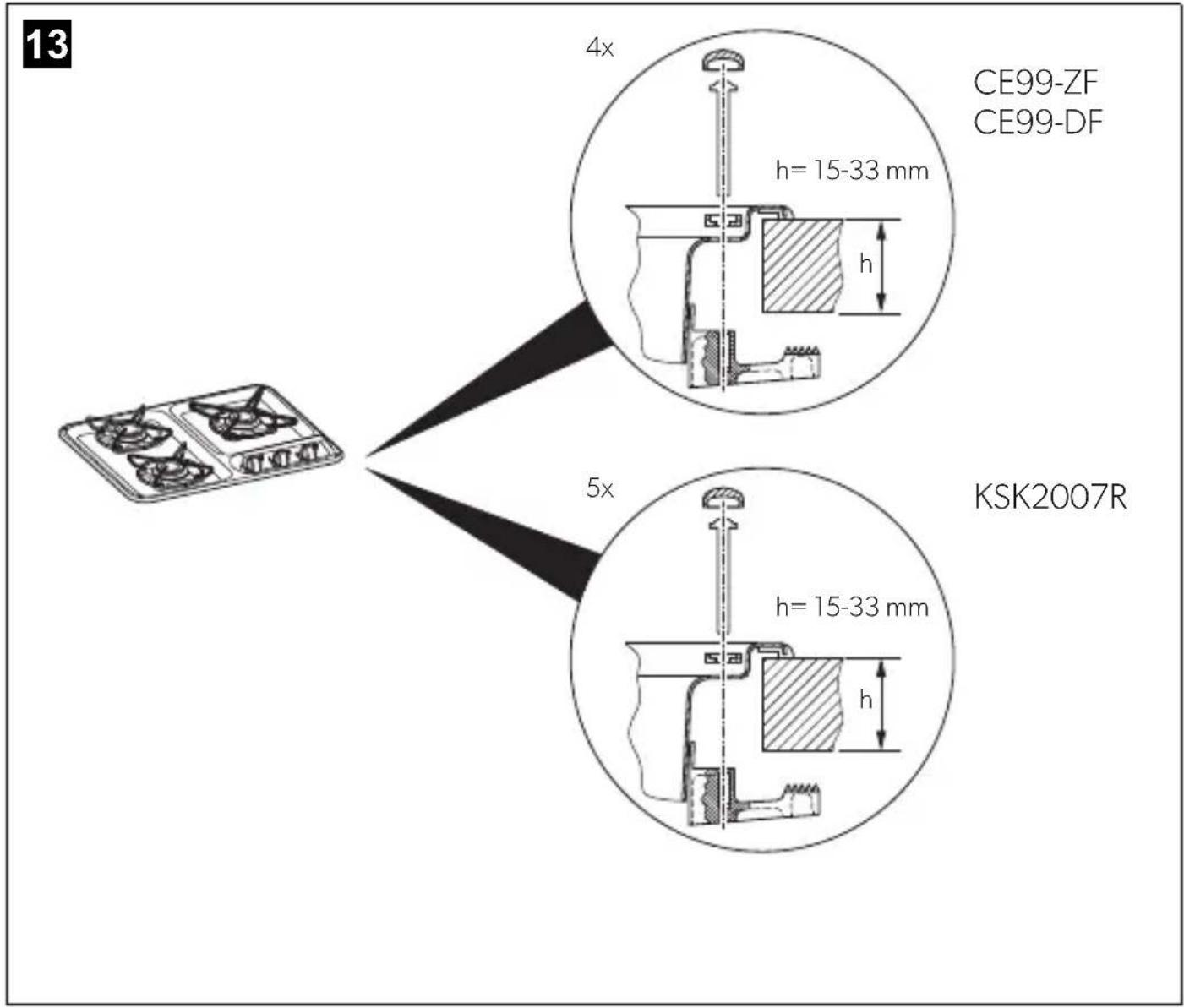

13 4x h=15-33 mm h 5x CE99-ZF CE99-DF KSK2007R

14

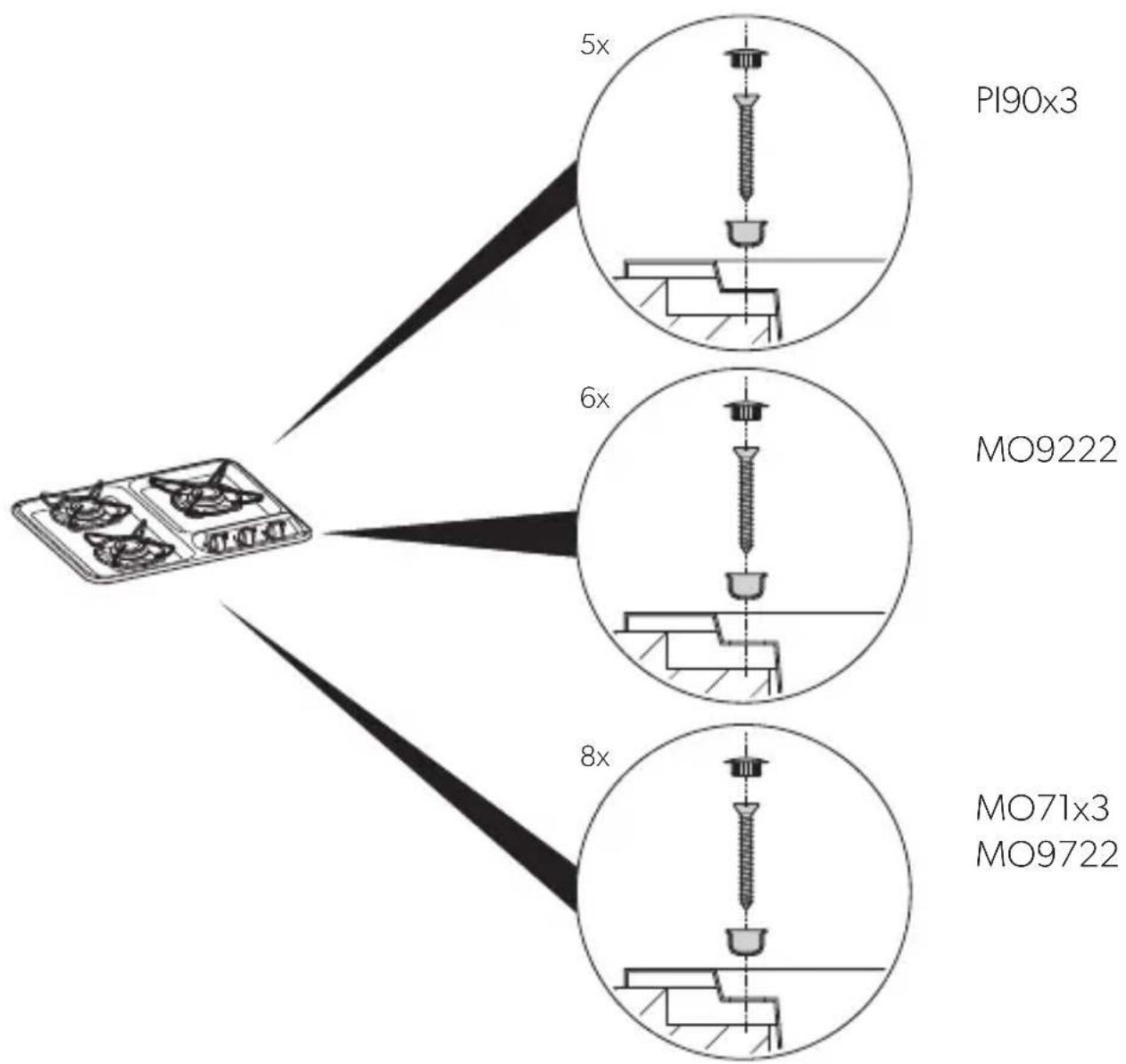


15
A

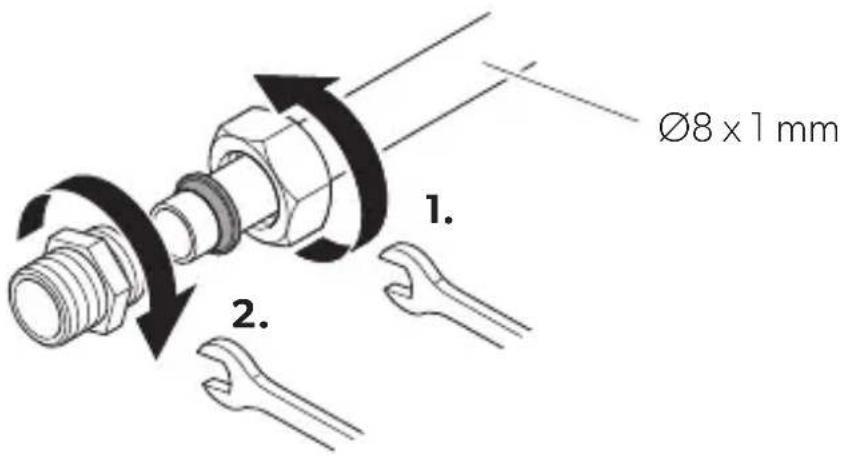

Ø8 x 1 mm 1. 2.

B

3 1. 2.

16

≤ 200 cm 2 x 0,5 mm² 1 A bk rd 12 V rd = red bk = black

17

PI80X2 AA D

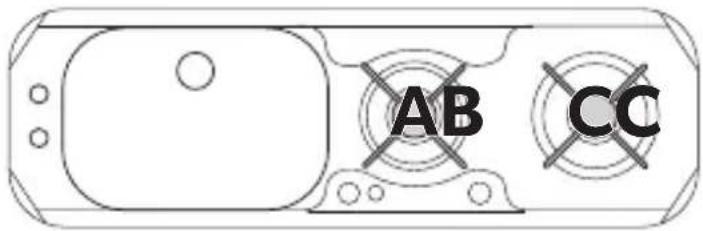

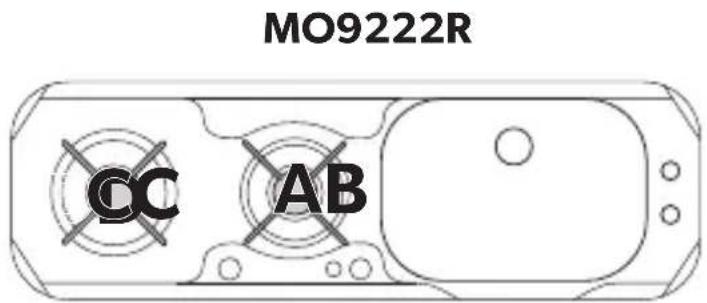

MO9222R CC AB

MO9222L

AB CC

PI80X3 (HBG3440)

AA CC C

MO9722R

AA C D D

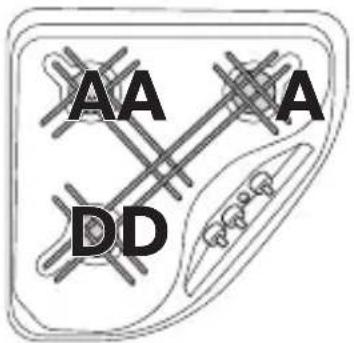

PI90X3

AA A DD

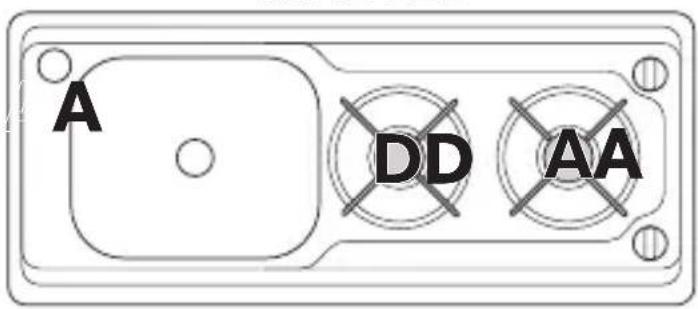

MO9722L

A DD AA

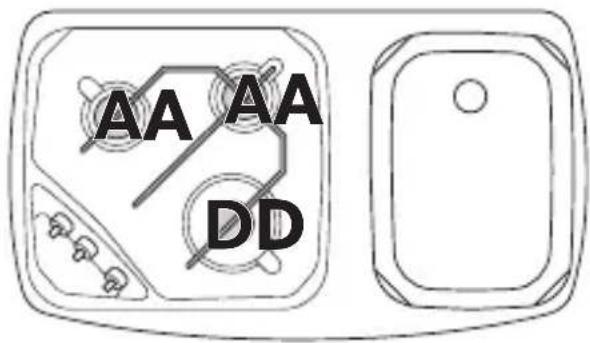

MO71X3

AA AA DD

18
CE99-ZF (HBG2335)

Technical diagram of a device casing with two circular components labeled A and C, no readable text or symbols present.

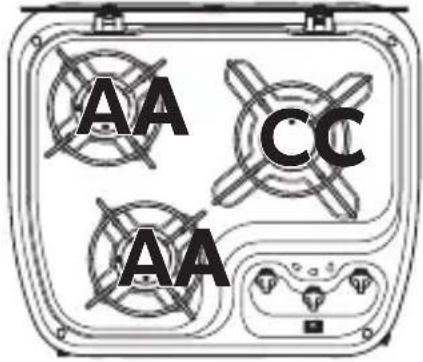

CE 99-DF (HBG3445)

AA CC AA

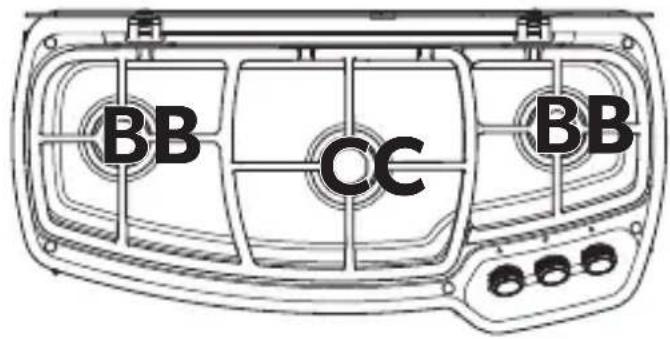

KSK2007R

BB CC BB

19

1.

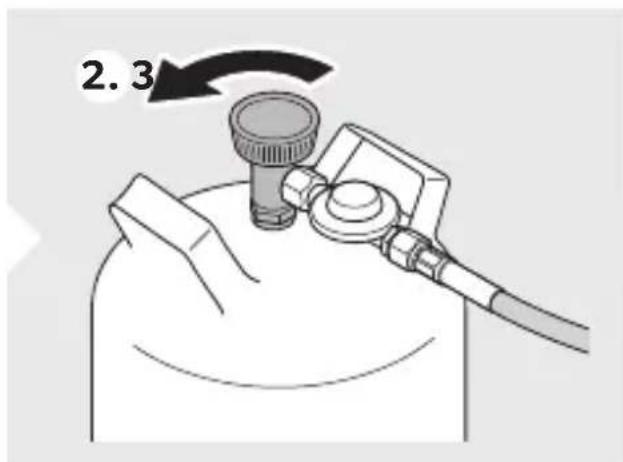

2.3

4. 5.


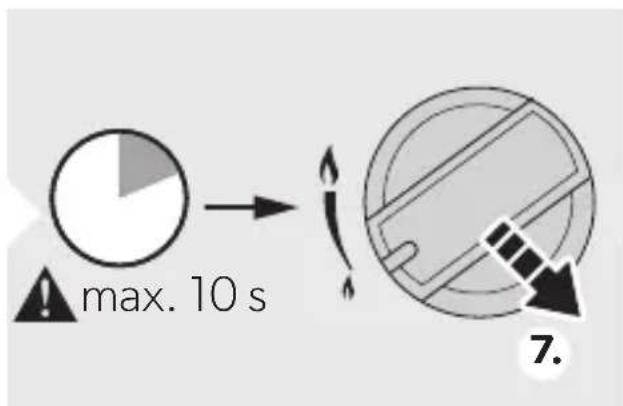

max. 10 s 7.

8.

20

1.

2.

3.

21

Diagram illustrating safety warning and hazard, showing a tool, gear, and paw print with numbered annotations.

22

23

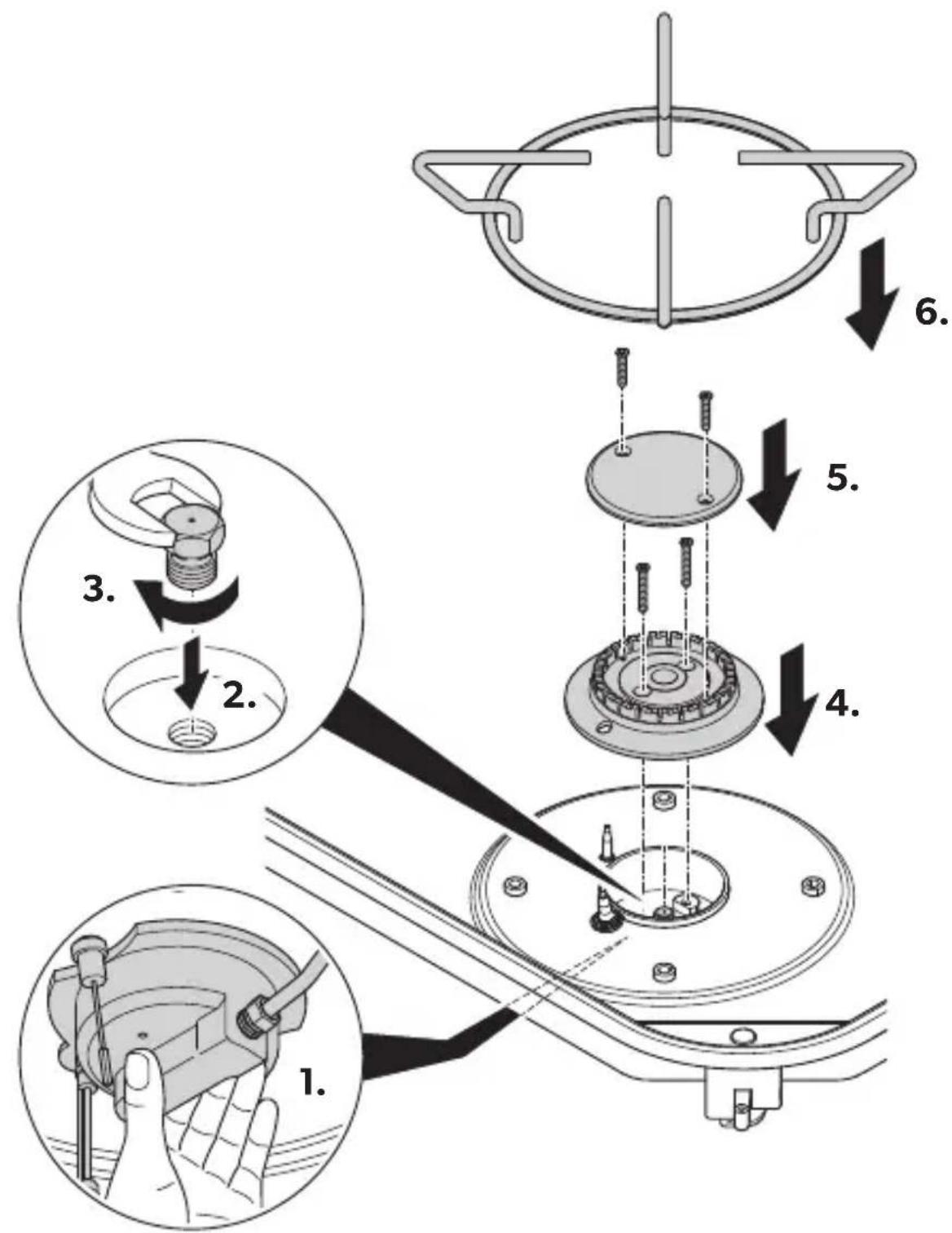

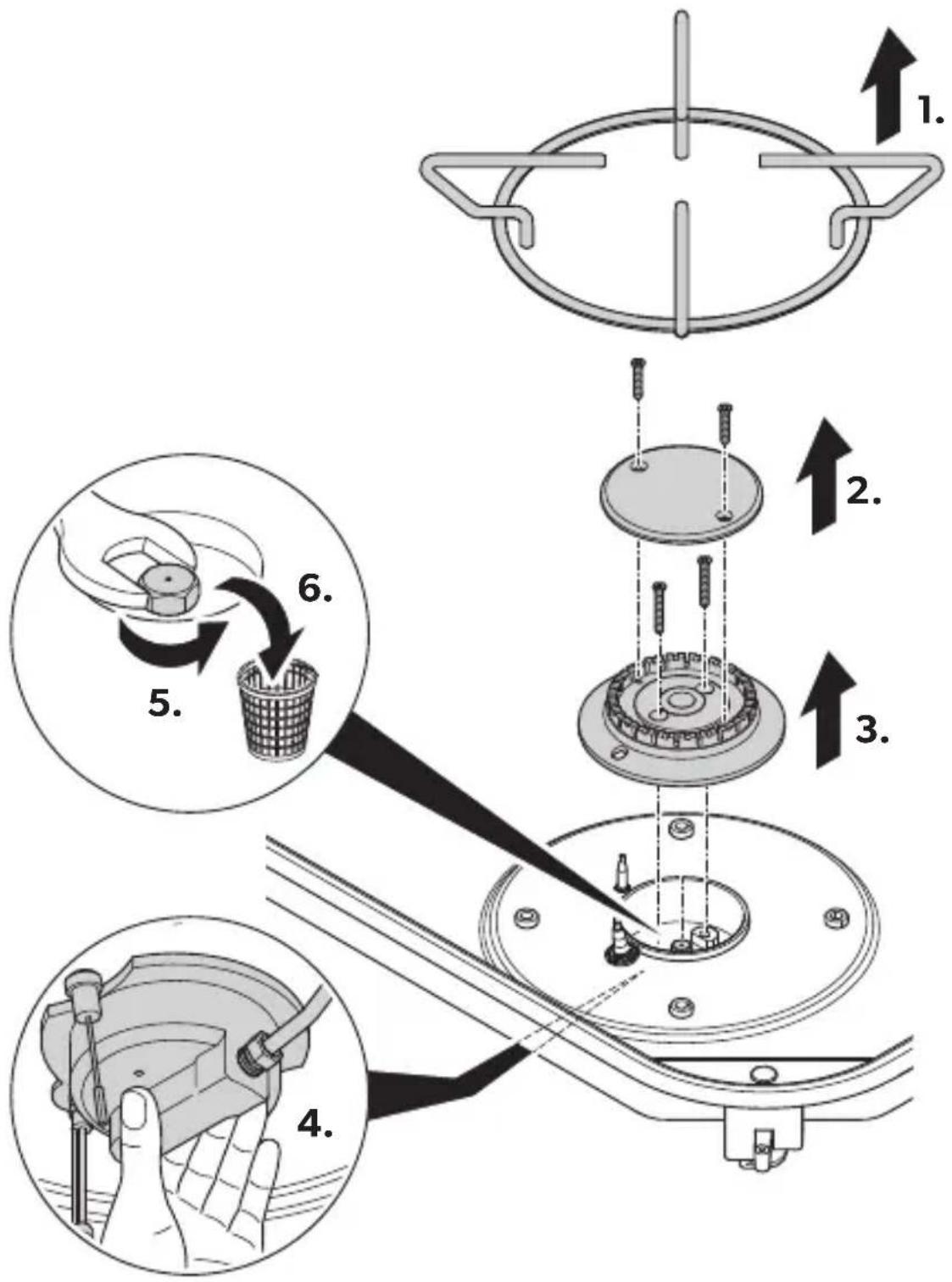

Technical diagram illustrating a mechanical assembly with numbered steps for tool installation or maintenance.

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com.

Contents

1 Explanation of symbols....20
2 General safety instructions....21
3 Scope of delivery 23
4 Intended use....23
5 Technical description....24
6 Installing the device 24
7 Using the device....25
8 Cleaning the device 26
9 Maintaining the device....27
10 Warranty 27
11 Disposal....27
12 Technical data....28

1 Explanation of symbols

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

2 General safety instructions

2.1 General safety

WARNING!

• This device must only be repaired by qualified personnel. Improper repairs can result in considerable danger or damage to the device.
• Do not modify this device.
• Observe the gas category and the allowed gas given in chapter "Technical data" on page 28. Do not use any other fuels.
• Keep a suitable fire extinguisher in the immediate vicinity. Ensure that the fire extinguisher is checked by a specialist in regular intervals.
• Do not use or store flammable materials in the device storage drawer or near this device.
• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the device are compatible.
• The adjustment conditions for this device are stated on the label.
• This device is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

CAUTION!

• In case of safety glass cover breakage:
• Shut off immediately all burners and any electrical heating element and isolate the device from the power supply.
• Do not touch the device surface.
• Do not use the device.

2.2 Safety when operating with gas

WARNING!

- Keep flammable substances away from heating and cooking devices, and other light and heat sources.

- Suffocation hazard!

Before switching on the device, ensure that the area is sufficiently ventilated. During operation, there must be air vents with a cross-section of at least 150 cm^2 in the installation space. These vents can be closed, but must be kept open when the device is operating (see sign located above the device).

- Only operate the device at the pressure specified on the type plate. Only use pressure regulators with a fixed setting that comply with the national regulations.

• Compare the pressure information on the type plate with the pressure information on the propane or butane gas cylinder.

• If you smell gas:

• Open all windows and leave the room.

• Do not operate any electrical devices or switches, and avoid using open flames that can ignite the gas.
• Close the valve on the gas cylinder and keep it closed until the fault has been rectified.
• Never attempt to find a gas leak with an open flame.

- For countries which are not mentioned in chapter "Technical data" on page 28 (country symbol) refer to national regulations. If necessary the device must be modified according to these national regulations.

2.3 Operating the device safely

WARNING!

- Use the integrated igniter (if available) or long matches or a suitable lighter. The complete ignition process must be visible from above and must not be hidden by pots placed on the stove.

Remove your hand quickly as soon as the burner ignites.

• Wear suitable clothing when operating the device.
  Do not wear loose fitting clothing which might catch fire.
• Do not use the device to heat the room.
• Never operate the device

- at petrol stations

-on ferry boats
- while transporting the camper van, caravan or motor caravan with a transport vehicle or tow truck

- Do not spray aerosols in the vicinity of this device while it is in operation.

CAUTION!

• Let the device cool down to ambient temperature before you touch it with bare hands.
• Keep the area surrounding the device free of grease, fat, alcoholic substances, plastics and flammable cloths (for example, curtains, towels, kitchen utensils).
• Only use pots and pans with an even base and a diameter no larger than the grids on the device. The pots and pans must be large enough to cover the flame. If the flames are not covered, items of clothing could catch fire.
• When cooking, ensure that pans and pots are firmly set down.
• Never allow pot handles to extend beyond the edge of the device. Turn pot handles inward, but not extending over other burners. This will minimize the risk of spillage, ignition of flammable materials and/or serious burns.

• Be careful when heating grease or oil. Grease and oil catch fire when exposed to intense heat.

• Use only dry pot holders to prevent the formation of steam. Do not use towels or similar items instead of pot holders, as these can catch fire.

• Only operate the device when you or another person can attend to it. Pots boiling over can cause smoke and fires.
• Turn off the device before removing the pot or pan.

- Risk of breakage!

If available close the glass cover before beginning a journey. Open the glass cover before igniting the burner.

- Glass lids may shatter when heated. Turn off all the burners before shutting the lid.

3 S c o p e o f d e l

• Cooktop (PI80xx, PI90x3, CE99-DF, CE99-ZF, KSK2007R) Combination (MO71x3, MO9x22)
• Fastening screws (depending on the model)
• Siphon and rubber seal (depending on the model)
  • Installation and operating manual

4 Intended use

The liquefied gas cooktops in the following model series are intended for installation in a kitchen or worktop in caravans and motor caravans. They are not suitable for boat or marine usage.

The model series covered by this manual are:

• PI80x2
• PI80x3 (HBG3440)
• PI90x3
  • MO71x3
• MO9x22
  • CE99-DF (HBG3445)
  • CE99-ZF (HBG2335)
• KSK2007R

The devices must only be used for cooking food. The device must not be used as a space heater.

This device shall be installed in accordance with the regulations in force and only used in a well ventilated space.

Read the instructions before installing or using this device.

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

5 Technical description

5.1 Function

The device is equipped with an automatic flame monitoring device which automatically interrupts the gas supply after approx. 20 seconds if the flame goes out.

5.2 Specifications for the different models

The devices are available in different versions:

• CE99-ZF: Cooktop with two burners and safety glass cover
• PI80xx: Cooktop with two to three burners and safety glass cover
- CE99-DF: Cooktop with three burners and safety glass cover
- KSK2007R: Cooktop with three burners and safety glass cover
- PI90x3: Cooktop with three burners and safety glass cover
• MO71x3: Combination with three burners, safety glass cover and a sink
• MO9x22: Combination with two burners, safety glass cover and a sink

The safety glass cover can be used as a work surface when it is closed.

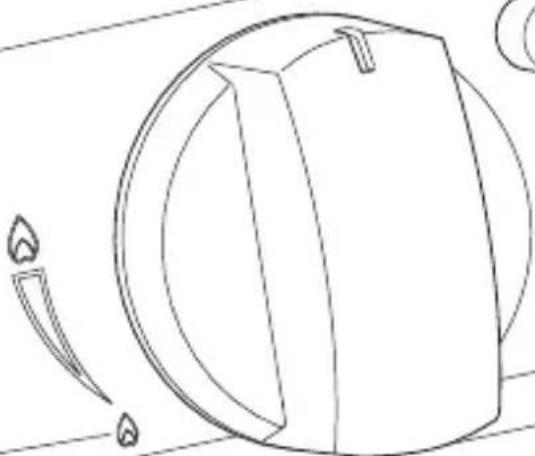

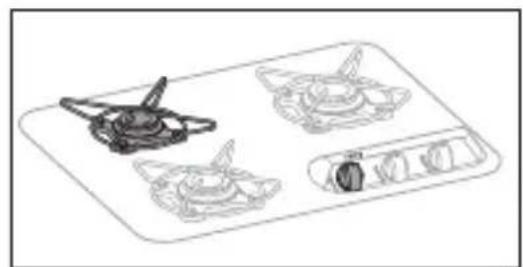

5.3 Control panel

See fig. 1, page 3

6 Installing the device

WARNING!

Assembly and installation of the device must only be carried out by specialists. Incorrect assembly and installation can result in serious hazards due to the escape of gas.

6.1 Selecting the installation location

When selecting the installation location, observe the following instructions:

• Consider the volume of air required for combustion (chapter "Technical data" on page 28).
• During operation, there must be air vents with a cross-section of at least 150cm^2 in the installation room.

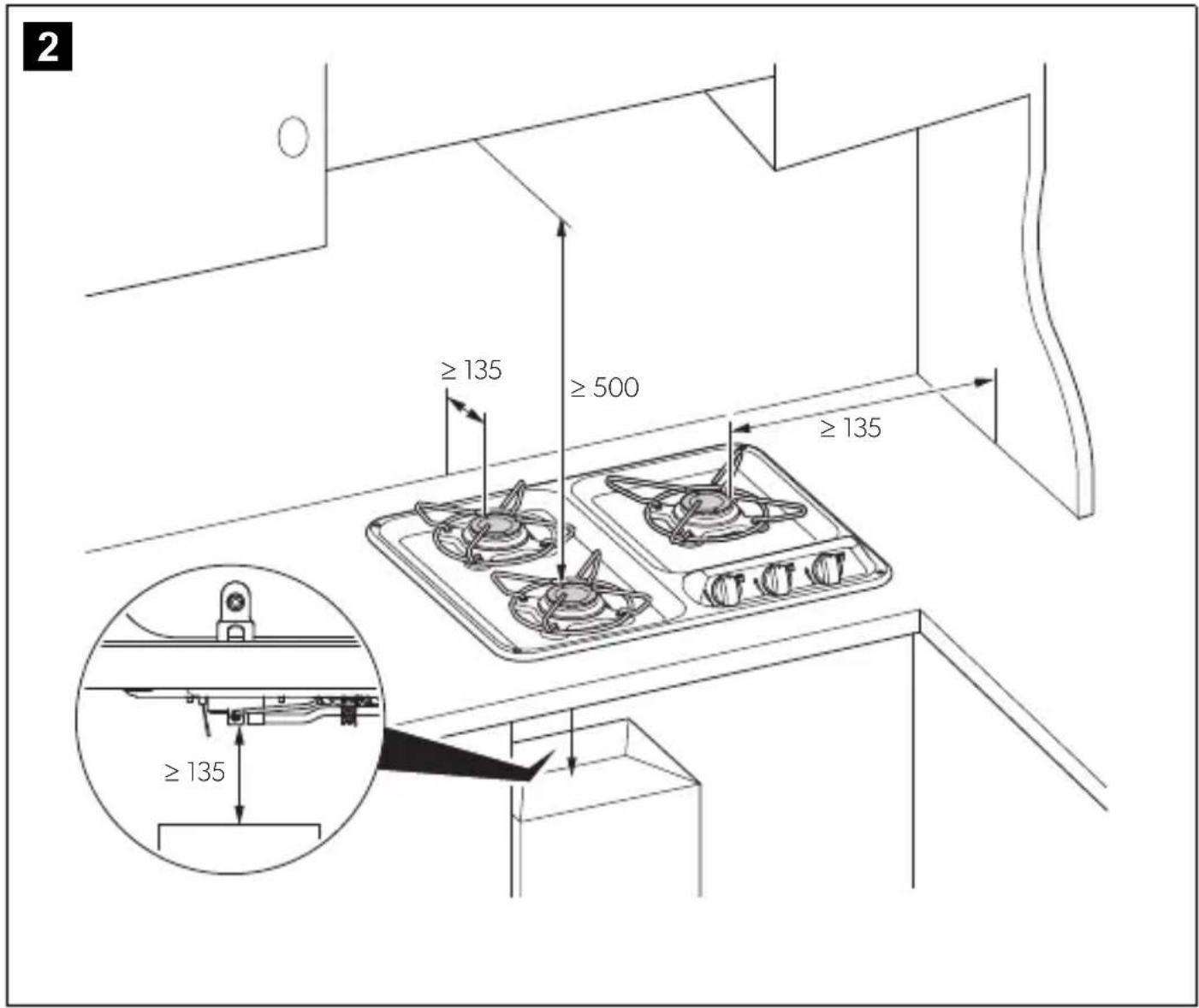

  • Make sure that minimum distances (fig. 2, page 4) are observed.
• Ensure that there are no drafts at the installation location.

6.2 Installing the device

1. Create a cutout according to the installation drawing:

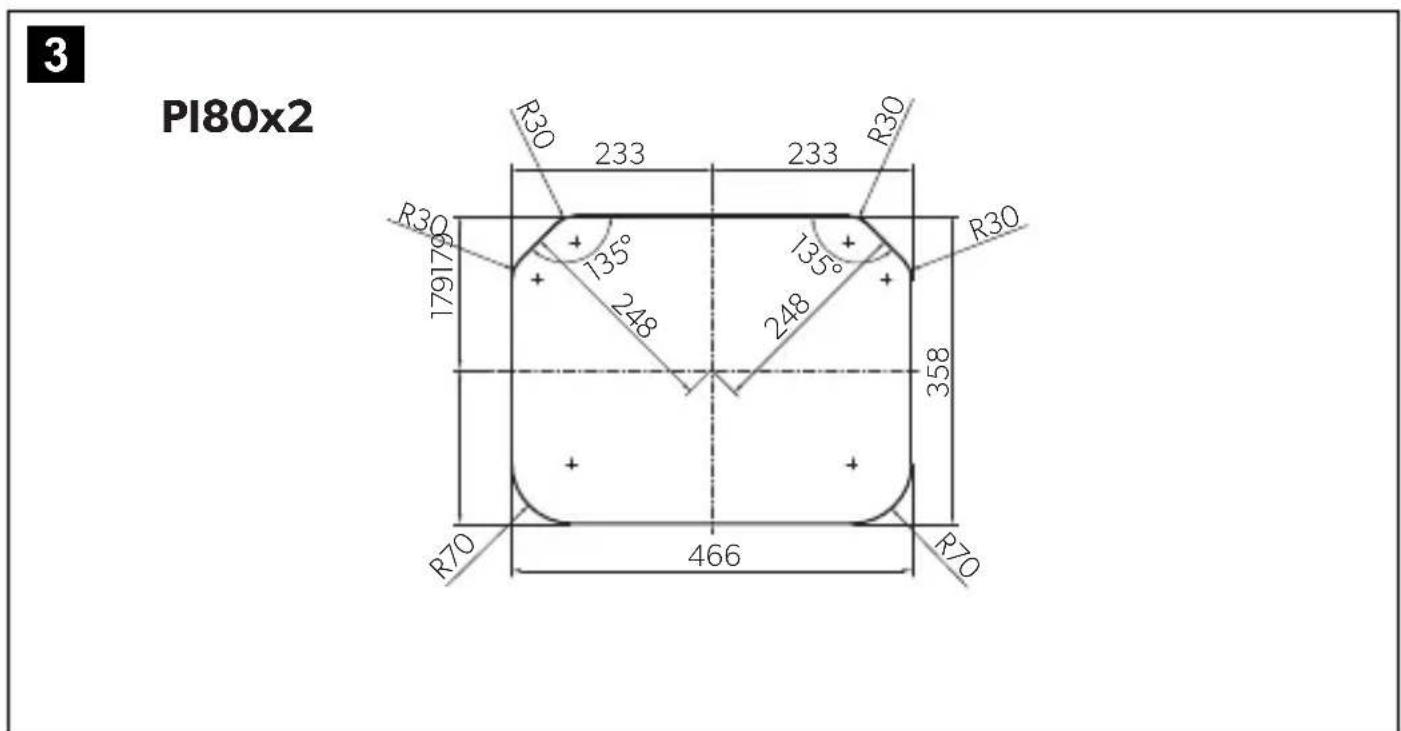

2. PI80x2: fig. 3, page 4

3. PI80x3: fig. 4, page 5

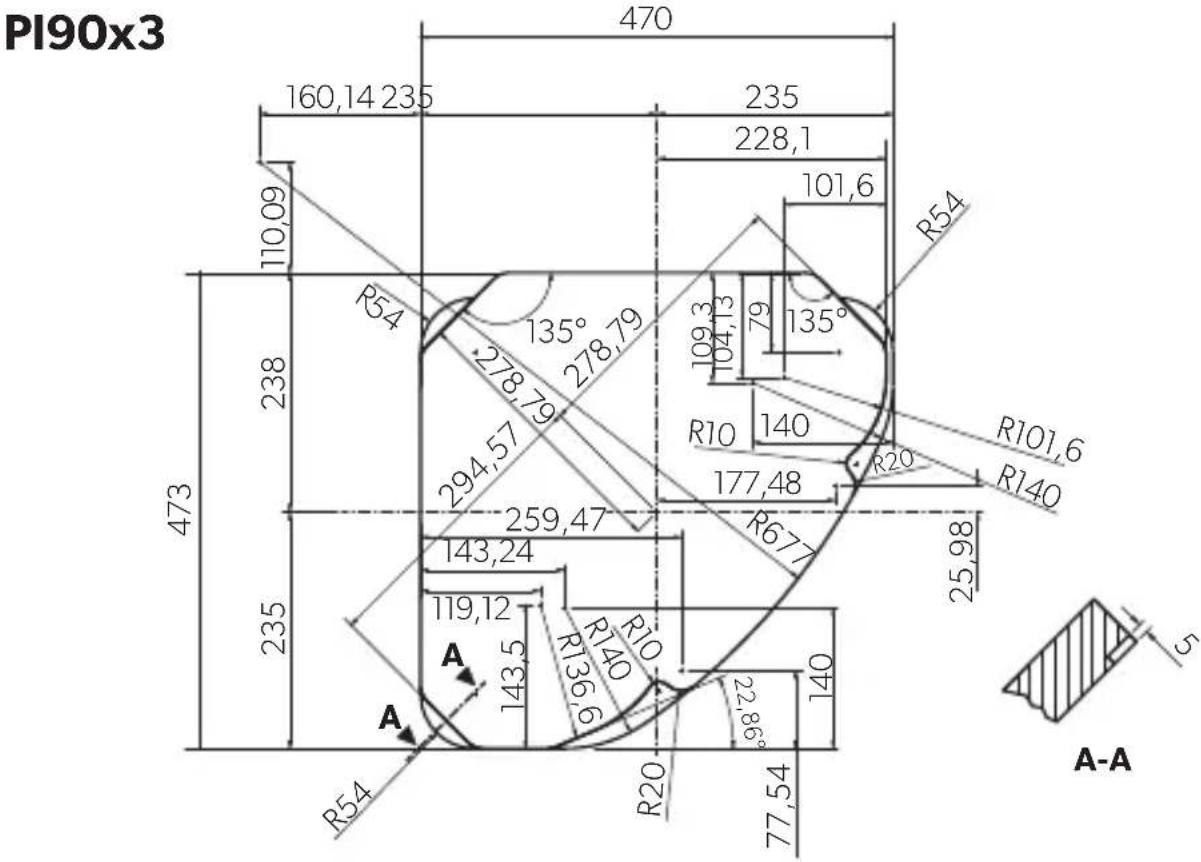

4. PI90x3: fig. 5, page 5

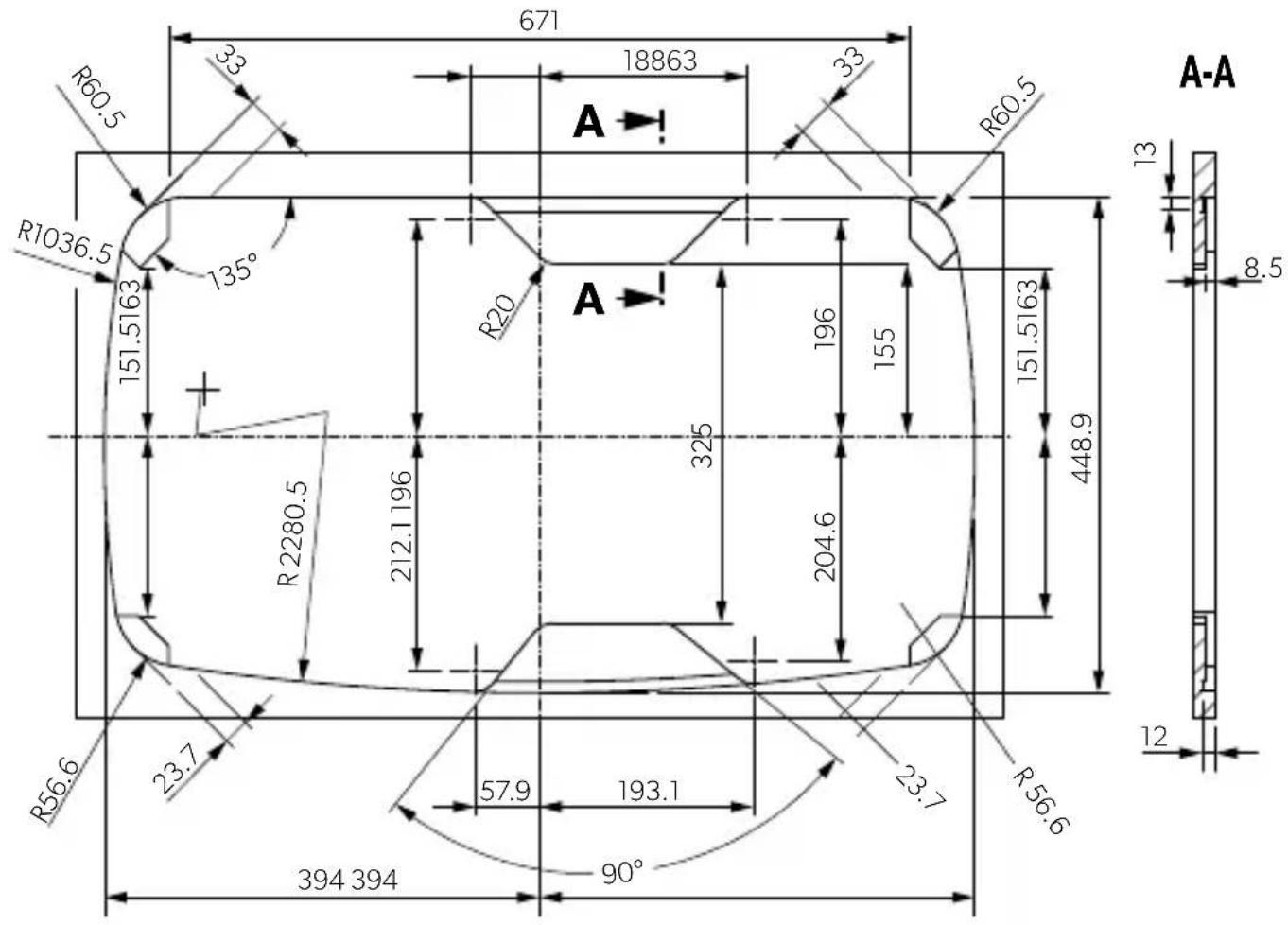

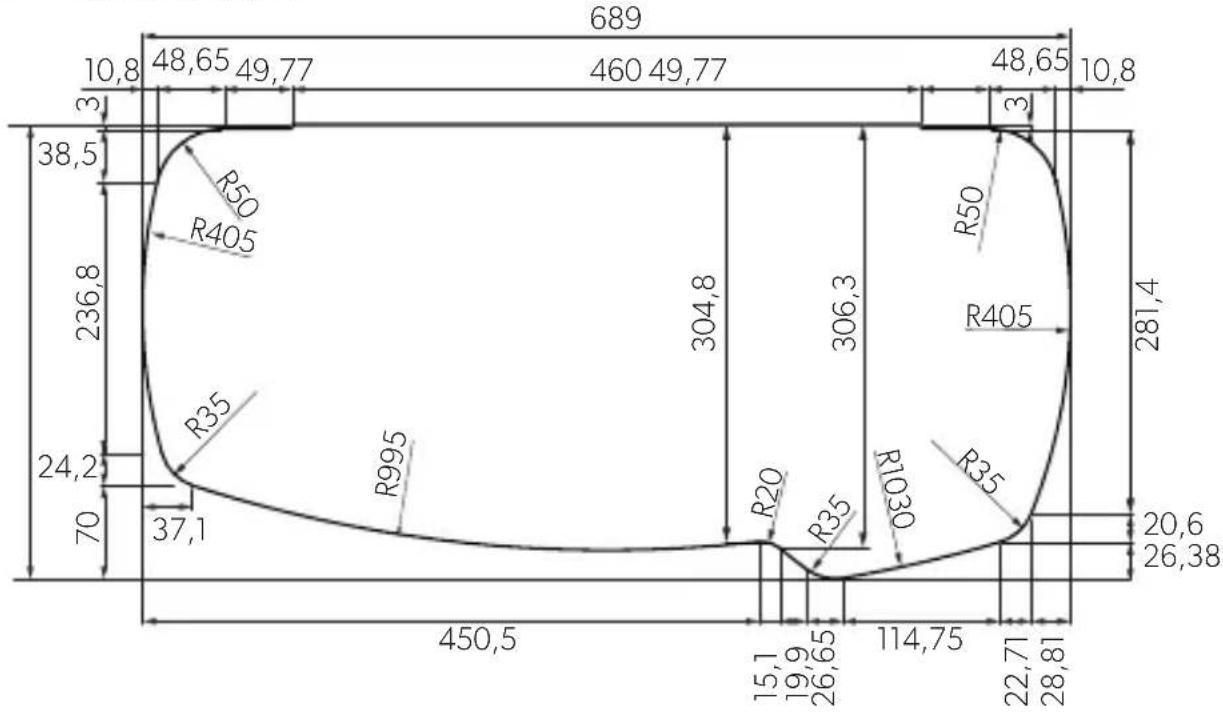

5. MO71x3: fig. 6, page 6

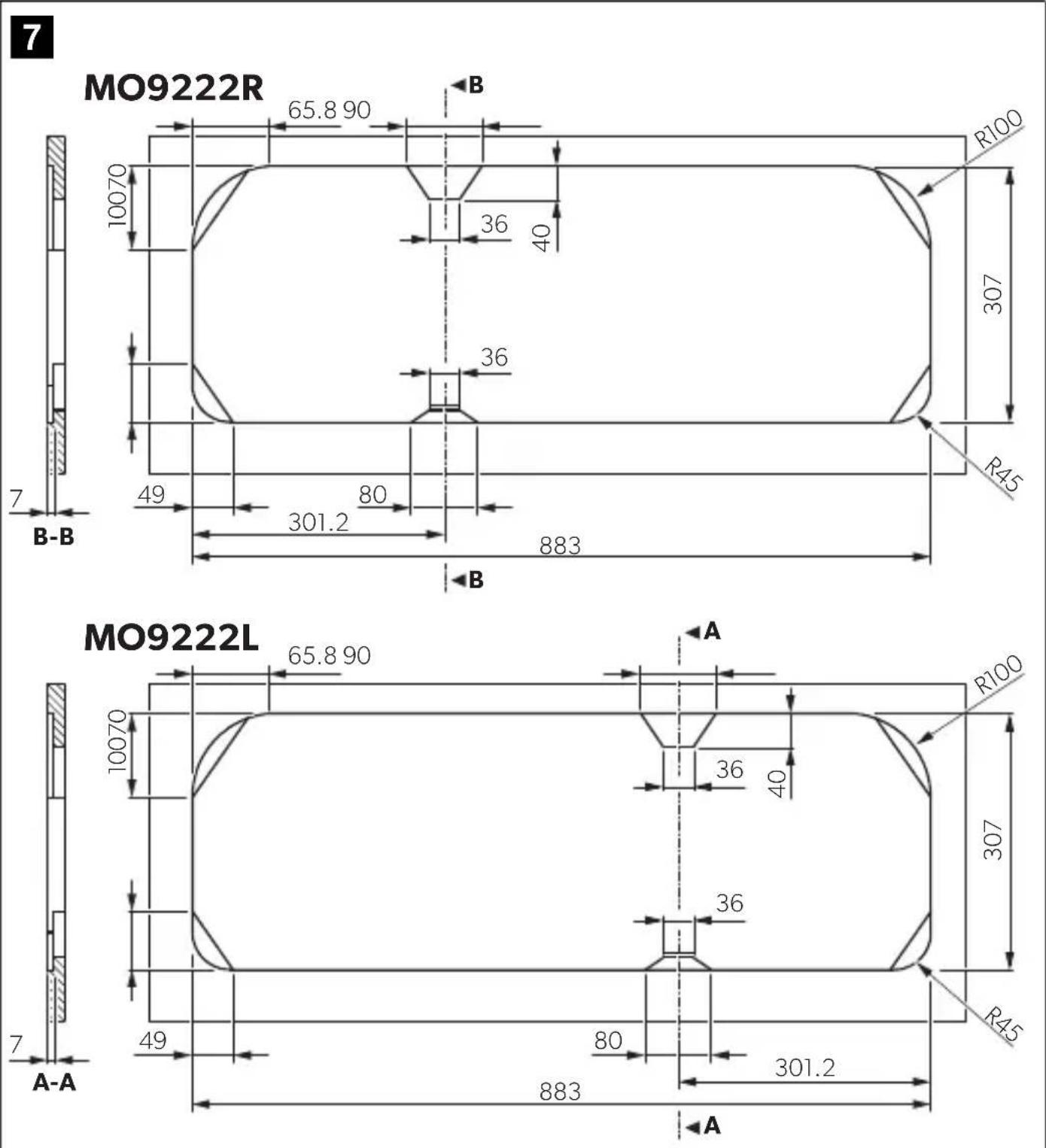

6. MO9222: fig. 7, page 7

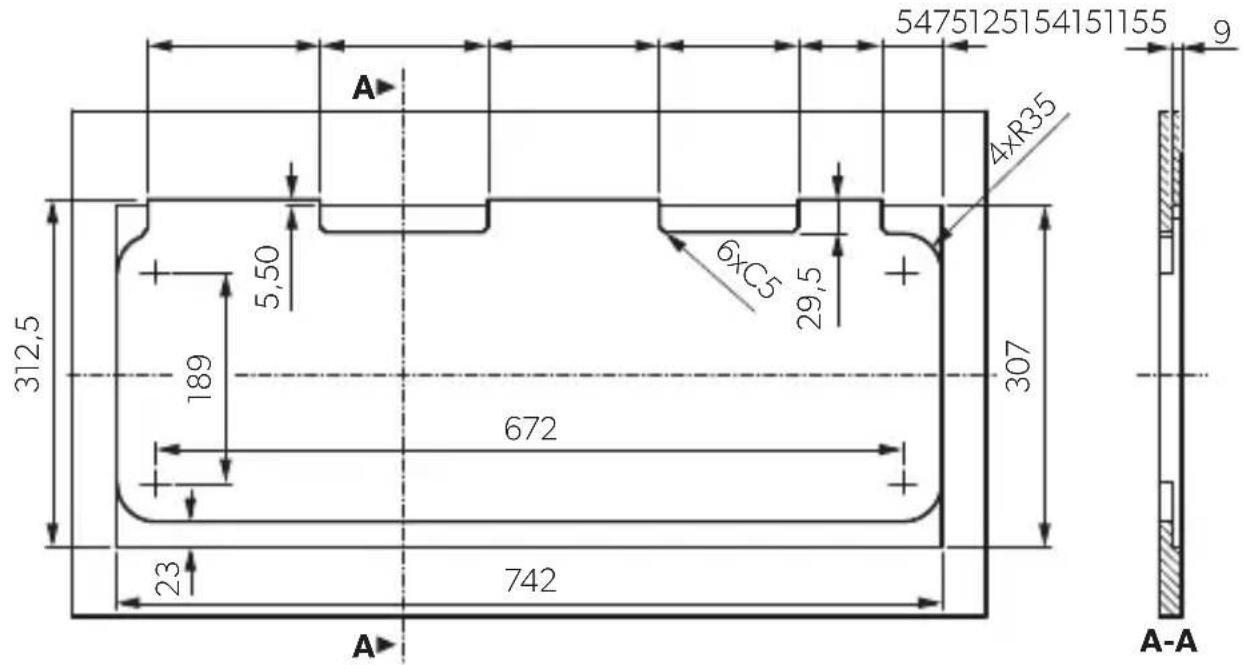

7. MO9722: fig. 8, page 8
8. CE-99-ZF: fig. 9, page 9
9. CE99-DF: fig. 10, page 9

10. KSK2007R: fig. 11, page 10

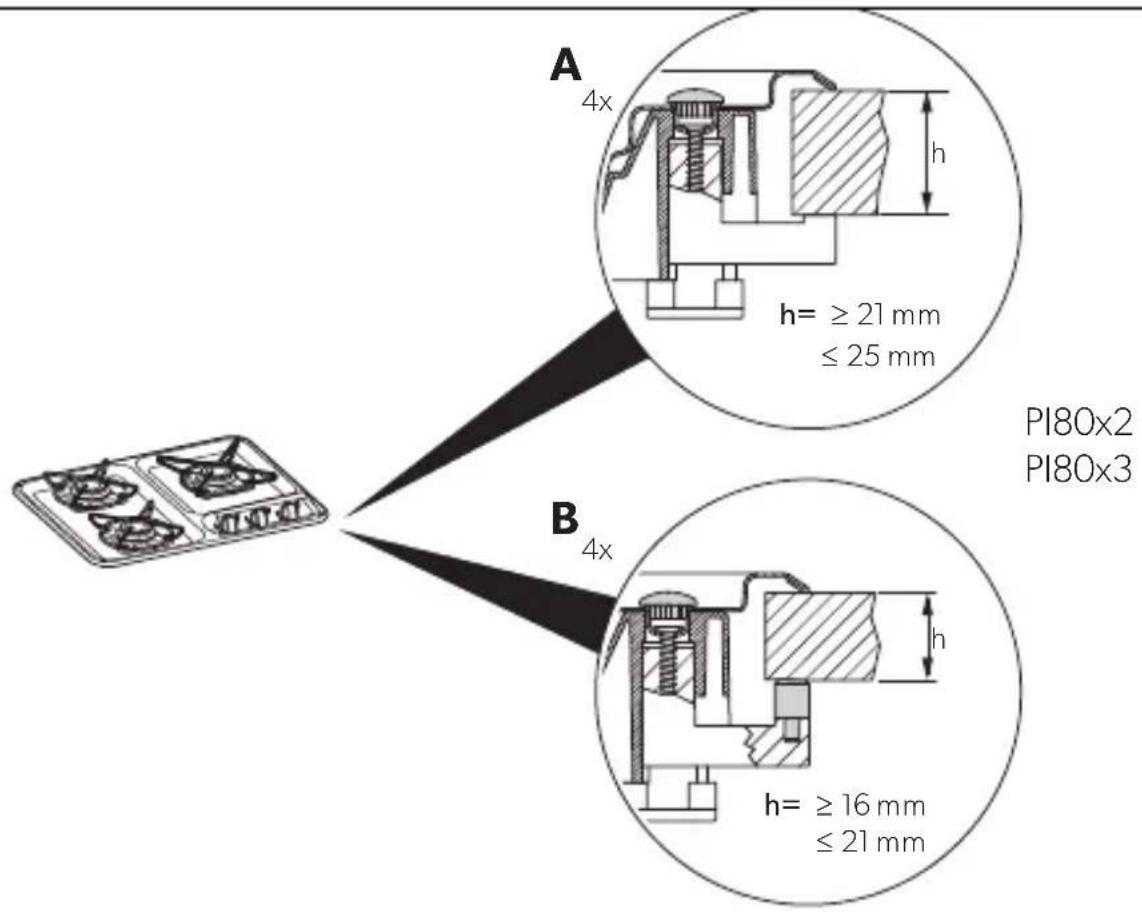

11. Affix the device to the worktop using the screws (fig. 12, page 10 – fig. 14, page 12).

6.3 Connecting the device to the gas supply

WARNING! Risk of injury

Only use propane or butane gas cylinders with a certified pressure reduction valve and suitable head. Compare the pressure information on the type plate with the pressure information on the propane or butane gas cylinder.

You must use a rigid gas line for the connection.

Observe the following instructions for the connection:

• Observe the national requirements.
• Use only steel pipe ∅8 x 1 mm (welded, seamless steel or stainless steel)
• Fasten the gas line to the side or rear wall of the surrounding furniture parts so that no loads are placed on the actuators.

• The entire gas line must be free of stress.

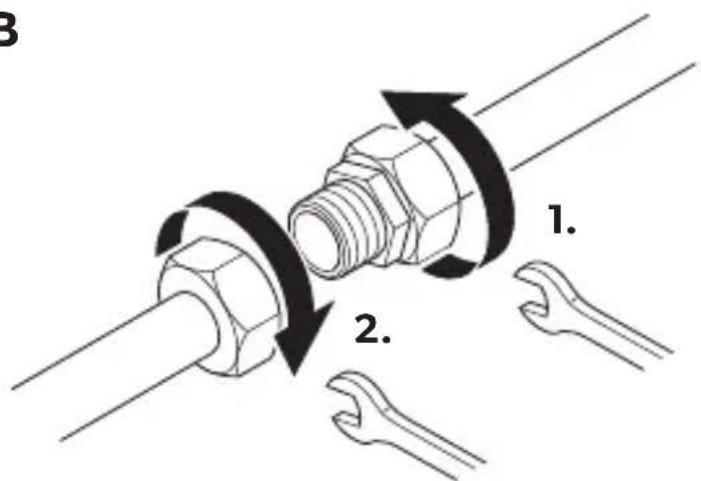

• Connect the pipes as shown (fig. 15, page 13).

• Attach a sign above the device with the following text:

"WARNING!

When cooking, additional ventilation must be provided, for example, by opening windows near the device.

The device must not be used as a space heater."

1. Open the gas supply.

WARNING! Risk of injury

Never check for leaks with an open flame or near sources of ignition.

1. Check all connections for leaks with leak spray.

There are no leaks if no bubbles form.

6.4 Connecting the device to the power supply (models with electronic ignition only)

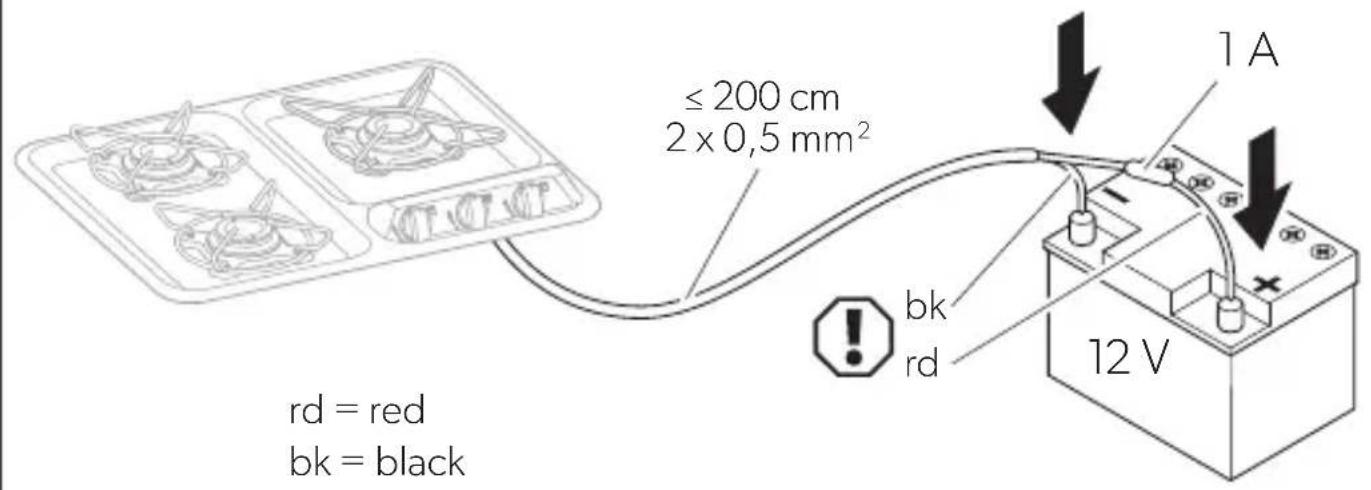

1. Connect the device as shown (fig. 16, page 13).

2. Add a 1 A fuse in the plus line near the battery.

7 Using the device

Prohibition sign showing a crossed-out diagonal line crossing over grass (no text or symbols)

CAUTION!

Do not shut lid when burner is alight.

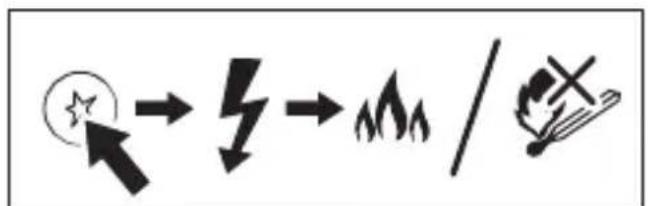

7.1 Igniting a burner

WARNING! Risk of injury

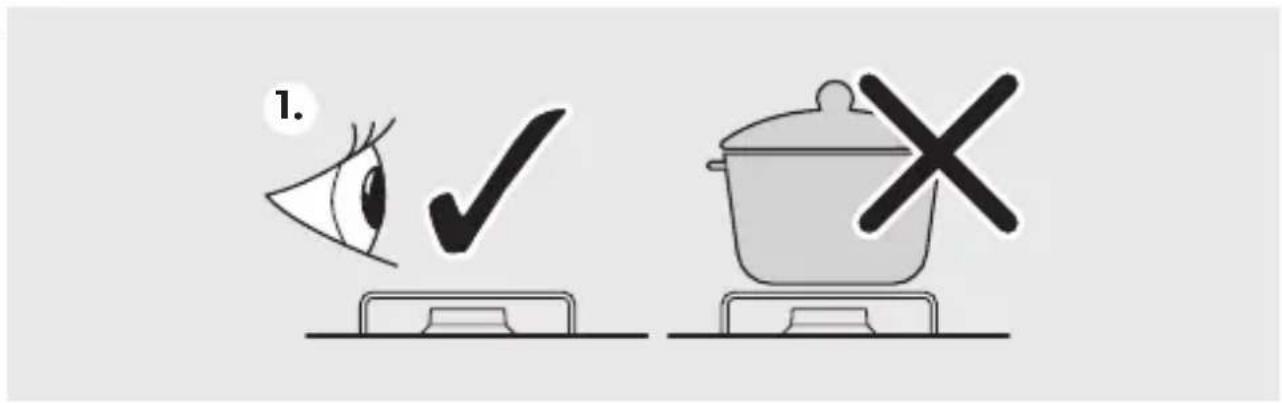

The complete ignition process must be visible from above and must not be hidden by pots placed on the stove.

NOTICE!

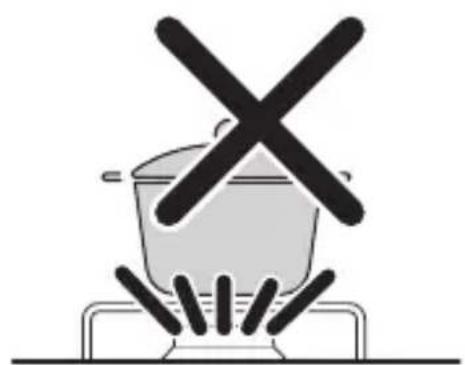

The flame must not extend beyond the edge of the pot. Centre the pot above the burner ensuring stability on the pot grid (see page 3).

1. Choose a pot according to the following table:

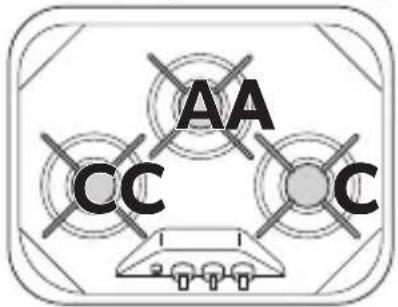

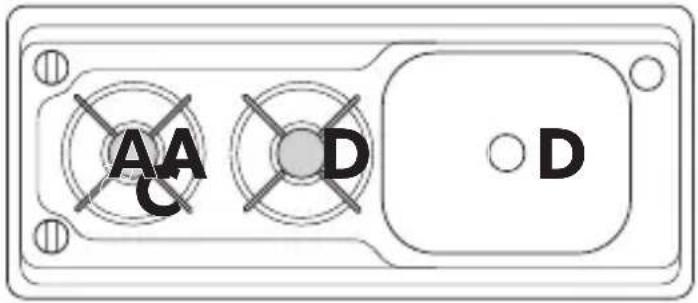

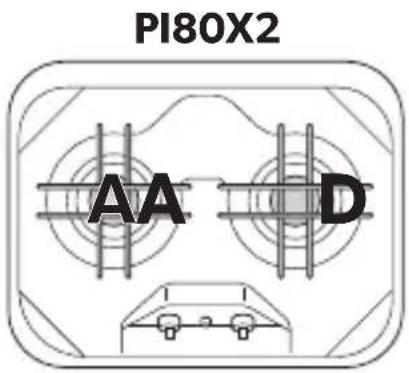

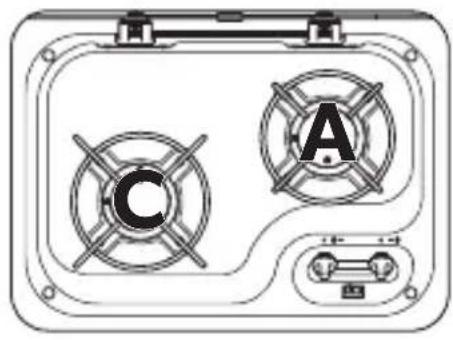

Burner (fig. 17, page 14 – fig. 18, page 15)	Pot diameter
A – B 9 – 15 cm
C 10 – 18 cm
D 16 – 22 cm

KSK2007R only: The maximum permissible pot sizes are 20 cm for the left burner, 18 cm for the right burner, 25 cm for the central burner. The pot size icons from left to right are S, L, S.

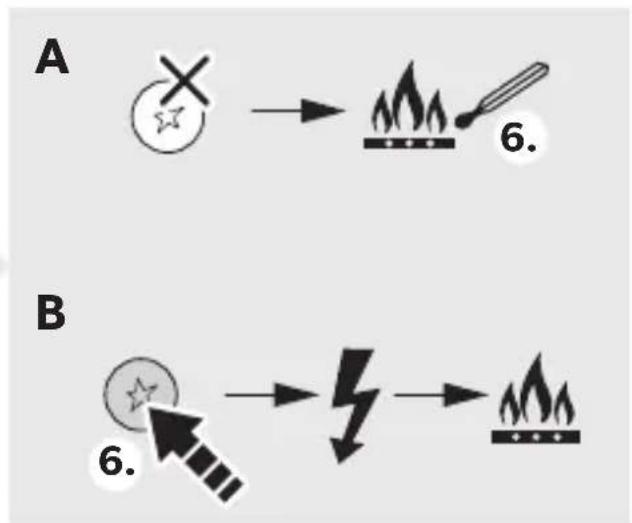

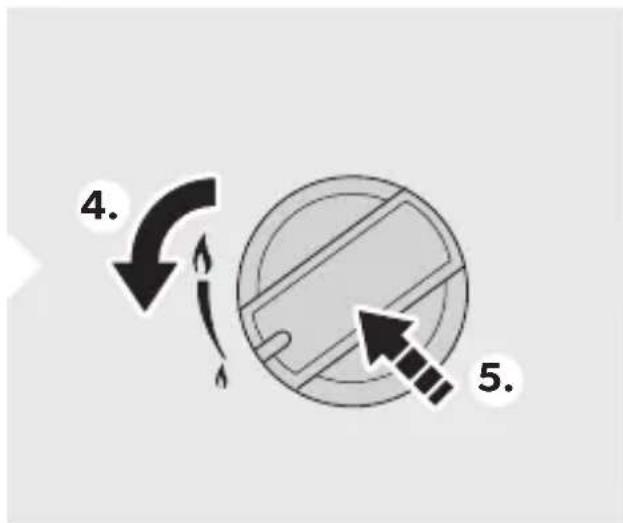

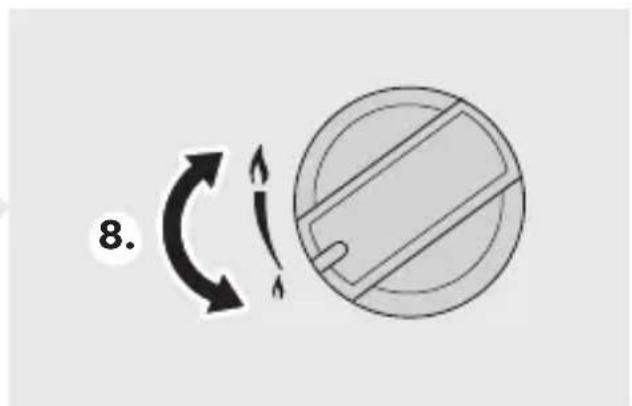

1. Ignite a burner as shown (fig. 19, page 16).

7.2 Switching off the device

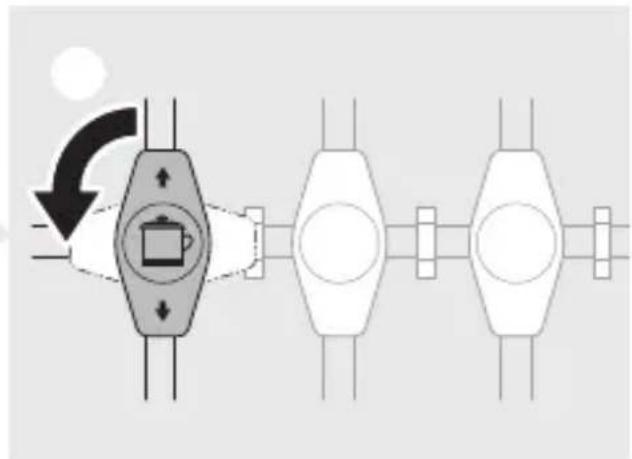

▶ Switch off the device as shown (fig. 20, page 17).

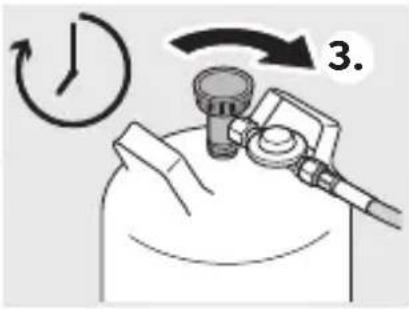

7.3 Replacing the gas cylinder

WARNING! Risk of injury

Only replace the gas cylinder when there is good ventilation.

Make sure that there is no source of ignition nearby.

Only change the gas cylinder when the device is not in use and the gas supply to the device is switched off.

1. Switch the device off by turning the knob to the zero setting.
2. Close the valve on the gas cylinder.
3. Replace the gas cylinder according to the instructions from the gas fitting manufacturer.

8 Cleaning the device

CAUTION! Hot surface

The surface may still be hot. Keep children away.

Let the device cool down to ambient temperature before you touch it with bare hands.

NOTICE!

Do not use any sharp or hard objects for cleaning since they may damage the device.

Only use standard commercial cleaning agents.

Do not use a steam cleaner to clean the device.

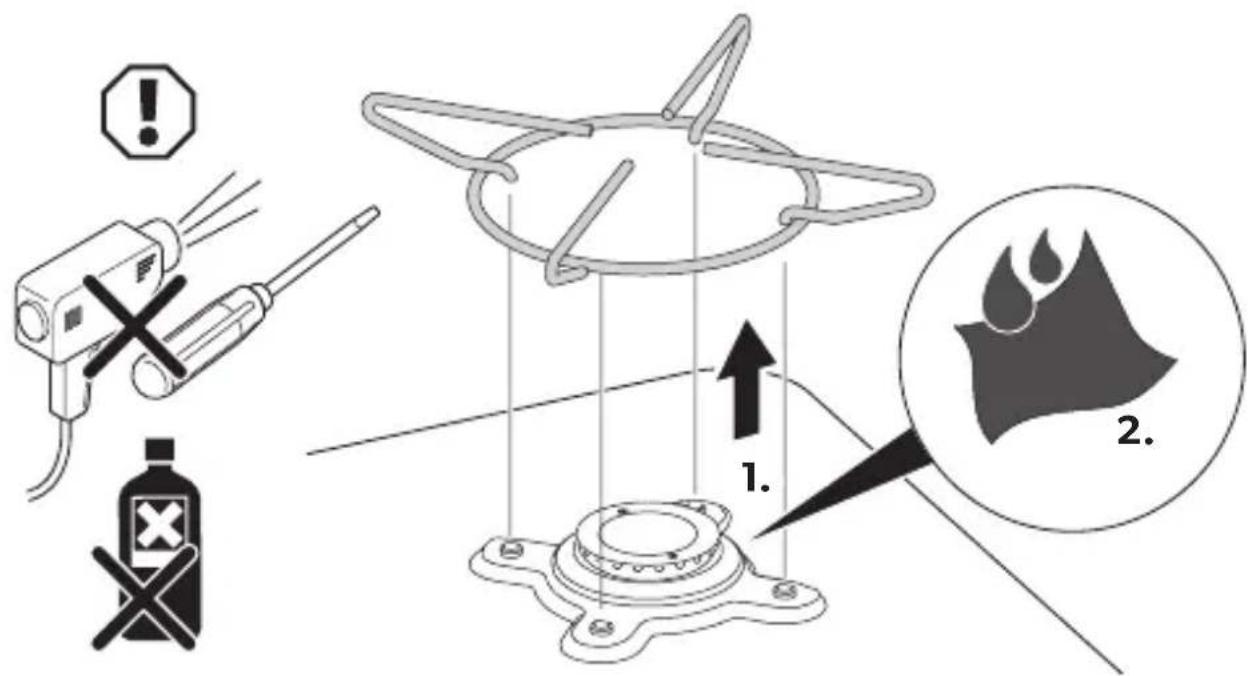

▶ Clean the device as shown (fig. 21, page 17).

9 Maintaining the device

9.1 Annual safety check

For safety reasons, have the device checked by an expert every year for proper function. Any defects must be repaired.

9.2 Replacing the nozzles

WARNING! Risk of injury

The nozzles must only be replaced by qualified specialists. Incorrect assembly and installation can result in serious hazards due to the escape of gas.

▶ Replace the nozzles as shown:

• Disassembly: fig. 22, page 18
• Assembly: fig. 23, page 19

10 Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

Note that self-repair or non-professional repair can have safety consequences and might void the warranty.

11 Disposal

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.
▶ Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.
The product can be disposed free of charge.

12 Technical data

	Cooktop
Gas category: Category IConnection pressure:	_3 B/P(30)
	AT, DE, BG, CY, DK, EE, FI, GR, HU, IS, LT, LV, MT, NL, NO, RO, SE, SI, SK, AL, HR, MK, TR:30 mbar propane (G31)30 mbar butane (G30)
Gas category: Category IConnection pressure:	_3+ , propane/butane
	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, PL, PT, SI, SK, AL, MK, TR:37 mbar propane (G31)28 – 30 mbar butane (G30)
Connection voltage (models with electronic ignition only):	12 V--- (1 A fuse)
Inspection/certification:	CE

See fig. 17, page 14 – fig. 18, page 15:

Model	Burner A				Burner B
	* * * *	* * * * * * *	* * * * * * * * *
PI80X2	0.53	1.1	80	79	-	-	-	-
PI80X3	0.53	1.1	80	79	-	-	-	-
PI90X3	0.53	1.1	80	79	-	-	-	-
MO9722L, MO9722R	0.53	1.1	80	79	-	-	-	-
MO71X3	0.53	1.1	80	79	-	-	-	-
CE99-ZF	0.53	1.1	80	79	-	-	-	-
CE99-DF	0.53	1.1	80	79	-	-	-	-
KSK2007R MO9222L, MO9222R	-	-	-	-	0.50	1.0	73	71

* Injector mm
** Power kW
*** Gas consumption (G30) g/h
**** Gas consumption (G31) g/h

Model	Burner C				Burner D
	***	****	****	****
PI80X2	----	-0.691.8	131129
PI80X3	0.651.6	116114	----
PI90X3	----	-0.691.8	131129
MO9722L, MO9722R	----	-0.691.8	131129
MO9222L, MO9222R	0.651.6	116114	----
MO71X3	----	-0.691.8	131129
CE99-ZF	0.651.6	116114	----
CE99-DF	0.651.6	116114	----
KSK2007R	0.651.6	116114	----

* Injector mm

** Power kW

*** Gas consumption (G30) g/h

**** Gas consumption (G31) g/h

Prohibition sign showing a crossed-out diagonal line over a barrier, indicating no movement or restriction (no text present)

VORSICHT!

5 Description technique

5.1 Fonction

Prohibition sign showing a crossed-out diagonal line over a leafy ground (no text or symbols)

ATTENTION!

Prohibition sign with crossed-out lines and flame-like patterns (no text)

¡ATENCIÓN!

Prohibition sign showing a crossed-out line over grass, no text or symbols present

ATENÇÃO!

Prohibition sign showing a crossed-out diagonal line over a barrier, indicating no movement or damage (no text present)

ATTENZIONE!

Prohibition sign with crossed diagonal line and lightning bolt symbol (no text)

VOORZICHTIG!

Prohibition sign showing a crossed-out diagonal line crossing over a surface, indicating no movement or barrier (no text present)

FORSIGTIG!

Prohibition sign with crossed-out line and flame symbol, indicating no smoking or fire

AKTA!

Prohibition sign showing a crossed-out diagonal line crossing over grass (no text or symbols)

FORSIKTIG!

Prohibition sign showing a diagonal line crossing over a barrier, indicating no movement or restriction (no text present)

HUOMIO!

Prohibition sign with crossed lines and grass, no text or symbols present

ВНИМАНИЕ!

Prohibition sign showing a crossed-out fence with diagonal lines, no text or symbols present.

UWAGA!

Prohibition sign with crossed lines and grass, no text or symbols present

POZOR!

Nezatvárajte veko, ked'je horák zapálený.

7.1 Zapálenie horáka

VÝSTRAHA! Nebezpečenstvo poranenia!

Prohibition sign showing a crossed-out hammer and fulcrum over grass, enclosed in a circle (no text)

UPOZORNĚNÍ!

Prohibition sign showing a crossed-out diagonal line over a barrier, indicating no movement or damage (no text present)

VIGYÁZAT!

Prohibition sign with crossed-out diagonal line and grassy base (no text)

DİKKAT!

Prohibition sign with crossed-out diagonal line and grassy base (no text)

POZOR!

Pokrova ne zapirajte, ko je naprava vklopljena.

7.1 Vžig gorilnika

OPOZORILO! Nevarnost poškodb

dometic.com/sales-offices
