Focus DW5100 - Iron ROWENTA - Free user manual and instructions

Product type	Iron
Brand	Rowenta
Model	Focus DW5100
Power supply	220-240 V, 50/60 Hz
Power	2400 W
Water tank capacity	270 ml
Soleplate	Smooth soleplate (material not specified)
Main functions	Adjustable steam, steam boost, spray, self-cleaning (Self Clean), automatic shut-off (3 positions), anti-drip system, integrated anti-scale system
Automatic shut-off	30 seconds on soleplate or side, 8 minutes on heel
Safety	Supervision required, do not leave plugged in unattended, hot surfaces indicated, automatic shut-off
Cleaning	Self Clean weekly or every 2 weeks, clean soleplate with damp cloth, do not use abrasive products
Maintenance	Empty tank after use, do not use distilled or softened water, fixed anti-scale cartridge
Repairability	Do not disassemble, refer to an approved service center
Standards	Compliant with Low Voltage, Electromagnetic Compatibility, Environment directives
Weight	1.2 kg
Dimensions (L x W x H)	28 x 12 x 15 cm

Frequently Asked Questions - Focus DW5100 ROWENTA

How to use the steam function?

Set the thermostat to a sufficient temperature (at least **) and turn the steam control from minimum to maximum (figure 12). Steam is produced when the soleplate is hot.

What to do if the iron does not heat up?

Check the power supply, the thermostat position, and whether the automatic shut-off is activated (the indicator flashes). If the problem persists, contact an approved service center.

How to clean the iron?

Use the Self Clean function (figures 5a and 5b) every 2 weeks. For the soleplate, wipe it with a damp cloth when the iron is cold. Never use abrasive products.

What type of water to use?

Prefer tap water (hardness up to 17°dH). For harder water, mix 50% tap water and 50% distilled water. Never use water from a dryer, scented water, softened water, refrigerator water, or pure distilled water.

How to activate the Self Clean function?

Fill the tank to maximum, set the thermostat to max, unplug the iron, place it horizontally over a sink, hold the steam control on SELF CLEAN and shake gently. After 1 minute, return the control to steam off.

Why does water come out of the soleplate?

This happens if the soleplate temperature is too low or if the steam control is pressed too frequently. Increase the temperature and space out the presses on the steam control.

How to use the vertical steam boost?

Hold the iron vertically 10-20 cm from the fabric (hanging clothes, curtains) and press the steam boost control (figure 14). Wait a few seconds between each press.

What does the flashing indicator mean?

The temperature control indicator lights up and goes off during heating. If it flashes after a period of inactivity, it indicates that the automatic shut-off is activated. Moving the iron reactivates it.

How to store the iron after use?

Unplug it, empty the tank (figure 16), set the steam control to off, let it cool down, then store it vertically on its heel (figure 21). Do not wrap the cord around the hot soleplate.

Where to find after-sales service?

Contact an authorized ROWENTA service center. Addresses are listed in the leaflet or on the website www.rowenta.com.

USER MANUAL Focus DW5100 ROWENTA

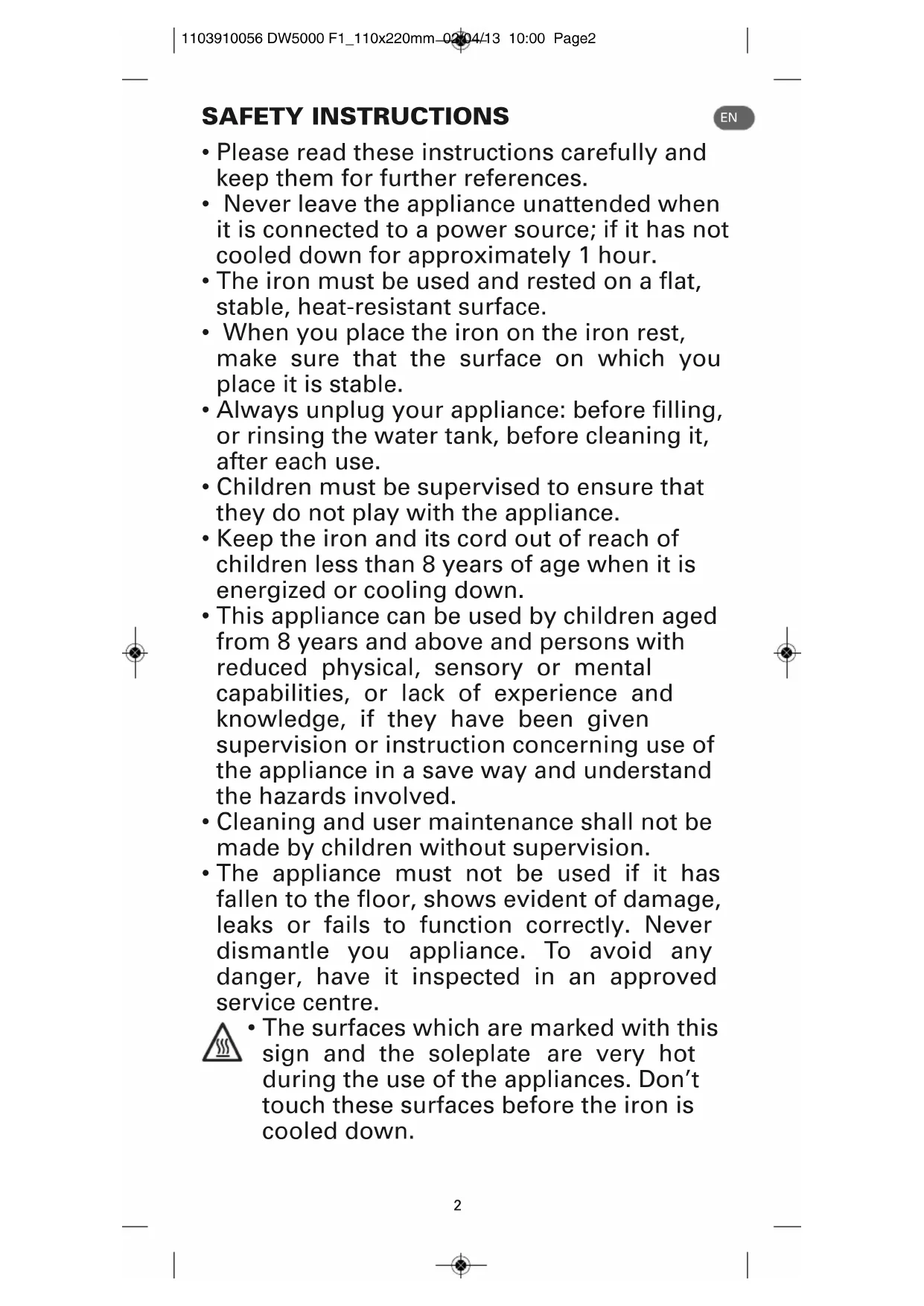

• Please read these instructions carefully and keep them for further references.
• Never leave the appliance unattended when it is connected to a power source; if it has not cooled down for approximately 1 hour.
• The iron must be used and rested on a flat, stable, heat-resistant surface.
• When you place the iron on the iron rest, make sure that the surface on which you place it is stable.
• Always unplug your appliance: before filling, or rinsing the water tank, before cleaning it, after each use.
  Children must be supervised to ensure that they do not play with the appliance.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a save way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision.
• The appliance must not be used if it has fallen to the floor, shows evident of damage, leaks or fails to function correctly. Never dismantle you appliance. To avoid any danger, have it inspected in an approved service centre.

• The surfaces which are marked with this sign and the soleplate are very hot during the use of the appliances. Don't touch these surfaces before the iron is cooled down.

IMPORTANT RECOMMANDATIONS

• The voltage of your electrical installation must correspond to that of the iron (220-240V). Always plug your iron into an earth socket. Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee.
  If you are using a mains extension lead, ensure that it is corrected rated (16A) with an earth, and is fully extended.
• If the electric power cord is damaged, it must be replaced by an Approved Service Centre in order to prevent any danger.
• Do not unplug your appliance by pulling on the cord.
• Never immerse your steam iron in water or any other liquid. Never hold it under the water tap.
• Never touch the electric cord with the soleplate of the iron.
• Your appliance gives off steam, which may cause burns, especially when you are ironing close to the edge of your ironing board.
• Never direct the steam towards people or animals.
• For your safety, this appliance conforms to the applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental Directives).
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

ENVIRONMENT PROTECTION FIRST!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

Keep these instructions

DESCRIPTION

1 Spray nozzle
2 Filling inlet

(with slide-button opening)

3 Variable steam control

a Dry ironing
b Steam max. position

4 Self Clean

5 Spray button
6 Shot of steam button
7 Cord

BEFORE USE

8 Handle
9 Thermostat control light
10 Temperature control dial
11 Water tank
12 Maximum water level indicator
13 Soleplate
14 Auto-Off

WARNING! Remove any labels from the soleplate before heating up the iron.

WARNING! Before using your iron with the steam function for the first time, we recommend that you operate it in a horizontal position for a few moments, away from your linen, i.e. press the Shot of Steam button a few times.

Upon the first use, you may notice small particles coming out of the soleplate. This is parf of manufacturing process and is not harmful to you or your garments. It will disappear after several uses. You may accelerate this by using the self cleaning function (fig 5a - 5b) and shaking the iron gently.

1·What water may be used?

Your iron has been designed to operate using untreated tap water. If in doubt, check with your local water authority. However, if your water is very hard, you can mix 50% untreated tap water with 50% distilled or demineralised water.

IMPORTANT Heat concentrates the elements contained in water during evaporation. The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining or premature wear of the appliance : water from clothes dryers, scented or softened water, water from refrigerators, batteries or air conditioners, pure distilled or demineralised water or rain water should not be used in your iron. Also do not use boiled, filtered or bottled water.

IRONING BOARD: Due to the powerful steam output, a mesh type ironing board must be used to allow any excess steam to escape and to avoid steam venting sideways.

USE

2·Filling the water tank

IMPORTANT Before filling the water tank, unplug the iron and set the steam control to dry position.

Tilt the iron. Open the filling inlet (fig.6). Pour in water up to the max mark (fig.7). Close the filler inlet (fig.8) and return the iron to the horizontal.

3 - Temperature and steam adjustment

Set the iron temperature to suit the type of material using the temperature control dial (fig.3).

Temperature control*: The temperature control light indicates that the soleplate is heating up. When the temperature control light goes off (fig.10), the set temperature is reached and you can begin ironing.

Ironing label Fabric		Temperature control
	Synthetic fibres, e.g. viscose, polyester...	●
	Silk, wool	●●
	Cotton, linen	●●●

IMPORTANT The iron takes longer to cool down than to heat up. We recommend that you start with fabrics to be ironed at a low temperature.

For mixed fabrics set the temperature for the most delicate fabric.

TIP Always spray starch onto the reverse side of the fabric to be ironed.

4. Dry ironing

Set the variable steam control to (fig.11) and set the temperature to suit the type of material (care points · ,· · ,· · ·

5·Steam ironing

You can steam iron from temperature setting upwards.

Steam function*: The steam quantity can be set to between no steam (minimum steam quantity) and maximum steam quantity (fig.12).

We recommend setting to maximum steam quantity only when the iron is at temperature setting ·s .

6 - Shot of steam

(from temperature setting · · upwards)

Press the shot of steam button to generate a powerful jet of steam (fig.13).

Wait a few seconds between each shot before pressing the button again.

7 - Vertical shot of steam

(from temperature setting · · upwards)

TIP Hold the iron 10 to 20 centimetres away from the garment to avoid burning delicate fabrics.

Hold the iron to the vertical and press the shot of steam button (fig.14) to remove creases from suits, jackets, skirts, hanging curtains etc.

Wait a few seconds between each shot before pressing the button again.

IMPORTANT Never direct the steam at persons or animals!

8·Spray

Press the spray button to dampen stubborn creases (fig.15).

9 - Anti-Drip system*

This prevents water escaping from the soleplate when the temperature is too low.

10 • Automatic electronic 3-position cut-off*

If, although switched on, the appliance is not moved, it will automatically switch off and the auto off light will blink after the following intervals:

• After 30 sec., if the iron is left resting on the the soleplate or lying on its side.

• After 8 mins., if the iron is left resting on its heel.

To switch the iron back on, move the iron gently.

EN

AFTER USE

11·Emptying

Unplug the iron (fig.4), pour away remaining water (fig.16) and set steam control to

Open and close the steam control several times (fig.16) to prevent the valve hole into the steam chamber from scaling or blocking up.

12·Storing

Allow the appliance to cool down before storing the iron standing on its heel (fig.17/18).

IMPORTANT Do not wind the cord around the hot soleplate. Never store your iron placed down on the soleplate.

MAINTENANCE AND CLEANING

important Unplug and allow the iron to fully cool down before maintenance and cleaning.

13 - Anti-scale system

Your iron contains an anti-scale cartridge to reduce scale deposits. This considerably prolongs the operational life of your iron.

The anti-scale cartridge is an integral part of the water tank and does not need to be replaced.

14 • Self Clean function

(prolongs the life of the iron)

The Self Clean function flushes dirt and scale particles out of the steam chamber.

IMPORTANT Do not use descending agents, as these damage the lining of the steam chamber and so may impair the steam function.

Fill the water tank with untreated tap water up to the max mark and heat the iron to the ·s temperature. Unplug the iron and hold it over a sink horizontally. Hold the steam control into the Self Clean position (fig.5) and shake the iron gently: steam will now begin to build up. After a few seconds water will emerge from the soleplate, rinsing dirt and scale particles out of the steam chamber.

Move the steam control to position after approx. 1 minute.

Plug in the iron and allow the iron to heat up again. Wait until the remaining water has evaporated. Unplug from the mains and allow the iron to fully cool down.

When cool, the soleplate can be wiped with a damp cloth.

TIP Use the Self Clean function approx. every 2 weeks.

If the water is very hard, clean the iron weekly.

15 · Cleaning the iron

When the appliance has cooled down, wipe it down with a damp cloth or sponge, as required.

Remove the dirt from the soleplate with a damp cloth or sponge.

IMPORTANT Do not use sharp or abrasive cleaning agents or objects to clean soleplate and other parts of the iron. If the appliance has been standing unused for long periods, use the Self Clean function (see § 14).

PROBLEMS?

Problems Cause	Solution
The iron is plugged in, but the soleplate of the iron remains cold.	No mains supply. Check that	the mains plug is properly inserted or try plugging the iron into a different socket.
	Temperature control set too low.	Set the temperature control to a higher temperature.
	The automatic electronic cut-off* is active.	Move your iron.
	Steam control set on dry position	Turn the steam control to the required setting area.
	Not enough water in the water tank.	Fill the water tank.
	Anti-Drip* is active (§ 11).	Wait for the soleplate to reach the correct temperature.
Brown streaks come through the holes inthe soleplate and stain the linen.	Residues in the steam chamber or on the soleplate.	Use the Self Clean function then clean your iron.
	Use of chemical descaling agents.	Do not add any descaling agents to the water in the water tank. Use the Self Clean function and clean your iron.
	Fabric fibres have accumulated in the holes of the soleplate and are burning.	Clean the soleplate with a non-metallic sponge. Vacuum the holes of the soleplate from time to time.
	Your linen is not rinsed sufficiently or you have ironed a new garment before washing it.	Ensure linen is rinsed thoroughly to remove any soap deposits or chemicals on new garments which may be sucked by the iron.
	Use of starch. Always spray	starch onto the reverse side of the fabric to be ironed and clear your iron soleplate.
	Pure distilled / demineralised or softened water is being used.	Only use untreated tap water or mix half tap water with half distilled/demineralised water. Use the Self Clean function and clean your iron.
Iron is leaking.	Overuse of shot of steam button.	Allow more time between each shot.
	Soleplate temperature too low.	Set the temperature control to a higher temperature.

If you have any product problems or queries please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK [phone] - Ireland or consult our wesbite - www(rowenta.co.uk

Subject to modifications!
