USER MANUAL CDI 5015 E10 CANDY

Capacity with pans and dishes

Water supply pressure

Depth with door open

"PROGRAMME SELECTION" button

D "ALL in 1" option button

CONTENTS Description of the control panel

Programme selection and special functions

The Waterblock system

Thank you for choosing a Candy

appliance; quality dishwashers which

guarantee high performance and

Candy manufacture a vast range

of domestic appliances: washing

machines, washer/dryers, cookers,

microwave ovens, ovens and hobs,

refrigerators and freezers.

Ask your dealer for the catalogue with

the complete range of Candy products.

Please read this booklet carefully as

it provides important information

regarding the safe installation, use,

and maintenance of the machine,

together with some useful advice on

how to achieve the best results from

For future reference please keep this

instruction booklet in a safe place.

CUSTOMER SERVICE AND GUARANTEE Your new appliance is fully guaranteed

by the manufacturer for 12 months

against electrical/mechanical break-

A. Any faults which occur due to bad

installation or misuse of the machine.

B. Any faults which occur due to repair

of, or interference with, the machine

by any person not authorised by the

manufacturer to carry out service.

C. Any faults which occur due to

any parts which are fitted to the

machine which are not the original

manufacturers parts.

D. Any faults arising from non-domestic

use or unusual or abnormal use of

E. Any faults arising from operation at

F. Any faults arising from incorrect

operation of the machine.

The guarantee applies to Gt Britain

and Northern Ireland only, and is an

addition to your statutory rights.

AFTER SALES SERVICE For service and repairs call your local engineer on our national telephone number:

GIAS Service Tel: 08705 400 600

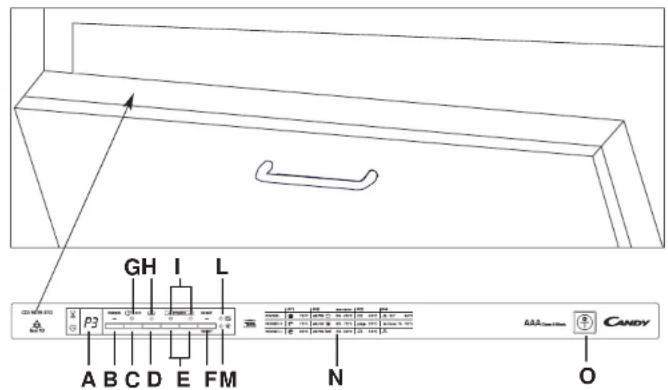

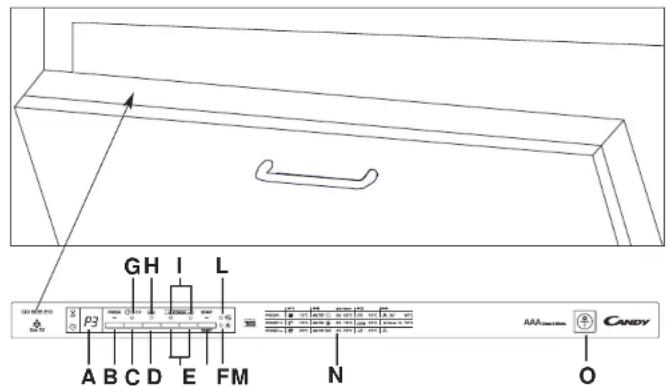

ABCD E FM N O LGH IPROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide)

IMPORTANT The dishwasher has two very practical

- the "recommended" programme

(which is set in the factory and is

ideal for full-load daily use) for quick

and accurate selection;

- the memory function which saves

the last programme used, so that if

you regularly use the same washing

cycle, you do not have to re-set the

programme every time, thereby

saving time and effort.

"DEGREE OF SOILING" buttons

These buttons allow to modify the wash

intensity, according to how dirty the dishes

are. The wash time and temperature will be

wash will be increased, pressing the

– the intensity of wash will be

reduced and the wash time will be

The combination of the buttons with the 4

main wash programmes enable to have 8

additional wash cycles.

IMPORTANT When the dishwasher is switched on,

the "DEGREE OF SOILING" last used

■ Open the door and place the dirty dishes

inside the appliance.

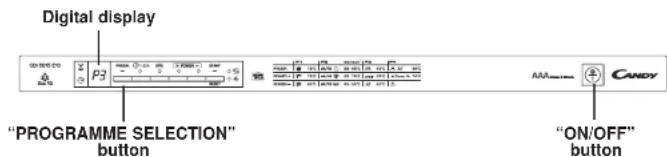

■ Press the "ON/OFF" button . The

option button (the corresponding indicator

light will light up).

The option button can be selected or

deselected WITHIN one minute of the

programme commencing.

■ Press the "START" button.

The length of the program will be shown on

the display alternating hours with minutes

[I.e.: 1 h (1 hour) / 25 (25 minutes)].

■ Close the door (after an audible signal

has sounded, the programme will start

WHITIN one minute of the programme

commencing, another programme

can be selected, by pressing the

"PROGRAMME SELECTION" button

(it is also possible to change the

"DEGREE OF SOILING" setting).

“AUTOMATIC” programmes

The dishwasher is equipped with a dirt

sensor, able to analyse water murkiness

during all "AUTOMATIC" programme

phases (see programme list); thanks to

this sensor the washing cycle parameters

are automatically adapted to the real

quantity of dirt on dishes. Thus excellent

washing results are guaranteed while

optimising water and energy consumption.

"IMPULSE" programmes

The “IMPULSE” programmes use an

impluse washing technology, which reduces

consumption, noise and increases

IMPORTANT The “intermittent” working of the

washing pump MUST NOT BE

considered a malfunction, it is a

characteristic of the impulse washing

so must be considered a normal

function of the programme.

Programme interruption

Opening the door when a programme is

running is not recommended especially

during the main wash and final hot rinse

phases. However, if the door is opened

while a programme is running (for example,

to add dishes) the machine stops

automatically and the display will flash the

remaining time before the end of the cycle.

Close the door, without pressing any

buttons. The cycle will start from where it

If you open the door during the

drying cycle, an audible audio signal

advises you that the drying cycle has

Changing a running programme

Proceed as follows to change or cancel a

■ Hold the "RESET" button down for at

least 5 seconds (the running programme

■ The display will show the "recommended"

■ At this point a new programme can be set.

Before starting a new programme,

you should check that there is still

detergent in the dispenser.

If necessary, top up the dispenser.

If there is any break in the power supply

while the dishwasher is operating, a

special memory stores the selected

programme and, when the power is

restored, it continues where it left off.

A5 second alarm will sound (if not muted)

3 times at 30 second intervals to signal that

the programme has ended.

Dishes can now be removed and the

dishwasher turned off by pressing the

"ON/OFF" button or dishes can be loaded

This option optimises the use of “ALL in 1”

(“3 in 1”/ “4 in 1”/“5 in 1”, etc...) combined

detergents. By pressing this button, the

selected washing programme is modified

to get the best performance from combined

detergents; furthermore, the salt and rinse

aid shortage lights are de-activated.

Once selected, this option keeps

being on (light on) also for next

washing cycles and it can be de-activate

(light off) only by pressing the button

IMPORTANT When this option is selected, the

"RAPID" cycle is 10 minutes longer.17

"DELAY START" button

Dishwasher start time can be set with this

button, delaying start from 1 to 23 hours.

Proceed as follows to set a delayed start:

■ Press the "DELAY START" button ("00"

will appear on the display).

■ Press the button again to increase the

delay in hours (each time the button is

pressed the delay is increased by 1 hour

to a maximum of 23). The “DELAY START” indicator light will turn on.

■ To start the countdown press the

"START" button (the “DELAY START”

indicator light will start to flash). At the

end of the countdown, the programme

will automatically start (the “DELAY START” indicator light will turn off).

If you wish to see which programme has

been selected, press the "PROGRAMME SELECTION" button.

Proceed as follows to cancel a delayed

■ Hold the "RESET" button down for at

■ The delayed start and the selected

programme will be cancelled.

The display will show the "recommended"

■ At this point, a new programme and

option buttons must be set to start a

new programme as indicated in the

"PROGRAMME SETTINGS" section.

Alarm mute for the PROGRAMME END The alarm for the programme end may be

IMPORTANT The dishwasher must be ALWAYS off

before start this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same

time switch on the dishwasher by

pressing the "ON/OFF" button (a brief

audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 15 seconds

(during this time, 2 audible signals will

3. Release the button when the second

audible signal sounds ("b1" will appear on

the display to indicate that the alarm is on).

4. Press the same button again ("b0" will

appear on the display to indicate that the

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new

To turn the alarm on again, follow the same

To ensure the correct operation of

the anti-overflow safety device, we

recommend that the dishwasher is

not moved or tilted during operation.

If however it is necessary to tilt or

move the dishwasher, please ensure

that the washing cycle is complete

and that there is no remaining water

inside the dishwasher.

AUTOMATIC FAULT SIGNALS Turn off the dishwasher, open the

inlet hose and reset the cycle.

Check if the drain tube is bent or if

the siphon or filters are clogged.

If the problem persists, contact

Check if the drain tube is bent or if

the siphon or filters are clogged.

If the problem persists, contact

Contact Customer Service.

Clean the filter plate.

If the problem persists, contact

FAULTS CAUSE SOLUTION E2 appears on the display and

E3 appears on the display and

E4 appears on the display and

E5,E6,E7,Ef or EL appears

on the display and the alarm

appear on the display

and the alarm sounds.

No water (inlet hose closed).

The machine cannot drain water.

Electronic control fault.

The water heating element is not

working correctly or the filter plate is

The dishwasher is able to signal a series of faults in the display.1918

PROGRAMME GUIDE Wash with prewashFor wash programmes with prewash, it is advisable to add a second dose of detergent (max.10 g) directly in the machine. 140

65°C Once a day - for heavily soiled pans and anyother items that have been left all day forwashing.Hygienic 75°C •••

( ) ( ) Suitable for heavily soiled items that are to bewashed straight after a meal (Max 8 place load).- WASHING CLASS A-Quick wash for dishes which are to be washedimmediately after the meal. Wash load of4/6 persons.Suitable for delicate crockery and glassware. Alsofor less soiled items excluding pans.Short cold pre-wash for items that are stored inthe dishwasher until you are ready to wash a fullload.(“RECOMMENDED” PROGRAMME)Once a day - for normal soiled pans and any otheritems that have been left all day for washing. Energy Saving Programme suitable for normalsoiled items. Using detergents with enzyme.Programme standardised to EN 50242.INTENSIVE 75°CStrong & Fast 65°C AUTO Universal plus 65 - 75°C AUTO UNIVERSAL 55 - 65°C AUTO Daily 45 - 55°CECO plus 55°CECO 45°CDelicate 45°C A Class 1h 70°C RAPID 32' 50°CPre-washAn antibacterial cycle, intended for washing andsterilising dishes (even heavily stained ones)babies’ bottles etc.Intended for rapid washing of very dirty dishes.Intended for everyday dishwashing. Two finalrinses ensure a high level of hygiene andcleanliness.Fast cycle, for “normally” dirty dishes - intendedfor frequent washes and normal loads.A medium temperature programme, intended forwashing pans and dishes that are “normally” dirty,using detergents which contain enzymes. 115/

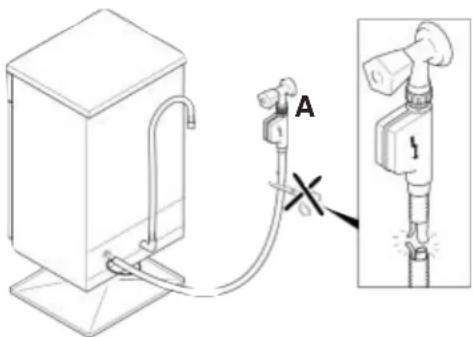

THE WATERBLOCK SYSTEM Fig. 1

A The waterblock system has been designed to improve the safety of your appliance,

particularly when the machine is left unattended.

The waterblock system actually prevents flooding which might be caused by a

machine malfunction or as a result of a fracture on the pipes.

How does waterblock work

The sump located in the base of the appliance collects any possible water leakage

and operates a sensor which subsequently activates a valve placed under the water

tap and stops any water from the supply even with the tap fully opened. If the box

containing the electrical parts is damaged, remove the plug from the socket

To ensure perfect operation of the safety system, box “A” with the hose, should be

connected to the tap as shown in figure “1”. The inlet hose should not be cut, as it

contains parts under load. If the hose is not long enough for correct connection, it

must be replaced with a longer one. The hose can be obtained from your Service

This dishwasher is also equipped with an anti-overflow safety device which, if water

exceeds normal levels due to malfunctions, automatically blocks water flow and/or

drains excess quantities.

* The softener unit is set in the factory

at level 4 (d4) as this satisfies the

requirements of the majority of users.

Regulate the setting of your water softener

unit according to the degree of hardness

of your water as follows:

IMPORTANT The dishwasher must be ALWAYS

off before start this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same

time switch on the dishwasher by

pressing the "ON/OFF" button (a brief

audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 5 seconds,

UNTIL a brief audible signal sounds.

The current water softener setting level

will be shown on the display.

3. Press the same button again to select

the required water softener level: each

time the button is pressed, the setting

will increase by one level. When you

have reached "d7", the display will go

4. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new

If any problem occurs, turn the

dishwasher off by pressing the

"ON/OFF" button and start the

procedure again from the beginning

WATER SOFTENER UNIT Depending on the source of the supply,

water contains varying amounts of limestone

and minerals which are deposited on the

dishes leaving whitish stains and marks.

The higher the level of these minerals

present in the water, the harder the water is.

The dishwasher is fitted with a water

softener unit which, through the use of

special regenerating salt, supplies

softened water for washing the dishes.

The degree of hardness of your water can

be obtained from your water supply

Regulating the water softener

The water softener can treat water with a

hardness level of up to 90°fH (French

grading) or 50°dH (German grading)

The settings are listed in the table below:

34-50 Level °fH (French) °dH (German) d0

D Touche option "ALL in 1"

F Touche "START"/"RESET"

G Voyant "DEPART DIFFERE"

Touche "DEPART DIFFERE"

D Optionstaste “ALL in 1”

ABCD E FM N O LGH I44

"ALLES in 1" ("3 in 1" - "4 in 1" - "5 in 1", usw).

"ALL in 1" ("3 in 1"/"4 in 1"/ "5 in 1", etc…).

F "START"/"RESET"-painike

F Knapp for "START"/"RESET"

- "anbefalt" program (forhåndsinnstilt

in 1"/"4 in 1"/ "5 in 1", etc…).

"PROGRAMINNSTILLINGER"

ranno utili ai propri prodotti senza compromettere le caratteristiche essenziali.

The manufacturer declines all responsibility in the event of any printing mistakes in this

booklet. The manufacturer also reserves the right to make appropriate modifications to

its products without changing the essential characteristics.

El fabricante declina toda responsabilitad por los posibles errores de impresión
