Product type	Milk frother
Brand	Severin
Model	SM 3580
Maximum capacity (frothing)	150 ml
Maximum capacity (heating)	250 ml
Power supply	220-240 V ~ 50/60 Hz
Power	550 W
Dimensions (W x D x H)	16 x 12 x 22 cm
Weight	0.8 kg
Main material	Plastic and stainless steel
Colour	White and silver
Main functions	Milk heating, hot frothing, cold frothing, hot cocoa preparation
Included accessories	Emulsion whisk, mixer, lid
Noise level	Approx. 50 dB
Automatic shut-off	Yes, at end of cycle and in case of dry operation
Overheat protection	Yes
Care and cleaning	Clean the reservoir, whisk and lid with warm soapy water; do not immerse the base
Dishwasher safe	No, hand washing recommended
Available spare parts	Whisk, mixer, lid, reservoir
Warranty	2 years
Recommended use	Cow's milk with high protein content
Country of manufacture	China (estimated)

Frequently Asked Questions - SM 3580 SEVERIN

How to froth milk with the Severin SM 3580?

To froth milk, install the emulsion whisk on the mixer, pour a maximum of 150 ml of cold milk, place the lid and press the switch twice. The indicator turns blue and the froth prepares cold. For hot froth, press once (indicator red).

What is the maximum capacity for heating milk?

The maximum capacity for heating milk is 250 ml (upper mark). For frothing, do not exceed 150 ml (lower mark).

How to clean the milk frother?

Unplug the appliance and let it cool. Clean the reservoir, whisk and lid with warm soapy water. Never immerse the base in water. Use a brush for the whisk if necessary. Do not put in dishwasher.

Can I use other liquids than milk?

No, the appliance is designed only for milk. Do not pour any other liquid or solid food, as this could damage the appliance.

What does the flashing blue indicator mean?

A blue flash indicates that the appliance has turned off automatically because it was started empty (without milk). Let it cool before reusing.

How to prepare hot cocoa?

Use the mixer without whisk. Pour the milk (max 250 ml), start heating. After about 1 minute, remove the lid, add soluble cocoa powder, then put the lid back on until the end of the cycle.

Can I interrupt a cycle in progress?

Yes, press the switch once to stop the cycle. To resume, press again.

Does the emulsion whisk have a storage place?

Yes, the whisk can be stored under the lid when not in use. You can also wrap it in the cord storage compartment.

What to do if the milk froth overflows?

This can happen if you exceed the maximum capacity of 150 ml for frothing. Make sure to respect the marks and not overfill.

Is the appliance under warranty?

Yes, the Severin SM 3580 has a 2-year warranty against manufacturing defects, from the date of purchase. Keep your receipt.

USER MANUAL SM 3580 SEVERIN

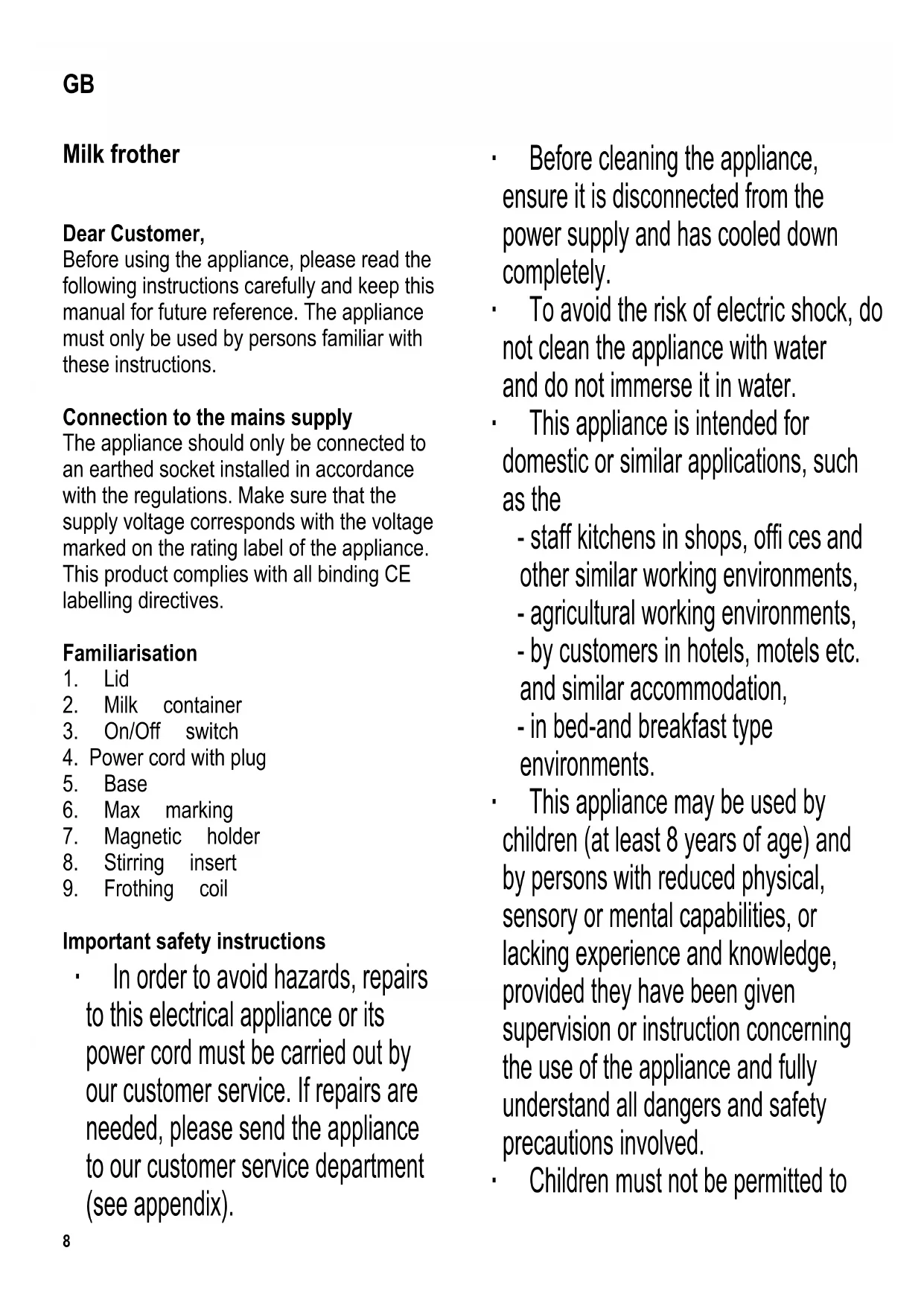

GB Instructions for use Milk frother 8

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label of the appliance. This product complies with all binding CE labelling directives.

Familiarisation

1. Lid
2. Milk container
3. On/Off switch
4. Power cord with plug
5. Base
6. Max marking
7. Magnetic holder
8. Stirring insert
9. Frothing coil

Important safety instructions

In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).

Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
- To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
This appliance is intended for domestic or similar applications, such as the

• staff kitchens in shops, offices and other similar working environments,
• agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

Children must not be permitted to

play with the appliance.
Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
The appliance and its power cord must be kept well away from children under 8 at all times.
Caution: Keep any packaging materials well away from children - such materials are a potential source of danger, e.g. of suffocation.
Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
This appliance is solely designed for heating up and frothing milk. Do not put any other type of liquid or solid food in the container.
Do not leave the milk frother unattended while in use.
- Always observe the maximum level marks inside the container for each application. If there is not enough milk, the appliance may overheat.
- To prevent such overheating, the appliance will automatically switch off if it is operated when empty. This is indicated

by the On/Off switch flashing blue.

Overfilling the container may cause danger if frothing milk is forced out.
- Caution: the lid must always be fitted during operation; it should only be taken off to add cocoa powder or the like.

The appliance may only be used with the original accessory parts provided by the manufacturer.

• The appliance must always be set on a firm, level surface.

• Do not allow the appliance or its power cord to come into contact with open flames or any hot surfaces such as hot-plates.

• Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance.

Always remove the plug from the wall socket

• in case of any malfunction,
• after use,

• before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Before using for the first time

Remove any packaging materials and check that all components are present.

Before the appliance is used for the first time, or after extended periods of non-use, it should be thoroughly cleaned as described in the section General Care and Cleaning.

Power cord storage compartment

There is a power-cord wind-up storage compartment in the base. Unwind the cord to

the required length before use.

Frothing-coil storage

When the frothing coil is not in use, it may be stored on the underside of the lid.

Operation

We recommend using milk with a high protein content. For best results, the milk should be taken from the refrigerator immediately before frothing.
Always ensure that the contact surface between the base and the milk container is clean and dry.

Preparing the stirring insert

• For frothing milk, fit the coil to the stirring insert.
• For simply heating milk, the stirring head is used without the coil.

Fill amounts

• For frothing, fill the container to a maximum of 150 ml (lower max mark).
• For heating, fill the container to a maximum of 250 ml (upper max mark).

Heating or frothing milk

Unwind the cord to the required length and connect the appliance to the mains.
- Place the container onto the base.
- Remove the lid from the milk container.
- Fit the stirring insert (with or without the frothing coil) in the centre of the milk container, ensuring that the head of the insert is properly locked in place by the magnetic holder.
- Put the required amount of milk into the container.
- Place the lid on the container.
- Press the On/Off switch once if you want

to heat up milk.
The indicator light shows red, and the appliance begins to heat up and stir the milk.
- For cold-frothing, press the On/Off switch twice.
The indicator light shows blue, and the appliance begins to stir the milk.
- Once the milk is sufficiently heated or frothed, the stirring and heating processes stop automatically, and the indicator light goes out.
- You can now remove the milk container from the base.
Pour out the milk, or use a suitable spoon to take off the milk froth.
- Detach the power cord from the wall socket after use.

Remark

Always allow the appliance to cool down first, before starting a new cycle.

Hint

To achieve a thicker froth, go through a cold-frothing cycle first, followed by a hot-frothing cycle.

Making hot cocoa

The appliance is also suitable for the preparation of cocoa drinks. Proceed as described in 'Heating up or frothing milk' (having first fitted the stirring insert without the frothing coil) and turn the appliance on. Take off the lid after about a minute, put in the desired amount of cocoa powder and replace the lid.

To prevent the mechanism from becoming blocked, only milk-soluble cocoa powder should be used.

Interrupting or ending a cycle

Press the On/Off switch to stop the heating and stirring process.

To continue the heating and stirring process, press the On/Off switch again.

General care and cleaning

Always remove the plug from the wall socket and wait until the motor has come to a complete standstill before cleaning the appliance.
- To avoid the risk of electric shock, do not clean the base or the power cord with water and do not immerse them.
- The stirring insert, frothing coil and lid should be cleaned after each cycle of use with hot water and a little detergent. If necessary, the frothing coil may be cleaned with a suitable brush.
The milk container must not be immersed in water or cleaned in a dishwasher. Fill in some hot water and detergent and wipe it clean.
Wipe all parts thoroughly dry.
- Do not use abrasives or harsh cleaning solutions.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health.

Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase.

Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
