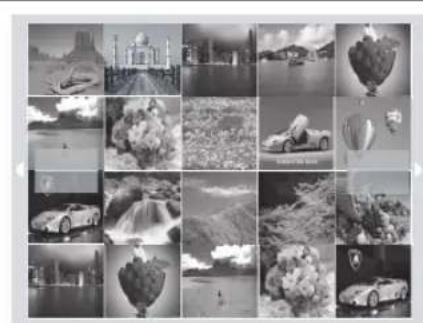

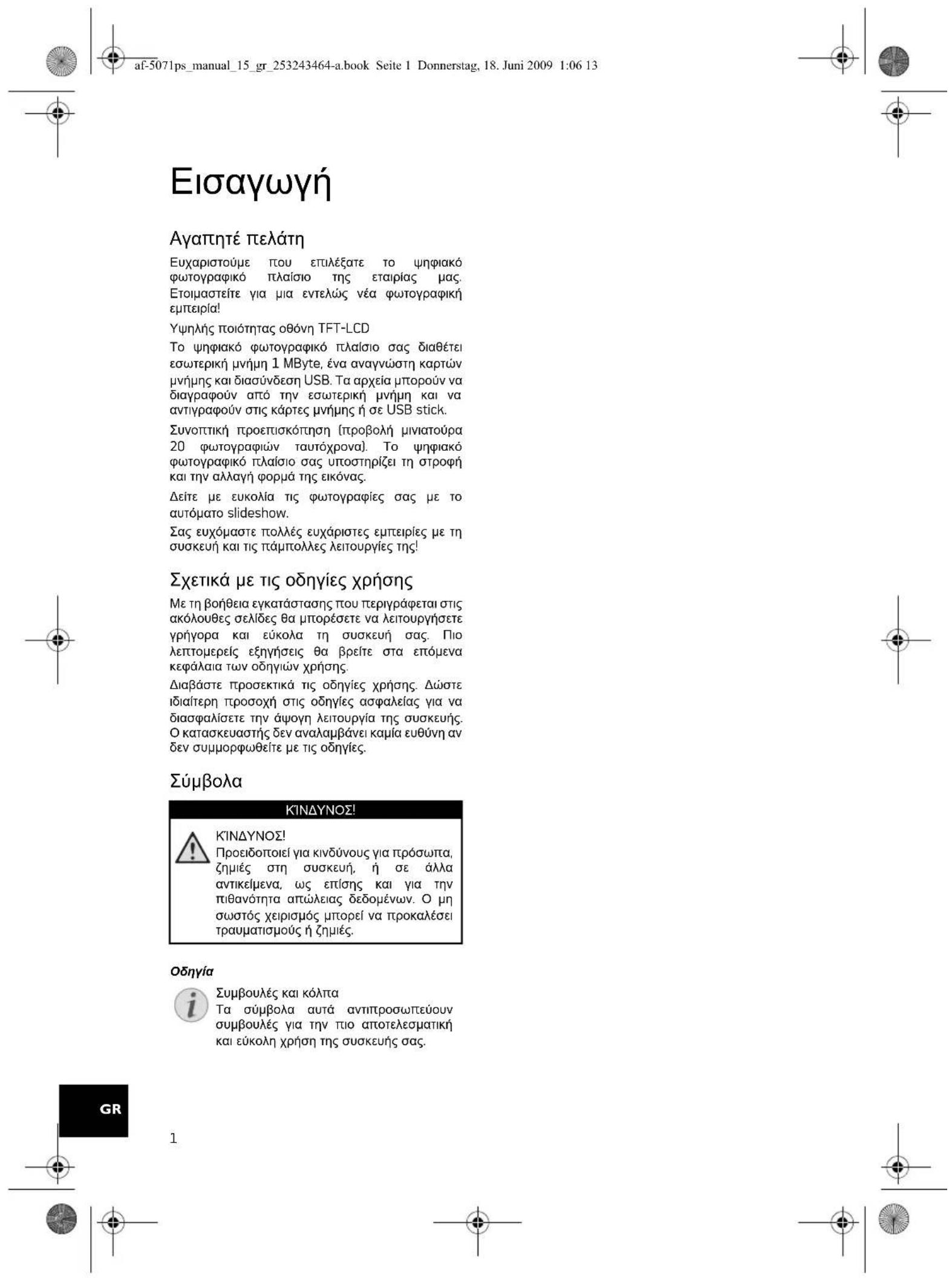

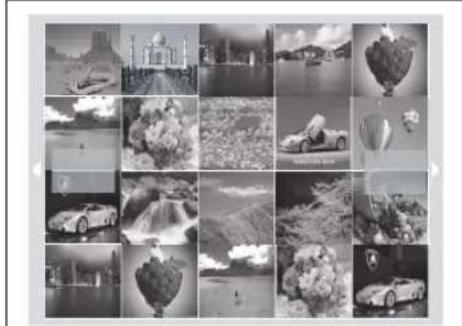

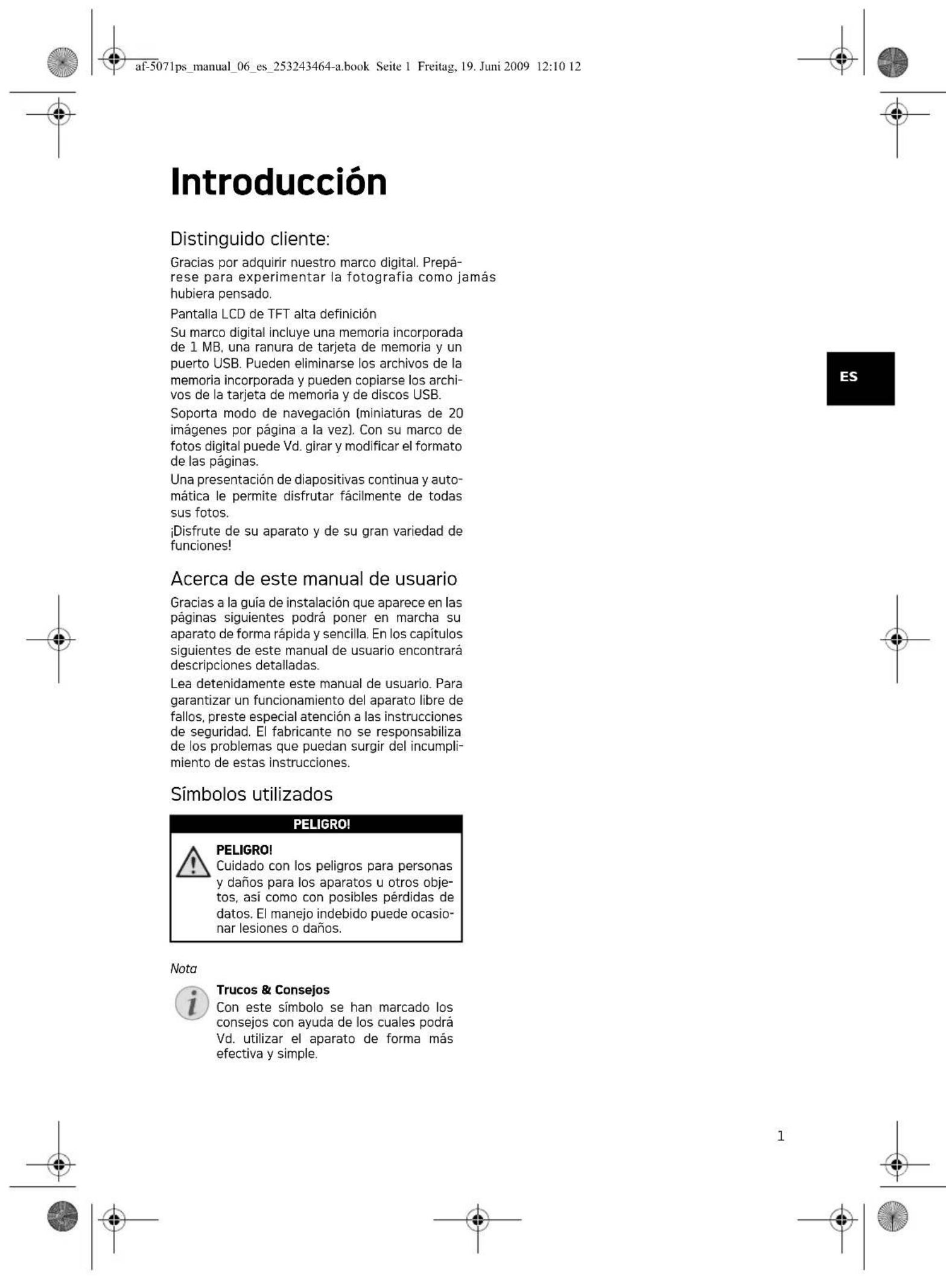

Introduction Dear Customer Thank you for purchasing our photo frame. Get ready to experience photography like never be- fore! High definition LCD screen Memory Your digital photo frame includes 1MB of built-in memory, a memory card slot and a USB port. Files on the built-in memory can be deleted and files on memory card and USB-disc can be copied. Supports browse mode (thumbnails of 20 images per page at a time). Your digital photo frame sup- ports photo rotate and stretch function. An automatic, continuous slide show lets you en- joy all of your photos with ease. We hope you enjoy your device and its many func- tions! About this User Manual With the installation guide on the following pages, you can start using your device quickly and easily. Detailed descriptions can be found in the follow- ing sections of this user manual. Read the entire user manual carefully. Follow all safety instructions in order to ensure proper oper- ation of your device. The manufacturer accepts no liability if these instructions are not followed. Symbols Used Dangers Troubleshooting DANGER! DANGER! Warns about dangers for people, dam- age to the device or other objects as well as possible loss of data. Injuries or damage can result from improper han- dling. Notice Troubleshooting This symbol designates tips that will help you to use your device more effec- tively and easily. af-5071ps_manual_03_en_253243464-a.book Seite 2 Donnerstag, 18. Juni 2009 12:16 123

Safety Instructions and Recommendations Introduction 2 Do not make any changes or settings that are not described in this user manual. Physical injury or damage to the device or loss of data can result from improper handling. Take note of all warning and safety notes indicated. Setting Up the Device The device is exc lusively for indoor use only. The device is exclusively for indoor use only. The device should rest securely on a stabile, flat sur- face. Position all cables in such a way that no one will stumble on them, thus avoiding possible inju- ries to persons or damage to the device itself. LCD screen Always handle the unit with care. Avoid touching the LCD screen. Never place heavy or sharp ob- jects on the LCD panel, frame or power cord. Protect the devic e against direct sunlight Protect the device against direct sunlight, heat, large temperature fluctuations and moisture. Do not place the device in the vicinity of heaters or air conditioners. Observe the information on temper- ature and humidity in the technical data. Do not switch the device on immediately after transporting it. The device should not be switched on immediately after being moved from a cold to a warm room or vice versa or into a cold room which has been heated up quickly. In such cases, wait at least three hours until the device has adapted to the changed conditions (temperature, humidity…) . In the event th at the device becomes too hot, or if you see smoke coming from the de vice In the event that the device becomes too hot, or if you see smoke coming from the device, you must immediately pull the power cable out of the power socket. Have your device examined by trained pro- fessionals at a technical service location. To pre- vent the spread of fire, open flames should be kept away from the device. Do not p lug in the devi ce in moist roo ms. Do not plug in the device in moist rooms. Never touch the mains cable or the mains connection with wet hands. Do not allow liquids to enter into the devi ce. Do not allow liquids to enter into the device. Dis- connect the device from the power socket if liq- uids or foreign objects have entered the device and have your device examined by trained profes- sionals at a technical service location. Do not allow children to handle the device wi thout supervision. Do not allow children to handle the device without supervision. The packing materials should be kept out of the hands of children. Power Supply Use only the enclosed power adapter Use only the enclosed power adapter (see chapter Appendix / Technical Data). Check whether the mains voltage of your device (indicated on the type label) matches the mains voltage available at the setup location. This equipment complies with the voltage type specified on the unit. Never touch the pow er cable if the insulation is da maged. Never touch the power cable if the insulation is damaged. Replace damaged wires immediately. Use suitable cables only; if necessary please con- tact our technical customer service or your retail- er. Before cleaning the surf ace of your device, disconnect it from t he power network. Before cleaning the surface of your device, dis- connect it from the power network. Use a soft, lint-free cloth. Never use liquid, gaseous or easily flammable cleansers (sprays, abrasives, polishes, alcohol). Do not allow any moisture to reach the in- terior of the device. Only clean the display with a dry, soft cloth. Only clean the display with a dry, soft cloth. If the display breaks, a mildly corrosive liquid may es- cape. Avoid all contact with your skin and eyes. Repairs Repairs Do not make any repairs to the device yourself. Improper maintenance can result in injuries or damage to the device. Only have your device re- paired by an authorised service centre. Do not remove the type label from your device; this would void the warranty. Photo Memory Media Photo Memory Media Only use storage media that are compatible with the device. In order to prevent damage to the card or the unit, please turn off the power before re- moving or inserting the card. Never pull out the memory card while the device is accessing it. This could cause data to be damaged or lost. af-5071ps_manual_03_en_253243464-a.book Seite 3 Donnerstag, 18. Juni 2009 12:16 124

Initial Operation Packing Contents Digital photo frame ‚ Digital photo frame with bracket Power supply with exchangeable plugs … Power supply with exchangeable plugs User Guide (not depicted) User Guide (not depicted) Verpackungsinhalt AF5071 Missing Package Co ntents Connecting power supply Mains Voltage a t the Site of Installation 1 Choose the right plug for your country and slide it onto the power adapter. Ensure that the plug snaps in completely. 2 Insert the small plug of the power supply into the socket on the rear side of your device. In- sert the power supply unit into the socket. Inserting a Memory Card 1 Insert a memory card into the appropriate card slot at the rear of the device. Your photo frame supports the following memory cards: SD/ MMC/MS/XD. 2 Switch the device on using the on/off switch on the rear. The player will start slide show af- ter the start screen be displayed. 3 Press OK at the rear during a slide show to stop the slide show. Notice Missing Package Contents If one of the parts is missing or dam- aged, please contact your retailer or our customer service. CAUTION! Mains Voltage at the Site of Installation! Check whether the mains voltage of your device (indicated on the type label) matches the mains voltage available at the setup location. DANGER! Inserting a Memory Card! Only use storage media that are com- patible with the device. Never pull out the memory card while the device is accessing it. This could cause data to be damaged or lost. Notice Many Photos on the Memory Card If the memory card contains many photos, it can take some time until the slide show starts. Notice Using USB device and memory card at the same time If a USB storage device is used at the same time as a storage card, the im- ages from the memory card are dis- played first. af-5071ps_manual_03_en_253243464-a.book Seite 5 Donnerstag, 18. Juni 2009 12:16 126

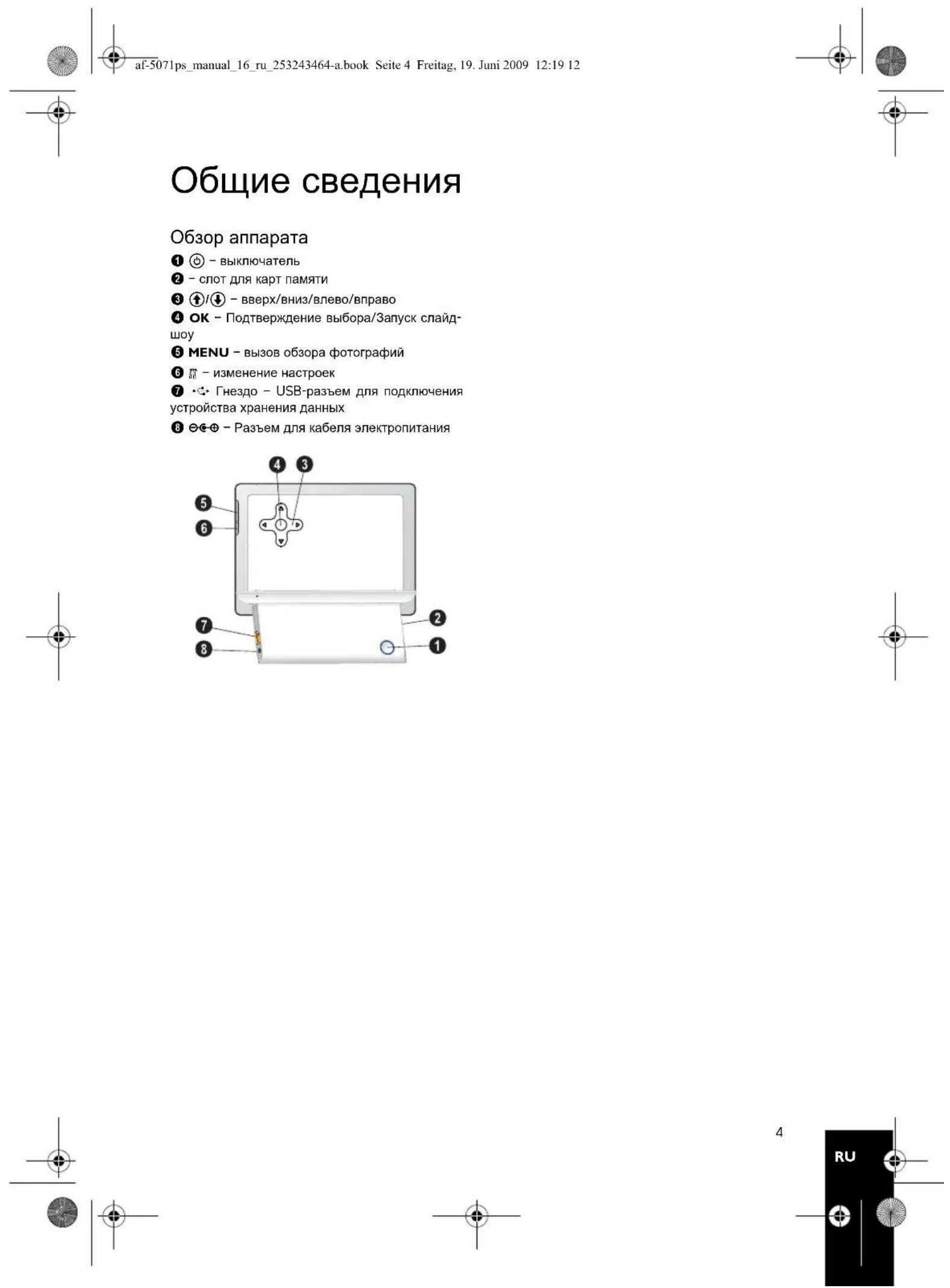

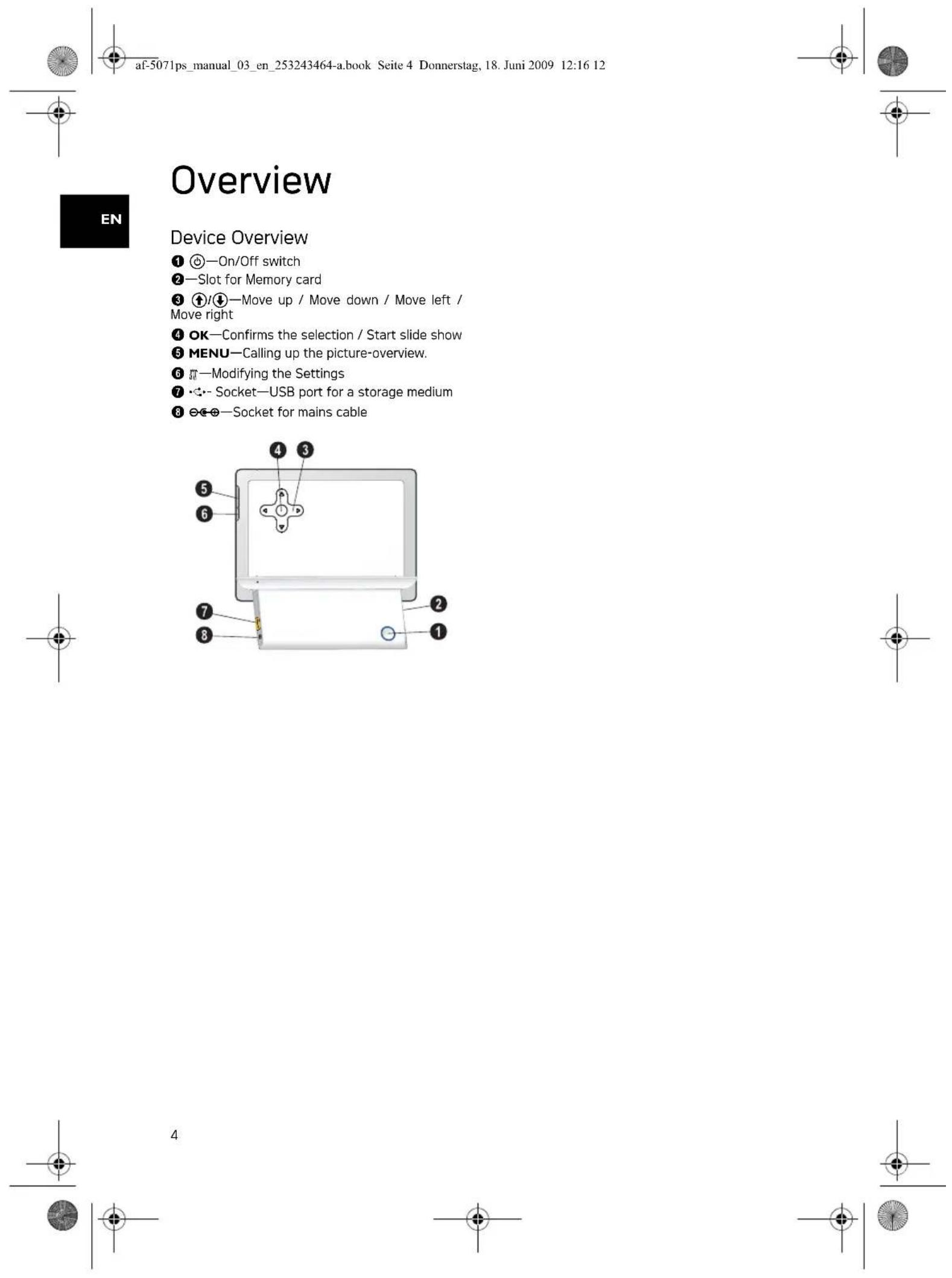

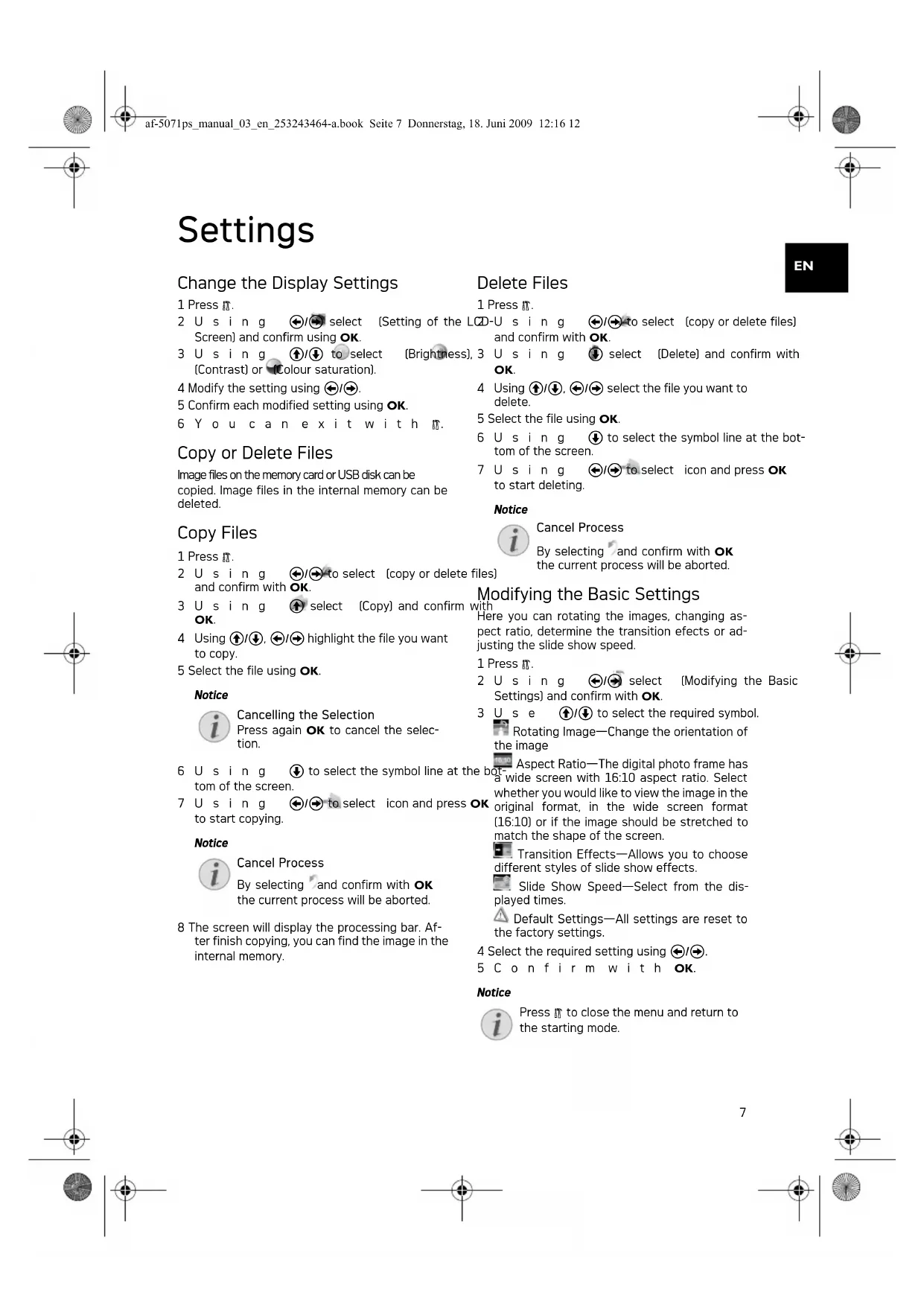

Settings Change the Display Settings 1 Press ù. 2Using J/H select (Setting of the LCD- Screen) and confirm using OK. 3Using G/I to select (Brightness), (Contrast) or (Colour saturation). 4 Modify the setting using J/H. 5 Confirm each modified setting using OK. 6You can exit with ù. Copy or Delete Files Image files on the memory card or USB disk can be copied. Image files in the internal memory can be deleted. Copy Files 1 Press ù. 2Using J/H to select (copy or delete files) and confirm with OK. 3Using G select (Copy) and confirm with OK. 4Using G/I, J/H highlight the file you want to copy. 5 Select the file using OK. 6Using I to select the symbol line at the bot- tom of the screen. 7Using J/H to select icon and press OK to start copying. 8 The screen will display the processing bar. Af- ter finish copying, you can find the image in the internal memory. Delete Files 1 Press ù. 2Using J/H to select (copy or delete files) and confirm with OK. 3Using I select (Delete) and confirm with OK. 4Using G/I, J/H select the file you want to delete. 5 Select the file using OK. 6Using I to select the symbol line at the bot- tom of the screen. 7Using J/H to select icon and press OK to start deleting. Modifying the Basic Settings Here you can rotating the images, changing as- pect ratio, determine the transition efects or ad- justing the slide show speed. 1 Press ù. 2Using J/H select (Modifying the Basic Settings) and confirm with OK. 3Use G/I to select the required symbol. Rotating Image—Change the orientation of the image Aspect Ratio—The digital photo frame has a wide screen with 16:10 aspect ratio. Select whether you would like to view the image in the original format, in the wide screen format (16:10) or if the image should be stretched to match the shape of the screen. Transition Effects—Allows you to choose different styles of slide show effects. Slide Show Speed—Select from the dis- played times. Default Settings—All settings are reset to the factory settings. 4 Select the required setting using J/H. 5Confirm with OK. Notice Cancelling the Selection Press again OK to cancel the selec- tion. Notice Cancel Process By selecting and confirm with OK the current process will be aborted. Notice Cancel Process By selecting and confirm with OK the current process will be aborted. Notice Press ù to close the menu and return to the starting mode. af-5071ps_manual_03_en_253243464-a.book Seite 7 Donnerstag, 18. Juni 2009 12:16 128

Service Information Problems Solutions Photo Frame does not power on. Check that you connect the AC adapter to the frame properly. Memory card can not be recognized • Check whether you have used a compatible memory card and whether you have inserted the memory card correctly.

• Make sure the memory card is not damaged.

Appendix Technical Data Model Model ......................................................................AF 5071PS Dimensions Dimensions (L¦×¦H¦×¦W)...............191,8¦×¦139,8¦×¦26¦mm Weight Weight...........................................................................0,366¦kg Input Mains Connection Input: 100¦–¦240¦V¦~ / 50¦–¦60¦Hz Output ............................................................Output: 5¦V¦† / 1¦A Recommended Ambient Temperature Recommended Ambient..................................... 0¦–¦45¦ºC Relative humidity Relative humidity...................................................20¦–¦80¦% Display Screen size..............................................................................7¦“ Aspect ratio Aspect ratio .....................................................................16:10 Resolution.....................................................432¦×¦234 Pixel Memory Internal memory Internal memory.................................... up to 10 photos Connections USB port USB port ..................................................................USB-Host Compatible Memory Cards Compatible Memory Cards.......SD · MMC · MS · XD Supported formats Photo formats Photo formats...................................................................JPEG All data are provided for reference purposes only. AgfaPhotoreserves the right to make any chang- es without prior notice. AgfaPhoto is used under license of Agfa-Ge- vaert NV & Co. KG or Agfa-Gevaert NV. Neither Agfa-Gevaert NV & Co KG nor Agfa-Gevaert NV manufacture this product or provide any prod- uct warranty or support. For service, support and warranty information, contact the distributor or manufacturer. Contact:AgfaPhoto Holding GmbH, www.agfaphoto.com Manufacturer: Sagem Communications, www.sagem-communications.com The CE marking certifies that the product meets the main requirements of the European Parlia- ment and Council directive 1999/5/CE on telecom- munications terminal equipment, regarding safety and health of users and regarding electromagnet- ic interference. The declaration of compliance can be consulted on the site www.agfaphoto.com Preservation of the environment as part of a sus- tainable development logic is an essential concern of AgfaPhoto. The desire of AgfaPhoto is to oper- ate systems observing the environment and con- sequently it has decided to integrate environmen- tal performances in the life cycle of this products, from manufacturing to commissioning use and elimination. Packaging: The presence of the logo (green dot) means that a contribution is paid to an approved national organisation to improve package recov- ery and recycling infrastructures to facilitate. Please respect the sorting rules set up locally for this kind of waste. Batteries:If your product contains batteries, they must be disposed of at appropriate collection points. Product: The crossed-out waste bin stuck on the product means that the product belongs to the family of electrical and electronic equipment. In this respect, the European regulations ask you to dispose of it selectively;

• At sales points in the event of the purchase of similar equipment.

• At the collection points made available to you lo- cally(drop-off centre, selective collection, etc.). In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment af-5071ps_manual_03_en_253243464-a.book Seite 9 Donnerstag, 18. Juni 2009 12:16 1210

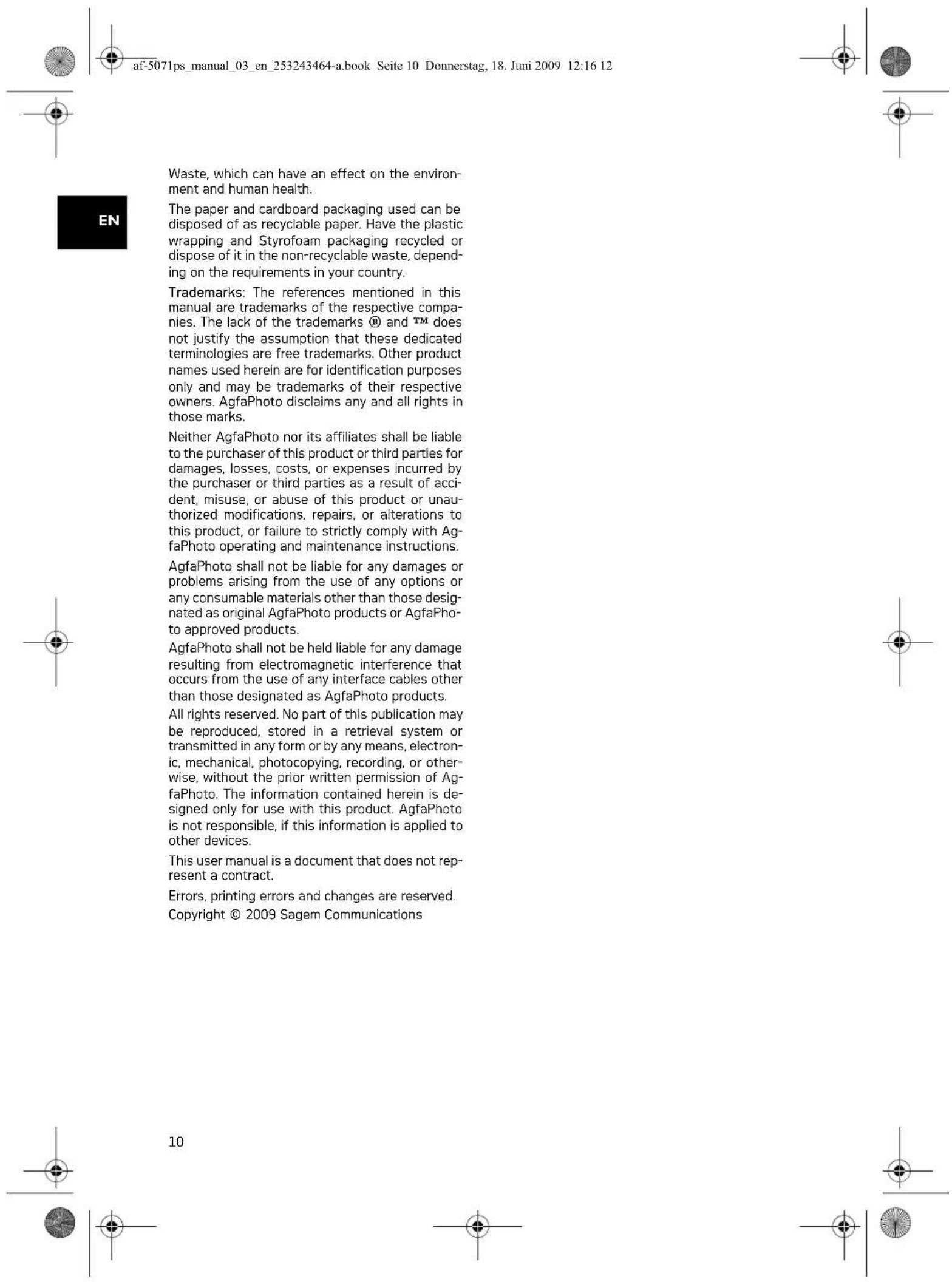

Waste, which can have an effect on the environ- ment and human health. The paper and cardboard packaging used can be disposed of as recyclable paper. Have the plastic wrapping and Styrofoam packaging recycled or dispose of it in the non-recyclable waste, depend- ing on the requirements in your country. Trademarks: The references mentioned in this manual are trademarks of the respective compa- nies. The lack of the trademarks É and Ë does not justify the assumption that these dedicated terminologies are free trademarks. Other product names used herein are for identification purposes only and may be trademarks of their respective owners. AgfaPhoto disclaims any and all rights in those marks. Neither AgfaPhoto nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of acci- dent, misuse, or abuse of this product or unau- thorized modifications, repairs, or alterations to this product, or failure to strictly comply with Ag- faPhoto operating and maintenance instructions. AgfaPhoto shall not be liable for any damages or problems arising from the use of any options or any consumable materials other than those desig- nated as original AgfaPhoto products or AgfaPho- to approved products. AgfaPhoto shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as AgfaPhoto products. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electron- ic, mechanical, photocopying, recording, or other- wise, without the prior written permission of Ag- faPhoto. The information contained herein is de- signed only for use with this product. AgfaPhoto is not responsible, if this information is applied to other devices. This user manual is a document that does not rep- resent a contract. Errors, printing errors and changes are reserved. Copyright © 2009 Sagem Communications af-5071ps_manual_03_en_253243464-a.book Seite 10 Donnerstag, 18. Juni 2009 12:16 121
