USER MANUAL SCX463 PHILIPS

A-3 AC power adapter

A-4 Power plug

A-5 Microphone

A-6 POWER light

A-7 Microphone sensitivity switch

A-8 Channel selection switch

A-9 Battery compartment cover

B. Parent Unit

B-1 Loudspeaker
B-2 LINK light
B-3 AC power adapter
B-4 Power plug
B-5 DC 9V -G + power supply jack
B-6 LINK alarm switch
B-7 Channel selection switch
B-8 ON/OFF switch / VOLUME control
B-9 POWER light
B-10 Battery compartment cover

C.What else you'll need

• Coin (to open the battery compartment of the baby unit)
• Small, flat screwdriver (to set the channel selection switches)
• 4 × 1,5 ~V AA batteries for the baby unit (optional, we recommend Philips Alkaline batteries)
• 4 × 1.5 ~V AA batteries for the parent unit (optional, we recommend Philips Alkaline batteries)

Contents

EN

3 Illustrations

4 Legend of functions

4 Baby unit
4 Parent unit
4 What else you need

5 Contents

6 Welcome

6 Safety information

7 Getting your baby monitor ready

7 Baby unit
7 Parent unit

8 Using your baby monitor

9 Other features

9 Avoiding interference
10 Adjusting microphone sensitivity
I Switching the LINK alarm on and off

12 Troubleshooting

14 Frequently asked questions

14 Technical specifications

15 Important information

15 Environmental information

15 Maintenance

15 Need help?

Philips is dedicated to produce caring, reliable products to give parents the reassurance they need. With this baby monitor you can hear your baby from where ever you are in and around your house. With sixteen different channels options you will experience minimal interference.

Philips Baby Care, taking care together

Safety information

Please read this user manual carefully before using your baby monitor and keep it for future reference. This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

• Make sure the baby unit and adapter cable are always out of reach of the baby (at least 1 meter / 3 feet away).
• Never place the baby unit inside the baby's bed or playpen.
• Never cover the baby monitor (with a towel, blanket, etc.).
• Never use the baby monitor in moist places or close to water.
• Check if the voltage indicated on the type plate of the adapters (A-3, B-3) correspond to the local power voltage before connecting to the AC power supply.
• Do not expose the baby monitor to extreme cold, heat or light (e.g. direct sunlight).
• To prevent electric shock, do not open the inside of the baby unit and parent unit (except for the battery compartment cover).
• The antennas on both units are fixed; do not try to extend them.

Getting your baby monitor ready

EN

Baby unit

The baby unit can be mains or battery operated.

When batteries are installed, you have an automatic back up in case of mains failure.

Mains operated use

I Connect the power adapter cord to the power supply jack (DC 9V -A-2) of the baby unit.
2 Connect the AC power adapter (A-3) to a wall outlet.
The baby unit is now ready for mains operated use.

Battery operated use

Remove the battery compartment cover (A-9) of the baby unit, using a coin.
2 Insert four 1,5V AA batteries, noting the + and - configuration inside the battery compartment (batteries are not supplied, we recommend Philips Alkaline batteries).
3 Close the battery compartment cover (A-9), using a coin.

The baby unit is now ready for battery operated use.

Parent unit

The parent unit can be mains or battery operated.

When batteries are installed, you have an automatic back up in case of mains failure.

Mains operated use

I Connect the power adapter cord to the power supply jack (DC 9V -B-5) of the parent unit.
2 Connect the AC power adapter (B-3) to a wall outlet.

The parent unit is now ready for mains operated use.

EN

Getting your baby monitor ready

Battery operated use

Remove the battery compartment cover (B-10) of the parent unit, by sliding down the cover.

2 Insert four 1,5V AA batteries, noting the + and - configuration inside the battery compartment (batteries are not supplied, we recommend Philips Alkaline batteries)

3 Slide the battery compartment cover (B-10) back in place until it clicks in position

The parent unit is now ready for battery operated use.

Using your baby monitor

1 Position both units in the same room to test the connection. Make sure the baby unit is at least 1 meter / 3 feet away from the parent unit.

2 Press the ON/OFF button (A-1) to switch on the baby unit. > The POWER light (A-6) lights up green.

3 Switch on the parent unit using the ON/OFF switch (B-8) and adjust the volume to the level you prefer using the VOLUME control (B-8).

The POWER light (B-9) lights up green.

When connection has been established between the units, the LINK light (B-2) on the parent unit lights up green.

Using your baby monitor

EN

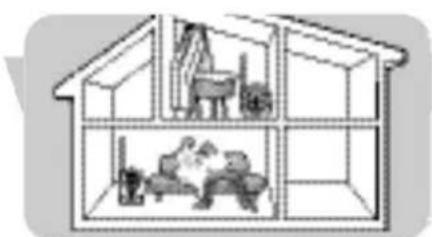

4 Position the baby unit at least 1 meter / 3 feet away from your baby.

5 Position the parent unit at the desired place within the operating range of the baby unit but at least 1 meter / 3 feet away from the baby unit. For more information on the operating range see 'Technical specifications'.

Your can now monitor you baby!

Other features

Avoiding interference (channel selection)

Always make sure that the CHANNEL selection switches (A-8, B-7) inside the battery compartments (A-9, B-10) on both units are set to the same position! With the CHANNEL selection switches (A-8, B-7) you can select sixteen different channel positions. If you experience interference from other baby monitors, radio devices, etc. select a different channel.

Open the battery compartment covers (A-9, B-10) of both units.

• Parent unit: slide down the cover.

• Baby unit: use a coin.

2 If you are operating the units on battery power, remove the batteries from both units.

Other features

3 Use a small, flat screwdriver to rotate the inner circle of the channel selection switches (A-8, B-7) to the desired position. Make sure both units are set to the same channel.

If you don't experience any interference after testing the connection, close the battery compartment covers (A-9, B-10). If you do experience interference, try switching to another channel.

4 Put batteries back in place and close the battery compartments.

Adjusting microphone sensitivity

With the microphone sensitivity control (A-7) on the baby unit, you can set the sound, coming from the baby unit, to the desired level: low, mid or high. When set to the maximum level, the baby unit monitors all sounds. If no sound is picked up, the baby monitor will not monitor since continuous transmission is prohibited by law. You can only change the microphone sensitivity if the connection between the baby unit and the parent unit is established (when LINK light (B-2) on the parent unit lights continuously green).

• Use the microphone sensitivity switch (A-7) to adjust the baby unit microphone sensitivity to the desired level. You can use your own voice as a sound reference.

The POWER light (A-6) on the baby unit lights up yellow when a sound is picked up.

Switching the LINK alarm on and off

You can switch on the LINK alarm on the parent unit. The LINK alarm will beep when connection between the units is lost.

Open the parent unit's battery compartment (B-10) by sliding down the cover.

2 Set the switch (B-6) inside the compartment (B-10) to the ON position.

3 Slide the battery compartment cover (B-10) back in place until it clicks in position.

• To switch off the alarm, set the switch (B-6) to the OFF (1) position.

Problem Possible cause Solution

POWER light (A-6, B-9) Unit not switched on. Press On/Off button (A-1) or does not light. set On/Off switch (B-8) to ON.

AC power adapter (A-3, B-3) Connect AC power adapter not connected to the (A-3, B-3) to the DC 9V -一 + DC 9V -一 + power supply power supply jack (A-2, B-5). jack (A-2, B-5).

AC power adapter (A-3, B-3) Connect AC power adapter (A-3, not connected to the power B-3) to a wall outlet. supply.

Batteries low. Replace batteries.

POWER light (A-6, B-9) Batteries low. Replace batteries. is blinking.

High pitched noise.	Units too close to each other.	Move parent unit away from baby unit (at least 1 metre / 3 feet).
	Volume set too high.	Turn VOLUME control (B-8) upwards.
No sound on parent unit.	Volume off or too low.	Turn VOLUME control (B-8) on parent unit downwards.
	Units out of range.	Move parent unit closer to baby unit.
No connection between units. tansmitted	Parent unit out of range of signal.	Move parent unit closer to baby unit.
	Units are set to different channels.	Set channel selection switches (A-8, B-7) to the same position on both units.

Problem Possible cause Solution

Interference or poor Mobile or cordless phone(s) Move phone(s) away from reception. too close to baby monitor. baby monitor.

Interference from other Switch both units to another baby monitors in the channel using the channel neighbourhood. selection switch (A-8, B-7).

Battery power running low. Replace batteries.

Transmitted signal is out of Move parent unit closer range; e.g. there are too many to baby unit.
walls and/or ceilings between
baby unit and parent unit.

Parent unit located too close to Move parent unit away a window and picking up from window. interfering signals from other appliances.

Pick-up from another baby monitor.

Both systems are operating on the same frequency.

Switch channels (A-8, B-7).
Make sure both units are set to the same position.

LINK light (B-2) flashing red / LINK alarm (B-6) beeps.

Units are out of range.

Move units closer together.

Interference from another baby monitor.

Switch to a different channel (A-8, B-7).

Interference from another FM source.

Remove other FM source.

Question	Answer
Parent unit reacts too slow/late on baby's cry.	Set microphone sensitivity on the baby unit to a higher level and/or move the baby unit closer to the baby (keep minimal distance of 1 meter / 3 feet).
Parent unit reacts too quick on other ambient sounds.	Set microphone sensitivity on the baby unit to a lower level and/or move the baby unit closer to the baby (keep minimal distance of 1 meter / 3 feet).
The link is lost every now and then, sound interruptions etc.	You are probably approaching the outer boundaries of the practical range. Try a different location or reduce the distance slightly. Please note that it takes about 30 seconds each time before a new link is established.

Technical specifications

Power supply	- AC power adapter 230V AC, 50 Hz (two included). Output voltage 9V DC, 200mAh.
Operating range	- Up to 200 meters / 750 feet in open air. Depending on the surroundings and other disturbing factors this range may be limited.
	Dry materials Material Loss of thickness range
	Wood, plaster, plaster < 30cm / 12" 0-10% cardboard, glass (without metal or wires, no lead)
	Brick, plywood < 30cm / 12" 5-35%
	Reinforced concrete < 30cm / 12" 30-100%
	Metal grids, bars < 1cm / 0.4" 90-100%
	Metal, aluminium sheets < 1cm / 0.4" 100%
	For wet and moist materials reduction can be as up to 100%.
Operating temperature	10 °C - 40 °C
Transmission frequencies	40.665 MHz, 40.680 MHz, 40.695 MHz

Environmental information

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Maintenance

• Clean the baby monitor with a damp cloth.
• Dispose of used batteries in an environmentally friendly manner.
• Do not mix old and new batteries or different types of batteries.
• Remove batteries if the baby monitor is not to be used for long periods of time.
• If the batteries are left in the unit when it is powered from the mains, check them for leakage every six months.

Need help?

Online help: www.philips.com

For interactive help, downloads and frequently asked questions

Contact line:

If you have any questions about the SCD463, please contact our helpline for assistance! You can find the number in the separate Guarantee leaflet.

Before you call, please read this manual carefully.

You will be able to solve most of your problems.

You will be asked for:

A description of the problem and when it occurs
The type number on the label of your product
The date of purchase
