USER MANUAL NSSW310 YAMAHA

CAUTION: Read this before operating your unit

Please read the following operating precautions before use. YAMAHA will not be held responsible for any damage and/or injury caused by not following the cautions below.

To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
- Install this unit in a cool, dry, clean place - away from windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors). To prevent fire or electrical shock, do not expose this unit to rain or water.
- Never open the cabinet. If something drops into the set, contact your dealer.
- The voltage to be used must be the same as that specified on the rear panel. Using this unit with a higher voltage than specified is dangerous and may cause a fire and/or electric shock.
- To reduce the risk or fire or electric shock, do not expose this unit to rain or moisture.
- Do not use force on switches, controls or connection wires. When moving the unit, first disconnect the power plug and the wires connected to other equipment. Never pull the wires themselves.
- When not planning to use this unit for a long period (ie., vacation, etc.), disconnect the AC power plug from the wall outlet.
- To prevent lightning damage, disconnect the AC power plug when there is an electric storm.
- Since this unit has a built-in power amplifier, heat will radiate from the rear panel. Place the unit apart from the walls, allowing at least 20cm of space above, behind and on both sides of the unit to prevent fire or damage. Furthermore, do not position with the rear panel facing down on the floor or other surfaces.
- Do not cover the rear panel of this unit with a newspaper, a tablecloth, a curtain, etc., in order not to obstruct heat radiation. If the temperature inside the unit rises, it may cause fire, damage to the unit and/or personal injury.
- Do not place the following objects on this unit: Glass, china, small metallic, etc.

If glass, etc., falls as a result of vibrations and breaks, it may cause bodily injury.

A burning candle etc.

If the candle falls as a result of vibration, it may cause fire and bodily injury.

A vessel containing water

If the vessel falls as a result of vibration and water spills, it may cause damage to the speaker, and/or you may get an electric shock.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

• Do not place this unit where foreign material, such as dripping water. It might cause fire, damage to this unit, and/or personal injury.
• Never put a hand or a foreign object into the YST port located on the right side of this unit. When moving this unit, do not hold the port, as it might cause personal injury and/or damage to this unit.
• Never place a fragile object near the YST port of this unit. If the object falls or drops as a result of the air pressure, it may cause damage to the unit and/or personal injury.
• Never open the cabinet. It might cause an electric shock, since this unit uses a high voltage. It might also cause personal injury and/or damage to this unit.
• When using a humidifier, be sure to avoid condensation inside this unit by allowing enough space around this unit or avoiding excess humidification. Condensation might cause fire, damage to this unit, and/or electric shock.
• Super-bass frequencies reproduced by this unit may cause a turntable to generate a howling sound. In such a case, move this unit away from the turntable.
• This unit may be damaged if certain sounds are continuously output at high volume level. For example, if 20Hz - 50Hz sine waves from a test disc, bass sounds from electronic instruments, etc., are continuously output, or when the stylus of a turntable touches the surface of a disc, reduce the volume level to prevent this unit from being damaged.
• If you hear distortion (i.e., unnatural, intermittent "rapping" or "hammering" sounds) coming from this unit, reduce the volume level. Extremely loud playing of a movie soundtrack's low frequency, bass-heavy sounds or similarly loud popular music passages can damage this speaker system.
• Vibration generated by super-bass frequencies may distort images on a TV. In such a case, move this unit away from the TV set.
• Do not attempt to clean this unit with chemical solvents as this might damage the finish. Use a clean, dry cloth.
• Be sure to read the "TROUBLESHOOTING" section regarding common operating errors before concluding that the unit is faulty.
• Install this unit near the wall outlet and where the AC power plug can be reached easily.
• Secure placement or installation is the owner's responsibility. YAMAHA shall not be liable for any accident caused by improper placement or installation of speakers.

Be sure to allow spaces of at least 20cm above, behind and on both sides of the unit.

VOLTAGE SELECTOR

(Asia and General models only)

The voltage selector switch on the rear panel of this unit must be set to your local main voltage BEFORE plugging this unit into the AC main supply. Voltages are 110-120/220-240 V AC, 50/60 Hz.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. In this state, this unit is designed to consume a very small quantity of power.

This unit features a magnetically shielded design, however, there is still a chance that placing it too close to a TV set might impair picture color. Should this happen, move this unit away from the TV set.

For U.K. customers

If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described below.

Note: The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet.

SPECIAL INSTRUCTIONS FOR U.K. MODEL

IMPORTANT:

THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL

Brown: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Make sure that neither wire is connected to the earth terminal of a three pin plug.

For Canadian Customers

To prevent electric shock, match wide blade of plug to wide slot and fully insert.

This Class B digital apparatus complies with Canadian ICES-003.

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/ EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[Information on Disposal in other Countries outside the European Union]

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

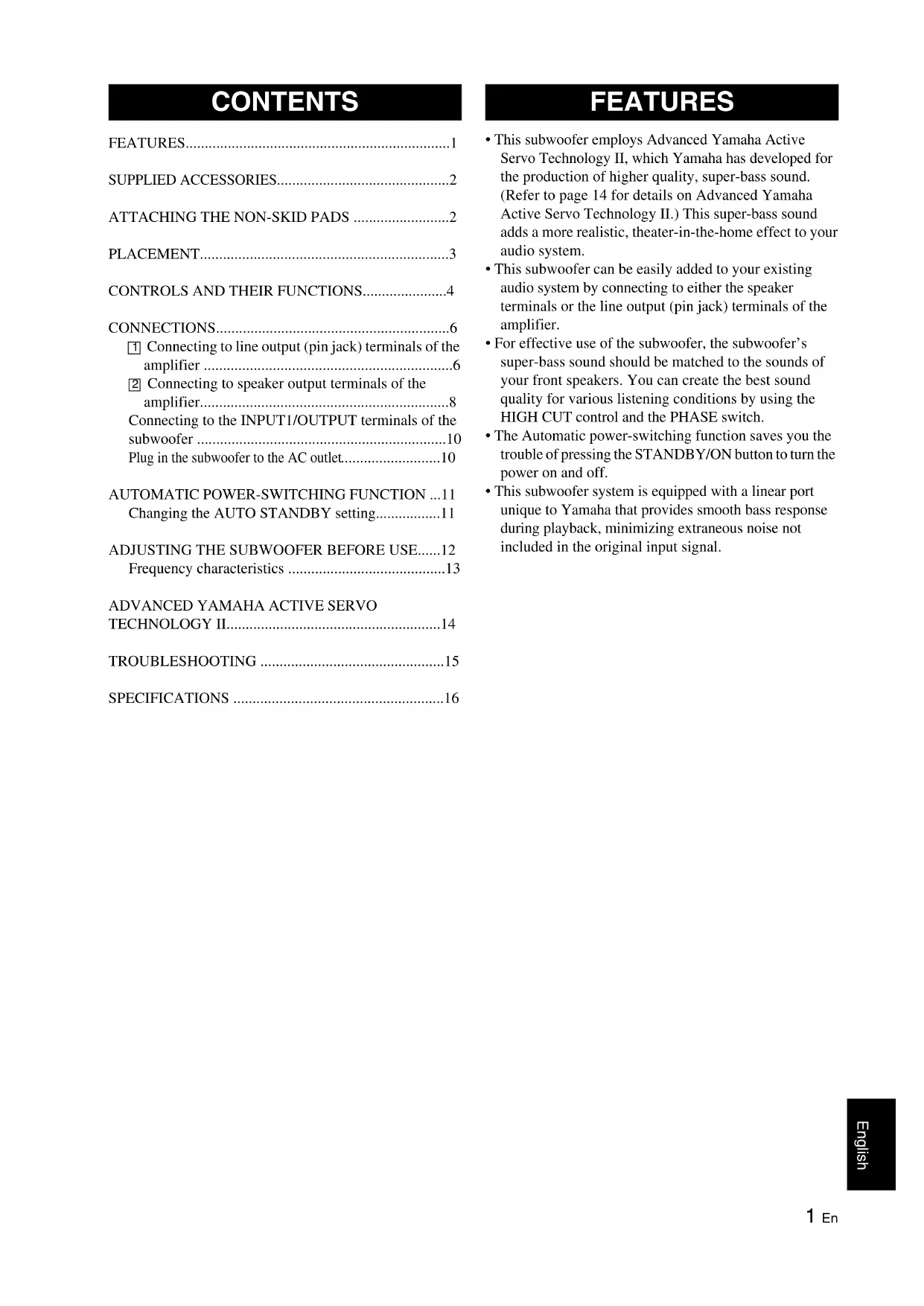

CONTENTS

FEATURES. 1

SUPPLIED ACCESSORIES. 2

ATTACHING THE NON-SKID PADS 2

PLACEMENT. 3

CONTROLS AND THEIR FUNCTIONS. 4

CONNECTIONS. 6

l Connecting to line output (pin jack) terminals of the amplifier .6
2 Connecting to speaker output terminals of the amplifier. 8

Connecting to the INPUT1/OUTPUT terminals of the subwoofer 10

Plug in the subwoofer to the AC outlet. 10

AUTOMATIC POWER-SWITCHING FUNCTION ...11

Changing the AUTO STANDBY setting. 11

ADJUSTING THE SUBWOOFER BEFORE USE....12

Frequency characteristics 13

ADVANCED YAMAHA ACTIVE SERVO

TECHNOLOGY II. 14

TROUBLESHOOTING 15

SPECIFICATIONS 16

FEATURES

• This subwoofer employs Advanced Yamaha Active Servo Technology II, which Yamaha has developed for the production of higher quality, super-bass sound. (Refer to page 14 for details on Advanced Yamaha Active Servo Technology II.) This super-bass sound adds a more realistic, theater-in-the-home effect to your audio system.
• This subwoofer can be easily added to your existing audio system by connecting to either the speaker terminals or the line output (pin jack) terminals of the amplifier.
• For effective use of the subwoofer, the subwoofer's super-bass sound should be matched to the sounds of your front speakers. You can create the best sound quality for various listening conditions by using the HIGH CUT control and the PHASE switch.
• The Automatic power-switching function saves you the trouble of pressing the STANDBY/ON button to turn the power on and off.
• This subwoofer system is equipped with a linear port unique to Yamaha that provides smooth bass response during playback, minimizing extraneous noise not included in the original input signal.

SUPPLIED ACCESSORIES

After unpacking, check that the following parts are contained.

Non-skid pads

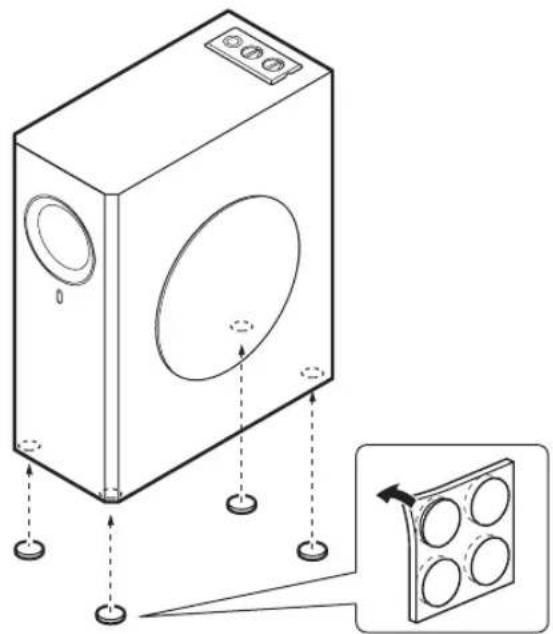

ATTACHING THE NON-SKID PADS

To enjoy the high sound quality, stabilize the subwoofer using the non-skid pads.

Attach the provided non-skid pads in the four corners of the underside of the subwoofer to prevent the subwoofer from moving as a result of vibration, etc.

PLACEMENT

A

One subwoofer will have a good effect on your audio system, however, the use of two subwoofer is recommended to obtain more effect.

If using one subwoofer, it is recommended to place it on the outside of either the right or the left front speaker. (See fig. If using two subwooers, it is recommended to place them on the outside of each front speaker. (See fig. The placement shown in fig. is so possible, however, if the subwoofer is placed directly facing the wall, the bass effect may suffer due to cancellation of direct and reflected sounds. To prevent this from happening, place the subwoofer at an angle, as in fig.

B

Note

There may be a case that you cannot obtain enough super-bass sounds from the subwoofer when listening in the center of the room. This is because "standing waves" have developed between two parallel walls and cancel the bass sounds.

In such a case, place the subwoofer at an oblique angle to the wall. It also may be necessary to break up the parallel surfaces by placing bookshelves, etc. along the walls.

CONTROLS AND THEIR FUNCTIONS

Power indicator

Lights up in green while the subwoofer is on.

Lights up in red while the subwoofer is set in the standby mode by the operation of the automatic power-switching function.

Goes off when the subwoofer is set in the standby mode.

STANDBY/ON button

Press this button to turn on the power when the POWER switch is set in the ON position. (The power indicator lights up in green.)

Press again to set the subwoofer in the standby mode. (The power indicator goes off.)

Standby mode

The subwoofer is still using a small amount of power in this mode.

3 HIGH CUT control

Adjusts the high frequency cut off point.

Frequencies higher than the frequency selected by this control are all cut off (and no output).

• One graduation of this control represents 10 Hz.

4 VOLUME control

Adjusts the volume level. Turn the control clockwise to increase the volume, and counterclockwise to decrease the volume.

AUTO STANDBY (HIGH/LOW/OFF) switch

This switch is originally set to the OFF position. By setting this switch to the HIGH or LOW position, the subwoofer's automatic power-switching function operates, as described on page 11. If you do not need this function, leave this switch in the OFF position.

• Make sure to change the setting of this switch only when the subwoofer is set in the standby mode by pressing the STANDBY/ON button.

6 POWER switch

Set this switch to the ON position to use the subwoofer. In this state, you can turn on the subwoofer or turn the subwoofer into the standby mode by pressing the STANDBY/ON button. Set this switch to the OFF position to completely cut off the subwoofer's power supply from the AC outlet.

VOLTAGE SELECTOR switch

(Asia and General models only)

If the preset setting of the switch is incorrect, set the switch to the proper voltage (110-120/220-240 V) of your area.

Consult your dealer if you are unsure of the correct setting.

WARNING

Be sure to unplug the subwoofer before setting the VOLTAGE SELECTOR switch correctly.

OUTPUT (TO SPEAKERS) terminals

Can be used for connecting to the main speakers. Signals from the INPUT1 terminals are sent to these terminals. (Refer to "CONNECTIONS" for details.)

INPUT1 (FROM AMPLIFIER) terminals

Used to connect the subwoofer with the speaker terminals of the amplifier. (Refer to "CONNECTIONS" for details.)

10 INPUT2 terminals

Used to input line level signals from the amplifier. (Refer to "CONNECTIONS" for details.)

1 INPUT3 (LFE) terminals

The HIGH CUT control 3 as no effect on the signals inputted to these terminals. (See Page 7 for details)

12 PHASE switch

This switch is to be set to the REV (reverse) position. However, depending on your speaker system or listening condition, there may be a case when better sound quality is obtained by setting this switch to the NORM (normal) position. Select the best position by ear.

CONNECTIONS

Choose one of the following two connecting methods most suitable for your audio system.

Choose (pages 6-7) if your amplifier has line output (pin jack) terminal(s)
Choose pages 8-9) if your amplifier has no line output (pin jack) terminal(s)

Caution: Unplug the subwoofer and other audio/video components before making connections.

Notes

• All connections must be correct, that is to say L (left) to L, R (right) to R, “+” to “+” and “-” to “-”. Also, refer to the owner's manual of your component to be connected to the subwoofer.
• After all connections are completed, plug in the subwoofer and other audio/video components.

1 Connecting to line output (pin jack) terminals of the amplifier

• To connect to an amplifier (or AV receiver), connect the SUBWOOFER (or LOW PASS, etc.) terminal on the rear of the amplifier (or AV receiver) to the MONO INPUT2 terminal of the subwoofer.
• When connecting the subwoofer to the SPLIT SUBWOOFER terminals on the rear of the amplifier, be sure to connect the MONO INPUT2 terminal to the "L" side and the INPUT2 terminal to the "R" side of the SPLIT SUBWOOFER terminals.

Notes

• Some amplifiers have line output terminals labeled PRE OUT. When you connect the subwoofer to the PRE OUT terminals of the amplifier, make sure that the amplifier has at least two sets of PRE OUT terminals. If the amplifier has only one set of PRE OUT terminals, do not connect the subwoofer to the PRE OUT terminals. Instead, connect the subwoofer to the speaker output terminals of the amplifier. (Refer to pages 8-9.)
• When connecting to a monaural line output terminal of the amplifier, connect the /MONO INPUT2 terminal.
• When connecting to line output terminals of the amplifier, other speakers should not be connected to the OUTPUT terminals on the rear panel of the subwoofer. If connected, they will not produce sound.

Using one subwoofer

Using two subwoofoers

Connecting to the LFE (INPUT3) terminal(s)

If your amplifier can cut off high frequencies from the signals for sending to the subwoofer, connect the amplifier to the subwoofer's LFE (INPUT3) terminal(s). This will bring you higher sound quality because the signal routing in the subwoofer is shortened by passing the built-in HIGH CUT circuit.

2 Connecting to speaker output terminals of the amplifier

Select this method if your amplifier has no line output (pin jack) terminal(s).

If your amplifier has two sets of front speaker output terminals and both terminals can output sound signals simultaneously.

• Connect one set of front speaker output terminals of the amplifier to the INPUT1 terminals of the subwoofer, and connect the other set of front speaker output terminals of the amplifier to the front speakers.
• Set the amplifier so that both sets of front speaker output terminals output sound signals simultaneously.

Note

If your amplifier has only one set of front speaker output terminals, see page 9.

Using one subwoofer (with speaker cables)

Using two subwoofoers (with speaker cables)

Right front speaker Left frspeaker
To AC outlet To AC outlet

If your amplifier has only one set of front speaker output terminals.

Connect the speaker output terminals of the amplifier to the INPUT1 terminals of the subwoofer, and connect the OUTPUT terminals of the subwoofer to the front speakers.

Using one subwoofer (with speaker cables)

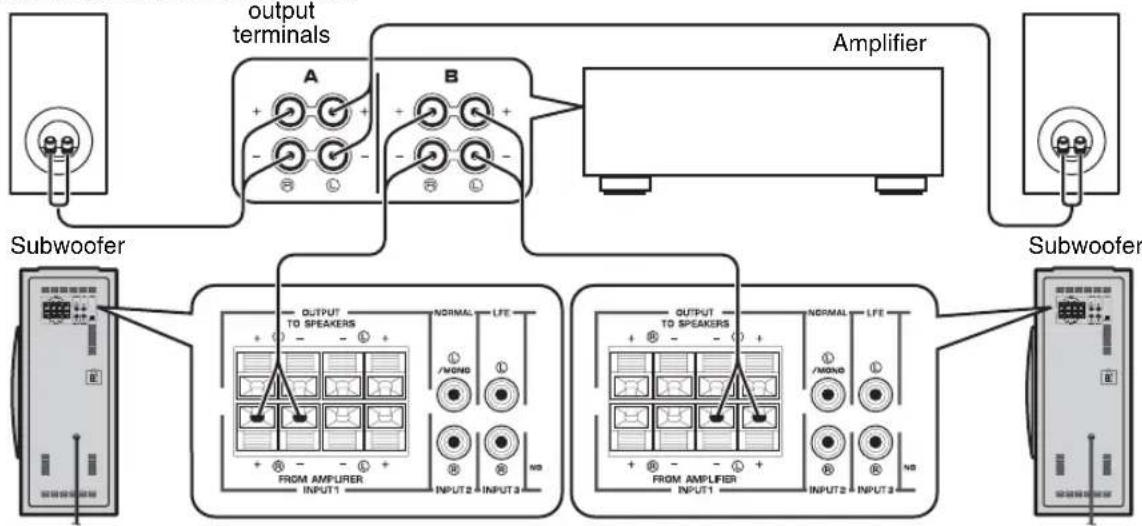

Using two subwoofoers (with speaker cables)

Right front speaker Left front speaker

Connecting to the INPUT1/OUTPUT terminals of the subwoofer

For connection, keep the speaker cables as short as possible. Do not bundle or roll the excess cabling. If the connections are faulty, no sound will be heard from the subwoofer or the speakers, or both. Make sure that the + and - polarity markings of the speaker cables are observed and connected correctly. If these cables are reversed, the sound will be unnatural and lack bass.

Caution

Do not let the bare speaker wires touch each other, because this could damage the subwoofer or the amplifier, or both of them.

■Before connecting

Remove 10mm (3/8") of insulation from the ends of the speaker cables.

Good No Good

Plug in the subwoofer to the AC outlet

After all connections are completed, plug the subwoofer and other audio/video components into AC outlets.

Red: positive (+) Black: negative (-)

How to connect

1 Loosen the terminal's knob, as shown in the figure.
2 Insert the bare wire.
3 Release your finger from the tab to allow it to lock securely on the cable's wire end.
4 Test the firmness of the connection by pulling lightly on the cable at the terminal.

AUTOMATIC POWER-SWITCHING FUNCTION

This function automatically switches the unit between standby and power-on mode.

The subwoofer automatically places itself in standby mode if it does not receive an input signal for 7 or 8 minutes. (The power indicator lights red.)

When the subwoofer detects a bass signal input of below 200Hz , it automatically places itself in power-on mode. (The power indicator lights green.)

Notes

• This function is available only when the POWER switch and STANDBY/ON button are set to ON.
• Noise received from other appliances may extend the time period before the subwoofer places itself in standby mode to more than 8 minutes.

Changing the AUTO STANDBY setting

1 Set the subwoofer to standby.
2 Change the AUTO STANDBY setting.

• LOW: Select this position to activate this function.
• HIGH: If this function does not operate with AUTO STANDBY switch set to LOW, select this position so that the subwoofer detects input signals with a lower level and switches the power on automatically.
• OFF: Select this position to deactivate this function, for example, when the subwoofer switches the power on unexpectedly by sensing noises from other appliances.

ADJUSTING THE SUBWOOFER BEFORE USE

Before using the subwoofer, adjust the subwoofer to obtain the optimum volume and tone balance between the subwoofer and the front speakers by following the procedure described below.

1 Set the VOLUME control to minimum (0).
2 Turn on the power of all the other components.
3 Make sure that the POWER switch is set to the ON position, then press the STANDBY/ON button to turn on the subwoofer.

• The Power indicator lights up in green.

4 Play a source containing low-frequency components and adjust the amplifier's volume control to the desired listening level.
5 Adjust the HIGH CUT control to the position where the desired response can be obtained.

Normally, set the control to a level a little higher than the front speaker's rated minimum reproducible frequency*.

• The front speaker's rated minimum reproducible frequency can be looked up in the speakers' catalog or owner's manual.

6 Increase the volume gradually to adjust the volume balance between the subwoofer and the front speakers. Set the control to a level where you can obtain a little more bass effect than when the subwoofer is not used. If the desired response cannot be obtained, adjust the HIGH CUT control and the VOLUME control again.
7 Set the PHASE switch to the position which gives you the better bass sound.

Set the switch to the REV (reverse) position. If the desired response cannot be obtained, set the switch to the NORM (normal) position.

Notes

• Once the volume balance between the subwoofer and the front speakers is adjusted, you can adjust the volume of your entire sound system by using the amplifier's volume control.

However, if you change the front speakers to others, you must make this adjustment again.

• For adjusting the VOLUME control, the HIGH CUT control and the PHASE switch, refer to "Frequency characteristics" on page 13.

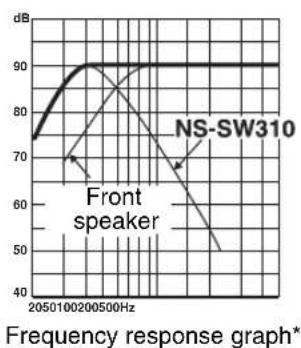

Frequency characteristics

This subwoofer's frequency characteristics

The figures below show the optimum adjustment of each control and the frequency characteristics when this subwoofer is combined with a typical front speaker system.

■EX.1 When combined with 10cm(4^ ) or 13cm(5^ ) acoustic suspension, 2-way system front speakers

■EX.2 When combined with 20cm (8") or 25cm (10") acoustic suspension, 2-way system front speakers

*This diagram does not depict actual frequency response characteristics.

ADVANCED YAMAHA ACTIVE SERVO TECHNOLOGY II

In 1988, Yamaha brought to the marketplace speaker systems utilizing YST (Yamaha Active Servo Technology) to give powerful, high quality bass reproduction. This technique uses a direct connection between the amplifier and speaker, allowing accurate signal transmission and precise speaker control.

As this technology uses speaker units controlled by the negative impedance drive of the amplifier and resonance generated between the speaker cabinet volume and port, it creates more resonant energy (the "air woofer" concept) than the standard bass reflex method. This allows for bass reproduction from much smaller cabinets than was previously possible.

Yamaha's newly developed Advanced YST II adds many refinements to Yamaha Active Servo Technology, allowing better control of the forces driving the amplifier and speaker. From the amplifier's point of view, the speaker impedance changes depending on the sound frequency. Yamaha developed a new circuit design combining negative-impedance and constant-current drives, which provides a more stable performance and clear bass reproduction, without any murkiness.

TROUBLESHOOTING

Refer to the chart below if this unit does not function properly. If the problem you are experiencing is not listed below, or if the instructions given below do not help, disconnect the power cord and contact an authorized YAMAHA dealer or service center.

Problem Cause What to Do
Power is not supplied even though the STANDBY/ON button is set to the ON position.	The power plug is not securely connected.	Connect it securely.
	The POWER switch is set to the OFF position.	Set the POWER switch to the ON position.
No sound. The volume is set to minimum.	Raise the volume up.
	Speaker cables are not connected securely.	Connect them securely.
Sound level is too low. Speaker cables are	not connected correctly.	Connect them correctly, that is L (left) to L, R (right) to R, “+” to “+” and “-” to “-”.
	The PHASE switch is not set correctly. Set the PHASE switch to the other position.
	A source sound with little bass frequency content is being played.	Play a source sound with bass frequencies. Set the HIGH CUT control to a higher position.
	It is influenced by standing waves. Reposition the subwoofer or break up parallel surfaces by placing bookshelves, etc., along the walls.
The subwoofer does not turn on automatically.	The POWER switch is set to the OFF position.	Set the POWER switch to the ON position.
	The STANDBY/ON button is set to the STANDBY position.	Set the STANDBY/ON button to the ON position.
	The AUTO STANDBY switch is set to the OFF position.	Set the AUTO STANDBY switch to the “HIGH” or “LOW” position.
	The level of input signal is too low. Set the AUTO STANDBY switch to the “HIGH” position.
The subwoofer does not turn into the standby mode automatically.	Noise generated from external appliances etc., is activating the subwoofer.	Move the subwoofer farther away from such appliances, and/or reposition the connected speaker cables. Otherwise, set the AUTO STANDBY switch to the “OFF” position.
	The AUTO STANDBY switch is set to the OFF position.	Set the AUTO STANDBY switch to the “HIGH” or “LOW” position.
The subwoofer turns into the standby mode unexpectedly.	The level of input signal is too low. Set the AUTO STANDBY switch to the “HIGH” position.
The subwoofer turns on unexpectedly. No noise generated from external appliances etc., is activating the subwoofer.	Move the subwoofer farther away from such appliances, and/or reposition the connected speaker cables. Otherwise, set the AUTO STANDBY switch to the “OFF” position.

SPECIFICATIONS

Type..... Advanced Yamaha Active Servo Technology II

Driver 20 cm (8") cone woofer Magnetic shielding type

Amplifier Output (100 Hz, 5 ohms, 10% THD) 130 W

Frequency Response. 26 Hz - 160 Hz

Power Supply

USA and Canada models..AC 120V, 60Hz

U.K. and Europe models..AC 230V, 50Hz

Australia model.. AC 240V, 50Hz

China model.. AC 220V,50 Hz

Korea model.. AC 220V,60 Hz

Asia and General models

AC 110-120/220-240 V, 50/60 Hz

Power Consumption. .67 W

Standby Power Consumption .0.5 W

Dimensions (W× H× D)

200mm× 473mm× 405mm

(7 - 7 / 8^ × 18 - 5 / 8^ × 15 - 15 / 16^ )

Weight 14 kg (30 lbs. 14 oz.)

Please note that all specifications are subject to change without notice.

Limited Guarantee for European Economic Area (EEA) and Switzerland

Thank you for having chosen a Yamaha product. In the unlikely event that your Yamaha product needs guarantee service, please contact the dealer from whom it was purchased. If you experience any difficulty, please contact Yamaha representative office in your country. You can find full details on our website (http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident).

The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha's discretion, without any charge for parts or labour. Yamaha reserves the right to replace a product with that of a similar kind and/or value and condition, where a model has been discontinued or is considered uneconomic to repair.

Conditions

1. The original invoice or sales receipt (showing date of purchase, product code and dealer's name) MUST accompany the defective product, along with a statement detailing the fault. In the absence of this clear proof of purchase, Yamaha reserves the right to refuse to provide free of charge service and the product may be returned at the customer's expense.
2. The product MUST have been purchased from an AUTHORISED Yamaha dealer within the European Economic Area (EEA) or Switzerland.
3. The product must not have been the subject of any modifications or alterations, unless authorised in writing by Yamaha.
4. The following are excluded from this guarantee:
   a. Periodic maintenance and repair or replacement of parts due to normal wear and tear.
   b. Damage resulting from:
   (1) Repairs performed by the customer himself or by an unauthorised third party.
   (2) Inadequate packaging or mishandling, when the product is in transit from the customer. Please note that it is the customer's responsibility to ensure the product is adequately packaged when returning the product for repair.
   (3) Misuse, including but not limited to (a) failure to use the product for its normal purpose or in accordance with Yamaha's instructions on the proper use, maintenance and storage, and (b) installation or use of the product in a manner inconsistent with the technical or safety standards in force in the country where it is used.
   (4) Accidents, lightning, water, fire, improper ventilation, battery leakage or any cause beyond Yamaha's control.
   (5) Defects of the system into which this product is incorporated and/or incompatibility with third party products.
   (6) Use of a product imported into the EEA and/or Switzerland, not by Yamaha, where that product does not conform to the technical or safety standards of the country of use and/or to the standard specification of a product sold by Yamaha in the EEA and/or Switzerland.
   (7) Non AV (Audio Visual) related products.
   (Products subject to "Yamaha AV Guarantee Statement" are defined in our website at http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident.)
5. Where the guarantee differs between the country of purchase and the country of use of the product, the guarantee of the country of use shall apply.
7. Please backup any custom settings or data, as Yamaha may not be held responsible for any alteration or loss to such settings or data.
8. This guarantee does not affect the consumer's statutory rights under applicable national laws in force or the consumer's rights against the dealer arising from their sales/purchase contract.

■Raccordement aux bornes LFE (INPUT3)

AUTO STANDBY (HIGH/LOW/OFF)-Schalter. This is the best way to use this technique. The Schalter is a good example of this technique. In the case of a high position, the Schalter is used to bring the position OFF into the low position. This is a good technique for determining the position of the low position. However, this technique is not suitable for all positions.

MEDFOLJANDE TILLBEHOR. 2

FASTAGLIDSKYDDSDYNORNA. 2

PLACERING 3

REGLAGE OCH DERAS FUNKTIONER. 4

ANSLUTNINGAR 6

JUSTERING AV SUBWOOFERHÖGTALAREN INNAN

BRUK. 12

FASTA GLIDSKYDDSDYNORNA

JUSTERING AV SUBWOOFERHÖGTALAREN INNAN BRUK

TEXHINUECKHEXAPAKTEPNCI 16

CBOYCTBA

B 3TOI CNCTeMe ca6ByepOB HcIOJIb3yeTcYcoBepHHeHCTBOBaHHaTeXHOJIOTnA AdvancedYamaha Active Servo Technology II,pa3pa6OtaHHaKOMIIaHnei YamahaДЯBOCIIPOUN3BeJeHH BAICOKOKaYeCTBeHHORCBePxHN3KOuACTOTHOrO 3Byka.（IOIOJIHTeJIbHyUINΦOpMaIHNO 06 3TOI TEXHOJOrn CM.Ha cTp.14.)3TOI CBcPXHN3KOyAcTOTHbI 3BYK JIObAJIacPeaJIHCTNHIbI ΕΦΦeKT IOMaIIHero KINHOTeaTpaBaIIeI cTepeOCHTeMe.
3TOT ca6byep MOXHO JERKO IO6aBHbK cyueCTByOuieyayIOOCHTeMe,IOJKJIOUHB eRO KJIcMMaAkyCTHcckHX CHTeM HIN JINHHoHOro BbIXOJa (KOHTaKTbIM THe3IaM) yCNJInTeJI.
ⅡIJIe3ΦeKTHBHOHcIOJIb3OBaHHca6Byepa Heo6XoJIMBO BIIIOJINHTb COJIacOBaHHe BOIPOH3BOJIMO Hm CBePxHn3KOyAcTOTHO 3ByKa CO 3ByKOM pOHTaJIbHbIX aKyCTHuecknx CHCTem.MoKHO IOJyUHTb HaJIyUHHe KaYeCTBO 3ByuHaHra JIIpa3HBIX ycIOBn IIpocJYHbHHaHH, HcIOJIb3yJ AEmeHT yIpabJIeHHa HIGH CUT n IpeekJIOUaTeJb PHASE.
-ФункинabTOMaTHuecKOrIOIpeKeJIOUeHIN HHTAHN HCKJIIOuayet HeO6XoIMOCtB HaKaTHN KHOIIKN STANDBY/ON IIIBKJIIOUeHIN BBIKJIIOUCHNIIITAHN.
CnCTcMa ca6BycpOB OCHaIIcHa 0HpMcHHbIM IINHeHHbIM OTBepCTHeM Yamaha, 0eCneuBAIOHM POBHOE BOCIpOH3BeJeHHe HN3KHX YaCTOT H CHNXeHHe IOCTOpOHHX IIyMOB, OTCyTCTBYIOHN B HCXOJHOM BXOJHOM CNHajIC.

KJcMMbI OUTPUT (TO SPEAKERS)

Moryt HcIOJIb3OBaTbcra IIIA IOIKJIOUeHHRA OCHOBHbIM aKycCTHueckHM cHCTeMaM. Ha 3TN KJIeMMbl IIOJaOTcra CHHaJIbI C KJIeMM INPUT1.

(ДоJOJIHHTeJIbHyIO HnФОMaIuIO CM.В pa3IeJIe "IOJKJIIOUYEHNE").

KJTeMMbI INPUT1 (FROM AMPLIFIER)

HcIOb3yIOTeJIOIIOKJIIOUeHHNca6Bypepa K KJIEMMa aKyCTHueCKNX cHcTeM yCHNIHTeJI.

Tun.....Advanced Yamaha Active Servo Technology II

HAMK. KOHNueCKOROTINaJnAmETpOM20cm CMaHTHBIMKpaHnpOBaHHem

BbIXoIc ychJIHTeJIa (100 Fu, 5 Om, cymMaphoe 3HaueHHe KOaΦΦHHeHTa HeJIHHeHbIX HcKaXeHn 10%) .130 Bt

HactoTHaXapakTepehCTHa. 26 T - 160 T

Hirahne

MoJIINIJI CIIIA H KaHaJIbI 120B IepeMeHHoro TOka 60 T
MoJIINIJI BeJIHKo6pHTaHNN H EBPOJIbI 230B IIepeMeHHoro TOka 50 T
MoJIINIJI ABCTpaJIIN 240B IIepeMeHHoro TOka 50 T
MoJIINIJI KHTaI 220B IIepeMeHHoro TOka 50 T
MoJIINIJI KOpEN 220B IIepeMeHHoro TOka 60 T
MoJIINIJI A3Hn H yHNBePcAJIbHbIe MoJIIN 110-120/220-240 B IIepeMeHHoro TOka 50/60 T

Hoptpe6JIeHNHe 3HeprHH 67BT

IopTe6JeHHe 3HeprnBpeKHe OxHaHHa

a apntbI (III × B × I) 200 MM × 473 MM × 405 MM

Bec. 14 K

O6paHTe BHHMaHHe Ha To, YTO BCE xapaKTepHCTHKN MOrTy H3MeHrTbc8 6e3 IIpeBapHTeJIbHOro yBeOMJIeIIH.

YAMAHA
