USER MANUAL MWG 757 H CLATRONIC

Overview of the Components Page 3

Fjern aldri folier på innsiden av døren!

*) Caution: Do not remove any installed parts from inside the

oven or anything from the inside of the door!

The foils on the inside of the door must not be

A-3 Popkorn (3:30min Standard)*

A-7 Kuchen (40:00min Standard)*

D-47906 Kempen/Germany

placards, murs, etc. environnants.

STOP/RESET (stop/reprogrammation)

A-3 Pop-corn (3:30min standard)*

A-3 Popcorn (3:30min standard)*

Tabell for oppvarming

A-3 Popkorn (3:30min standard)*

A-6 Kjøtt 150g 300g 500g 800g

A-7 Kake (40:00min standard)*

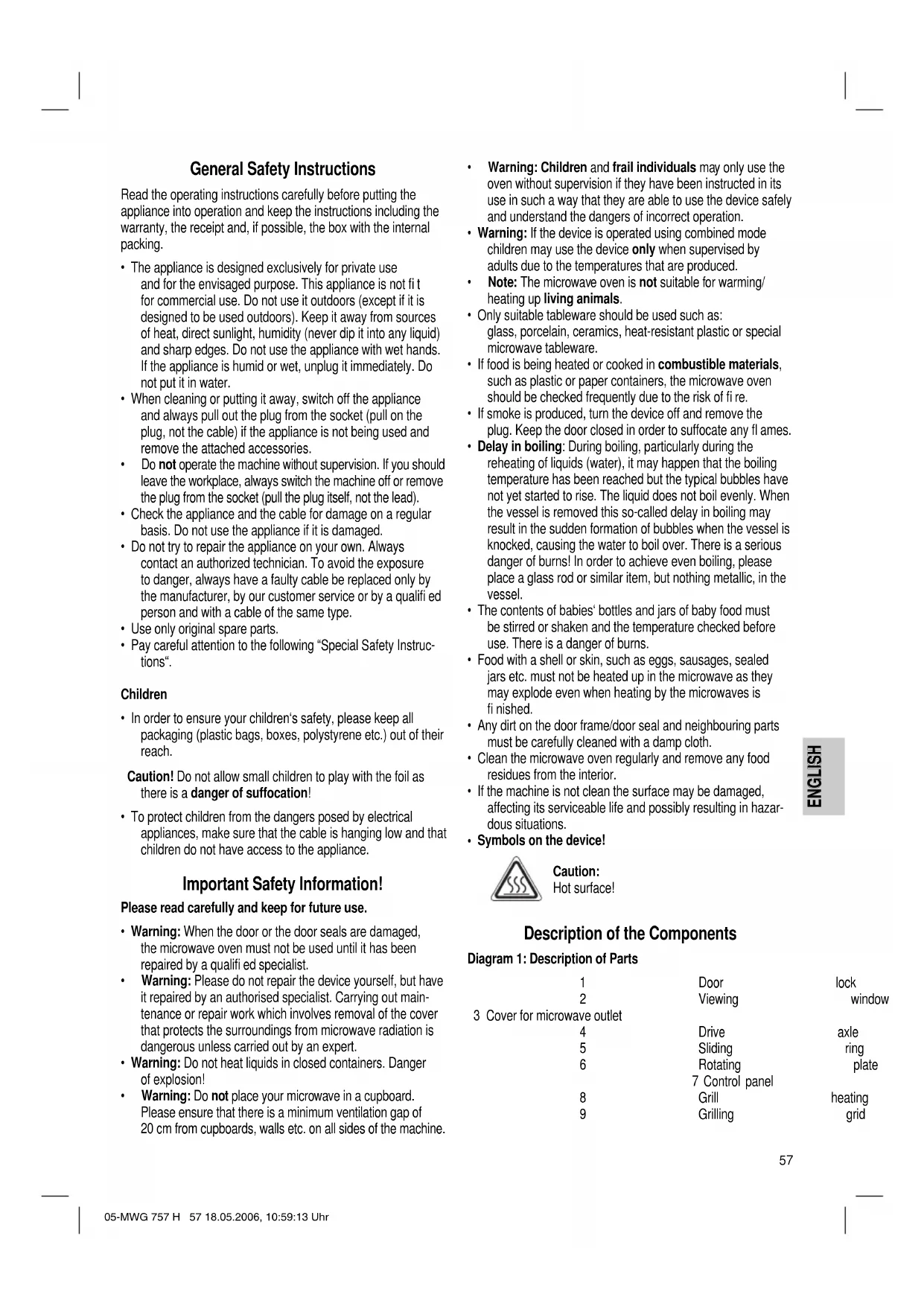

General Safety Instructions

Read the operating instructions carefully before putting the

appliance into operation and keep the instructions including the

warranty, the receipt and, if possible, the box with the internal

• The appliance is designed exclusively for private use

and for the envisaged purpose. This appliance is not fi t

for commercial use. Do not use it outdoors (except if it is

designed to be used outdoors). Keep it away from sources

of heat, direct sunlight, humidity (never dip it into any liquid)

and sharp edges. Do not use the appliance with wet hands.

If the appliance is humid or wet, unplug it immediately. Do

not put it in water.

• When cleaning or putting it away, switch off the appliance

and always pull out the plug from the socket (pull on the

plug, not the cable) if the appliance is not being used and

remove the attached accessories.

• Do not operate the machine without supervision. If you should

leave the workplace, always switch the machine off or remove

the plug from the socket (pull the plug itself, not the lead).

• Check the appliance and the cable for damage on a regular

basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always

contact an authorized technician. To avoid the exposure

to danger, always have a faulty cable be replaced only by

the manufacturer, by our customer service or by a qualifi ed

person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instruc-

• In order to ensure your children‘s safety, please keep all

packaging (plastic bags, boxes, polystyrene etc.) out of their

Caution! Do not allow small children to play with the foil as

there is a danger of suffocation!

• To protect children from the dangers posed by electrical

appliances, make sure that the cable is hanging low and that

children do not have access to the appliance.

Important Safety Information!

Please read carefully and keep for future use.

• Warning: When the door or the door seals are damaged,

the microwave oven must not be used until it has been

repaired by a qualifi ed specialist.

• Warning: Please do not repair the device yourself, but have

it repaired by an authorised specialist. Carrying out main-

tenance or repair work which involves removal of the cover

that protects the surroundings from microwave radiation is

dangerous unless carried out by an expert.

• Warning: Do not heat liquids in closed containers. Danger

• Warning: Do not place your microwave in a cupboard.

Please ensure that there is a minimum ventilation gap of

20 cm from cupboards, walls etc. on all sides of the machine.

• Warning: Children and frail individuals may only use the

oven without supervision if they have been instructed in its

use in such a way that they are able to use the device safely

and understand the dangers of incorrect operation.

• Warning: If the device is operated using combined mode

children may use the device only when supervised by

adults due to the temperatures that are produced.

• Note: The microwave oven is not suitable for warming/

heating up living animals.

• Only suitable tableware should be used such as:

glass, porcelain, ceramics, heat-resistant plastic or special

microwave tableware.

• If food is being heated or cooked in combustible materials,

such as plastic or paper containers, the microwave oven

should be checked frequently due to the risk of fi re.

• If smoke is produced, turn the device off and remove the

plug. Keep the door closed in order to suffocate any fl ames.

• Delay in boiling: During boiling, particularly during the

reheating of liquids (water), it may happen that the boiling

temperature has been reached but the typical bubbles have

not yet started to rise. The liquid does not boil evenly. When

the vessel is removed this so-called delay in boiling may

result in the sudden formation of bubbles when the vessel is

knocked, causing the water to boil over. There is a serious

danger of burns! In order to achieve even boiling, please

place a glass rod or similar item, but nothing metallic, in the

• The contents of babies‘ bottles and jars of baby food must

be stirred or shaken and the temperature checked before

use. There is a danger of burns.

• Food with a shell or skin, such as eggs, sausages, sealed

jars etc. must not be heated up in the microwave as they

may explode even when heating by the microwaves is

• Any dirt on the door frame/door seal and neighbouring parts

must be carefully cleaned with a damp cloth.

• Clean the microwave oven regularly and remove any food

residues from the interior.

• If the machine is not clean the surface may be damaged,

affecting its serviceable life and possibly resulting in hazar-

• Symbols on the device!

Description of the Components

Diagram 1: Description of Parts

3 Cover for microwave outlet

Power level selection

CONVECTION (Hot Air)

Hot air only, thermostat-controlled

Quartz grill for grilling and gratinating

MICRO.+CONVECTION Hot air and microwave work alternately

MICRO.+GRILL Microwave and grill work alternately

WEI./CLOCK (Weight/Time)

Setting the time and weight information

START/QUICK START Start of the programme – Setting the quick-start cooking time

• Press once to stop the cooking process.

• Press twice to delete the programme.

• Hold down for 3 seconds to disable/reactivate the device.

• If there are any oil or other residues from the manufacturing

process on the housing or heating element, smoke or

odours may initially be produced. This is normal and will not

occur after the oven has been used a few times.

The following procedure is strongly recommended: Turn

the oven to the hot air or grill function and operate it several

times without any food inside. Please ensure adequate

Please note! The oven can only be used without food inside

with the hot air or grill function; this is not possible during

combined or microwave operation!

• After removing all the accessories from inside the oven, un-

pack them and place the sliding ring in the middle. Position

the glass plate on the drive axle in such a way that it locks

into the dents of the drive shafts and is lying fl at.

• Check the device for any visible damage, particularly in the

area of the door. If any damage is found, the machine must

• In order to avoid interference to other machines when the

microwave oven is operated, do not place it in the direct

vicinity of other electronic devices.

• Remove any protective foils that may be adhered to the

• Insert the mains plug into a properly installed 230 V, 50 Hz

What you should know about microwave operation:

• Your device works with microwave radiation, which heats up

water particles in food in a very short time. There is no heat

radiation and therefore hardly any browning.

• Only food should be heated up with this device.

• Do not fry food in the microwave as hot oil may damage the

oven and lead to skin burns.

• Only 1-2 portions should be heated up at the same time.

Otherwise the microwave will become less effi cient.

• In order to interrupt the cooking process, press the STOP/

• Microwaves provide their full energy levels immediately.

Pre-heating is therefore not necessary.

• Never operate the microwave function when the oven is

• The microwave oven does not replace your traditional

cooker. It is used mainly for:

– defrosting deep-frozen food

– rapid warming/heating of food or drinks

Information on Grilling and Combined Operation

• As heat radiation is used during grilling and combined

operation, please use only heat-resistant tableware.

• When food is only being grilled, metal or aluminium tablewa-

re may also be used -but not during combined or microwave

• Do not place anything on top of the housing as this becomes

hot. Always leave the ventilation slits uncovered.

• Please use the grilling grid to move the food to be cooked

nearer to the heating element.

Suitable Microwave Tableware

• The ideal material for use in a microwave is transparent and

allows the microwave radiation to heat the food evenly.

• Microwaves are not able to penetrate metal, so that no metal

vessels or plates should be used.

• Do not use any paper dishes made of recycled material as

these may contain small amounts of metal, which may result

• Round/oval dishes and plates are more suitable than

rectangular ones as the food in the corners may overcook.

The list below is intended to help you select suitable microwave

Heat-resistant glass

Heat-resistant ceramic

Plastic vessels suitable

Aluminium foil and foil

*) Combination of microwave with grill or with hot air.

1. Press the STOP/RESET button.

2. Keep the WEI./CLOCK button pressed down. „12H“ appears

in the display. Press the WEI./CLOCK button again to

change to the „24 H“ mode.

3. Set the desired hour using the rotating TIME/MENU button.

4. Press the WEI./CLOCK button again.

5. Set the desired minute using the rotating TIME/MENU

6. Press the WEI./CLOCK button again to activate the new

Operating the Microwave

1. Place the food to be heated up into suitable tableware.

2. Open the door and place the vessel in the middle of the

glass plate. Then close the door. (For safety reasons the

device only works when the door is fi rmly closed.)

3. Press the STOP/RESET button. Select the desired micro-

wave power by pressing the MICRO. button once or several

Field of application

HI 800 Rapid heating

60 480 Continued cooking

time-controlled cooling

QUICK START 800 Rapid heating

4. Use the rotating TIME/MENU button to set the desired

cooking duration between 10 seconds and 95 minutes.

5. Press the START/QUICK START button to start the

machine. The length of cooking depends on the quantity

and consistency of the contents. With a little practice you will

soon learn to estimate the cooking time.

Please note: cooking in the microwave oven is very much

faster than in a standard cooker. If you are not sure, set

the cooking time to low and continue cooking afterwards if

6. After the time has expired, the oven switches off and the

word „END“ appears in the display. Then you can remove

Interrupting or Stopping the Cooking Process

• If you would like to interrupt the cooking process, press the

STOP/RESET button or simply open the door.

• If you wish to continue cooking, close the door and press the

START/QUICK START button.

• If you would like to stop the cooking process altogether,

press the STOP/RESET button twice.

The warming and heating of food is a particular strength of the

microwave. Liquids and foods that are in the refrigerator can be

easily brought up to room temperature or the right temperature

for consumption without the need for many pots.

The heating times contained in the following table are only

rough guides as the time depends very much on the starting

temperature and the composition of the food. You are therefore

advised to check from time to time whether the dish is already

vessel in order to prevent delayed boiling. Stir well before drinking.

Tip: moisten slightly beforehand, stir from time to time.

Tip: brush with oil so that the breadcrumbs or crust do not become

Tip: brush with oil, stir from time to time.

Practical Cooking Tips

Please keep to the recommended values in the cooking table

and the recipes. Keep an eye on the cooking process until you

have more experience.

The door of the microwave can be opened at any time. The

machine switches off automatically.

This only starts to work again when the door is closed and the

START/QUICK START button is pressed a second time.

Foods taken directly from the refrigerator require a slightly longer

cooking time than those at room temperature.

The more compact a food is, the longer is the cooking time. For

example, a large piece of meat has to be cooked longer than

the same quantity of sliced meat. It is advisable to start cooking

sizeable quantities on maximum power and then to continue

cooking evenly on medium power.

Flat dishes cook faster than thick ones. Therefore it is advisable

to spread the food as thinly as possible. Thinner pieces, e.g.

chicken legs or fi sh fi llets should be placed towards the inside or

Smaller quantities cook faster than large ones.

The following rule of thumb applies:

Double the quantity = almost double the time

Half the quantity = half the time

If you are not able to fi nd a suitable time for a dish, the following

approx. 1 minute cooking time for each 100 g.

All dishes which are covered up on a normal cooker should also

be covered in the microwave oven.

A lid prevents the food from drying out. Suitable covers are an

inverted plate, parchment paper or microwave foil. Dishes which

are to be given a crust should not be covered when cooked.

Courgettes 500 g 640 9 - 10 yes

Tip: Cut the vegetables into small pieces and cook with 2 - 3

tablespoons of liquid, stir from time to time, continue cooking for 3 - 5

minutes, season just before serving.

Stewed apple, pear 500 g 640 5 - 8 yes

Stewed rhubarb 250 g 640 5 - 8 yes

4 baked apples 500 g 640 7 - 9 yes

Tip: add 125 ml water. Lemon juice prevents the fruit from changing

colour. Cook for a further 3 - 5 minutes.

Meat (Ready-made meals)

Meat with sauce 400 g 640 10 - 12 yes

Goulash, stewed strips

500 g 640 10 - 15 yes

Roulade of beef 250 g 640 7 - 8 yes

Tip: stir from time to time, allow to stand for 3 - 5 minutes.

Poultry (Ready-made meals)

Chicken fricassee 250 g 640 6 - 7 yes

Poultry soup 200 g 640 5 - 6 yes

Tip: stir from time to time, allow to stand for 3 - 5 minutes.

Tip: turn halfway through, continue cooking for 3 - 5 minutes.

Defrosting and Cooking Vegetables

Apple and red cabbage 450 g 640 14 -16 yes

600 g 640 15 - 17 yes

Tip: cook in 1 - 2 tablespoons of liquid, stir from time to time or

divide carefully into pieces. Continue cooking for 2 - 3 minutes and

season just before serving.

Soups / Stews (Ready-made meals)

Stew 500 g 640 13 - 15 yes

Soup with garnish 300 g 640 7 - 8 yes

Crème soup 500 g 640 13 - 15 yes

Tip: stir from time to time and continue cooking for 3 - 5 minutes.

QUICK START Press the START/QUICK START button in order to heat the food

immediately with 100% microwave power. The cooking process

begins and each time the button is pressed the cooking time is

increased by 30 seconds. The maximum cooking time is

10 minutes and 30 seconds.

05-MWG 757 H 60 18.05.2006, 10:59:21 UhrENGLISH ENGLISH ENGLISH

With the help of the automatic programme you can cook certain

quantities of food automatically. Please proceed as follows:

1. Press the STOP/RESET button.

2. Turn the TIME/MENU dial in an anticlockwise direction and

select the desired automatic program.

3. Press the WEI./CLOCK button until the approximate weight

(or number of cups) of the food to be cooked appears.

Please see the following table for the possible settings.

Code Programme Weight / Cups

A-1 Potatoes 150g 300g 450g 600g

A-2 Coffee/Soup 1 2 3

A-3 Popcorn (3:30min standard)*

A-7 Cake (40:00min standard)*

* Any time can be entered.

• Press the WEI./CLOCK button again.

• „00:00“ appears in the display.

• Use the TIME/MENU dial to select a cooking time of up

Note: This time now remains stored.

4. To start cooking press the START/QUICK START button.

For grilling please use the grilling grid. Use suitable heatresistant

tableware or place the food to be grilled directly on the grid.

It is not necessary to „pre-heat“ the grill as the infrared grill

produces radiation energy immediately.

To grill and gratinate food, proceed as follows:

1. Press the STOP/RESET button.

2. Press the GRILL button.

3. Set the desired grilling time between 10 seconds and

Toast gratinated with cheese 2-3 3-4 no

MICRO.+GRILL (Combined Operation)

When these settings are used the microwave and grill alternate

within the preselected time in the ratio:

30% microwave 55% microwave

1. Press the STOP/RESET button.

3. Set the desired cooking time between 10 seconds and

95 minutes using the rotating TIME/MENU button.

4. To start cooking press the START/QUICK START button.

Tips on Combined Operation

If you prepare food using the combined microwave-grill functions

you should note the following:

For large, thick foods such as roast pork the microwave time is

correspondingly longer than for small, fl at foods. However, in

the case of the grill it is the other way round. The closer the

food is to the grill, the faster it turns brown. This means that

when large joints are prepared using combined operation the

grilling time may be shorter than for smaller joints.

Please use the grid for grilling in order to achieve rapid and

even browning. (Exception: large, thick items of food are grilled

directly on the rotating plate!)

Combined Operation Table

Beef, pork or veal in pieces

Frankfurter 200 g 2 - 3 no

Tip: turn the meat halfway through and continue cooking for 3 - 5

minutes; coat the meat loaf with egg white; prick the sausages with

Chicken pieces 250 g 4 - 5 no

Tip: allow to cook without liquid in its own juice, turn once and

continue cooking for 4 - 5 minutes.

Trout, blue 300 g 5 - 6 no

Tip: turn halfway through and continue cooking for 3 - 5 minutes.

Please proceed as follows for hot air operation:

1. Press the STOP/RESET button.

2. Press the CONVECTION button.

3. Press the CONVECTION button repeatedly to select a tem-

perature between 110°C, 120°C, 130°C, 140°C, 150°C,

160°C, 170°C, 180°C, 190°C and 200°C.

4. Set the desired cooking time between 10 seconds and

Hot Air + Microwave in Combined Operation

Please proceed as follows for hot air combined operation:

1. Press the STOP/RESET button.

2. Press the MICRO.+CONVECTION button.

3. Press the MICRO.+CONVECTION button repeatedly to

select a temperature between 110°C, 140°C, 170°C and

4. Set the desired cooking time between 10 seconds and

95 minutes using the rotating TIME/MENU button.

5. To start cooking press the START/QUICK START button.

Cooking in Several Steps

The programmes can be set in such a way that it is possible for

you to select three different functions.

Let us assume you select the following programmes for cooking:

Heating up Food in the Microwave

Cooking with Hot Air

1. Press the STOP/RESET button.

2. Press the MICRO. button.

3. Select the desired microwave power level by pressing the

MICRO. button once or several times.

4. Set the desired cooking time between 10 seconds and

95 minutes using the rotating TIME/MENU button.

5. Press the CONVECTION button.

6. Press the CONVECTION button repeatedly to select a tem-

perature between 110°C, 120°C, 130°C, 140°C, 150°C,

160°C, 170°C, 180°C, 190°C and 200°C.

7. Set the desired cooking time between 10 seconds and

95 minutes using the rotating TIME/MENU button.

8. To start cooking press the START/QUICK START button.

After the time has elapsed the oven switches off and the word

„END“ appears in the display. Then you can remove the food.

After cooking has fi nished you are reminded every 2 minutes by

a beep to remove the food.

This reminder is switched off by opening the door or pressing

the STOP/RESET button.

Press the STOP/RESET button for more than 3 seconds to

disable the machine. The fact that the machine is disabled is

then shown in the display. The function of the operating controls

is now blocked. Press the STOP/RESET button again for more

than 3 seconds to reactivate the machine.

The symbols „E-1“, „E-2“, „E-3“ or „E-4“ may appear in the

display during operation. In this case there is a problem with the

electronic control system.

• Press the STOP/RESET button and repeat the procedure.

• If the fault occurs again, press the STOP/RESET button and

remove the mains plug from the socket.

Turn the microwave off and remove the mains plug.

• Keep the interior of the oven clean. Splashes and overfl o-

wing liquids on the walls of the oven can be removed with

a damp cloth. If the oven is very dirty a mild detergent can

also be used. Please do not use any abrasive detergents.

• Wipe off the viewing window on the inside and outside

with a damp cloth and remove splashes and stains from

overfl owing liquids regularly.

• The external walls of the microwave should only be cleaned

with a damp cloth. Please ensure that no water enters the

openings in the housing and therefore inside the device.

• The switches should also only be cleaned with a damp

cloth. In order to clean the function switch, fi rst open the

microwave door to avoid switching on the device so acciden-

• The glass plate should occasionally be cleaned with was-

hing-up liquid or in the dishwasher.

• The rotating ring and the inside fl oor of the oven should be

cleaned regularly. The rotating ring can be removed and

cleaned by hand. You may use a mild detergent or window

cleaner for this. Please dry thoroughly afterwards. Ensure

that the ring is put back in the correct position afterwards.

• In order to remove any unpleasant odours that may emanate

from the microwave, place a dish fi lled with water and lemon

juice that is suitable for microwave use in the oven and heat

it for approximately 5 minutes. Then wipe out the oven with

• If you need to replace the lighting in the oven, please

contact a specialist workshop near you.

05-MWG 757 H 62 18.05.2006, 10:59:26 UhrENGLISH ENGLISH ENGLISH

grill: 1250 W Rated microwave power output:800 W Cavity volume:20 litres

This device has been tested according to all relevant current

CE guidelines, such as electromagnetic compatibility and low

voltage directives, and has been constructed in accordance with

the latest safety regulations.

Subject to technical changes without prior notice!

The device supplied by our Company is covered by a 24 month

guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its

accessories ascribable to material or manufacturing defects will

be eliminated free of charge by repairing or, at our discretion, by

replacing it. The guarantee services do not entail an extension

of the life of the guarantee nor do they give rise to any right to a

Proof of the guarantee is provided by the proof of purchase.

Without proof of purchase no free replacement or repair will be

If you wish to make a claim under the guarantee please return

the entire machine in the original packaging to your dealer

together with the receipt.

Defects to consumables or parts subject to wearing as well as

cleaning, maintenance or the replacement of said parts are not

covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the

competent dealer or repair service against the payment of the

Meaning of the “Dustbin” Symbol

Protect our environment: do not dispose of electrical equipment

in the domestic waste.

Please return any electrical equipment that you will no longer

use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the

environment and human health.

This will contribute to the recycling and other forms of reutilisati-

on of electrical and electronic equipment.

Information concerning where the equipment can be disposed of

can be obtained from your local authority.

05-MWG 757 H 63 18.05.2006, 10:59:28 Uhr64

JĘZYK POLSKI JĘZYK POLSKI

JĘZYK POLSKI JĘZYK POLSKI

Sznycel, ziemniaki i

JĘZYK POLSKI JĘZYK POLSKI

JĘZYK POLSKI JĘZYK POLSKI

JĘZYK POLSKI JĘZYK POLSKI
