USER MANUAL MWG 772 CLATRONIC

White CMATRONIC microwave oven with control knobs and a mesh chamber (no visible text or symbols on main body)

CE

MIKROWELLENGERÄT MIT GRILL

Magnetron met grill • Four à micro-ondes et grill • Horno microondas con parrilla • Microondas com grelhador Apparecchio microonde con grill • Microwave Oven with Grill • Mikrobølgeovn med grill • Kuchenka mikrofalowa z grillem • Mikrovlnná trouba s grilem • Mikrohullámú sütő grillezővel • Mikроволновая печь с грилем

MWG 772

DEUTSCH

Inhalt

Overview of the Components ...... Page 3

Instruction Manual Page 32

Technical Data...... Page 34

FRANÇAIS

Sommaire

• Do not remove any installed parts from inside the oven or anything from the inside of the door!
  • The foils on the inside of the door must not be removed!

UWAGA:

D-47906 Kempen/Germany

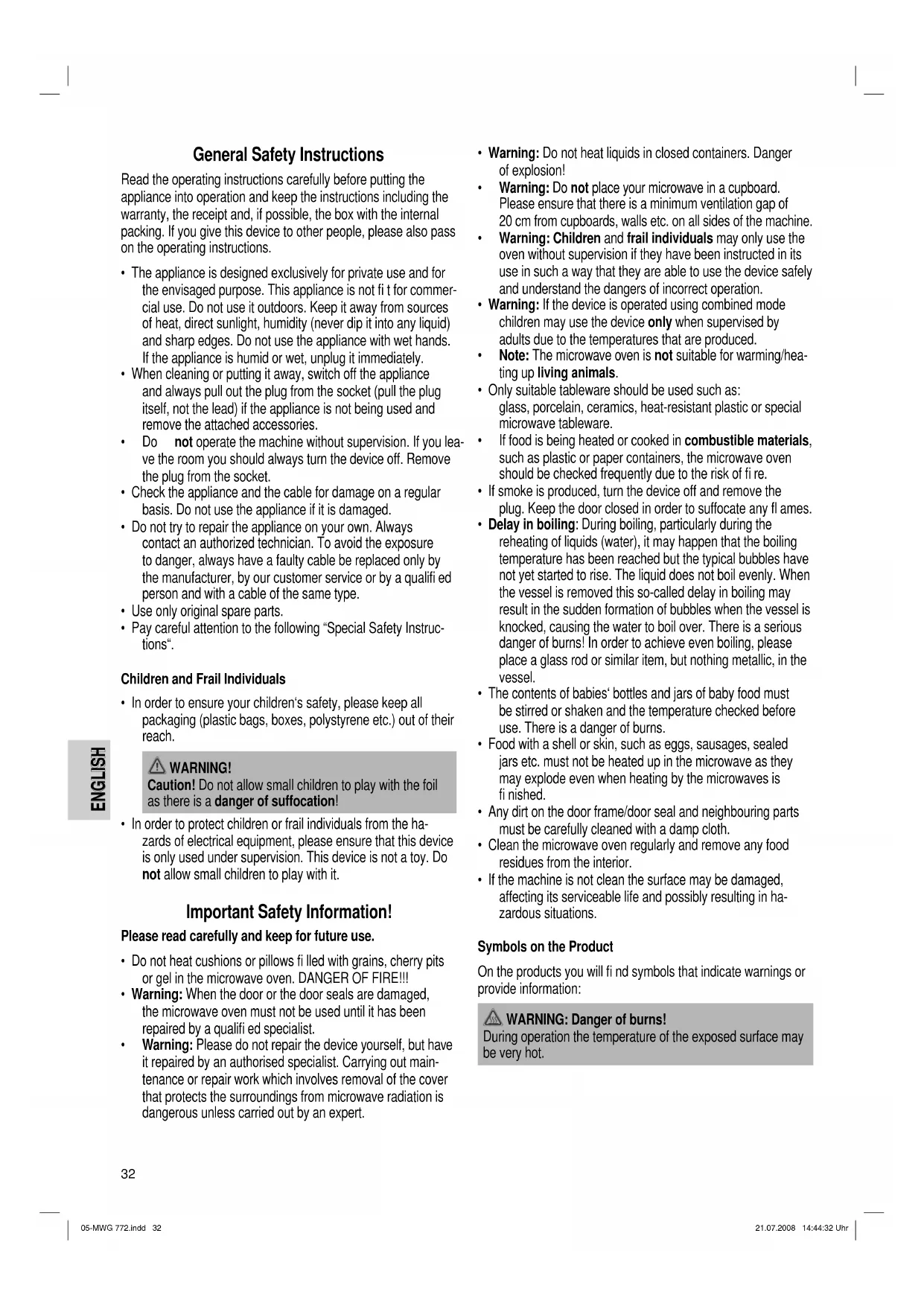

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

Important Safety Information!

Please read carefully and keep for future use.

• Do not heat cushions or pillows filled with grains, cherry pits or gel in the microwave oven. DANGER OF FIRE!!!
• Warning: When the door or the door seals are damaged, the microwave oven must not be used until it has been repaired by a qualified specialist.

• Warning: Please do not repair the device yourself, but have it repaired by an authorised specialist. Carrying out maintenance or repair work which involves removal of the cover that protects the surroundings from microwave radiation is dangerous unless carried out by an expert.

• Warning: Do not heat liquids in closed containers. Danger of explosion!

• Warning: Do not place your microwave in a cupboard. Please ensure that there is a minimum ventilation gap of 20 cm from cupboards, walls etc. on all sides of the machine.
• Warning: Children and frail individuals may only use the oven without supervision if they have been instructed in its use in such a way that they are able to use the device safely and understand the dangers of incorrect operation.
• Warning: If the device is operated using combined mode children may use the device only when supervised by adults due to the temperatures that are produced.
• Note: The microwave oven is not suitable for warming/heating up living animals.
• Only suitable tableware should be used such as: glass, porcelain, ceramics, heat-resistant plastic or special microwave tableware.
• If food is being heated or cooked in combustible materials, such as plastic or paper containers, the microwave oven should be checked frequently due to the risk of fire.
• If smoke is produced, turn the device off and remove the plug. Keep the door closed in order to suffocate any flames.
• Delay in boiling: During boiling, particularly during the reheating of liquids (water), it may happen that the boiling temperature has been reached but the typical bubbles have not yet started to rise. The liquid does not boil evenly. When the vessel is removed this so-called delay in boiling may result in the sudden formation of bubbles when the vessel is knocked, causing the water to boil over. There is a serious danger of burns! In order to achieve even boiling, please place a glass rod or similar item, but nothing metallic, in the vessel.
• The contents of babies' bottles and jars of baby food must be stirred or shaken and the temperature checked before use. There is a danger of burns.
• Food with a shell or skin, such as eggs, sausages, sealed jars etc. must not be heated up in the microwave as they may explode even when heating by the microwaves is finished.
• Any dirt on the door frame/door seal and neighbouring parts must be carefully cleaned with a damp cloth.
• Clean the microwave oven regularly and remove any food residues from the interior.
• If the machine is not clean the surface may be damaged, affecting its serviceable life and possibly resulting in hazardous situations.

Symbols on the Product

On the products you will find symbols that indicate warnings or provide information:

WARNING: Danger of burns!

During operation the temperature of the exposed surface may be very hot.

Overview of the Components

1	Power
2	Timer
3	Grilling
4	Drive
5	Slide
6	Revolving
7	Door
8	Viewing

Intended Use

This device is used:

• for heating up and cooking solid or liquid foods,
• for browning and grilling solid foods.

It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.

Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.

The firm Clatronic International GmbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use.

Information on Grilling and Combined Operation

• As heat radiation is used during grilling and combined operation, please use only heat-resistant tableware.
• When food is only being grilled, metal or aluminium tableware may also be used -but not during combined or microwave operation.
• Only the grilling grid is suitable for the COMBI mode of operation.
• Do not place anything on top of the housing as this becomes hot. Always leave the ventilation slits uncovered.
• Please use the grilling grid to move the food to be cooked nearer to the heating element.

Suitable Microwave Tableware

• The ideal material for use in a microwave is transparent and allows the microwave radiation to heat the food evenly.
• Microwaves are not able to penetrate metal, so that no metal vessels or plates should be used.
• Do not use any paper dishes made of recycled material as these may contain small amounts of metal, which may result in sparks or fi res.
• Round/oval dishes and plates are more suitable than rectangular ones as the food in the corners may overcook.

The list below is intended to help you select suitable microwave tableware: control

Material grid	Suitable for
	microwave	grill	combination*
Heat-resistant glass vessel ring	yes yes yes
Non-heat-resistant glass vessel window	no no no
Heat-resistant ceramic vessel/plate	yes yes yes
Plastic vessels suitable for microwave use	yes no no
Kitchen roll yes no no
Metal tray no yes	no
Grilling grid	no yes yes
Aluminium foil and foil containers	no yes	no

*) Combination of microwave with grill.

Initial Operation

• After removing all the accessories from inside the oven, unpack them and place the sliding ring in the middle. Position the glass plate on the drive axle in such a way that it locks into the dents of the drive shafts and is lying flat.
• Check the device for any visible damage, particularly in the area of the door. If any damage is found, the machine must not be used.
• In order to avoid interference to other machines when the microwave oven is operated, do not place it in the direct vicinity of other electronic devices.
• Remove any protective foils that may be adhered to the housing.
• Insert the mains plug into a properly installed 230 V, 50 Hz power socket.

CAUTION:

Do not remove any installed parts from inside the oven or from inside the door!

Using the Device

What you should know about microwave operation

• Your device works with microwave radiation, which heats up water particles in food in a very short time. There is no heat radiation and therefore hardly any browning.
• Only food should be heated up with this device.
• The device is not suitable for baking in floating fat.
• Only 1-2 portions should be heated up at the same time. Otherwise the microwave will become less efficient.
  • In order to interrupt the cooking process, turned the timer to „0“.
• Microwaves provide their full energy levels immediately. Preheating is therefore not necessary.
• Never operate the microwave function when the oven is empty.

- The microwave oven does not replace your traditional cooker. It is used mainly for:

• defrosting deep-frozen food
- rapid warming/heating of food or drinks
- cooking meals

- Please do not use any plastic or paper tableware.

Operation

1. Place the food to be heated in a suitable piece of tableware.
2. Open the door and place the vessel in the middle of the glass plate. Then close the door. (For safety reasons the oven only operates when the door is tightly closed.)
3. Adjust the microwave power as required:

Symbol	Labelling Value		Power Grill in %*	Power Microwave in %*	Field of Application
	LOW	Keeping warm		18	Melting cheese etc.
	M.LOW Defrosting 36				Defrosting frozen food
	MED Low 58 Continued cooking
	M. HIGH Medium 81 Cooking e.g. meat
	HIGH	High		100 Rapid heating
	GRILL	Grill	100		Grilling and browning on top
	COMB 1	Grill + microwave	70	30	Defrosting and grilling
	COMB 2	Grill + microwave	51	49	Cooking and browning
	COMB 3	Grill + microwave	33	67	Boiling and gentle browning

* 100 % - 700W

1. Set the required cooking time with the timer. The cooking time depends on the quantity and constituency of the contents of the oven. With a little practice you will soon learn to estimate the cooking time.

i NOTE:

• preparation of food in a microwave oven is very much faster than in a conventional cooker. Set the cooking time to a low level if you are not sure and continue cooking again if necessary.
• once the cooking time is set the oven switches itself on. The light inside the oven goes on.
• if you would like to set times shorter than 3 minutes, turn the button past the 10 minute mark and then back. The timer will then run more accurately.

• Please note: a cover should be placed over the food when operating the microwave.

• When the time has finished the oven switches off automatically. A sound is heard. The food should then be removed.

Cleaning

Turn the microwave off and remove the mains plug.

Interior

• Keep the interior of the oven clean. Splashes and overfl owing liquids on the walls of the oven can be removed with a damp cloth. If the oven is very dirty a mild detergent can also be used. Please do not use any abrasive detergents.
• Wipe off the viewing window on the inside and outside with a damp cloth and remove splashes and stains from overflowing liquids regularly.

External Walls

• The external walls of the microwave should only be cleaned with a damp cloth. Please ensure that no water enters the openings in the housing and therefore inside the device.
• The switches should also only be cleaned with a damp cloth. In order to clean the function switch, fi rst open the microwave door to avoid switching on the device so accidentally.

Accessories

• The glass plate should occasionally be cleaned with washing-up liquid or in the dishwasher.
• The rotating ring and the inside floor of the oven should be cleaned regularly. The rotating ring can be removed and cleaned by hand. You may use a mild detergent or window cleaner for this. Please dry thoroughly afterwards. Ensure that the ring is put back in the correct position afterwards.

Odours

- In order to remove any unpleasant odours that may emanate from the microwave, place a dish filled with water and lemon juice that is suitable for microwave use in the oven and heat it for approximately 5 minutes. Then wipe out the oven with a soft cloth.

Oven light

- If you need to replace the lighting in the oven, please contact a specialist workshop near you.

Technical Data

Model: MWG 772

Power supply: 230 V, 50 Hz

Power consumption: microwave: 1050 W grill: 1000 W

Rated microwave power output: 700 W/2450 MHz

Cavity volume: 17 litres

Protection class: I

Net weight: 10,80 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
