Royal Blender Turbo 10speed - Blender PRINCESS - Free user manual and instructions

Brand	Princess
Model	Royal Blender Turbo 10speed (212004)
Product type	Blender / Mixer
Approximate dimensions	20 x 20 x 40 cm
Approximate weight	1.5 kg
Power	500 W
Power supply	220-240 V ~ 50/60 Hz
Bowl capacity	1.5 L (estimated)
Speed	10 speeds + pulse (Turbo)
Usage	Blend, chop, crush, crumble, prepare smoothies, cold soups, sauces
Maximum ingredient temperature	55 °C
Max. continuous operating cycle	3 minutes
Blade material	Stainless steel (estimated)
Cleaning	Bowl, lid and insert hand washable (soapy water). Do not put in dishwasher.
Maintenance	Clean after each use. Do not immerse motor unit.
Safety	Do not operate with empty bowl. Do not exceed 3 min. Use on stable surface. Do not touch blades.
Spare parts	Contact manufacturer or authorized repair center. Parts available on request.
Repairability	Repairability index not provided. Spare parts available.
Warranty	See manufacturer's terms

Frequently Asked Questions - Royal Blender Turbo 10speed PRINCESS

How to assemble the Princess Royal Blender Turbo?

Place the jug on the base and lock it by turning clockwise until it clicks. Put the lid on the jug then insert the lid insert.

What speed is recommended for blending fruits?

For blending, use speeds 9 or 10. Refer to the speed table in the manual: 1/2 for beating, 3/4 for crushing, 7/8 for chopping/grating, 9/10 for blending.

Can I blend hot liquids in this blender?

Yes, but only warm ingredients up to 55 °C. Hold the lid firmly to prevent leaks. Do not blend boiling liquids under steam pressure.

How to use the pulse (Turbo) function?

For pulse mode, press and hold the O/P button. Do not press the I/II buttons or speed control buttons. Release the button to stop.

Can I wash the parts in the dishwasher?

No, it is not recommended to clean the jug, lid or insert in the dishwasher. Wash them by hand with soapy water, rinse and dry thoroughly. The motor unit should be wiped with a damp cloth.

What to do if the blender does not start?

Check that the jug is properly locked onto the base. Make sure the plug is connected and the appliance is not overheating. If the problem persists, contact customer service.

Is it possible to chop meat with this blender?

No, this blender is not designed for chopping meat or for beating eggs or kneading dough. Use it only for fruits, vegetables, smoothies, cold soups, sauces and dressings.

What is the maximum continuous operating time?

Do not operate the appliance for more than 3 minutes continuously. Let it cool down for a few minutes between cycles.

How to safely clean the sharp blade?

Unplug the appliance before cleaning. Clean the blade carefully with soapy water using a brush. It is very sharp: avoid direct contact.

Where can I find spare parts?

Contact the manufacturer Princess or an authorized repair center. Parts such as the jug, lid or insert are available on request.

USER MANUAL Royal Blender Turbo 10speed PRINCESS

Citroen-knoflook dressing

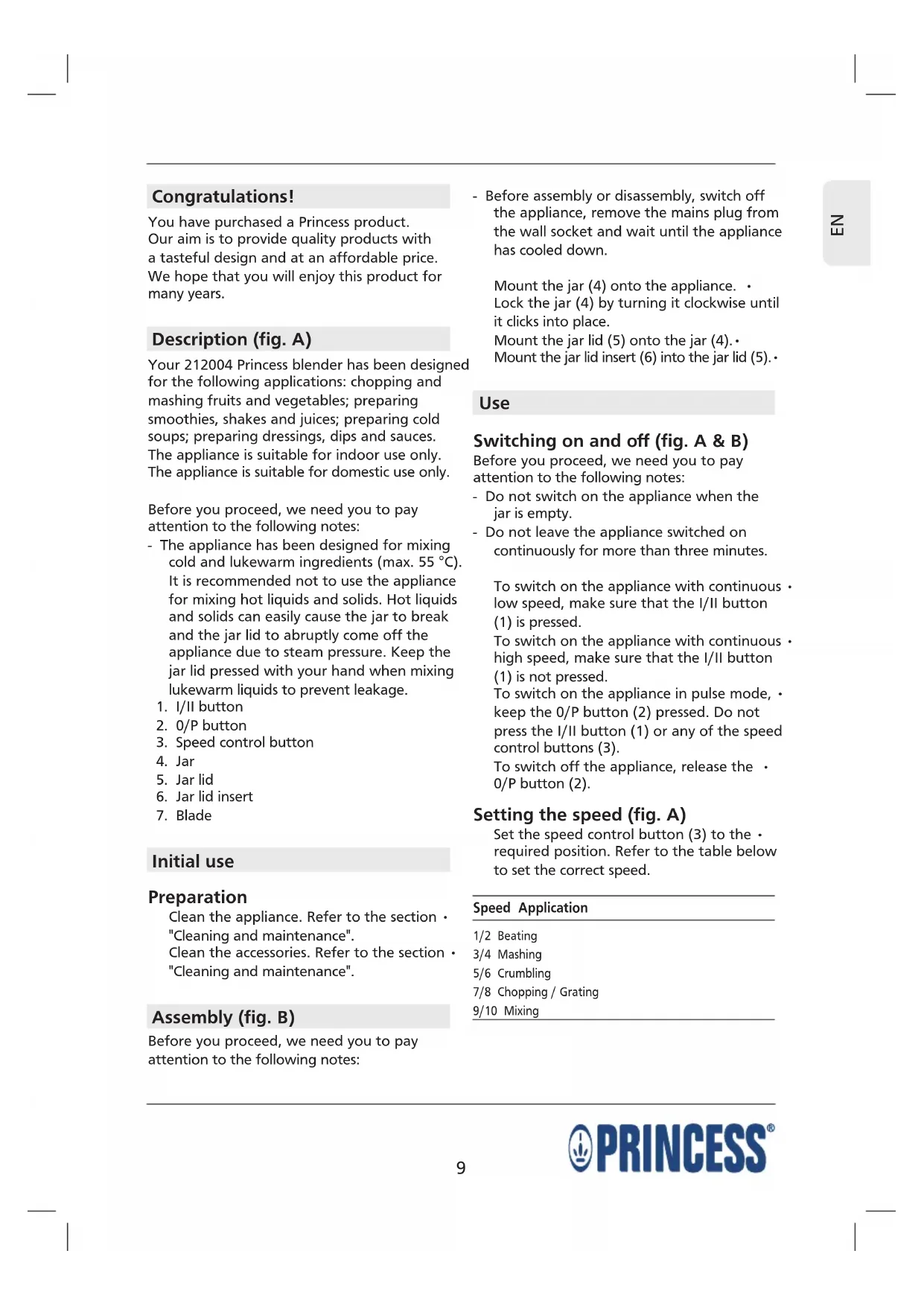

You have purchased a Princess product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years.

Description (fig. A)

Your 212004 Princess blender has been designed for the following applications: chopping and mashing fruits and vegetables; preparing smoothies, shakes and juices; preparing cold soups; preparing dressings, dips and sauces. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

Before you proceed, we need you to pay attention to the following notes:

• The appliance has been designed for mixing cold and lukewarm ingredients (max. 55^ ) It is recommended not to use the appliance for mixing hot liquids and solids. Hot liquids and solids can easily cause the jar to break and the jar lid to abruptly come off the appliance due to steam pressure. Keep the jar lid pressed with your hand when mixing lukewarm liquids to prevent leakage.

• I/II button

• 0/P button
• Speed control button
• Jar
• Jar lid
• Jar lid insert
• Blade

Initial use

Preparation

Clean the appliance. Refer to the section
"Cleaning and maintenance".
Clean the accessories. Refer to the section
"Cleaning and maintenance".

Assembly (fig. B)

Before you proceed, we need you to pay attention to the following notes:

• Before assembly or disassembly, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.

Mount the jar (4) onto the appliance. Lock the jar (4) by turning it clockwise until it clicks into place.

Mount the jar lid (5) onto the jar (4). Mount the jar lid insert (6) into the jar lid (5).

Use

Switching on and off (fig. A & B)

Before you proceed, we need you to pay attention to the following notes:

• Do not switch on the appliance when the jar is empty.
• Do not leave the appliance switched on continuously for more than three minutes.

To switch on the appliance with continuous low speed, make sure that the I/II button (1) is pressed.

To switch on the appliance with continuous high speed, make sure that the I/II button (1) is not pressed.

To switch on the appliance in pulse mode, keep the 0/P button (2) pressed. Do not press the I/II button (1) or any of the speed control buttons (3).

To switch off the appliance, release the 0/P button (2).

Setting the speed (fig. A)

Set the speed control button (3) to the required position. Refer to the table below to set the correct speed.

Speed Application

1/2 Beating
3/4 Mashing
5/6 Crumbling
7/8 Chopping / Grating
9/10 Mixing

Hints for use

Before you proceed, we need you to pay attention to the following notes:

• Do not overload the appliance. Do not put too many ingredients into the jar at one time.

Cut the fruit and/or vegetables into pieces. Make sure that the pieces of fruit and/or vegetables fit in the jar.

Remove the jar lid from the jar.

Put the pieces of fruit and/or vegetables into the jar.

Assemble the appliance. Refer to the section "Assembly".

Insert the mains plug into the wall socket. Switch on the appliance. The appliance chops the pieces of fruit and/or vegetables in a few seconds. The longer the appliance is switched on, the finer the pieces of fruit and/or vegetables will be chopped.

If necessary, add more pieces of fruit and/or vegetables:

• Remove the jar lid insert from the jar lid.
• If the pieces are too large for the filling opening of the jar lid, switch off the appliance, remove the jar lid, and add the pieces of fruit and/or vegetables.
• Mount the jar lid onto the jar.
• Mount the jar lid insert into the jar lid.
• Switch on the appliance. The appliance chops the pieces of fruit and/or vegetables in a few seconds. The longer the appliance is switched on, the finer the pieces of fruit and/or vegetables will be chopped.

After use, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.

Recipes

Apricot pineapple smoothie

Ingredients Quantity

Apricot (fresh, diced) 1

Pineapple (crushed) 1/4 cup

Strawberry 6

Banana 1/2

Water 1/2 cup

Skim milk powder 1 tbsp.

Flax seed powder 1 tsp. (option)

Protein powder 1 tbsp. (option)

• Put the ingredients in the blender. Blend the ingredients until they are blended to a smooth, mixed substance.
• Cover the substance and leave it in the refrigerator for 1-2 hours to cool down.

Tropical shake

Ingredients Quantity
Strawberry (frozen) 4
Banana (frozen)	1/2
Mango	1/2
Water	1 cup
Piña colada	2 tbsp.
Flax seed powder	1 tsp. (option)
Protein powder	1 tbsp. (option)
Ice cube	6

• Put the ingredients in the blender. Blend the ingredients until they are blended to a smooth, mixed substance.
• Cover the substance and leave it in the refrigerator for 1-2 hours to cool down.

Gazpacho

Ingredients Quantity
Tomato (quartered)	4
Cucumber (sliced)	1/2
Green pepper (with seeds)	1/2
Onion (sliced)	1
Garlic	2 cloves
Parsley	4 sprigs
Olive oil	2 tbsp.
Wine vinegar	2 tbsp.
Ice water	1/2 cup
Red wine	1/2 cup
Worcestbershire sauce	1 tsp.
Tabasco sauce	1/4 tsp.
Salt / Pepper	according to taste

• Put the ingredients in the blender. Blend the ingredients until they are blended to a smooth, mixed substance.
• Cover the substance and leave it in the refrigerator for 1-2 hours to cool down.

Lemon garlic dressing

Ingredients Quantity

Tomato 1

Lemon (no seeds) 1

Garlic 2 cloves

Flax seed powder 2 tbsp.

Celery seed 1/2 tsp.

Cider vinegar 1/4 cup

Water 1/2 cup

Salt / Pepper according to taste

Put the ingredients in the blender. Blend the ingredients until they are blende to a smooth, mixed substance.

Cover the substance and leave it in the refrigerator for 1-2 hours to cool down.

Hot Mexican salsa

Ingredients Quantity

Tomato 4

Onion 1/2

Garlic 1 clove

Flax seed powder 2 tsp.

Ground cayenne pepper 1/8 tsp.

Chopped fresh coriander 3-4 tbsp.

Cider vinegar 1 tbsp.

Tabasco sauce 1/4 tsp.

Put the ingredients in the blender. Blend the ingredients until they are blended to a smooth, mixed substance. Cover the substance and leave it in the refrigerator for 1-2 hours to cool down.

Cleaning and maintenance

The appliance must be cleaned after each use.

Before you proceed, we need you to pay attention to the following notes:

Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
- Do not immerse the appliance in water or other liquids.
Always be careful when cleaning the blade. The blade is very sharp. Risk of personal injury.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.

• Do not clean the appliance in the dishwasher. It is not recommended to wash the removable parts of the appliance or the accessories in a dishwasher.

• Regularly check the appliance for possible damage.
  Clean the outside of the appliance with a damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth.
  Clean the accessories:

• Clean the jar, the jar lid and the jar lid insert in soapy water.
  Rinse the accessories under running water.

• Thoroughly dry the accessories.

• Assemble the appliance. Refer to the section "Assembly".

• Put the appliance and the accessories in the original packaging.
• Store the appliance with the accessories in a dry and frost-free place, out of the reach of children.

Safety instructions

General safety

• Read the manual carefully before use. Keep the manual for future reference.
• Only use the appliance and the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.
  Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not use the appliance near bathtubs, showers, basins or other vessels containing water.

Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again. This appliance is intended to be used in domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and-breakfast type environments.

Electrical safety

Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Connect the appliance to an earthed wall - socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 ~mm^2 ).

For additional protection, install a residual - current device (RCD) with a rated residual operating current that does not exceed 30mA .

Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.

Always fully unwind the mains cable and the extension cable.

Make sure that the mains cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.

Keep the mains cable away from heat, oil and sharp edges.

Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not pull the mains cable to disconnect the mains plug from the mains.

Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for blenders

Do not use the appliance outdoors.
Place the appliance on a stable and flat surface.
Keep the appliance away from heat sources. Do not place the appliance on hot surfaces or near open flames.
Do not use the appliance for pressing fruits or vegetables.
Do not use the appliance for beating eggs.
- Do not use the appliance for kneading dough.
- Do not use the appliance for grinding meat.
- Do not use the appliance with an empty jar.
- Always mount the jar lid and the jar lid insert before switching on the appliance.
- Do not leave the appliance switched on continuously for more than three minutes. Make sure that your hands are dry before touching the appliance.
- Beware of sharp parts. Keep your hands away from the moving parts during use and during cleaning and maintenance. The appliance uses a sharp knife in the bottom of the jar.
- Beware of hot parts. Wait until the appliance has cooled down before touching the housing and the parts of the appliance. The appliance becomes hot during use.
- Be extra careful during cleaning and maintenance. Be extra careful when emptying the jar or handling the sharp blade.

Do not leave the appliance unattended. during use.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

If a 13Amp (BS1363) plug is used, a 3Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.

This is a double-insulated appliance and does not need an earth connection.

Warning! On no account should either the live or neutral wires be connected to the earth terminal.

Disclaimer

Subject to change; specifications can be changed without further notice.

Felicitations!

Worcestershire-Sauce 1 TL

Tabasco-Sauce 1/4 TL

Tabasco-Sauce 1/4 TL

Salt / Peber after smag

Put ingredienserne i blenderen.

EaTsigmaKoPsoKaIeMoviOaIata

aillll 1iil gaiis 1i iS

jia jiali jai jia jia jia jia jia

c1 = 0

jglal 1 jil jll Aisll gall

jglal . jlgal ciliSog oclall

1jia jgiyaiyalluyibillclilj 1jia j

i 1

a1234567890

aIgauol y

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

aalil j5 jslio gj jglalgo

y

a jll jll c jll iii .
jll jll c jll a b jla
aaiiaaiiaaiiaai

a 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

-1. Diolai Li Li Li

"1 11111111111111111111111

J 1

a

aaleal aay

1/2

1/2

1 Worcestershire

1/4

j

blll g cllgall

yio 11 lalis pui uil cllsall bli .

aLw 2d aJxill g4S jg jolal bia y .

aasll

1 ablaab

1( r - r) = 0

2

054 2 J

yaa 1/2

1/4

- 1 ≤ 1/2 ≤ 0

j

bkslls cullss

J 111111111111111111

aclw 2d a 15 g 45 jg jj 111

aaii aiinai

aasll

4abla

1/2

1

a 2

18

3-4

045 2021年1月2日

yio 1/4 yio

aclw saiy 45 jj g jj a bcy

العربية		العربية
العربية		العربية
العربية		العربية
العربية		العربية
العربية		العربية
العربية		العربية
العربية		العربية
العربية		العربية
العربية		العربية
العربية		العربية

(B)

Llalololololololololololololololololololololololololololololololololololol

:

jglll jie 1

bila 1

j 1

1

Princess

Jy 1

i j 1

suii iisii

(A)

e 4) e 2004 1

gaww jll aclw wjac oij 4

aillso 0jai

(·4) clo 5 (5) clo 1

21 ≤ y_1 < 21

aill" aai j 1jai

"ii.

aill" p 1

1. "aJil
