Blender Pro4 Series 217202 - Blender PRINCESS - Free user manual and instructions

USER MANUAL Blender Pro4 Series 217202 PRINCESS

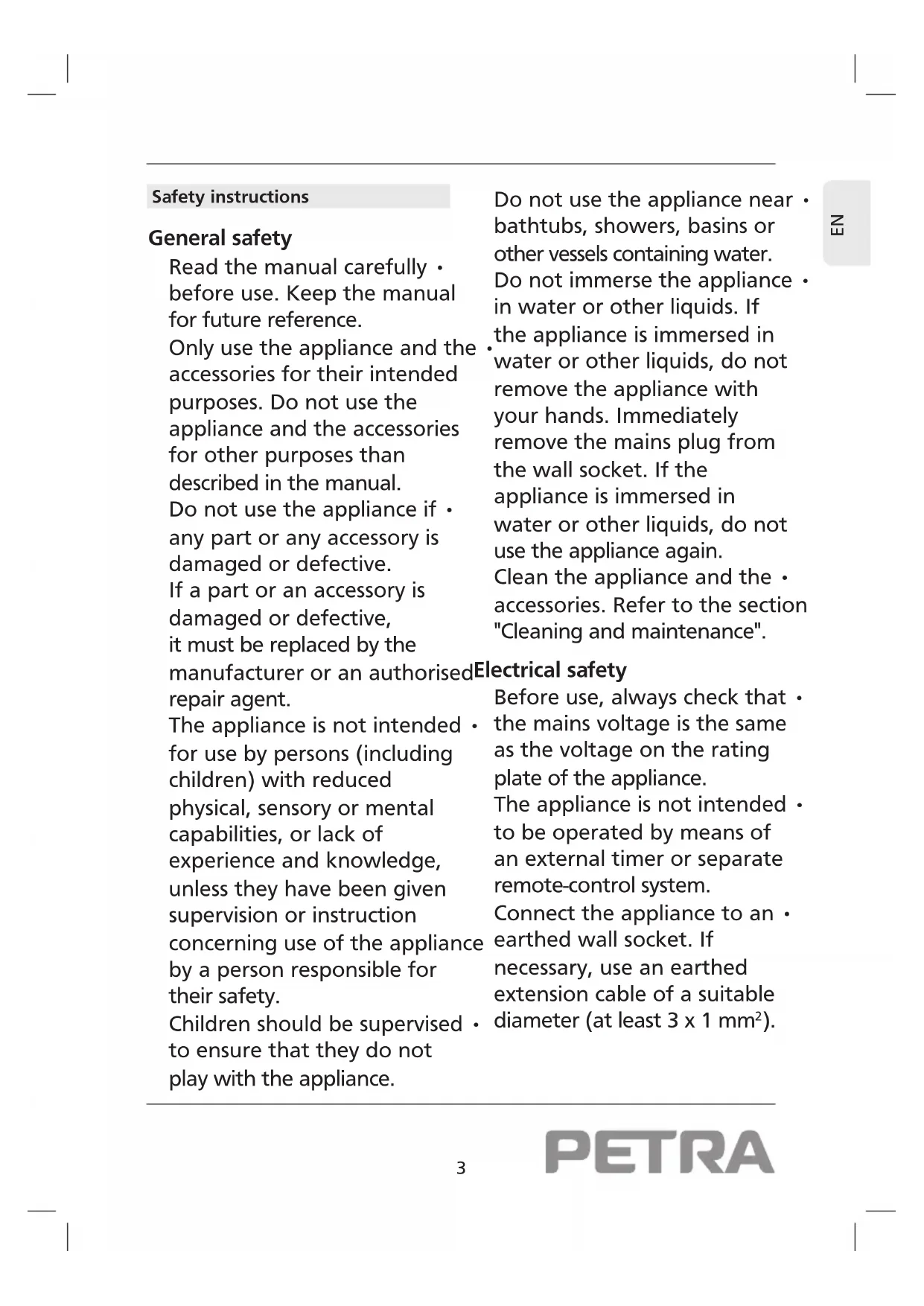

Read the manual carefully •

before use. Keep the manual

for future reference.

Only use the appliance and the •

accessories for their intended

purposes. Do not use the

appliance and the accessories

for other purposes than

described in the manual.

Do not use the appliance if •

any part or any accessory is

damaged or defective.

If a part or an accessory is

damaged or defective,

it must be replaced by the

manufacturer or an authorised

The appliance is not intended •

for use by persons (including

children) with reduced

physical, sensory or mental

capabilities, or lack of

experience and knowledge,

unless they have been given

supervision or instruction

concerning use of the appliance

by a person responsible for

Children should be supervised •

to ensure that they do not

play with the appliance.

Do not use the appliance near •

bathtubs, showers, basins or

other vessels containing water.

Do not immerse the appliance •

in water or other liquids. If

the appliance is immersed in

water or other liquids, do not

remove the appliance with

your hands. Immediately

remove the mains plug from

the wall socket. If the

appliance is immersed in

water or other liquids, do not

use the appliance again.

Clean the appliance and the •

accessories. Refer to the section

"Cleaning and maintenance".

Before use, always check that •

the mains voltage is the same

as the voltage on the rating

plate of the appliance.

The appliance is not intended •

to be operated by means of

an external timer or separate

remote-control system.

Connect the appliance to an •

earthed wall socket. If

necessary, use an earthed

extension cable of a suitable

diameter (at least 3 x 1 mm

EN For additional protection, •

install a residual current device

(RCD) with a rated residual

operating current that does

Make sure that water cannot •

enter the contact plugs of the

mains cable and the extension

Always fully unwind the mains •

cable and the extension cable.

Make sure that the mains •

cable does not hang over the

edge of a worktop and

cannot be caught accidentally

Keep the mains cable away •

from heat, oil and sharp edges.

Do not use the appliance if •

the mains cable or the mains

plug is damaged or defective.

If the mains cable or the

mains plug is damaged or

defective, it must be replaced

by the manufacturer or an

authorised repair agent.

Do not pull the mains cable •

to disconnect the mains plug

Disconnect the mains plug from •

the mains when the appliance

is not in use, before assembly

or disassembly and before

cleaning and maintenance.

Safety instructions for blenders

The appliance is suitable for •

Do not use the appliance •

Place the appliance on a stable •

Keep the appliance away •

from heat sources. Do not

place the appliance on hot

surfaces or near open flames.

Do not use the appliance for •

pressing fruits or vegetables.

Do not use the appliance for •

Do not use the appliance for •

Do not use the appliance for •

Do not use the appliance •

Always mount the jar lid and •

the jar lid insert before

switching on the appliance.

Do not leave the appliance •

switched on continuously for

more than two minutes.

Make sure that your hands •

are dry before touching the

EN Beware of sharp parts. Keep •

your hands away from the

moving parts during use and

maintenance. The appliance

Beware of hot parts. Wait •

until the appliance has cooled

down before touching the

housing and the parts of the

appliance. The appliance

becomes hot during use.

Be extra careful during cleaning •

and maintenance. Be extra

careful when emptying the

jar. Be extra careful when

handling the sharp blade.

Do not leave the appliance •

unattended during use.

Cleaning and maintenance

The appliance must be cleaned after each use.

- Before cleaning or maintenance, switch off

the appliance, remove the mains plug from

the wall socket and wait until the appliance

- Do not immerse the appliance in water or

- Always be careful when cleaning the blade.

The blade is very sharp. Risk of personal injury.

- Do not use aggressive or abrasive cleaning

agents to clean the appliance.

- Do not use sharp objects to clean the

- Do not clean the appliance and the

accessories in the dishwasher.

Regularly check the appliance for possible •

Clean the outside of the appliance with a soft, •

damp cloth. Thoroughly dry the outside of

the appliance with a clean, dry cloth.

Clean the accessories:•

- Clean the blade in soapy water. Clean

the seal ring in soapy water.

- Clean the jar, the jar lid and the jar lid

insert in soapy water. Clean the seal ring

- Rinse the accessories under running water.

- Thoroughly dry the accessories.

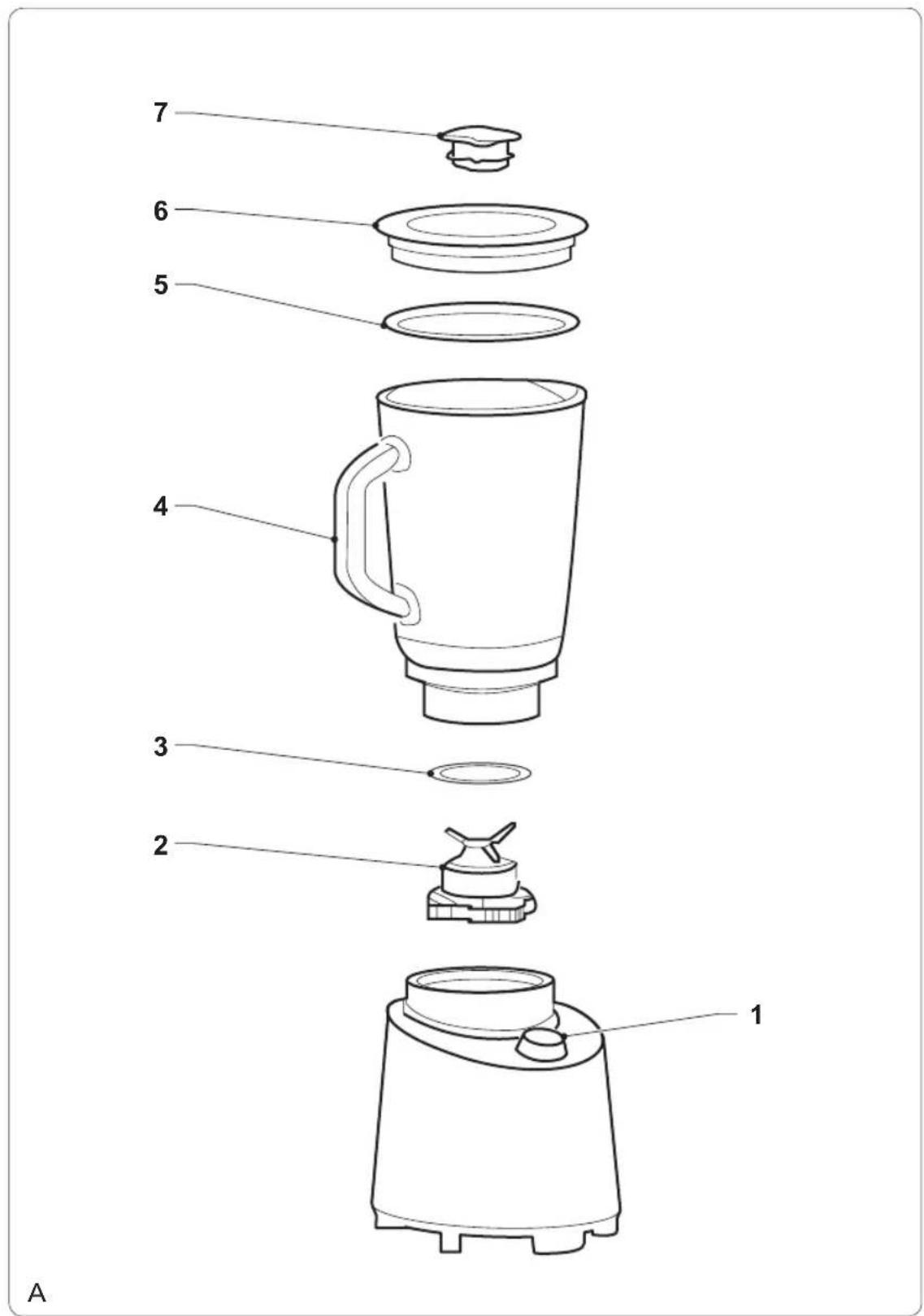

Description (fig. A)

Your 217202 Petra blender has been designed

for the following applications: mashing fruits

and vegetables; preparing smoothies, shakes

and juices; preparing cold soups; preparing

dressings, dips and sauces. The maximum

capacity of the jar is 1,500 ml. The appliance is

suitable for indoor use only. The appliance is

suitable for domestic use only.

- The appliance has been designed for mixing

cold and lukewarm ingredients (max. 55 °C).

It is recommended not to use the appliance

for mixing hot liquids and solids. Hot liquids

and solids can easily cause the jar to break

and the jar lid to abruptly come off the

appliance due to steam pressure. Keep the

jar lid pressed with your hand when mixing

lukewarm liquids to prevent leakage.

- Before assembly or disassembly, switch off

the appliance, remove the mains plug from

the wall socket and wait until the appliance

EN Place the seal ring (3) onto the blade (2).•

Mount the blade (2) to the bottom of the jar •

(4). Lock the blade (2) by turning it clockwise.

Mount the jar (4) onto the appliance. Lock •

the jar (4) by turning it clockwise.

Mount the seal ring (5) to the jar lid (6).•

Mount the jar lid (6) onto the jar (4).•

Lock the jar lid insert (7) by turning it

Switching on and off (fig. A)

- Do not switch on the appliance when the

- Do not leave the appliance switched on

continuously for more than two minutes.

After two minutes, switch off the appliance

and allow it to cool down for three minutes

before switching it on again.

To switch on the appliance with continuous •

low speed, set the on/off button (1) to the

To switch on the appliance with continuous •

high speed, set the on/off button (1) to

To switch on the appliance in pulse mode, •

set the on/off button (1) to the "P" position.

To switch off the appliance, set the on/off •

button (1) to the "O" position.

- Do not exceed the maximum mark on the

juice level indicator.

- Do not overload the appliance. Do not put

too many ingredients into the jar at one time.

If the motor stops, immediately switch off

the appliance, remove the mains plug from

the wall socket and allow the appliance to

cool down for at least 10 minutes.

Cut the fruit and/or vegetables into pieces. •

Make sure that the pieces of fruit and/or

vegetables fit in the jar.

Put the pieces of fruit and/or vegetables •

Assemble the appliance. Refer to the •

Insert the mains plug into the wall socket. •

The power indicator comes on.

Switch on the appliance. The appliance •

blends the ingredients in a few seconds.

The longer the appliance is switched on,

the finer the ingredients will be blended.

If necessary, add more pieces of fruit •

- Switch off the appliance.

- Turn the jar lid insert counterclockwise

to remove it from the jar lid.

- Cut the fruit and/or vegetables into pieces.

Make sure that the pieces of fruit and/or

vegetables fit in the jar.

- Put the pieces of fruit and/or vegetables

- If the pieces are too large for the filling

opening of the jar lid, remove the jar lid

and add the pieces of fruit and/or

- Mount the jar lid onto the jar.

- Mount the jar lid insert into the jar lid.

- Switch on the appliance. The appliance

blends the ingredients in a few seconds.

The longer the appliance is switched on,

the finer the ingredients will be blended.

After use, switch off the appliance.•

Remove the mains plug from the wall socket. •

The power indicator goes off.

Allow the appliance to cool down completely.•7
