USER MANUAL Blender Compact 217200 PRINCESS

217400 Princess Blender2Go

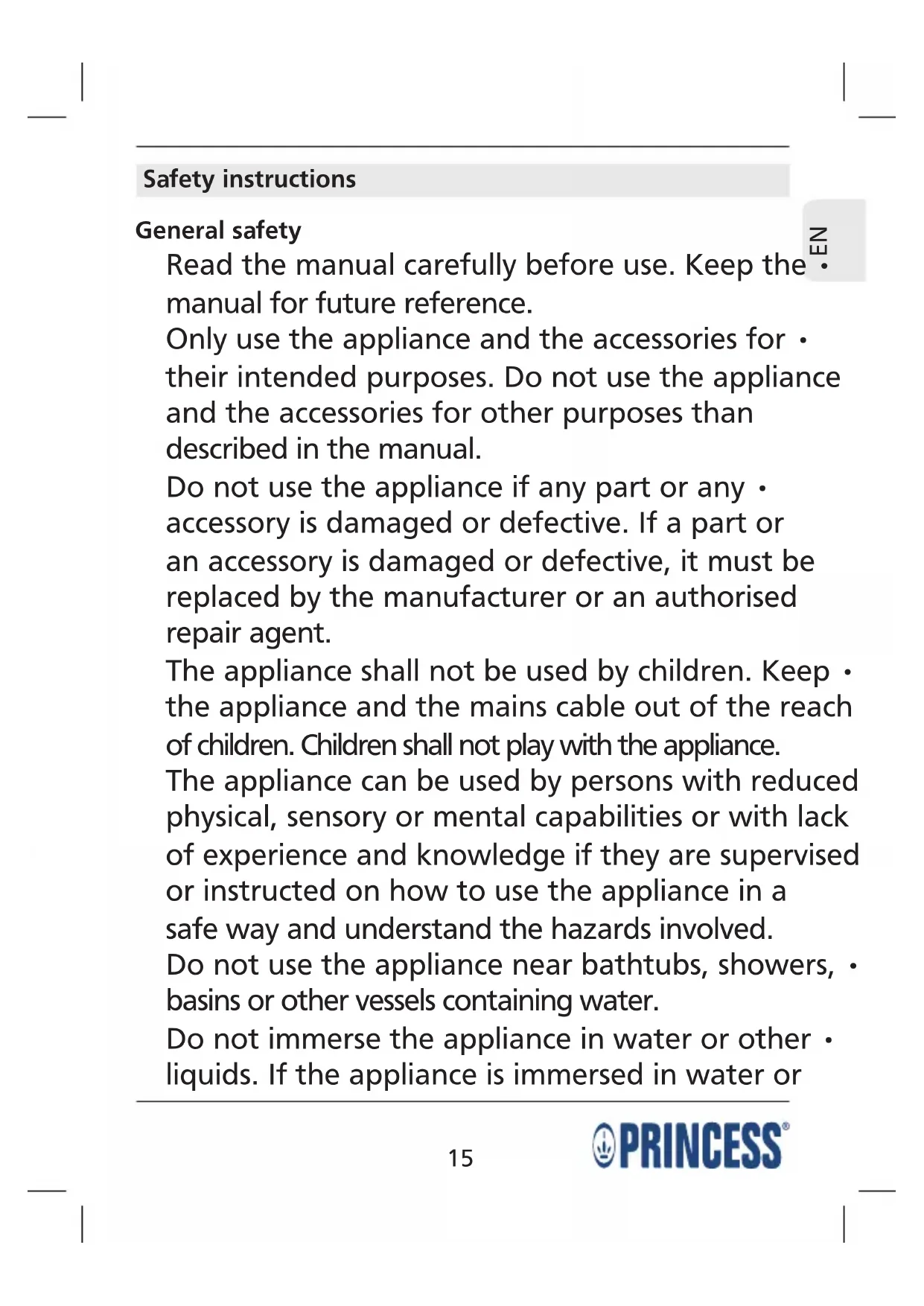

Read the manual carefully before use. Keep the •

manual for future reference.

Only use the appliance and the accessories for •

their intended purposes. Do not use the appliance

and the accessories for other purposes than

described in the manual.

Do not use the appliance if any part or any •

accessory is damaged or defective. If a part or

an accessory is damaged or defective, it must be

replaced by the manufacturer or an authorised

The appliance shall not be used by children. Keep •

the appliance and the mains cable out of the reach

of children. Children shall not play with the appliance.

The appliance can be used by persons with reduced •

physical, sensory or mental capabilities or with lack

of experience and knowledge if they are supervised

or instructed on how to use the appliance in a

safe way and understand the hazards involved.

Do not use the appliance near bathtubs, showers, •

basins or other vessels containing water.

Do not immerse the appliance in water or other •

liquids. If the appliance is immersed in water or16

other liquids, do not remove the appliance with

your hands. Immediately remove the mains plug

from the wall socket. If the appliance is immersed

in water or other liquids, do not use the appliance

Clean the appliance and the accessories. Refer •

to the section "Cleaning and maintenance".

Before use, always check that the mains voltage •

is the same as the voltage on the rating plate of

The appliance is not intended to be operated •

by means of an external timer or separate

remote-control system.

Connect the appliance to an earthed wall socket. •

If necessary, use an earthed extension cable of

a suitable diameter (at least 3 x 1 mm

For additional protection, install a residual current •

device (RCD) with a rated residual operating

current that does not exceed 30 mA.

Make sure that water cannot enter the contact •

plugs of the mains cable and the extension cable.

Always fully unwind the mains cable and the •

EN Make sure that the mains cable does not hang •

over the edge of a worktop and cannot be

caught accidentally or tripped over.

Keep the mains cable away from heat, oil and •

Do not use the appliance if the mains cable or •

the mains plug is damaged or defective. If the

mains cable or the mains plug is damaged or

defective, it must be replaced by the manufacturer

or an authorised repair agent.

Do not pull the mains cable to disconnect the •

mains plug from the mains.

Disconnect the mains plug from the mains when •

the appliance is not in use, before assembly or

disassembly and before cleaning and maintenance.

Safety instructions for blenders

The appliance is suitable for domestic use only.•

Do not use the appliance outdoors.•

Place the appliance on a stable and flat surface.•

Keep the appliance away from heat sources. •

Do not place the appliance on hot surfaces or

Do not use the appliance for pressing fruits or •

EN Do not use the appliance for beating eggs.•

Do not use the appliance for kneading dough.•

Do not use the appliance for grinding meat.•

Do not use the appliance with an empty jar or •

When using the jar, always mount the jar lid and •

the jar lid insert before switching on the appliance.

Do not leave the appliance switched on •

continuously for more than two minutes.

Make sure that your hands are dry before •

touching the appliance.

Beware of sharp parts. Keep your hands away •

from the moving parts during use and during

cleaning and maintenance. The appliance uses

Beware of hot parts. Wait until the appliance •

has cooled down before touching the housing

and the parts of the appliance. The appliance

becomes hot during use.

Be extra careful during cleaning and maintenance. •

Be extra careful when emptying the jar or the

bottle. Be extra careful when handling the sharp

Do not leave the appliance unattended during use.•19

EN Cleaning and maintenance

The appliance must be cleaned after each use.

Before you proceed, we need you to pay attention to the following notes:

- Before cleaning or maintenance, switch off the appliance, remove the

mains plug from the wall socket and wait until the appliance has

- Do not immerse the appliance in water or other liquids.

- Always be careful when cleaning the blade. The blade is very sharp.

Risk of personal injury.

Before you proceed, we would like you to focus your attention on the

- Do not use aggressive or abrasive cleaning agents to clean the appliance.

- Do not use sharp objects to clean the appliance.

- Do not clean the appliance in the dishwasher.

Regularly check the appliance for possible damage.•

Clean the outside of the appliance with a soft, damp cloth. Thoroughly •

dry the outside of the appliance with a clean, dry cloth.

Clean the accessories:•

- Clean the blade and the seal ring in soapy water.

- Clean the jar, the jar lid and the jar lid insert in soapy water.

- Clean the bottle and the bottle lid in soapy water.

- Rinse the accessories under running water.

- Thoroughly dry the accessories.

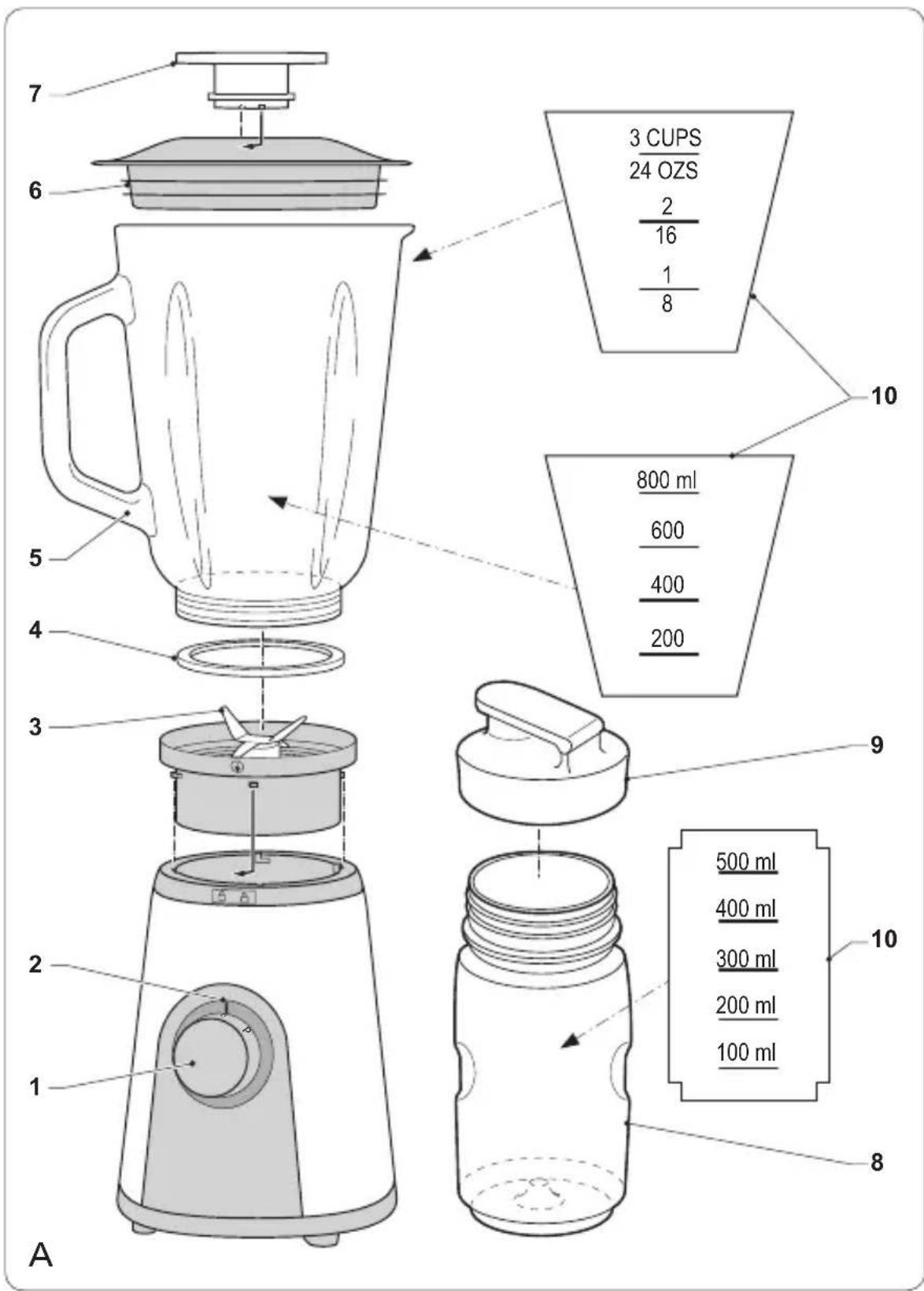

Description (fig. A)

Your 217000/217200/217400 Princess blender has been designed for the

following applications: mashing fruits and vegetables; preparing smoothies,

shakes and juices; preparing cold soups; preparing dressings, dips and sauces.

The maximum capacity of the jar is 800 ml. The maximum capacity of the

bottle is 500 ml. The appliance is suitable for indoor use only. The appliance

is suitable for domestic use only.

Note: The appliance is suitable for crushing ice. To crush ice, move the

on/off switch (1) to the “P” position several times.20

EN Before you proceed, we need you to pay attention to the following notes:

- The appliance has been designed for mixing cold and lukewarm

ingredients (max. 55 °C). It is recommended not to use the appliance

for mixing hot liquids and solids. Hot liquids and solids can easily cause

the jar to break and the jar lid to abruptly come off the appliance due

to steam pressure. Keep the jar lid pressed with your hand when mixing

lukewarm liquids to prevent leakage.

8. Bottle (217400 only)

10. Juice level indicator

Assembly (fig. A & B)

Before you proceed, we need you to pay attention to the following notes:

- Before assembly or disassembly, switch off the appliance, remove the

mains plug from the wall socket and wait until the appliance has

Mount the blade (3) to the bottom of the jar (5). Lock the blade (5) •

by turning it clockwise.

Mount the jar (5) onto the appliance. Lock the jar (5) by turning it •

Mount the jar lid (6) onto the jar (5).•

by turning it clockwise.21

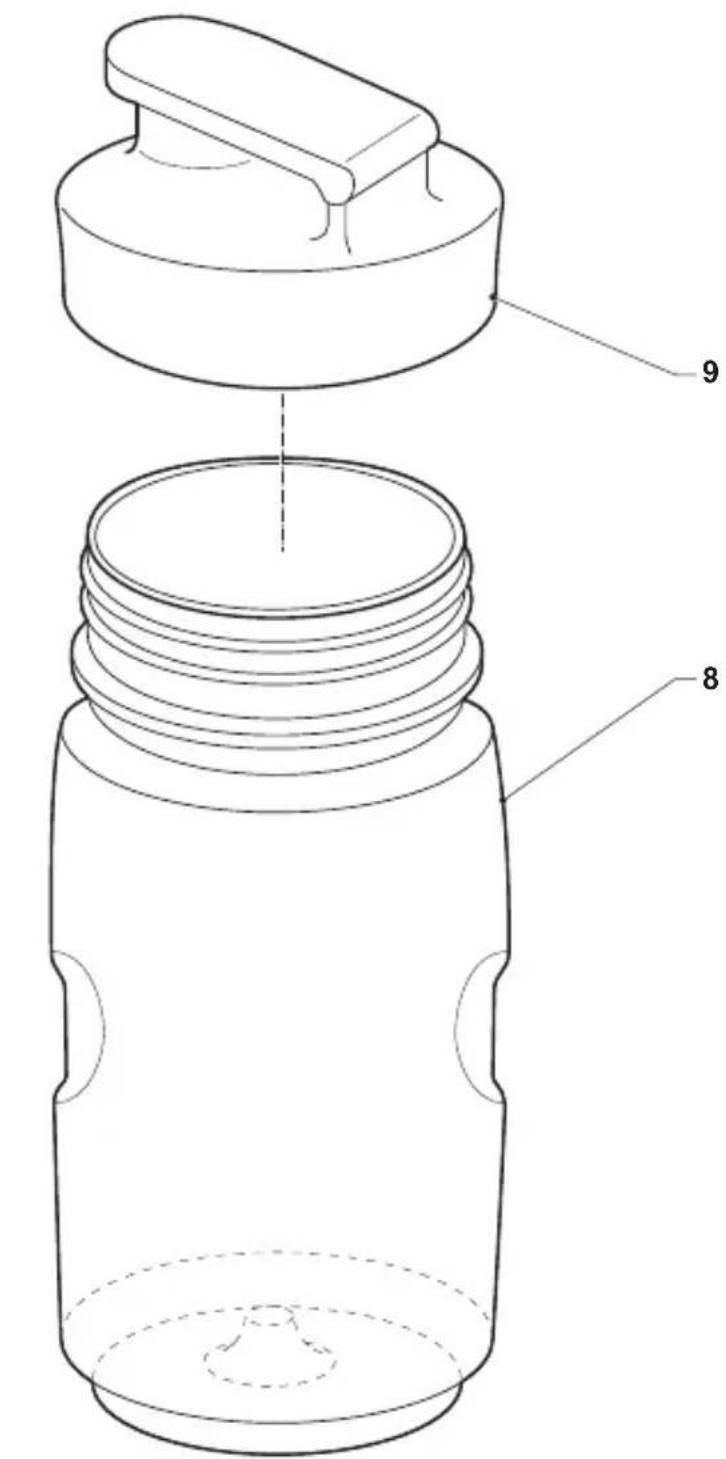

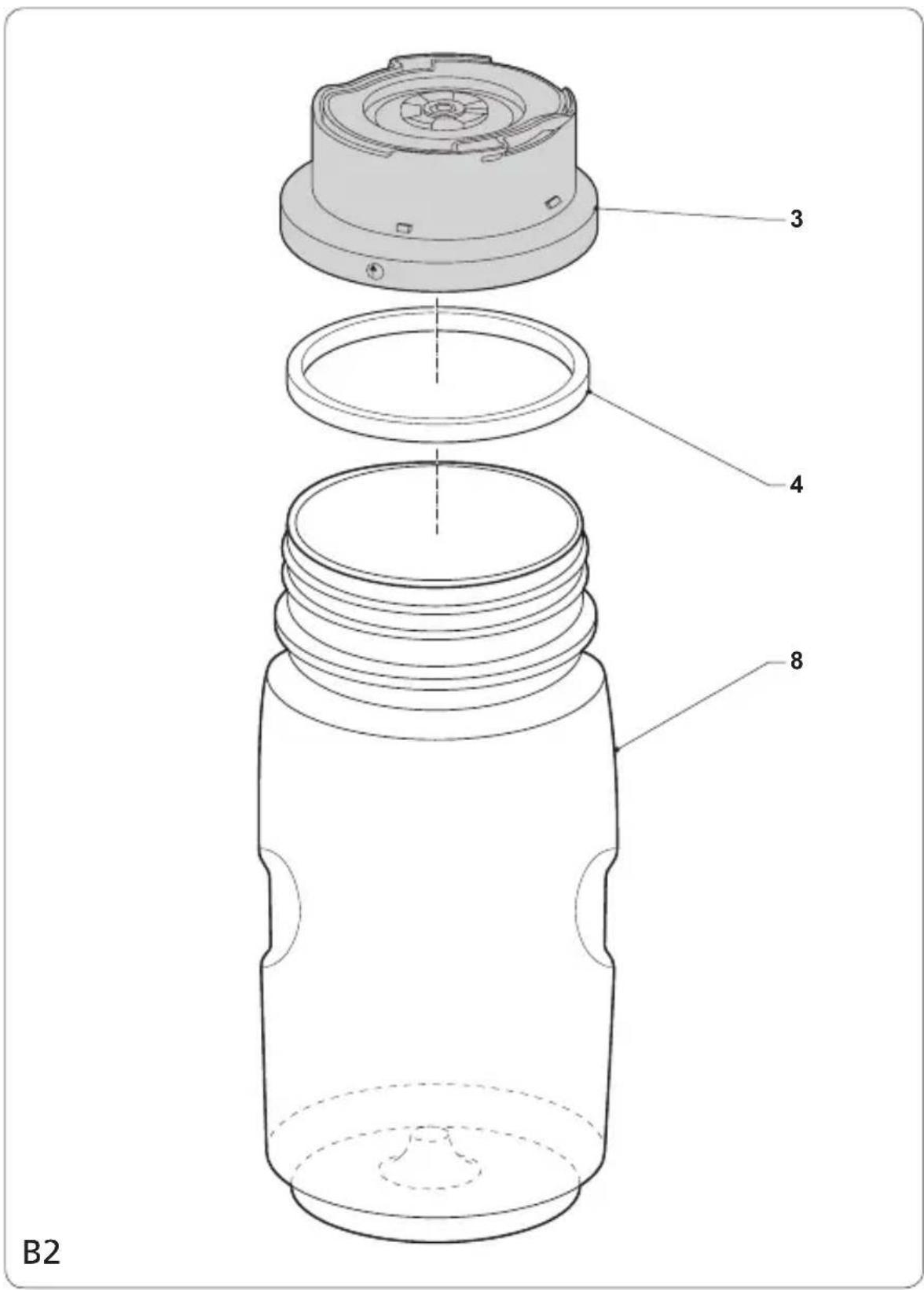

Fig. B2: Place the seal ring (4) onto the blade (3). Tighten the blade (3) •

onto the bottle (8).

Fig. B3: Turn the bottle (8) upside down. Place the bottle (8) onto the •

appliance. Lock the bottle (8) by turning it clockwise until it clicks into place.

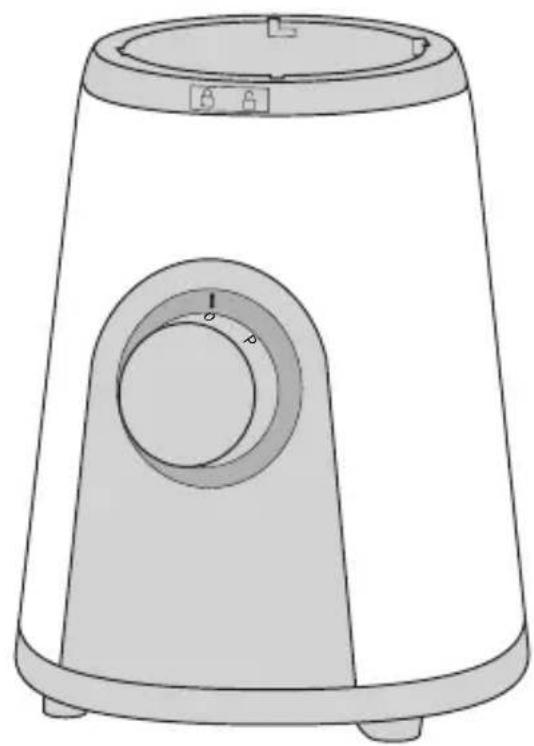

Switching on and off (fig. A)

Before you proceed, we need you to pay attention to the following notes:

- Do not switch on the appliance when the jar or the bottle is empty.

- Do not leave the appliance switched on continuously for more than

two minutes. After two minutes, switch off the appliance and allow it

to cool down for three minutes before switching it on again.

To switch on the appliance with continuous low speed, set the on/off •

switch (1) to the "I" position.

To switch on the appliance with continuous high speed, set the on/off •

switch (1) to the "II" position.

To switch on the appliance in pulse mode, set the on/off switch (1) •

to the "P" position.

To switch off the appliance, set the on/off switch (1) to the "O" position.•

Before you proceed, we need you to pay attention to the following notes:

- Do not exceed the maximum mark on the juice level indicator.

- Do not overload the appliance. Do not put too many ingredients into

the jar or the bottle at one time. If the motor stops, immediately

switch off the appliance, remove the mains plug from the wall socket

and allow the appliance to cool down for at least 10 minutes.

Cut the fruit and/or vegetables into pieces. Make sure that the pieces •

of fruit and/or vegetables fit in the jar or the bottle.

Put the pieces of fruit and/or vegetables into the jar or the bottle.•

Assemble the appliance. Refer to the section "Assembly".•

Insert the mains plug into the wall socket. The power indicator comes on.•22

EN Switch on the appliance. The appliance blends the ingredients in a few •

seconds. The longer the appliance is switched on, the finer the ingredients

If necessary, add more pieces of fruit and/or vegetables:•

- Switch off the appliance.

- Turn the jar lid insert counterclockwise to remove it from the jar lid.

- Cut the fruit and/or vegetables into pieces. Make sure that the

pieces of fruit and/or vegetables fit in the jar.

- Put the pieces of fruit and/or vegetables into the jar.

- If the pieces are too large for the filling opening of the jar lid, remove

the jar lid and add the pieces of fruit and/or vegetables.

- Mount the jar lid onto the jar.

- Mount the jar lid insert into the jar lid.

- Switch on the appliance. The appliance blends the ingredients in a

few seconds. The longer the appliance is switched on, the finer the

ingredients will be blended.

- Switch off the appliance.

- Unlock the bottle by turning it counterclockwise. Remove the bottle

from the appliance. Turn the bottle straight up again.

- Loosen the blade from the bottle.

- Cut the fruit and/or vegetables into pieces. Make sure that the

pieces of fruit and/or vegetables fit in the bottle.

- Put the pieces of fruit and/or vegetables into the bottle.

- Tighten the blade onto the bottle.

- Turn the bottle upside down. Place the bottle onto the appliance.

Lock the bottle by turning it clockwise until it clicks into place.

- Switch on the appliance. The appliance blends the ingredients in a

few seconds. The longer the appliance is switched on, the finer the

ingredients will be blended.

After use, switch off the appliance.•

Remove the mains plug from the wall socket. The power indicator •

Allow the appliance to cool down completely.•23
