Thank you for buying the TDA46

steam iron from Bosch.

This iron has been designed accor-

ding to ecological criteria, related

to the sustainable development;

analyzing its whole lifecycle, from

material selection to its later reusing

or recycling; evaluating the improve-

ment possibilities, from a technical,

economical and environmental point

This appliance has been designed

exclusively for domestic use and

must not be used for industrial

Carefully read through the operating

instructions for the appliance and

safeguard them for future reference.

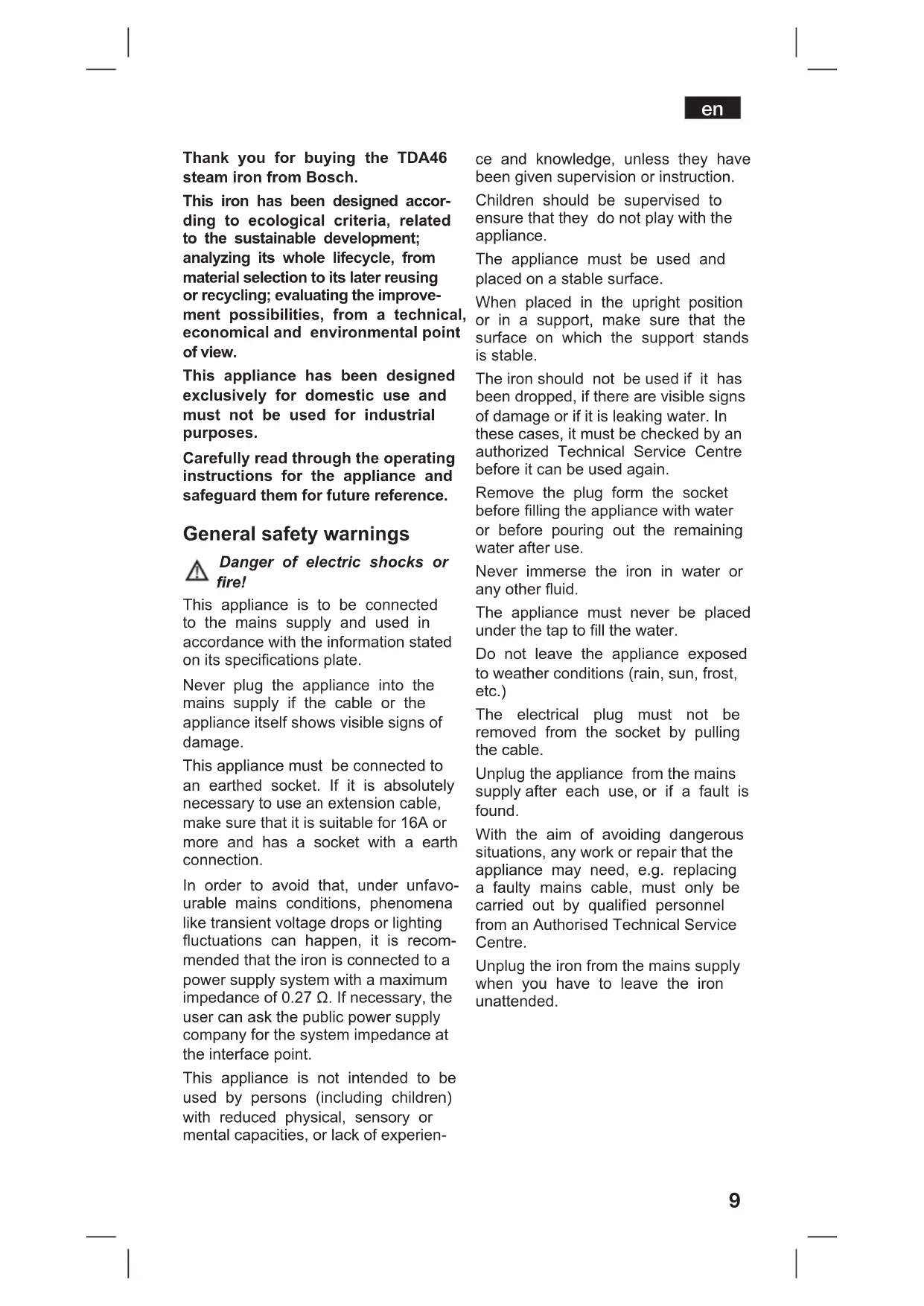

General safety warnings

Danger of electric shocks or

This appliance is to be connected

to the mains supply and used in

accordance with the information stated

on its specications plate.

Never plug the appliance into the

mains supply if the cable or the

appliance itself shows visible signs of

This appliance must be connected to

an earthed socket. If it is absolutely

necessary to use an extension cable,

make sure that it is suitable for 16A or

more and has a socket with a earth

In order to avoid that, under unfavo-

urable mains conditions, phenomena

like transient voltage drops or lighting

uctuations can happen, it is recom-

mended that the iron is connected to a

power supply system with a maximum

impedance of 0.27 Ω. If necessary, the

user can ask the public power supply

company for the system impedance at

the interface point.

This appliance is not intended to be

used by persons (including children)

with reduced physical, sensory or

mental capacities, or lack of experien-

ce and knowledge, unless they have

been given supervision or instruction.

Children should be supervised to

ensure that they do not play with the

The appliance must be used and

placed on a stable surface.

When placed in the upright position

or in a support, make sure that the

surface on which the support stands

The iron should not be used if it has

been dropped, if there are visible signs

of damage or if it is leaking water. In

these cases, it must be checked by an

authorized Technical Service Centre

before it can be used again.

Remove the plug form the socket

before lling the appliance with water

or before pouring out the remaining

Never immerse the iron in water or

The appliance must never be placed

under the tap to ll the water.

Do not leave the appliance exposed

to weather conditions (rain, sun, frost,

The electrical plug must not be

removed from the socket by pulling

Unplug the appliance from the mains

supply after each use, or if a fault is

With the aim of avoiding dangerous

situations, any work or repair that the

appliance may need, e.g. replacing

a faulty mains cable, must only be

carried out by qualied personnel

from an Authorised Technical Service

Unplug the iron from the mains supply

when you have to leave the iron

Do not allow the power cord to come

into contact with the soleplate when it

Store the iron in upright position.

Do not use descaling agents, they can

damage the appliance.

Never use sharp objects or abrasive

products to clean the soleplate or any

other part of the appliance.

To keep the soleplate in good

condition, do not allow it to come into

contact with metal objects. Do not use

scourers or chemical products to clean

Filling the water tank (1)

Set the steam regulator to the

position and unplug the iron

Use only clean water from the tap

without mixing anything with it. The

addition of other liquids, such as

perfume, will damage the appliance.

Any damage caused by the use of

the aforementioned products will

make the guarantee void.

Do not use condensation water from

tumble dryers, air conditionings or

similar. This appliance has been

designed to use normal tap water.

To prolong the optimum steam function,

mix tap water with distilled water 1:1.

If the tap water in your district is very

hard, mix tap water with distilled water

Never ll beyond the “max” water

Before using the iron for the

Remove any label or protective

covering from the soleplate.

With the iron unplugged, ll in the tank

of the iron with tap water and set the

temperature control dial to “max”

Plug in the appliance to the mains.

When the steam iron has reached

the desired temperature (pilot light

switches off), start steaming by setting

the steam regulator to the maximum

steam setting and by repeatedly

When using the steam function for

the rst time, do not apply it on the

laundry, as there could still be dirt in

the steam dispenser.

When turned on for the rst time, your

new iron may smell and emit a little

smoke and a few particles; this will

stop after a few minutes.

Check the recommended ironing

temperature in the label on the

If you don’t know what kind or kinds of

fabric a garment is made of, determine

the right ironing temperature by ironing

a part that will not be visible when you

wear or use the garment.

Start ironing the garments that require

the lowest ironing temperature, such

as those made of synthetic bres.

Silk, wool or synthetic materials: iron

the reverse side of the fabric to prevent

Remove any labels or protective

coverings from the soleplate.

Ironing without steam (2)

Set steam control to the position.11

Ironing with steam (3)

1. Turn the temperature selector to the

2. Set the amount of steam to suit your

needs, using the variable steam

For normal use, please choose one of

the following recommended settings:

Do not use the Spray function with

Set the temperature control dial to at

least the “•••” position

Interval between shots of steam

should be 5 seconds.

Do not iron clothing while it is being

Never direct the steam at persons

Interval between shots should be 5

Wait 10 seconds after each 4 shot

Multiple descaling system (7)

Depending on the model, this range

is equipped with the “AntiCalc”

(=component 1 + 2 + 3).

Each time you use the steam regulator,

the “self-clean” system cleans the

mechanism of scale deposits.

The “calc’n clean” function helps to

remove scale particles out of the

steam chamber. Use this function

approximately every 2 weeks, if the

water in your area is very hard.

Fill the water tank, set the temperature

control dial to the “max”. position and

After the necessary warm-up period,

unplug the iron and hold it over a sink.

Position the steam regulator to the

"calc’n clean" position and keep it in

this position. Gently shake the iron.

Boiling water and steam will come out,

carrying scale or deposits that might

be there. When the iron stops dripping,

position the steam regulator to the

position. For improved de-scaling,

heat up the iron again fully and press

the steam button several times in

quick succession. Then wait until the

remaining water has evaporated from

the soleplate of the iron.

The “anti-calc” cartridge has been

designed to reduce the build-up of

scale produced during steam ironing,

helping to extend the useful life of

your iron. Nevertheless the “anti-calc”

cartridge cannot remove all of the

scale that is produced naturally over

“Secure”autoshut-off

(Depending on model)

The "Secure" auto shut-off function

switches off the iron when it is left

unattended, thus increasing security

and saving energy. After plugging

in the appliance, this function will be

inactive for the rst two minutes in

order to give the appliance time to

reach the set temperature.

Alter such time, if the iron is not moved

for 8 minutes while in the upright

position or 30 seconds while resting

on its soleplate or on its side, then the

safety circuit will switch the appliance

off automatically and the pilot light will

To reconnect the iron, just move it

Anti-drip system (9)

(Depending on model)

If the temperature is set too low, the

steam is automatically switched off to

Set the steam regulator to the

lf the iron is only slightly soiled, pull

out the plug and allow the soleplate to

cool down. Wipe the housing and the

soleplate with a damp cloth only.

lf synthetic cloth melts due to too high

temperature on the soleplate, switch

off the steam and rub off the residue

immediately with a thickly folded, dry

To keep the soleplate smooth, you

should avoid hard contact with metal

objects. Never use a scouring pad, or

chemicals to clean the soleplate.

Never decalcify the tank or treat it with

detergents or solvents: otherwise the

iron will drip water whilst steaming!

Tips on disposing of a used

Before throwing a used appliance

away, you should rst make it

noticeably inoperable and be certain

to dispose of it in accordance with

current national laws. Your Retailer,

Town Hall or Local Council can give

you detailed information about this.

This appliance is labelled in

accordance with European

Directive 2002/96/CE –con-

cerning used electrical and

electronic appliances (was-

The guideline determines the fra-

mework for the return and recycling

of used appliances as applicable

Tips to help you save

Steam production consumes the most

energy. To help minimise the energy

used, follow the advice below:

• Start by ironing the fabrics that require

the lowest ironing temperature.

Check the recommended ironing

temperature in the label on the

• Regulate the steam according to

the selected ironing temperature,

following the instructions in this ma-

• Try to Iron the fabrics while they are

still damp and reduce the steam

setting. Steam will be generated

from the fabrics rather than the iron.

If you tumble dry your fabrics before

ironing them, set the tumble drier on

the ‘iron dry’ programme.

• If the fabrics are damp enough, turn

off the steam regulator completely.

• Stand the iron upright during

pauses. Resting it horizontally with

the steam regulator on generates

GUARANTEE TERMS The terms of the guarantee for this

appliance are in accordance with tat

stated by our representative for the

country in which it is sold. The details of

these conditions can be obtained from

the retailer from whom the appliance

was purchased. The PURCHASE INVOICE must be presented when

making any claims against the terms

We reserve the right to make technical

Trouble shooting guide for minor issues

1. Turn to a higher position.

2. Check with another appliance

or plug the iron into a different

1. The iron is cooling.

2. The iron does not

1. Wait until the heating cycle is

2. See previous paragraph.

1. The temperature is

1. Turn the temperature control

dial down and wait until the iron

regulator in very low

2. Steam regulator in

very high position with

1. Turn the temperature control

dial regulator to a higher position

and wait until the operating

indicator switches off.

2. Turn the steam regulator to a

1. Steam regulator in

2. No water in the tank.

is too low. Anti-drip

system not activated.

1. Turn the steam regulator to an

open steam position.

3. Set a higher temperature if

compatible with the fabric.

1. No water in the tank.

1. Fill the water tank.

2. Contact the Technical Service.

1. The steam regulator

is not properly closed.

1. Ensure the steam regulator is

Do not forget to empty the tank

when you have nished ironing.

1. Lubrication of some

of the internal parts.

1. This is normal and will stop

after a few minutes.

You can download this manual from the local homepages of Bosch14

Nous vous remercions d’avoir

and electronic equipment – WEEE).

electronic equipment – WEEE).

electronic equipment – WEEE).

For at undgå at der under ugunstige

Børn skal overvåges for at sikre, at de

Stryg stoffets bagside for at undgå

renser systemet “self-clean” mekanismen

1. Sørg for at anbringe

and electronic equipment–WEEE).

vapor, o sistema “self-clean” limpa as

Milton Keynes MK12 5PT To arrange an engineer visit or to

order replacement spare parts or

Central Branch Services

North-Greece – Thessaloniki

South-Greece – Heraklion/Kreta
