Product type	Powerline adapter
Model	AV500
Brand	TP-Link
Maximum speed	500 Mbps
Network interface	1 Ethernet port 10/100 Mbps
Powerline standard	HomePlug AV
Range	Up to 300 meters on electrical wiring
Power consumption	Approximately 3 W (standby), 6 W (active)
Power supply	100-240 V AC, 50/60 Hz
Dimensions	Approximately 72 x 62 x 42 mm
Weight	Approximately 100 g
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% (non-condensing)
Buttons	Pair button, Reset button
LED indicators	Power, Powerline, Ethernet
Security	128-bit AES encryption
Compatibility	Any standard HomePlug AV Powerline adapter
Maintenance	Clean with a soft, dry cloth. Do not use chemical products.
Reparability	Spare parts not available. Contact customer support in case of failure.
Warranty	3 years (limited)
Box contents	Powerline adapter, RJ45 Ethernet cable, quick installation guide

Frequently Asked Questions - AV500 TP-LINK

How do I reset my TP-Link AV500 Powerline adapter?

Press and hold the Reset button (using a pin) for about 10 seconds until all LEDs turn off and then back on. The adapter returns to factory settings.

What should I do if I have no Internet access via my Powerline network?

Check that all adapters are on the same electrical circuit. Make sure the Powerline LED is solid. Re-pair the adapters if necessary. Check Ethernet connections and that your router/modem is working.

Why won't my Powerline adapter reconnect after moving it?

Ensure the new outlet is on the same electrical circuit. Keep the adapter away from large appliances (refrigerator, air conditioner) that may cause interference. Re-pair if necessary.

How do I pair a TP-Link AV500 Powerline adapter with another adapter?

Plug both adapters into nearby outlets. Press the Pair button on the first adapter for 1 second (the Power LED flashes). Within 2 minutes, press the Pair button on the second adapter for 1 second. The Powerline LED turns solid when pairing is successful.

What is the maximum range of a Powerline network with the AV500?

The theoretical range can reach up to 300 meters on the electrical wiring, but actual performance depends on wiring quality and interference. Speed decreases with distance.

Can I use the Powerline adapter with a power strip?

It is not recommended to plug the Powerline adapter into a power strip, as this can degrade the signal. Plug it directly into a wall outlet. If you must use a power strip, plug it into the adapter's passthrough outlet.

How do I know if the Powerline signal quality is good?

The Powerline LED indicates quality: solid green = good, orange = average, flashing red = poor. If red, move the adapter to another outlet closer.

Does the Powerline adapter consume a lot of electricity?

No, consumption is low: around 3 W in standby and 6 W in use. It can remain plugged in permanently.

Can I connect multiple Powerline adapters together?

Yes, you can add up to 8 Powerline adapters on the same electrical network. Each new adapter must be paired with an adapter already on the network.

What should I do if the Power LED does not turn on?

Check that the electrical outlet works by plugging in another device. If the outlet is good, the adapter may be faulty. Contact TP-Link support.

USER MANUAL AV500 TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link.

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of

their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as transaction, transformation, or adaptation without permission from TP Link Technologies Co., Ltd. Copyright © 2018 TP Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507825REV211

tp-link

Quick Installation Guide

Powerline Extender

CONTENTS

01 / Deutsch
05 / English
09 / Espanol
13 / Eλληνικα
17 / Français
21 / Italiano
25 / Portugues
29 / Suomi
33 /Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Deutsch

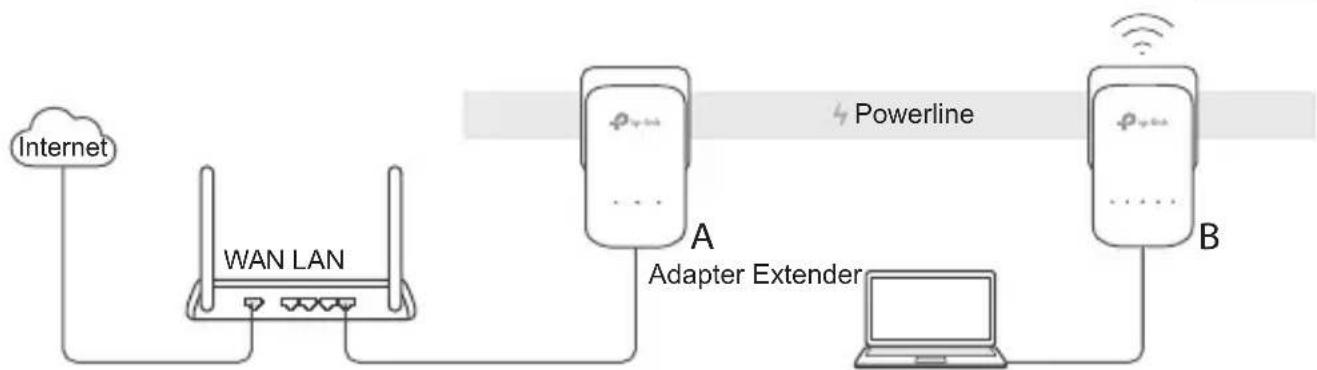

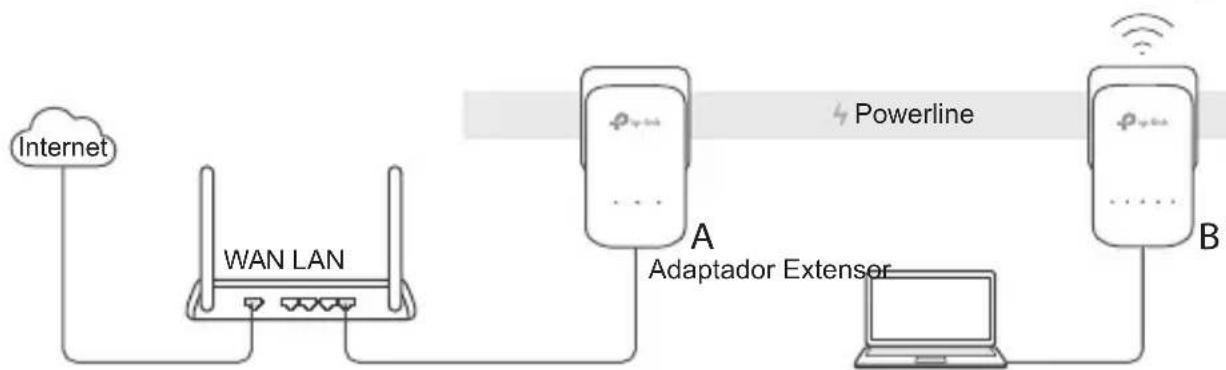

1. Connect the adapter to a LAN port of your router using an Ethernet cable.

2. Plug the powerline devices into the wall outlets near each other and on the same electrical circuit.

3. Pair the powerline devices.

A. Press the Pair button on the powerline adapter for 1 second. The Power LED⑥ starts blinking.

• If the Power LED does not blink, press the Pair button again.

B. Within 2 minutes, press the Pair button on the powerline extender for 1 second. The Power LED starts blinking. When the Powerline LED turns on, it's done.

English

1. Relocate the powerline extender to a new location. Connect to the Wi-Fi using the SSID and password on the product label.

2. A blinking or red Powerline LED indicates poor signal strength. Move the extender to another location.

3. Enjoy!

Tips: You can add more powerline devices to the existing powerline network by pairing these devices.

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

1. Plug in the powerline extender near your router. Press the WPS button on your router.
2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.

3. When the 2.4GHz Wi-Fi LED and 5GHz Wi-Fi LED on the extender blink quickly for 3 seconds, and then stay on, it's done!

4. 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.
Q2. How to troubleshoot if there is no internet connection in my powerline network?
A1. Make sure all adapters and extenders are on the same electrical circuit.
A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.
A3. Make sure all hardware connections are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the modem or router.
Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?
A1. Make sure all powerline devices are on the same electrical circuit.
A2. Pair it again with another adapter or extender, and make sure the Powerline LED is on before relocating it.
A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Espanol

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.
  Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS from the date of original retail purchase by the end-user purchaser.
