Product Type	PLC Adapter (Power Line Communication)
Brand	TP-Link
Model	TLPA4025P
Technology	HomePlug AV, IEEE 1901
Maximum Speed	600 Mbps
Ports	1 RJ45 Ethernet port 10/100/1000 Mbps
Passthrough Outlet	Yes (built-in female outlet)
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	Approximately 3 W in normal operation
Dimensions (W x D x H)	103 x 60 x 33 mm
Weight	Approximately 150 g
Operating Temperature	0 to 40 °C
Operating Humidity	10% to 90% non-condensing
Safety Standards	CE, RoHS
Network Security	128-bit AES encryption, Pair button pairing
Reset	Press and hold the Pair button until the Power LED turns off
Installation	Plug and Play, no software required for basic setup
Maintenance and Cleaning	Clean with a dry cloth. Do not use liquid or abrasive products.
Usage Safety	Plug directly into a wall outlet, do not use on a power strip. Keep away from water and heat.
Spare Parts and Repairability	Not user repairable. No spare parts available.
Warranty	3-year limited (per TP-Link terms)
Compatibility	Compatible with all HomePlug AV PLC adapters and any Ethernet router
Package Contents	1 PLC adapter, 1 RJ45 Ethernet cable, quick installation guide

Frequently Asked Questions - TLPA4025P TP-LINK

How do I reset my PLC adapter?

Press and hold the Pair button for about 1 second until the Power LED briefly turns off. You can also use the tpPLC utility for a software reset.

I do not have Internet access through my PLC network, what should I do?

Check that all adapters are on the same electrical circuit. Make sure the PLC LEDs are on and the Ethernet connections are correct. Test your computer's direct connection to the router to confirm your Internet access works.

Previously paired PLC adapters do not reconnect after moving them, how to fix?

Try plugging the adapters into different outlets on the same circuit. Re-pair them by pressing the Pair button. Avoid electrical interference: keep them away from devices like hair dryers or air conditioners, or plug those devices into the PLC adapter's passthrough outlet.

How do I add a new PLC adapter to my existing network?

Press the Pair button on an already connected adapter for 1 second, then within 2 minutes, press the Pair button on the new adapter for 1 second. The PLC LED will turn on to confirm pairing.

What do the LEDs on the adapter mean?

The Power LED indicates power on. The PLC LED lights up when the adapter is connected to a PLC network. The Ethernet LED lights up when a device is connected via the Ethernet cable.

Can I plug the PLC adapter into a power strip?

No, it is not recommended to plug a PLC adapter into a power strip. Always plug it directly into a wall outlet. If the adapter has a passthrough outlet, you can plug a power strip into that.

How do I update the adapter firmware?

Download the latest firmware from the TP-Link website. Use the tpPLC utility to perform the update via your computer connected to the PLC network.

Can I use this adapter with other brands of PLC adapters?

Yes, this adapter is compatible with any PLC adapter using the HomePlug AV or IEEE 1901 standard. Pairing must be done manually via the Pair button.

What should I do if the speed is slower than expected?

Ensure the adapters are on the same electrical circuit and your home's electrical wiring is in good condition. Keep them away from interference sources (motors, dimmers). Speed depends on distance and the quality of the electrical network.

How do I extend my PLC network with multiple adapters?

Repeat the pairing procedure for each additional adapter: press the Pair button on an existing adapter, then press the Pair button on the new adapter within 2 minutes. All adapters will form a single network.

USER MANUAL TLPA4025P TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

(2-144),Cardiff Road,Reading,RG1 8EW.

mursi 151,24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any use of this technology. The use of any other products, services, or information on the Technologies Co., Ltd. Copyright © 2018 IP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Espanol
13 / Eλληνικα
17 / Français
21 / Italiano
25 / Portugues
29 / Suomi
33 /Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

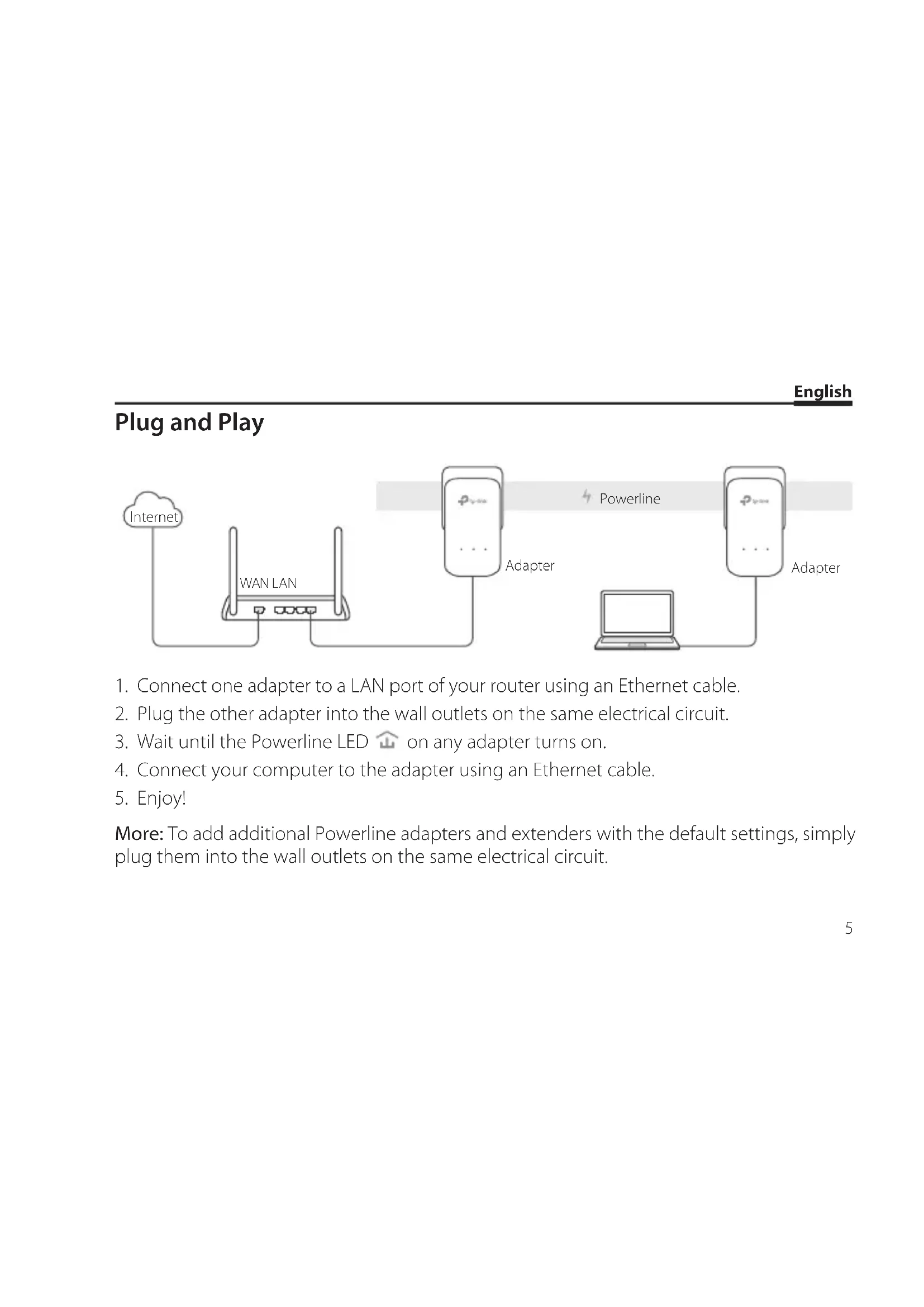

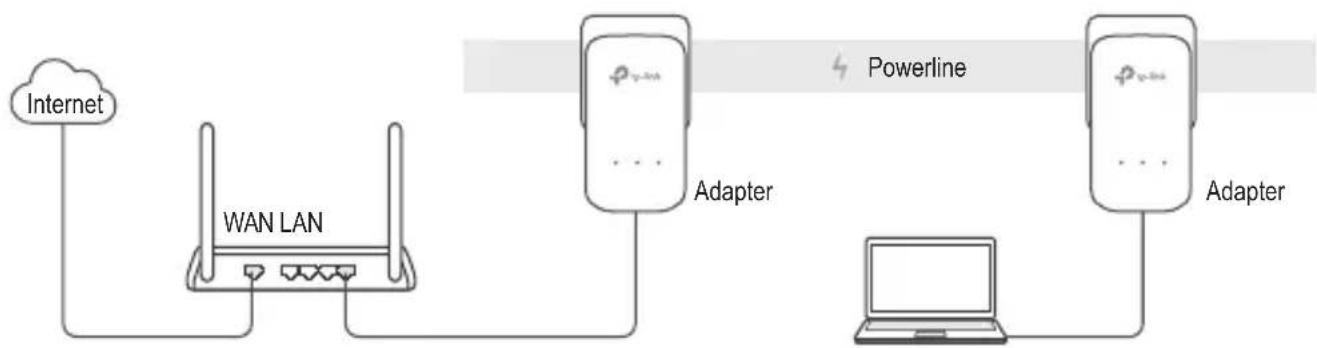

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

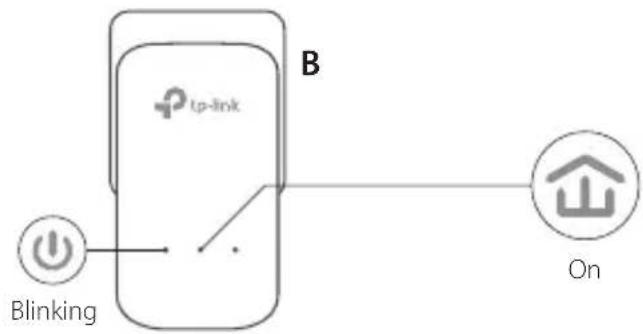

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

English

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.
A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.
A3. Make sure all hardware connections are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the modem or router.
A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.
A2. Try to pair it again, and make sure the Powerline LED is on.
A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

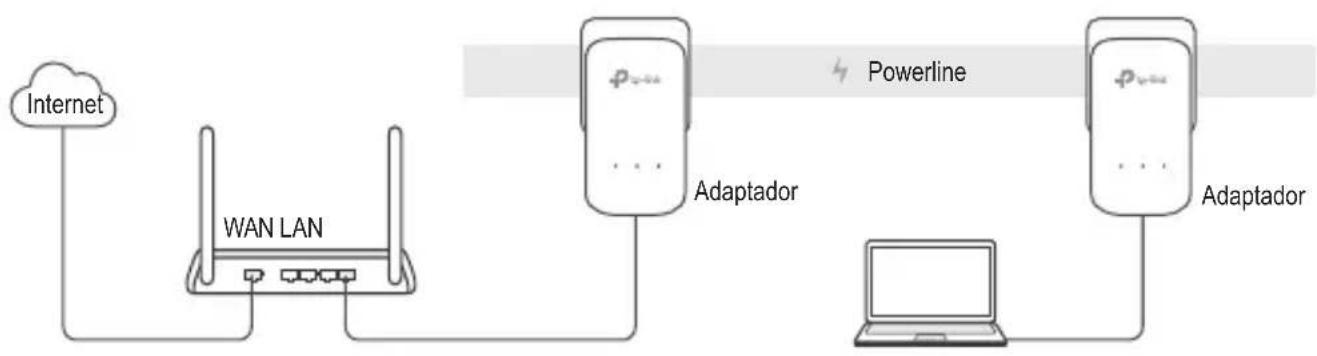

Plug and Play

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Espanol

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS from the date of original retail purchase by the end-user purchaser.
