Product Type	Powerline Adapter
Brand	TP-Link
Model	TLPA8030P
Dimensions (W x D x H)	95 x 60 x 33 mm
Weight	150 g
Power Supply	100-240 V AC, 50/60 Hz
Maximum Speed	Up to 1 Gbit/s
Supported Standard	HomePlug AV2
Ports	1 Gigabit Ethernet port (RJ45)
Pass-through Socket	Yes, integrated female socket
Pair Button	Yes, to secure and add adapters
LED Indicators	Power, Powerline, Ethernet
Security	128-bit AES encryption
Power Consumption	Less than 5 W in operation
Operating Temperature	0 °C to 40 °C
Operating Humidity	10 % to 90 % non-condensing
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use liquid or abrasive products.
Safety Instructions	Do not plug into a power strip. Plug directly into a wall outlet. Keep away from water and fire.
Package Contents	Powerline Adapter, Ethernet cable, Quick Installation Guide
Warranty	3 years (TP-Link limited warranty)

Frequently Asked Questions - TLPA8030P TP-LINK

How do I reset my Powerline adapter?

Press and hold the Pair button while the adapter is plugged in until the power LED briefly turns off. You can also use the tpPLC utility to perform a reset.

What should I do if I don't have Internet access through the Powerline network?

Check that all adapters are on the same electrical circuit, the Powerline LEDs are on, and the Ethernet connections are correct. Also ensure your computer is on the same subnet as the router.

Paired adapters do not reconnect after moving them, what should I do?

Try plugging them into other outlets on the same circuit. If that doesn't work, re-pair them. Also check that no electrical device (hair dryer, air conditioner) is causing interference; plug it into the adapter's pass-through socket if possible.

Can I plug the Powerline adapter into a power strip?

No, it is not recommended to plug the adapter into a power strip. Plug it directly into a wall outlet for best performance. If your adapter has a pass-through socket, you can plug the power strip into that.

How do I add a new Powerline adapter to my existing network?

Press the Pair button on the already configured adapter for 1 second, then within 2 minutes press the Pair button on the new adapter for 1 second. The Powerline LEDs will light up to confirm pairing.

What do the LED indicators on the adapter mean?

The power LED indicates power on. The Powerline (or Powerline) LED lights up when the adapter is connected to another Powerline adapter. The Ethernet LED lights up when a device is connected to the Ethernet port.

How do I update the firmware of my Powerline adapter?

Download the tpPLC utility from the TP-Link website. Connect to the adapter via the utility and follow the instructions to update the firmware. Make sure not to cut power during the update.

What is the maximum distance between two Powerline adapters?

The maximum distance depends on the quality of the electrical wiring. In general, the Powerline network works up to 300 meters on the same electrical circuit. Beyond that, performance may decrease.

Can I plug the adapter into a switch-controlled outlet?

It is not recommended to plug the adapter into a switch-controlled outlet, as cutting power will interrupt the Powerline connection. Plug it into an outlet that is always powered.

How do I secure my Powerline network?

Use the Pair button to create a secure network with 128-bit AES encryption. Press Pair on one adapter for 1 second, then on the other within 2 minutes. The network is then protected.

USER MANUAL TLPA8030P TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

(2-144),Cardiff Road,Reading,RG1 8EW.

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any use of this technology. The use of any other products or services is permitted only with prior written permission from the Technologies Co., Ltd. Copyright © 2018 IP-Link Technologies Co., Ltd All rights reserved.

MADE IN CHINA

7106507904REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Espanol
13 / Eλληνικα
17 / Français
21 / Italiano
25 / Portugues
29 / Suomi
33 /Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

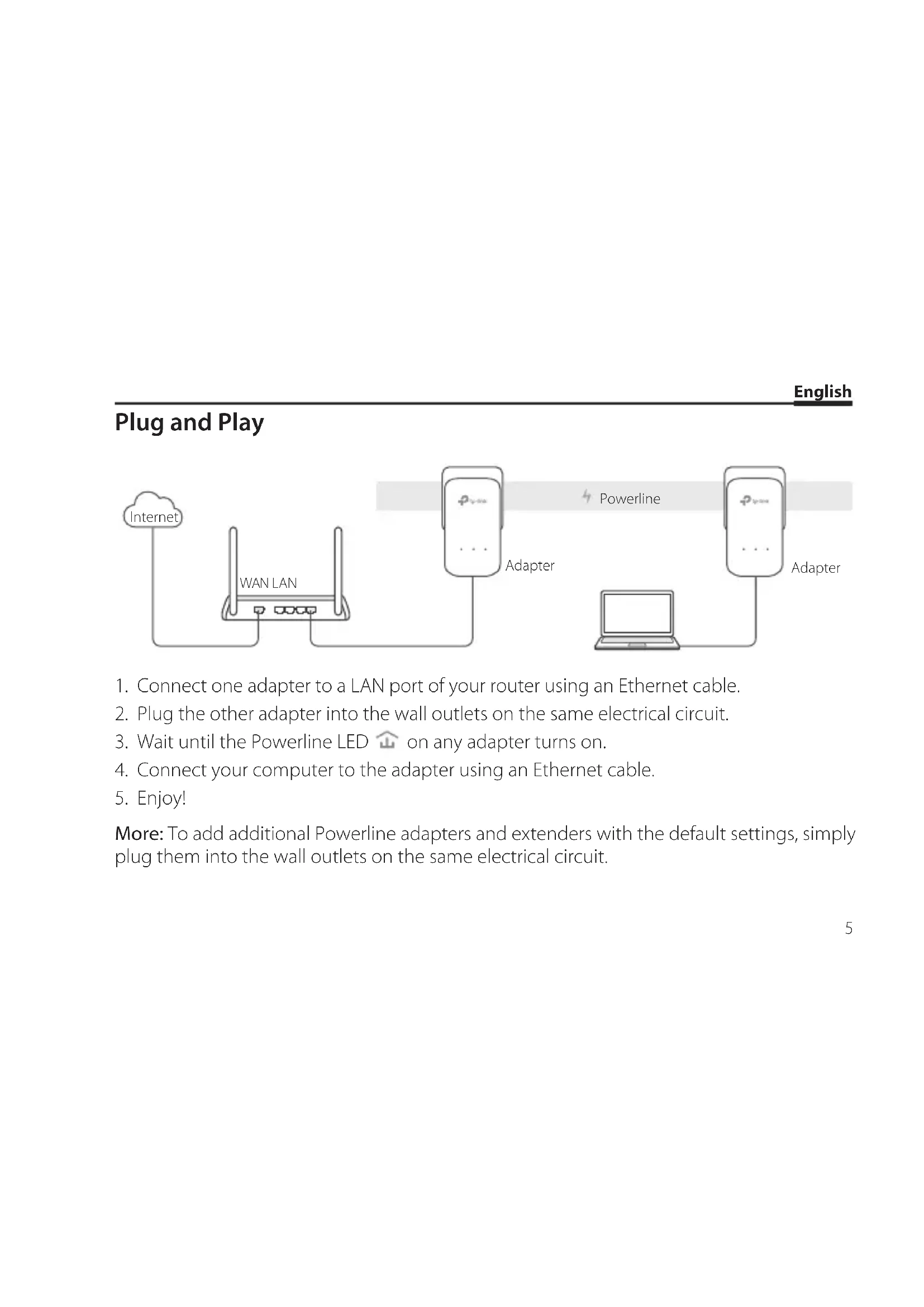

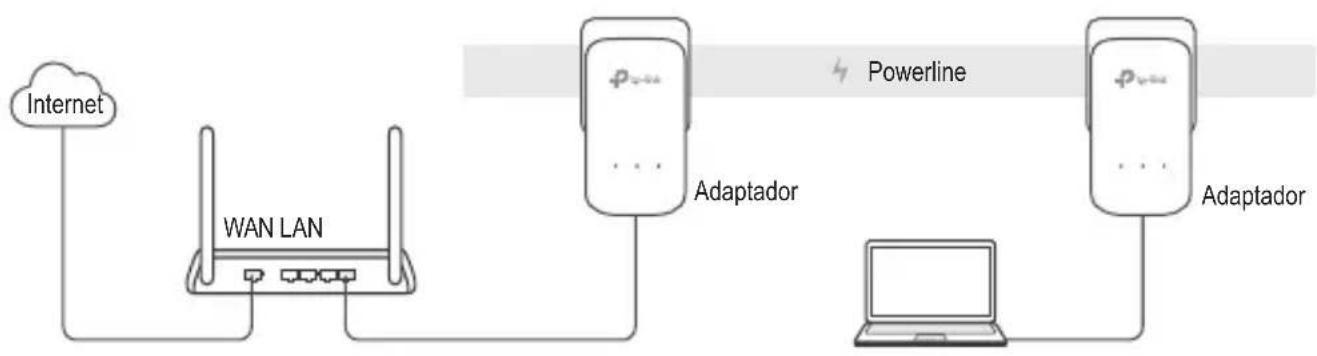

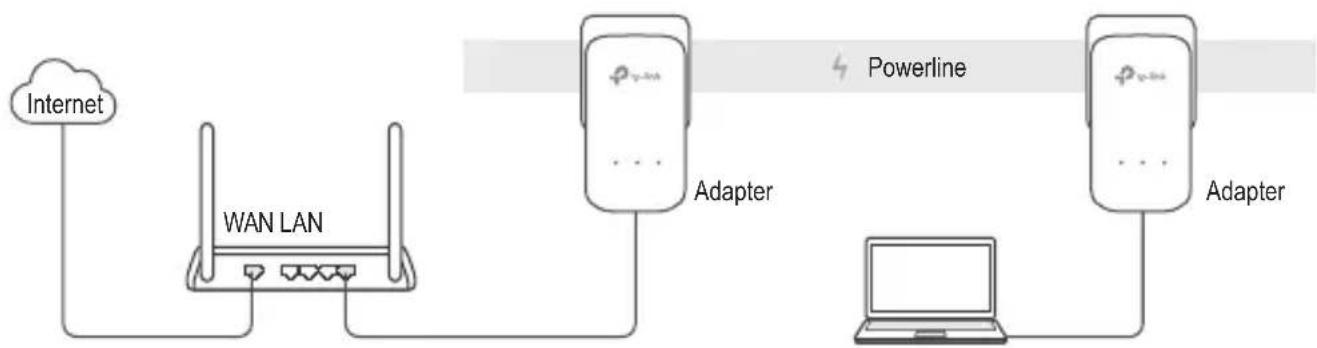

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

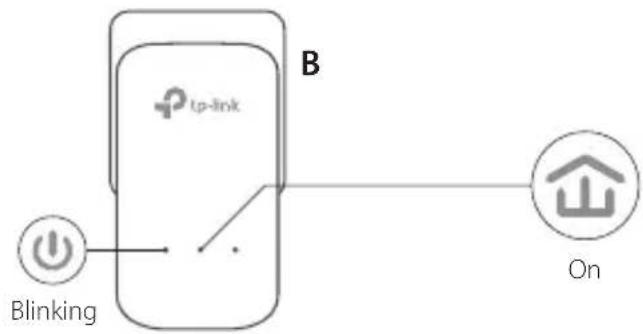

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.
A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.
A3. Make sure all hardware connections are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the modem or router.
A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.
A2. Try to pair it again, and make sure the Powerline LED is on.
A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

Plug and Play

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Espanol

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS from the date of original retail purchase by the end-user purchaser.
