Technical Features	Powerline adapter with AV1200 technology, 2 Gigabit Ethernet ports, integrated power socket.
Usage	Ideal for extending the home network via electrical wiring, compatible with all routers.
Maintenance and Repair	No maintenance required, firmware update possible via the user interface.
Security	128-bit AES encryption to secure the Powerline connection.
General Information	Easy to install, plug-and-play, LED indicators for connection status.

Frequently Asked Questions - TLWPA8630P TP-LINK

How do I set up the TP-LINK TLWPA8630P for the first time?

Plug the TP-LINK TLWPA8630P adapter into a power outlet, then connect it to your router using an Ethernet cable. Next, plug the second adapter into the room where you want to extend your network, and press the 'Pair' button on both adapters to synchronize them.

Why is my Powerline connection slow?

The Powerline connection speed can be affected by the distance between adapters, electrical interference, or the quality of your home's electrical wiring. Make sure the adapters are on the same electrical circuit and keep them away from household appliances that may cause interference.

How do I reset the TP-LINK TLWPA8630P?

To reset the adapter, hold down the 'Reset' button for about 10 seconds until the LED indicator blinks. This will restore the adapter to factory settings.

Can I use multiple TP-LINK TLWPA8630P adapters on the same network?

Yes, you can add other TP-LINK Powerline adapters to your network. Simply plug them in and pair them by pressing the 'Pair' button on the adapters you want to connect.

Do Powerline adapters work with power strips?

It is recommended to plug Powerline adapters directly into a wall outlet to avoid any signal loss. Using power strips may reduce connection performance.

How do I know if the TP-LINK TLWPA8630P is working properly?

The adapter's LED indicators will show the connection status. A green light indicates a good connection, while an orange or red light may mean a weak or no connection.

My adapter won\u0027t pair with the other adapter. What should I do?

Make sure both adapters are on the same electrical circuit and that no device is causing interference. Try pairing them again by pressing the 'Pair' button on both adapters within two minutes.

Can I use the TP-LINK TLWPA8630P in a multi-story house?

Yes, the TP-LINK TLWPA8630P can work across multiple floors, but connection quality may vary depending on your home\u0027s electrical setup. Ensure the adapters are on the same circuit for better performance.

USER MANUAL TLWPA8630P TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as transition, transformation, or adaptation without permission from IP-Link Technologies Co. Ltd. Copyright © 2018 IP-Link Technologies Co. Ltd. All rights reserved.

MADE IN CHINA

7106507825 REV2.1.1

tp-link

Quick Installation Guide

Powerline Extender

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Deutsch

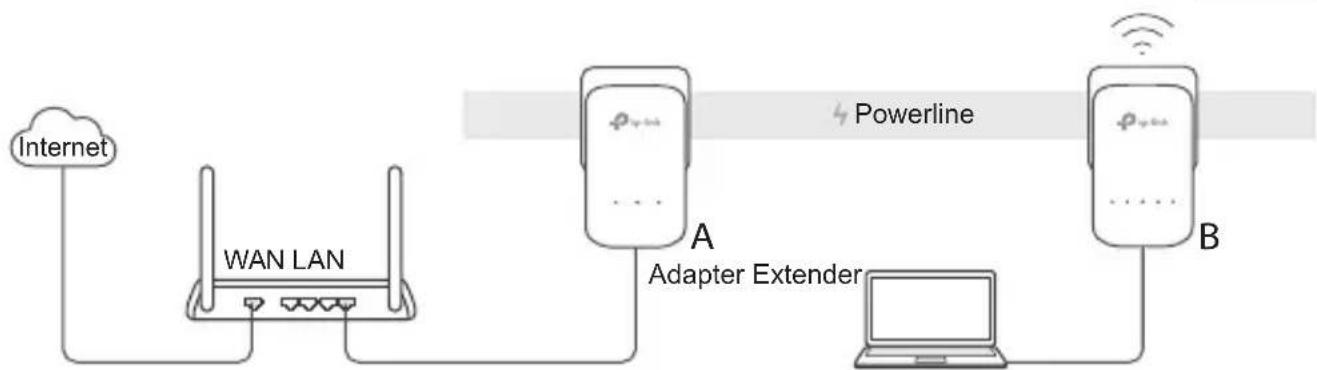


QR code image containing encoded data, no visible human-readable text

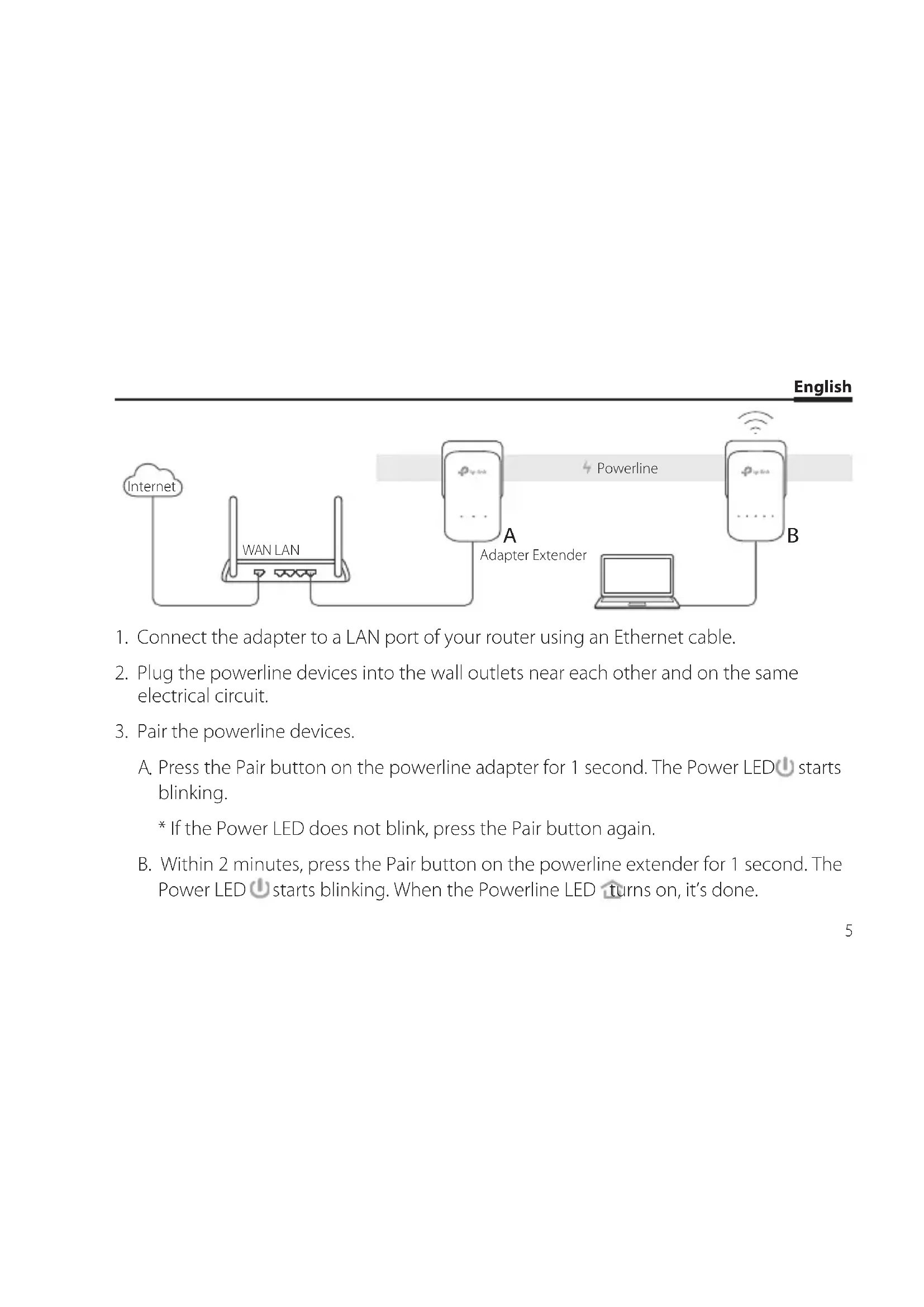

1. Connect the adapter to a LAN port of your router using an Ethernet cable.
2. Plug the powerline devices into the wall outlets near each other and on the same electrical circuit.
3. Pair the powerline devices.

A. Press the Pair button on the powerline adapter for 1 second. The Power LED starts blinking.

* If the Power LED does not blink, press the Pair button again.

B. Within 2 minutes, press the Pair button on the powerline extender for 1 second. The Power LED ⏻ starts blinking. When the Powerline LED turns on, it's done.

English

1. Relocate the powerline extender to a new location. Connect to the Wi-Fi using the SSID and password on the product label.

* A blinking or red Powerline LED 🔒 indicates poor signal strength. Move the extender to another location.

1. Enjoy!

Tips: You can add more powerline devices to the existing powerline network by pairing these devices.

Attention

- Plug the powerline devices directly into the wall outlets but not the power strips.

- For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

WPS

1. Plug in the powerline extender near your router. Press the WPS button on your router.
2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.
3. When the 2.4GHz Wi-Fi LED and 5GHz Wi-Fi LED on the extender blink quickly for 3 seconds, and then stay on, it's done!

* 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

QR code image containing encoded data, no visible human-readable text

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all adapters and extenders are on the same electrical circuit.

A2. Make sure all Powerline LEDs 📋 are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Pair it again with another adapter or extender, and make sure the Powerline LED is on before relocating it.

A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

Español

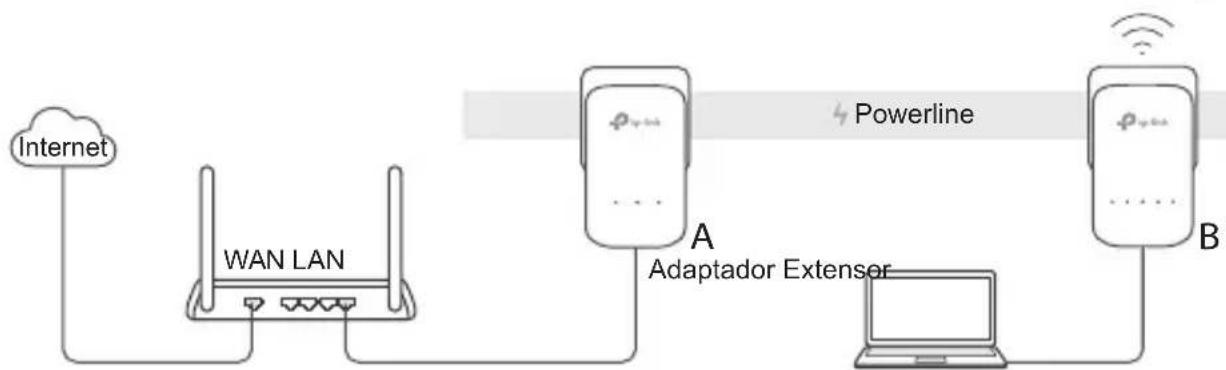


QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Français

QR code image containing encoded data, no visible human-readable text

Italiano

Domande Frequenti

QR code image containing encoded data, no visible human-readable text

Português

FAQ (Perguntas Frequentes)

QR code image containing encoded data, no visible human-readable text

Suomi

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Svenska

QR code image containing encoded data, no visible human-readable text

Norsk

QR code image containing encoded data, no visible human-readable text

Dansk

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.
