Brand	TP-Link
Model	TLPA9020P
Product Type	Powerline Adapter (CPL)
Standard	HomePlug AV2, IEEE 1901 compatible
Max Speed	Up to 2 Gbit/s (PHY)
Ethernet Ports	1 Gigabit port (10/100/1000)
Security	AES 128-bit encryption, Pair button
Pass-through Outlet	Yes, with surge filter
Power Consumption	Standby: < 0.5 W; Operation: < 5 W
Temperature Range	0 °C to 40 °C (operation)
Relative Humidity	10 % to 90 % (non-condensing)
Dimensions (L × W × H)	122 × 72 × 41 mm
Weight	Approximately 200 g
Power Supply	100-240 V, 50/60 Hz
Package Contents	2 Powerline adapters, 2 Ethernet cables, quick installation guide
Maintenance and Cleaning	Unplug the device before cleaning. Use a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to water, fire, or heat source. Do not plug into a power strip. Unplug during storms.
Spare Parts and Repairability	No spare parts available. Device is not user-repairable. Limited 3-year warranty.

Frequently Asked Questions - TLPA9020P TP-LINK

How to pair two TP-Link TLPA9020P Powerline adapters?

Plug both adapters side by side into electrical outlets. Press the Pair button on the first adapter for 1 second, then within 2 minutes, press the Pair button on the second adapter for 1 second. The CPL LED lights up when paired.

What to do if the CPL LED does not light up after pairing?

Check that the adapters are plugged into the same electrical circuit. Reset the adapters by holding down the Pair button until the power LED blinks then briefly turns off. Then re-pair them.

How to reset my TP-Link TLPA9020P Powerline adapter?

Plugged into an electrical outlet, hold down the Pair button for about 10 seconds until the power LED turns off and then back on. You can also use the tpPLC utility for a software reset.

Can I plug the adapter into a power strip?

No, it is recommended to plug the adapter directly into a wall outlet to avoid interference and ensure good signal quality. If you must use a power strip, plug it into the pass-through outlet of the adapter.

How to add a third adapter to my existing Powerline network?

Plug the new adapter into an electrical outlet next to an already paired adapter. Press the Pair button on one adapter of the existing network for 1 second, then within 2 minutes, press the Pair button on the new adapter for 1 second.

What to do if I have no internet access via the Powerline network?

1. Make sure all adapters are on the same electrical circuit. 2. Check that the CPL LEDs are lit. 3. Check Ethernet connections. 4. Test your internet connection directly on the router. 5. Check that your computer is on the same subnet as the router.

Can Powerline adapters be used with a household appliance that generates interference?

Yes, if the adapter has a pass-through outlet, plug the household appliance (hair dryer, air conditioner, etc.) into that outlet. This helps filter electrical noise and improve Powerline network performance.

How to update the firmware of the Powerline adapter?

Download the tpPLC utility from the TP-Link website. Install it on your computer connected to the Powerline network. Launch the utility, select your adapter, and follow the instructions to update the firmware.

What is the maximum range of the Powerline network?

Theoretically, the Powerline signal can travel up to 300 meters on the indoor electrical network. Actual performance depends on wiring quality, interference, and distance between outlets.

Do Powerline adapters consume a lot of power?

No, they are designed to be energy-efficient. In standby, they consume less than 0.5 W; in operation, less than 5 W. To reduce consumption, you can unplug them when not in use.

USER MANUAL TLPA9020P TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

(2-144),Cardiff Road,Reading,RG1 8EW.

mursi 151,24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any use of this technology. The use of any other products, services, or information on the Technologies Co., Ltd. Copyright © 2018 IP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Espanol
13 / Eλληνικα
17 / Français
21 / Italiano
25 / Portugues
29 / Suomi
33 /Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

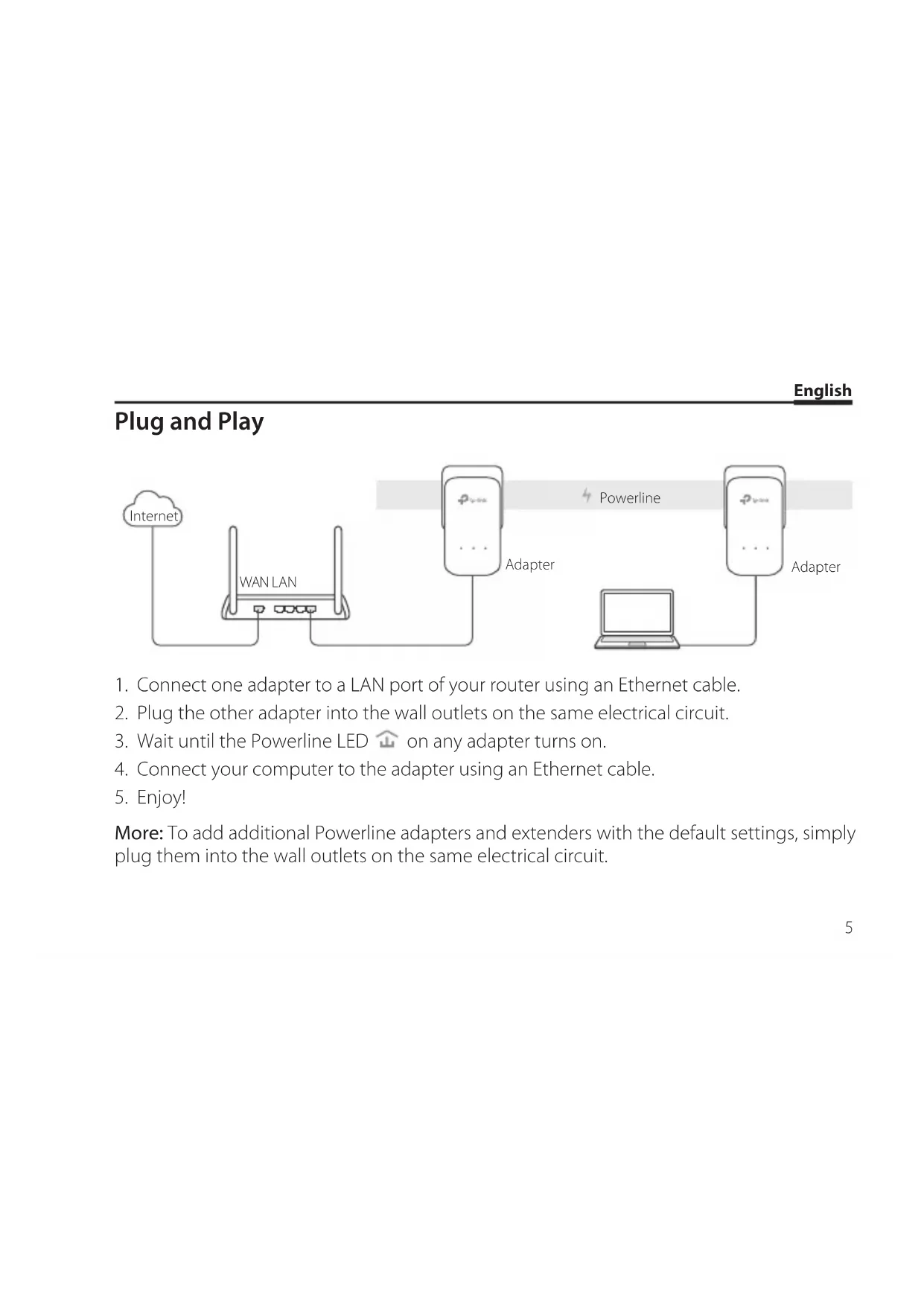

Plug and Play

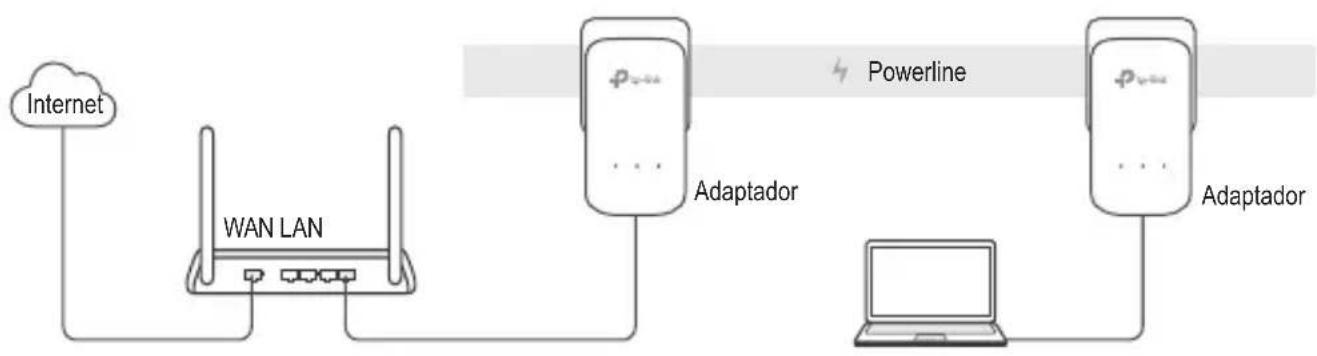

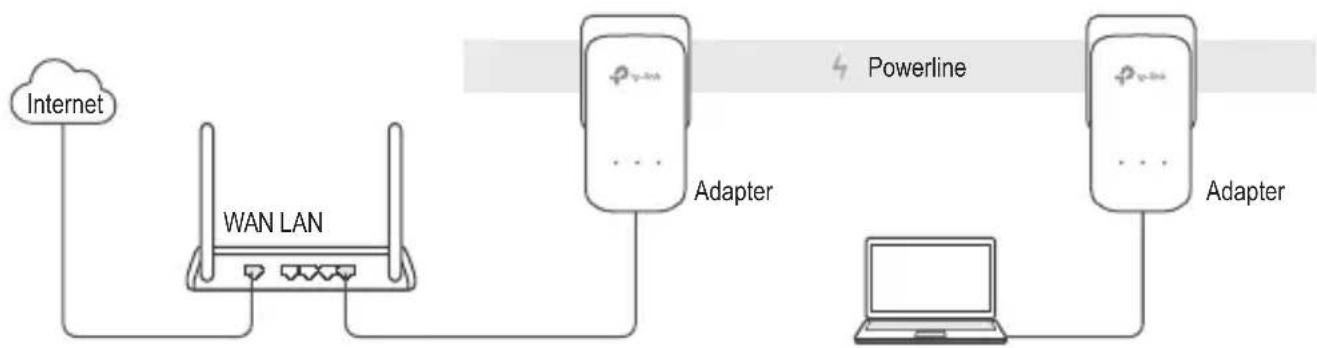

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

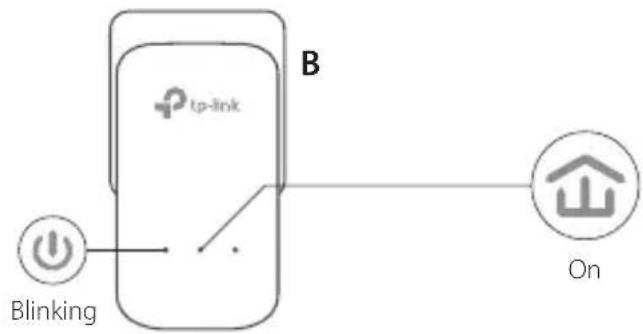

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

English

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.
A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.
A3. Make sure all hardware connections are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the modem or router.
A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.
A2. Try to pair it again, and make sure the Powerline LED is on.
A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

Plug and Play

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Espanol

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS from the date of original retail purchase by the end-user purchaser.
