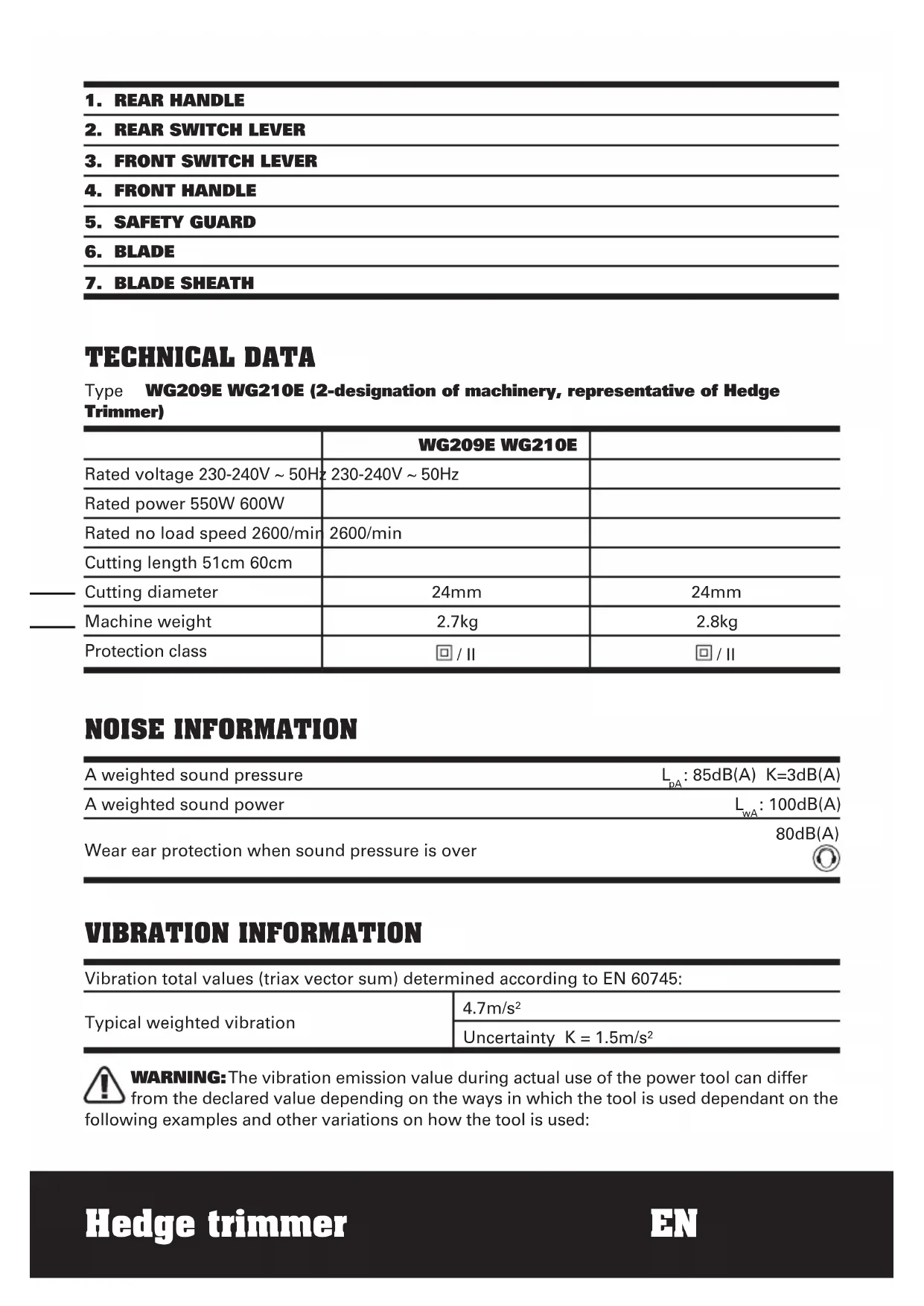

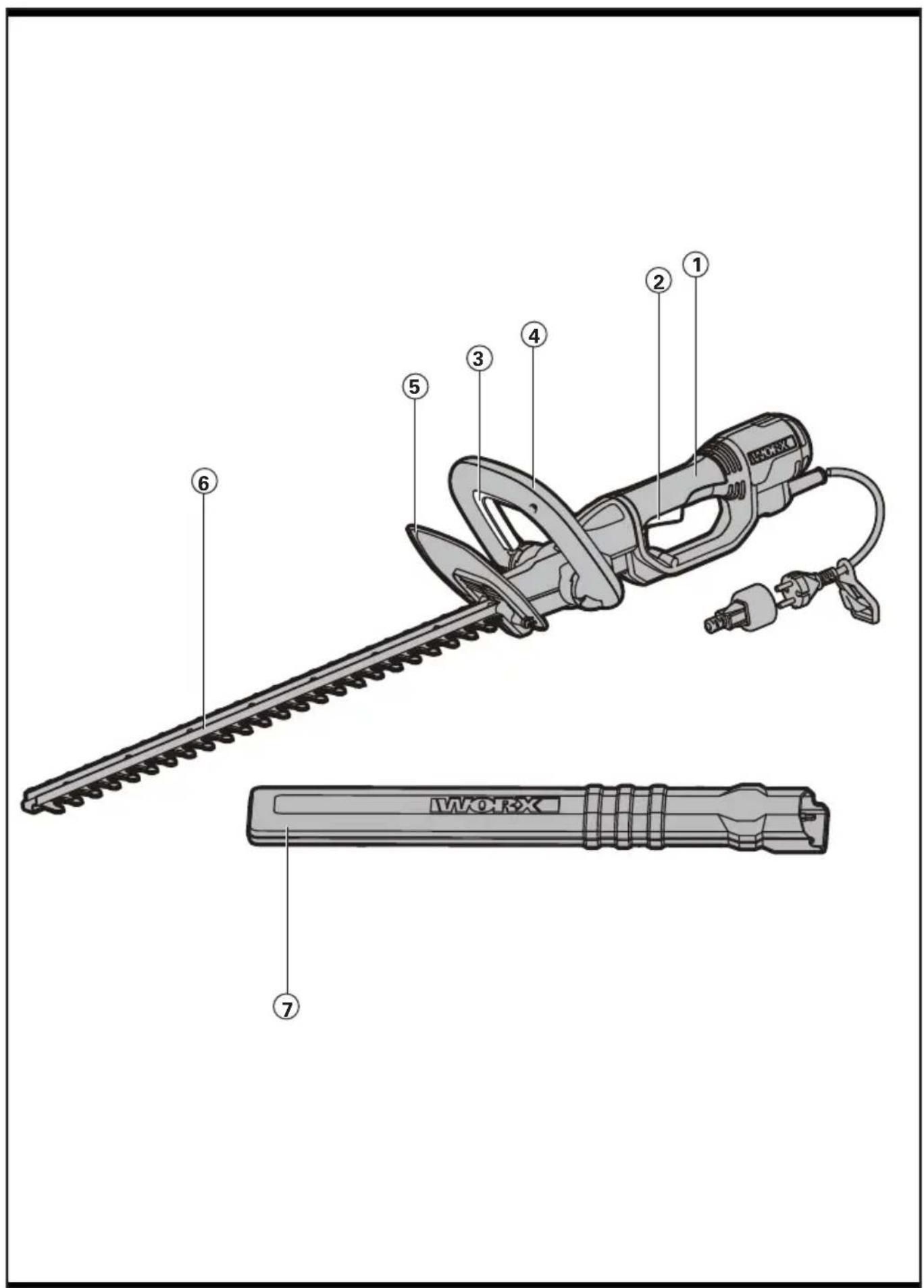

7. BLADE SHEATH TEChNICAL DATA Type WG209E WG210E (2-designation of machinery, representative of Hedge

Cutting diameter 24mm 24mm

A weighted sound power L

Wear ear protection when sound pressure is over

VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745:

Typical weighted vibration

Uncertainty K = 1.5m/s²

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the

following examples and other variations on how the tool is used:hedge trimmer EN

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool

is switched off and when it is running idle but not actually doing the job. This may significantly

reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10

Plan your work schedule to spread any high vibration tool use across a number of days.

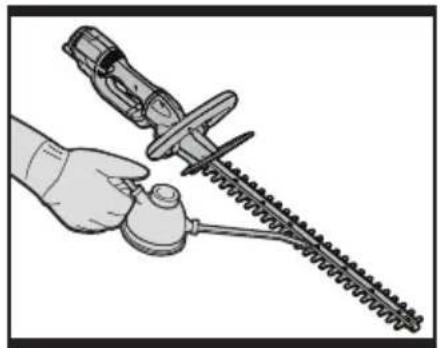

ACCESSORY Safety Guard 1

We recommend that you purchase your accessories from the same store that sold you the tool.

Use good quality accessories marked with a well-known brand name. Choose the type according

to the work you intend to undertake. Refer to the accessory packaging for further details. Store

personnel can assist you and offer advice.hedge trimmer EN

GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety

warnings and all instructions.

Failure to follow the warnings and instructions

may result in electric shock, fire and/or serious

Save all warnings and instructions for

The term “power tool” in the warnings refers

to your mains-operated (corded) power tool or

battery-operated (cordless) power tool.

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in

explosive atmospheres, such as in

the presence of flammable liquids,

gases or dust. Power tools create sparks

which may ignite the dust or fumes.

c) Keep children and bystanders

away while operating a power tool.

Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the

outlet. Never modify the plug in any

way. Do not use any adapter plugs

with earthed (grounded) power tools.

Unmodified plugs and matching outlets

will reduce risk of electric shock.

b) Avoid body contact with earthed or

grounded surfaces, such as pipes,

radiators, ranges and refrigerators.

There is an increased risk of electric shock

if your body is earthed or grounded.

c) Do not expose power tools to rain or

wet conditions. Water entering a power

tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use

the cord for carrying, pulling or

unplugging the power tool. Keep cord

away from heat, oil, sharp edges or

moving parts. Damaged or entangled

cords increase the risk of electric shock.

e) When operating a power tool

outdoors, use an extension cord

suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of

f) If operating a power tool in a damp

location is unavoidable, use a residual

current device (RCD) protected

supply. Use of an RCD reduces the risk of

a) Stay alert, watch what you are

doing and use common sense when

operating a power tool. Do not use

a power tool while you are tired or

under the influence of drugs, alcohol

or medication. A moment of inattention

while operating power tools may result in

serious personal injury.

b) Use personal protective equipment.

Always wear eye protection.

Protective equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions

will reduce personal injuries.

c) Prevent unintentional starting. Ensure

the switch is in the off-position

before connecting to power source

and/or battery pack, picking up or

carrying the tool. Carrying power

tools with your finger on the switch or

energising power tools that have the

switch on invites accidents.

d) Remove any adjusting key or wrench

before turning the power tool on. A

wrench or a key left attached to a rotating

part of the power tool may result in

e) Do not overreach. Keep proper

footing and balance at all times. This

enables better control of the power tool in

unexpected situations.

f) Dress properly. Do not wear loose

clothing or jewellery. Keep your

hair, clothing and gloves away from

moving parts. Loose clothes, jewellery or

long hair can be caught in moving parts.

g) If devices are provided for the

connection of dust extraction and

collection facilities, ensure these are

connected and properly used. Use ofhedge trimmer EN

dust collection can reduce dust-related

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use

the correct power tool for your

application. The correct power tool will

do the job better and safer at the rate for

which it was designed.

b) Do not use the power tool if the

switch does not turn it on and off.

Any power tool that cannot be controlled

with the switch is dangerous and must be

c) Disconnect the plug from the power

source and/or the battery pack from

the power tool before making any

adjustments, changing accessories,

or storing power tools. Such preventive

safety measures reduce the risk of starting

the power tool accidentally.

d) Store idle power tools out of the

reach of children and do not allow

persons unfamiliar with the power

tool or these instructions to operate

the power tool. Power tools are

dangerous in the hands of untrained

e) Maintain power tools. Check for

misalignment or binding of moving

parts, breakage of parts and any

other condition that may affect the

power tool’s operation. If damaged,

have the power tool repaired before

use. Many accidents are caused by poorly

maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with

sharp cutting edges are less likely to bind

and are easier to control.

g) Use the power tool, accessories

and tool bits etc. in accordance

with these instructions, taking into

account the working conditions and

the work to be performed. Use of the

power tool for operations different from

those intended could result in a hazardous

a) Have your power tool serviced by

a qualified repair person using only

identical replacement parts. This will

ensure that the safety of the power tool is

1. Keep all parts of the body away from

the cutter blade. Do not remove

cut material or hold material to

be cut when blades are moving.

Make sure the switch is off when

clearing jammed material. A moment

of inattention while operating the hedge

trimmer may result in serious personal

2. Carry the hedge trimmer by the

handle with the cutter blade stopped.

When transporting or storing the

hedge trimmer always fit the cutting

device cover. Proper handling of the

hedge trimmer will reduce possible

personal injury from the cutter blades.

3. Keep cable away from cutting area.

During operation the cable may be hidden

in shrubs and can be accidentally cut by

4. Hold the power tool by insulated

gripping surfaces only, because the

cutter blade may contact hidden

wiring or its own cord. Cutter blades

contacting a “live” wire may make

exposed metal parts of the power tool

“live” and could give the operator an

electric shock.hedge trimmer EN

without attaching the guard and front

INTENDED USE This machine is intended to be used

domestically for cutting and trimming hedges

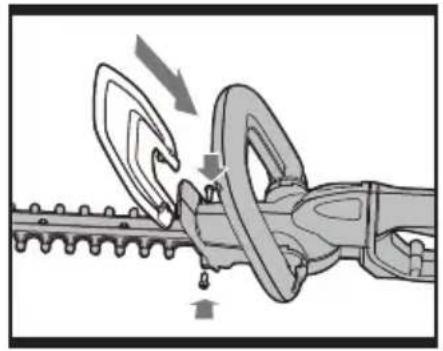

1. ASSEMBLY OF THE GUARD (See Fig. A)

Insert the Safety Guard(5) into the slot as

illustrated in Fig A.;

Use two screws to fix the guard securely.

making sure it is securely

2. FRONT HANDLE ASSEMBLY The Front Handle (4) must be assembled

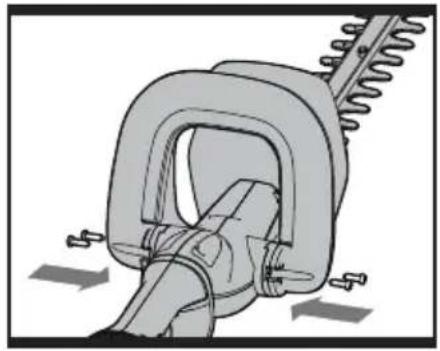

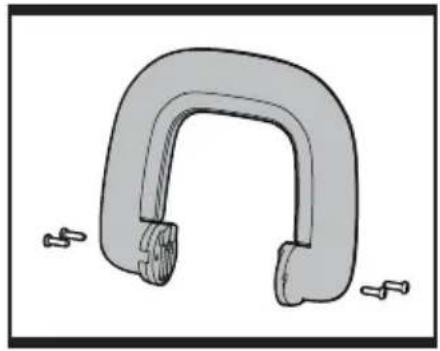

1) Attach the Front Handle to the housing.

Make sure the protruding marks on the

Front Handle fit perfectly into the matching

indentation on the housing (See Fig. B & C).

2) Insert and tighten the 4 screws.

3) Check whether handle is firmly secured, if

not retighten the screws.

Make sure the handle is securely

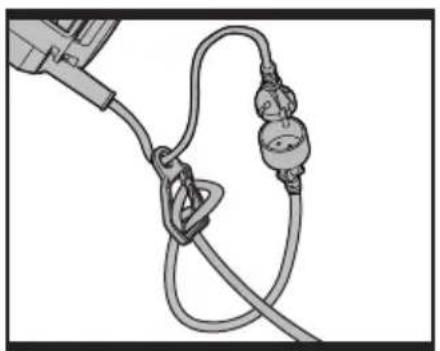

3. MAINS SUPPLY CABLE STRAIN RELIEF (See Fig. D)

An extension cord retainer is supplied to

reduce strain on the power cord. To use

this feature, form a loop at the end of the

extension cable and bring this through the

opening at the bottom of the Extension

Cord Retainer, then wrap the end of the loop

around the hook and pull to tighten.

4. STARTING AND STOPPING (See Fig. E)

BEFORE STARTING YOUR HEDGE TRIMMER Remove Blade Sheath (7).

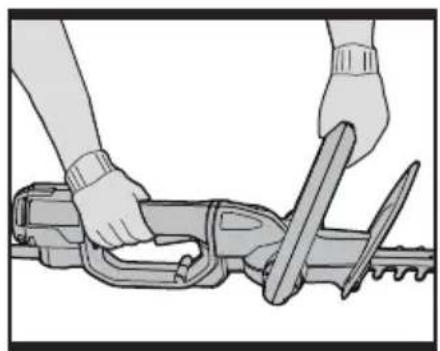

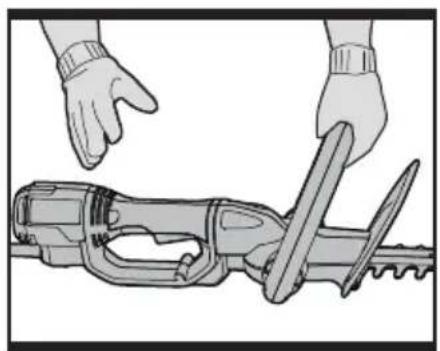

TO START YOUR HEDGE TRIMMER There are two switch levers fitted in your

Hedge trimmer (2&3).

Both switch levers need to be depressed for

the product to START. Depress and hold the

Front Switch Lever (3) and press the Rear

To reduce the risk of injury, user

must read instruction manual

Do not expose to moisture

Remove plug from the mains

immediately if the cable is

This product has been marked

with a symbol relating to removing

electric and electronic waste. This

means that this product shall not

be discarded with household waste

but that it shall be returned to a

collection system which conforms

to the European Directive 2002/96/

CE. It will then be recycled or

dismantled in order to reduce the

impact on the environment. Electric

and electronic equipment can be

hazardous for the environment and

for human health since they contain

hazardous substances.hedge trimmer EN

To STOP, release one of the switch levers

WARNING: If any parts are missing,

damaged or broken, do not operate

your Hedge trimmer until all damaged parts

have been replaced or repaired. Failure to do

so could result in serious personal injury. DO NOT USE WITHOUT HANDLE AND GUARD.

5. HOW TO USE YOUR HEDGE TRIMMER Inspect the area to be cut before each use,

remove objects which can be thrown or

become entangled in the cutting blades.

Always hold the Hedge trimmer with both

hands and with the blade away from you

before turning it on.

Always keep the power cord behind

the Hedge trimmer when in use. Do not

place it over the hedge that you are

trimming where it may be cut by the

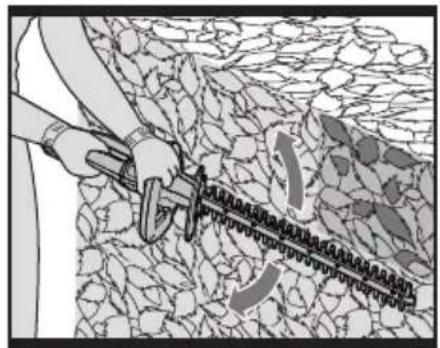

When trimming new growth, use a wide

sweeping action so that the stems are fed

directly into the blade.

Allow the cutting blades to reach full speed

before entering the material to be cut.

Always work going away from people and

solid objects such as walls, large stones,

trees, vehicles etc.

If the blade stalls, immediately stop the

Hedge trimmer. Disconnect the Hedge

trimmer from the mains and clear the

jammed debris from the cutting blades.

Wear gloves when trimming thorny or prickly

Move the Hedge trimmer to feed the

branches directly into the blade cutting

Do not try to cut stems that are too large to

feed into the cutting blade.

TOP CUTTING (See Fig. G)

Use a wide sweeping motion. A slight

downward tilt of the cutting blades in the

direction of motion gives the best cutting

SIDE CUTTING (See Fig. H)

When trimming the sides of the hedge, begin

at the bottom and cut upwards, tapering

the hedge inward at the top. This shape will

expose more of the hedge, resulting in a

more uniformed growth.

WARNING: Check extension cords

before each use. If damaged replace

immediately. Never use your tool with a

damaged cord since touching the damaged

area could cause electrical shock resulting in

If the supply cord is damaged, it should be

replaced by a local approved Service Centre.

Take care not to expose this tool to rain.

MAINTENANCE CLEANING Disconnect from mains electrics supply.

Using a soft brush-remove debris from all air

intakes and cutting blade.

Wipe over surface of your Hedge trimmer

WARNING! Never use water for

cleaning your Hedge trimmer. Do not

clean with chemicals, including petrol, or

solvents as this can damage your hedge

LUBRICATING THE CUTTING BLADE For easier operation and longer life, lubricate

the cutting blades before and after each use.

Before lubricating, make sure your Hedge

trimmer is disconnected from the mains

electricity supply. Apply the oil so that it runs

between the two blades (See Fig. I).

Your trimmer should be stopped,

disconnected and oiled occasionally during

AT THE END OF THE CUTTING SEASON Clean your Hedge trimmer thoroughly.

Check that all nuts and bolts are secure.

Visually inspect the Hedge trimmer for any

worn or damaged parts.

TO STORE YOUR HEDGE TRIMMER Store the hedge trimmer in a secure, dry

place out of the reach of children. Do not

place other objects on top of the machine.1312

ENVIRONMENTAL PROTECTION Waste electrical products should not

be disposed of with household waste.

Please recycle where facilities exist.

Check with your Local Authority or retailer

for recycling advice.

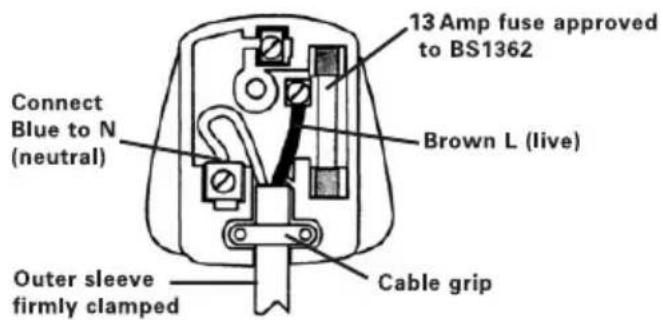

PLUG REPLACEMENT(UK &

If you need to replace the fitted plug then

follow the instructions below.

IMPORTANT The wires in the mains lead are colored in

accordance with the following code:

As the colors of the wires in the mains lead of

this appliance may not correspond with the

coloured markings identifying the terminals

in your plug, proceed as follows. The wire

which is coloured blue must be connected to

the terminal which is marked with N. The wire

which is coloured brown must be connected

to the terminal which is marked with L.

WARNING! Never connect live or

neutral wires to the earth terminal of the

plug. Only fit an approved BS1363/A plug and

the correct rated fuse.

NOTE: If a moulded plug is fitted and has to

be removed take great care in disposing of the

plug and severed cable, it must be destroyed

to prevent engaging into a socket.

DECLARATION OF CONFORMITY We,

POSITEC Germany GmbH Konrad-Adenauer-Ufer 37

Declare that the product

Description WORX Hedge Trimmer

(2-designation of machinery,

representative of Hedge Trimmer)

Function trimming hedges and brushes

Complies with the following directives,

Machinery directive 2006/42/EC Electromagnetic compatibility directive

2004/108/EC RoHS directive 2011/65/EU Noise emission in the environment by

equipment for use outdoors directive

2000/14/EC amended by 2005/88/EC

- Conformity assessment procedure as per

- Measured sound power level 97 dB

- Declared guaranteed sound power level

- The notified body involved

Name: Intertek Testing & Certification Ltd

Address: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL Standards conform to,

The person authorized to compile the

Name: Intertek Testing & Certification Ltd

Use two screws to fix the guard securely.

humidade ou molhados

Remove plug from the mains

immediately if the cable is

Nome: Intertek Testing & Certification Ltd

Mesdiameter 24mm 24mm

ALGEMENE VEILIGHEIDSWAARSCHU WINGEN VOOR VERMOGENSMACHINE WAARSCHUWING! Lees alle

VEILIGHEIDSWAAR SCHUWINGEN:

geluidsvermogen 100 dB

-The notified body involved

Name: Intertek Testing & Certification Ltd

Address: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL De betrokken aangemelde instantie:

Use two screws to fix the guard securely.

Complies with the following directives,

- Asiaankuuluva viranomainen

Name: Intertek Testing & Certification Ltd

Address: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL Yhdenmukaisuusstandardit

Typical weighted vibration

Adress: Davy Avenue, Knowlhill, Milton
