USER MANUAL Domo Repeater NGS

OPEn SOURcE cODE This product includes software codes developed by third parties. These

software codes are subject to either the GNU General Public License (GPL),

Version 2, June 1991 or the GNU Lesser General Public License (LGPL), Version

2.1, February 1999. You can copy, distribute, and/or modify in accordance with

the terms and conditions of GPL or LGPL.

The source code should be complete, if you think our need to provide any

additional source code files under GNU General Public License (GPL), please

contact us. We are committed to meeting the requirements of the GNU General

Public License (GPL) . You are welcome to contact us local office to get the

corresponding software and licenses. Please inform us your contact details and

the product code. We will send you a CD with the software and license for free.

Please refer to the GNU GPL Web site for further information.

http://www.gnu.org/licenses/licenses.en.html.

WELcOME NGS thanks you for your trust in purchasing this product.

This document provides all the necessary information for a correct setup and

data needed to fully enjoy your device.

Visit our website for further details www.ngs.eu

PAckAgE cOnTEnTS Before you starting to use this router, please check if there’s anything missing in

the package, and contact your dealer of purchase to claim for missing items:

1 Wireless-N repeater

1 RJ-45 networking cable

1 CD with software and user’s manual

note: If you need to reset the Domo Repeater, you need press and hold the reset

button inside the tiny hole for 10 seconds.

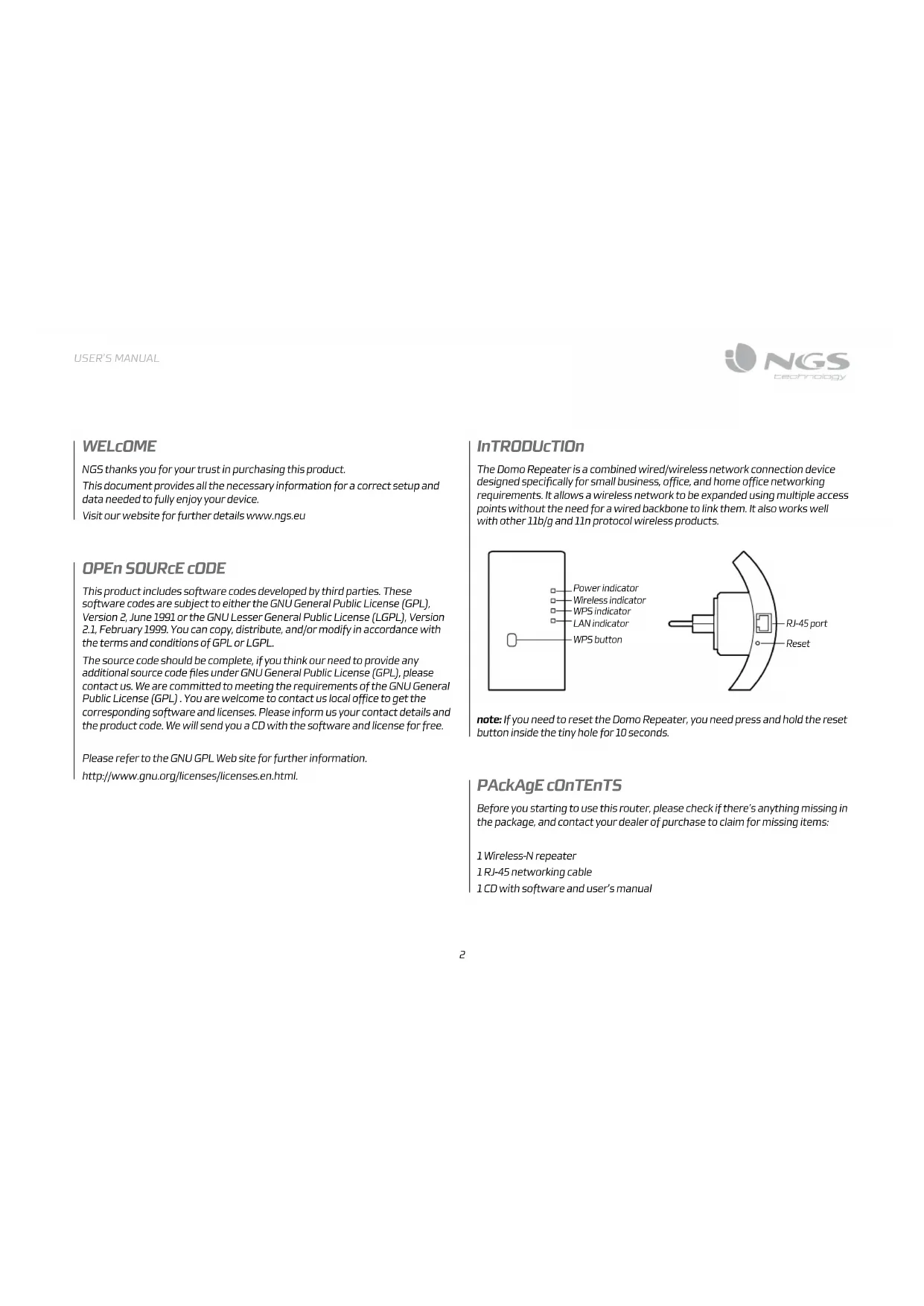

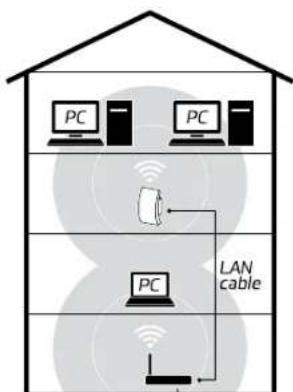

The Domo Repeater is a combined wired/wireless network connection device

designed specifically for small business, office, and home office networking

requirements. It allows a wireless network to be expanded using multiple access

points without the need for a wired backbone to link them. It also works well

with other 11b/g and 11n protocol wireless products.

You will need broadband

Router Internet access

Connect the Domo Repeater to your

Router/Switch with RJ-45 cable.

GETTING STARTED HOW TO CONFIGURE THE DOMO REPEATER Setting up a Wireless Infrastructure Network

For a typical wireless setup at home (as shown below), please do the following:

You can configure the Domo Repeater after connecting it with your computer/

laptop with enclosed RJ45 cable or wirelessly.

Note: Please check whether the Domo Repeater accord with factory default

settings once you can’t open http://192.168.10.1. If you are still not sure what

reasons, you can reset the Domo Repeater, just need to press the reset button

for 10 seconds, then try again.

A. Configure the Domo Repeater wirelessly

A1. Plug the Domo Repeater to a wall socket.

A2. Click on the network icon or on the

right bottom of your desktop. You will find

the signal from the Domo Repeater. Click

on “Connect” and wait for a few seconds.

A3. Open web browser and type

http://192.168.10.1 in the browser’s

address box. This number is the default IP

address for this device.

Wireless Repeater Mode

A6. Select your wireless SSID to continue.

A7. When you see below, please do not change any setting but only insert the

key of your network.

Click on “Apply” button, the repeater will restart.

Wait a few seconds your Domo Repeater is ready for use.

* The default wireless SSID and Security key of Domo Repeater is same as

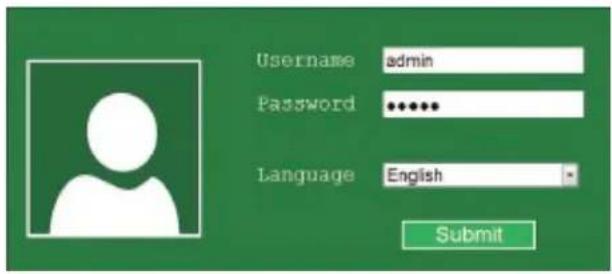

A4. The login screen below will appear. Enter the “User Name” and “Password”

and click “OK” to login. The default user name is “admin” and the password

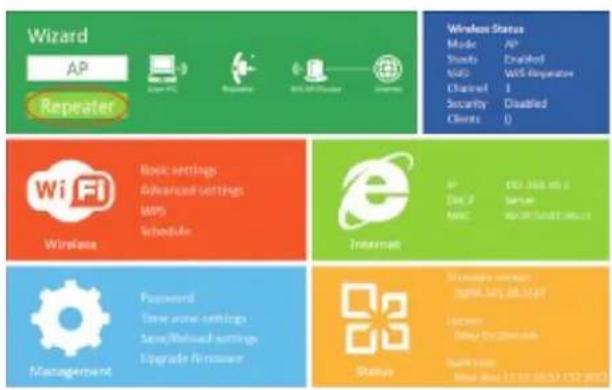

A5. After logging in, you will see the web page below: Click on “Repeater” to

HOW TO cOnfIgURE THE DOMO REPEATERUSER’S MANUAL

B. Configure the Domo Repeater with RJ-45 cable

B1. Plug the Domo Repeater to a wall socket. Connect your computer / laptop

with the Domo Repeater with enclosed RJ-45 cable.

B2. Follow process A3 to A9 to configure your Domo Repeater.

C4. The following message will be displayed on your web browser:

Click on “Apply” button, the Repeater will restart.

Wait a few seconds your Domo Repeater is ready for use.

C. Configure the wireless AP mode

C1. Plug the Domo Repeater into a wall socket.

C2. Follow process A3 to A4.

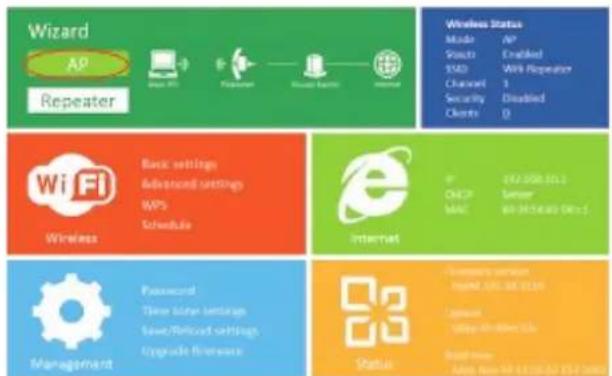

C3. Click on “AP” to continue.

HOW TO CONFIGURE THE DOMO REPEATER SSID The “SSID” of your wireless network.

Channel Auto (recommend)

Security type Setup the wireless security and encryption to

prevent from unauthorized access and monitoring.

Supports 64/128-bit WEP, WPA, WPA2, WPA/WPA2

Security key The “Password” of your wireless network.USER’S MANUAL

HOW TO CONNECT YOUR COMPUTERLAPTOP WITH THE DOMO REPEATER Adding a Wireless computers to the Domo Repeater

1. Log on to the computer.

2. Open “Connect” to a Network by right-

clicking the network icon or in the

3. Choose the wireless network from the list

that appears, and then click “Connect”.

4. Type the network security key or

passphrase if you are asked to do so, and

then click OK. You’ll see a confirmation

message when you are connected to the

5. To confirm that you added the computer, do

Open Network by clicking the “Start”

button and then clicking “Control

Panel”. In the search box, type network, and

then, under Network and Sharing Center,

click View network computers and devices.

You should see icons for the computer you added and for the other

computers and devices that are part of the network.

Note: If you don’t see icons in the Network folder, then network discovery

and file sharing might be turned off.

Adding a wired (Ethernet) computer to the Domo Repeater

1. Plug the Domo Repeater to a wall socket. Connect your computer / laptop with

the Domo Repeater with enclosed RJ45 Cable.

2. To confirm that you added the computer, do the following:

Open Network by clicking the “Start” button and then clicking “Control

Panel”. In the search box, type network, and then, under Network and Sharing

Center, click View network computers and devices. You should see icons

for the computer you added and for the other computers and devices that are

part of the network.

Adding a Wireless computers to the Domo Repeater with WPS Button

1. Log on to the computer.

2. Press the WPS button of the Domo Repeater directly for 2 - 3 seconds.

3. Press the WPS button of the Wireless Adapter directly for 2 - 3 seconds.

Click Finish to complete the WPS configuration (Please check your Wireless

adapter Manual with WPS configuration).

4. You should see icons for the computer you added and for the other

computers and devices that are part of the network.

For more information:

http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network

http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network

http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-networkUSER’S MANUAL

HOW TO CONFIGURE YOUR COMPUTERLAPTOP WITH THE NETWORK IP ADDRESS CONFIGURING VIA WEB BROWSER

1. Log on to the computer.

2. Click the “Start” button (it should be

located at the lower-left corner of your

screen), then click “Control Panel”. Click

“View Network Status and Tasks”, and

then click “Manage Network Connections”.

Right-click “Local Area Network”, then

select “Properties”. When the “Local Area

Connection Properties” window appears,

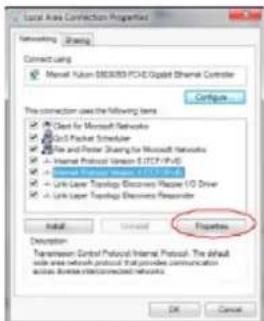

select “Internet Protocol Version 4 (TCP/

IPv4)” and then click “Properties”.

3. Setting IP address manually: Type IP

address is 192.168.10.x (x is from 2 to 254),

and Subnet mask is 255.255.255.0.

Type the Router’s LAN IP address (the

default IP is 192.168.10.1) into the Default

Wireless Enable Wireless On/Off

SSID The “SSID” of your wireless network

Channel Auto (recommend)

Security type Setup the wireless security and encryption to

Prevent from unauthorized access and monitoring

Supports 64/128-bit WEP, WPA, WPA2,

WPA/WPA2 encryption methods

Security key The “Password” of your wireless network

Wireless Base Configuration - AP Mode

In AP mode and click “Wireless → Basic Settings” located at the web

management interface, the following message will be displayed on your web

You could configure the minimum number of Wireless settings for

communication, such as Network Name (SSID) and Channel. The Access Point

can be set simply with only the minimum setting items.

Click “Apply” button, the Domo Repeater will restart.USER’S MANUAL

prompt when accessed from web browser. There’s a security risk if you don’t

change the default password, since everyone can see it. This is very important

when you have wireless function enabled.

To change password, please follow the following instructions:

Please click “Management → Password” menu on the web management

interface, the following message will be displayed on your web browser:

If you want to keep original password unchanged, click “Cancel”.

Click “Apply” button, The Domo Repeater will log off.

Wireless Base Configuration - Repeater Mode

In Repeater mode and click “Wireless → Basic Settings” located at the web

management interface, the following message will be displayed on your web

Wireless Enable Wireless On/Off

Delete Remove the repeater connection profile

Repeater SSID The “SSID” of your repeater wireless network

Security type Setup the repeater SSID security type

Security key The "Password" of your repeater wireless

CONFIGURING VIA WEB BROWSER Firmware Upgrade

The system software used by this router is called as “firmware”, just like any

applications on your computer, when you replace the old application with a new

one, your computer will be equipped with new function. You can also use this

firmware upgrade function to add new functions to your router, even fix the

bugs of this router.

Please click “Management → Upgrade Firmware” located at the web

management interface, then the following message will be displayed on your

Factory Default and Settings Backup, Restore

You can back up all Setting of this router to a file, so you can make several copied

of router configuration for security reason.

To backup or restore

router setting, please

follow the following

Reload setting” located

at the web management

following message will

be displayed on your web

Note: Never interrupt the upgrade procedure by closing the web browser or

physically disconnect your computer from router. If the firmware you uploaded

is corrupt, the firmware upgrade will fail, and you may have to return this router

to the dealer of purchase to ask for help. (Warranty voids if you interrupted the

Save Settings Press “Save…” button, you can please save it as another

filename for different versions, and keep it in a safe

Load Settings Press “Browse…” to pick a previously-saved

configuration file from your computer, and then click

“Upload…”. After the configuration is uploaded, the

router’s configuration will be replaced by the file you

first, you’ll be prompted

to provide the filename

of firmware upgrade file.

latest firmware file from

our website, and use it to

upgrade your router.

After a firmware upgrade

file is selected, click

“Upload” button, and

the router will start

procedure automatically.

The procedure may take

several minutes, please be

patient.USER’S MANUAL

If at any time in the future you should need to dispose of this

product please note that:

Waste electrical products should not be disposed of with

household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

HEREBY, LURBE gRUP S.A, DECLARES THAT THIS WIfI REPEATER IS IN COMPLIANCE WITH THE ESSENTIAL REQUIREMENTS AND OTHER RELEVANT PROVISIONS OF DIRECTIVE 1999/5/EC.MANUEL DE L’UTILISATEUR

64/128-bit WEP, WPA, WPA2, WPA/WPA2.

Pour plus de renseignements :

http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network

http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network

http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-networkMANUEL DE L’UTILISATEUR

WEP, WPA, WPA2, WPA/WPA2.

router configuration for security reason.

Para más información:

http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network

http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network

http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-networkMANUAL DE USUARIO

The “Password” of your wireless network.GEBRUIKERSHANDLEIDING

and file sharing might be turned off.

Für weitere Information:

http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network

http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network

http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-networkGEBRUIKERSHANDLEIDING

Setup the repeater SSID security type

WPA2, WPA/WPA2 a 64/128 bit.

Per successive informazioni:

http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network

http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network

http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-networkINSTRUZIONI D’USO

WPA2, WPA/WPA2 a 64/128 bit.

Para mais informação:

http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network

http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network

http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-networkMANUAL DO UTILIZADOR

http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network

http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network

http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-networkPODRĘCZNIK UŻYTKOWNIKA

WPA, WPA2, WPA/WPA2 de 64/128 bit.

technical support: www.ngs.eu/support
