Roller Glow - Docking Station NGS - Free user manual and instructions

Product type	Docking station
Brand	NGS
Model	Roller Glow
Dimensions (approx.)	10 x 8 x 5 cm
Weight (approx.)	80 g
Power supply	USB-C (5V/2A) or mains adapter
Main functions	Battery charging, decorative LED lighting (Roller Glow), smartphone or tablet stand
Compatibility	Smartphones and tablets up to 10 inches
LED lighting	Multiple colors and brightness modes
Care and cleaning	Wipe with a soft, dry cloth; do not use abrasive products
Safety	Do not expose to moisture; use only with recommended cables and adapters
Spare parts and repairability	Not user-repairable; replace the device if defective
Package contents	Docking station, USB-C cable, mains adapter, user manual
Warranty	2 years (legal compliance)

Frequently Asked Questions - Roller Glow NGS

Which devices are compatible with the NGS Roller Glow docking station?

The station is compatible with most standard-sized smartphones and tablets (up to 10 inches). Use the provided USB-C cable for connection.

Can the brightness of the Roller Glow LEDs be adjusted?

Yes, the LED lighting offers multiple brightness modes and colors. You can adjust them via a touch button on the station.

How to clean the docking station?

Use a soft, dry cloth to remove dust. Avoid liquid or abrasive products that could damage the electronic components.

Is the docking station compatible with fast charging?

Yes, it supports fast charging up to 10W (5V/2A) for compatible devices. The actual power depends on the cable and adapter used.

What to do if the LEDs do not turn on?

First check that the station is properly plugged in. Try another USB cable or mains adapter. If the problem persists, contact NGS customer service.

Can I use the docking station without the LED lighting?

Yes, you can turn off the lighting using the dedicated button. The charging function remains active independently.

Does the station heat up during charging?

A slight increase in temperature is normal during charging. If the station becomes very hot, unplug it and check the adapter.

How to obtain a user manual in French?

The manual is available for free download on the notice-facile.com website. You can also request a translated version via the contact form.

How long is the warranty for the docking station?

The legal warranty is 2 years from the date of purchase. Keep your receipt for any claims.

Can I replace the USB-C cable with another one?

Yes, any standard USB-C cable compatible with 5V/2A power can be used. Make sure it is good quality to avoid charging losses.

USER MANUAL Roller Glow NGS

Line drawing of a rectangular electronic device with a recessed top (no text or symbols)

ROLLER GLOW

BLUETOOTH STEREO SPEAKER

WITH LED LIGHTS

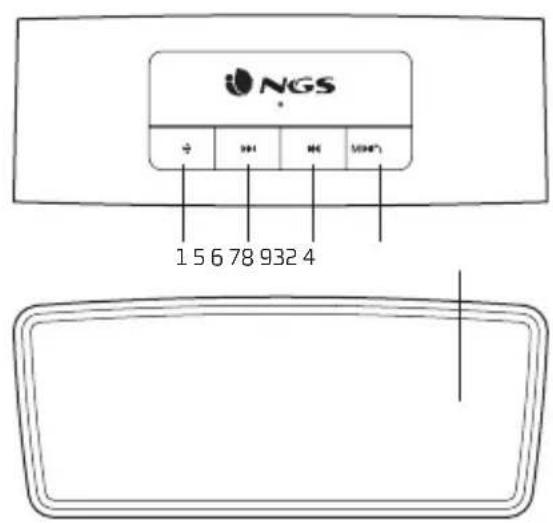

OVERVIEW

1 Lights mode 6 Micro SD card slot
2 Volume + / next 7 USB port
3 Volume - / previous 8 On/Off
4 Newton 5 LED lights 9 Connection point for charging via micro USB

Line drawing of a rear viewfinder with control buttons and display areas (no text or symbols)

CHARGING THE BLUETOOTH SPEAKER

1. Connect the Bluetooth speaker's micro USB socket with the computer's USB port through USB cable.
2. The charging LED will turn ON in red light; the rechargeable battery is in charging.
3. The charging LED red light will turn OFF when the rechargeable battery is fully charged.
4. Disconnect the USB cable, and close the rubber seal cover when it is done.

BLUETOOTH SPEAKER PAIRING / RECONNECTING

1. Turn on the power, a message sound; "beep" will announce from speaker and the mode LED will blinking in blue; the device is turned ON and goes into searching / paring / reconnect mode for pair.
2. Now, turn ON the Bluetooth function on your mobile phone.
3. Search for "NGS ROLLER GLOW" and select it to pair (for first time pairing or pairing a new mobile device).
4. The Bluetooth speaker will be reconnecting automatically if your mobile phone has been paired (Depend on the of mobile phone's type and configuration, manual reconnection may require on some devices).
5. If pairing is successful, a message sound; "beep" will announce from speaker and the mode LED light will keep turn on.

MODES

BLUETOOTH / USB / FM RADIO / MICRO SD CARD / LINE IN

To switch between modes, press the "M" key. If the device is not connected to a micro SD card or USB memory, it will skip these modes when the "M" key is pressed.

BLUETOOTH SPEAKER CONTROL FUNCTION

1. In playing music, press Moulton to pause music, press it once again to play.
2. Press and hold the ▶ button to increases the volume level.
3. Press and hold the I button to decrease the volume level.
4. Press the ▶ button to play next music file.
5. Press the I button to play previous music file.

HAND FREE FUNCTION

BLUETOOTH MODE ONLY

When there is an incoming call;

1. The ringing sound will up and the playing music will pause automatically.
2. Press Moutton to pick up the call if you want.
3. Now you have hand free function with the Bluetooth speaker.
4. Hold down the Meltton for 2 seconds to hand up the call when finished. And,
5. The paused music will start to play automatically.

MICRO SD CARD MODE

1. Insert the micro SD card into the slot.

Front view of a computer monitor with control panel and drive buttons (no text or symbols visible)

1. The device will automatically play any music in MP3 format on the card.

USB MODE

1. Insert a USB flash drive into the slot.
2. The device will automatically play any music in MP3 format on the flash drive.

FM MODE

1. Hold down the "M" button until you hear "Radio mode".
2. Press the MBullton to start an automatic channel search. Channels are remembered automatically.
3. To skip between channels, simply press the ◀◀ and ▶◀ buttons.

Note: For better radio reception, connect the charging cable (which also acts as an antenna) into the micro USB slot.

LINE IN MODE

1. Connect the audio source to the speaker via a micro USB audio cable.

LIGHTS

The LED lights have 3 settings.

1. Change in time with the bass of the song playing.
2. Fixed light. Always follow the same pattern.
3. Off. No light.

To move between these modes, simply hold down the * button for 3 seconds.

Battery warranty: The battery is a consumer product, and as such it is under warranty for 12 months.

If at any time in the future you should need to dispose of this product please note that:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

HEREBY, LURBE GRUP S.A, DECLARES THAT THIS SPEAKER IS IN COMPLIANCE WITH THE ESSENTIAL REQUIREMENTS AND OTHER RELEVANT PROVISIONS OF DIRECTIVE 1999/5/EC.

ROLLER GLOW

HAUT-PARLEUR BLUETOOTH STÉRÉO

AVEC ÉCLAIRAGE LED

APERÇU GENERAL

Line drawing of a rear viewfinder with buttons and a handle (no text or symbols)

CHARGEMENT DU HAUT-PARLEUR BLUETOOTH

Line drawing of a front panel with control buttons and a tray (no text or symbols)

Line drawing of a rear viewfinder with buttons and a handle (no text or symbols)

CARGA DEL ALTAVOZ BLUETOOTH

Top-down view of a car dashboard with control panel and buttons (no text or symbols)

Line drawing of a rectangular device with four labeled buttons and a handle (no text or symbols)

AUFLADEN DES BLUETOOTH LAUTSPRECHERS

Top-down schematic of a vehicle dashboard with control panel and air vent (no text or symbols)

Line drawing of a rear view of a rectangular device with four control buttons and a handle (no text or symbols)

RICARICA DELL'ALTOPARLANTE BLUETOOTH

Top-down schematic of a vehicle dashboard with control panel and air vent (no text or symbols)

Line drawing of a rear viewfinder with buttons and a handle (no text or symbols)

Line drawing of a front panel with control buttons and a tray (no text or symbols)

Line drawing of a rear viewfinder with control buttons and display areas (no text or symbols)

CHARGING THE BLUETOOTH SPEAKER

Top-down schematic of a computer monitor front panel with control buttons and display (no text or labels)

Line drawing of a rear viewfinder with buttons and a handle (no text or symbols)

Front view of a computer monitor with control panel and buttons (no text or symbols visible)
