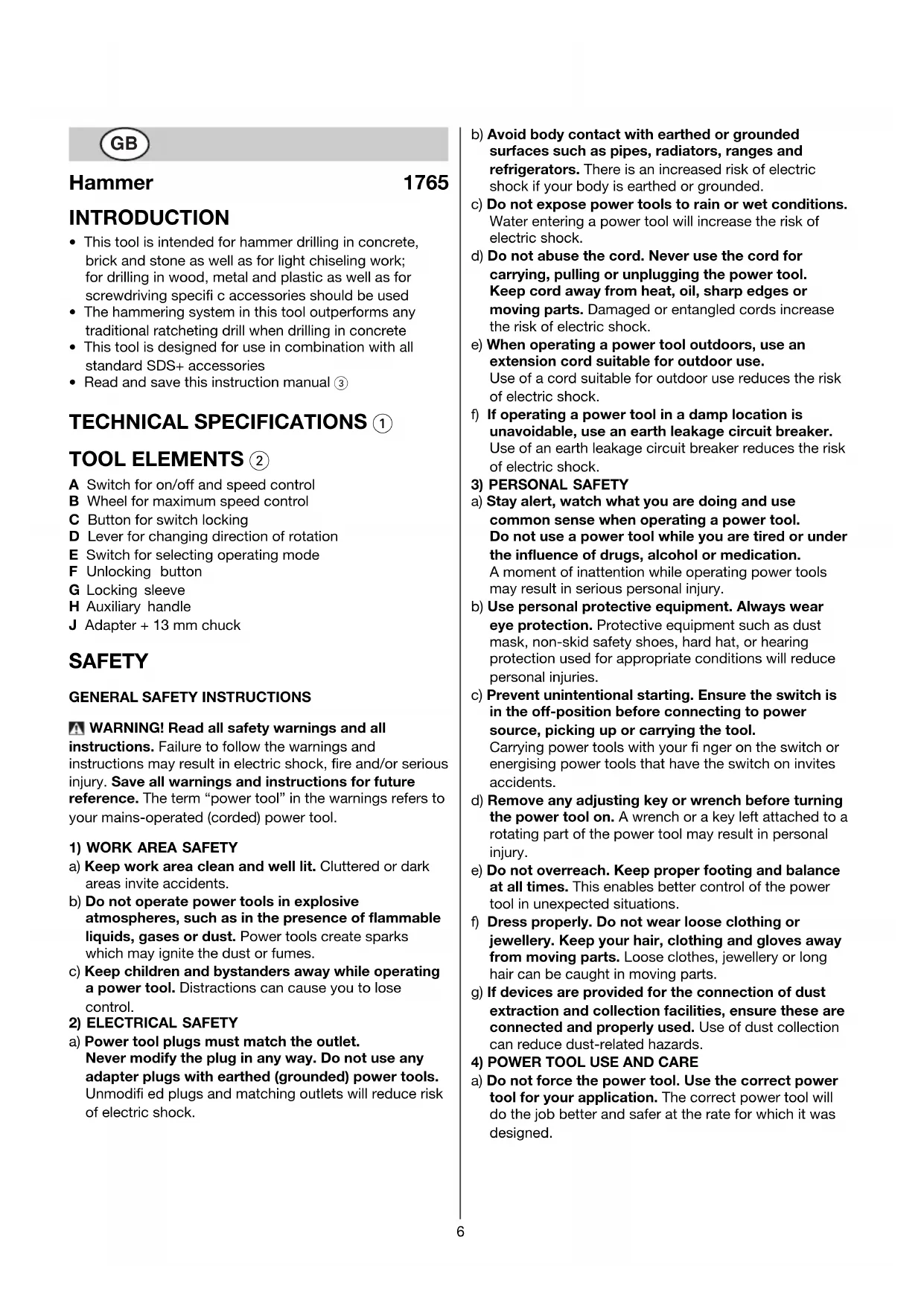

USER MANUAL 1765 MA SKIL

FWD FWD FWD REV REV REV A A

• This tool is intended for hammer drilling in concrete,

brick and stone as well as for light chiseling work;

for drilling in wood, metal and plastic as well as for

screwdriving specifi c accessories should be used

• The hammering system in this tool outperforms any

traditional ratcheting drill when drilling in concrete

• This tool is designed for use in combination with all

standard SDS+ accessories

• Read and save this instruction manual 3

TECHNICAL SPECIFICATIONS 1

A Switch for on/off and speed control

B Wheel for maximum speed control

C Button for switch locking

D Lever for changing direction of rotation

E Switch for selecting operating mode

J Adapter + 13 mm chuck

SAFETY GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious

injury. Save all warnings and instructions for future

reference. The term “power tool” in the warnings refers to

your mains-operated (corded) power tool.

a) Keep work area clean and well lit. Cluttered or dark

areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

c) Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet.

Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools.

Unmodifi ed plugs and matching outlets will reduce risk

b) Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of

d) Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase

the risk of electric shock.

e) When operating a power tool outdoors, use an

extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk

f) If operating a power tool in a damp location is

unavoidable, use an earth leakage circuit breaker.

Use of an earth leakage circuit breaker reduces the risk

a) Stay alert, watch what you are doing and use

common sense when operating a power tool.

Do not use a power tool while you are tired or under

the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools

may result in serious personal injury.

b) Use personal protective equipment. Always wear

eye protection. Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions will reduce

c) Prevent unintentional starting. Ensure the switch is

in the off-position before connecting to power

source, picking up or carrying the tool.

Carrying power tools with your fi nger on the switch or

energising power tools that have the switch on invites

d) Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal

e) Do not overreach. Keep proper footing and balance

at all times. This enables better control of the power

tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves away

from moving parts. Loose clothes, jewellery or long

hair can be caught in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are

connected and properly used. Use of dust collection

can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power

tool for your application. The correct power tool will

do the job better and safer at the rate for which it was

b) Do not use the power tool if the switch does not turn

it on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source before

making any adjustments, changing accessories, or

storing power tools. Such preventive safety measures

reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power

tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained

e) Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any

other condition that may affect the power tool’s

operation. If damaged, have the power tool repaired

before use. Many accidents are caused by poorly

maintained power tools.

f) Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are

less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc.,

in accordance with these instructions, taking into

account the working conditions and the work to be

performed. Use of the power tool for operations

different from those intended could result in a

hazardous situation.

a) Have your power tool serviced by a qualified repair

person using only identical replacement parts.

This will ensure that the safety of the power tool is

SAFETY INSTRUCTIONS FOR HAMMERS

• Wear ear protectors with hammer drills

(exposure to noise can cause hearing loss)

• Use auxiliary handles supplied with the tool

(loss of control can cause personal injury)

• Avoid damage that can be caused by screws, nails and

other elements in your workpiece; remove them before

• Always keep the cord away from moving parts of the

• Secure the workpiece (a workpiece clamped with

clamping devices or in a vice is held more securely than

• When you put away the tool, switch off the motor and

ensure that all moving parts have come to a complete

• Use completely unrolled and safe extension cords with

a capacity of 16 Amps (U.K. 13 Amps)

• In case of electrical or mechanical malfunction,

immediately switch off the tool and disconnect the plug

• SKIL can assure fl awless functioning of the tool only

when the correct accessories are used which can be

obtained from your SKIL dealer

• Use only accessories with an allowable speed matching

at least the highest no-load speed of the tool

• This tool should not be used by people under the age of

• Use suitable detectors to find hidden utility lines or

call the local utility company for assistance

(contact with electric lines can lead to fi re or electrical

shock; damaging a gas line can result in an explosion;

penetrating a water pipe will cause property damage or

an electrical shock)

• Hold the power tool only by the insulated gripping

surfaces when performing an operation where the

accessory may contact hidden wiring or its own

power cord (contact with a “live” wire will also make

exposed metal parts of the power tool “live” and shock

• Do not work materials containing asbestos

(asbestos is considered carcinogenic)

• Dust from material such as paint containing lead,

some wood species, minerals and metal may be

harmful (contact with or inhalation of the dust may

cause allergic reactions and/or respiratory diseases to

the operator or bystanders); wear a dust mask and

work with a dust extraction device when

• Certain kinds of dust are classifi ed as carcinogenic

(such as oak and beech dust) especially in conjunction

with additives for wood conditioning; wear a dust

mask and work with a dust extraction device when

• Follow the dust-related national requirements for the

materials you want to work with

• If the cord is damaged or cut through while working,

do not touch the cord, but immediately disconnect the

• Never use tool when cord is damaged; have it replaced

by a qualifi ed person

• Always check that the supply voltage is the same as the

voltage indicated on the nameplate of the tool (tools

with a rating of 230V or 240V can also be connected to

• If the drill bit becomes unexpectedly jammed (causing a

sudden, dangerous reaction), immediately switch off the

• Be aware of the forces that occur as a result of jamming

(especially when drilling metals); always use auxiliary

handle H 2 and take a secure stance

• Always disconnect plug from power source before

making any adjustment or changing any accessory

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire

in the cord of this tool to the earth terminal of the plug

• If for any reason the old plug is cut off the cord of this

tool, it must be disposed of safely and not left

• Switch locking for continuous use 5

• Speed control for smooth starting 68

• Maximum speed control 7

With wheel B 2 the maximum speed can be adjusted

steplessly from minimum to maximum

• Changing direction of rotation 8

- when not properly set in left/right position, switch A

! change direction of rotation only when tool is at a

• Selecting operating mode 9

- press button F to unlock switch E

- turn switch E to the desired operating mode until it

! start working only when switch E is locked

1 = normal drilling/screwdriving

3 = chiseling with rotating chisel

4 = chiseling with fi xed chisel

! select operating mode only when tool is switched

off and plug is disconnected

- the hammer mechanism is activated by applying a

slight pressure on the tool when the drill bit is in

contact with the workpiece

- best hammer drilling results can be obtained by only

a slight pressure on the tool needed to keep the

automatic clutch engaged; drilling performance will

not improve by applying more pressure on the tool

• Normal drilling/screwdriving 0

For drilling in wood, metal and plastic as well as for

screwdriving use adapter J 2

- clean and lightly lubricate adapter before insertion

- pull back locking sleeve G 2 and insert adapter in

SDS+ chuck while turning and pushing it until it

engages; the adapter locks in position automatically

- pull adapter to check whether is it locked correctly

- set switch E 2 to normal drilling (only activate when

tool is switched off and plug is disconnected)

• Chiseling with rotating chisel !

! switch off the tool and disconnect the plug

- select “rotating” chiseling mode

• Chiseling with fi xed chisel @

! switch off the tool and disconnect the plug

- select “rotating” chiseling mode

- place chisel in desired position

- select “fi xed” chiseling mode

! clean and lightly lubricate the SDS+ accessory

- pull back locking sleeve G and insert accessory in

SDS+ chuck while turning and pushing it until it

engages; the accessory locks in position

- pull accessory to check that it is locked correctly

- remove accessory by pulling back locking sleeve G

! the SDS+ accessory requires freedom of

movement which causes eccentricity when tool is

off-load; however, the accessory automatically

centres itself during operation without affecting

! do not use bits/chisels with a damaged shank

If the accessory gets jammed, the drive to the spindle is

interrupted (causing a rattling noise)

- immediately switch off tool

- remove the jammed accessory

- switch on tool again

• Adjusting drilling depth $

• Holding and guiding the tool %

! while working, always hold the tool at the

grey-coloured grip area(s)

- always use auxiliary handle H (can be adjusted as

- keep the ventilation slots uncovered

- do not apply too much pressure on the tool;

let the tool do the work for you

• When drilling ferrous metals

- pre-drill a smaller hole, when a large hole is required

- lubricate drill bit occasionally with oil

• When turning in a screw at/near the cross cut end or an

edge of wood, pre-drill a hole in order to avoid cracking

The vibration emission level stated at the back of this

instruction manual (indicated by an asterisk) has been

measured in accordance with a standardised test given

in EN 60745; it may be used to compare one tool with

another and as a preliminary assessment of exposure to

vibration when using the tool for the applications

- using the tool for different applications, or with

different or poorly maintainted accessories, may

signifi cantly increase the exposure level

- the times when the tool is switched off or when it is

running but not actually doing the job, may

signifi cantly reduce the exposure level

! protect yourself against the effects of vibration by

maintaining the tool and its accessories, keeping

your hands warm, and organizing your work

MAINTENANCE / SERVICE

• Always keep tool and cord clean (especially the

! disconnect the plug before cleaning

• If the tool should fail despite the care taken in

manufacturing and testing procedures, repair should be

carried out by an after-sales service centre for SKIL

- send the tool undismantled together with proof of

purchase to your dealer or the nearest SKIL service

station (addresses as well as the service diagram of

the tool are listed on www.skileurope.com)9

• Do not dispose of electric tools, accessories and

packaging together with household waste material

(only for EU countries)

- in observance of European Directive 2002/96/EC on

waste of electric and electronic equipment and its

implementation in accordance with national law,

electric tools that have reached the end of their life

must be collected separately and returned to an

environmentally compatible recycling facility

- symbol ^ will remind you of this when the need for

1 = normal boring/skruning

• Normal boring/skruning 0

1 = normal boring/skruing

VEDLIKEHOLD / SERVICE

in corrispondenza della(e) area(e) grigia(e)

CE DECLARATION OF CONFORMITY We declare under our sole responsibility that this product is in conformity with the following

standards or standardized documents: EN 60 745, EN 55 014, in accordance with the provisions of the directives 2006/95/EC,

2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on).

NOISE/VIBRATION Measured in accordance with EN 60 745 the sound pressure level of this tool is 95 dB(A) and the sound power

level 106 dB(A) (standard deviation: 3 dB), and the vibration ✱ m/s

2006/42/EG (from 29.12.2009).

When hammer drilling in concrete When chiseling Uncertainty (K)
