Product type	Oven-toaster combination
Brand	Princess
Model	142601
Intended use	Baking, grilling, toasting and sandwiches
Baking mode	Door closed, large half-shelf fixed
Grill mode	Door open, assembled rotating shelves, aluminum foil recommended
Toast/sandwich mode	Door open, assembled rotating shelves, aluminum foil recommended
Timer	15 minutes maximum, automatic shut-off with audible signal
Heating elements	Upper and lower
Door	With handle, open or closed depending on mode
Power indicator light	Yes, lights up during operation
Included accessories	Large half-shelf, small half-shelf, cheese plate, 2 crumb trays
Placement surface	Flat, stable, heat- and splash-resistant
Exterior cleaning	With a damp cloth, do not immerse
Accessories cleaning	With soapy water, dry completely
Safety	Unplug before cleaning, wait for cooling, do not use outdoors

Frequently Asked Questions - 142601 PRINCESS

How to clean the Princess 142601 oven?

After cooling, unplug the appliance. Clean the exterior with a damp cloth and the accessories (shelves, plate, trays) with soapy water. Dry completely before storing.

Can I use the oven without the crumb trays?

No, the crumb trays are essential for collecting residues. Always place them at the bottom of the cooking compartment before use.

Why is the power indicator light not turning on?

The indicator light (2) only turns on when the timer (1) is set to a duration greater than zero. Make sure the plug is connected and the timer is turned.

What is the maximum timer duration?

The timer can be set up to 15 minutes. Beyond that, the appliance stops automatically with an audible signal.

How to grill food with the door open?

Open the door (6), place the two half-shelves assembled, then the food. Cover the open door with aluminum foil to protect the elements. Do not close the door while grilling.

Can the oven be used to bake pizzas?

Yes, use baking mode (door closed) with the large half-shelf. Place the pizza on the shelf and set the timer according to desired baking.

How to assemble the half-shelves for grilling?

Place the large half-shelf (8) in the compartment, then mount the small half-shelf (9) on top. The assembly rotates during grilling.

What to do if the appliance does not heat up?

Check that the timer is set, the plug works and the cord is not damaged. If the problem persists, contact an authorized repair service.

Is it possible to adjust the temperature?

No, this appliance does not have temperature adjustment. Baking is controlled only by the timer and fixed heating elements.

Where to find spare parts?

Spare parts must be supplied by Princess or an authorized repair service. Do not attempt to replace parts yourself.

USER MANUAL 142601 PRINCESS

Line drawing of a toaster oven with open door and side panel (no text or symbols)

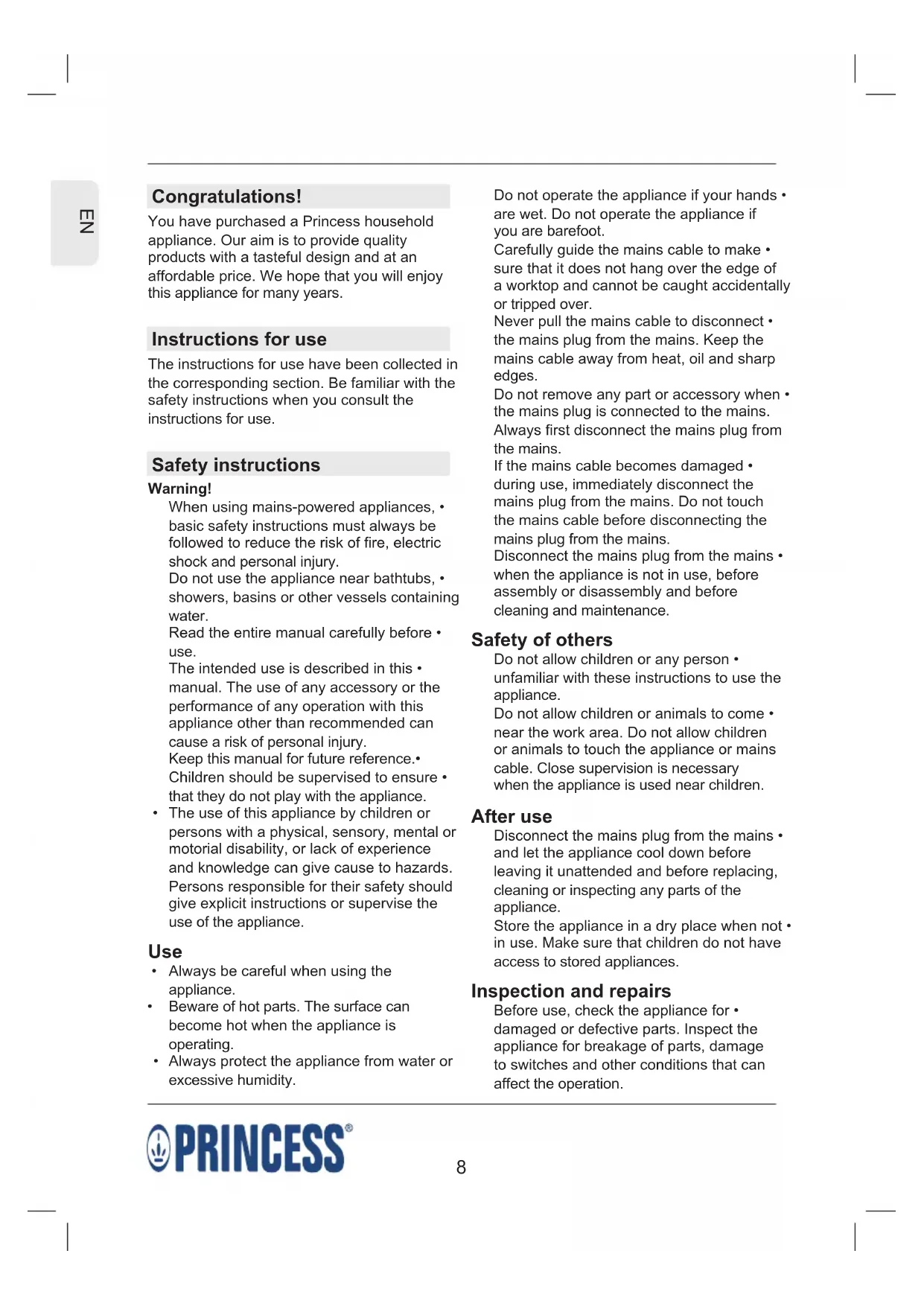

Gefeliciteerd!

You have purchased a Princess household appliance. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this appliance for many years.

Instructions for use

The instructions for use have been collected in the corresponding section. Be familiar with the safety instructions when you consult the instructions for use.

Safety instructions

Warning!

When using mains-powered appliances, basic safety instructions must always be followed to reduce the risk of fire, electric shock and personal injury.

Do not use the appliance near bathtubs, • showers, basins or other vessels containing water.

Read the entire manual carefully before use.

The intended use is described in this • manual. The use of any accessory or the performance of any operation with this appliance other than recommended can cause a risk of personal injury.

Keep this manual for future reference. Children should be supervised to ensure that they do not play with the appliance.

- The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.

Use

• Always be careful when using the appliance.
- Beware of hot parts. The surface can become hot when the appliance is operating.
- Always protect the appliance from water or excessive humidity.

Do not operate the appliance if your hands • are wet. Do not operate the appliance if you are barefoot.

Carefully guide the mains cable to make • sure that it does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.

Never pull the mains cable to disconnect • the mains plug from the mains. Keep the mains cable away from heat, oil and sharp edges.

Do not remove any part or accessory when the mains plug is connected to the mains. Always first disconnect the mains plug from the mains.

If the mains cable becomes damaged • during use, immediately disconnect the mains plug from the mains. Do not touch the mains cable before disconnecting the mains plug from the mains.

Disconnect the mains plug from the mains • when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety of others

Do not allow children or any person • unfamiliar with these instructions to use the appliance.

Do not allow children or animals to come • near the work area. Do not allow children or animals to touch the appliance or mains cable. Close supervision is necessary when the appliance is used near children.

After use

Disconnect the mains plug from the mains • and let the appliance cool down before leaving it unattended and before replacing, cleaning or inspecting any parts of the appliance.

Store the appliance in a dry place when not in use. Make sure that children do not have access to stored appliances.

Inspection and repairs

Before use, check the appliance for • damaged or defective parts. Inspect the appliance for breakage of parts, damage to switches and other conditions that can affect the operation.

Do not use the appliance if any part is • damaged or defective.

Have any damaged or defective part • repaired or replaced by an authorised repair agent. Never attempt to remove or replace any part yourself.

Before use, check the mains cable for wear • or damage.

Do not use the appliance if the mains cable • or mains plug is damaged or defective. If the mains cable or mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Safety instructions for toasters, grills and ovens

Before use, always check that the mains • voltage is the same as the voltage on the rating plate of the appliance.

Connect the appliance to an earthed wall • socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 mm^2 ).

- For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30 mA.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.

Always fully unwind the mains cable and the extension cable.

- Do not use the appliance outdoors.

- Place the appliance on a stable and flat surface.

- Place the appliance on a heat-resistant and splash-proof surface.

- Do not place the appliance on a hob.

- Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

- Make sure that the appliance does not come into contact with flammable material.

- Keep the appliance way from heat sources.

- Do not cover the appliance.

Always be careful when touching the • appliance. Use oven gloves if you need to touch the appliance during or shortly after use.

The heating elements and the racks • become very hot during use. Do not touch the hot heating elements and the hot racks. Do not move the appliance while it is • switched on or is still hot. Remove the mains plug from the wall socket and wait until the appliance has cooled down.

Do not leave the appliance unattended • during use.

U.K. Wiring instructions Class 1

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (⊥) and is coloured GREEN or GREEN/YELLOW.

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.

Warning!

This appliance must be earthed.

Description (fig. A)

Your 142601 Princess toaster, grill and oven has been designed for the following applications:

• grilling and baking food;
• toasting bread and sandwiches.

The appliance is suitable for domestic use only.

1. Timer
2. Power indicator
3. Cooking compartment
4. Upper heating element
5. Lower heating element
6. Door
7. Door grip
8. Half rack (big)
9. Half rack (small)
10. Cheese tray
11. Crumb tray

Package contents

Toaster, grill and oven•

Half rack (big)•

Half rack (small)•

Cheese tray•

Crumb tray (2x)•

Initial use

Preparation

• Clean the appliance. Refer to "Cleaning and maintenance".
• Clean the accessories. Refer to "Cleaning and maintenance".

Use

Warning! Beware of hot parts.

Baking food (fig. A & B)

For baking food, only the big half rack is used. The big half rack does not rotate during the process.

Caution! Always close the door when using the appliance for baking food.

Open the door (6) using the door grip (7).• Place the crumb trays (11) in the bottom of • the cooking compartment (3).

Place the big half rack (8) in the cooking • compartment (3).

Put the food on the big half rack (8).•

Grilling food (fig. A & C)

For grilling food, both the big half rack and the small half rack are used. The assembled rack rotates during the process.

Caution!

• Do not close the door when using the appliance for grilling food.
• Always cover the open door with aluminium foil.

Place the crumb trays (11) in the bottom of the cooking compartment (3).

Place the big half rack (8) in the cooking • compartment (3).

Mount the small half rack (9) to the big half • rack (8).

If required, place the cheese tray (10) on the assembled rack (8 & 9).

Put the food on the assembled rack (8 & 9).

If the cheese tray is used, put the food on the cheese tray (10).

Leave the door (6) open.

Toasting bread and sandwiches (fig. A & C)

For toasting bread and sandwiches, both the big half rack and the small half rack are used.

The assembled rack rotates during the process.

Caution!

• Do not close the door when using the appliance for toasting bread or sandwiches.
• Always cover the open door with aluminium foil.

Place the crumb trays (11) in the bottom of the cooking compartment (3).

Place the big half rack (8) in the cooking • compartment (3).

Mount the small half rack (9) to the big half • rack (8).

If required, place the cheese tray (10) on • the assembled rack (8 & 9).

Put the food on the assembled rack (8 & 9). • If the cheese tray is used, put the food on the cheese tray (10).

Leave the door (6) open.

Hints for use (fig. A)

Prepare the food.

Place the appliance on a stable and flat surface.

Put the food in the cooking compartment (3):•

- For baking food, refer to the section "Baking food".

- For grilling food, refer to the section "Grilling food".

- For toasting bread and sandwiches, refer to the section "Toasting bread and sandwiches".

Insert the mains plug into the wall socket.

Set the timer (1) to the required time • (max. 15 minutes). The power indicator (2) comes on and the appliance starts the process.

To interrupt the process, set the timer (1) • to the 'O' position.

If the process is completed, an audible signal will sound and the appliance will switch off automatically.

Regularly check the appliance for possible damage.

Clean the outside of the appliance and the • heating elements with a damp cloth. Dry the outside of the appliance and the heating elements with a clean, dry cloth.

Clean the big half rack in soapy water.

If used, clean the small half rack in soapy • water.

If used, clean the cheese tray and the • crumb trays in soapy water.

Fully dry the accessories.

Store the appliance with the accessories in • a dry place, out of the reach of children.

Disclaimer

Subject to change; specifications can be changed without further notice.

Cleaning and maintenance

The appliance must be cleaned after each use.

Warning!

- Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down.

- Do not immerse the appliance in water or any other liquids for cleaning.

Caution!

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
