Product type	Rotating toaster oven (RotaToaster)
Brand	Princess
Model	142600
Main functions	Oven (cooking with closed door), Grill (broiling with open door and rotation), Toaster (toasting with open door and rotation)
Heating elements	Upper and lower, independent
Rotation motor	Yes, active only when door is open
Racks provided	Semi-circular rack (for cooking with closed door), Circular rack (for grilling/toasting with open door)
Timer	Mechanical, adjustable up to 15 minutes, with audible signal and automatic shut-off
Door	Glass, with handle
Indicator lights	Upper element, lower element, rotation motor, power
Power supply	220-240 V ~50/60 Hz (estimate based on European standards)
Power consumption	Approximately 1200 W (estimate)
Dimensions (approx.)	Approximately 30 x 30 x 25 cm (height x width x depth, estimate)
Weight (approx.)	Approximately 3 kg (estimate)
Cord length	Approximately 1 m (estimate)
Care and cleaning	Unplug and cool down before cleaning. Racks are washable with warm soapy water. Wipe the appliance with a damp cloth and mild detergent. Do not immerse.
Safety	Do not use outdoors or in a damp room. Keep away from flammable materials. Use a grounded outlet. Do not leave unattended.
Repairability	Repairs only by a qualified technician. Use accessories recommended by the manufacturer.
Compliance	European Directives 2002/95/EC (RoHS) and 2002/96/EC (WEEE)

Frequently Asked Questions - 142600 PRINCESS

What types of cooking can I do with the Princess 142600?

You can use the appliance in oven mode (cooking with closed door, fixed semi-circular rack), in grill mode (broiling with open door and rotation) or in toaster mode (toasting with open door and rotation). The upper and lower heating elements can be activated independently.

Can I use the circular rack with the door closed?

No, the circular rack can only be used with the door open and the rotation motor activated. For cooking with the door closed, use the semi-circular rack.

How to set the cooking time?

Use the timer knob to set a duration up to 15 minutes. Once the time is up, the appliance emits an audible signal and automatically shuts off the heating elements and the motor.

What to do if the appliance emits smoke during first use?

This is normal: the appliance may emit some smoke and a characteristic odor during the first use. Make sure the appliance is well ventilated and wait for it to stop.

How to clean the Princess 142600 after use?

Unplug the appliance and let it cool completely. Remove the rack and wash it with warm soapy water. Wipe the interior and exterior of the appliance with a damp cloth and a little detergent. Never immerse the appliance, plug, or cord in water.

Can I use an extension cord with this appliance?

Yes, but make sure it has a sufficient diameter and that no moisture can penetrate the connections. Use a suitable grounded outlet.

Can the appliance be used by children?

The appliance can be dangerous for children or people with physical or mental limitations. They must be supervised or have received clear instructions. Keep the appliance out of reach of children.

How to prevent the open door from getting dirty during cooking?

You can cover the open door with a sheet of aluminum foil to protect against splashes of juice or grease.

What to do if the appliance does not heat up?

First check that the plug is properly connected to a working electrical outlet and that the timer knob is set to a duration >0. If the problem persists, contact a qualified technician. Do not attempt to repair it yourself.

Where can I find spare parts for the Princess 142600?

Only use accessories recommended by the manufacturer. Contact Princess customer service or an authorized dealer for spare parts.

USER MANUAL 142600 PRINCESS

RotaToaster Article 142600

Illustration of a modern toaster oven with open doors and side grilles (no text or symbols)

• Gebruiksaanwijzing • User's instructions • Mode d'emploi
• Bedienungsanleitung • Instrucciones de uso • Istruzioni per l'uso
• Bruksanvisning • Brugsanvisning • Bruksanvisning • Käyttöohje
• Instruções de uso • Odηγίες χρήσης • المستخدم.

Nederlands 1

English 5

Français 9

Deutsch 13

Español 17

Italiano 21

Svenska 25

Dansk 29

Norsk 33

Suomi 37

Português 41

Ελληνικά 45

عربي 50

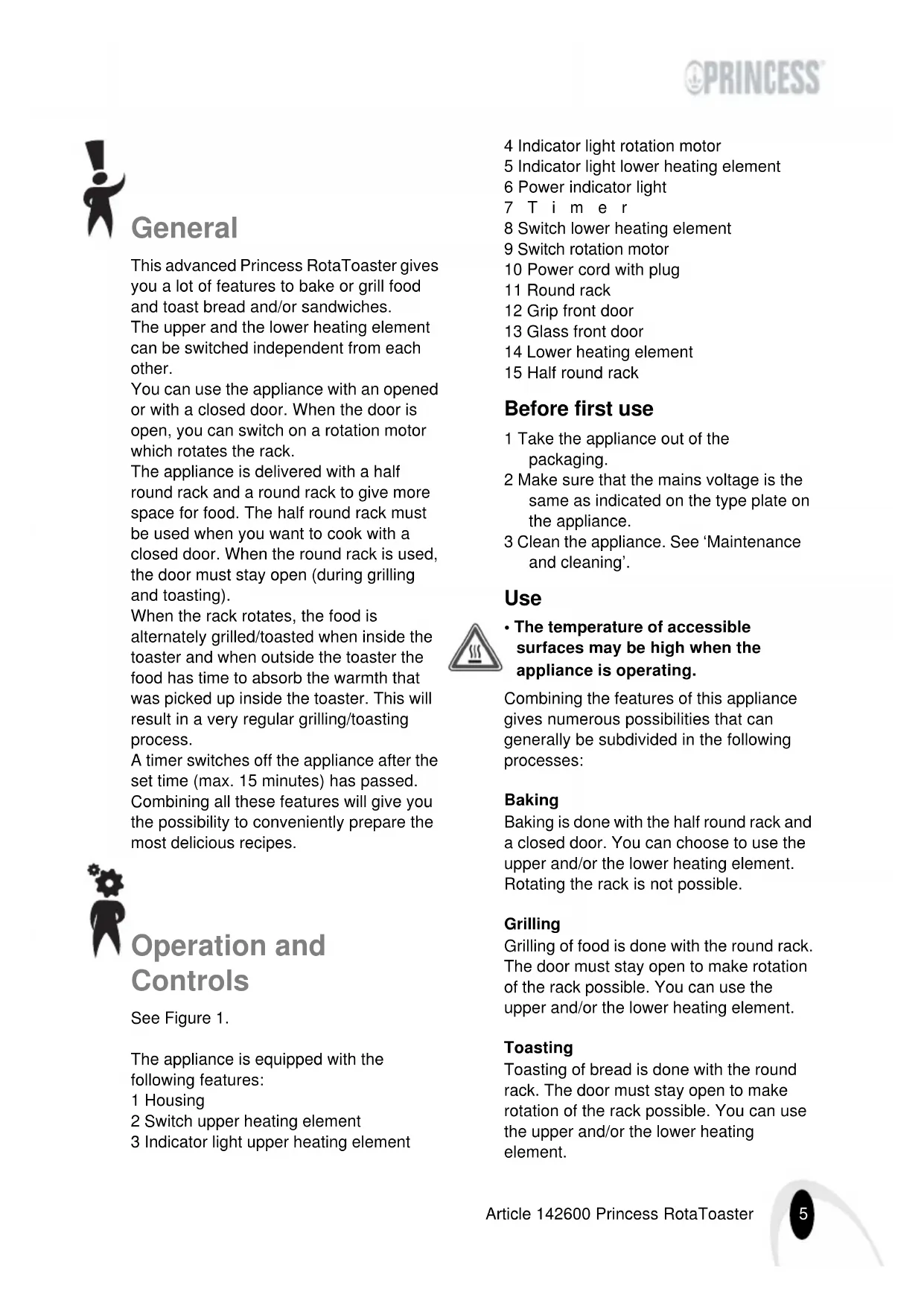

Algemeen

This advanced Princess RotaToaster gives you a lot of features to bake or grill food and toast bread and/or sandwiches.

The upper and the lower heating element can be switched independent from each other.

You can use the appliance with an opened or with a closed door. When the door is open, you can switch on a rotation motor which rotates the rack.

The appliance is delivered with a half round rack and a round rack to give more space for food. The half round rack must be used when you want to cook with a closed door. When the round rack is used, the door must stay open (during grilling and toasting).

When the rack rotates, the food is alternately grilled/toasted when inside the toaster and when outside the toaster the food has time to absorb the warmth that was picked up inside the toaster. This will result in a very regular grilling/toasting process.

A timer switches off the appliance after the set time (max. 15 minutes) has passed.

Combining all these features will give you the possibility to conveniently prepare the most delicious recipes.

Operation and Controls

See Figure 1.

The appliance is equipped with the following features:

1 Housing
2 Switch upper heating element
3 Indicator light upper heating element

4 Indicator light rotation motor
5 Indicator light lower heating element
6 Power indicator light
7 Timer
8 Switch lower heating element
9 Switch rotation motor
10 Power cord with plug
11 Round rack
12 Grip front door
13 Glass front door
14 Lower heating element
15 Half round rack

Before first use

1 Take the appliance out of the packaging.
2 Make sure that the mains voltage is the same as indicated on the type plate on the appliance.
3 Clean the appliance. See 'Maintenance and cleaning'.

Use

- The temperature of accessible surfaces may be high when the appliance is operating.

Combining the features of this appliance gives numerous possibilities that can generally be subdivided in the following processes:

Baking

Baking is done with the half round rack and a closed door. You can choose to use the upper and/or the lower heating element. Rotating the rack is not possible.

Grilling

Grilling of food is done with the round rack. The door must stay open to make rotation of the rack possible. You can use the upper and/or the lower heating element.

Toasting

Toasting of bread is done with the round rack. The door must stay open to make rotation of the rack possible. You can use the upper and/or the lower heating element.

1 Place the appliance on a flat, stable surface where it cannot fall.
2 Open the door of the appliance.
3 Place the half round rack or the round rack when you want to prepare more food.

Note: the round rack can only be used when the door is left open and with an engaged rotation motor.

4 Place the food on the rack.
5 When you want to bake food with a closed door, turn the half round rack inside the appliance and close the door. Otherwise leave the door open.

Tip:

Cover an open door with aluminium foil to prevent that the door will be polluted with fat and/or other juices from the food when it is grilled or toasted.

6 Put the plug in an earthed wall socket.
7 According your wishes switch on the upper heating element, the lower heating element and/or the rotating motor.
8 Turn the timer knob to the desired time. The power indicator will light up and the appliance will start with the process.
9 If you want to stop the process before the adjusted time has passed, you can turn the timer knob to 0.
10 When the adjusted time has passed, the appliance will give an audible signal and switch off the heating elements and the rotating motor (when engaged).
11 When closed, open the glass door.
12 Take the food from the rack.
13 Clean the appliance thoroughly after use (see 'Maintenance and cleaning').

• Never allow the power cord to hang over the edge of the draining board, worktop or table.
  • Always make sure the power cord has been fully unwound.
• Never move the appliance when it is switched on or is still hot. Before you

move the appliance, switch it off and wait until it has cooled down.

• Never use the appliance outdoors.
• Use an earthed wall socket.
• When necessary, use an earthed extension lead of a suitable diameter and make sure water cannot enter the contact plugs of the appliance and the extension cord.
• Never use the appliance in a humid room.
• The appliance must be able to dissipate its heat to avoid a risk of fire. Make sure that the appliance has sufficient space around it, and does not come into contact with flammable materials. The appliance must not be covered when it is still hot.
• Always remove the plug from the wall socket after use.
• Make sure your hands are dry when you touch the appliance, the power cord or the plug.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, before cleaning the appliance, before fitting or removing an accessory and before storing the appliance after use.
• Never leave the appliance unattended when in use.
• Do not use the appliance near another heat source.
• Keep the appliance away from inflammable materials, such as curtains, towels or paper.
• The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal and will soon stop. Make sure the appliance has sufficient ventilation.
• The appliance's housing will become hot.

Maintenance and Cleaning

1 Remove the plug from the wall socket and allow the appliance to cool down.
2 When closed, open the door and remove the rack from the appliance.
3 Clean the used rack in warm soapy water and dry it with a clean cloth.
4 Carefully clean the appliance with a soft, damp cloth and a few drops of washing-up liquid, and dry thoroughly.
5 Place the half round rack in the appliance, rotate it inside the appliance and close the door.

• Make sure no moisture comes into contact with the appliance's electrical parts.
• Never immerse the appliance, the power cord or the plug in water or other liquids.
• Never use aggressive or abrasive cleaning products or sharp objects (such as a knife or a hard brush) to clean the appliance.
• Make sure all parts are completely dry before use.

Storage

1 Allow the appliance to cool down.
2 Clean the appliance (see 'Maintenance and Cleaning'.
3 Store the appliance in a dry location.
- Store the appliance out of reach of children.

Safety

• Read and follow these instructions carefully. Keep this manual for future reference.
• Use this appliance only in accordance with these instructions.
  • This appliance is intended solely for domestic use.
• The use of this appliance by children or persons with a physical, sensory, mental or motor disability or who lack the necessary knowledge and experience may cause a hazard. Persons responsible for the safety of such people must give explicit instructions or supervise the use of the appliance.
• Keep the appliance out of the reach of children, and of persons who may not be able to operate it safely.
• Have the appliance repaired only by a qualified electrician. Never try to repair the appliance yourself.
• Only use accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.
  • Always remove the plug from the socket when the appliance is not in use.
  • Always remove the plug from the wall socket by pulling on the plug not the power cord.

• Never pull the power cord to move the appliance.

• Do not use the appliance if the appliance or the power cord is damaged. Have a damaged power cord replaced by a qualified electrician.

• Make sure that the appliance, the power cord and the plug do not come into contact with sources of heat such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not come into contact with water, other fluids or chemicals.

U.K. Wiring Instructions Class 1

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wires in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The BLUE wire must be connected to the terminal marked with the letter N or coloured black.
• The BROWN wire must be connected to the terminal marked with the letter L or coloured red.
• The GREEN/YELLOW wire must be connected to the terminal marked with the letter E (or earth symbol) or coloured GREEN or GREEN/YELLOW.

If a 13A plug (BS1363) is used a 13A fuse (BS1362) should be fitted. If any other type of plug is used, a 13A fuse

must be fitted either in the plug or adapter, or on the distribution board.

WARNING: THIS APPLIANCE MUST BE EARTHED

The Environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

If you wish to dispose of the appliance whilst it still works properly or can be easily repaired, then ensure that the appliance is recycled.

When the appliance reaches the end of its useful life, it should be disposed of in a responsible manner, thereby ensuring the reuse of the appliance or its parts. Do not dispose of the appliance with unsorted refuse; hand it in at the store, or take it to a recognized collection point. Contact your municipality for information about the reception and collection systems in your area.

CE Conformity

Applicable European guideline:

2002/95/EC

2002/96/EC
