112370 - Oven PRINCESS - Free user manual and instructions

Product type	Countertop oven
Brand	Princess
Model	112370
Category	Oven
Dimensions (approx.)	35 x 40 x 30 cm (W x D x H)
Weight (approx.)	6 kg
Power supply	230 V ~ 50 Hz, 1500 W
Maximum temperature	250 °C
Temperature range	0 °C to 250 °C
Timer	0 to 60 minutes
Main functions	Cooking, grill, defrosting
Included accessories	Baking rack, baking tray, food fork
Housing material	Stainless steel / metal
Door	Glass door with handle
Indicator light	On/Off
Cleaning and maintenance	Clean the interior with a damp cloth; accessories washable with soapy water
Safety	Automatic shut-off, hot surfaces indicated, child protection (use under supervision)
Use	Indoor, domestic use
General information	Instruction manual available in multiple languages

Frequently Asked Questions - 112370 PRINCESS

How to set the temperature on the Princess 112370 oven?

Turn the temperature knob (1) clockwise to increase the temperature up to 250 °C, or counterclockwise to decrease it.

How to use the timer?

Turn the timer knob (2) to the desired time (from 0 to 60 minutes). For a time less than 5 minutes, first turn beyond 6 minutes then back to the desired time. The timer emits an audible signal at the end of cooking.

Can I heat food in plastic containers?

No, only use metal, stone, or heat-resistant glass containers. Plastic materials may melt or deform.

How to clean the interior of the oven?

Unplug the appliance and wait for it to cool down. Clean the interior with a damp cloth, then dry thoroughly. Do not use abrasive products or oven cleaners.

The oven emits an odor or smoke during first use, is this normal?

Yes, it is normal. During initial start-up, heat the oven at 230 °C for 10 minutes to remove manufacturing residues. Ensure the room is well ventilated.

What is the minimum distance between the heating element and the food?

It is recommended to leave at least 30 mm between the upper heating element and the food for optimal cooking.

Can I use an aluminum baking tray?

Yes, the supplied baking tray is suitable. You can use other metal or glass trays, but avoid very thin aluminum containers that may deform.

What to do if the oven does not turn on?

Check that the plug is properly connected and the power outlet is live. Make sure the timer is not set to 'OFF'. If the problem persists, contact an authorized repairer.

Can children use the oven?

Children under 8 years old must not use the appliance. Children aged 8 and over may use it under supervision. Never leave the appliance unattended while in operation.

How to store the oven after use?

Unplug the appliance and wait for it to cool completely. Clean it and store it in a dry, clean place. Do not place objects on top of the oven.

USER MANUAL 112370 PRINCESS

Deutsch 17 Portuguese 40

Espanol 22 Polski 45

A

Read the manual carefully before use. Keep the manual for future reference.

Only use the appliance and the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.

Do not use the appliance if any part or any accessory is damaged or defective.

If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children

unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years.

Do not use the appliance near - bathtub, showers, basins or other vessels containing water.

Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.

Clean the appliance and the accessories. Refer to the section "Cleaning and maintenance".

Electrical safety

Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.

Connect the appliance to an earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1.5 ~mm^2 ).

For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30mA .

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.

Always fully unwind the mains cable and the extension cable. Make sure that the mains cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.

Keep the mains cable away from heat, oil and sharp edges. Regularly check the mains cable and the mains plug for signs of damage. Do not use the appliance if the mains cable or the mains plug is damaged or defective.

If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not pull the mains cable to disconnect the mains plug from the mains.

Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

*Safety instructions for ovens

The appliance is suitable for domestic use only.

Do not use the appliance - outdoors.

Place the appliance on a stable and flat surface.

Place the appliance on a heat-resistant and splashproof surface.

Do not place the appliance on a hob.

Do not cover the appliance. Do not place objects on top of the appliance. Do not place objects on the open door. Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

Make sure that the appliance does not come into contact with flammable material.

Keep the appliance away from heat sources. Do not place the appliance on hot surfaces or near open flames.

Only put containers made of metal, stone or glass in the appliance. Do not put containers made of other materials in the appliance.

Do not use the appliance for storage purposes.

Beware of hot parts. The surfaces marked with a caution symbol for hot surfaces are liable to become hot during use. The accessible surfaces can become hot when the appliance is operating. The outer surface can become hot when the appliance is operating.

Be careful when touching the appliance. If you need to touch the appliance during or shortly after use, always wear oven gloves.

Make sure that your hands are dry before touching the appliance.

Do not leave the appliance unattended during use.

Do not move the appliance while it is switched on or is still hot.

Remove the mains plug from the wall socket and wait until the appliance has cooled down.

Cleaning and maintenance

Warning!

• Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids.

Caution!

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
• Do not use oven cleaners to clean the inside of the appliance.
• Do not clean the appliance in the dishwasher.
  Do not clean the accessories in the dishwasher.

Regularly check the appliance for possible damage.

Clean the inside of the appliance with a damp cloth. Thoroughly dry the inside of the appliance with a clean, dry cloth. Do not wipe the heating elements.

Clean the baking rack, the baking tray and the food fork in soapy water. Rinse the accessories under running water. Thoroughly dry the accessories with a clean, dry cloth.

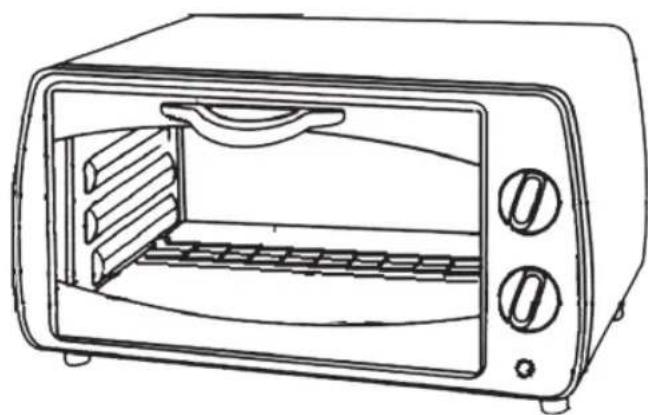

Description (fig. A)

Your 112370 Princess oven has been designed for toasting bread, baking food and defrosting food. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

1. Temperature control dial
2. Timer dial
3. On/off indicator
4. Cooking compartment
5. Heating element
6. Door
7. Door grip
8. Baking rack
9. Baking tray
10. Food fork

Initial use (fig. A)

Place the appliance on a stable and flat surface.

Insert the mains plug into the wall socket. Insert the baking rack (8) and the baking tray (9) into the cooking compartment (4). Slide the accessory into the support rails in the sides of the cooking compartment.

Turn the temperature control dial (1) clockwise to set the temperature to 230^ . Turn the timer dial (2) clockwise to set the time to 10 minutes. The on/off indicator (3) comes on. The appliance starts heating. If the process is completed, the appliance will switch off automatically. The on/off indicator (3) goes off.

Note: If you switch on the appliance for the first time, the appliance may emit a little smoke and a characteristic smell for a short period. This is normal operation.

Use

Setting the temperature (fig. A)

The temperature can be set from 0^ and 250^ .

Turn the temperature control dial (1) clockwise to increase the temperature.

Turn the temperature control dial (1) counterclockwise to decrease the temperature.

Setting the time /

Switching on and off (fig. A)

The time can be set from 0 minutes to 60 minutes.

To switch on the appliance, turn the timer dial (2) to the required time. The on/off indicator (3) comes on.

To switch on the appliance for 5 minutes or less, first turn the timer dial (2) clockwise to more than 6 minutes and then back to the required time. The on/off indicator (3) comes on.

While the appliance is operating: Turn the timer dial (2) clockwise to increase the time. Turn the timer dial (2)

counterclockwise to decrease the time.

To switch off the appliance, turn the timer dial (2) to the "OFF" position. The on/off indicator (3) goes off.

Hints for use (fig. A)

Warning!

• Always keep the door closed during use.
• Do not place the baking tray directly onto the lower heating element.

Caution!

• If necessary, preheat the oven before putting the food into the cooking compartment.
• The space between the upper heating element and the food must be at least 30mm in order to achieve the best results.

Place the appliance on a stable and flat surface.

Insert the mains plug into the wall socket.

Insert the baking rack (8) and/or the baking tray (9) into the cooking compartment (4).

Slide the accessory into the support rails in the sides of the cooking compartment.

Put the food onto the baking rack (8) or the baking tray (9).

Set the temperature using the temperature control dial (1).

Switch on the appliance by turning the timer dial (2) clockwise to set the time. The on/off indicator (3) comes on. The appliance starts heating.

Regularly look through the door (6) to check whether the food is prepared correctly and to make sure that it does not burn.

• To interrupt the process, turn the timer dial (2) to the "OFF" position. The on/off indicator (3) goes off.
  If the process is completed, the appliance will switch off automatically. A bell will ring. The on/off indicator (3) goes off.
  Take one of the following actions:
• Use the food fork (10) to remove the food from the appliance.
• Use oven gloves to remove the food from the appliance.
  After use, remove the mains plug from the wall socket and wait until the appliance has cooled down.
