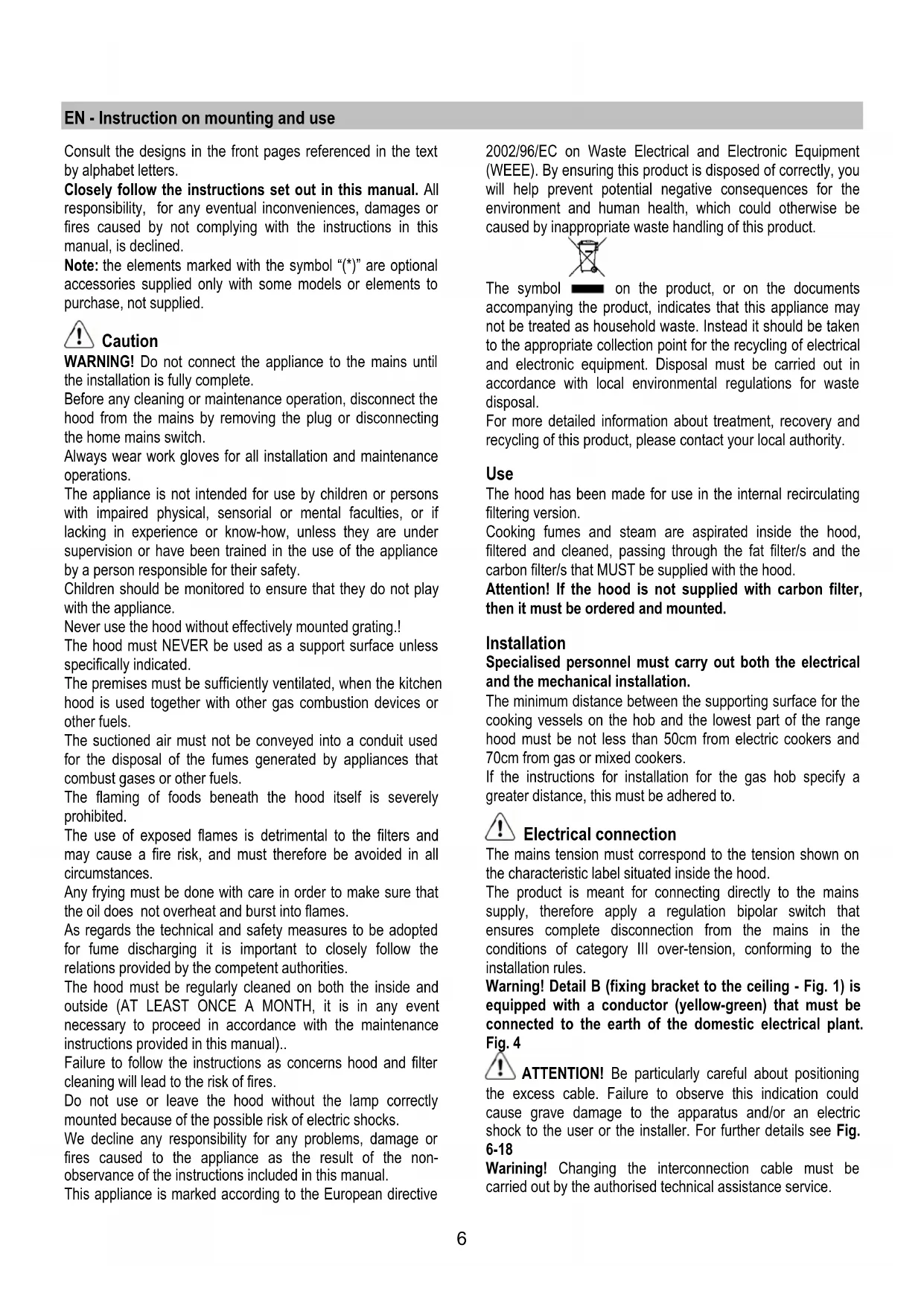

EN - Instruction on mounting and use

Consult the designs in the front pages referenced in the text

by alphabet letters.

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined.

Note: the elements marked with the symbol “(*)” are optional

accessories supplied only with some models or elements to

purchase, not supplied.

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the

hood from the mains by removing the plug or disconnecting

the home mains switch.

Always wear work gloves for all installation and maintenance

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or know-how, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

Children should be monitored to ensure that they do not play

Never use the hood without effectively mounted grating.!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises must be sufficiently ventilated, when the kitchen

hood is used together with other gas combustion devices or

The suctioned air must not be conveyed into a conduit used

for the disposal of the fumes generated by appliances that

combust gases or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and burst into flames.

As regards the technical and safety measures to be adopted

for fume discharging it is important to closely follow the

relations provided by the competent authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH, it is in any event

necessary to proceed in accordance with the maintenance

instructions provided in this manual)..

Failure to follow the instructions as concerns hood and filter

cleaning will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly

mounted because of the possible risk of electric shocks.

We decline any responsibility for any problems, damage or

fires caused to the appliance as the result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste

For more detailed information about treatment, recovery and

recycling of this product, please contact your local authority.

The hood has been made for use in the internal recirculating

Cooking fumes and steam are aspirated inside the hood,

filtered and cleaned, passing through the fat filter/s and the

carbon filter/s that MUST be supplied with the hood.

Attention! If the hood is not supplied with carbon filter,

then it must be ordered and mounted.

Specialised personnel must carry out both the electrical

and the mechanical installation.

The minimum distance between the supporting surface for the

cooking vessels on the hob and the lowest part of the range

hood must be not less than 50cm from electric cookers and

70cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a

greater distance, this must be adhered to.

Electrical connection

The mains tension must correspond to the tension shown on

the characteristic label situated inside the hood.

The product is meant for connecting directly to the mains

supply, therefore apply a regulation bipolar switch that

ensures complete disconnection from the mains in the

conditions of category III over-tension, conforming to the

Warning! Detail B (fixing bracket to the ceiling - Fig. 1) is

equipped with a conductor (yellow-green) that must be

connected to the earth of the domestic electrical plant.

ATTENTION! Be particularly careful about positioning

the excess cable. Failure to observe this indication could

cause grave damage to the apparatus and/or an electric

shock to the user or the installer. For further details see Fig.

Warining! Changing the interconnection cable must be

carried out by the authorised technical assistance service.7

Expansion wall plugs are provided to secure the hood to most

types of walls/ceilings. However, a qualified technician must

verify suitability of the materials in accordance with the type of

wall/ceiling. The wall/ceiling must be strong enough to take

the weight of the hood. Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.

Description of the hood - Fig. 1

H. Interconnection cable

Attention! The control lever is already supplied. It is to

be installed last, before connecting the hood to the

Insert the control lever into the apposite housing (see

drawings on the first pages of this booklet - triggered

connection, compulsory direction.

M. Lateral filter holder frame

N. Active carbon filter

O. Metal anti-fat filter

P. Anti-fat and carbon filters holder frame

Q. Filter holder frame releases

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.

The hood is equipped with a “TOUCH” device to control the

For the correct use please carefully read the intructions below.

The cooker hood can be controlled through a remote control

available as accessory kit (see the paragraph relating to the

functioning of the remote control).

Automatic start-up function

The hood is equipped with a temperature sensor which

activates the motor to the first suction speed (power) in the

event that the room temperature in the surrounding area is

The user may switch off or modify the suction speed (power)

(see paragraph “suction speed (power) control”).

Suction speed (power) control

The suction speed (power) is cyclical depending on the speed

sequence “stand-by – 1-2-3-4- Stand by -1-2-...” therefore

every time the T1 button is pressed on the control panel, the

suction speed (power) is increased by one level, in order to

switch off (stand-by) if the button is pressed again when the

hood is in suction speed (power) 4.

The hood may be switched off (stand-by) while the hood is set

on any speed by holding down the T1 button on the control

panel for a bit longer (more than 3 seconds).

The hood's suction speed (power) may be determined as the

control panel is equipped with a LED light that changes colors

as follows, depending on the suction speed (power):

Hood in stand-by: LED LIGHT SWITCHED OFF

suction speed (power) stays on for 5 minutes,

after which the suction motor will position itself on the 2

If pressed again, the suction motor will switch off (stand-by).

Grease filters need cleaning: FLASHING GREEN LED light

(read instructions found under “Reset and configuration for

filter saturation signal”)

Coal filters must be cleaned or replaced: FLASHING ORANGE (amber) LED light (read instructions found under

“Reset and configuration for filter saturation signal”)

Note: The reset procedure may be activated by both the

control panel and the remote control.

The center light may be switched on and off by pressing the

T2 button on the control panel.

Side light check (when scheduled)

The side lights may be switched on and off by pressing AND HOLDING DOWN the T2 button on the control panel.

HOLDING DOWN the button, besides permitting to switch the

hood on and off, it also regulates the light intensity given from

Note: The switching on and off functions (and regulating

function) alternate.

The regulation of the light intensity is not available for hoods

Reset and configuration for filter saturation signal

Switch on hood to any speed (see above paragraph “Suction

speed (power) selection”)8

Reset grease filter saturation signal (FLASHING GREEN LIGHT on control panel)

First proceed with filter maintenance as described in

corresponding paragraph.

Press and hold down (for more than 3 seconds) the T1 button

on the control panel, the LED light will stop flashing indicating

that the signal reset has been carried out, the hood will switch

Reset coal filter saturation signal (FLASHING ORANGE

First proceed with filter maintenance as described in

corresponding paragraph.

Press and hold down (for more than 3 seconds) the T1 button

on the control panel, the LED light will stop flashing indicating

that the signal reset has been carried out, the hood will switch

Coal filter saturation signal disactivaction (for particular

Switch off hood (see above paragraph “suction speed (power)

Press and hold down (for more than 5 seconds) the T1 button

on the control panel, the LED light will start flashing GREEN

indicating that the coal filter saturation signal has been

In order to reactivate the coal filter saturation signal, repeat

operation, the LED light will flash ORANGE (amber)

Command panel disassembly.

Remove equipment from electrical grid.

Remove grease filter.

Disconnect connectors.

Extract command panel by lifting it with a small screwdriver or

Using the remote control

The remote control is able to control all the functions of the

Select the suction speed (power)

Control the central light

Control the lateral lights

Reset e configure the saturation of the filters signal

Selecting the suction speed (power):

Press the "◄" key or the "►" key until you see the symbol

relating to the “Select the suction speed (power)” function.

Press the “+” key or the “-” key or the "■" key respectively to

increase or diminish or switch off (stand-by) the speed

Controlling the central light:

Press the "◄" key or the "►" key until seeing the symbol

relating to the “Controlling the central light” function on the

The central light can be switched on and off in two ways:

1. Press the “+” key or the “-” key respectively to switch the

central light (ON) or (OFF).

2. Press the "■" key to change the state of the light from

(OFF) to (ON) or vice versa.

Controlling the lateral lights:

Press the "◄" key or the "►" key until seeing the symbol

relating to the “Controlling the lateral lights” function on the

Press the "■" key to change the state of the lateral lights from

(OFF) to (ON) at maximum intensity and viceversa.

Press the “-” key to diminish the intensity of the lateral lights

until switching them off.

Press the “+” key to increase the intensity of the lateral lights.

Resetting and configuring the saturation of the filters

Switch the hood on at any speed (see paragraph above

“Selecting the suction speed (power”).

Press the "◄" key or the "►" key until seeing the symbol

relating to the “Resetting and configuration of the saturation of

the filters signal” function on the remote control.

Resetting the anti-fat filter saturation signal (GREEN LED FLASHING on the control bar)

First proceed with the maintenance of the filter as

described in the corresponding paragraph.

Press the “+” and “-” keys contemporaneously for about 3

seconds. The LED stops flashing, indicating that the resetting

of the signal has been accomplished.

Resetting the carbon filter saturation signal (ORANGE

(amber) LED FLASHING)

Note! The reset of the carbon filter saturation signal is

normally deactivated. To activate it, see under paragraph

“Activating the carbon filter saturation signal”.

First proceed with the maintenance of the filter as

described in the corresponding paragraph.

Press the “+” and “-” keys contemporaneously for about 3

seconds. The LED stops flashing, indicating that the resetting

of the signal has been accomplished.

Deactivating the carbon filter saturation signal (for

special applications)

Switch the hood off (see paragraph above “Selecting the

suction speed (power)”).

Press the "◄" key or the "►" key until seeing the symbol

relating to the “Resetting and configuration of the filters

saturation signal” function on the remote control.

Press keys “+” and “-” contemporaneously for about 3

seconds. The LED flashes in GREEN to indicate that the

carbon filter saturation signal has been deactivated.

To reactivate the carbon filter saturation signal, repeat the

operation. The LED flashes in ORANGE.9

Maintenance of the remote control

Cleaning the remote control:

Clean the remote control with a damp cloth and a neutral

solution of detergent without abrasive substances.

Changing the battery:

• Open the battery casing using a small screwdriver with a

• Change the finished battery with a new one of 12 V type

In inserting the new battery respect the polarity indicated

on the battery casing!

• Close the battery casing up again.

Disposal of the batteries

Ultimate disposal of the batteries should be handled according

to all national laws and regulations. Do not place used

batteries in your regular waste.

Ultimate disposal of the batteries must be done safely.

Contact your local waste management officials for other

information regarding the environmentally sound collection,

recycling, and disposal of the batteries.

Before performing any maintenance operation, isolate the

hood from the electrical supply by switching off at the

connector and removing the connector fuse.

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the

filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to

the motor or any fire damage linked to inappropriate

maintenance or failure to observe the above safety

Traps cooking grease particles.

This must be cleaned once a month (or when the filter

saturation indication system – if envisaged on the model in

possession – indicates this necessity) using non aggressive

detergents, either by hand or in the dishwasher, which must

be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour

slightly, but this does not affect its filtering capacity.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months (or

when the filter saturation indication system – if envisaged on

the model in possession – indicates this necessity) using hot

water and a suitable detergent, or in a dishwasher at 65°C (if

the dishwasher is used, select the full cycle function and leave

Eliminate excess water without damaging the filter, then put it

in the oven for 10 minutes at 100° C to dry completely.

Replace the mattress every 3 years and when the cloth is

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are

rotate anti-clockwise a quarter turn and take out.

insert the bulb in its seat so that its contacts enter the

congruent seats on the bulb-holder, rotate clockwise for about

Some models envisage lateral lamps:

Replace them with identical forms of 40W (E14) max).

Remove cover A to access the lamp housing A.

If the lights do not work, make sure that the lamps are fitted

properly into their housings before you call for technical

substances abrasives

Afzuigkap in stand-by: LED UITGESCHAKELD

Cappa in stand-by: LED SPENTO

2002/96/EC, Waste Electrical and Electronic Equipment

Electrical and Electronic Equipment (WEEE)

and Electronic Equipment, WEEE).

Friturestegning skal ske under opsyn for at forhindre, at den

Electronic Equipment (WEEE). Ved at sørge for, at dette
