USER MANUAL RTSC 570 L EINHELL

GB Original operating instructions

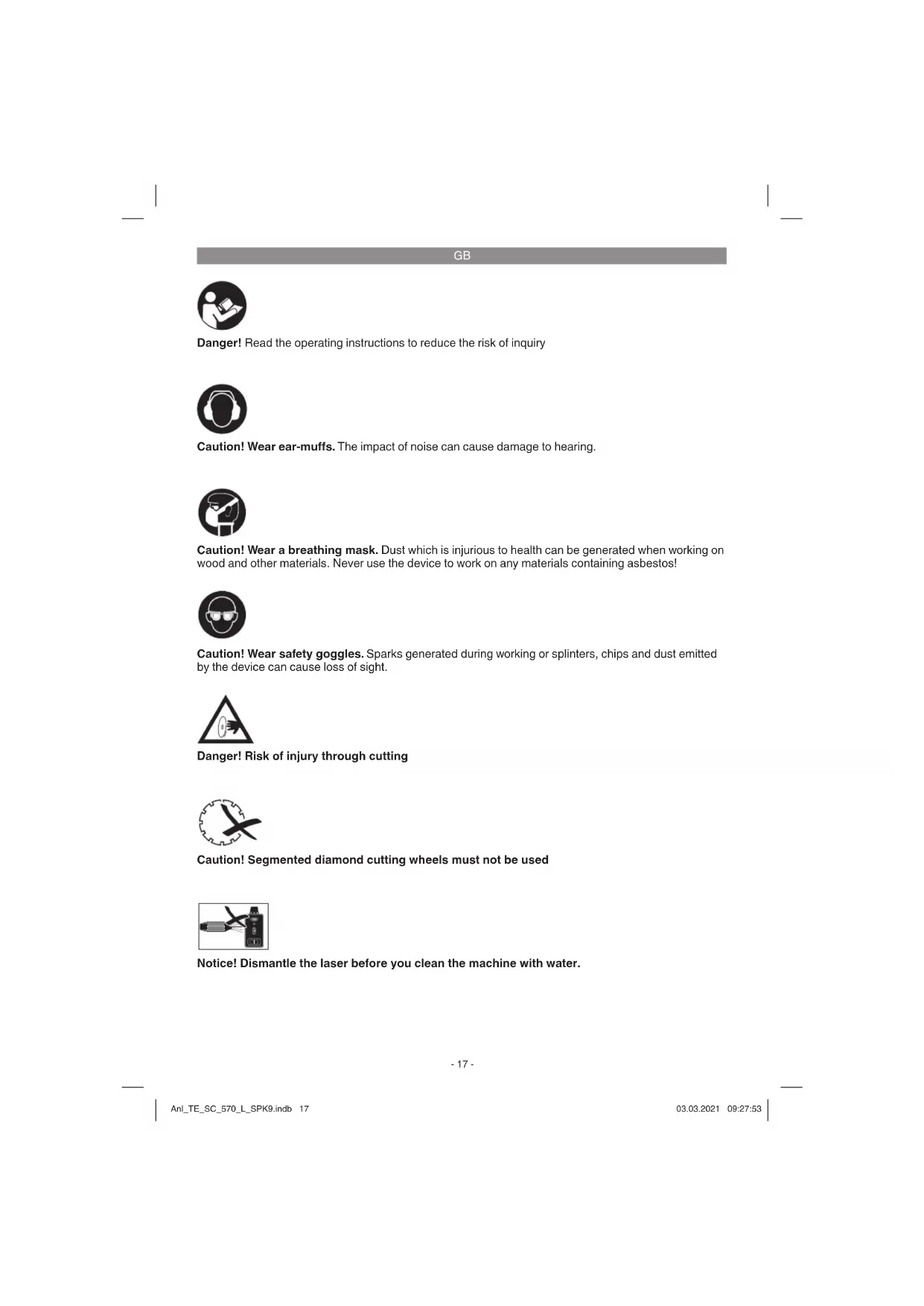

Danger! Read the operating instructions to reduce the risk of inquiry

Caution! Wear ear-muff s. The impact of noise can cause damage to hearing.

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted

by the device can cause loss of sight.

Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on

wood and other materials. Never use the device to work on any materials containing asbestos!

Danger! Risk of injury through cutting

Caution! Segmented diamond cutting wheels must not be used

Notice! Dismantle the laser before you clean the machine with water.

Anl_TE_SC_570_L_SPK9.indb 17Anl_TE_SC_570_L_SPK9.indb 17 03.03.2021 09:27:5303.03.2021 09:27:53GB

When using the equipment, a few safety pre-

cautions must be observed to avoid injuries and

damage. Please read the complete operating

instructions and safety regulations with due care.

Keep this manual in a safe place, so that the in-

formation is available at all times. If you give the

equipment to any other person, hand over these

operating instructions and safety regulations as

well. We cannot accept any liability for damage

or accidents which arise due to a failure to follow

these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be

found in the enclosed booklet.

Read all safety regulations and instructions.

Any errors made in following the safety regula-

tions and instructions may result in an electric

shock, fi re and/or serious injury.

Keep all safety regulations and instructions

in a safe place for future use.

Special information about the laser

 Danger! Laser radiation

Do not look into the beam

Do not look directly into the laser beam with

Never look directly into the laser path.

Never direct the laser beam at reflecting sur-

faces, persons or animals. Even a low output

laser beam can inflict injury on the eye.

Caution: It is vital to follow the work procedu-

res described in these instructions. Using the

tool in any other way may result in hazardous

exposure to laser radiation.

Never open laser module.

When the tool is not going to be used for an

extended period of time, the batteries should

Additional safety instructions

Set up the machine on a level, non-slip floor.

Make sure that the machine does not wobble.

Check that the voltage on the rating plate is

the same as your supply voltage. Only then

are you to insert the power plug in the socket-

Wear safety goggles.

Never use cracked diamond cutting wheels.

Replace immediately.

Never use segmented cutting wheels.

Caution! The cutting wheel runs on after the

machine is switched off!

Never apply side pressure to the diamond

cutting wheel in order to bring it to a halt.

Caution! The diamond cutting wheel must be

cooled with water at all times.

Always pull out the power plug before chan-

ging the cutting wheel.

Use only suitable diamond cutting wheels.

Never leave the machine unattended in

rooms with children.

Always pull out the power plug before exami-

ning the electric motor compartment system

Disorder in the work area can easily lead to

Make sure that you stand squarely and solidly

while working. Avoid abnormal body positions

and always keep your balance.

If the cutting wheel becomes jammed, switch

off the equipment and disconnect it from the

power supply; only then are you to remove the

2. Layout and items supplied

8. Safety hood for the cutting wheel

10. Star grip screw for setting the angle

11. Star grip screw for securing during transpor-

13. Cooling water pump

Please check that the article is complete as

specifi ed in the scope of delivery. If parts are

missing, please contact our service center or the

sales outlet where you made your purchase at

the latest within 5 working days after purchasing

the product and upon presentation of a valid bill

of purchase. Also, refer to the warranty table in

the service information at the end of the operating

Open the packaging and take out the equip-

Remove the packaging material and any

packaging and/or transportation braces (if

Check to see if all items are supplied.

Inspect the equipment and accessories for

If possible, please keep the packaging until

the end of the guarantee period.

The equipment and packaging material are

not toys. Do not let children play with plastic

bags, foils or small parts. There is a danger of

swallowing or suff ocating!

Stone cutting machine

Cooling water pump (13)

Original operating instructions

The stone cutting machine can be used for nor-

mal cutting work on concrete slabs, cobblesto-

nes, marble and granite slabs, bricks, tiles, etc.

as long as the machine is large enough to take

them. It is designed for DIY applications and craft

businesses. It should never be used for cutting

The machine should be used exclusively for its

intended purpose. No other use is permitted

and the manufacturer will not accept liability for

any damages or injury resulting from any such

use; responsibility rests with the user/operator

in any such case. Only use cutting wheels which

are suitable for the machine. Saw blades should

never be used. Compliance with the safety inst-

ructions, the assembly instructions, and advice

and instructions on operation contained in the

operating instructions also falls under the terms

of intended use. All persons operating or carrying

out maintenance work on the machine must be

acquainted with the above and be aware of all

In addition, strict compliance with the accident

prevention regulations in force in your area, as

well as all other general rules of health and safety

at work, is imperative. The manufacturer’s liability

shall be deemed void if the machine is modifi ed in

any way and the manufacturer shall therefore ac-

cept no liability for any damages arising as a re-

sult of modifi cations. Even if the machine is used

as intended, certain residual risk factors cannot

be completely eliminated. For reasons of design

and the construction of the machine, the following

eventualities are possible:

Contact with the diamond cutting wheel whe-

re it is not covered.

Contact with the diamond cutting wheel while

Defective diamond tips flying off the cutting

Workpieces or parts of workpieces kicking

Please note that our equipment has not been de-

signed for use in commercial, trade or industrial

applications. Our warranty will be voided if the

machine is used in commercial, trade or industrial

businesses or for equivalent purposes.

Anl_TE_SC_570_L_SPK9.indb 19Anl_TE_SC_570_L_SPK9.indb 19 03.03.2021 09:27:5303.03.2021 09:27:53GB

Jolly length 570 mm

Max. workpiece thickness 90° 60 mm

Max. workpiece thickness 45° 48 mm

Diamond wheel Ø 250 x Ø 25.4

A load factor of S2 20 min (intermittent periodic

duty) means that you may operate the motor con-

tinuously at its nominal power level (1500 W) for

no longer than the time stipulated on the specifi -

cations label (20 minutes ON period).

If you fail to observe this time limit the motor will

overheat. During the OFF period the motor will

cool again to its starting temperature.

Sound and vibration values were measured in

accordance with EN 61029.

uncertainty 3 dB L WA

sound power level 108 dB(A)

uncertainty 3 dB No-load operation

uncertainty 3 dB L WA

sound power level 89 dB(A)

uncertainty 3 dB Keep the noise emissions and vibrations to a

Only use appliances which are in perfect wor-

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne-

Switch the appliance off when it is not in use.

Even if you use this electric power tool in

accordance with instructions, certain resi-

dual risks cannot be rules out. The following

hazards may arise in connection with the

equipment’s construction and layout:

1. Lung damage if no suitable protective dust

3. Health damage caused by hand-arm vib-

rations if the equipment is used over a pro-

longed period or is not properly guided and

5. Before starting the equipment

Before you connect the equipment to the mains

supply make sure that the data on the rating plate

are identical to the mains data.

Always pull the power plug before making

adjustments to the equipment.

The machine must be set up so that it stands

firmly, i.e. it must be securely screwed to a

work bench, the base frame supplied in deli-

All covers and safety devices must be cor-

rectly attached before the machine is used for

The cutting wheel must rotate smoothly.

Fitting the hose and cable guide (Fig. 16)

Assembly of the sub-frame and cooling water

Secure the feet (1) to the water trough using

the thumb screws (12).

Place the complete tile cutter into the trough

Place the cooling water pump (13) in a suitab-

le position in the water trough and secure it to

the base of the trough with the suction cups.

The pump, cable and cooling water hose (14)

Anl_TE_SC_570_L_SPK9.indb 20Anl_TE_SC_570_L_SPK9.indb 20 03.03.2021 09:27:5403.03.2021 09:27:54GB

must not be able to get into the cutting area.

Fill with water until the pump (13) is complete-

ly immersed in water.

Remove the star handle screw (11) and spa-

Important: Before you lift the machine out of the

trough or transport it, the cutting unit must be se-

cured again with the star handle screw (11) and

To guarantee proper operation, the cooling water

hose (14) must not be kinked during installation.

It must be impossible for the cable and the coo-

ling water hose to get into the cutting area.

Before you begin cutting, wait until the cutting

wheel has reached maximum speed and the

cooling water pump (13) has started supply-

ing the cutting wheel with water.

Set the angle stop (5) to 90° and retighten the

star grip screw (27).

Retighten the screws (28) to fasten the angle

Move the machine head (29) to the far end

with the handle (9).

Position the tile against the rail fence (6) on

Switch on the tile cutting machine.

Caution: Always wait until the cooling water

has reached the cutting wheel (2) first.

Move the machine head (29) slowly and

smoothly forward through the tile with the

Switch off the tile cutting machine after com-

Cut as described in 6.2.

6.4 45° Lengthwise cut, “jolly cut” (Fig.10)

Loosen the star grip screw (10).

Tilt the guide rail (7) to the left to 45° on the

Cut as described in 6.2.

6.4.1 Machining large workpieces (Fig. 11/12)

To enable you to machine large workpieces, the

cutting unit can be pivoted upwards. In this posi-

tion you can machine workpieces with a length of

up to 570 mm (up to a max. workpiece thickness

Remove the screw (37) on the top for this

The cutting until will pivot upwards automa-

You can now complete the required cuts as

described in sections 6.2 to 6.4. All that is

required is slight additional pressure down-

wards on the handle.

6.5 Changing the diamond cutting wheel

Pull out the power plug.

Unscrew the 3 screws (30) and remove the

safety hood (8) for the blade.

Place the wrench (31) on the motor shaft and

Using the wrench (34), loosen the flange nut

in the direction of rotation of the cutting wheel

(2). (Caution: Left-hand screw-thread.)

Remove the outer flange (35) and cutting

Clean the mounting flange thoroughly before

fitting the new cutting wheel.

Fit the new cutting wheel by following the

above procedures in reverse and then tighten.

Caution: Pay attention to the direction of rota-

tion of the cutting wheel!

Mount the safety hood (8) for the blade again.

6.6 Operating the laser (Fig. 17-21)

6.6.1 Stationary operation (Fig. 17/18)

Switch on the laser (45). A laser line is projected

onto the material you wish to process, providing

Anl_TE_SC_570_L_SPK9.indb 21Anl_TE_SC_570_L_SPK9.indb 21 03.03.2021 09:27:5403.03.2021 09:27:54GB

an exact guide for the cut. You can additionally ad-

just the laser with the screw (47). To do so, undo

the screw (47) by a few turns. The laser (45) can

now be moved and adjusted vertically and hori-

zontally on the adapter (48). Tighten screw (47)

again when you are satisfi ed with the adjustment.

6.6.2 Use as a laser level unit (Fig. 17-20)

Remove the screw (47). The laser (45) can now

be taken off the adapter (48) and used as an ex-

ternal laser level unit. The laser (45) is equipped

with two spirit levels (49) and can therefore be

adjusted both horizontally and vertically. The base

plate (50) of the laser is magnetic, enabling it to

be secured on suitable surfaces.

See Figures 19 and 20 for two examples of use.

6.6.3 Replacing the battery

Unscrew the 4 screws (51) and remove the base

plate (50). Take out the old batteries and replace

with new ones. Then screw the base plate (50)

7. Replacing the power cable

If the power cable for this equipment is damaged,

it must be replaced by the manufacturer or its

after-sales service or similarly trained personnel

8. Cleaning, maintenance and

ordering of spare parts

Always pull out the mains power plug before star-

ting any cleaning work.

Remove dust and dirt from the machine at

regular intervals. Cleaning is best carried out

with a rag or brush.

Never use caustic agents to clean plastic

The trough (3) and the cooling water pump

(13) must be cleaned at regular intervals or

proper cooling of the diamond cutting wheel

(2) will not be guaranteed.

Lubricate all moving parts at regular intervals.

The coolant must be drained completely be-

Do not lift the machine by any of the safety

8.4 Ordering replacement parts:

Please quote the following data when ordering

Article number of the machine

Identification number of the machine

Replacement part number of the part required

For our latest prices and information please go to

www.Einhell-Service.com

9. Disposal and recycling

The unit is supplied in packaging to prevent its

being damaged in transit. This packaging is raw

material and can therefore be reused or can be

returned to the raw material system.

The unit and its accessories are made of various

types of material, such as metal and plastic. De-

fective components must be disposed of as spe-

cial waste. Ask your dealer or your local council.

Store the equipment and accessories out of

children’s reach in a dark and dry place at above

freezing temperature. The ideal storage tempe-

rature is between 5 and 30 °C. Store the electric

tool in its original packaging.

11. Battery disposal

Batteries contain materials that are potentially

harmful to the environment. Never place batteries

in your household refuse, in fi re or in water. Bat-

teries should be collected, recycled or disposed

of by environment-friendly means. Send your old

batteries to Einhell Germany AG, Wiesenweg 22,

94405 Landau/Isar, Germany. You can then be

sure that the equipment will be correctly disposed

of by the manufacturer.

Anl_TE_SC_570_L_SPK9.indb 22Anl_TE_SC_570_L_SPK9.indb 22 03.03.2021 09:27:5403.03.2021 09:27:54GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and

its implementation in national laws, old electric power tools have to be separated from other waste and

disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment

must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment.

The old equipment can be returned to a suitable collection point that will dispose of the equipment in

accordance with the national recycling and waste disposal regulations. This does not apply to any ac-

cessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac-

companying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

The product meets the requirements of EN 61000-3-11 and is subject to special connection condi-

tions. This means that use of the product at any freely selectable connection point is not allowed.

Given unfavorable conditions in the power supply the product can cause the voltage to fluctuate

The product is intended solely for use at connection points that

a) do not exceed a maximum permitted mains system impedance of Z ≤ 0,29 Ω or

b) have a continuous current-carrying capacity of the mains of at least 100 A per phase.

As the user, you are required to ensure, in consultation with your electric power company if neces-

sary, that the connection point at which you wish to operate the product meets one of the two requi-

rements, a) or b), named above.

Anl_TE_SC_570_L_SPK9.indb 23Anl_TE_SC_570_L_SPK9.indb 23 03.03.2021 09:27:5403.03.2021 09:27:54GB

We have competent service partners in all countries named on the guarantee certifi cate whose contact

details can also be found on the guarantee certifi cate. These partners will help you with all service re-

quests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the

following parts are therefore also required for use as consumables.

Consumables* Cutting wheel

* Not necessarily included in the scope of delivery!

In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com.

Please ensure that you provide a precise description of the problem and answer the following questions

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)?

Anl_TE_SC_570_L_SPK9.indb 24Anl_TE_SC_570_L_SPK9.indb 24 03.03.2021 09:27:5503.03.2021 09:27:55GB

Warranty certifi cate

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the

unlikely event that your device develops a fault, please contact our service department at the address

shown on this guarantee card. You can also contact us by telephone using the service number shown.

Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty

terms regulate additional warranty services, which the manufacturer mentioned below promises to

buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee

claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of

said defects on the product or the replacement of the product, whichever we prefer.

Please note that our devices are not designed for use in commercial, trade or professional applica-

tions. A guarantee contract will not be created if the device has been used by commercial, trade or

industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect

installation, a failure to follow the operating instructions (for example connecting it to an incorrect

mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex-

posing the device to abnormal environmental conditions or by lack of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example overloading the device or the

use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand,

stones or dust, transport damage), the use of force or damage caused by external forces (for ex-

ample by dropping it).

- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the

defect being noticed. No guarantee claims will be accepted after the end of the guarantee period.

The original guarantee period remains applicable to the device even if repairs are carried out or

parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension

of the guarantee period, and no new guarantee will become active for the work performed or parts

fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at:

www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new

device. Devices that are returned without proof of purchase or without a rating plate shall not be

covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is co-

vered by our guarantee, then the item in question will either be repaired immediately and returned to

you or we will send you a new replacement.

Of course, we are also happy off er a chargeable repair service for any defects which are not covered by

the scope of this guarantee or for units which are no longer covered. To take advantage of this service,

please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as

set out in the service information in these operating instructions.

Anl_TE_SC_570_L_SPK9.indb 25Anl_TE_SC_570_L_SPK9.indb 25 03.03.2021 09:27:5503.03.2021 09:27:55F

Wiesenweg 22, 94405 Landau/Isar, Germany. Till-

senweg 22, 94405 Landau/Isar, Germany. Tam

Wiesenweg 22, 94405 Landau/Isar, Germany.

22, 94405 Landau/Isar, Germany. El fabricante

94405 Landau/Isar, Germany. Tam bo zagotovlje-

Wiesenweg 22, 94405 Landau/Isar, Germany.

GB explains the following conformity according to EU directi-

ves and norms for the following product

F déclare la conformité suivante selon la directive CE et les

2000/14/EC_2005/88/EC Annex V Annex VI Noise: measured L WA

= dB (A); guaranteed L WA

2004/26/EC Emission No.:
