USER MANUAL BTSS 405 E EINHELL

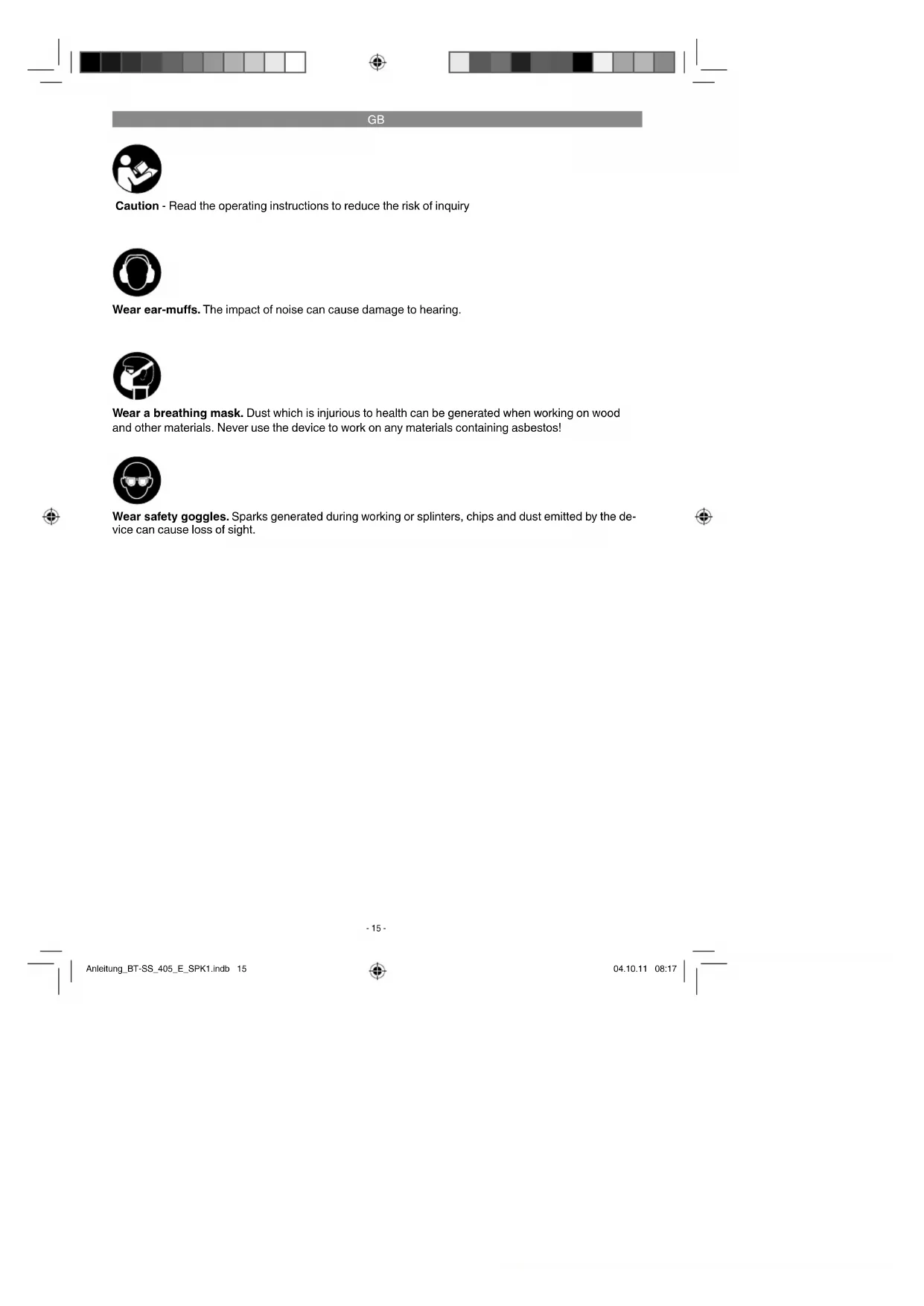

GB Original operating instructions

Caution - Read the operating instructions to reduce the risk of inquiry

Wear ear-muff s. The impact of noise can cause damage to hearing.

Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the de-

vice can cause loss of sight.

Wear a breathing mask. Dust which is injurious to health can be generated when working on wood

and other materials. Never use the device to work on any materials containing asbestos!

Anleitung_BT-SS_405_E_SPK1.indb 15Anleitung_BT-SS_405_E_SPK1.indb 15 04.10.11 08:1704.10.11 08:17GB

When using the equipment, a few safety pre-

cautions must be observed to avoid injuries and

damage. Please read the complete operating

instructions and safety regulations with due care.

Keep this manual in a safe place, so that the in-

formation is available at all times. If you give the

equipment to any other person, hand over these

operating instructions and safety regulations as

well. We cannot accept any liability for damage

or accidents which arise due to a failure to follow

these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be

found in the enclosed booklet.

Read all safety regulations and instructions.

Any errors made in following the safety regula-

tions and instructions may result in an electric

shock, fi re and/or serious injury.

Keep all safety regulations and instructions

in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1/3)

1 Dust extraction adapter

3 Blade speed regulator

Open the packaging and take out the equip-

Remove the packaging material and any

packaging and/or transportation braces (if

Check to see if all items are supplied.

Inspect the equipment and accessories for

If possible, please keep the packaging until

the end of the guarantee period.

The equipment and packaging material are

not toys. Do not let children play with plastic

bags, foils or small parts. There is a danger of

swallowing or suff ocating!

Sawdust blower facility

The fretsaw is intended for cutting square-edged

timber or wood-like workpieces. Round materials

may only be cut with suitable holding devices.

The machine is to be used only for its prescribed

purpose. Any other use is deemed to be a case

of misuse. The user / operator and not the manu-

facturer will be liable for any damage or injuries of

any kind caused as a result of this.

Please note that our equipment has not been de-

signed for use in commercial, trade or industrial

applications. Our warranty will be voided if the

machine is used in commercial, trade or industrial

businesses or for equivalent purposes.

The equipment is to be operated only with suita-

ble saw blades. It is prohibited to use any type of

cutting-off wheel. To use the equipment properly

you must also observe the safety regulations, the

assembly instructions and the operating instruc-

tions to be found in this manual.

All persons who use and service the equipment

have to be acquainted with this manual and must

be informed about the machine’s potential ha-

It is also imperative to observe the accident pre-

vention regulations in force in your area.

The same applies for the general rules of health

Anleitung_BT-SS_405_E_SPK1.indb 16Anleitung_BT-SS_405_E_SPK1.indb 16 04.10.11 08:1704.10.11 08:17GB

The manufacturer will not be liable for any chan-

ges made to the machine nor for any damage

resulting from such changes.

Even when the equipment is used as prescribed

it is still impossible to eliminate certain residual

risk factors. The following hazards may arise in

connection with the machine’s construction and

Contact with the blade in the uncovered cut-

Injuries (cuts) when changing the blade.

Tilting of the workpiece due to inadequate

Mains voltage: 230 V ~ 50Hz

Power consumption: 80 W Operating mode: S2 20 min

Power consumption: 120 W Operating mode: S6 30%

Tilting range of table: 0° to 45° to the left

Saw blade length: 127 mm

Max. cutting height at 90°: 57 mm

Max. cutting height at 45°: 27 mm

A load factor of S2 20 min (intermittent periodic

duty) means that you may operate the motor

continuously at its nominal power level (80 W) for

no longer than the time stipulated on the speci-

fi cations label (20 min). If you fail to observe this

time limit the motor will overheat. During the OFF

period the motor will cool again to its starting

Operating mode S6 30%: Continuous operation

with idling (cycle time 10 minutes). To ensure that

the motor does not become excessively hot, it

may only be operated for 30% of the cycle at the

specifi ed rating and must then be allowed to idle

for 70% of the cycle.

Sound and vibration values were measured in

accordance with EN 61029.

Operation Idle speed

sound pressure level: 80.2 dB 65.1 dB L WA

sound power level: 88.4 dB 74.8 dB Wear ear-muff s.

The impact of noise can cause damage to hea-

Keep the noise emissions and vibrations to a

Only use appliances which are in perfect wor-

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne-

Switch the appliance off when it is not in use.

Wear protective gloves.

Even if you use this electric power tool in

accordance with instructions, certain resi-

dual risks cannot be rules out. The following

hazards may arise in connection with the

equipment’s construction and layout:

1. Lung damage if no suitable protective dust

5. Before starting the equipment

5.1 General information

All covers and safety devices have to be pro-

perly fitted before the machine is switched

It must be possible for the blade to run freely.

When working with wood that has been

processed before, watch out for foreign bo-

dies such as nails or screws etc.

Before you actuate the On/Off switch, make

sure that the saw blade is correctly fitted and

that the machine’s moving parts run smoothly.

Before you connect the machine to the power

supply, make sure the data on the rating plate

is the same as that for your mains.

5.2 Mounting the saw on a workbench (Fig. 2)

1. It is better to mount the saw on a solid wood

workbench rather than on a weak plywood

stand where vibrations and noise are certain

2. The tools and hardware needed to mount the

saw on a work bench are not supplied with

the saw. Be sure to use equipment of at least

3. A sound-absorbing foam rubber mat is not

supplied with the saw. It is strongly

recommended to use such a mat, however, in

order to minimize vibrations and noise.

Soft foam rubber mat: 450 x 250 x 13 mm

Do not overtighten the screws. Leave enough

scope for the foam rubber mat to develop a good

Mounting the saw on a workbench, see the Figure

(2) List of components in the illustration:

B: Foam rubber support

Caution! Pull out the power plug before carrying

out any maintenance and conversion work on

5.3.1 Mounting the saw blade guard and the

sawdust blower facility (Fig. 4/5/6)

Put the retention bolt (9) on the radial arm

Slide the saw blade guard (10) onto the reten-

Insert the screw (20) through the bore hole of

the retention bolt (9) and the saw blade guard

Use the nut (21) to secure the screw from

The saw blade guard can be fixed at various

heights with the clamping screw (11).

Mount the blow-off device (16) as shown in

5.3.2 Changing the blade (Fig. 1/3/7)

Turn the clamping screw (14) clockwise in

order to take the tension off the blade (15).

Unscrew the left cover (4).

First take the blade out of the top blade hol-

Pull the blade up and out through the table

Install the new blade in reverse order.

Caution: Always insert the blade so that the

teeth point toward the saw table.

The blade can be inserted in slot a or b;

Slot a: For cuts along the axis of the radial arm.

Slot b: For cuts across the axis of the radial arm.

Tension the blade by turning the clamping screw

(14) anticlockwise (right-hand thread).

Tilt the table (7) to the left until the indicator

(17) points to the required angle value on the

Important: For precision work you should

fi rst carry out a trial cut and then re-adjust

the tilt angle as required.

Anleitung_BT-SS_405_E_SPK1.indb 18Anleitung_BT-SS_405_E_SPK1.indb 18 04.10.11 08:1704.10.11 08:17GB

Your saw does not cut wood automatically.

For cutting to occur, you have to guide the

wood against the blade.

The teeth cut only on the down stroke of the

You have to guide the wood slowly against

the blade because the teeth are very small.

Every new user needs a certain training

period. You are certain to break a number of

blades at the beginning.

When cutting thick timber, be particularly

careful not to bend or twist the blade. This will

help to prolong blade life.

6.2 On/Off switch (Fig. 3 / Item 2)

Press the green button to switch the saw on.

Press the red button to switch the machine

Please note: The machine is equipped with a

safety switch to prevent it being switched on

again accidentally after a power failure.

6.3 Blade speed regulator (3)

The blade speed regulator allows you to set the

blade speed appropriate to the material to be cut.

6.4 Carrying out internal cuts

1. A feature of this fretsaw is that it allows you to

carry out internal cuts in a panel without

damaging it on the outside or circumference.

Warning! To avoid injury from accidental star-

ting: Before you remove or change the blade,

always set the switch to „0“ position and pull

the power plug out of the socket.

2. To carry out internal cuts in a panel: Remove

the blade as described in Section 5.3.2

3. Drill a hole in the panel in question.

4. Place the panel on the saw table with the

drilled hole above the access hole.

5. Install the blade through the hole in the panel

and adjust the blade tension.

6. When you have completed the internal cuts,

remove the blade from the blade holders (as

described in Section 5.3.2) and take the pa-

6.5 Adapter for jigsaw blades (Fig. 8/9)

Remove the saw blade as described in 5.3.2.

Now insert the fretsaw blade (a) in the adap-

Then hook both adapters (22) on the two saw

blade holders (8/13).

Insert the saw blade as described in 5.3.2.

7. Cleaning, maintenance and

ordering of spare parts

Always pull out the mains power plug before star-

ting any cleaning work.

Keep all safety devices, air vents and the

motor housing free of dirt and dust as far as

possible. Wipe the equipment with a clean

cloth or blow it with compressed air at low

We recommend that you clean the device

immediately each time you have finished

Clean the equipment regularly with a moist

cloth and some soft soap. Do not use

cleaning agents or solvents; these could

attack the plastic parts of the equipment. En-

sure that no water can seep into the device.

Lubricate the bearings of the guide rollers periodi-

cally with high-grade machine grease, but at least

after every 25-30 hours in operation.

In case of excessive sparking, have the carbon

brushes checked only by a qualifi ed electrician.

Important! The carbon brushes should not be rep

laced by anyone but a qualifi ed electrician.

There are no parts inside the equipment which

require additional maintenance.

Anleitung_BT-SS_405_E_SPK1.indb 19Anleitung_BT-SS_405_E_SPK1.indb 19 04.10.11 08:1704.10.11 08:17GB

7.5 Ordering replacement parts:

Please quote the following data when ordering

Article number of the machine

Identification number of the machine

Replacement part number of the part required

For our latest prices and information please go to

8. Disposal and recycling

The unit is supplied in packaging to prevent its

being damaged in transit. This packaging is raw

material and can therefore be reused or can be

returned to the raw material system.

The unit and its accessories are made of various

types of material, such as metal and plastic. De-

fective components must be disposed of as spe-

cial waste. Ask your dealer or your local council.

Store the equipment and accessories out of

children’s reach in a dark and dry place at above

freezing temperature. The ideal storage tempe-

rature is between 5 and 30 °C. Store the electric

tool in its original packaging.

Anleitung_BT-SS_405_E_SPK1.indb 20Anleitung_BT-SS_405_E_SPK1.indb 20 04.10.11 08:1704.10.11 08:17GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and

its implementation in national laws, old electric power tools have to be separated from other waste and

disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment

must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment.

The old equipment can be returned to a suitable collection point that will dispose of the equipment in

accordance with the national recycling and waste disposal regulations. This does not apply to any ac-

cessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers

accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

Anleitung_BT-SS_405_E_SPK1.indb 21Anleitung_BT-SS_405_E_SPK1.indb 21 04.10.11 08:1704.10.11 08:17GB

Warranty certifi cate

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the

unlikely event that your device develops a fault, please contact our service department at the address

shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to off er

our assistance under the service number printed below. Please note the following terms under which

guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not aff ect your statutory warranty

rights. We do not charge you for this guarantee.

2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restric-

ted to the rectifi cation of these defects or replacement of the device. Please note that our devices

have not been designed for use in commercial, trade or industrial applications. Consequently, the

guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or

for other equivalent activities. The following are also excluded from our guarantee: compensation for

transport damage, damage caused by failure to comply with the installation/assembly instructions

or damage caused by unprofessional installation, failure to comply with the operating instructions

(e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as

overloading of the device or use of non-approved tools or accessories), failure to comply with the

maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or

dust), eff ects of force or external infl uences (e.g. damage caused by the device being dropped) and

normal wear resulting from proper operation of the device. This applies in particular to rechargeable

batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rende-

red null and void if any attempt is made to tamper with the device.

3. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guaran-

tee claims should be submitted before the end of the guarantee period within two weeks of the de-

fect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The

original guarantee period remains applicable to the device even if repairs are carried out or parts are

replaced. In such cases, the work performed or parts fi tted will not result in an extension of the gua-

rantee period, and no new guarantee will become active for the work performed or parts fi tted. This

also applies when an on-site service is used.

4. In order to assert your guarantee claim, please send your defective device postage-free to the

address shown below. Please enclose either the original or a copy of your sales receipt or ano-

ther dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of

purchase. It would help us if you could describe the nature of the problem in as much detail as pos-

sible. If the defect is covered by our guarantee then your device will either be repaired immediately

and returned to you, or we will send you a new device.

Of course, we are also happy off er a chargeable repair service for any defects which are not covered by

the scope of this guarantee or for units which are no longer covered. To take advantage of this service,

please send the device to our service address.

Anleitung_BT-SS_405_E_SPK1.indb 22Anleitung_BT-SS_405_E_SPK1.indb 22 04.10.11 08:1704.10.11 08:17F

GB explains the following conformity according to EU directi-

ves and norms for the following product

F déclare la conformité suivante selon la directive CE et les

2000/14/EC_2005/88/EC Annex V Annex VI Noise measured: LWA = dB (A); guaranteed LWA = dB (A)
