USER MANUAL Multipro Sense FPM800 KENWOOD

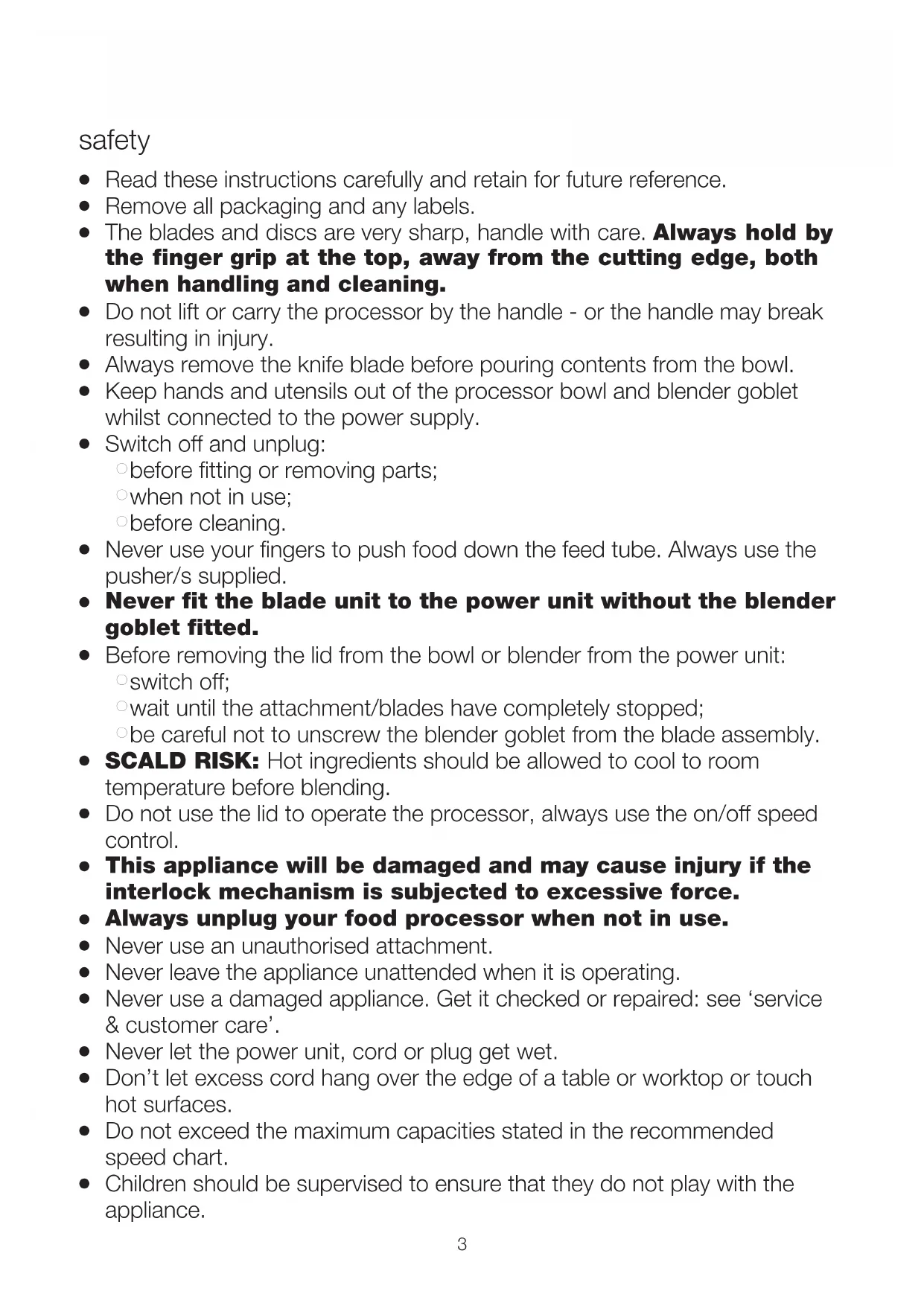

Read these instructions carefully and retain for future reference.

Remove all packaging and any labels.

The blades and discs are very sharp, handle with care. Always hold by the finger grip at the top, away from the cutting edge, both when handling and cleaning.

Do not lift or carry the processor by the handle - or the handle may break resulting in injury.

Always remove the knife blade before pouring contents from the bowl.

Keep hands and utensils out of the processor bowl and blender goblet whilst connected to the power supply.

Switch off and unplug:

before fitting or removing parts;

Never use your fingers to push food down the feed tube. Always use the pusher/s supplied.

Never fit the blade unit to the power unit without the blender goblet fitted.

Before removing the lid from the bowl or blender from the power unit:

wait until the attachment/blades have completely stopped;

be careful not to unscrew the blender goblet from the blade assembly.

SCALD RISK: Hot ingredients should be allowed to cool to room temperature before blending.

Do not use the lid to operate the processor, always use the on/off speed control.

This appliance will be damaged and may cause injury if the interlock mechanism is subjected to excessive force.

Always unplug your food processor when not in use.

Never use an unauthorised attachment.

Never leave the appliance unattended when it is operating.

Never use a damaged appliance. Get it checked or repaired: see ‘service & customer care’.

Never let the power unit, cord or plug get wet.

Do not exceed the maximum capacities stated in the recommended speed chart.

Children should be supervised to ensure that they do not play with the appliance.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Misuse of your processor/blender can result in injury.

The maximum rating is based on the attachment that draws the greatest load. Other attachments may draw less power. Refer to the relevant section under “using the attachments” for additional safety warnings for each individual attachment. blender

SCALD RISK: Hot ingredients should be allowed to cool to room temperature before blending.

Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning.

Only operate the blender with the lid in place.

Only use the goblet with the blade assembly supplied.

To ensure the long life of your blender, do not run it for longer than 60 seconds.

Smoothie recipes - never blend frozen ingredients that have formed a solid mass during freezing, break it up before adding to the goblet.

The skirt on the base of the goblet is fitted during manufacture and no attempt should be made to remove it.

IMPORTANT: HOT BLENDING INSTRUCTIONS To minimise the possibility of scalding when blending hot ingredients keep hands and other exposed skin away from the lid to prevent possible burns. The following precautions must be observed:

CAUTION: Blending very hot ingredients may result in hot liquid and steam being forced suddenly past the lid or filler cap

We recommend that hot ingredients are allowed to cool before blending.

NEVER exceed 1200mls/5 cups capacity if processing hot liquids, such as soups (refer to the markings on the goblet).slicing/grating discs

Never remove the lid until the cutting disc has completely stopped.

Handle the cutting discs with care - they are extremely sharp.

Do not overfill the bowl – do not exceed the maximum capacity level marked on the bowl. mini bowl and knife

Never remove the lid until the knife blade has completely stopped.

The knife blade is very sharp - always handle with care.

Do not process spices – they may damage the plastic.

Do not process hard food such as coffee beans, ice cubes or chocolate – they may damage the blade.

ALWAYS commence blending at a low speed and gradually increase the speed. NEVER blend hot liquids by using the Pulse setting.

Liquids which tend to foam such as milk, should be limited to a maximum capacity of 1000mls/4 cups.

Take care when handling the blender as the goblet and its contents will be very hot.

Take particular care when removing the lid. The lid is designed to be a tight fit to prevent leakage. If necessary protect your hands with a cloth or oven gloves when handling.

Ensure the goblet is securely attached to the base and when removing from the appliance, guide the base and ensure it is removed together with the goblet.

Ensure that the lid and filler cap are securely in place before every blending operation.

Always ensure that the vents in the filler cap are clear before every blending operation

When fitting the lid to the goblet always ensure that the lid and goblet rim are clean and dry to ensure a good seal and prevent spillage. before plugging in Make sure your electricity supply is the same as the oneshown on the underside of your appliance.WARNING: THIS APPLIANCE MUST BE EARTHED. This appliance conforms to EC directive 2004/108/EC onElectromagnetic Compatibility and EC regulation no.1935/2004 of 27/10/2004 on materials intended for contactwith food.before using for the first time1 Remove the plastic blade covers from the knife blade. Takecare the blades are very sharp. These covers shouldbe discarded as they are to protect the blade duringmanufacture and transit only.2 Wash the parts see ‘care & cleaning’ key processor

power unit Trïtan™ bowl with drive shaft detachable drive shaft Trïtan™ lid feed tube pushers safety interlocks cord storage (at back) auto button speed/pulse control power on lightthermoresist blender

iller cap vents attachments

extra fine grater disc

attachment storage box to use your food processor 1 Fit the bowl to the power unit. Place the handle towards the back on the right hand side and turn clockwise

until it locks. 2 Fit an attachment over the bowl drive shaft. Note: Detachable drive shaft

should be fitted when using the discs, mini bowl, whisk, folding tool and citrus juicer.

Always fit the bowl and attachment onto the processor before adding ingredients. 3 Fit the lid

- ensuring the top of the drive shaft/tool locates into the centre of the lid.

The processor will not operate if the bowl or lid are not fitted correctly into the interlock. Check that the feed tube and bowl handle are situated to the right hand side. 4 Plug in. The Power On light will come on and flash until the bowl and lid are fitted correctly. Select one of the following options: - Auto Button – the light will come on when the Auto Button is pressed and the optimum speed for the attachment will be automatically selected. Speed Control – manually select the required speed (refer to the recommended speed chart). Pulse – use the pulse (P) for short bursts. The pulse will operate for as long as the control is held in position. 5 At the end of processing turn the speed control to the ‘0’ off position or if using the Auto press the button and the light will go out.

The Power On light will flash if either the lid or bowl are not fitted or incorrectly fitted.

The Auto Button will not operate if a speed is selected on the speed control.

Always switch off and unplug before removing the lid. important

Your processor is not suitable for crushing or grinding coffee beans, or converting granulated sugar to caster sugar. Eco function If the food processor is left plugged in for over 30 minutes without being used, it will go into standby mode to reduce

The Power On light will pulse slowly and the food processor will not operate until one of the following actions are carried

he Auto button is pressed.

The speed control is turned to a speed and then turned back to the ‘O’ off position.

he light will change to being constantly lit when ready to use. Note: If the bowl or lid are not engaged into the interlock the

ower on light will pulse more rapidly than the Eco function. to use your thermoresist blender 1 Fit the sealing ring

- ensuring the seal is located correctly in the grooved area.

Leaking will occur if the seal is damaged or incorrectly fitted. 2 Hold the underside of the blade unit

and insert the blades into the goblet - turn anti-clockwise until it clicks

Refer to the graphics on the underside of the blade unit as follows: - unlocked position - locked position The blender will not work if incorrectly assembled. 3 Put your ingredients into the goblet. 4 Fit the lid to the goblet and push down to secure

The appliance will not operate if the blender is incorrectly fitted to the interlock. 6 Select Auto, or a speed (refer to the recommended speed chart) or use the pulse control. hints

When making mayonnaise, put all the ingredients, except the oil, into the blender. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid.

Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid.

Ice crushing - operate the pulse in short bursts until crushed to the desired consistency.

The processing of spices is not recommended as they may damage the plastic parts.

The appliance will not work if the blender is incorrectly fitted.

To blend dry ingredients - cut into pieces, remove the filler cap, then with the appliance running, drop the pieces down one by one. Keep your hand over the opening. For best results empty regularly.

Don’t use the blender as a storage container. Keep it empty before and after use.

Never blend more than 1.6 litres (2 pts 8 fl oz) - less for frothy liquids like milkshakes.

recommended speed chart tool/attachment function recommended processing maximum

nife blade All in one cake mixes 8 15-20 secs 1.7Kg/3lb 7oz

astry - rubbing fat into flour 5 –8 10 secs 500g/1lb 2oz flour weight

dding water to combine pastry ingredients 10-20 secs

hopping fish and lean meat Pulse –8 10-30 secs 800g/1lb 8oz

âtés and terrines max lean beef Chopping vegetables Pulse 5-10 secs 500g/1lb 2oz Chopping nuts 8 30-60 secs 200g/8oz Pureeing soft fruit, cooked fruit and vegetables 8 10-30 secs 1Kg/2lb 4oz Sauces, dressing and dips 8 2 mins max 800g/1lb 8oz Knife blade with Cold soups Start at low 30-60 secs 1.7 litres/3pts

ax capacity disc speed and Milkshakes/batters increase to 15-30 secs 1.3 litres/2pts maximum Dual whisk Egg whites 8 60-90 secs 4 (150g) Egg & sugar for fatless sponges 8 4-5 min 3 eggs (150g) Cream 8 30 secs 500mls/18 fl oz Creaming fat and sugar 8 2 mins max 200g/8oz fat 200g/8oz sugar Dough tool Yeasted mixes 8 60 secs 1Kg/ 2lb 4oz total wt White Bread Flour 8 60 secs 600g/1lb 6oz flour wt Wholemeal Bread Flour 8 60 secs 500g/1lb 2oz flour wt Folding tool Whipping cream and fruit purees 1 –2 60 secs 300g/12oz cream, 300g/12oz puree Egg whites into heavy mixtures 1 –2 60 secs 600g/1lb 6oz total wt Flour into creamed fat and sugar mixes 1 –2 60 secs 200g/8oz flour wt Macaroons 1 –2 60 secs 500g/1lb 2oz total wt Discs - slicing/grating Firm food items such as carrots, hard cheeses 5 –8 – Softer items such as cucumbers, tomatoes 1 –5 – Extra fine grater Parmesan cheese, potatoes for German 8– potato dumplings Fine Julienne disc Potato straws and rosti 8– Stir fries and vegetable garnishes Thermoresist blender Cold liquids and drinks 8 15-30 secs 1.6 litres/2 pt 8 fl oz Stock based soups 8 30 secs 1.2 litres/2 pt 1 fl oz Soups using milk 8 30 secs 1 litres/1pt 8 fl oz We recommend that hot ingredients are allowed to cool before blending. However should you wish to process hot ingredients please read the Hot Blending Safety instructions. Mini bowl and knife Meat 8 20 secs + Pulse 300g/12oz Lean beef Chopping herbs 8 30 secs 20g/1oz Chopping nuts 8 30 secs 100g/4oz Mayonnaise 8 30 secs 2 Eggs 300g/12oz Oil Purees 8 30 secs 200g/8oz Mini bowl with discs See individual discs recommended speed – 500g/1lb 2oz Max Do not overfill bowl Citrus Juicer Smaller items i.e. limes and lemons 1 –2 – 2Kg/4lb 8oz Larger fruits i.e. oranges and grapefruits

This is for guidance only and will vary depending on the exact recipe and ingredients being processed. Do not fill above the maximum capacity marked on the bowlusing the attachments

efer to recommended speed chart for each attachment.

knife blade The knife blade is the most versatile of all the attachments.

he length of the processing time will determine the texture achieved. For coarser textures use the pulse control. Use the knife blade for cake and pastry making, chopping

aw and cooked meat, vegetables, nuts, pâté, dips, pureeing soups and to also make crumbs from biscuits and bread.

ut food such as meat, bread, vegetables into cubes approximately 2cm/3/4in before processing.

iscuits should be broken into pieces and added down the feed tube whilst the appliance is running.

When making pastry use fat straight from the fridge cut into 2cm/3/4in.cubes.

Take care not to over-process.

dough tool Use for yeasted dough mixes.

Place the dry ingredients in the bowl and add the liquid down the feed tube whilst the appliance is running. Process until a smooth elastic ball of dough is formed this will take approx. 60 secs.

Re-knead by hand only. Re-kneading in the bowl is not recommended as it may cause the processor to become unstable.

dual whisk Use for light mixtures such as egg whites, cream, evaporated milk and for whisking eggs and sugar for fatless sponges. using the whisk 1 Fit the bowl onto the power unit, add the detachable drive shaft. 2 Push each beater

securely into the drive head. 3 Fit the whisk by carefully turning until it drops over the drive shaft. 4 Add the ingredients. 5 Fit the lid - ensuring the end of the shaft locates into the centre of the lid. 6 Switch on. important

The whisk is not suitable for making all in one cake mixes as these mixes are too heavy and will damage it. Always use the knife blade. hints

Best results are obtained when the eggs are at room temperature.

Ensure the bowl and whisks are clean and free from grease before whisking.

reaming fat and sugar

or best results fat should be allowed to soften at room

traight from the fridge as this will damage the

eavier ingredients such as flour and dried fruit should be

o not exceed the maximum capacity or processing time

tated in the recommended speed chart.

folding tool Use the folding tool to fold light ingredients into heavier mixtures for example meringues, mousses and fruit fools.

securely into the drive head. 3 Fit the folding tool by carefully turning until it drops over the drive shaft. 4 Add the ingredients. 5 Fit the lid – ensuring the end of the shaft locates into the centre of the lid . 6 Select low speed (speed 1 – 2). to remove the beater Detach the beater from the drive head by pressing the release button

Do not use Auto or high speed as a low speed is required to optimise the folding performance.

For best results do not over whisk egg whites or cream – the folding tool will not be able to fold the mixture correctly if the whisked mix is too firm.

Do not fold the mixture for longer than stated in the recommended speed chart as the air will be knocked out and the mix will be too loose.

Any unmixed ingredients left on the paddle or sides of the bowl should be carefully folded in using the spatula.

max capacity disc When blending liquids in the bowl, the max capacity disc must be used with the knife blade. It prevents leaking and improves the chopping performance of the blade. 1 Fit the bowl onto the power unit. 2 Fit the knife blade. 3 Add ingredients to be processed. 4 Fit the capacity disc over the top of the blade ensuring it sits on the ledge inside the bowl

. Do not push down on the capacity disc. 5 Fit the lid and switch on. slicing/grating discs reversible slicing/grating discs - 4mm

Use the grating side for cheese, carrots, potatoes and foods of a similar texture. Use the slicing side for cheese, carrots, potatoes, cabbage, cucumber, courgette, beetroot and onions. extra fine grater disc

Grates Parmesan cheese and potatoes for German potato dumplings. fine julienne

Use to cut potatoes into straws and coarse grate for rosti, stir fries and vegetable garnishes. 8to use the cutting discs

Holding by the centre grip, place the disc onto the drive shaft

Put the food in the feed tube.

hoose which size feed tube you want to use. The pusher contains a smaller feed tube for processing individual items or thin ingredients.

o use the small feed tube - first put the large pusher inside the feed tube. To use the large feed tube - use both pushers together.

Switch on and push down evenly with the pusher - never put your fingers in the feed tube.

Don’t cut food too small. Fill the width of the feed tube fairly full. This prevents the food from slipping sideways during processing. Alternatively use the small feed tube.

When slicing or grating: food placed upright

comes out shorter than food placed horizontally

Food placed upright comes out shorter than food placed horizontal.

There will always be a small amount of waste on the disc or in the bowl after processing.

mini bowl and knife Use the mini processor bowl to chop herbs and process small quantities of ingredients e.g. meat, onion, nuts, mayonnaise, vegetables, purées, sauces and baby food. The slicing/grating discs can also be used with the mini bowl. Insert the mini bowl without the knife blade fitted and refer to the slicing/grating disc section for fitting and usage instructions. Do not overfill the bowl. mini blade mini bowl to use the mini bowl and knife 1 Fit the bowl onto the power unit, add the detachable drive shaft. 2 Fit the mini bowl over the detachable drive shaft - ensure the cut out sections align with the locating tabs

on the main bowl. Note: The main bowl lid cannot be fitted if the mini bowl is not located correctly. 3 Place the knife blade over the drive shaft

4 Add the ingredients to be processed. 5 Fit the lid and switch on. hints

Herbs are best chopped when clean and dry.

Always add a little liquid when blending cooked ingredients to make baby food.

Cut foods such as meat, bread, vegetables into cubes approximately 1-2 cm (

⁄4 in) before processing.

When making mayonnaise add the oil down the feed tube.

citrus juicer Use the citrus juicer to squeeze the juice from citrus fruits

haft. 2 Fit the sieve into the bowl - ensuring the sieve handle is

ocked into position directly over the bowl handle

Place the cone over the drive shaft turning until it drops all the way down

Cut the fruit in half. Then switch on and press the fruit onto

The citrus juicer will not operate if the sieve is not locked correctly.

For best results store and juice the fruit at room temperature and hand roll on a worktop before juicing.

To help with juice extraction move the fruit from side to side when juicing.

When juicing large quantities, empty the strainer regularly to prevent the build up of pulp and seeds.

attachment storage box Your food processor is supplied with a storage box for your bowl attachments and discs. 1 Fit the knife blade and discs into the storage box when not in use

2 The storage box is fitted with a safety lock - close the lid to lock. To open, push the tab in

Always switch off and unplug before cleaning.

Handle the blades and cutting discs with care - they are extremely sharp.

Some foods may discolour the plastic. This is perfectly normal and won’t harm the plastic or affect the flavour of your food. Rub with a cloth dipped in vegetable oil to remove the discolouration. power unit

Wipe with a damp cloth, then dry. Ensure that the interlock area is clear of food debris.

Don’t immerse the power unit in water.

Store excess cord in the storage area at the back of the power unit

blender 1 Empty the goblet, unscrew the blade unit by turning to the unlock position to release. 2 Wash the goblet by hand. 3 Remove and wash the seals. 4 Don’t touch the sharp blades – brush them clean using hot soapy water, then rinse thoroughly under the tap. Don’t immerse the blade unit in water. 5 Leave to dry upside down.

Detach the beaters from the drive head by gently pulling them free. Wash in warm soapy water.

ipe the drive head with a damp cloth, then dry. Do not immerse the drive head in water. folding tool

Detach the beater from the drive head by pressing the

Wash in warm soapy water.

Wipe the drive head with a damp cloth, then dry. Do not immerse the drive head in water.

ash by hand, then dry.

Alternatively they are dishwasher safe and can be washed

n the top rack of your dishwasher. Avoid placing items on

he bottom rack directly over the heating element. A short low temperature (Maximum 50°C) programme is recommended. service & customer care

If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

If you experience any problems with the operation of the processor, before calling for assistance refer to the troubleshooting guide. If you need help with:

servicing or repairs

Contact the shop where you purchased your appliance.

Designed and engineered by Kenwood in the UK.

t the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste

ollection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible

egative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

roblem Cause Solution The processor will not operate. No Power. Check processor is plugged in.

owl not fitted to power unit correctly. Check bowl is located correctly and the handle is situated towards the

owl lid not locked on correctly. Check that the lid interlock is located correctly into the handle area.

he processor will not work

f the bowl and lid are fitted

ncorrectly. Eco function operating. Press either the Auto Button or turn

peed control on, then return to ‘O’ to switch off Eco function. If none of the above check the fuse/circuit breaker in your home. Blender will not operate. Blender not locked on correctly. The blender will not operate if fitted incorrectly to the interlock. Blender not assembled correctly. Check blade unit is fully tightened into the goblet. Processor stops or slows Overload protection operated. Switch off, unplug and allow the during processing. Processor overloaded or overheated during appliance to cool down for operation. approximately 15 minutes. Maximum capacity exceeded. Refer to the speed chart for maximum capacities to process. Power On light flashing rapidly. Normal operation. Check interlocks are engaged The light will flash if the bowl, lid or blender are correctly. not fitted to the power unit or not locked in place correctly. Power On light flashing slowly. Normal operation. Food processor left plugged in for over 30 minutes Press either the Auto Button or turn without being operated and gone into Eco mode. speed control on and then return to ‘O’ to switch off Eco function. Auto and Power On light flashing. Normal operation. Check interlocks are engaged The light will flash if the Auto selected but correctly or press the Auto button interlocks not engaged. to switch off the Auto function. Blender leaking from blade assembly base. Seal missing. Check seal is fitted correctly and Seal incorrectly fitted. not damaged. To obtain a Seal damaged. replacement seal see “service & customer care”. Blender seal missing from blade unit when The seal is packed pre-fitted to the blade unit. Unscrew goblet and check that removed from packaging. seal is fitted to blade unit. To obtain a replacement seal see “service & customer care”. Poor performance of tools/attachments. Refer to hints in relevant “using the attachment” section. Check attachments are assembled correctly.veiligheid

PARLAMENTU A RADY 2002/96/ES

TDQENEV WYQMWXaPIQ]Q XE[YXCX]Q
