USER MANUAL HTD 3239 CLATRONIC

Black and silver electric hair dryer with IONIC brand logo, no visible text or symbols on body

CE

HAARTROCKNER

Haardroger • Séchoir à cheveux • Secador de pelo • Secador de cabelo • Asciugacapelli • Hårtørke

Hair dryer • Suszarka do włosów • Vysoušeč vlasů • Hajszárító • Фен для воло

HTD 3239

DEUTSCH

Inhalt

Overview of Functions...... Page 3

Instruction Manual Page 25

Technical Data...... Page 26

JEZYK POLSKI

Spis treści i

D-47906 Kempen/Germany

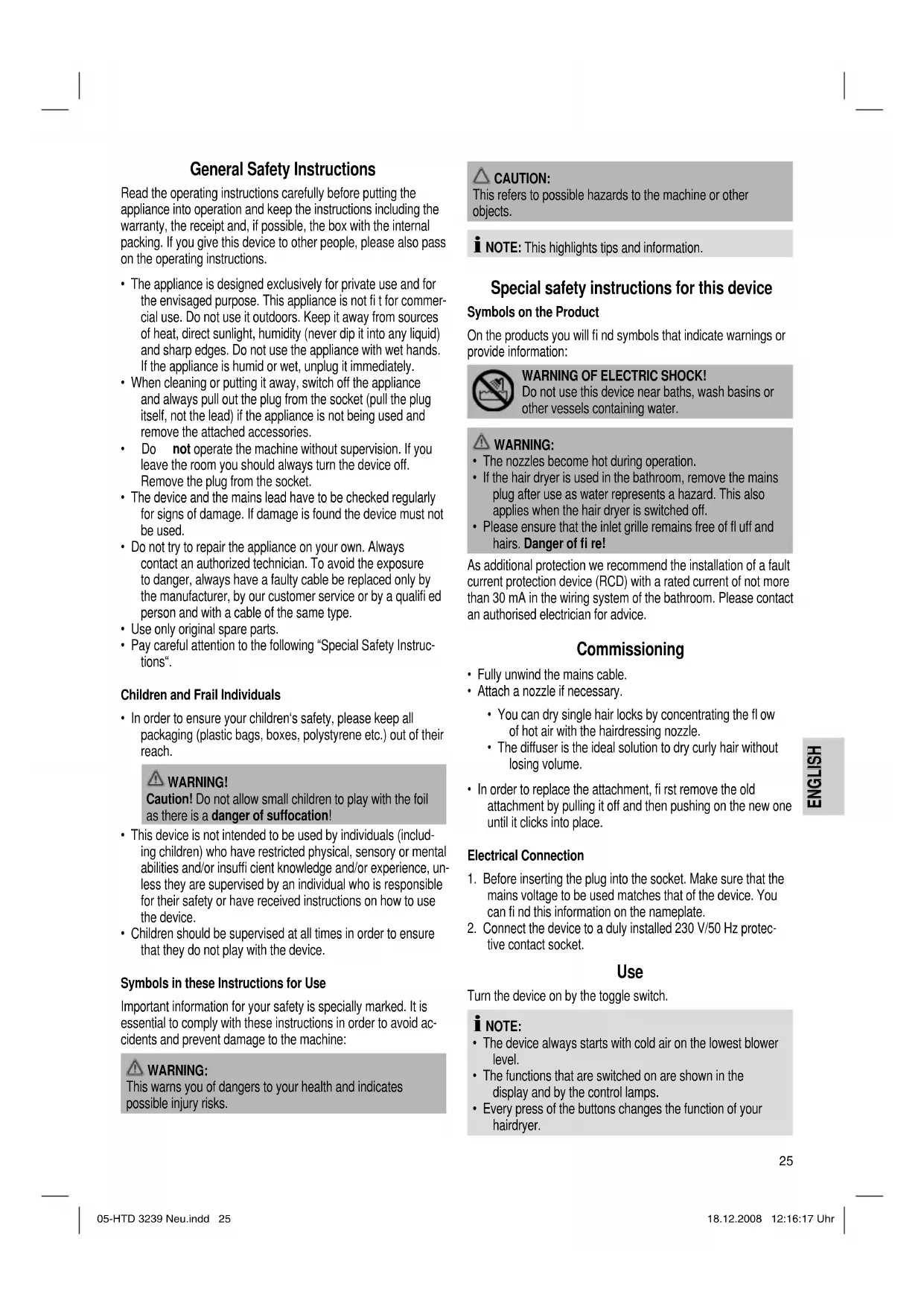

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
  • Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Special safety instructions for this device

Symbols on the Product

On the products you will find symbols that indicate warnings or provide information:

WARNING OF ELECTRIC SHOCK!

Do not use this device near baths, wash basins or other vessels containing water.

WARNING:

• The nozzles become hot during operation.
- If the hair dryer is used in the bathroom, remove the mains plug after use as water represents a hazard. This also applies when the hair dryer is switched off.
- Please ensure that the inlet grille remains free of fl uff and hairs. Danger of fi re!

As additional protection we recommend the installation of a fault current protection device (RCD) with a rated current of not more than 30 mA in the wiring system of the bathroom. Please contact an authorised electrician for advice.

Commissioning

• Fully unwind the mains cable.
- Attach a nozzle if necessary.

- You can dry single hair locks by concentrating the flow of hot air with the hairdressing nozzle.

- The diffuser is the ideal solution to dry curly hair without losing volume.

- In order to replace the attachment, first remove the old attachment by pulling it off and then pushing on the new one until it clicks into place.

Electrical Connection

1. Before inserting the plug into the socket. Make sure that the mains voltage to be used matches that of the device. You can find this information on the nameplate.
2. Connect the device to a duly installed 230 V/50 Hz protective contact socket.

Use

Turn the device on by the toggle switch.

IOTE:

• The device always starts with cold air on the lowest blower level.
• The functions that are switched on are shown in the display and by the control lamps.
• Every press of the buttons changes the function of your hairdryer.

Overview of Functions

	Display
1	Hot
2	Ionisation
3	Cold
4	Fan
5	Blower
6	Temperature
7	Heating
	Control
8	Cold
9	Ionisation
10	Fan
11	Hot
	Buttons
12	Cold
13	Ionisation
14 Fan / ventilator
15	Heating

Basic Functions

• Press button 12 to switch between cold and hot air.
• With button 13 you can switch ionisation on and off.
• With button 14 you can increase the blower level.
• By pressing button 15 you can select a heating level in conjunction with the blower level that has been set.

Cold Function (COOL SHOT)

• When the dryer is set to cold you can increase the blower levels and switch ionisation on and off.
• The lowest blower level follows after the highest one.

Heating Function

• The heating level can be selected according to the blower level.
  Examples:
• At the lowest blower level only the lowest heating level can be switched on in order not to overheat the device.
• If you would like to reduce the blower on a high heating level, it is first necessary to reduce the heating level.
• The ionisation function can be switched on and off at any time.

Ionisation function – Reducing electrically charged hair

The device is also fitted with an ioniser which gives off negative ions together with the air that is emitted. This process helps to protect the hair when it is being dried while simultaneously helping to improve hair structure, increase the volume of the hair, produce a silky sheen and also reduce the static charge of the hair. This process is particularly gentle for stressed hair.

Switch-off

• Turn the device off with the toggle switch and remove the aimains plug from the socket.
• Leave the device to cool before putting it away!
• Hang the device up by the suspension eye.
  • The mains cable should only be wound up loosely.
• Never tie the cable tightly round the device, as over time this may resa in the cable breaking.
• Check the mains cable regularly for damage.

Mainsl&able

Cleaning and care

WARNING:

• Before cleaning remove the mains lead from the socket.
• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire. level

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Clean the housing with a soft, dry cloth without additives.

Air Intake Grill

Please clean the grill on the air intake side of the hairdryer regularly in order to avoid excessive temperatures as a result of heat accumulation.

• Press on the mark above the air suction grille with your thumb in order to fold it open.
• Remove any dirt that is present.
• If necessary, a fine brush can be used.
• Close the grille by locking it into place.

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: 82 dB(A) (no limit)

Technical Data

Model:....HTD 3239

Power supply: 230 V, 50 Hz

Power consumption:

$$ \begin{array}{l} P _ {\text { nom. }}: \dots 2 0 0 0 \mathrm{W} \ P _ {\text { max. }}: \dots 2 2 0 0 \mathrm{W} \ \end{array} $$

Protection class: II

Net weight: 0,60 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
