USER MANUAL HTD 3055 CLATRONIC

dagens nyeste sikkerhetstekniske forskrifter.30

• The appliance is designed exclusively for private use and

for the envisaged purpose. This appliance is not t for com-

• Do not use it outdoors. Keep it away from sources of heat,

direct sunlight, humidity (never dip it into any liquid) and

sharp edges. Do not use the appliance with wet hands.

If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance

and always pull out the plug from the socket (pull the plug

itself, not the lead) if the appliance is not being used and

remove the attached accessories.

• Do not operate the machine without supervision. If you

leave the room you should always turn the device off.

Remove the plug from the socket.

• The device and the mains lead have to be checked regu-

larly for signs of damage. If damage is found the device

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all

packaging (plastic bags, boxes, polystyrene etc.) out of

Do not allow small children to play with the foil. There is a

danger of suffocation!

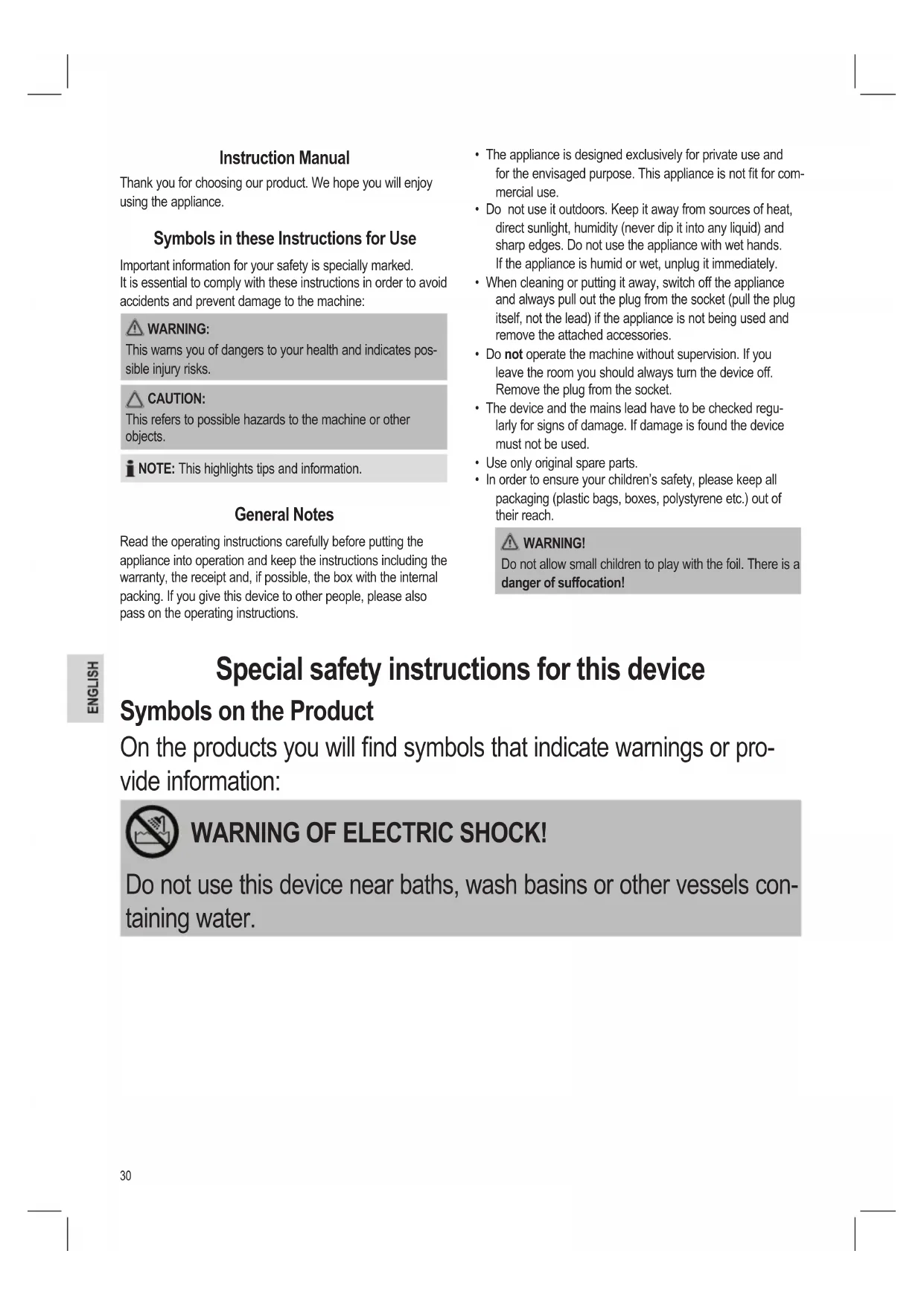

Thank you for choosing our product. We hope you will enjoy

using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked.

It is essential to comply with these instructions in order to avoid

accidents and prevent damage to the machine:

This warns you of dangers to your health and indicates pos-

This refers to possible hazards to the machine or other

NOTE: This highlights tips and information.

Read the operating instructions carefully before putting the

appliance into operation and keep the instructions including the

warranty, the receipt and, if possible, the box with the internal

packing. If you give this device to other people, please also

pass on the operating instructions.

Special safety instructions for this device

Symbols on the Product

On the products you will nd symbols that indicate warnings or pro-

WARNING OF ELECTRIC SHOCK!

Do not use this device near baths, wash basins or other vessels con-

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

• Children must not play with the appliance.

• Cleaning and user maintenance must not be carried out by chil-

dren, unless they are supervised.

• Do not try to repair the appliance on your own. Always contact an

authorized technician. To avoid the exposure to danger, always

have faulty cable be replaced only by the manufacturer, by our cus-

tomer service or by qualied person and with a cable of the same

• The nozzles become hot during operation!

• If the appliance is used in the bathroom, disconnect it from the

mains after use as nearby water presents a hazard. This also ap-

plies if the appliance is switched off.

• Please ensure that the inlet grille remains free of uff and hairs.

• As additional protection we recommend the installation of a fault

current protection device (FI/RCD) with a rated current of not more

than 30 mA in the wiring system of the bathroom. Please contact an

authorised electrician for advice.

• Please observe the instructions that we have included for you in the

chapter “Maintenance and care”.32

• Unwind the mains cable completely.

• Attach a nozzle if necessary.

• You can dry single hair locks by concentrating the ow

of hot air with the hairdressing nozzle.

• The diffuser is the ideal solution to dry curly hair without

• In order to replace the attachment, rst remove the old at-

tachment by pulling it off and then pushing on the new one

until it clicks into place.

Electrical Connection

• Before inserting the plug into the socket. Make sure that

the mains voltage to be used matches that of the device.

You can nd this information on the nameplate.

• Connect the appliance to a properly installed earthed

Setting the Temperature Level (right switch):

Position • : cold air

Position •• : medium temperature for gentle drying and

Position ••• : high temperature for rapid drying

Setting the desired blower strength (left switch):

Position 0: cold air

strong stream of air

With this switch it is possible to interrupt

the heating process so that the air can be

mixed according to individual requirements.

Hold the button down in this position ac-

cording to the desired interval length. When

the button is released it returned automati-

cally to the initial position.

After use, slide the switch to position “0” and disconnect from

• Leave the device to cool before putting it away! To do so,

place the appliance onto one side of the housing or hang it

up by the suspension eye.

• Fold the handle up to save space and keep the appliance

in the see-through bag.

• The mains cable should only be wound up loosely.

• Never tie the cable tightly round the device, as over time

this may result in the cable breaking.

• Check the mains cable regularly for damage.

Maintenance and care

• Before cleaning remove the mains lead from the socket.

• Under no circumstances should you immerse the device in water

for cleaning purposes. Otherwise this might result in an electric

Clean the housing with a soft, dry cloth without additives.

Please clean the grill on the air intake side of the hairdryer

regularly in order to avoid excessive temperatures as a result of

• Remove any dirt that is present.

• If necessary, a ne brush can be used.

• Twist off the grille in an anticlockwise direction, remove the

air inlet lter and clean it under running water.

• Please allow the lter to try before reinserting it.

• Turn the grille tight in a clockwise direction.33

The sound pressure level in the ear of an operator (LpA) was

measured according to DIN EN ISO 3744.

Sound pressure level detected: 80 dB(A) (no limit)

Power supply: 230 V~ ; 50 Hz

Power consumption: 2000 W Protection class: ΙI Net weight: 0.50 kg

The right to make technical and design modications in the

course of continuous product development remains reserved.

This device has been tested according to all relevant current

CE guidelines, such as electromagnetic compatibility and low

voltage directives, and has been constructed in accordance

with the latest safety regulations.

Meaning of the “Dustbin” Symbol

Protect our environment: do not dispose of electrical equipment

in the domestic waste.

Please return any electrical equipment that you will no longer

use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on

the environment and human health.

This will contribute to the recycling and other forms of reutilisa-

tion of electrical and electronic equipment.

Information concerning where the equipment can be disposed

of can be obtained from your local authority.34
