| Product type | CD player with radio and cassette |
| Brand | Clatronic |
| Model | SRR 833 |
| Mains power supply | 220-230 V ~ 50 Hz |
| Battery power supply | 6 x 1.5 V type UM2/R14 |
| Power consumption | 12 W |
| Net weight | 1.8 kg |
| Dimensions (approx) | 400 x 200 x 100 mm |
| Protection class | II |
| Radio bands | FM 88-108 MHz, AM (medium wave) |
| CD functions | Play, pause, skip, search, repeat (1 track / entire disc), track programming |
| Cassette functions | Play, record, fast forward/rewind, pause, stop/eject |
| Auxiliary input | AUX IN socket (3.5 mm stereo jack) |
| Speakers | 2 built-in speakers |
| Antenna | Telescopic antenna for FM, built-in antenna for AM |
| Display | LED screen |
| Laser safety | Class 1 laser, safety lock when opening |
| CD cleaning | Wipe from center to edge with a soft cloth |
| General maintenance | Unplug when not in use, do not expose to humidity |
| General information | Device designed for domestic use only |
Frequently Asked Questions - SRR 833 CLATRONIC
User questions about SRR 833 CLATRONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your CD Player in PDF format for free! Find your manual SRR 833 - CLATRONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SRR 833 by CLATRONIC.
USER MANUAL SRR 833 CLATRONIC
Overview of the Components.. Page 3
Instruction Manual. 30
Technical Data.. Page 34
Disposal.. 34
JEZYK POLSKI
Spis tresci
PLAY/PAUSE (28) (lecture/pause)

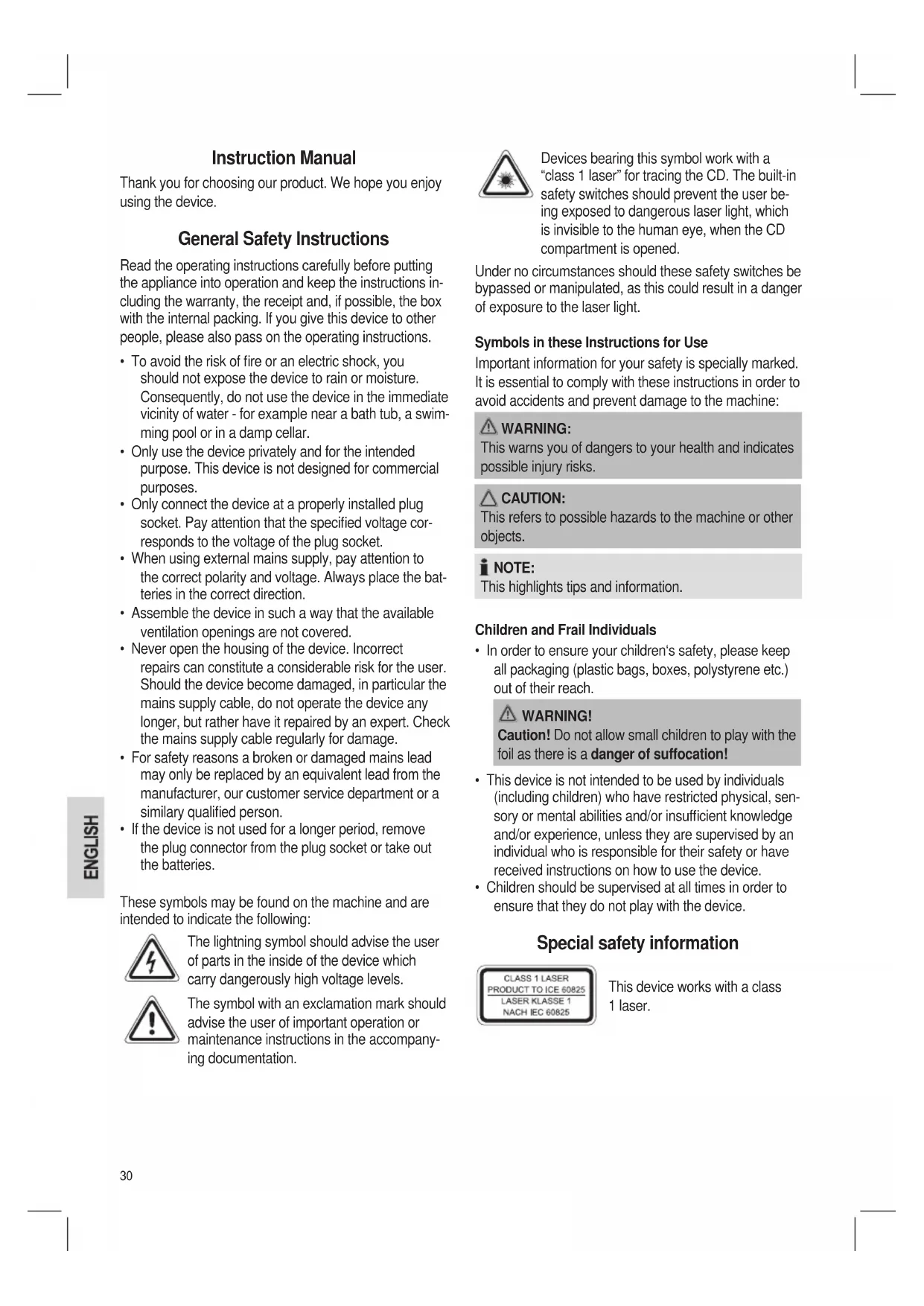

Thank you for choosing our product. We hope you enjoy using the device.
General Safety Instructions
Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.
- To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.
- Only use the device privately and for the intended purpose. This device is not designed for commercial purposes.
- Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.
- When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.
- Assemble the device in such a way that the available ventilation openings are not covered.
- Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.
- For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
- If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.
These symbols may be found on the machine and are intended to indicate the following:
The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.
The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.
Devices bearing this symbol work with a "class 1 laser" for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.
Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.
Symbols in these Instructions for Use
Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:
WARNING:
This warns you of dangers to your health and indicates possible injury risks.
CAUTION:
This refers to possible hazards to the machine or other objects.
NOTE:
This highlights tips and information.
Children and Frail Individuals
In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
WARNING!
Caution! Do not allow small children to play with the foil as there is a danger of suffocation!
- This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
Children should be supervised at all times in order to ensure that they do not play with the device.
Special safety information
This device works with a class 1 laser.
Overview of the Components
1 Telescopic antenna
2 Handle
3 Battery compartment
4 CD compartment
5 TUNING control
6 Band selection switch BAND (FM ST./FM/AM)
7 Station scale
8 Tab for opening the CD compartment
9 REC Recording button - cassette
10 PLAYPlayback button-cassette
11 WWD Reverse button - cassette
12 FWD Forward button - cassette
13 STOP/EJ. Stop/Eject button - cassette
14 RAUSE Pause button - cassette
15 VOLUME MIN/MAX (volume control)
16 Function selection switch FUNCTION (RADIO / ON/OFF/TAPE / CD)
17 AC~connection
18 AUX IN connection
19 SKIP- button (reverse search)
20 STOP (stop) button
21 REPEAT button
22 POWER control lamp
23 REPEAT control lamp
24 LED display
25Playback/Program control lamp
26 FM ST. control lamp
27 PROG button (CD programming)
28 PLAY/PAUSE button (play/pause)
29 SKIP+ button (forward search)
30 Loudspeaker
31 Cassette compartment
Intended Use
This device is used for:
The reception of radio programmes
- Playing back/recording audio cassettes
- Playing audio CDs.
It is intended exclusively for this purpose and may only be used as such.
It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.
Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.
The firm Clatronic International GmbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use.
Start-up of the device/introduction
- Please read the operating instructions carefully before using the device for the first time!
- Select a suitable location for the device, such as a dry, flat, non-slip surface on which it is easy to operate the machine.
- Ensure that the device is sufficiently ventilated!
- Remove the protective film from the display if it is still present.
Power Supply
- Connect the power cable supplied (see battery compartment if necessary) to a properly installed 230V/50Hz safety power socket and the mains connector AC ~ (17) on the back of the machine.
- Ensure that the voltage is the same as that indicated on the model identification plate.
The POWER (22) control lamp shows the function.
Inserting the Batteries
(not supplied)
- Open the battery compartment cover (3) on the back.
- Insert 6 batteries of type UM2/R14 1.5V. Please ensure that the polarity is correct (see the inside of the battery compartment)!
- If the device is not used for a long period of time, remove the batteries to avoid the spilling of battery acid.
- Close the battery compartment.
NOTE:
When a mains cable is connected the batteries are automatically switched off.
CAI
- Different battery types or new and used batteries must not be used together.
- Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.
WA
Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!
Transport Safety Device, CD Compartment
- Open the CD compartment (4) by pulling the lid upwards by the tab (8).
- Before operating the machine for the first time, remove the transport safety device from the CD player if it is still in place.
Volume
The desired volume can be sent using the VOLUME regulator (15).
Switch-off
The machine is switched off when the function selector switch (16) is turned to the ON/OFF/TAPE position. Unplug the device.
AUX IN socket
To connect analogue replay devices. Via this socket you can also hear the sound of other playback devices such as MP3 players, CD players etc. through the loudspeakers.
- Please connect the external device with a 3.5mm stereo jack plug to the AUX IN socket (18).
- Turn the function selector switch (16) to the RADIO position. The radio sound is switched off.
- Through the loudspeakers you can hear the playback of the sound from the external device; with the VOLUME control (15) you can change the volume.
- For the remaining procedure please see the operating instructions of the external sound source.
NOTE:
Adjust the volume of the external device to a comfortable level.
Listening to the Radio
- Turn the function selector switch (16) to the RADIO position.
- Select the desired frequency band with the band selection switch (6).
$$ V H F \left(\text {S t e r e o}\right) = F M S T., V H F = F M, \quad \text {M e d i u m w a v e} = A M (M o n o) $$
- Tune into the desired station using the TUNING regulator (5).
- The FM.ST control lamp only lights up when you have selected FM stereo and the station is being received in stereo quality. If reception is too weak and there is noise on the station being received, this lamp will flicker. Where reception is bad we recommend switching to FM.
- For VHF/FM mode pull out the telescopic antenna (1) and turn it to improve reception.
- An aerial is integrated into the device for the reception of AM stations. The machine can be aligned to the station by turning it. In this frequency band programs are transmitted in "mono" only.
Cassette Operation
Playing Cassettes
- Turn the function selector switch (16) to the ON/OFF/ TAPE position.
-
Press the STOP/EJ. stop/eject button (13) to open the cassette compartment (31).
-
Insert a recorded audiocassette into the compartment with the tape opening facing upwards and the side you wish to listen to facing the front (full spool to the right). Then close the cassette compartment again.
- Press the PLAY playback key (10) to listen to the tape.
- With the STOP/EJ. stop/eject key you can stop play-back.
- Wind the tape forwards or backwards if necessary in the direction of the arrow keys
$$ \leftarrow F. F W D = \text {f o r w a r d s} (1 2), \quad \text {R W D} = \text {r e v e r s e} (1 1). $$
- Always press the STOP/EJ. stop/eject key when changing the direction or stopping the tape. This prevents damage to the machine and the tape.
- If the TOP/EJ.stop/eject button is pressed again the flap of the cassette compartment opens.
- In order to interrupt playback briefly, press the PAUSE pause button (14). Pressing again continues playback.
Recording Cassettes
- Insert an audiocassette with the side on which you wish to record facing forwards (full reel on the right). Ensure that the cassette is not copy-protected (the copy protection tab on the top narrow side of the cassette must not have been removed).
- Select the source from which you wish to record with the function switch (16) and then start playback from this source if necessary. The sound source which you are listening to is the one from which the recording is made. The recording level is controlled automatically. Changing the volume does not change the recording.
- Please press the REC record button (9) (the PLAY playback button is automatically pressed down at the same time). Recording now begins. All previous recordings are automatically erased.
- The recording can be interrupted briefly using the PAUSE pause key, or stopped by means of the STOP/EJ. stop/eject button.
Playing CD's
- Push the function selection switch (16) to CD.
- Open the CD compartment (4) by pulling the lid upwards by the tab (8).
- Insert an audio CD with the printed side facing upwards on to the central cone so that the CD clicks into place and then close the lid of the CD compartment.
- " - " appears in the display followed by the number of tracks. Press the PLAY/PAUSE button (28) in order to play the CD. The CD will play from the first title.
- In order to remove a CD, press the STOP (stop) button (20), open the CD compartment and lift the CD out carefully
Always keep the CD deck closed.
NOTE:
- If a disc is inserted the wrong way around or no disc is inserted, the "--" message flashes and "no" appears on the display.
- Playback of CDs produced by the user cannot be guaranteed due to the large variety of software and CD media available.
Description of the CD buttons
PLAY/PAUSE (28) (play/pause)
With the CD running:
You can briefly interrupt playback; the current track number flashes. Press the PLAY/PAUSE button again to continue playback.
SKIP- (19) (reverse search)
With the CD running:
Press once = This starts the current track again from the beginning.
Press twice = This jumps back to the previous track.
Press three times = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks.
SKIP+ (29) (forward search)
With the CD running:
With this button you can jump to the following track or the next track but one etc. If the button is kept pressed down, the machine starts to search through the tracks.
REPEAT (21)
Press once = (the REPEAT (23) control lamp flashes) the current track is repeated continuously.
Press twice = (the REPEAT control lamp lights up) the whole CD is played continuously.
Press three times = all functions are cancelled. The normal play mode is resumed.
STOP (20)
The CD is stopped.
Programmed Play with the PROG Button
This can be used to program any desired sequence of tracks.
-
Press the STOP (stop) button (20).
-
Press the PROG button (27). "01" (memory preset) flashes briefly in the display. Use the SKIP+/SKIP buttons (29/19) to select the desired track and then press the PROG button again. The display changes to memory preset 02.
- Select the next track with the SKIP_+ / SKIP- button and press the PROG button again. Repeat the procedure until all the desired tracks are selected.
i NOTE:
If the storage capacity of the title to be programmed has been reached, the previously programmed titles are displayed in sequence.
- Press the PLAY/PAUSE button (28). The playback starts.
NOTE:
After programming any title, the control lamp (25) flashes.
- Press once the STOP (stop) button to stop the playback while retaining the program.
- The playback the program again, press the PLAY/ PAUSE button.
- In order to delete the programme, press the STOP button in stop mode. The control lamp (25) goes out.
The device stops automatically once the entire sequence of programmed tracks is completed. The programmed order of tracks remains in the memory until you change to a different mode, remove the CD from the CD compartment or switch off the device.
It is possible to combine the programmed tracks with the repeat function. After you have programmed and started the device, please press the REPEAT button (21) up to three times and then you can use the functions as described under "REPEAT".
OTE:
Please note these instructions for playing back CDs and CDRs in MP3 format! The device is not able to play back MP3 files. The CD begins to turn, but the sound cannot be heard.
Please note:
There are a number of different recording and compression methods, as well as quality differences between CDs and self-recorded CDs.
Furthermore, the music industry does not adhere to fixed standards (copy protection).
For these reasons that there may occasionally be problems with the playback of CDs. This is not a malfunction of the device.
Troubleshooting
| Symptoms Course Solution | ||
| CD can not be played back. | CD is not insert-ed or inserted incorrectly. | Ensure that the disc is inserted with the label facing upwards. |
| Batteries too weak. | Insert new batteries or operate the device with the mains lead. | |
| CD jumps dur-ing playback. | Check the disc for fingerprints, dirt or scratch-es. | Check the disc for fingerprints, dirt or scratches. |
| The device cannot be oper-ated. | The device is blocked, i.e. "stuck". | Remove the mains plug for approximately 5 seconds. Then turn the device on again. |
| No sound through the radio or CD. | Cable plugged into the AUX IN socket (18). | Remove the cable on the AUX IN socket. |
Disposal
Meaning of the "Dustbin" Symbol
Protect our environment: do not dispose of electrical equipment in the domestic waste.
Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.
This helps avoid the potential effects of incorrect disposal on the environment and human health.
This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.
Information concerning where the equipment can be disposed of can be obtained from your local authority.
Technical Data
Model: SRR 833 CD
Power supply: 220-230 V~50 Hz
Battery operation: .6 x 1.5V UM2/R14
Power consumption: 12 W
Protection class: II
Net weight: 1.8 kg
Radio section:
Frequency ranges: ...UKW / FM 88 ~ 108.0 MHz
Subject to technical changes without prior notice!
This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.
Instrukcja obslugi
- Dla bezpiecz内分泌ien..., please! I'm sorry for it.
