USER MANUAL SR 827 CLATRONIC

tieband. UKW (Stereo) = FM ST., UKW = FM, middengolf = AM (Mono)

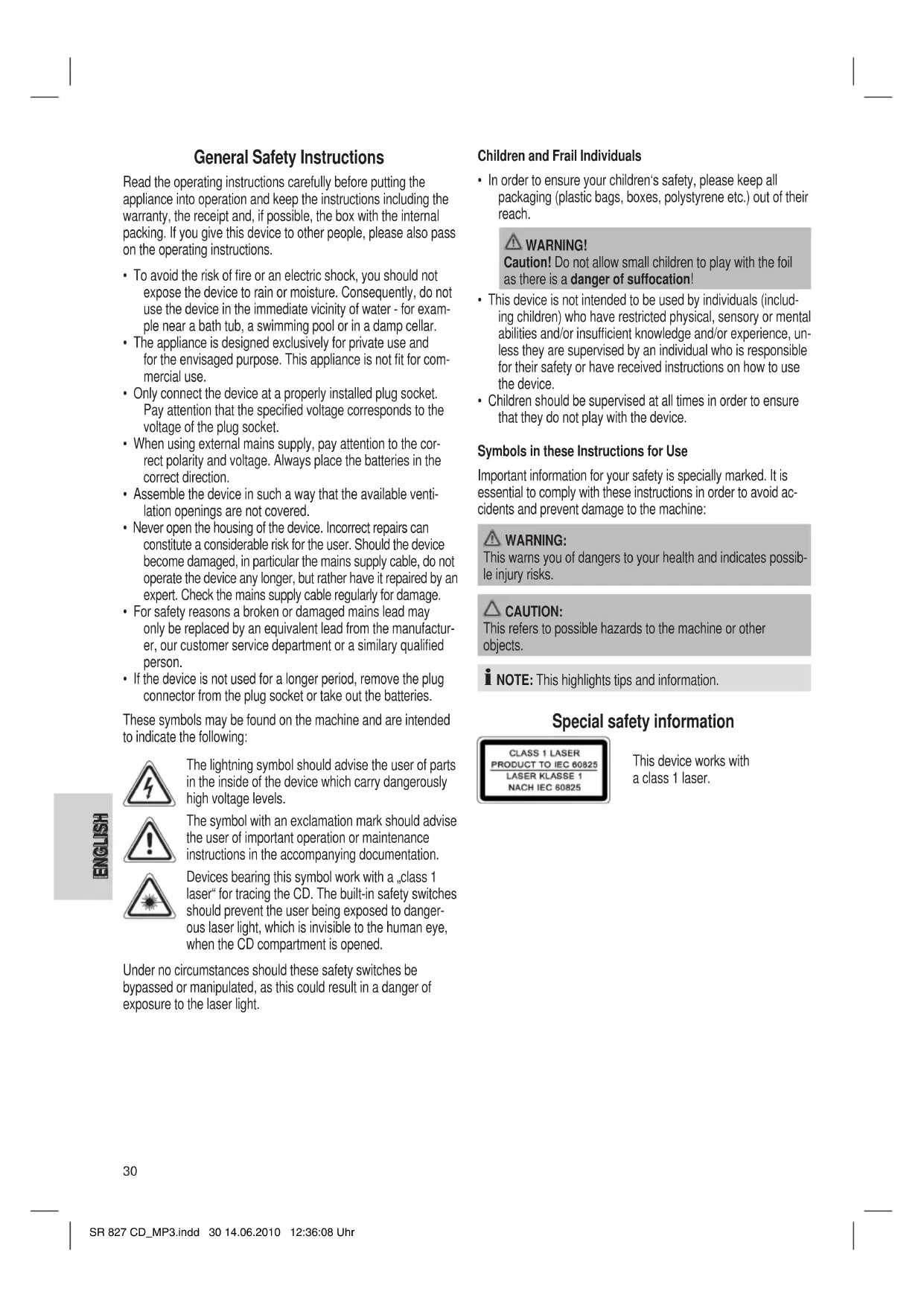

General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• To avoid the risk of re or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for exam- ple near a bath tub, a swimming pool or in a damp cellar.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for com- mercial use.

• Only connect the device at a properly installed plug socket. Pay attention that the specied voltage corresponds to the voltage of the plug socket.

• When using external mains supply, pay attention to the cor- rect polarity and voltage. Always place the batteries in the correct direction.

• Assemble the device in such a way that the available venti- lation openings are not covered.

• Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.

• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufactur- er, our customer service department or a similary qualied person.

• If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries. These symbols may be found on the machine and are intended to indicate the following: The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels. The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation. Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to danger- ous laser light, which is invisible to the human eye, when the CD compartment is opened. Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light. Children and Frail Individuals

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (includ- ing children) who have restricted physical, sensory or mental abilities and/or insufcient knowledge and/or experience, un- less they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.

• Children should be supervised at all times in order to ensure that they do not play with the device. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid ac- cidents and prevent damage to the machine:

This warns you of dangers to your health and indicates possib- le injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. Special safety information This device works with a class 1 laser. Overview of the Components 1 Telescopic antenna 2 Handle 3 CD compartment 4 TUNING control 5 Radio scale 6 Band selection switch (FM.ST / FM / AM) 7 Loudspeaker 8 OPEN/CLOSE (open/close) CD compartment 9 FM ST. control lamp 10 SKIP+ button (forward search) 11 STOP button 12 ALBUM button (album upwards) 13 PLAY/PAUSE button (Play/Pause) 14 INFO button 15 MODE button (Repeat/random playback / memory) 16 SKIP- button (reverse search) 17 POWER control lamp 18 LCD display 19 Function selector switch (OFF / RADIO / CD/MP3) 20 VOLUME MAX/MIN (volume control) 21 AC Mains connection 22 Battery compartment Intended Use This device is used for:

• The reception of radio programmes

• Playing back audio/MP3 CDs It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commer- cial purposes. Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury. The rm Clatronic International GmbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use. Start-up of the device/introduction

• Please read the operating instructions carefully before using the device for the rst time!

• Select a suitable location for the device, such as a dry, at, non-slip surface on which it is easy to operate the machine.

• Ensure that the device is sufciently ventilated!

• Remove the protective lm from the display if it is still present. Power Supply

• Connect the power cable supplied (see battery compart- ment if necessary (22)) to a properly installed 230 V / 50 Hz safety power socket and the mains connector AC ~ (21) on the back of the machine. SR 827 CD_MP3.indd 30 14.06.2010 12:36:08 UhrENGLISH

Children and Frail Individuals

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (includ- ing children) who have restricted physical, sensory or mental abilities and/or insufcient knowledge and/or experience, un- less they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.

• Children should be supervised at all times in order to ensure that they do not play with the device. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid ac- cidents and prevent damage to the machine:

This warns you of dangers to your health and indicates possib- le injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. Special safety information This device works with a class 1 laser. Overview of the Components 1 Telescopic antenna 2 Handle 3 CD compartment 4 TUNING control 5 Radio scale 6 Band selection switch (FM.ST / FM / AM) 7 Loudspeaker 8 OPEN/CLOSE (open/close) CD compartment 9 FM ST. control lamp 10 SKIP+ button (forward search) 11 STOP button 12 ALBUM button (album upwards) 13 PLAY/PAUSE button (Play/Pause) 14 INFO button 15 MODE button (Repeat/random playback / memory) 16 SKIP- button (reverse search) 17 POWER control lamp 18 LCD display 19 Function selector switch (OFF / RADIO / CD/MP3) 20 VOLUME MAX/MIN (volume control) 21 AC Mains connection 22 Battery compartment Intended Use This device is used for:

• The reception of radio programmes

• Playing back audio/MP3 CDs It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commer- cial purposes. Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury. The rm Clatronic International GmbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use. Start-up of the device/introduction

• Please read the operating instructions carefully before using the device for the rst time!

• Select a suitable location for the device, such as a dry, at, non-slip surface on which it is easy to operate the machine.

• Ensure that the device is sufciently ventilated!

• Remove the protective lm from the display if it is still present. Power Supply

• Connect the power cable supplied (see battery compart- ment if necessary (22)) to a properly installed 230 V / 50 Hz safety power socket and the mains connector AC ~ (21) on the back of the machine.

• Ensure that the voltage is the same as that indicated on the model identication plate. Inserting the Batteries (not supplied)

• Open the lid of the battery compartment (22) on the bottom.

• Insert 6 batteries of type UM2/R14 1,5V. Please ensure that the polarity is correct (see the oor of the battery compart- ment)!

• If the device is not used for a long period of time, remove the batteries to avoid the spilling of battery acid.

• Then close the battery lid. NOTE: When a mains cable is connected the batteries are automati- cally switched off. CAUTION:

• Different battery types or new and used batteries must not be used together.

• Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer’s.

Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the re. There is a danger of explosion! CD deck transport protection

• Please open the CD compartment by pressing the OPEN/ CLOSE (open/close) button (8).

• Remove the transport protection from the CD player if present before use. Volume The desired volume can be sent using the VOLUME / regulator (20). Switch-off The machine is switched off when the function selector switch (19) is turned to the OFF position.The POWER (17) control lamp goes off. Unplug the device. Listening to the Radio

1. Turn the function selector switch (19) to the RADIO position.

2. Use the band selector switch (6) to select the desired

frequency band. VHF (Stereo) = FM ST., VHF = FM, Medium wave = AM (Mono)

3. Tune in the desired station with the station adjustment knob

4. The FM ST control lamp (9) only lights up when you have

selected FM stereo and the station is being received in stereo quality. If reception is too weak and there is noise on the station being received, this lamp will icker. Where reception is bad we recommend switching to FM. SR 827 CD_MP3.indd 31 14.06.2010 12:36:08 UhrENGLISH

INFO (14) If ID-3 Tag information has been stored this appears in the dis- play in the form of an LED ticker display. Press the button once more in order to switch the function off again. ALBUM (12) Press this button during playback to change to a higher folder. The display, e.g. FOLDER F02, ashes briey. Then the CD begins to play back automatically. If the button is pressed in stop mode the display also ashes. Then start playback with the PLAY/PAUSE button. Programmed Play This can be used to program any desired sequence of tracks.

• In the case of CDs in MP3 format, press the ALBUM button (12) in order to change the folder.

• In the case of CDs in MP3 format that contain folders, when the device changes to a different folder 001 appears for the rst track of the new folder.

3. Select the next track with the SKIP+/SKIP- key and press

the MODE key again. Repeat the procedure until all the desired tracks are selected. NOTE: Once the storage capacity of the tracks to be programmed has been reached, „FULL“ ashes in the display.

4. Press the PLAY/PAUSE key (13). The playback starts.

The rst track number selected is shown in the display together with the playing time that has elapsed and the word MEMORY. Press this button to pause briey the playback.

5. Press once the STOP key to stop the playback while retain-

7. To delete the program, press the STOP key twice. The

MEMORY control lamp goes out. The device stops automatically once the entire sequence of programmed tracks is completed. The abbreviation MEMORY goes off and the programmed order of tracks is deleted from the memory. It is also possible to combine the programmed tracks with the REPEAT function. After you have programmed and started the device, please press the MODE button (15) up to three times and then you can use the functions as described under “MODE”.

5. For VHF/FM mode pull out the telescopic antenna (1) and

turn it to improve reception.

6. An aerial is integrated into the device for the reception of

AM stations. The machine can be aligned to the station by turning it. In this frequency band programs are transmitted in „mono“ only. Playing CDs/MP3 This is how you play a CD

2. Please open the CD compartment by pressing the OPEN/

CLOSE (open/close) button (8).

3. Insert an audio CD with the printed side facing upwards on

to the central cone so that the CD clicks into place and then close the lid of the CD compartment.

4. After a few seconds the total number of songs/tracks is

shown in the display. NOTE: In the case of CDs in MP3 format the number of folders is briey displayed at rst.

5. The CD will play from the rst title. The current track and the

playing time that has elapsed are shown in the display. NOTE: With CDs in MP3 format the current track and folder are shown alternately in the display.

6. In order to remove a CD, please press the STOP

key (11), open the CD compartment and lift the CD out carefully. Always keep the CD deck closed. NOTE:

• In the case of CDs in MP3 format that contain folders, when the device changes to a different folder 001 appears for the rst track of the new folder.

• If a disc is incorrectly inserted - or no disc has been in- serted - the symbol „CD READ“ and the word „NO DISC“ appear in the display.

• Playback of CDs produced by the user cannot be guaran- teed due to the large variety of software and CD media available. Description of the CD buttons PLAY/PAUSE (13) You can briey interrupt and resume playback using this button. The playing time that has elapsed ashes in the display. Press- ing again continues playback. SKIP+/SKIP- (10/16) With an audio CD or a CD in MP3 format playing: With SKIP + you can jump to the next or previous track etc.

• If the button is kept pressed down, the machine starts to search through the tracks. The SKIP - button can be used as follows: Press once = This starts the current track again from the beginning. Press twice = This jumps back to the previous track. Press three times = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks. NOTE: In the case of CDs in MP3 format that contain folders, when the device changes to a different folder 001 appears for the rst track of the new folder. STOP (11) The CD stops. MODE (15) In stop mode for programming any order of tracks (see the sec- tion on “Programmed Play”). With an audio CD or a CD in MP3 format playing: Press once = (the emits a xed light) the current track is repeated continuously. Press twice = (the ALL emits a xed light) the whole CD is played continuously. Press three times = the display contains the word RAND and the track number that is to be played rst. All tracks are played back in random order. Press four times = (INTRO appears in the display) Each track on the CD is played for 10 seconds. Press ve times = all functions are cancelled. The normal play mode is resumed. Only for CDs being played back in MP3 format Press once = the current track is repeated continu- ously ( appears in the display). Press twice = the selected folder of the MP3 CD is repeated continuously ( FOLDER appears in the display). Use the ALBUM button (12) to select individual folders. Press three times = the whole CD is played continuously ( ALL appears in the display). Press four times = the display contains the word RAND, MP3 and the track number that is to be played rst. All tracks are played back in random order. Press ve times = (INTRO appears in the display) Each track on the CD is played for 10 seconds. Press six times = the function is deactivated and the CD is played in the normal mode. SR 827 CD_MP3.indd 32 14.06.2010 12:36:11 UhrENGLISH

INFO (14) If ID-3 Tag information has been stored this appears in the dis- play in the form of an LED ticker display. Press the button once more in order to switch the function off again. ALBUM (12) Press this button during playback to change to a higher folder. The display, e.g. FOLDER F02, ashes briey. Then the CD begins to play back automatically. If the button is pressed in stop mode the display also ashes. Then start playback with the PLAY/PAUSE button. Programmed Play This can be used to program any desired sequence of tracks.

• In the case of CDs in MP3 format, press the ALBUM button (12) in order to change the folder.

• In the case of CDs in MP3 format that contain folders, when the device changes to a different folder 001 appears for the rst track of the new folder.

3. Select the next track with the SKIP+/SKIP- key and press

the MODE key again. Repeat the procedure until all the desired tracks are selected. NOTE: Once the storage capacity of the tracks to be programmed has been reached, „FULL“ ashes in the display.

4. Press the PLAY/PAUSE key (13). The playback starts.

The rst track number selected is shown in the display together with the playing time that has elapsed and the word MEMORY. Press this button to pause briey the playback.

5. Press once the STOP key to stop the playback while retain-

7. To delete the program, press the STOP key twice. The

MEMORY control lamp goes out. The device stops automatically once the entire sequence of programmed tracks is completed. The abbreviation MEMORY goes off and the programmed order of tracks is deleted from the memory. It is also possible to combine the programmed tracks with the REPEAT function. After you have programmed and started the device, please press the MODE button (15) up to three times and then you can use the functions as described under “MODE”. Playing back Music in MP3 Format With this device it is possible to play back pieces of music in MP3 format. The device also supports all standard CD types: CD, CD-RW, CD-R. This machine of is able to play MP3 CDs. Up to 200 tracks can be compressed and stored on these CDs. Your machine detects an MP3 CD automatically (the total number of tracks and MP3s appears in the display). If you would like to play one of these CDs, proceed as described under „Playing CDs/MP3“. Tracks can be programmed as described under „Playing Back Programmed Tracks“. Please note: There are a number of different recording and compression methods, as well as quality differences between CDs and self- recorded CDs. Furthermore, the music industry does not adhere to xed stand- ards (copy protection). For these reasons it is possible that in rare cases there are problems with the playback of CDs and MP3 CDs. This is not a malfunction of the device. Cleaning and Maintenance

• Always remove the mains plug before cleaning the machine.

• Any marks on the surface can be wiped off with a slightly damp cloth without any additives. Troubleshooting Symptoms Course Solution CD can not be played back. CD is not inserted or inserted incor- rectly. Ensure that the disc is inserted with the label facing upwards. Batteries too weak. Insert new batteries or operate the device with the mains lead. CD jumps during playback. Check the disc for ngerprints, dirt or scratches. Check the disc for ngerprints, dirt or scratches. Technical Data Model: ............................................................. SR 827 CD/MP3 Power supply: ............................................... 220-240 V

50 Hz Battery operation: ............................... 6 x 1,5 V, Type UM2/R14 Power consumption: ...........................................................12 W Protection class: .......................................................................ΙΙ Net weight: ...................................................................... 1,34 kg Radio section: Frequency ranges: .....................VHF / FM 88 ~ 108,0 MHz .......................MW / AM 540 ~ 1600 kHz The SKIP - button can be used as follows: Press once = This starts the current track again from the beginning. Press twice = This jumps back to the previous track. Press three times = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks. NOTE: In the case of CDs in MP3 format that contain folders, when the device changes to a different folder 001 appears for the rst track of the new folder. STOP (11) The CD stops. MODE (15) In stop mode for programming any order of tracks (see the sec- tion on “Programmed Play”). With an audio CD or a CD in MP3 format playing: Press once = (the emits a xed light) the current track is repeated continuously. Press twice = (the ALL emits a xed light) the whole CD is played continuously. Press three times = the display contains the word RAND and the track number that is to be played rst. All tracks are played back in random order. Press four times = (INTRO appears in the display) Each track on the CD is played for 10 seconds. Press ve times = all functions are cancelled. The normal play mode is resumed. Only for CDs being played back in MP3 format Press once = the current track is repeated continu- ously ( appears in the display). Press twice = the selected folder of the MP3 CD is repeated continuously ( FOLDER appears in the display). Use the ALBUM button (12) to select individual folders. Press three times = the whole CD is played continuously ( ALL appears in the display). Press four times = the display contains the word RAND, MP3 and the track number that is to be played rst. All tracks are played back in random order. Press ve times = (INTRO appears in the display) Each track on the CD is played for 10 seconds. Press six times = the function is deactivated and the CD is played in the normal mode. SR 827 CD_MP3.indd 33 14.06.2010 12:36:11 UhrENGLISH
