USER MANUAL HM 3316 CLATRONIC

ENGLISH ENGLISH JĘZYK POLSKI JĘZYK POLSKI

Overview of the Components Page 3

D-47906 Kempen/Germany

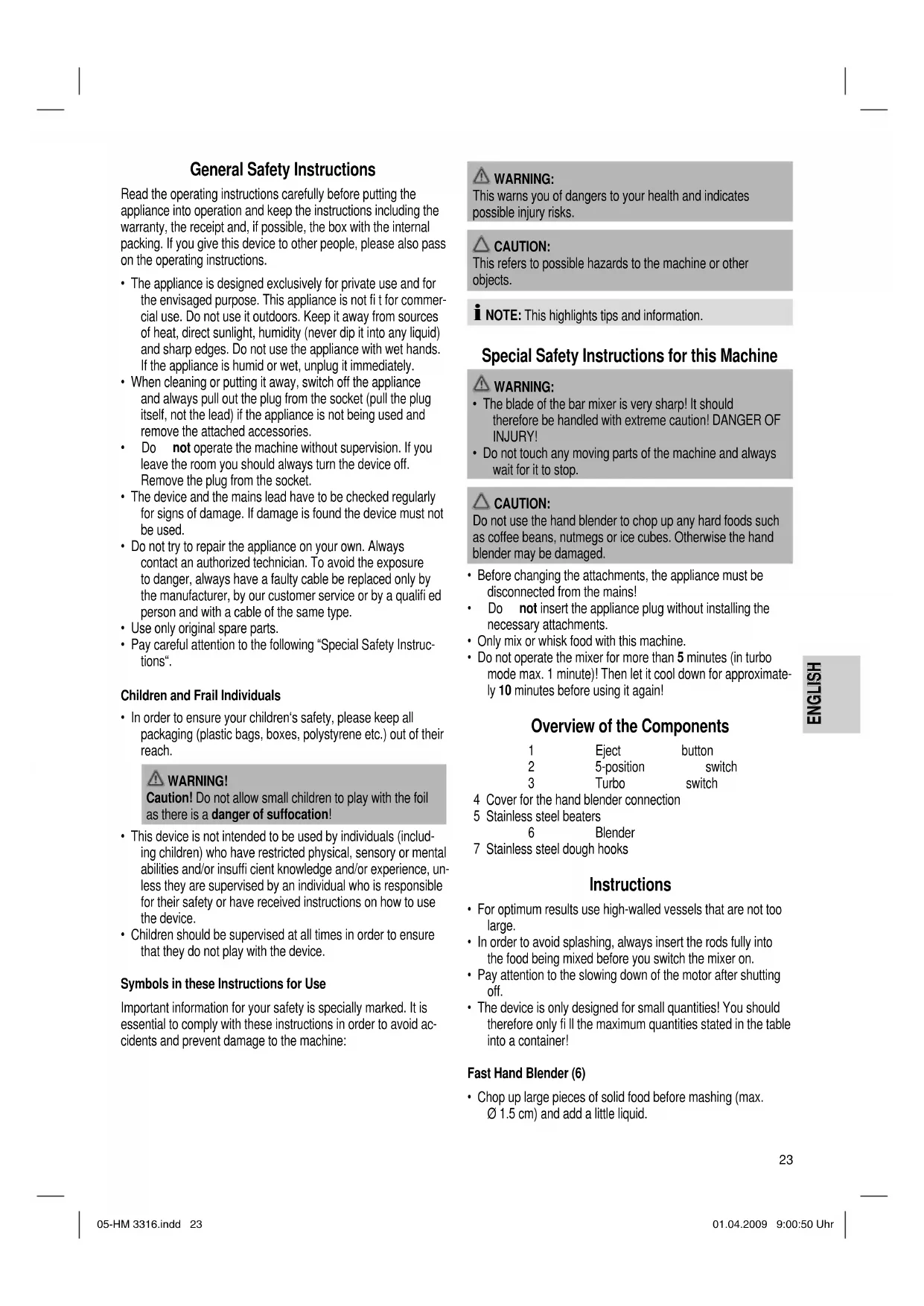

General Safety Instructions

Read the operating instructions carefully before putting the

appliance into operation and keep the instructions including the

warranty, the receipt and, if possible, the box with the internal

packing. If you give this device to other people, please also pass

on the operating instructions.

• The appliance is designed exclusively for private use and for

the envisaged purpose. This appliance is not fi t for commer-

cial use. Do not use it outdoors. Keep it away from sources

of heat, direct sunlight, humidity (never dip it into any liquid)

and sharp edges. Do not use the appliance with wet hands.

If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance

and always pull out the plug from the socket (pull the plug

itself, not the lead) if the appliance is not being used and

remove the attached accessories.

• Do not operate the machine without supervision. If you

leave the room you should always turn the device off.

Remove the plug from the socket.

• The device and the mains lead have to be checked regularly

for signs of damage. If damage is found the device must not

• Do not try to repair the appliance on your own. Always

contact an authorized technician. To avoid the exposure

to danger, always have a faulty cable be replaced only by

the manufacturer, by our customer service or by a qualifi ed

person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instruc-

Children and Frail Individuals

• In order to ensure your children‘s safety, please keep all

packaging (plastic bags, boxes, polystyrene etc.) out of their

Caution! Do not allow small children to play with the foil

as there is a danger of suffocation!

• This device is not intended to be used by individuals (includ-

ing children) who have restricted physical, sensory or mental

abilities and/or insuffi cient knowledge and/or experience, un-

less they are supervised by an individual who is responsible

for their safety or have received instructions on how to use

• Children should be supervised at all times in order to ensure

that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is

essential to comply with these instructions in order to avoid ac-

cidents and prevent damage to the machine:

This warns you of dangers to your health and indicates

possible injury risks.

This refers to possible hazards to the machine or other

 NOTE: This highlights tips and information.

Special Safety Instructions for this Machine

• The blade of the bar mixer is very sharp! It should

therefore be handled with extreme caution! DANGER OF INJURY!

• Do not touch any moving parts of the machine and always

wait for it to stop.

Do not use the hand blender to chop up any hard foods such

as coffee beans, nutmegs or ice cubes. Otherwise the hand

blender may be damaged.

• Before changing the attachments, the appliance must be

disconnected from the mains!

• Do not insert the appliance plug without installing the

necessary attachments.

• Only mix or whisk food with this machine.

• Do not operate the mixer for more than 5 minutes (in turbo

mode max. 1 minute)! Then let it cool down for approximate-

ly 10 minutes before using it again!

Overview of the Components

4 Cover for the hand blender connection

5 Stainless steel beaters

7 Stainless steel dough hooks

• For optimum results use high-walled vessels that are not too

• In order to avoid splashing, always insert the rods fully into

the food being mixed before you switch the mixer on.

• Pay attention to the slowing down of the motor after shutting

• The device is only designed for small quantities! You should

therefore only fi ll the maximum quantities stated in the table

Fast Hand Blender (6)

• Chop up large pieces of solid food before mashing (max.

This is for switching to maximum speed for a short time. Press

at short intervals for pulsed mode operation.

Do not use this function for more than one minute!

• Take out all the parts carefully out of the packing.

• Please be extremely careful when removing the foil from the

blade of the hand mixer!

• Clean the device before using it for the fi rst time as de-

scribed in „Cleaning“.

Electrical connection

Check whether the electrical voltage that you intend to use is the

same as that of the machine. You can fi nd this information on

How to use the Kneader hooks/beater

1. Turn the power level selector switch (2) to „0“ and ensure that

the mixer has been disconnected from the mains.

2. Press the end of the kneader hooks/beater into the cor-

responding mixer openings until the hooks click into place.

While pressing, turn slightly in order to facilitate the whole

the kneading hook with the curved washer on the shaft

can only be inserted on the left-hand side of the mixer

when viewed from the bottom

3. Connect the device to a duly installed 230 V/50 Hz protec-

tive contact socket.

4. The handmixer can be used at various speeds set with the

speed regulator (2).

5. In order to release the kneading hook/whisk turn the power

level selector switch to „0“ and ensure that the mixer has

been disconnected from the mains.

6. Press the button (1) to release the kneading hook/whisk.

Remove the device by turning it slightly.

Using the Hand Blender

1. Pull the tab on the rear of the device upwards and insert the

hand blender. Please ensure when inserting the blender

that the arrows on the device and on the blender are in line

with one another. Tighten the hand blender in a clockwise

direction. The arrow on the hand blender must be pointing

2. Connect the device to a duly installed 230 V/50 Hz protec-

tive contact socket.

3. Immerse the hand blender up to a maximum of ¾ deep into

a fi lled mixing bowl.

4. The handmixer can be used at various speeds set with the

speed regulator (2).

5. When you would like to stop mixing, turn the power level

selector switch to „0“ and unplug the device from the mains.

6. In order to release the hand blender from the motor housing,

turn it in an anticlockwise direction and then pull it carefully

Always choose a utensil and a speed according to the fol-

Sponge mixture, wafer

• Always remove the plug before cleaning!

• Under no circumstances should you immerse the device

in water for cleaning purposes. Otherwise this might result

in an electric shock or fi re.

• Do not use a wire brush or any abrasive items.

• Only a damp cloth should be used for cleaning the outside

• Clean the equipment in the usual way in soapy water.

The workplace-related emission value is less than 70 dB(A).

Power supply: 230 V, 50 Hz

Power consumption: 250 W Protection class: ΙΙ

Short-term operation: 5 Min.

Turbo operation: 1 Min.

05-HM 3316.indd 2405-HM 3316.indd 24 01.04.2009 9:00:51 Uhr01.04.2009 9:00:51 UhrENGLISH ENGLISH

This device has been tested according to all relevant current

CE guidelines, such as electromagnetic compatibility and low

voltage directives, and has been constructed in accordance with

the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the “Dustbin” Symbol

Protect our environment: do not dispose of electrical equipment

in the domestic waste.

Please return any electrical equipment that you will no longer

use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the

environment and human health.

This will contribute to the recycling and other forms of reutilisa-

tion of electrical and electronic equipment.

Information concerning where the equipment can be disposed of

can be obtained from your local authority.

05-HM 3316.indd 2505-HM 3316.indd 25 01.04.2009 9:00:52 Uhr01.04.2009 9:00:52 Uhr26
