Bistro 11445 - Kettle BODUM - Free user manual and instructions

USER MANUAL Bistro 11445 BODUM

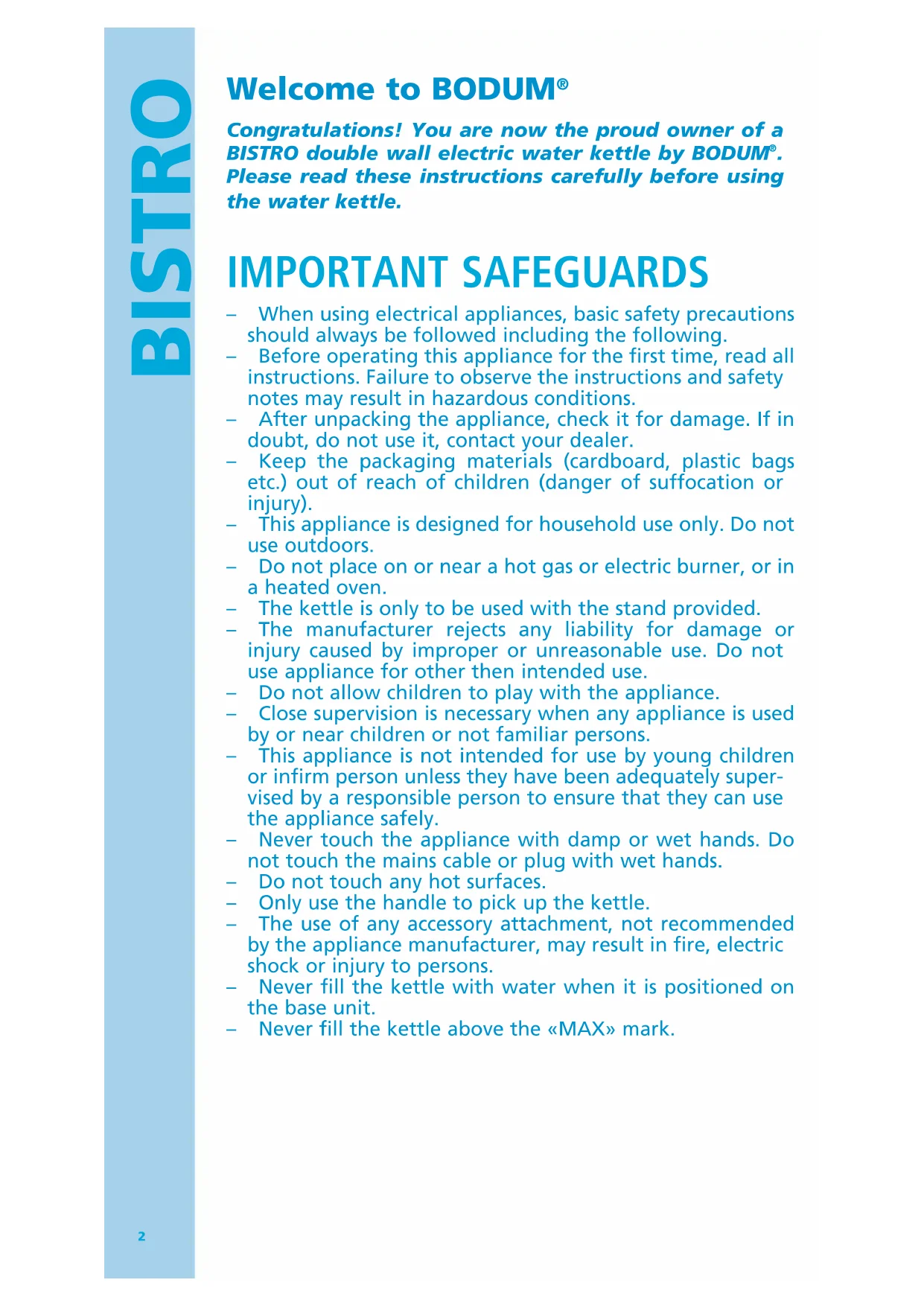

Congratulations! You are now the proud owner of a BISTRO double wall electric water kettle by BODUM

Please read these instructions carefully before using the water kettle. IMPORTANT SAFEGUARDS – When using electrical appliances, basic safety precautions should always be followed including the following. – Before operating this appliance for the first time, read all instructions. Failure to observe the instructions and safety notes may result in hazardous conditions. – After unpacking the appliance, check it for damage. If in doubt, do not use it, contact your dealer. – Keep the packaging materials (cardboard, plastic bags etc.) out of reach of children (danger of suffocation or injury). – This appliance is designed for household use only. Do not use outdoors. – Do not place on or near a hot gas or electric burner, or in a heated oven. – The kettle is only to be used with the stand provided. – The manufacturer rejects any liability for damage or injury caused by improper or unreasonable use. Do not use appliance for other then intended use. – Do not allow children to play with the appliance. – Close supervision is necessary when any appliance is used by or near children or not familiar persons. – This appliance is not intended for use by young children or infirm person unless they have been adequately super- vised by a responsible person to ensure that they can use the appliance safely. – Never touch the appliance with damp or wet hands. Do not touch the mains cable or plug with wet hands. – Do not touch any hot surfaces. – Only use the handle to pick up the kettle. – The use of any accessory attachment, not recommended by the appliance manufacturer, may result in fire, electric shock or injury to persons. – Never fill the kettle with water when it is positioned on the base unit. – Never fill the kettle above the «MAX» mark.

– Scalding may occur if the lid is removed during the brew- ing cycles. – If the kettle is overfilled, boiling water may be ejected. – Do never boil water without the lid on. – Always ensure that you pour out boiling water slowly and carefully, taking care not to tilt the spout too rapidly. – To prevent scalding, avoid coming into contact with the steam escaping from the opening in the lid when the water is being boiled or just after the kettle has switched off. Be careful when opening the lid, if the kettle is still hot and you wish to refill it with water. – Boiling water can cause burns. – Move the appliance with extreme care when it contains hot water. – Do not forcefully locate the switch in the ON position, or make any authorised changes to the switch in order to make it stay in the ON position. This could lead to steam escaping from around the lid, damaging the automatic switch-off mechanism and possibly causing bodily injury. – Never immerse the item in water, remember this is an electrical appliance. – Only clean the appliance using a damp cloth. – To disconnect, turn any control to «off» then remove plug from wall outlet. – Always unplug the appliance by holding the plug, not the cord. – Do not let cord hang over edge of table or counter, or touch hot surfaces. – Unplug the power cord from the wall outlet when the kettle is not in use and before cleaning. Allow the kettle to cool before putting on or taking off parts and cleaning it. – Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. – Never attempt to exchange the mains cable of the appliance as special tools are required for this. To ensure continued safety of the appliance, if the cable needs to be repaired or exchanged, have this carried out exclusively by a customer service workshop authorised by the manufacturer. – To protect against fire, electric shock and injury to persons do not immerse cord, plug, kettle container and power base in water or other liquid.4 BISTRO – Do not operate the kettle on an inclined plane, Do not operate the kettle unless the element is fully immersed. Do not move while the kettle is switched on. – To prevent damage to the appliances do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent. – The kettle is only to be used with the base unit (7) provided – CAUTION: Insure that the kettle is switched off before removing it from the base unit (7) INSTALLATION – Place the appliance on a stable flat surface which is neither hot nor near a heat source. The surface must be dry. Keep the appliance and its mains cable out of reach of children. – During use, do not place the base unit on a metal tray or a metal surface. – Ensure that the voltage indicated on the rating plate of the appliance agrees with the mains voltage in your area. Connect the appliance only to a properly earthed power point with a minimum output of 13A for 1500W. (Use a residual current device (RCD) seek the advice of an electrician.) While the appliance is in use, the mains plug must be accessible in case of an emergency. To ensure continued protection against risk of electric shock, connect to properly grounded outlets only. – If the power point is unsuitable for accommodating the plug of your appliance, have the power point changed by a licensed electrician.

SAVE THESE INSTRUCTIONS

SPECIAL INSTRUCTIONS POWER-SUPPLY CORD – A short power-supply cord is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. – Extension cords are available and may be used if care is exercised in their use. – If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, if the appliance is of the grounded type, the extension cord should be grounding -type 3-wire cord. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

SWITCHING OFF THE KETTLE MANUALLY

The ON/OFF switch (5) can also be used to switch off the kettle before the water boils. SAFETY CUT-OFF The kettle is protected against damage resulting from use with an insufficient volume of water. A safety cut-off will automatically disconnect the power supply if the heating element overheats. Should the kettle ever boil dry during operation, you must leave it to cool for 10 minutes before re-filling it with cold water. The safety cut-off will reset automatically once it has cooled.

BEFORE USING THE KETTLE

Clean the kettle before using it for the first time by filling it completely (to the MAX mark) with water, boiling the water, and then discarding the water.

– Remove the appliance body from the base unit (7). – Open the lid (1), fill with water and close the lid again. Do not fill the kettle with less than 0.25l/8.5oz (above the MIN mark) and not more than the MAX mark, to prevent the kettle from boiling dry or boiling water escaping from the spout.6 BISTRO

CONNECTION TO POWER SUPPLY

– After filling the kettle, position it on the base unit (7). Ensure that the kettle body is seated correctly on the con- tact unit on the base unit (7). – Connect the mains plug to the power supply and move the ON/OFF switch (5) into the ON (I) position Note: Ensure that the ON/OFF switch is able to move freely. SWITCHING OFF – Your kettle has an automatic ON/OFF switch and will switch itself off automatically as soon as the water boils. – You can switch off the kettle at any time by moving the ON/OFF switch (5) into the OFF (0) position. Note: The kettle cannot be switched off by hand if the switch is obstructed for movement, or if the ON/OFF switch is pressed into the ON (I).position.

– To remove the kettle from the base unit (7), hold it by its handle. Ensure that the kettle body remains level while lifting it from the base unit (7). – Pour the water from the spout with the lid (1) closed. Note: Please take care when pouring out water as boiling water can cause scalds.

SWITCHING THE KETTLE ON AGAIN

– If the kettle was switched off by hand, it can be switched on again at any time. – You may switch the kettle on again as soon as the built- in thermal safety cut-off switch has had sufficient time to cool.

MAINTENANCE AND CARE

SCALE FILTER Scale, or calcium, is a natural substance that forms when hard water is boiled. The filter serves to retain the calcium in the water kettle.

CLEANING AND REMOVAL OF THE FILTER

It is important to clean the filter regularly. The filter clips into the body and can be removed by pulling it upwards from the body. It can be cleaned by gentle brushing with a soft brush under running water.INSTRUCTION FOR USE

Remove scale using either a proprietary de-scaling product suitable for plastic kettles (following the instructions care- fully), or citric acid. We recommend using citric acid as follows: Boil 1.1l/38oz litre of water, then unplug the kettle and stand it in an empty sink or bowl. Add 55 gm of citric acid crystals gradually, then leave the kettle to stand. As soon as the effervescence subsides, empty the kettle and rinse it thoroughly with cold water. Wipe the outside of the kettle thoroughly with a damp cloth to remove all traces of citric acid which may damage the finish. Do not use a more concentrated solution. Ensure that the electrical connections are completely dry before using the kettle. Citric acid crystals are available at most chemists. – Failure to descale may invalidate the guarantee. – Never use chemicals, steel wool or abrasive agents to clean the exterior of the kettle. – Only clean the appliance using a damp cloth. – Never immerse the item in water: remember this is an electrical appliance. Note: Ensure that the mains power supply is switched off when you are not using the kettle. Any other servicing should be performed by an authorized service representative.8 BISTRO TECHNICAL DATA Nominal voltage EURO 220 – 240V ~50/60Hz Nominal voltage USA 120V/60Hz Nominal power EURO 1500 Watt Nominal power USA 1500 Watt Cord length approx. 70cm/27.5inch Kettle capacity 1.1Liter/38fl.oz Certifications GS, CE, ETL, CETLINSTRUCTION FOR USE

products are made of high-quality, durable materials. However, should parts require replacement, please contact one of the following: your BODUM

representative in your country, or our homepage at www.bodum.com Guarantee. BODUM

guarantees the «BISTRO» water kettle for 2 years from date of purchase against material defects or malfunctions which can be traced back to defects in manufac- turing or design. Repair is free of charge provided all guaran- tee requirements are fulfilled. No refunds can be made. Guarantee requirements. The guarantee certificate must be completely filled out by the seller at the time of purchase. Only agents authorized by BODUM

may perform guarantee services. BODUM

makes no guarantee for damage which can be attributed to use for unintended purposes, incorrect hand- ling, normal wear and tear, defective or incorrect mainte- nance or service work, incorrect operation or manipulation by unauthorized persons. Correct disposal for this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncon- trolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.10 BISTRO Willkommen bei BODUM

Yonge Street, Toronto, ON, M5C 2L7 THE BAY (MONTREAL), 585 Rue Catherine Ouest, Montreal, QC, H3B 3Y5

THE BAY (YORKDALE), 3401

Dufferin St., Toronto, ON, M6A 2T9

THE BAY (BAYSHORE), 100

Bayshore Dr., Nepean, ON, K2B 8CI

THE BAY (SOUTHCENTER), 100

Anderson Rd. Southeast, Calgary, AB, T2J 3VI THE BAY (SOUTHGATE), 111 St. & 51 Ave., Edmonton, AB, T6H 4M7

www.bodum.com GREECE SHOP-IN-SHOP Notos Galleries 105 51, Athinas 48, Kotzia Square HONG KONG SHOP-IN-SHOP Allure Living Central, 109B Caine Road, Mid-Level Citysuper Harbour City Store, Level 3, Harbour City, Tsim Sha Tsui Franc Franc, Shop S01-03 & S08- 12, 2/F., Hang Lung Center, 2-20 Paterson St., Causeway Bay GOD Causeway Bay, Leighton Centre, Sharp Street East Entrance, Causeway Bay GOD Central, 48 Hollywood Road, Central GOD Tsimshatsui, Shop B02, Basement, Silvercord, 30 Canton Road, Tsim Sha Tsui Gourmet, Basement, Lee Gardens, Causeway Bay Great Food Hall, Basement, Two Pacific Place, Queensway Lane Crawford (Pacific Place), 88 Queensway, Admiralty Lane Crawford (Times Square), 1 Matheson Street, Times Square, Causeway Bay Lane Crawford (Tsim Sha Tsui), 3 Canton Road, Tsim Sha Tsui Marc James Design, 16/F Horizon Plaza, Ap Lei Chau Sogo Hong Kong Co., Ltd., 555 Hennessy Road, Causeway Bay74 BISTRO BODUM

Olympic Blvd., Los Angeles, CA

For more information or questions, warranty claim and return authorization

FREE CALL – 1.800.23.BODUM/[e-mail]

WARRANTY CLAIM CAN NOT BE DONE WITHOUT PROOF OF PURCHASE. BODUM

warrants the original purchaser from defects in materials and workmanship (parts & labor) for the period of two years from the date of original consumer purchase. To be eligible for warranty coverage the product must be purchased from an authorized BODUM

dealer and proof of purchase must be provided. 2 YEARS LIMITED WARRANTY CERTIFICATE.
