Bistro 11138 - Kettle BODUM - Free user manual and instructions

Product type	Electric kettle
Brand	BODUM
Model	Bistro 11138
Capacity	1.5 liters (max)
Power rating	1850–2200 W (depending on version)
Voltage	220–240 V~ 50/60 Hz
Cord length	Approximately 80 cm
Scale filter	Yes, removable
Automatic shut-off	Yes, at boiling point
Safety shut-off	Yes, in case of overheating
Switch	ON/OFF with indicator light
Base	With cord storage compartment
Body material	Plastic
Minimum water level	0.25 liter
Maximum water level	1.5 liters
Warranty	2 years
Maintenance	Regular descaling with citric acid
Cleaning	Damp cloth, do not immerse
Certifications	ETL, CETL, GS, CE

Frequently Asked Questions - Bistro 11138 BODUM

How to descale my Bistro kettle?

Bring 1 liter of water to a boil, unplug the kettle and gradually add 50 g of citric acid. Let it act until the fizzing stops, empty and rinse thoroughly with cold water. Wipe the exterior with a damp cloth.

Can I open the lid while the water is boiling?

No, you risk being burned by steam. Wait for the boiling to stop or the kettle to cool before opening the lid.

What is the maximum water capacity?

The maximum capacity is 1.5 liters, indicated by the MAX mark. Do not exceed to avoid splashing boiling water.

What to do if my kettle stops before boiling?

This may be due to lack of water or overheating. Let it cool for 10 minutes, then fill with cold water. The safety shut-off automatically resets after cooling.

How to clean the scale filter?

Remove the filter by pulling upward. Clean it gently with clear water and a soft brush. Replace it after drying.

The cord is too short, can I use an extension cord?

Yes, but use a type 3 extension cord with ground wire, with voltage at least equal to that of the appliance. Place it to avoid any tripping hazard.

My kettle no longer heats up, what should I do?

First check that the kettle is properly placed on the base and that the switch is pressed. If it still does not heat, contact an authorized BODUM service center.

Can I use the kettle without the lid?

No, never boil water without the lid. This could cause splashing of boiling water and damage the appliance.

The switch is stuck, what to do?

Do not force the switch. This could damage the automatic shut-off mechanism. Unplug the appliance and contact an authorized BODUM repair service.

How to store the cord?

Use the storage compartment located in the base. Wrap the excess cord length and place it in this compartment.

USER MANUAL Bistro 11138 BODUM

WARRANTY SERVICE FOR USA - CANADA

For more information or questions, warranty claim and return authorization FREE CALL - 1.800.23.BODUM/[e-mail]

WARRANTY CLAIM CAN NOT BE DONE WITHOUT PROOF OF PURCHASE.

BODUM ^® warrants the original purchaser from defects in materials and workmanship (parts & labor) for the period of two years from the date of original consumer purchase. To be eligible for warranty coverage the product must be purchased from an authorized BODUM ^® dealer and proof of purchase must be provided.

2 YEARS LIMITED WARRANTY CERTIFICATE. ELECTRIC WATER KETTLE

CERTIFICAT DE GARANTIE LIMITÉE DE 2 ANS. BOUILLOIRE ELECTRIQUE

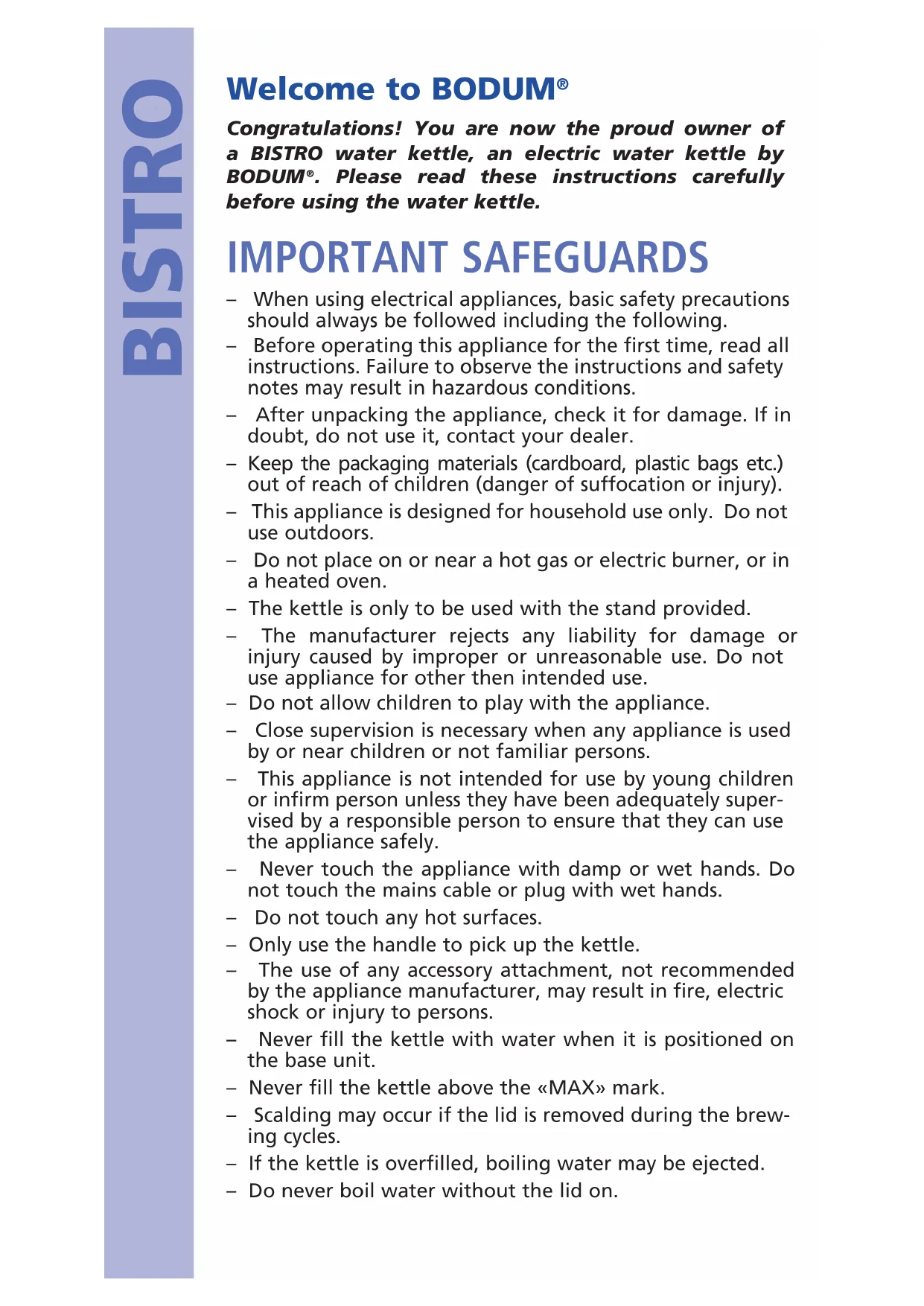

Congratulations! You are now the proud owner of a BISTRO water kettle, an electric water kettle by BODUM®. Please read these instructions carefully before using the water kettle.

IMPORTANT SAFEGUARDS

• When using electrical appliances, basic safety precautions should always be followed including the following.
• Before operating this appliance for the first time, read all instructions. Failure to observe the instructions and safety notes may result in hazardous conditions.
• After unpacking the appliance, check it for damage. If in doubt, do not use it, contact your dealer.
• Keep the packaging materials (cardboard, plastic bags etc.) out of reach of children (danger of suffocation or injury).
• This appliance is designed for household use only. Do not use outdoors.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• The kettle is only to be used with the stand provided.
• The manufacturer rejects any liability for damage or injury caused by improper or unreasonable use. Do not use appliance for other then intended use.
• Do not allow children to play with the appliance.
• Close supervision is necessary when any appliance is used by or near children or not familiar persons.
• This appliance is not intended for use by young children or infirm person unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
• Never touch the appliance with damp or wet hands. Do not touch the mains cable or plug with wet hands.
• Do not touch any hot surfaces.
• Only use the handle to pick up the kettle.
• The use of any accessory attachment, not recommended by the appliance manufacturer, may result in fire, electric shock or injury to persons.
• Never fill the kettle with water when it is positioned on the base unit.
• Never fill the kettle above the «MAX» mark.
• Scalding may occur if the lid is removed during the brewing cycles.
• If the kettle is overfilled, boiling water may be ejected.

• Do never boil water without the lid on.

• Always ensure that you pour out boiling water slowly and carefully, taking care not to tilt the spout too rapidly.

• To prevent scalding, avoid coming into contact with the steam escaping from the opening in the lid when the water is being boiled or just after the kettle has switched off. Be careful when opening the lid, if the kettle is still hot and you wish to refill it with water.
• Boiling water can cause burns.
• Move the appliance with extreme care when it contains hot water.
• Do not forcefully locate the switch in the ON position, or make any authorised changes to the switch in order to make it stay in the ON position. This could lead to steam escaping from around the lid, damaging the automatic switch-off mechanism and possibly causing bodily injury.
• Never immerse the item in water, remember this is an electrical appliance.
• Only clean the appliance using a damp cloth.
• To disconnect, turn any control to «off» then remove plug from wall outlet.
• Always unplug the appliance by holding the plug, not the cord.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Unplug the power cord from the wall outlet when the kettle is not in use and before cleaning. Allow the kettle to cool before cleaning it.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
• Never attempt to exchange the mains cable of the appliance as special tools are required for this. To ensure continued safety of the appliance, if the cable needs to be repaired or exchanged, have this carried out exclusively by a customer service workshop authorised by the manufacturer.
• To protect against fire, electric shock and injury to persons do not immerse cord, plug, kettle container and power base in water or other liquid.
• Do not operate the kettle on an inclined plane, Do not operate the kettle unless the element is fully immersed. Do not move while the kettle is switched on.
• To prevent damage to the appliances do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent.

inStallation

• Place the appliance on a stable flat surface which is neither hot nor near a heat source. The surface must be dry. Keep the appliance and its mains cable out of reach of children.
• During use, do not place the base unit on a metal tray or a metal surface.
• Ensure that the voltage indicated on the rating plate of the appliance agrees with the mains voltage in your area. Connect the appliance only to a properly earthed power point with a minimum output of 6A. (Use a residual current device (RCD) seek the advice of an electrician.) While the appliance is in use, the mains plug must be accessible in case of an emergency. To ensure continued protection against risk of electric shock, connect to properly grounded outlets only
• If the power point is unsuitable for accommodating the plug of your appliance, have the power point changed by a licensed electrician.

SAVE THESE INSTRUCTIONS

PartS of the kettle

1 Hinged lid
2 Push button to open lid
3 Scale filter
4 Water level gauge
5 ON/OFF switch
ON/OFF indicator light
6 Base unit
7 Cord retainer in base unit
8 Max water level indicator
9 Min water level indicator

SPcial inStrUctionS

POWER-SUPPLY CORD

• A short power-supply cord is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Extension cords are available and may be used if care is exercised in their use.

- If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, if the appliance is of the grounded type, the extension cord should be grounding -type 3-wire cord. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

SWITCHING OFF THE KETTLE MANUALLY

The ON/OFF switch (5) can also be used to switch off the kettle before the water boils.

SAFETY CUT-OFF

The kettle is protected against damage resulting from use with an insufficient volume of water. A safety cut-off will automatically disconnect the power supply if the heating element overheats.

Should the kettle ever boil dry during operation, you must leave it to cool for 10 minutes before re-filling it with cold water. The safety cut-off will reset automatically once it has cooled.

BEFORE USING THE KETTLE

Clean the kettle before using it for the first time by filling it completely (to the MAX mark) with water, boiling the water, and then discarding the water.

hoW to USe the Water kettle

FILLING THE WATER KETTLE

• Remove the appliance body from the base unit (6).
• Open the lid (1), fill with water and close the lid again.

Do not fill the kettle with less than 0.25l/8.5oz and not more than 1.5l/51oz (above the MAX mark), to prevent the kettle from boiling dry or boiling water escaping from the spout.

CONNECTION TO POWER SUPPLY

• After filling the kettle, position it on the base unit (6). Ensure that the kettle body is seated correctly on the contact unit on the base unit (6).
• Connect the mains plug to the power supply and press down the ON/OFF switch (5).

Note: Ensure that the ON/OFF switch is able to move freely.

SWITCHING OFF

• Your kettle has an automatic ON/OFF switch and will switch itself off automatically as soon as the water boils.
• You can switch off the kettle at any time by press up the ON/OFF switch (5).

Note: The kettle can not be switched off by hand if the switch is not free to move, or if the ON/OFF switch is pressed down.

POURING OUT WATER

• To remove the kettle from the base unit (6), hold it by its handle. Ensure that the kettle body remains level while lifting it from the base unit (6).
• Pour the water from the spout with the lid (1) closed.

Note: Please take care when pouring out water as boiling water can cause scalds.

SWITCHING THE KETTLE ON AGAIN

• If the kettle was switched off by hand, it can be switched on again at any time.
• You may switch the kettle on again as soon as the built-in thermal safety cut-off switch has had sufficient time to cool.

Maintenance and care

SCALE FILTER

Scale, or calcium, is a natural substance that forms when hard water is boiled. The filter serves to retain the calcium in the water kettle.

CLEANING AND REMOVAL OF THE FILTER

It is important to clean the filter regularly. The filter clips into the body and can be removed by pulling it upwards from the body. It cam be cleaned by gentle brushing with a soft brush under running water.

KETTLE CLEAN AND DECALE

Remove scale using either a proprietary de-scaling product suitable for plastic kettles (following the instructions carefully), or citrid acid.

We recommend using citric acid as follows:

Boil 1 litre of water, then unplug the kettle and stand it in an empty sink or bowl. Add 50gm of citric acid crystals gradually, then leave the kettle to stand.

As soon as the effervescence subsides, empty the kettle and rinse it thoroughly with cold water. Wipe the outside of the kettle thoroughly with a damp cloth to remove all traces of citric acid which may damage the finish.

Do not use a more concentrated solution. Ensure that the electrical connections are completely dry before using the kettle. Citric acid crystals are available at most chemists.

– Failure to de-scale may invalidate the guarantee.
- Never use chemicals, steel wool or abrasive agents to clean the exterior of the kettle.
- Only clean the appliance using a damp cloth.
- Never immerse the item in water: remember this is an electrical applicant.

StoraGe

- Excessive cord length can be stored on the cord retainer (7) in the base unit (6).

Note: Ensure that the mains power supply is switched off when you are not using the kettle.

Any other servicing should be performed by an authorized service representative.

technical data

Nominal voltage EURO 220-240V\~ 50/60Hz

Nominal power EURO 1850–2200 Watt

Cord length approx. 80 cm/31.5 inch

Kettle capacity 1.5litres/51fl.oz

Certifications ETL, CETL, GS, CE

Correct disposal for this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Service & GUarantee conditionS

All BODUM ^® products are made of high-quality, durable materials. However, should parts require replacement, please contact one of the following: your BODUM ^® dealer - the BODUM ^® SHOP - the BODUM ^® representative in your country, or our homepage at www.bodum.com

Guarantee. BODUM® guarantees the «BISTRO» water kettle for 2 years from date of purchase against material defects or malfunctions which can be traced back to defects in manufacturing or design. Repair is free of charge provided all guarantee requirements are fulfilled. No refunds can be made.

Guarantee requirements. The guarantee certificate must be completely filled out by the seller at the time of purchase.

Only agents authorized by BODUM ^® may perform guarantee services.

BODUM ^® makes no guarantee for damage which can be attributed to use for unintended purposes, incorrect handling, normal wear and tear, defective or incorrect maintenance or service work, incorrect operation or manipulation by unauthorized persons.

instruction for use
