USER MANUAL T 604 CATA

VER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR BY UNSUITABLE,

WRONG OR ABSURD USE.

The manufacturer declares that this product meets

all basic requirements regarding low-voltage

electrical equipment established in the 2006/95/

EEC Directive of 12 December 2006 and electro-

magnetic compatibility established in 2004/108/EEC Directive of 15 December 2004.

All operations relative to installation (electric con-

nection) should be carried out by skilled personnel in

conformity with the rules in force.

As for the specific instructions see part pertaining

TOUCH CONTROL HEATING ELEMENTS Touch sensitive keys

All operations can be performed using touch sensiti-

ve keys (capacitive sensors) located on the front of

the control board; each key has a corresponding dis-

play. All actions are confirmed by an audible signal.

TOUCH CONTROL (Fig. 2)

7 Dual circuit pilot light

All operations relating to installation (electrical con-

nection) must be carried out by qualified personnel

in line with current regulations.

See the part reserved for fitters for specific instruc-

Switching the Touch Control on/off

After mains voltage is applied, the touch control

initialises for approximately one second before it is

All displays and LEDs flash for approximately one

second after resetting. Once this period is comple-

te, all displays and LEDs switch off and the touch

control is in standby mode.

Press the ON/OFF (1) button to switch the touch

The cooking zone displays indicate “0“. If a cooking

zone is in “hot“ (high temperature) mode, the dis-

play will alternately indicate “H“ and “0“.

After switching the touch control on, it will remain

active for 20 seconds. If no cooking zone is selected,

the touch control automatically switches back to

The touch control can only be switched on by pres-

sing the ON/OFF (1) button.

Pressing the ON/OFF (1) button at the same time

as other buttons will have no effect and the touch

control will remain on standby.

The touch control can be switched off at any time

using the ON/OFF (1) button. This is even the case

when the control has been locked by the child safety

The ON/OFF (1) button always takes priority in the

switching off function.

Once switched on, the touch control automatically

switches off after 20 seconds of inactivity. After

selecting a cooking zone, the automatic off time

is divided into 10 seconds, after which the zone is

deselected and, after another 10 seconds, the touch

control switches off.

Switching a cooking zone on/off

If the touch control is switched on, the cooking zone

can be selected by pressing the button (5) of the

The display (6) of the zone selected lights up, while

the remaining displays are dimmed. if the cooking

zone is “hot”, “H” and “0” are alternately displayed.

Press the PLUS (3) or MINUS (2) button to select a

setting and the zone will begin to heat up.

Once the cooking zone has been selected, the

setting can be selected by keeping the PLUS (3)

button pressed down. The setting begins at level

GB1 and increases by 1 level every 0.4 seconds.

When setting “9” is reached, the setting will not be

If the setting level has been selected using the MIN-

US (2) button, the start level is “9“ (maximum level).

Keep the button pressed down to lower the active

level by 1 every 0.4 seconds. When setting “0” is

reached, there will be no further setting changed.

The setting can only be changed by pressing the

MINUS (2) or PLUS (3) button again.

Switching a cooking zone off

Select the zone to be switched off using the

corresponding button (5). The display (6) of the zone

selected lights up, while the remaining displays are

dimmed. Press the PLUS (3) and MINUS (2) buttons

at the same time and the setting level of the zone is

changed to 0. Alternatively, the MINUS button (2) can

be used to reduce the setting level to 0.

If a cooking zone is “hot”, “H” and “0” will be

alternately displayed.

Switching all cooking zones off

Press the ON/OFF (1) button to immediately switch

off all zones at any time. In standby mode, an “H“

is displayed in all cooking zones that are “hot“. The

remaining displays will be switched off.

The cooking zone can be set to 9 levels that are

indicated by the numbers “1“ to “9“ on the seven-

segment LED displays (6).

Residual heat indicator

This informs the user that the glass is at a dange-

rous temperature in the event of touching the area

located around the cooking zone. The temperature

is determined by a mathematical model and any

residual heat is indicated by a “H” on the correspon-

ding 7-segment display.

Heating and cooling are calculated based on:

· The selected setting level (between “0“ and “9“)

After switching off the cooking zone, the correspon-

ding display will indicate “H” until the temperature

in the zone has dropped below the critical level (≤

Automatic off function (operating time limita-

In terms of the setting level, if no operation occurs

each cooking zone switches off after an established

Each operation in the cooking zone condition (using

the PLUS (3) and MINUS (2) or dual zone) restarts

the maximum operating time of the zone by reset-

ting it to its initial value.

Protection against unintended switching on

· If the electronic control detects a button being held

down for approx. 10 sec. it will switch off automa-

tically. The control sends out an audible error signal

to warn the user that the sensors have detected

the presence of an object. The displays indicate

error code “ E R 0 3 “. If the cooking zone is in

“hot” mode, “H“ will be indicated alternately on the

display with the error signal.

· If no cooking zone is activated within 20 seconds

after switching on the touch control, it will return to

· When the control is switched on, the ON/OFF

button has priority over all other button and, therefo-

re, the control can be switched off at any time, even

when several buttons are pressed at the same time

or a button is kept held down.

· In standby mode, no effect will be caused by

buttons being kept held down. However, before the

electronic control can be switched back on, it has to

detect that no button is pressed down.

Button lock (child safety feature)

• Child safety feature:

To activate the child safety feature after having

switched on the Touch control, press the rear left

cooking zone selection button at the same time as

the MINUS button (2) for 3 seconds. An “L” standing

for LOCKED (child safety feature preventing uninten-

ded switch on) will be indicated on all displays. If a

cooking zone is in “hot” mode, “L” and “H” will be

alternately displayed.

This operation must take place within a 10 succes-

sive seconds and no button other than those descri-

bed must be pressed. Otherwise, the sequence will

be interrupted and the hob will not be locked.

The electronic control remains locked until it unloc-ked by the user, even if it has been switched off and

back on meanwhile. Not even touch control resetting

(after a voltage drop) will interrupt the button lock.

Cancelling the button lock:

After switching the touch control on, the child safety

feature can be disabled. Press the rear left cooking

zone selection button and the MINUS button (2) for

3 seconds, followed by just the MINUS button (2).

If all operations are carried out in the right order

within 10 seconds, the button lock will be cancelled

and the touch control switched off. Otherwise, the

sequence will be considered incomplete and the

touch control will remain locked and will switch off

Switch the touch control back on using the ON/

OFF button and all displays will be indicate “0”, the

decimal points will flash and the touch control will

be ready for cooking. If a cooking zone is in “hot”

mode, “0” and “H” will be alternately displayed.

Switching off multiple circuits

It is possible to control dual circuit hobs, depending

on the version. When a dual cooking zone is acti-

vated, the two circuits are switched on at the same

time. Activation of the external circuit is indicated

by a pilot light (7) in the bottom right corner of the

display. If only the internal circuit is to be switched

on, the external circuit can be switched off using the

dual circuit button (4). Press the dual circuit button

(4) again to re-activate the external circuit and the

corresponding pilot light (7) will switch on.

Sound signal (buzzer)

The following activities are indicated by a buzzer

· Normal button pressing by a short sound.

· Buttons kept pressed down for more than 10 sec.

by a long, intermittent sound.

Precautions (Fig. 3)

- When one makes use of heating elements, we

receptacles with flat bottom having same diameter

higher than that of the hot area.

- Avoid overflows of liquid, therefore when boiling

happened, or in any case when liquid is heated,

- Don’t leave the heating elements on without

the top or with void pots and pans.

- If the surface of the hob is damaged, immediately

disconnect the appliance from the mains to prevent

possibility of electric shock.

- Never use a steam cleaner to clean the hob.

- This appliance hood is not designed to be used by

people (including children) with reduced physical,

sensorial or mental capacity, or who lack experience

or knowledge about it, unless they have had super-

vision or instructions on how to use the appliance by

someone who is responsible for their safety.

- Children must be supervised to ensure that they do

not play with the appliance.

Maintenance (Fig. 4)

By means of a scraper immediately remove any

alluminium foil bits, food spills, grease splashes,

sugar marks and other high sugarcontent food from

the surface in order to avoid

Subsequently clean the surface with some towel and

appropriate product, rinse with water and dry by

means of a clean cloth. Under no circumstance

should sponges or abrasive cloths be used; also

avoid using aggressive chemical detergents such as

oven sprays and spot removers.

Installer’s Instructions

These Instructions are for the qualified technician,

to installation, adjustment and maintenance,

according to the laws and standards in force. These

operations must always be carried out when the

appliance has been disconnected from the electric

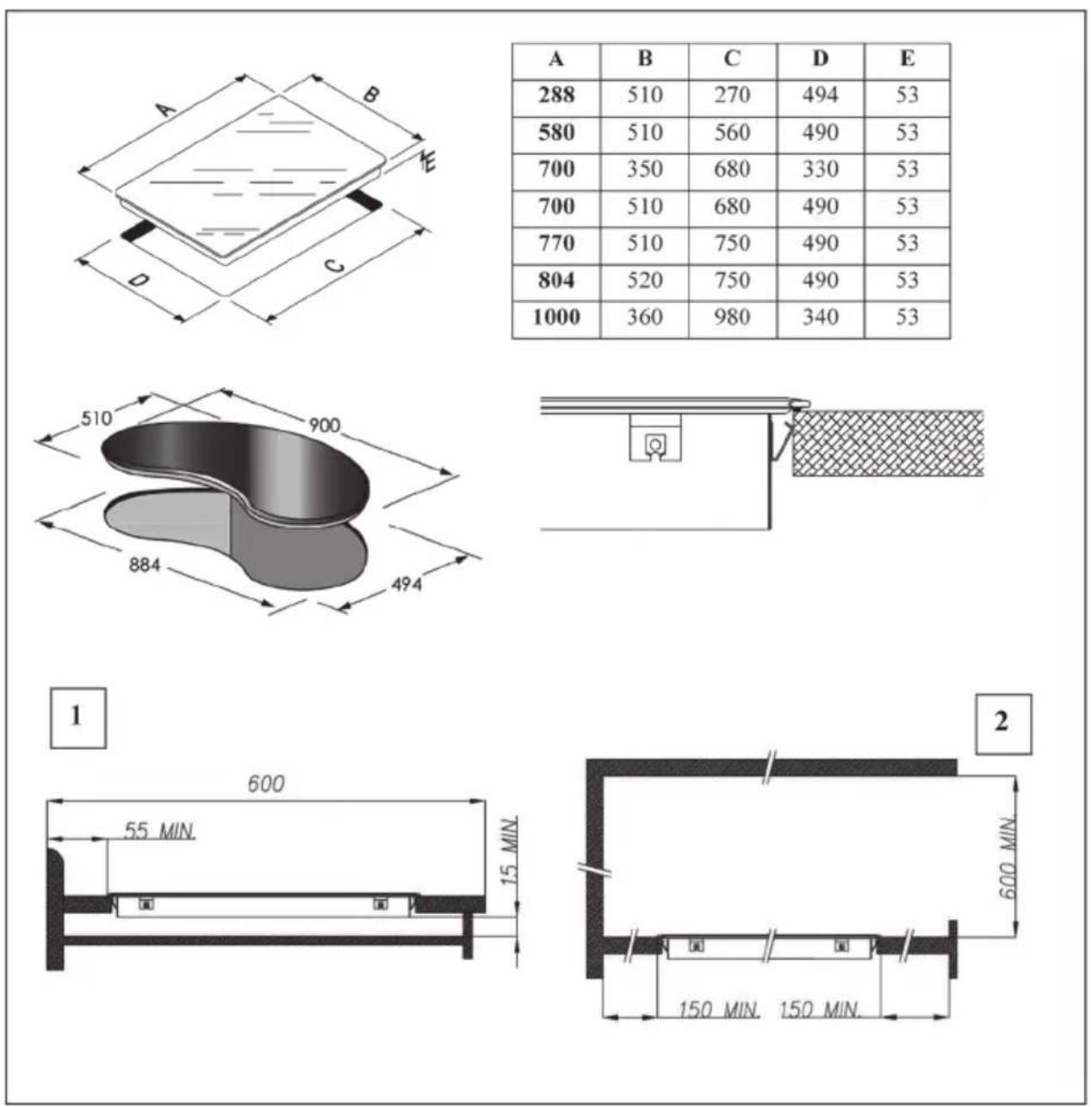

The appliance can be fitted into a working area as

illustrated on the figure. Apply the seal supplied over

the whole perimeter of the working area.

Electrical connection

Prior to carrying out the electrical connection, please

the plant charac- teristics are such as to follow what

is indicated on the matrix plate placed at the bottomof the working area;

- that the plant is fitted with an efficient earth

connection, following the standards and law

provisions in force.

- The earth connection is compulsory in terms of

Should there be no cable and/or plug on the

equipment, use suitable absorption material for the

working temperature as well, as indicated on the

matrix plate. Under no circumstance must the cable

reach a temperature above 50°C of the ambient

Should a direct connection to the network be requi-

red, it will be necessary to interpose an omnipolar

aperture between the 3 mm. contacts, dimensio-

ned to bear the plate load and it must follow the

standards in force (the yellow/green earth cable

must not be interrupted by the switch). The plug

or omnipolar switch must be easily reached on the

installed equipment.

The manufacturers decline any responsibility in the

event of non-compliance with what is described

above and the accident prevention norms not being

respected and followed.

To avoid all risk, if the power cable becomes

damaged, it must only be replaced by the manu-

facturer, by an authorised service centre, or by a

qualified electrician.QUESTO PRODOTTO È STATO CONCEPITO PER UN IMPIEGO DI TIPO DOMESTICO. IL COSTRUTTORE DECLINA OGNI RESPONSABILITÀ NEL CASO DI EVENTUALI DANNI A COSE O PERSONE DERIVANTI DA UNA NON CORRETTA INSTALLAZIONE O DA USO IMPROPRIO, ERRONEO O ASSURDO.

touch rimane in stand-by.
