USER MANUAL Q87M vPro ASROCK

Copyright©2013 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : [phone] ext.123 (Standard International call charges apply)

The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

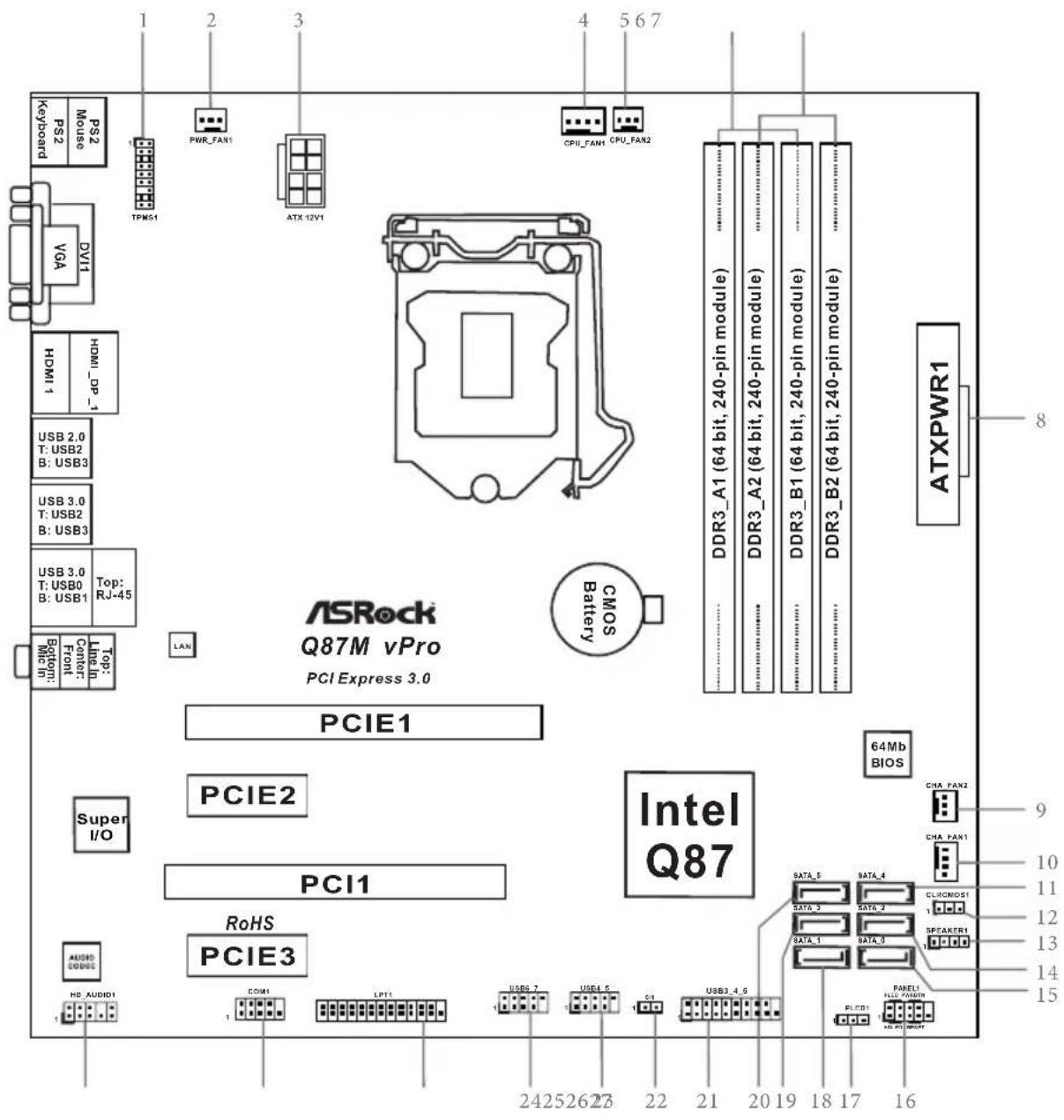

Motherboard Layout

ASRock Q87M vPro PCI Express 3.0 PCIE1 Super I/O PCI2 PCI1 RoHS PCIE3 HD_AUDIO1 COM1 LPT1 USB6_7 USB4_5 C4 USB3_4_5 24252627 22 21 20 19 18 17 16 8 ATXPWR1 ATX_PWR1 CPU_FAN1 CPU_FAN2 PWR_FAN1 TPMS1 VGA PS2 Mouse HDMI_DP_1 USB 2.0 T: USB2 B: USB3 USB 3.0 T: USB2 B: USB3 USB 3.0 T: USB0 B: USB1 Top: RJ-45 Bottom/ Front/ Micro-In Line In LAN CDMOs Battery DDR3_A1 (64 bit, 240-pin module) DDR3_A2 (64 bit, 240-pin module) DDR3_B1 (64 bit, 240-pin module) DDR3_B2 (64 bit, 240-pin module) 64Mb BIOS CHA_FAN2 CHA_FAN1 DATA_5 DATA_4 DATA_2 DATA_1 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 Data_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA_0 DATA 8 PANEL FULL PANUM

No. Description

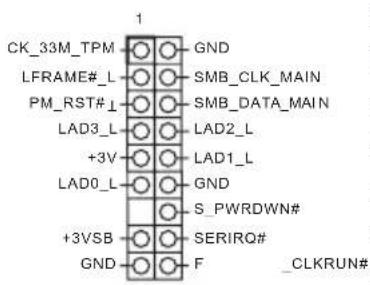

1 TPM Header (TPMS1)
2 Power Fan Connector (PWR_FAN1)
3 ATX 12V Power Connector (ATX12V1)
4 CPU Fan Connector (CPU_FAN1)
5 CPU Fan Connector (CPU_FAN2)
6 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
7 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)
8 ATX Power Connector (ATXPWR1)
9 Chassis Fan Connector (CHA_FAN2)
10 Chassis Fan Connector (CHA_FAN1)
11 SATA3 Connectors (SATA_4)
12 Clear CMOS Jumper (CLRCMOS1)
13 Chassis Speaker Header (SPEAKER1)
14 SATA3 Connectors (SATA_2)
15 SATA3 Connectors (SATA_0)
16 System Panel Header (PANEL1)
17 Power LED Header (PLED1)
18 SATA3 Connectors (SATA_1)
19 SATA3 Connectors (SATA_3)
20 SATA3 Connectors (SATA_5)

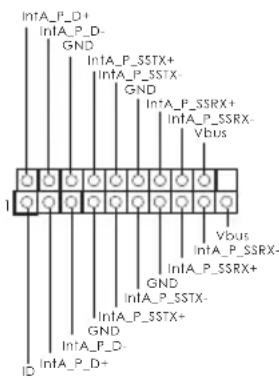

21 USB 3.0 Header (USB3_4_5)
22 Chassis Intrusion Header (CI1)
23 USB 2.0 Header (USB4_5)
24 USB 2.0 Header (USB6_7)

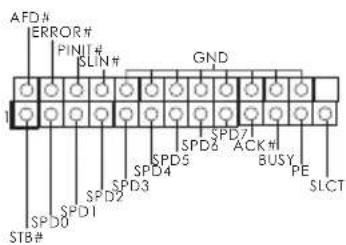

25 Print Port Header (LPT1)
26 COM Port Header (COM1)
27 Front Panel Audio Header (HD_AUDIO1)

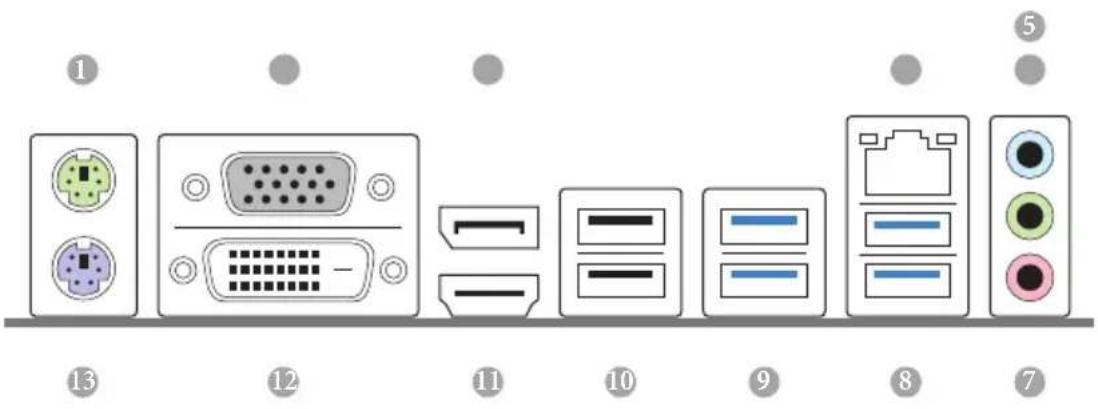

I/O Panel

1 13 12 11 10 9 8 7 5

No. Description No. Description

1 PS/2 Mouse Port 8 USB 3.0 Ports (LAN_USB3_01)
2 D-Sub Port 9 USB 3.0 Ports (USB3_23)
3 Display Port 10 USB 2.0 Ports (USB23)
4 LAN RJ-45 Port 11 HDMI Port
5 Line In (Light Blue) 12 DVI-D Port
6 Front Speaker (Lime) ^** 13 PS/2 Keyboard Port
7 Microphone (Pink)

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On Link Green	1Gbps connection

To enable Multi-Streaming, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find the "Mixer" tool on your system. Please select "Mixer ToolBox", click "Enable playback multi-streaming", and click "ok". Choose "2CH", "4CH", "6CH", or "8CH" and then you are allowed to select "Realtek HDA Primary output" to use the Rear Speaker, Central/Bass, and Front Speaker, or select "Realtek HDA Audio 2nd output" to use the front panel audio.

Chapter 1 Introduction

Thank you for purchasing ASRock Q87M vPro motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock Q87M vPro Motherboard (Micro ATX Form Factor)

ASRock Q87M vPro Quick Installation Guide

ASRock Q87M vPro Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1.2 Specifications

Platform	Micro ATX Form FactorAll Solid Capacitor design
A-Style	Home Cloud
CPU	Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1150 Package4 Power Phase DesignSupports Intel® Turbo Boost 2.0 Technology
Chipset	Intel® Q87Supports Intel® vProTM TechnologySupports Intel® Active Management Technology 9.0Supports Intel® Small Business Advantage 2.0* Intel® Small Business Advantage, Intel® vProTM Technology and Intel® Active Management Technology 9.0 can be supported only with Intel® CoreTM vProTM processor family
Memory	Dual Channel DDR3 memory technology4 x DDR3 DIMM slotsSupports DDR3 1600/1333/1066 non-ECC, un-buffered memoryMax. capacity of system memory: 32GBSupports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Expansion Slot	1 x PCI Express 3.0 x16 slot2 x PCI Express 2.0 x1 slots1 x PCI slot
Graphics	Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1,Intel® InTruTM 3D, Intel® Clear Video HD Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600Pixel Shader 5.0, DirectX 11.1

Graphics

Max. shared memory 1792MB

Four VGA Output options: D-Sub, DVI-D, HDMI and DisplayPort

Supports Triple Monitors

Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports DisplayPort with max. resolution up to 3840x2160 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)

Supports HDCP function with DVI-D, HDMI and DisplayPort ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort ports

Audio

5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY Intel ^® I217LM

Supports Intel ^® Remote Wake and iSCSI Remote Boot Technology

Supports Wake-On-LAN

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Rear Panel	1 x PS/2 Mouse Port
I/O	1 x PS/2 Keyboard Port
	1 x D-Sub Port
	1 x DVI-D Port
	1 x HDMI Port
	1 x DisplayPort
	2 x USB 2.0 Ports
	4 x USB 3.0 Ports
	1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
	HD Audio Jack: Line in / Front Speaker / Microphone

Storage

6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 12 and IntelSmart Response Technology), NCQ, AHCI and “Hot Plug” functions

Connector	1 x Print Port header
	1 x COM port headers
	1 x Power LED header
	1 x Chassis Intrusion header
	1 x TPM header
	2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
	2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
	1 x Power Fan connector (3-pin)
	1 x 24 pin ATX power connector
	1 x 8 pin 12V power connector
	1 x Front panel audio connector
	2 x USB 2.0 headers (support 4 USB 2.0 ports)
	1 x USB 3.0 header (support 2 USB 3.0 ports)

BIOS	64Mb AMI UEFI Legal BIOS with Multilingual GUI support
Feature	ACPI 1.1 Compliance Wake Up Events
	SMBIOS 2.3.1 Support
	CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjust-ment
Support	Drivers, Utilities, AntiVirus Software (Trial Version), Cyber-
CD	Link MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8, MeshCentral, Splashtop Streamer

Hardware	CPU/Chassis Temperature Sensing
Monitor	CPU/Chassis/Power Fan Tachometer
	CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
	CPU/Chassis Fan Multi-Speed Control
	CASE OPEN detection
	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS	Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant

Certifications

FCC, CE, WHQLErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ^4 32-bit operating systems. Windows ^4 64-bit operating systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows ^® cannot use.

1.3 Unique Features

ASRock A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, Dehumidifier, Good Night LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.

ASRock Instant Flash

ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update the system BIOS in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Just save the new BIOS file to your USB storage and launch this tool by pressing or during POST to enter the BIOS setup menu to access ASRock Instant Flash. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system.

ASRock APP Charger

Simply by installing the ASRock APP Charger makes your iPhone/iPad/iPod Touch charge up to 40% faster than before on your computer. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5).

ASRock XFast USB

ASRock XFast USB can boost the performance of your USB storage devices. The performance may depend on the properties of the device.

ASRock XFast LAN

ASRock XFast LAN provides faster internet access, which includes the benefits listed below. LAN Application Prioritization: You can configure your application's priority ideally and add new programs to the list. Lower Latency in Game: After setting online game's priority higher, it can lower the latency in games. Traffic Shaping: You can watch Youtube HD videos and download simultaneously. Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are currently transferring.

ASRock XFast RAM

ASRock XFast RAM is included in A-Tuning. It fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

ASRock Crashless BIOS

ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If power loss occurs during the BIOS updating process, ASRock Crashless BIOS will automatically finish the BIOS update procedure after regaining power. Please note that BIOS files need to be placed in the root directory of your USB disk. Only USB 2.0 ports support this feature.

ASRock OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict internet access at specified times via OMG. You may schedule the starting and ending hours of internet access granted to other users. In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required.

ASRock Internet Flash

ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you without entering Windows OS. Please setup network configuration before using Internet Flash.

ASRock System Browser

ASRock System Browser shows the overview of your current PC and the devices connected.

ASRock Dehumidifier Function

Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

ASRock Fast Boot

With ASRock's exclusive Fast Boot technology, it takes less than 1.5 seconds to logon to Windows 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.

ASRock Restart to UEFI

Windows® 8 brings the ultimate boot up experience. The lightning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to enter the UEFI automatically when turning on the PC. By enabling this function, the PC will enter the UEFI directly after you restart.

ASRock Good Night LED

ASRock Good Night LED technology offers you a better sleeping environment by extinguishing the unessential LEDs. By enabling Good Night LED in the BIOS, the Power/HDD LEDs will be switched off when the system is powered on. Good Night LED will automatically switch off the Power and Keyboard LEDs when the system enters into Standby/Hibernation mode as well.

ASRock USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Just plug in the USB Key and let your computer log in to windows automatically!

ASRock Home Cloud

This motherboard supports remote wake with the onboard Intel LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.

ASRock FAN-Tastic Tuning

ASRock FAN-Tastic Tuning is included in A-Tuning. Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.

Chapter 2 Installation

This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard.

Failure to do so may cause physical injuries to you and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard's components,

NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

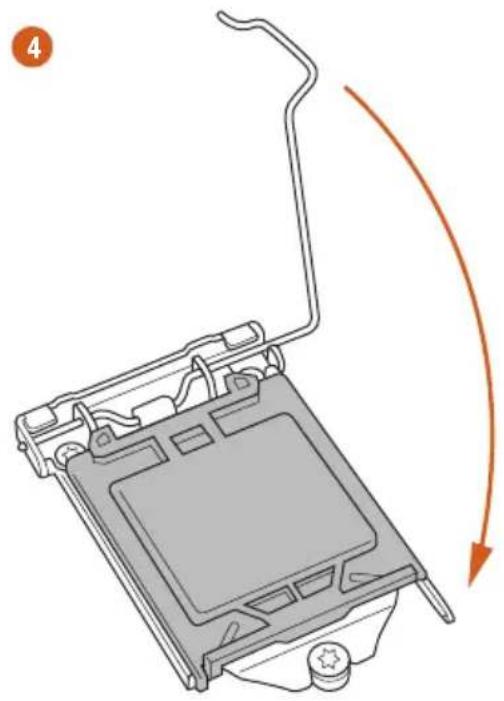

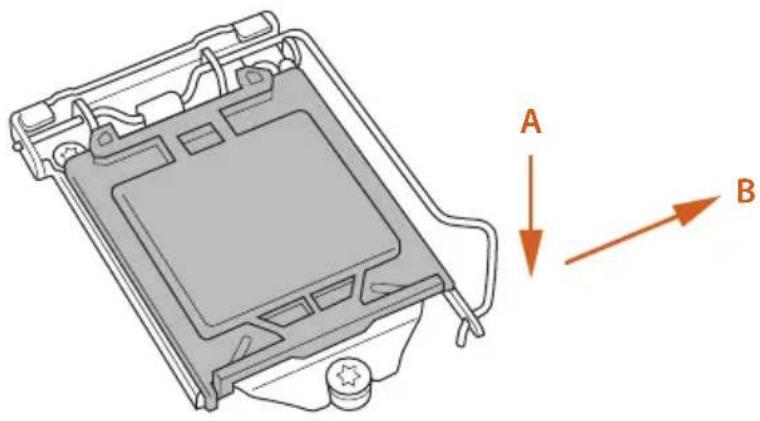

2.1 Installing the CPU

1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

1

Technical line drawing of a mechanical component with labeled directional arrows (A and B), no readable text or symbols present.

2

Technical line drawing of a mechanical device with internal components and an orange curved arrow indicating rotation (no text or symbols)

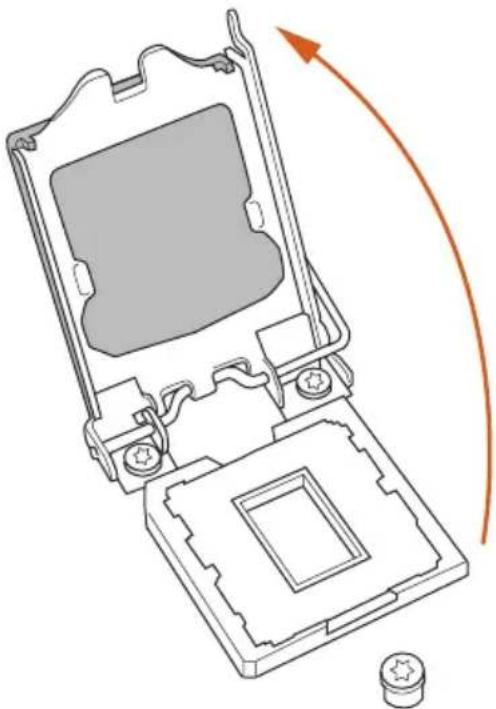

3

Technical diagram of a computer processor internal structure showing mounting holes and internal components (no text or labels)

Diagram of a computer monitor with an orange curved arrow indicating motion or rotation (no text or symbols present)

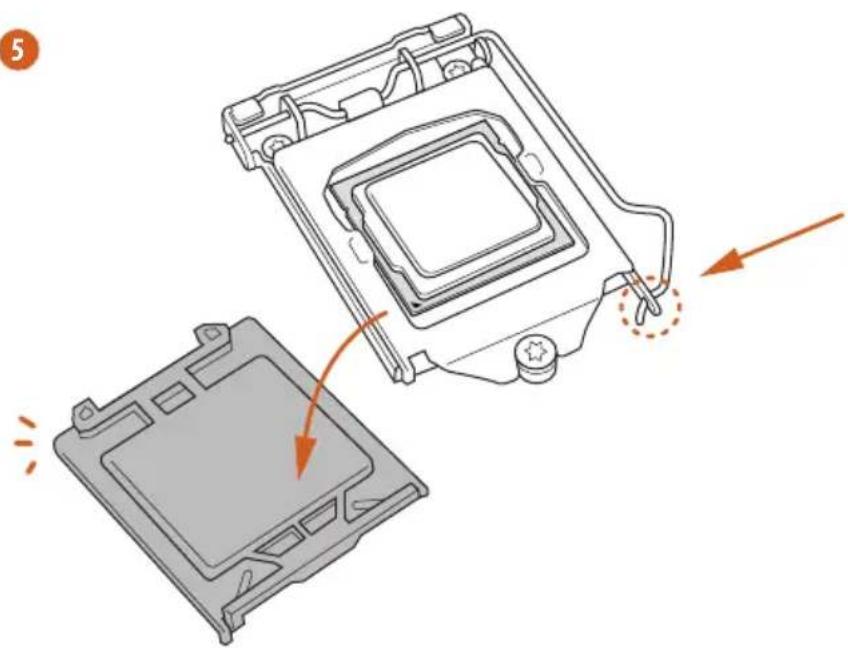

5

Diagram showing a computer processor's internal structure and external casing, with no visible text or symbols.

Please save and replace the cover if the processor is removed. 'The cover must be placed if you wish to return the motherboard for after service.

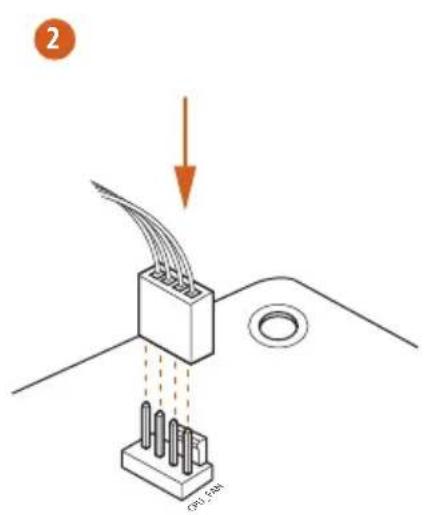

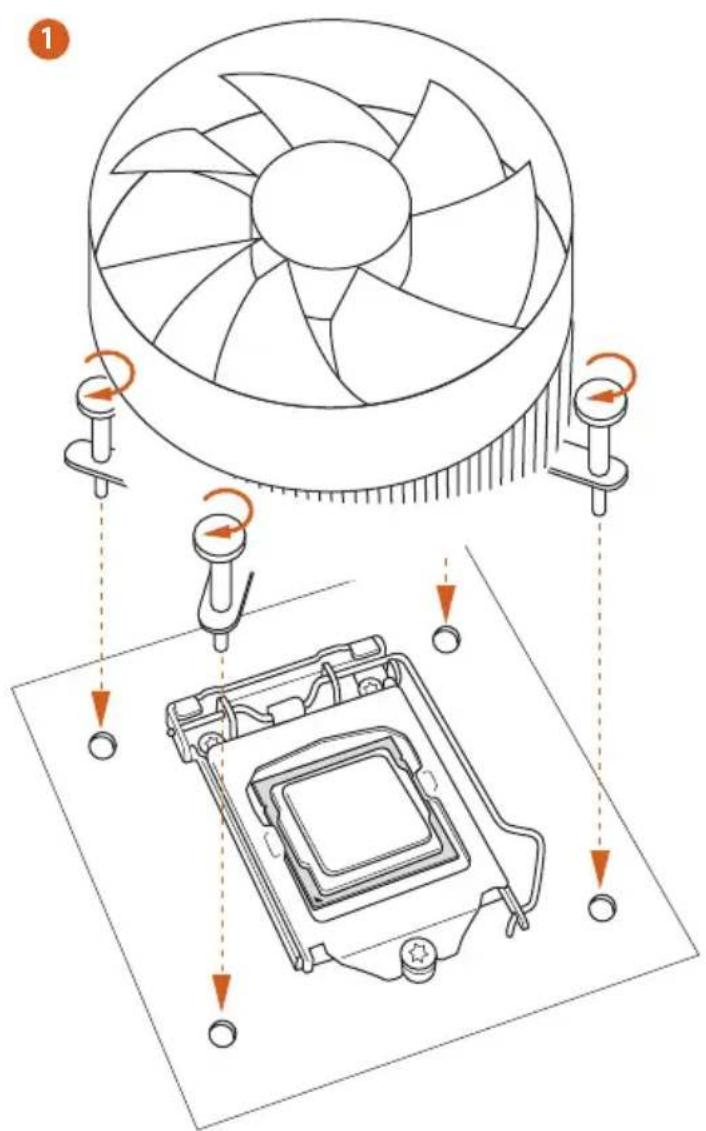

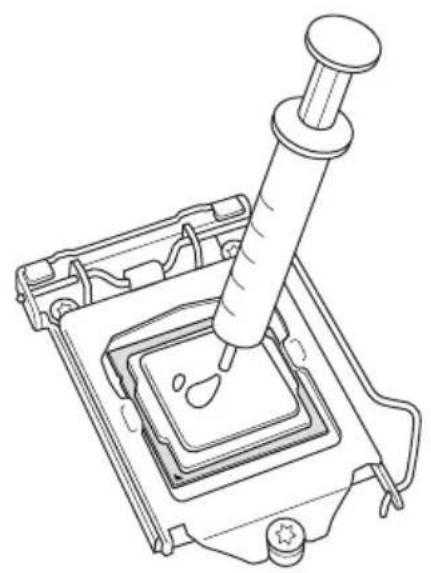

2.2 Installing the CPU Fan and Heatsink

Technical line drawing of a mechanical device with a syringe inserted into a square component (no text or symbols)

Diagram illustrating the installation of a CPU fan with cooling mechanism, showing component assembly and rotation arrows.

2 OCS 5.4M

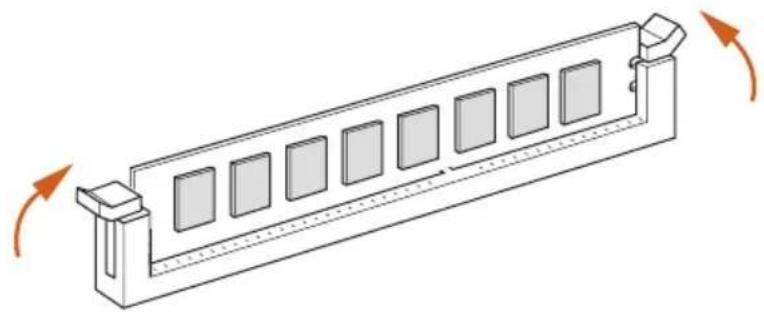

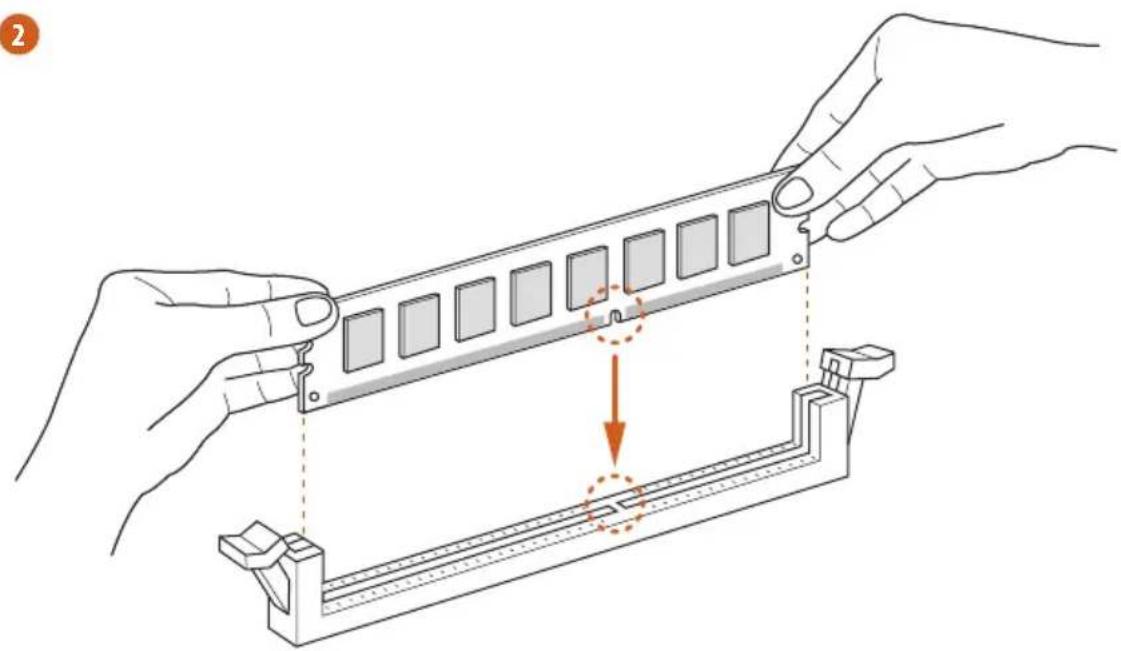

2.3 Installing Memory Modules (DIMM)

This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise, this motherboard and DIMM may be damaged.

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1

Technical line drawing of a mechanical support structure with rotational arrows indicating motion (no text or symbols)

2

Illustration of hands assembling a mechanical component with a highlighted section (no text or symbols)

3

Isometric line drawing of a rectangular structure with multiple square panels and directional arrows indicating rotation (no text or symbols)

2.4 Expansion Slots (PCI and PCI Express Slots)

There is 3 PCI Express slots and 1 PCI slot on this motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCI slot:

The PCI1 is used to install expansion cards that have 32-bit PCI interface.

PCIe slots:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards. PCIE2 and 3 (PCIe 2.0 x1 slot) are used for PCI Express x1 lane width cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed on these 2 pins.

Short Open 1 2 3

Clear CMOS Jumper (CLRCMOS1)

(see p.1, No. 12)

CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1)

(see p.1, No. 16)

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Serial ATA3 Connectors

(SATA_0:

see p.1, No. 15)

(SATA_1:

see p.1, No. 18)

(SATA_2:

see p.1, No. 14)

(SATA_3:

see p.1, No. 19)

(SATA_4:

see p.1, No. 11)

(SATA_5:

see p.1, No. 20)

SATA_5

SATA_4

SATA 3

SATA 2

SATA_1

SATA_0

These six SATA3

connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

USB 2.0 Headers

(9-pin USB_4_5)

(see p.1, No. 23)

(9-pin USB_6_7)

(see p.1, No. 24)

USB_PWR P- P+ GND DUMMY 1 P- P+ GND USB_PWR

Besides two USB 2.0 ports on the I/O panel, there are two headers on this motherboard. Each USB 2.0 header can support two ports.

USB 3.0 Headers

(19-pin USB3_4_5)

(see p.1, No. 21)

IntA_P_D+ GND IntA_P_SSTX+ GND IntA_P_SSTX- Vbus I/O Vbus IntA_P_SSRX+ GND IntA_P_SSTX- GND IntA_P_SSTX+ Vbus I/O I/O I/O I/O I/O I/O I/O I/O

Besides four USB 3.0 ports on the I/O panel, there are one header on this motherboard. Each USB 3.0 header can support two ports.

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.1, No. 27)

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Speaker Header

(4-pin SPEAKER1)

(see p.1, No. 13)

DUMMY SPEAKER

Please connect the chassis

speaker to this header.

Chassis and Power Fan

Connectors

(4-pin CHA_FAN1)

(see p.1, No. 10)

(4-pin CHA_FAN2)

(see p.1, No. 9)

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

(3-pin PWR_FAN1)

(see p.1, No. 2)

GND +12V PWR_FAN_SPEED

CPU Fan Connectors

(4-pin CPU_FAN1)

(see p.1, No. 4)

(4-pin CPU_FAN2)

(see p.1, No. 5)

+12V GND CPU_FAN_SPEED FAN_SPEED_CONTROL

This motherboard provides a 4-Pin CPU fan

(Quiet Fan) connector. If you plan to connect a

3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector

(24-pin ATXPWR1)

(see p.1, No. 8)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin

ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.1, No. 3)

This motherboard provides an 8-pin ATX 12V

power connector. To use a

4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

Serial Port Header

(9-pin COM1)

(see p.1, No. 26)

This COM1 header supports a serial port

module.

Chassis Intrusion Header

(2-pin CI1)

(see p.1, No. 22)

This motherboard supports

CASE OPEN detection feature that detects if the chassis cover has been removed. This feature requires a chassis with chassis intrusion detection design.

TPM Header (17-pin TPMS1) (see p.1, No. 1)

CK_33M_TPM LFRAME#_L PM_RST#_ LAD3_L +3V LAD0_L +3VSB GND GND SMB_CLK_MAIN SMB_DATA_MAIN LAD2_L LAD1_L GND S_PWRDWN# SERIRQ# F CLKRUN#

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, * protects digital identities, and ensures platform integrity.

Print Port Header (25-pin LPT1) (see p.1, No. 25)

AFDN ERROR# PINI# SLIN# GND SPD3 SPD4 SPD5 SPD6 SPD7 SPD8 SPD9 SPD10 SPD11 SPD12 SPD13 SPD14 SPD15 SPD16 SPD17 SPD18 SPD19 SPD20 SPD21 SPD22 SPD23 SPD24 SPD25 SPD26 SPD27 SPD28 SPD29 SPD30 SPD31 SPD32 SPD33 SPD34 SPD35 SPD36 SPD37 SPD38 SPD39 SPD40 SPD41 SPD42 SPD43 SPD44 SPD45 SPD46 SPD47 SPD48 SPD49 SPD50 SPD51 SPD52 SPD53 SPD54 SPD55 SPD56 SPD57 SPD58 SPD59 SPD60 SPD61 SPD62 SPD63 SPD64 SPD65 SPD66 SPD67 SPD68 SPD69 SPD70 SPD71 SPD72 SPD73 SPD74 SPD75 SPD76 SPD77 SPD78 SPD79 SPD80 SPD81 SPD82 SPD83 SPD84 SPD85 SPD86 SPD87 SPD88 SPD89 SPD90 SPD91 SPD92 SPD93 SPD94 SPD95 SPD96 SPD97 SPD98 SPD99 SPD100

This is an interface for print port cable that allows convenient connection of printer devices.

ASRock Q87M vPro-Support-CD

2 x Serial-ATA- (SATA) Datenkabel (optional)

Serial-ATA-III-Anschlüsse

(SATA_0:

siehe S.1, Nr. 15)

(SATA_1:

siehe S. 1, Nr. 18)

(SATA_2:

siehe S. 1, Nr. 14)

(SATA_3:

siehe S.1, Nr. 19)

(SATA_4:

siehe S. 1, Nr. 11)

(SATA_5:

siehe S. 1, Nr. 20)

SATA_5 SATA_4 SATA_3 SATA_2 SATA_1 SATA_0

Compatible ACPI 1.1 Wake Up Events

Prend en charge SMBIOS 2.3.1

Réglage de la tension CPU, DRAM, PCH 1,05V, PCH 1,5V

CD inclus

FCC, CE, WHQL
ErP/EuP Ready (alimentation ErP/EuP ready requise)

Suporta a função HDCP com as portas DVI-D, HDMI e DisplayPort

Simple graphic with a magnifying glass icon and a horizontal line, no text or symbols present.

1.1 パッケージの内容

1.2 仕様

CPU

DisplayPort

@60Hz

@60Hz

LAN

I/O

Intel

Splashtop Streamer

os

1.3 ジャンパー設定

Short

Open

1 2

2 3

(CLRCMOS1)

Clear CMOS Jumper (CLRCMOS1)

(lihat hal. 1, No. 12)

Clear CMOSDefault

RESET (Switch Atur Ulang):

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 3151

6604 LV Wijchen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

For the following equipment:

Motherboard

(Product Name)

Q87M vPro / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive (2004/108/EC) and Safety Directive (2006/95/EC), the following standards are applied:

EN 55022: 2006+A1:2007
EN 61000-3-2: 2009
EN 61000-3-3:2008
☑ EN 55024: 1998 + A1:2001 + A2:2003

IEC 61000-4-2: 2008;

IEC 61000-4-3: 2010; IEC 61000-4-4: 2010;

IEC 61000-4-5: 2005; IEC 61000-4-6: 2008;

IEC 61000-4-8: 2009; IEC 61000-4-11: 2004;

EN 60950-1: 2005 + A1:2009

IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011

The following manufacturer / importer or authorized representative established within the EUT is responsible for this declaration:

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 3151 6604 LV Wijchen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

May 24, 2013

(Date)
