SA2145 - Waffle Maker TRISTAR - Free user manual and instructions

Product type	Waffle maker / Cookie machine
Brand	TriStar
Model	SA2145
Main use	Cooking waffles and cookies
Power supply	Mains 220-240 V ~ 50/60 Hz
Power	800 W (estimated)
Capacity	2 waffles (multiple molds)
Plate material	Non-stick coating
Thermostat	Continuously adjustable, from low to high
Indicator lights	Red (heating) and green (ready)
Preheating time	Approximately 5 minutes
Cooking time	5 to 10 minutes depending on temperature and batter
Cleaning	Damp cloth or soft brush; do not immerse, do not put in dishwasher
Safety	Do not immerse in water; do not use with a damaged cord
Warranty	24 months (with proof of purchase)
Included accessories	Recipe booklet
Exterior coating	Plastic (estimated)
Certification	CE (Low Voltage and EMC Directives)
Recycling	100% recyclable packaging; appliance subject to WEEE
Intended use	Household only

Frequently Asked Questions - SA2145 TRISTAR

How to use my TriStar SA2145 waffle maker for the first time?

Before first use, lightly grease the non-stick plates with oil or butter. Plug in the appliance, turn the thermostat to the highest setting and let it heat empty for about 5 minutes. A slight odor or smoke may occur, this is normal.

How long does it take to preheat the appliance?

Preheating takes about 5 minutes. When the green light comes on, the appliance is ready to use.

How to adjust the cooking temperature?

Turn the thermostat clockwise to increase the temperature, counterclockwise to decrease it. The higher the setting, the hotter the plates. Adjust the temperature according to the batter and your preferences.

What is the typical cooking time?

Cooking time varies between 5 and 10 minutes depending on the selected temperature and batter type. Check the cooking after 3 minutes and adjust the thermostat if necessary.

How to clean the non-stick plates?

Unplug the appliance and let it cool down. Clean the plates with a damp cloth or a soft brush. Never use abrasive cleaners, metal sponges, or sharp objects. Never immerse the appliance in water.

Can I use metal utensils on the plates?

No, to avoid damaging the non-stick coating, use only wooden, silicone, or heat-resistant plastic utensils.

Is the appliance safe for children?

This appliance is not a toy. The plates get very hot during use. Never leave children unattended near the appliance while it is operating or still hot.

What to do if smoke or odor occurs during first use?

This is a normal phenomenon during first use. Place the appliance in a well-ventilated area and let it heat empty for 5 minutes. The odor will disappear after a few uses.

Can I prepare other recipes besides waffles?

Yes, the appliance can make cookies like grandma's shortbread or spiced cookies. Recipes are provided in the manual. Adjust the batter and cooking time accordingly.

How to store the appliance after use?

Let the appliance cool completely in the open position before storing. Clean it beforehand. Store it in a dry, stable place, out of reach of children.

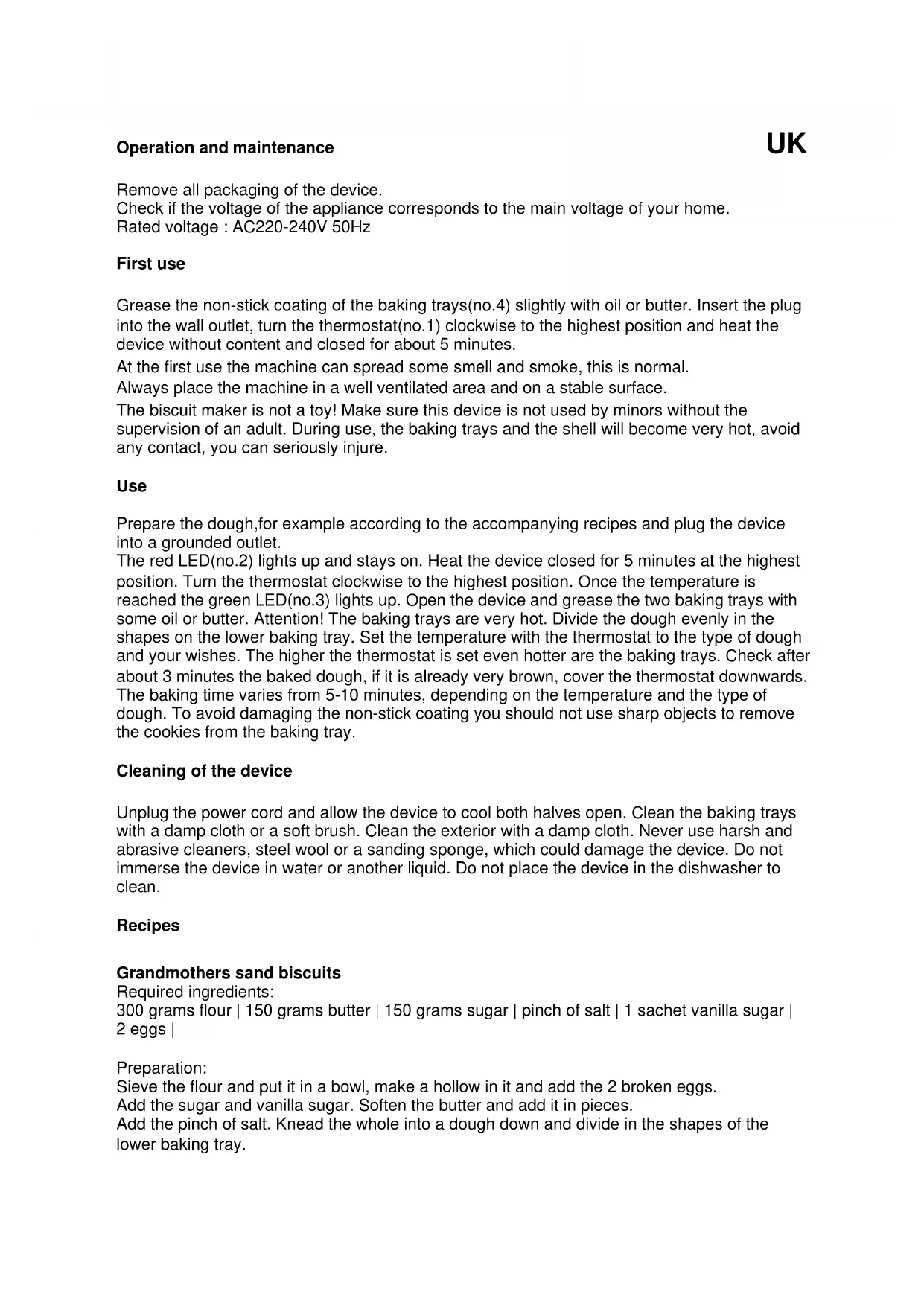

USER MANUAL SA2145 TRISTAR

Thermostat Control led red

TepmoperyaTop CBeTINHeH INdkaTop - YepBcH

Control led green Cooking plates with shapes

Remove all packaging of the device.

Check if the voltage of the appliance corresponds to the main voltage of your home.

Rated voltage : AC220-240V 50Hz

First use

Grease the non-stick coating of the baking trays(no.4) slightly with oil or butter. Insert the plug into the wall outlet, turn the thermostat(no.1) clockwise to the highest position and heat the device without content and closed for about 5 minutes.

At the first use the machine can spread some smell and smoke, this is normal.

Always place the machine in a well ventilated area and on a stable surface.

The biscuit maker is not a toy! Make sure this device is not used by minors without the supervision of an adult. During use, the baking trays and the shell will become very hot, avoid any contact, you can seriously injure.

Use

Prepare the dough, for example according to the accompanying recipes and plug the device into a grounded outlet.

The red LED(no.2) lights up and stays on. Heat the device closed for 5 minutes at the highest position. Turn the thermostat clockwise to the highest position. Once the temperature is reached the green LED(no.3) lights up. Open the device and grease the two baking trays with some oil or butter. Attention! The baking trays are very hot. Divide the dough evenly in the shapes on the lower baking tray. Set the temperature with the thermostat to the type of dough and your wishes. The higher the thermostat is set even hotter are the baking trays. Check after about 3 minutes the baked dough, if it is already very brown, cover the thermostat downwards. The baking time varies from 5-10 minutes, depending on the temperature and the type of dough. To avoid damaging the non-stick coating you should not use sharp objects to remove the cookies from the baking tray.

Cleaning of the device

Unplug the power cord and allow the device to cool both halves open. Clean the baking trays with a damp cloth or a soft brush. Clean the exterior with a damp cloth. Never use harsh and abrasive cleaners, steel wool or a sanding sponge, which could damage the device. Do not immerse the device in water or another liquid. Do not place the device in the dishwasher to clean.

Recipes

Grandmothers sand biscuits

Required ingredients: 300 grams flour | 150 grams butter | 150 grams sugar | pinch of salt | 1 sachet vanilla sugar | 2 eggs |

Preparation:

Sieve the flour and put it in a bowl, make a hollow in it and add the 2 broken eggs. Add the sugar and vanilla sugar. Soften the butter and add it in pieces. Add the pinch of salt. Knead the whole into a dough down and divide in the shapes of the lower baking tray.

Spiced biscuits

Required ingredients:

500 grams flour | 150 grams of butter or margarine | 200 grams of brown sugar | 25 grams speculoos herbs | 5 tablespoon milk | 1 teaspoon baking powder

Preparation:

Sieve the flour and put it in a bowl, add the brown sugar, baking powder and spices.

Slowly mix in the milk. Soften the butter and add it in pieces.

Knead the whole into a dough down and divide in the shapes of the lower baking tray.

IMPORTANT SAFEGUARDS

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.
• Unplug from outlet when not in use and before cleaning. Allow the device to cool before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries and invalidate any warranty you may have.
• Do not use outdoors, or on or near direct heat sources
• Do not let cord hang over edge of table or counter, or touch hot surfaces or come into contact with the hot parts or allow the product to be situated underneath or close to curtains, window coverings etc.
• This appliance is for household use only and only for the purpose it is made for.
• The appliance must be placed on a stable, level surface.
• This appliance is an attended appliance, and as such should never be left ON or whilst hot without adult supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Guarantee

• The device supplied by our Company is covered by 24 month guarantee starting on the date of purchase (receipt).
• During the life of the guarantee any fault of the device or its accessories to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
• Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
• If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Guidelines for protection of the environment

m = 311

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 73/23/EEC, the protection requirements of the EMC Directive 89/336/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
