Brand	TriStar
Model	KA5129
Product type	Electric radiator on stand
Power supply	220-240 V ~ 50-60 Hz
Power	2000 W (estimate)
Heating levels	3 levels
Oscillation function	Yes, with dedicated switch
Safety	Automatic shut-off in case of tipping or tilting
Dimensions (approx.)	Height: 60 cm, Width: 30 cm, Depth: 30 cm
Weight (approx.)	3.5 kg
Maintenance	Regular dusting of grilles, cleaning with a damp cloth without abrasive products
Spare parts and repairability	Available at www.tristar.eu
Usage	Domestic, in well-insulated rooms or occasional use

Frequently Asked Questions - KA5129 TRISTAR

How to install the radiator base?

Remove the mounting screws from the base, insert the cord into the central slot, assemble the chassis frame on the base, then fix with the screws. Then, insert the cord into the slots and secure it with the clip.

What heating levels are available?

The radiator offers three heating levels that you can select according to your needs.

How to activate the oscillation function?

Press the oscillation switch to rotate the radiator. Press again to stop the movement.

What to do if the radiator tips over?

A built-in safety switch automatically turns off the appliance in case of tilting or tipping, to prevent any fire risk.

What are the important safety precautions?

Never cover the radiator, do not use it near bathtubs or swimming pools, and keep children under 3 years away unless under constant supervision.

How to clean the radiator?

Unplug the appliance and wait for it to cool. Dust the grilles, then clean the exterior with a damp cloth. Do not use abrasive products or steel wool.

Where to find spare parts?

All information and spare parts are available on the website www.tristar.eu.

What is the required power supply voltage?

The appliance operates on a voltage of 220-240 V ~ 50-60 Hz. Check that your outlet matches before plugging in.

Can I use this radiator in a small room?

Yes, but if the room is occupied by people incapable of leaving the premises alone, constant supervision is necessary because the appliance does not have a room thermostat.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its authorized repair service, or a qualified electrician to avoid any electrical risk.

USER MANUAL KA5129 TRISTAR

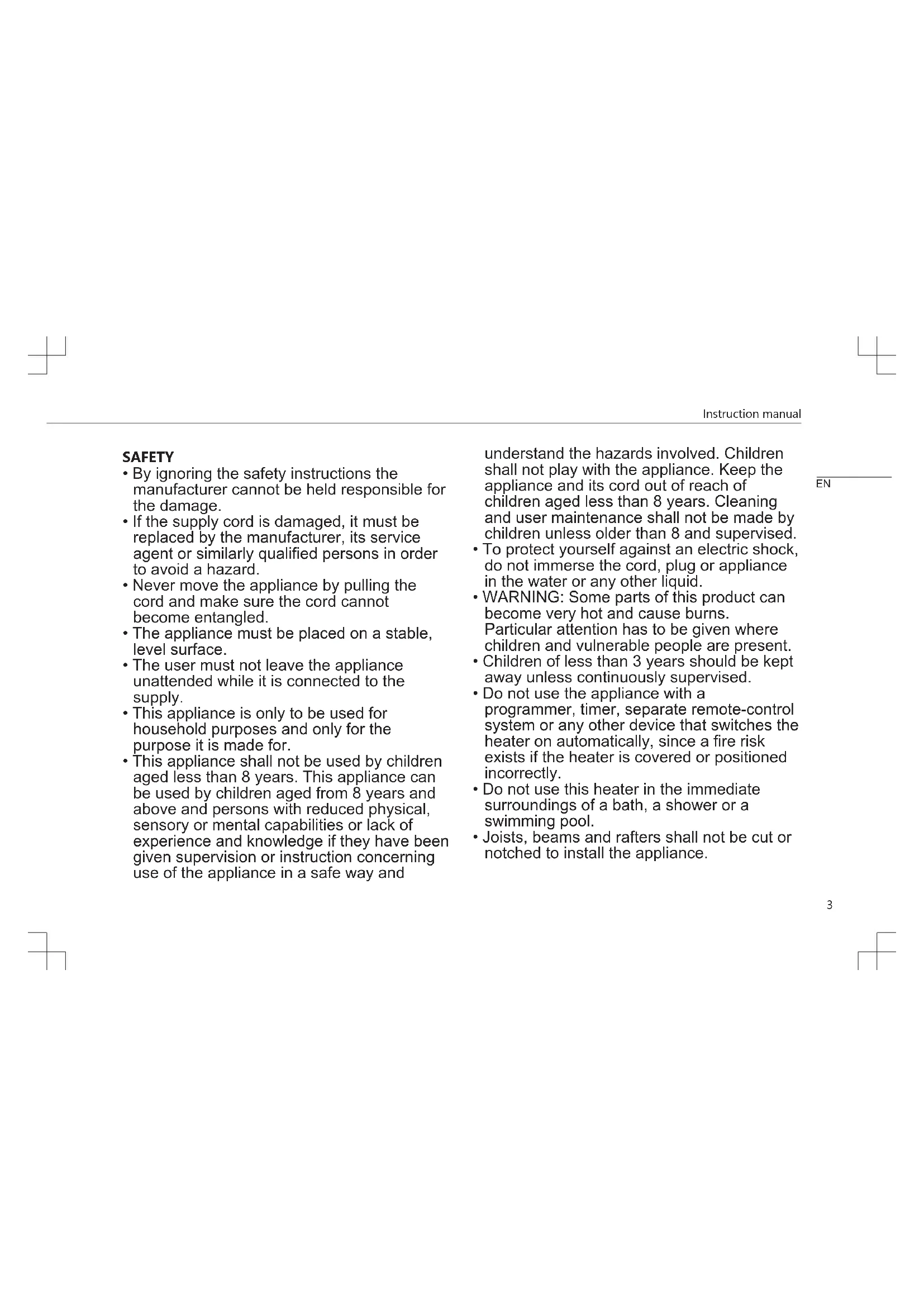

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
• The appliance must be placed on a stable, level surface.
• The user must not leave the appliance unattended while it is connected to the supply.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• WARNING: Some parts of this product can become very hot and cause burns.
  Particular attention has to be given where children and vulnerable people are present
  Children of less than 3 years should be kept away unless continuously supervised.
• Do not use the appliance with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Joists, beams and rafters shall not be cut or notched to install the appliance.

Instruction manual

• Please do not install the appliance close to curtains and other combustible materials. This could cause a fire.
  Regulations concerning the discharge of air have to be fulfilled.
• The appliance shall, under no circumstances, be covered with insulating material or similar material.
• The fireguard does not give full protection for young children and for infirm persons.
• The fireguard of this heater is intended to prevent direct access to heating elements and must be in place when the heater is in use.
• The heater must not be located immediately below a socket-outlet.
• The heater needs to be installed so that the switches and other controls cannot be touched by a person in the bath or shower.
• WARNING: The heater must not be used if the ceramic panels are damaged.
• WARNING: The heater must not be used if the glass panels are damaged.
• WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they

are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

WARNING: In order to avoid overheating, do not cover the heater.

This product complies with conformity requirements of the applicable European regulations or directives.

The Green Dot is the registered trademark of Der Grüne Punkt - Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopedia or an electronic database containing a reference manual.

The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispense it separately, following the illustrated packaging symbols, for better waste treatment. The Triman logo is valid in France only.

The universal recycling symbol, logo, or icon is an

internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.

Waste electrical products should not be disposed of with

household waste. Please recycle where facilities exist. Check with your local Authority or local store for recycling advice.

Separate collection / Check your local municipal guidelines.

PARTS DESCRIPTION

1. Control panel
2. Heating elements
3. Base

BEFORE THE FIRST USE

• Remove the mounting screws from base of the heater.
• Insert the power cord through the slot placed in the middle part of the base and then assemble the body frame to the base.
• Secure the body frame to the base replacing the two mounting screws. Insert the power cord through the suitable slots and then fix it by the clamp.

Warning! Do not move the heater if the bulbs are still warm, this could damage the device.

USE

• Connect the power cable to the socket. (Note: Make sure the indicated voltage on the device matches the local voltage before connecting the device. Voltage 220V-240V~50-60Hz.)
• This heater is equipped with three different heating levels, select the desired heating level. Press the oscillating switch to make the heater oscillate. Press it again to shut off the oscillating movement.
• This appliance is provided with a safety switch, the safety switch will turn off the device when the heater is tilted or when it's tipped.

CLEANING AND MAINTENANCE

• The appliance needs only an external regular cleaning.
• Before cleaning, unplug the appliance and wait for the appliance to cool down.
  Clean the grates from dust.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.

ENVIRONMENT

This appliance should not be put into the domestic garbage at

the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance

TRISTAR Instruction manual

can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.tristar.eu!

VEILIGHEID

This product is only suitable for well insulated spaces or occasional use.
