1.SAFETY INSTRUCTIONS ORIGINAL INSTRUCTIONS PRODUCT SAFETY

SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings andinstructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordiess) power tool

2) Keep work area clean and well lit. Cluttered or

dark areas invite accidents b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded c) Do not expose power tools to rain or wet Cordless Hedge Trimmer conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. €) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of à cord suitable for outdoor use reduces the risk of electric shock. #)_H operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock

2) Stay alert, watch what you are doing and use

common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may resulk in personal injury. €) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

9) If devices are provided for the connection of

dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. À careless action can cause severe injury within a fraction of a second

4. Power tool use and care

a) Do not force the power tool. Use the correct

power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired Disconnect the plug from the power source and/ or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. €) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools #)_ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

2) Recharge only with the charger specified by

the manufacturer. À charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a ire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

€) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. #)_Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

2) Have your power tool serviced by a qualified

repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

2) Keep all parts of the body away from the blade.

Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury. b) Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch, Proper carrying of the hedge immer will decrease the risk of inadvertent starting and resultant personal injury from the blades. €) When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades. d) When clearing jammed material or servicing the unit, make sure all power switches are off and the battery back is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury, Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a “live” wire may make exposed metal parts of the hedge timmer “live” and could give the operator an electric shock. Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade

Cordless Hedge Trimmer

9) Do not use the hedge trimmer in bad weather

ions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning h) Check the hedges and bushes for foreign objects, e.g. wire fences and hidden wiring. Hold the hedge trimmer properly, e.g. with both hands if two handles are provided.

1) The hedge trimmer is intended to be used by the

operator at ground level and not on ladders or any other unstable support. Before operating the hedge trimmer, the user should make sure the locking device(s) of any moving elements (e.g. the extended shaft and pivoting element), if any, are in the locked position.

2) Do not dismantle, open or shred cells or battery

pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardiy in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a ire. <) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.

4) Do not subject battery pack to mechanical

shock. €) _Inthe event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. #) Keep battery pack clean and dry.

9) Wipe the battery pack terminals with a clean

dry cloth if they become dirty. h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure. ) Do not maintain battery pack on charge when not in use.

1) After extended periods of storage, it may

be necessary to charge and discharge the battery pack several times to obtain maximum performance. k) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment. D Do not use any battery pack which is not designed for use with the equipment. m)_Keep battery pack out of the reach of children. n)_ Retain the original product literature for future reference. ©) Remove the battery from the equipment when not in use. p)_ Dispose of properly. a) Do not mix cells of different manufacture, capacity, size or type within a device. r) Keep the battery away from microwaves and high pressure. SYMBOLS To reduce the risk of injury, user must read instruction manual Waming

Wear ear protection Wear eye protection Wear dust mask Do not expose to rain Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Cordless Hedge Trimme

Lion battery This product has been marked with a symbol relating to ê Ô “Separate collection for all battery packs and battery pack. It will then i-lon | berecycled or dismantled in order to 3.TECHNICAL DATA Type Designation: WG264E WG264E.X WP274E WP274E.X (230-269- designation of machinery, representative of cordless hedge trimmer) Wear protective gloves. Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. ** X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models “Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. reduce the impact on the environment. WG2G4E WO2OLE Xe Battery packs can be hazardous WP274E WP274E X* for the environment and for human health since they contain hazardous Voltage 100-240 V--50/60 Hz Substances. Power 20V 2 Max Lithium No load speed 2200 /min Keep hands away from blade Blade length 56 cm Cutting length 52 cm =] Remove battery from the socket before Tooth spacing 29 mm 2 | | carnying out any adjustment, servicing Cutting diameter 20 mm D or maintenance. 9 Machine Weight © (bare tool) 2.22kg

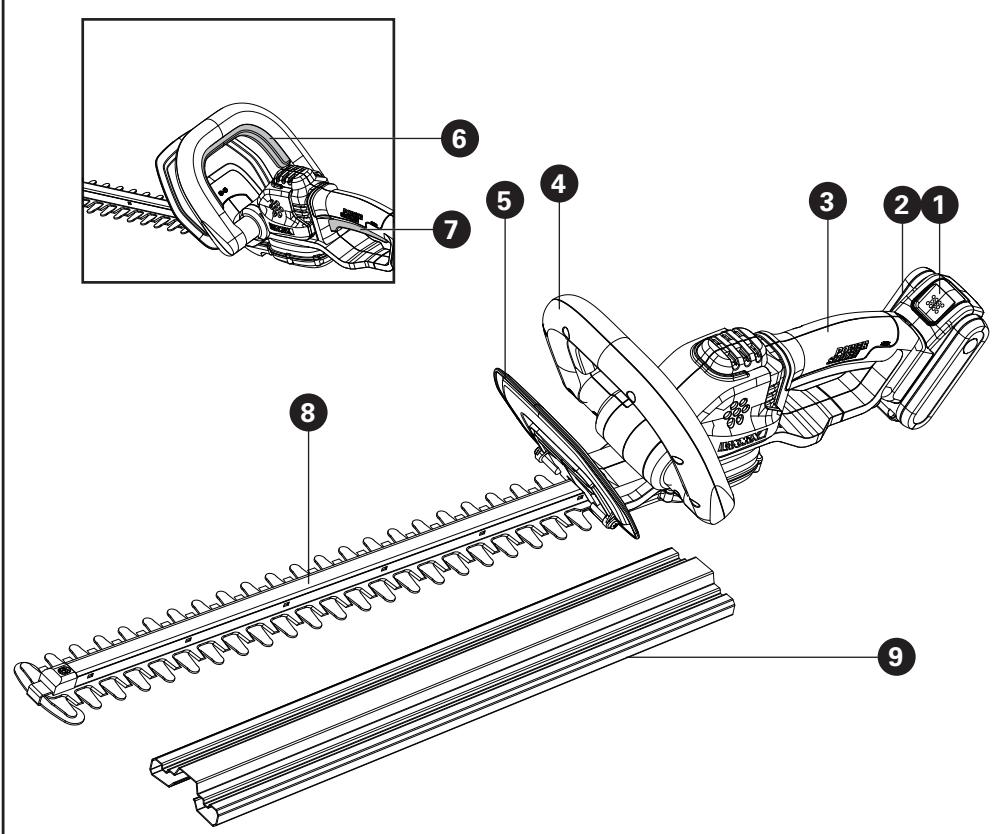

2 FRONTHANDLE We recommend that you purchase your accessories from the same store that sold you the tool. Refer to

5. SAFETY GUARD the accessory packaging for further details. Store

3 FRONT SITCHLEVER (ALL AROUND personnel can assist you and offer advice SWITCH FUNCTION)

7. REAR SWITCH LEVER

NOISE INFORMATION BLADE

*Notall the accessories ilustrated or described are À cd coundDouer Lx: 83.4dB(A) included in standard delivery. gl pl K5 3 dB(a) Wear ear protection © Cordless Hedge Trimmer

VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 62841 Vibration emission value: a, <2.5 m/s? 5.0PERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. WARNING! Do not use the product without

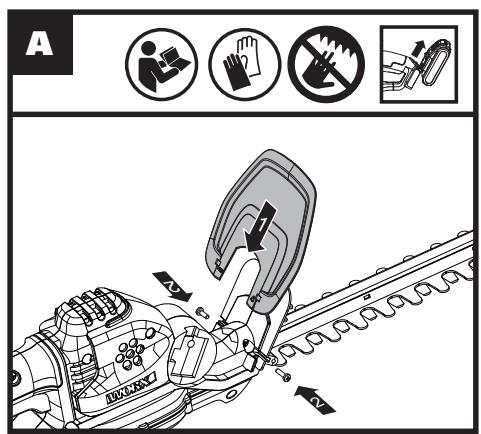

2) attaching the guard and front handle.

Uncertainty K = 1.5m/s? The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value and the declared noise emission value may also be used in à preliminary assessment of exposure.

WARNING: The vibration emission value

during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used How the tool is used and the materials being cut or drilled The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition The tighiness of the grip on the handles and if any anti vibration accessories are used And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of

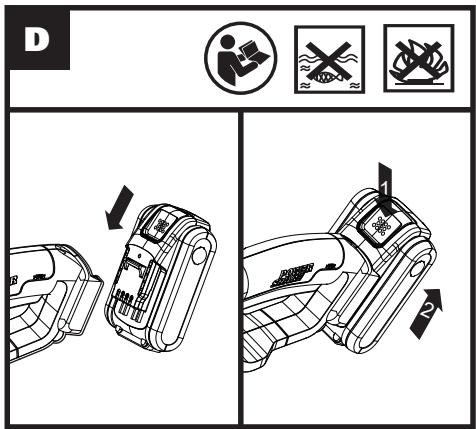

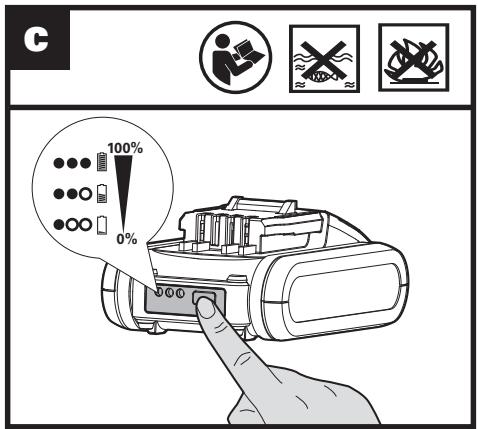

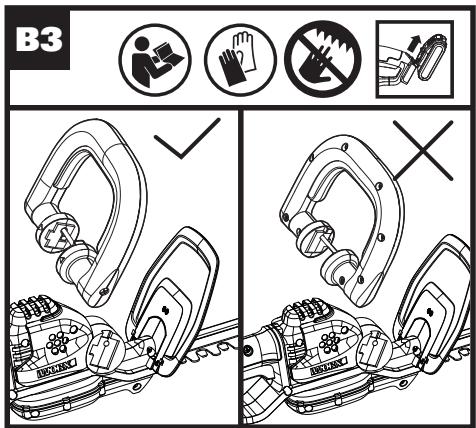

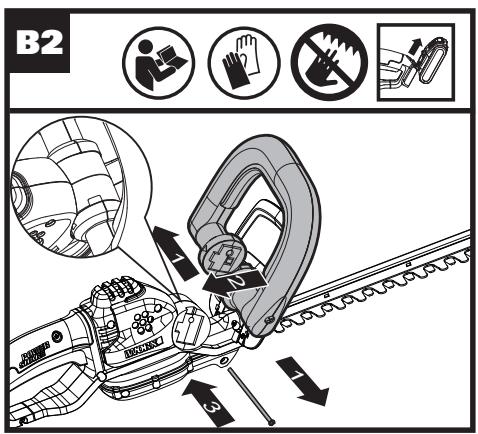

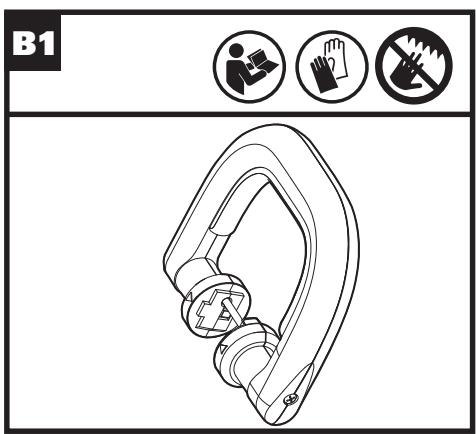

exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period Helping to minimise your vibration exposure risk ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) Ifthe tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days. 4.INTENDED USE The machine is intended for cutting and trimming hedges and bushes in domestic use Cordless Hedge Trimmer ASSEMBLY & OPERATION ACTION FIGURE ASSEMBLY Assembling the safe guard See Fig. À Assembling the Front Handle NOTE: Loosen the long screw first before assembling the front handle. NOTE: the handle is assembled incorrectly the tool will not power on See Fig. B1, 82,B3 Checking the battery charge condition | See Fig. C See Fig. D Installing and Removing the battery pack Charging the battery pack Your battery pack is UNCHARGED, you must charge before use More details can be found in chargers manual OPERATION See Fig. Starting and stopping ELE2 Top cutting A WARNING: If any parts are issing, damaged or broken, do not operate your hedge trimmer until all damaged parts have been replaced or repaired. Failure to do so could result in serious personal injury. DO NOT.

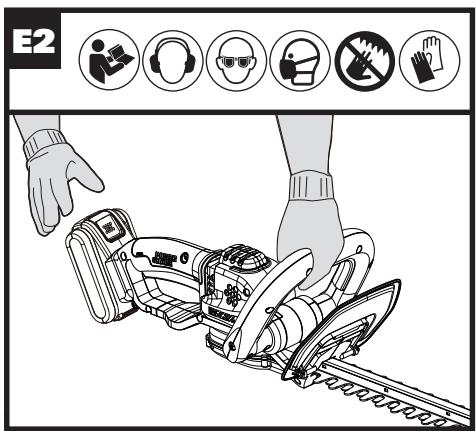

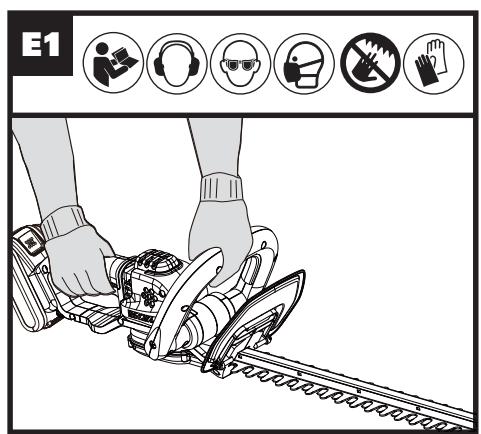

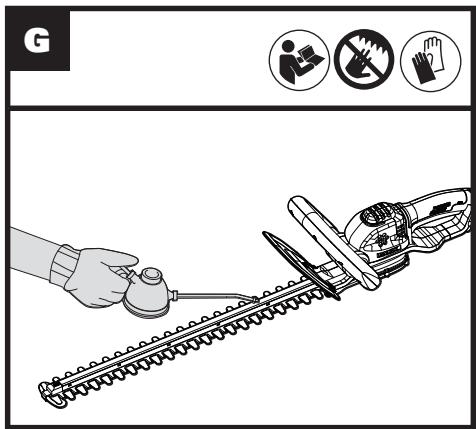

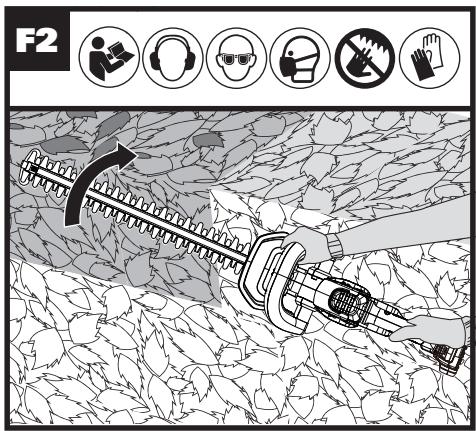

Side cutting See Fig. F2 Lubricating the Cutting Blade NOTE: It is important to use only the recommended standard lubricating oil (WD-40) to avoid damage to the blade. See Fig. G

HOW TO USE YOUR HEDGE

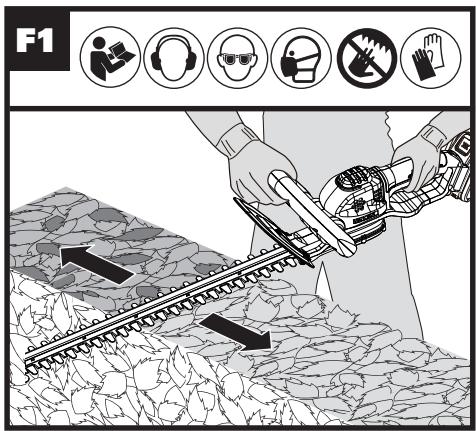

TRIMMER Note that the front switch lever can be activated on three sides, giving you many choices for a comfortable grip. Before cutting an area, inspect it first and remove any foreign objects that could

become thrown or entangled in the blades. Always hold the trimmer with both hands and with the blade away from you before turning it on When trimming new growth, use a wide sweeping action so that the stems are fed directly into the blade. (See Fig. F1&F2) Allow the cutting blades to reach full speed before cutting. When operating, keep the cutting blades away from people and objects such as walls, large stones, trees, vehicles, etc. Ifthe blade stalls, immediately stop the trimmer. Release the two Switch components (687) before attempting to clear jammed debris from the cutting blades. Wear gloves when trimming thorny or prickly growth. Do not attempt to cut stems that are too thick for the cutting blade TOP CUTTING Use a wide sweeping motion (See Fig. F1). À slight downward tilt of the cutting blades in the direction of motion gives the best cutting results. SIDE CUTTING When trimming the sides of the hedge, begin at the bottom and cut upwards (See Fig. F2), tapering the hedge inward at the top. This shape will expose more of the hedge, resulting in a more uniformed growth. 6.MAINTENANCE Remove battery before carrying out any adjustment, servicing or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust

The ambient temperature range for the use and storage of tool and battery is 0°C-45°C. The recommended ambient temperature range for the charging system during charging is 0°C-40°C. 7.ENVIRONMENTAL PROTECTION D Waste electrical products should not be disposed of with household waste. Please mm recycle where facilities exist. Check with your Local Authority or retailer for recycling advice 8.DECLARATION OF CONFORMITY We, Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product Description Worx Cordless Li-ion Hedge Trimmer Type WG264E WG264E.X WP274E WP274E.X (230-

269- designation of machinery, representative of

cordless hedge trimmer) Function Trimming hedges and brushes Complies with the following Directives: 2006/42/EC 2014/30/EU 2011/65/EU&(EU)2015/863 2000/14/EC amended by 2005/88/EC 2000/14/EC amended by 2005/88/EC - Conformity Assessment Procedure as per Annex V - Measured Sound Power Level 83.4dB(A) - Declared Guaranteed Sound Power Level 86.0dB(A) Standards conform to EN 62841-1 EN 62841-4-2 EN ISO 3744 nm EN 55014-1 EN 55014-2 The person authorized to compile the technical file, Name Marcel Filz Address … Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany

2022/07/28 Allen Ding Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China Cordless Hedge Trimmer
