USER MANUAL BCSTA536 BLACK & DECKER

Your BLACK+DECKERTM, BCSTA536 trimmer has been designed for trimming and finishing lawn edges and to cut grass in confined spaces. This appliance is intended for consumer use only.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

Warning! When using the machine the safety rules must be followed. For your own safety and bystanders please read these instructions before operating the machine. Please keep the instructions safe for later use.

Read all of this manual carefully before operating the appliance.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
  Retain this manual for future reference.

Using your appliance

Always take care when using the appliance.

Always use safety glasses or goggles.
- Never allow children or people unfamiliar with the instructions to use the appliance.
Do not allow children or animals to come near the work area or to touch the appliance or power supply cord.
Close supervision is necessary when the appliance is used near children.
This appliance is not intended for use by young or infirm persons without supervision.
This appliance is not to be used as a toy.
- Only use the appliance in daylight or good artificial light.
Use in a dry location only. Do not allow the appliance to become wet.
Do not immerse the appliance in water.
Do not open the body casing. There are not user-serviceable parts inside.
- Do not operate the appliance in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
To reduce the risk of damage to plugs or cords, never pull the cable to remove the plug from a socket.

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN50636 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated. When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time. Do not operate the tool if the vibration registers as abnormal.

Safety of others

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children must be supervised to ensure that they do not play with the appliance.

Residual risks.

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

Injuries caused by touching any rotating/moving parts.
Injuries caused when changing any parts, blades or accessories.
Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
Impairment of hearing.
Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

After use

• When not in use, the appliance should be stored in a dry, well ventilated place out of reach of children.
  Children should not have access to stored appliances.
• When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts and any other conditions that may affect its operation.
  Do not use the appliance if any part is damaged or defective.
  Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Never attempt to remove or replace any parts other than those specified in this manual.

Additional safety instructions for grass trimmers

Warning! Cutting elements continue to rotate after the motor is switched off.

Be familiar with the controls and the proper use of the appliance.

ENGLISH

(Original instructions)

• Before use, check the power supply cord and extension cord for signs of damage, ageing and wear. If a cord becomes damaged during use, disconnect the cord from the mains supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
  Do not use the appliance if the cords are damaged or worn.
  Wear stout shoes or boots to protect your feet.
  Wear long trousers to protect your legs.
  Before using the appliance, check that your cutting path is free from sticks, stones, wire and any other obstacles.
• Only use the appliance in the upright position, with the cutting line near the ground. Never switch the appliance on in any other position.
  Move slowly when using the appliance. Be aware that freshly cut grass is damp and slippery.
  Do not work on steep slopes. Work across the face of slopes, not up and down.
• Never cross gravel paths or roads while the appliance is running.
• Never touch the cutting line while the appliance is running.
  Do not put the appliance down until the cutting line has come to a complete standstill.
  Use only the appropriate type of cutting line. Never use metal cutting line or fishing line.
  Be careful not to touch the line trimming blade.
  Take care to keep the mains cable away from the cutting line. Always be aware of the position of the cable.
• Keep hands and feet away from the cutting line at all times, especially when switching on the motor.
  Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
• Never operate the appliance with damaged guards or without guards in place.
  Take care against injury from any device fitted for trimming the filament line length. After extending new cutter line always return the machine to its normal operating position before switching on.
  Always ensure that the ventilation slots are kept clear of debris.
• Do not use the lawn trimmer (edge trimmer), if the cords are damaged or worn.
  Keep extension cords away from cutting elements.

Labels on appliance

The following pictograms are shown on the tool along with the date code:

Read the manual prior to operation.

Wear safety glasses or goggles when operating this appliance.

Wear suitable ear protectors when operating this appliance.

Switch the tool off. Before performing any maintenance on the tool, remove the battery from the tool.

Beware of flying objects. Keep bystanders away from the cutting area.

Do not expose the appliance to rain or high humidity.

Directive 2000/14/EC guaranteed sound power.

Additional safety instructions for batteries and chargers

Batteries

• Never attempt to open for any reason.
  Do not expose the battery to water.
  Do not store in locations where the temperature may exceed 40^
  Charge only at ambient temperatures between 10^ and 40^ .
  Charge only using the charger provided with the tool.
  When disposing of batteries, follow the instructions given in the section "Protecting the environment".

Do not attempt to charge damaged batteries.

Chargers

Use your BLACK+DECKER charger only to charge the battery in the tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
Never attempt to charge non-rechargeable batteries.
Have defective cords replaced immediately.
Do not expose the charger to water.
Do not open the charger.
Do not probe the charger.

The charger is intended for indoor use only.

Read the instruction manual before use.

Electrical safety

Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.

• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

Features

This appliance includes some or all of the following features.

1. On/off switch
2. Handle
3. Lock off button
4. Battery
5. Second handle
6. Guard
7. Spool housing
8. Head
9. Edge guide

Assembly

Warning! Before assembly, make sure that the tool is switched off and the battery has been removed.

Fitting the guard (fig. A & B)

Remove the screw from the guard.
- Keeping the guard (6) square to the strimmer head (8) slide it into place until the retaining tab clicks into place (Ensure that the guide rails (10) on the guard (6) are correctly aligned with the guide rails (11) on the strimmer head (8).
Secure the guard (6) with the screw (12).

Warning! Never use the tool unless the guard is properly fitted.

Adjusting the position of the secondary handle (fig. C)

The second handle (5) can be adjusted to provide optimum balance and comfort.

Lift the locking clamp (14) on the secondary handle.
Gently slide the secondary handle (5) up or down the tube (13) to the desired height.
Secure the locking clamp (14) once the desired position has been achieved.

Adjusting the height of the tool (fig. D)

This tool has a telescopic mechanism, allowing you to set it to a comfortable height. There are multiple height settings.

To adjust the height setting, proceed as follows:

Release the height adjust locking clamp (15).
Gently pull the tube (13) up or down to the desired height.
Close the height adjust locking clamp (15).

Releasing the cutting line

In transit, the cutting line is taped to the spool housing.

Warning! Before assembly, remove the battery from the tool.

Remove the tape holding the cutting line to the spool housing (7).

Charging the battery (fig. E)

The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. The battery may become warm while charging; this is normal and does not indicate a problem.

Warning! Do not charge the battery at ambient temperatures below 10^ or above 40^ . Recommended charging temperature: approx. 24^ .

Note: The charger will not charge a battery if the cell temperature is below approximately 10^ or above 40^ . The battery should be left in the charger and the charger will begin to charge automatically when the cell temperature warms up or cools down.

To charge the battery (4), insert it into the charger (16). The battery will only fit into the charger in one way. Do not force. Be sure that the battery is fully seated in the charger.
Plug in the charger and switch on at the mains.

The charging indicator (16a) will flash green continuously (slowly).

The charge is complete when the charging indicator (16a) lights green continuously. The charger and the battery can be left connected indefinitely with the LED illuminated. The LED will change to flashing green (charging) state as the charger occasionally tops up the battery charge. The charging indicator (16a) will be lit as long as the battery is connected to the plugged-in charger.

Charge discharged batteries within 1 week. Battery life will be greatly diminished if stored in a discharged state.

Leaving the battery in the charger

The charger and battery pack can be left connected with the LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.

Charger diagnostics

If the charger detects a weak or damaged battery, the charging indicator (16a) will flash red at a fast rate.

Proceed as follows:

Re-insert the battery (4).
If the charging indicators continue flashing red at a fast rate, use a different battery to determine if the charging process works properly.
- If the replaced battery charges correctly, the original battery is defective and should be returned to a service centre for recycling.
- If the new battery gives the same indication as the original battery, take the charger to be tested at an authorised services centre.

Note: It may take as long as 30 minutes to determine that the battery is defective. If the battery is too hot or too cold, the LED will alternately blink red, fast and slow, one flash at each speed and repeat.

State of charge indicator (fig. E)

The battery is fitted with a state of charge indicator. This can be used to display the current level of charge in the battery during use and during charging.

Press the state of charge indicator button (4a).

Fitting and removing the battery (fig. F)

To fit the battery (4), line it up with the receptacle on the tool. Slide the battery into the receptacle and push until the battery snaps into place.
To remove the battery, push the release button (4b) while at the same time pulling the battery out of the receptacle.

Use

Warning! Let the tool work at its own pace. Do not overload.

Setting the tool to trimming or edging mode (fig. G, H)

The tool can be used in trimming mode as shown in fig. G or in edging mode to trim overhanging grass along lawn edges and flower beds as shown in fig. H.

Trimming mode (fig. G)

For trimming, the trimmer head should be in the position shown in fig. G. If it is not:

Remove the battery from the tool.
Press and hold the head release button (17).
Whilst holding the handle, rotate the head (8) clockwise.
Release the head release button (17).
Lift the edge guide (9) into the closed position.

Note: Note: The head will only rotate in one direction.

Edging mode (fig. H, I)

For edging, the trimmer head should be in the position shown in fig. H. If it is not:

Remove the battery from the tool.
Press and hold the head release button (17).

Whilst holding the handle, rotate the head (8) anticlockwise.
Release the head release button (17).
- Drop the edge guide in to the open position. Ensure that the edging guide (9) is all the way down, an audible click will be heard.

Note: The head will only rotate in one direction.

Switching on and off (fig. J)

To switch the tool on, press in and hold the lock off button (3) then squeeze the trigger lever (1). Once the tool is running you may release the lock off button (3).
To switch the tool off, release the trigger lever.

Warning! Never attempt to lock the trigger lever in the on position.

Hints for optimum use

General

In order to achieve optimum cutting results, only cut dry grass.

Trimming

Hold the tool as shown in fig. K
Gently swing the trimmer from side to side as shown in fig. L.
- When cutting long grass, work in stages from the top. Take small cuts.
Keep the tool away from hard objects and delicate plants.
Cutting line will wear faster and require more feeding if the cutting is done along pavements or other abrasive surfaces or heavier weeds are being cut.
If the tool starts running slowly, reduce the load.

Edging

Optimum cutting results are achieved on edges deeper than 50 mm.

Do not use the tool to create edges. To create edges,use an edging spade.

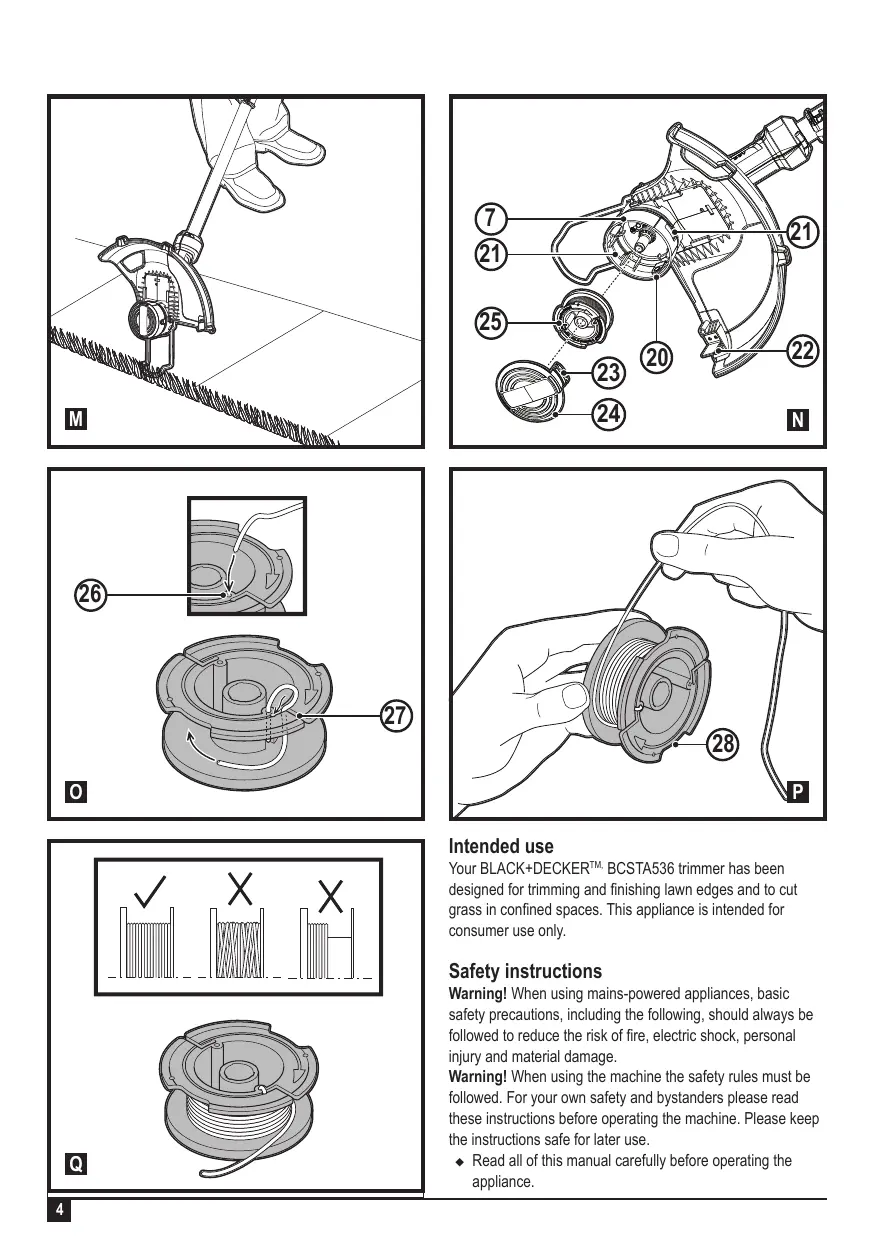

Guide the tool as shown in fig. M.
To make a closer cut, slightly tilt the tool.

Fitting a new spool of cutting line (fig. N, O)

Replacement spools of cutting line are available from your BLACK+DECKER dealer (cat. no. A6481). Three Spool packs of cutting line are also available (cat. no. A6485).

Remove the battery from the tool.
- Keep the tabs (23) depressed and remove the spool cover (24) from the housing (7).
Remove the empty spool (25) from the housing.
Remove any dirt and grass from the spool cover and housing.

Take the new spool and push it onto the boss in the housing. Rotate the spool slightly until it is seated.
Unclip the end of the cutting line and guide the line into the eyelet (26). The line should protrude approx. 11 cm from the spool cover as shown in fig. O.
Align the tabs (23) on the spool cover with the cut outs (21) in the housing.
Push the cover onto the housing until it snaps securely into place.

Warning! If the cutting lines protrude beyond the trimming blade (22), cut them off so that they just reach the blade.

Winding new line onto an empty spool (fig. P, Q)

You may wind new cutting line onto an empty spool.

Replacement packs of cutting line are available from your BLACK+DECKER dealer (cat. no. A6170 [25m], A6171 [40m], A6481).

Remove the empty spool from the tool as described above.
Remove any remaining cutting line from the spool.
- Feed 2 cm of cutting line into the hole (31) in the spool as shown (fig. O).
Bend the cutting line and anchor it in the L-shaped slot (27).
Wind the cutting line onto the spool in the direction of the arrow. Make sure to wind the line on neatly and in layers. Do not criss-cross (fig. Q).
When the wound cutting line reaches the recesses (28), cut the line. Let the line protrude approx. 11 cm from the spool and hold a finger on the line to keep it in place.
Proceed as described above to fit the spool on the tool.

Warning! Only use the appropriate type of BLACK+DECKER cutting line.

Troubleshooting

If your tool seems not to operate properly, follow the instructions below. If this does not solve the problem, please contact your local BLACK+DECKER repair agent.

Warning! Before proceeding, remove the battery from the tool.

Appliance runs slowly

Check that the spool housing can rotate freely. Carefully clean it if necessary.
- Check that the cutting line does not protrude more than 11cm from the spool housing. If it does, cut it off so that it just reaches the line trimming blade.

Automatic line feed does not work (BCSTA536 only)

• Keep the tabs depressed and remove the spool cover from the housing.

Pull the cutting line until it protrudes 11cm from the housing. If insufficient cutting line is left on the spool, install a new spool of cutting line as instructed above.
Align the tabs on the spool cover with the cut outs in the housing.
Push the cover onto the housing until it snaps securely into place.
If the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.

If the automatic line feed still does not work or the spool is jammed, try the following suggestions:

Carefully clean the spool cover and housing.
Remove the spool and check if the lever can move freely.
Remove the spool and unwind the cutting line, then wind it on neatly again as described above. Replace the spool as instructed.

Maintenance

Your BLACK+DECKER corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool/appliance care and regular cleaning.

Your charger does not require any maintenance apart from regular cleaning.

Warning! Before performing any maintenance on corded/ cordless power tools:

Switch off and unplug the appliance/tool.
Or switch off and remove the battery from the appliance/ tool if the appliance/tool has a separate battery pack.
Or run the battery down completely if it is integral and then switch off.
Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
- Regularly clean the ventilation slots in your tool/appliance and charger using a soft brush or dry cloth.
- Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
Regularly clean the cutting line and spool using a soft brush or dry cloth.
- Regularly use a blunt scraper to remove grass and dirt from the underneath of the guard.

Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials.

Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com

Technical data

		BCSTA536 H 1
Input Voltage	VDC	36
No-Load Speed	min-1	6500-8500/min
Weight	kg	3.2

Batteries					Chargers (minutes)
Caf#	Vdc	Ah	Weight Kg		Caf#	90590287*	N517388*	BDC1A	BDC2A	BDC2A36
					Amps	400mA	1A	1A	2A	1.35A
BL1518	18	1.5	0.38		BL1518	225	90	90	45	X
BL1518ST	18	1.5	0.38		BL1518ST	225	90	90	45	X
BL2018	18	2.0	0.39		BL2018	300	120	120	60	X
BL2018ST	18	2.0	0.39		BL2018ST	300	120	120	60	X
BL2518	18	2.5	0.43		BL2518	380	150	150	75	X
BL4018	18	4.0	0.64		BL4018	600	240	240	120	X
BL5018	18	5.0	0.7		BL5018	750	300	300	135	X
BL20362	36	2.0	0.64		BL20362	X	X	X	X	90
BL2536	36	2.5	0.68		BL2536	X	X	X	X	110
BL1554	18/54	1.5	1.08		BL1554	225	90	90	45	X
BL2554	18/54	2.5	1.2		BL2554	380	150	150	75	X

Hand/arm weighted vibration value according to EN 50636:
= < 2.5m / s^2 ,uncertainty (K) = 1.5m / s^2
LPA (Emission sound pressure level) 79.5 dB(A) uncertainty (K) = 1.1 dB(A)
LWA (Sound power level) 93.5 dB(A)
uncertainty (K) = 1.9 dB(A)

EC declaration of conformity

MACHINERY DIRECTIVE OUTDOOR NOISE DIRECTIVE

C E

BCSTA536 - Trimmer

Black & Decker declares that these products described under

"technical data" are in compliance with:

2006/42/EC, EN 60335-1:2012+A11+A13;

EN 50636-2-91:2014

2000/14/EC, Lawn Trimmer, L ≤ 50 cm, ANNEX VI, DEKRA Certification B.V. Meander 1051 / P.O. Box 5185 6825 MJ ARNHEM / 6802 ED ARNHEM, Netherlands Notified Body ID No.: 0344

Level of acoustic power according to 2000/14/EC

(Article 12, Annex III, L ≤ 50 cm):

L_PA (measured emission sound pressure level) 79.5 dB(A)

uncertainty (K) = 1.1 dB(A)

L_WA (guaranteed sound power) 96 dB(A)

These products also comply with directive 2014/30/EU, 2011/65/EU.

For more information, please contact Black & Decker at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

Becky Cotsworth

Director - Outdoor Products Group

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, England

30/10/2019

Guarantee

Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase.

This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

To claim on the guarantee, the claim must be in accordance with Black & Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent.

Terms and conditions of the Black & Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual:

Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and receive updates on new products and special offers.

Verwendungszweck

Director - Outdoor Products Group

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, England

30.10.2019

Garantie

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, Angleterre

30/10/2019

Garantie

(Articolo 12, Allegato III, L ≤ 50 cm):

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, Inghilterra

30/10/2019

Garanzia

Director - Outdoor Products Group

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, England

30-10-2019

Garantie

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, Inglaterra

30/10/2019

Garantia

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, Inglaterra

30/10/2019

Garantia

Director - Outdoor Products Group

Black & Decker Europe. Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX, England

2019-10-30

Garanti

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, England

30.10.2019

Garanti

Black & Decker er trygg på kvaliteten av produitene sine og tilbyr en 24 mankinders garanti fra kjopsdato. Denne garantierklageringen kommer i tillegg til dine lovbestemte rettigheter og er ikke i konflikt medppe. Garantien er gyldig innen omrändene tilhorende medlemslandene i den Europeiske Union (EU) og det Europeiske Frihandelsområdet (EFTA). For à ta garantien i bruk má kravetvox i samsvar med kjopsbetingelsene fra Black&Decker og du ma vise kjopskvittering til forhandleren eller til et autorisert serviceverksted.

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, England

30-10-2019

Garanti

Paallikko - Outdoor Products Group

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, England

30.10.2019

Takuu

Black & Decker Europe. 270 Bath Road, Slough,

Berkshire, SL1 4DX, England (Ayylaia)

30/10/2019

Eyyunon

H Black & Decker eivai oiyoupyia tvn tioiota twv npoiovtv nts kai npoepei otous katavaawtecs eyyunon 24 unw an to nnpouynvia ayopas. Autn ng yuyunon oumuIapwei kai ke kaveva tpotro dev napalattie ta vuiia diakaiuata oc. H yuyunon iayuei etos etikpateias twv xupw meuw ts Eupwtaikc Evwons kai ts Eupwtaikns Zwns Eulebepwuvuuaaayuw.

Tia va utobalte afoiwn baoe ts yeyunons, n afoiwn ta pteei va eivai ouwwn me touc Opoucs kai tpouttoheae ts Black & Decker ka thxpeiaetie va utobalte atoolei ayopac stov Tiawntn ae Eosoiodotnevo avitipospuio ETIOKEUW.

Mtopeite va atokntoete touc Opoucs kai piouttoheaeic nts eyyunong 2
etwv nCS Black & Decker kai va maote Tnv totoeiaou tlnoieotepou
eogoiodotnevoavitipooawtou etikkeuwvtoInternet oTo www.2helpU. com, n ttkiovuvvuaTc me To toinkoc asypaieio Black & Decker ot
dieuovan Tou utokeivetaTTO napov yexeiipido:

IpaKaIoue EITIOKEEeTe TIV IOToeIbOaC Ww. blackanddecker. gr ia va kaAtawipioTe to veo oac TPoiov BLACK+DECKER KA iya va evnepuveote yia ta vea pioivrA kai ts eIdikc TPoopopec.

Belgié/Belgique/Luxembourg www.blackanddecker.be [e-mail]	Stanley Black & Decker Belgium BVBA Egide Walschaertsstraat 16 2800 Mechelen	Tel. NL Tel. FR Fax.	[phone] [phone] [phone]
Danmark	Black & Decker Roskildevej 22 2620 Albertslund	[e-mail] www.blackanddecker.dk
Deutschland www.blackanddecker.de [e-mail]	Stanley Black & Decker Deutschland GmbH Black & Decker Str. 40, D - 65510 Idstein	Tel. Fax	06126 21-0 06126 21-2980
Eλλαδαwww.blackanddecker.gr [e-mail]	Stanley Black & Decker (ΕλλΑΣ) E.I.E ΓΡΑΦΕΙΑ: Στράβωνος 7 & Bouλιαγμένης 166 74 Γλυφάδα - Αθήνα	Tηλ. Φαξ	210-8981616 210-8983570
SERVICE:	Ημερος Κόπος 2-Xάνι Αδάμ 193 00 Αστρόπιργος - Αθήνα	Tηλ. Service Φαξ	210-8985208 210-5597598
Espana www.blackanddecker.es respuesta([e-mail]	Stanley Black & Decker Ibérica, S.C.A. Parc de Negocis "Mas Blau" Edificio Muntadas, c/Bergadá, 1, Of. A6 08820 El Prat de Llobregat (Barcelona)	Tel. Fax	934 797 400 934 797 419
France www/blackanddecker.fr	Black & Decker (France) S.A.S. 5 allée des Hêtres B.P. 30084 69579 Limonest Cédex	Tel. Fax	04 72 20 39 20 04 72 20 39 00
Helvetia www.blackanddecker.ch [e-mail]	ROFO AG Gewerbezone Seeblick 3213 Kleinössingen	Tel. Fax	026-6749393 026-6749394
Italia www.blackanddecker.it [e-mail]	Stanley Black & Decker Italia Via Energypark 6 20871 Vimercante (MB)	Tel. Fax	039-9590200 039-9590313 800-213935
Nederland www.blackanddecker.nl [e-mail]	Stanley Black & Decker Netherlands BV Holtum Noordweg 35, 6121 RE BORN Postbus 83, 6120 AB BORN	Tel. Fax	[phone] [phone]
Norge	Black & Decker Postboks 4613, Nydalen 0405 Oslo	[e-mail] www.blackanddecker.no
Österreich www.blackanddecker.at [e-mail]	Stanley Black & Decker Austria GmbH Oberlaamerstraße 248, A-1230 Wien	Tel. Fax	01 66116-0 01 66116-614
Portugal www.blackanddecker.pt resposta [e-mail]	Black & Decker Limited SARL Quinta da Fonte - Edificio Q55 D. Diniz Rua dos Malões, 2 e 2A - Piso 2 Esquerdo 2770 - 071 Paço de Arcos	Tel. Fax	214667500 214667580
Suomi	Black & Decker PL47 00521, Helsinki	[e-mail] www.blackanddecker.fi
Sverige	Black & Decker AB Box 94, 431 22 Mölndal	[e-mail] www.blackanddecker.se
Türkiye www.blackanddecker.com.tr	KALE Hırdağ ve Makina AŞ. Defterdar Mah. Savaklar Cad. No:15 Edimekapi / Eyüp / İstanbul 34050	Tel. Fax	0212 533 52 55 0212 533 10 05
United Kingdom & Republic Of Ireland www.blackanddecker.co.uk [e-mail]	Black & Decker 270 Bath Road Slough, Berkshire SL1 4XD	Tel. Fax	01753 511234 01753 512365
Middle East & Africa www.blackanddecker.ea [e-mail]	Black & Decker P.O.Box - 17164 Jebel Ali Free Zone (South), Dubai, UAE	Tel. Fax	[phone] [phone]
