Chère Cliente, Cher Client,

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning :

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

TABLE OF CONTENTS

EN

1 / NOTICES TO THE USER

• Safety recommendations ____ 4
  • Environmental protection ____ 9
  • Description of your appliance ____ 10

2 / INSTALLING YOUR APPLIANCE

- Assembling the hood ____ 11

3 / USING YOUR APPLIANCE

• To use your cooker hood ____ 13

4 / CARING FOR AND CLEANING YOUR APPLIANCE

• Changing and cleaning the anti-grease filters 14
• Installing the carbon filter 14
• Changing the light bulb 14
• Maintaining your appliance 15

5 / TROUBLESHOOTING 16

6 / AFTER-SALES SERVICE 16

EN

1 / NOTICES TO THE USER

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance. They were written for your safety and the safety of others.

Safety and important precautions

These instructions are also available on the Brandt web site.

Please take heed of this advice when installing and using your appliance.

• In order to constantly improve our products, we reserve the right to make changes to their technical, functional or aesthetic characteristics in line with technological progress.
• Make a note of the references of your appliance on the "Consumer Service" page so that you can readily find them in the future.

Important precautions

- This appliance is designed for use by consumers at home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended.

- Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.

- This appliance can be used by children aged under 8 and by persons with diminished physical, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this appliance. The appliance must not be cleaned and maintained by unattended children.

- Caution: the accessible parts of this appliance may become hot when used with cooking equipment.

Electrical risks

- All the power supply circuits must be disconnected before touching the connection terminals. If the power cord is damaged, it must be

EN 1 / NOTICES TO THE USER

replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger.

• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
  • Always disconnect the hood before cleaning or maintaining it.
• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).

Risk of asphyxiation

- The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

- The room must be suitably ventilated when the range hood is used at the same time as appliÈances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

Risk of fire

- It is forbidden to flame food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may be sucked in and damage the appliance.

- Keep a constant eye on fryers used beneath the hood. When heated to very high temperatures, oil and fat can catch fire.

- Clean the appliance and replace the filters at

EN 1 / NOTICES TO THE USER

the recommended frequency. Accumulated deposits of grease can cause a fire.

• It is forbidden to use the hood above a fuel fire (wood, coal, etc.).
• If the hood is installed above a gas-fired appliance, leave at least 70 cm between the top of the &[ \^; and the underside of the hood. If the instructions of the &[ \^; installed under the hood specify a distance greater than 70 cm, then this distance must be respected.

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "recycling" version of the hood should be installed. Do not use the hood without metal filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

1 / NOTICES TO THE USER

EN

• ENVIRONMENTAL PROTECTION

— This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
- Your appliance also contains a great amount of recyclable material. It is marked with

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base below (no text or symbols)

this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

— We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians.

Warning

Remove the protective film from the cartridge filter before use.

EN 1 / NOTICES TO THE USER

• DESCRIPTION OF YOUR APPLIANCE

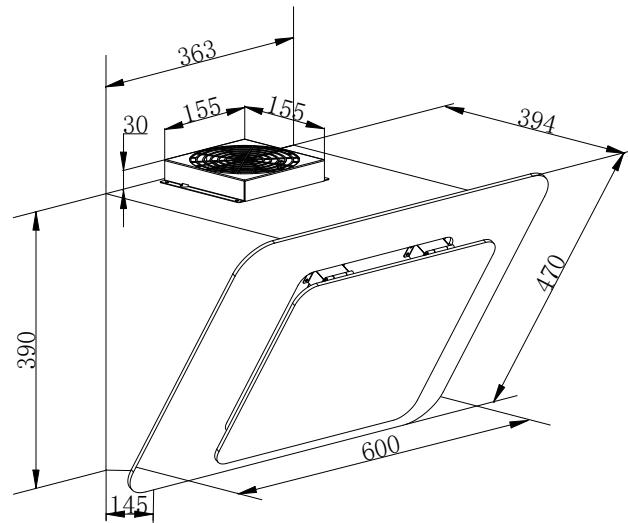

363 30 155 155 394 390 470 600 145

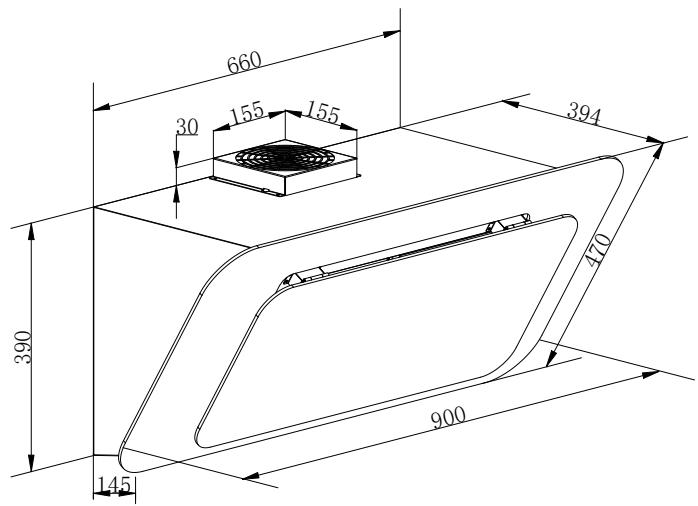

660 30 155 155 394 390 170 900 145

2 / INSTALLING YOUR APPLIANCE

EN

• ASSEMBLING THE HOOD

— The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect.

See Pic 1.

- Recycling Mode

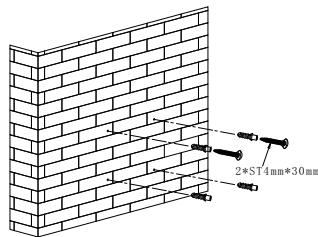

1. Drill four 8mm diameter holes in the appropriate horizontal position on the solid part of the wall according to the center distance of the hanging hole on the back of the hood. See pic 2.
2. Insert wall plugs into the holes that you have drilled for the cooker hood body, fasten 2 pcs support screw ST4*30 mm halfway in, leaving them 2 mm out of the wall. See pic 2.
3. Hang the cooker hood onto the support screws. Insert ST4*30 mm screws into the safety holes and fully fasten it to ensure the cooker hood is well fixed. Note: The two safety vents are positioned on the back housing, with diameter of 6mm. See pic 3.
4. Install the carbon filter on the both sides of the motor

Note

The two safety vents are positioned on the back casing, with diameter of 6mm

Note

— Any installation work must be carried out by a qualified electrician or competent person.

— Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
— The angle of the bend of the ventilation pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

75cm 65cm

Pic 1

2*ST4mm*30mm

Pic 2

Diagram of a brick wall with a mounted device and directional arrows indicating movement (no text or symbols)

Pic 3

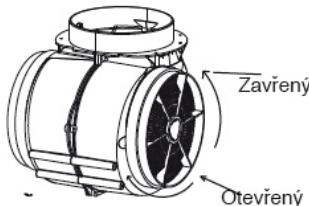

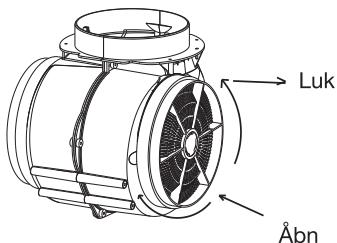

Open Close

Pic 4

Right Wrong

Pic 5

EN 2 / INSTALLING YOUR APPLIANCE

— After the installation, make sure that the cooker hood is leveled to avoid grease collection at one end.

Advice on how to save energy

To make optimal use of your appliance, keep the length of the duct and the number of bends in the duct to a strict minimum.

Isometric line drawing of a brick wall with diagonal bracing and rebar, no text or symbols present

hole for inside chimney
hole for cooker hood
hole for outside chimney
safety hole

Pic 6

• Outdoor evacuation (optional)

1. Drill 8mm diameter holes in the appropriate horizontal position on the solid part of the wall according to the center distance of the hanging hole on the back of the hood. See pic 2.
2. Insert wall plugs into the holes that you have drilled for the cooker hood body, fasten 2 pcs support screw ST4*30 mm halfway in, leaving them 2 mm out of the wall.
3. Dismount the safe metal grip on the top of air outlet.
4. Connect the extension tube (not included) to the air outlet.
5. Hang the cooker hood onto the support screws. Insert ST4*30 mm screws into the safety holes and fully fasten it to ensure the cooker hood is well fixed. Note: The two safety vents are positioned on the back housing, with diameter of 6mm.
6. Fix the flat bracket behind the outside chimney.

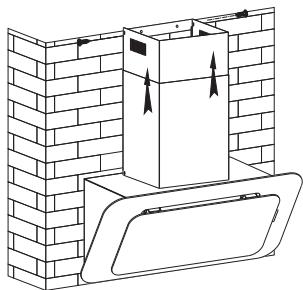

7. Fix the chimneys to the hood. Lift the upper chimney up to the ceiling and fix it to the bracket using the screws.

Note

We recommend using chimney kit ATC-252X, which is sold separately.

Diagram of a wall-mounted electrical component with arrows indicating direction (no text or symbols)

Pic 7

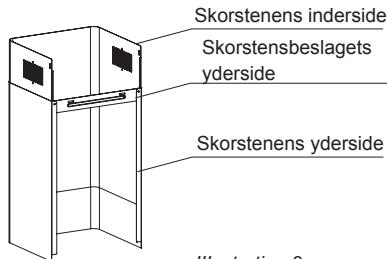

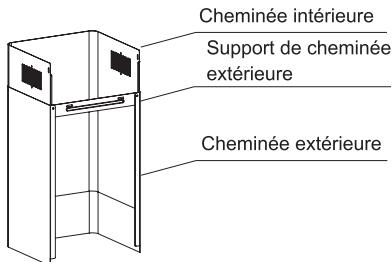

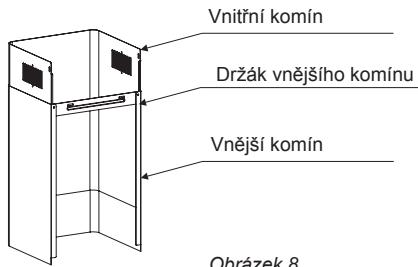

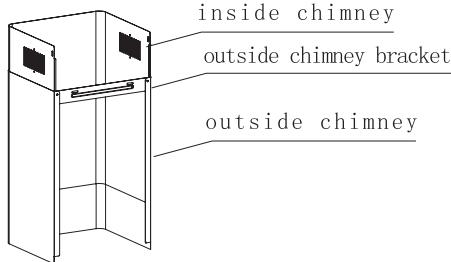

inside chimney
outside chimney bracket
outside chimney

Pic 8

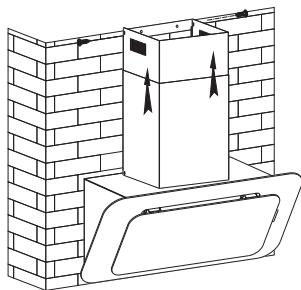

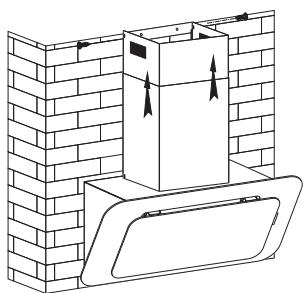

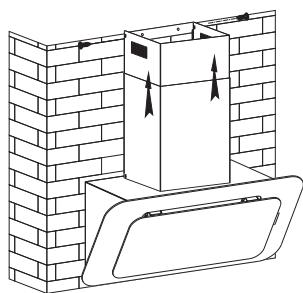

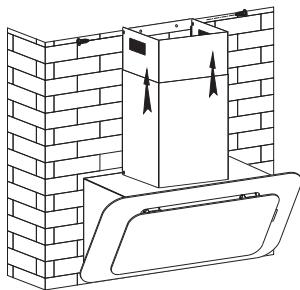

Technical line drawing of a brick wall with an open door and ceiling-mounted panel (no text or symbols)

Pic 9

3 / USING YOUR APPLIANCE

EN

• TO USE YOUR COOKER HOOD

How to use the control panel

1. Press the “①” button, the button controls the “on” & “off” of the hood.
2. Keep pressing the button “ ✉”, the motor runs as low / mid / high / low / mid..., the speed runs circularly; and the LED display will indicate as 1-2-3-1-2... circularly.
3. Press “-” button, the light is on, press this button again, the light is off, keep pressing this button, the lights are on/off circularly.
4. When the hood is working, if you press the “💡” button, the hood will go into the status of acquiescent working (acquiescent time is 9mins), and then, the LED display will indicate as “9-8-7...-1-0”, when it indicates “0”, the hood will be off automatically. If you keep pressing “Timer” button, the hood will go in or go out “Timer” function.

EN 4 / CARING FOR AND CLEANING YOUR APPLIANCE

- CHANGING AND CLEANING THE ANTI-GREASE FILTERS

— Tear down your cooker hood as per the approach shown on Pic.11.
— You can clean the filter as below:

Soak them for about 3 minute in hot water (40-50 degrees) with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it.

— Please do not use abrasive detergent, it will damage the hood.

Technical diagram of a device interior with labeled components and directional arrows indicating movement or flow.

Pic 11

Note

Make sure that cooker hood is shut down before cleaning.

• INSTALLING THE CARBON FILTER (OPTIONAL), SEE PIC.12

— Remove the filters see Pic.11.
— The charcoal filters (Pic.12) are located at either end of the motor. Turn the charcoal filters anti-clockwise until they are unscrewed.
— Apply reverse procedure to install the charcoal filter.

Warning:

the charcoal cannot be washed or recycled. It should be changed at three or six months according to your cooking habit

• CHANGING THE LIGHT BULB

The lighting system cannot be replaced by the user, contact Customer Service in case of malfunction.

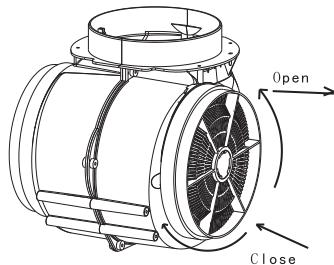

Open Close

Pic 12

4 / CARING FOR AND CLEANING YOUR APPLIANCE

EN

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

• MAINTAINING YOUR APPLIANCE

MAINTENANCE	WHAT TO DO	PRODUCTS / ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Filter cartridge	This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These filters can be cleaned in a vertical position in your dishwasher.(Do not allow them to touch dirty dishes or silverware.)
Activated carbon filter	This filter traps odours and must be changed at least once a year depending on your level of use. You should order these filters from your dealer (quoting the reference shown on the identification plate located inside the hood) and note the date the filter was changed.

EN 5 / TROUBLESHOOTING

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that:• The power is not cut off.• A speed has been selected.
The hood is not operating effectively...	Ensure that:• The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared.• The kitchen is sufficiently ventilated to allow for fresh air intake.• The carbon filter is not worn (hood operating in recycling mode).
The hood stopped working	Ensure that:• The power is not cut off.• The single-pole cut-off device was not activated.

EN 6 / AFTER-SALES SERVICE

Any maintenance on your equipment should be undertaken by:

- either your dealer, - or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods.

symbol Value Unit

Brand	Brandt
Model number	BHV1674IB
Annual energy consumption	AEC	24,3	kWh/annum
Energy efficiency index	EEi	45,6	-
Fluid dynamic efficiency index	FDE	31,6	-
Lighting efficiency index	LE	44,9	-
Grease filtering efficiency	GFE	45,6	-
Time increase factor	f	0,9	-
Maximum volumetric airflow of the cooker hood	Q_max	471,9	m^3/h
Volumetric airflow at best efficiency point	Q_BEP	215,1	m^3/h
Static pressure at the best efficiency point	P_BEP	345	P
Power consumption at the best efficiency point	W_BEP	65,2	W
Nominal power consumption of lighting system	W_L	3,9	W
Average illumination of the lighting system	E_middle	175	Lux/W
Power consumption in off mode	P_o	--	W
Power consumption in standby mode	P_s	0,37	W
Volumetric airflow at the highest speed setting in normal use	-	471,9	m^3/h
Volumetric airflow at the lowest speed setting in normal use	-	172,4	m^3/h
Volumetric airflow in intensive or boost mode	-	--	m^3/h
Sound power emissions at the highest speed setting in normal use	-	61	dB(LWA)
Sound power emissions at the lowest speed setting in normal use	-	41	dB(LWA)
Sound power emissions in intensive / boost mode	-	--	dB(LWA)

EN Ecodesign information / Technical product fiche

symbol Value Unit

Brand	Brandt
Model number	BHV1974IB
Annual energy consumption	AEC	26,1	kWh/annum
Energy efficiency index	EEi	42,6	-
Fluid dynamic efficiency index	FDE	32,8	-
Lighting efficiency index	LE	27,2	-
Grease filtering efficiency	GFE	49,0	-
Time increase factor	f	0,8	-
Maximum volumetric airflow of the cooker hood	Q_max	543,3	m^3/h
Volumetric airflow at best efficiency point	Q_BEP	298,9	m^3/h
Static pressure at the best efficiency point	P_BEP	315	P
Power consumption at the best efficiency point	W_BEP	79,8	W
Nominal power consumption of lighting system	W_L	3,9	W
Average illumination of the lighting system	E_middle	106	Lux/W
Power consumption in off mode	P_o	--	W
Power consumption in standby mode	P_s	0,36	W
Volumetric airflow at the highest speed setting in normal use	-	543,3	m^3/h
Volumetric airflow at the lowest speed setting in normal use	-	187,9	m^3/h
Volumetric airflow in intensive or boost mode	-	--	m^3/h
Sound power emissions at the highest speed setting in normal use	-	62	dB(LWA)
Sound power emissions at the lowest speed setting in normal use	-	42	dB(LWA)
Sound power emissions in intensive / boost mode	-	--	dB(LWA)

SOMMAIRE

FR

1 / A L'ATTENTION DE L'UTILISATEUR

2*ST4mm*30mm

Image 2

Diagram of a brick wall with a mounted electrical component and directional arrows indicating flow or movement (no text or symbols)

Image 3

Ouvrir Fermer

Image 4

Droit

Tort
Image 5

FR 2 / INSTALLATION DE L'APPAREIL

Isometric line drawing of a brick wall with diagonal reinforcement lines (no text or symbols)

Diagram showing airflow or pressure measurement between a brick wall and a valve with labeled components

Image 7

Architectural line drawing of a brick wall with a cabinet and door, no text or symbols present

Image 9

3 / UTILISATION DE VOTRE APPAREIL

FR

• DESCRIPTION DES COMMANDES

Technical diagram of an electronic device with labeled components and directional arrows indicating assembly or movement.

Image 11

Attention

1- RELATIONS CONSOMMATEURS FRANCE

(B) (B) (H) Brandt Cockout hood Servicer: (C:) Power of lamp: Power of minder: 220V-240V 50Hz Power Level: 10Ω Rate: 16

hole for hood body safety hole

Imagem 2

Diagram of a brick wall with a mounted device and directional arrows indicating movement (no text or symbols)

Imagem 3

Abrir Fechar

Imagem 4

Bem

Mal
Imagem 5

Isometric line drawing of a brick wall with diagonal bracing and internal rebar (no text or symbols)

hole for inside chimney
hole for cooker hood
hole for outside chimney
safety hole

Imagem 6

Diagram showing airflow or pressure measurement between a brick wall and a container with labeled points A and B

Imagem 7

Line drawing of a cabinet with two doors and a handle (no text or symbols)

Chaminé interior
Suporte da chaminé exterior
Chaminé exterior

Imagem 8

Architectural diagram of a brick wall with an open chimney and support structure (no text or symbols)

Imagem 9

Technical diagram of an electronic device with labeled components and directional arrows indicating assembly or movement.

Imagem 11

Nota

2 / INSTALACE VAŠEHO PŘÍSTROJE

2 / INSTALACE VAŠEHO PŘÍSTROJE

CZ

• MONTÁŽ DIGESTOŘE

2*ST4mm*30mm

Obrázek 2

Diagram of a brick wall with a mounted device and directional arrows indicating motion (no text or symbols)

Obrázek 3

Simple line drawing of a rectangular device with internal components and a vertical line (no text or symbols)

Špatně
Obrázek 5

CZ 2 / INSTALACE VAŠEHO PRÍSTROJE

Isometric line drawing of a brick wall with diagonal bracing and internal diagonal lines (no text or symbols)

hole for inside chimney
hole for cooker hood
hole for outside chimney
safety hole

Obrázek 6

Diagram showing airflow or pressure measurement between a brick wall and a container with labeled points A and B

Obrázek 7

Diagram of a brick wall with a cabinet and support structure, showing structural details without any text or symbols.

Obrázek 9

3 / POUŽITÍ PŘÍSTROJE

CZ

- POUŽITÍ VAŠEHO KUCHYŇSKÉHO ZVONU

Technical diagram of an electrical enclosure with labeled components and directional arrows indicating parts of the opening.

Obrázek 11

- INSTALACE UHLÍKOVÉHO FILTRU (VOLITELNÉ), VIZ. OBRÁZEK 12;

• ÚDRŽBA VAŠEHO PŘÍSTROJE

2 / INSTALLATION AF APPARATET

2 / INSTALLATION AF APPARATET

DK

• MONTERING AF HÄETTEN

Diagram of a brick wall with a mounted device and directional arrows indicating movement (no text or symbols)

Illustration 3

Luk Åbn

Illustration 4

Simple line drawing of a rectangular device with a vertical axis and dot markers (no text or symbols)

Rigtigt

Simple line drawing of a rectangular device with internal components and a vertical line (no text or symbols)

Forkert
Illustration 5

DK 2 / INSTALLATION AF APPARATET

Isometric line drawing of a brick wall with diagonal bracing and internal arrows indicating direction (no text or symbols)

hole for inside chimney
hole for cooker hood
hole for outside chimney
safety hole

Illustration 6

Diagram showing a wall-mounted device with labeled components and directional arrows indicating flow or movement.

Illustration 7

Skorstenens inderside Skorstensbeslagets yderside Skorstenens yderside Illustration 8

Illustration 8

Architectural line drawing of a brick wall with a cabinet and door, no text or symbols present

Illustration 9

3 / BRUG AF APPARATET

DK

• BRUG AF EMHÆTTEN

Sådan bruger du knapperne Se Illustration 10:

DK 4 / PLEJE OG RENG∅RING AF APPARATET

- UDSKIFTNING OG RENG∅RING AF ANTI-FEDT FILTRENE

Technical diagram of a device interior with labeled components and directional arrows indicating movement or assembly.

Illustration 11

Note

2*ST4mm*30mm

Pic 2

Diagram of a brick wall with a mounted device and directional arrows indicating movement (no text or symbols)

Pic 3

Open Close

Pic 4

Simple line drawing of a microwave oven with no text or symbols

Right

Simple line drawing of a rectangular device with internal components and a vertical line (no text or symbols)

Wrong
Pic 5

NL 2 / INSTALLATIE VAN HET APPARAAT

Isometric line drawing of a brick wall with diagonal reinforcement lines (no text or symbols)

hole for inside chimney
hole for cooker hood
hole for outside chimney
safety hole

Pic 6

Diagram of a brick wall with a cylindrical component and directional arrows indicating flow or movement (no text or symbols)

Pic 7

inside chimney outside chimney bracket outside chimney

Pic 8

Architectural line drawing of a brick wall with a cabinet and door, no text or symbols present

Pic 9

3/ GEBRUIK VAN HET APPARAAT

NL

Technical diagram of a device interior with labeled components and directional arrows indicating movement or flow.

• Demontage van de filtercassette

— Draai de hendel die in de filtercassette is aangebracht.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

2*ST4mm*30mm

rys 2

Diagram of a brick wall with a mounted device and directional arrows indicating movement (no text or symbols)

rys 3

Open Close

rys 4

Simple line drawing of a microwave oven with no text or symbols

Right

Simple line drawing of a rectangular device with internal components and a vertical line (no text or symbols)

Wrong
rys 5

Isometric line drawing of a brick wall with diagonal bracing and internal rebar (no text or symbols)

hole for inside chimney

hole for cooker hood

hole for outside chimney

safety hole

rys 6

Diagram of a brick wall with a cylindrical component and directional arrows indicating flow or movement (no text or symbols)

rys 7

Line drawing of a cabinet with two doors on top and front shelves (no text or symbols)

inside chimney

outside chimney bracket

outside chimney

rys 8

Technical line drawing of a brick wall with an open door and upward arrows indicating components (no text or symbols)

rys 9

3/ UZYTKOWANIE URZADZENIA

PL

Technical diagram of a device interior with labeled components and directional arrows indicating movement or flow.

Diagram of a brick wall with a mounted electrical component and directional arrows indicating flow or movement (no text or symbols)

obr 3

Open Close

obr 4

Simple line drawing of a microwave oven with no text or symbols

Right

Simple line drawing of a rectangular device with internal components and a vertical line (no text or symbols)

Wrong
obr 5

SK 2/ INŠTALÁCIA PRÍSTROJA

Isometric line drawing of a brick wall with diagonal bracing (no text or symbols)

hole for inside chimney

hole for cooker hood

hole for outside chimney

safety hole

obr 6

Diagram showing a pipe system with valves and a cylinder mounted on a brick wall, illustrating fluid flow or measurement.

obr 7

Line drawing of a cabinet with two doors on top and front shelves (no text or symbols)

inside chimney

outside chimney bracket

outside chimney

obr 8

Architectural line drawing of a brick wall with a cabinet and door, no text or symbols present

obr 9

3/ POUŽITIE PRÍSTROJA

SK

Technical diagram of a device casing with labeled components and directional arrows indicating movement or flow.
