USER MANUAL 1200 AE | 1400 ACE BOSCH

& | & DBi_BUCH-323-005.book Page 3 Monday, September 23, 2013 4:11 PM & | &

& OBi_BUCH-323-005.book Page 4 Monday, September 23, 2013 4:11 PM

& OBi_BUCH-323-005.book Page 7 Monday, September 23, 2013 4:11 PM

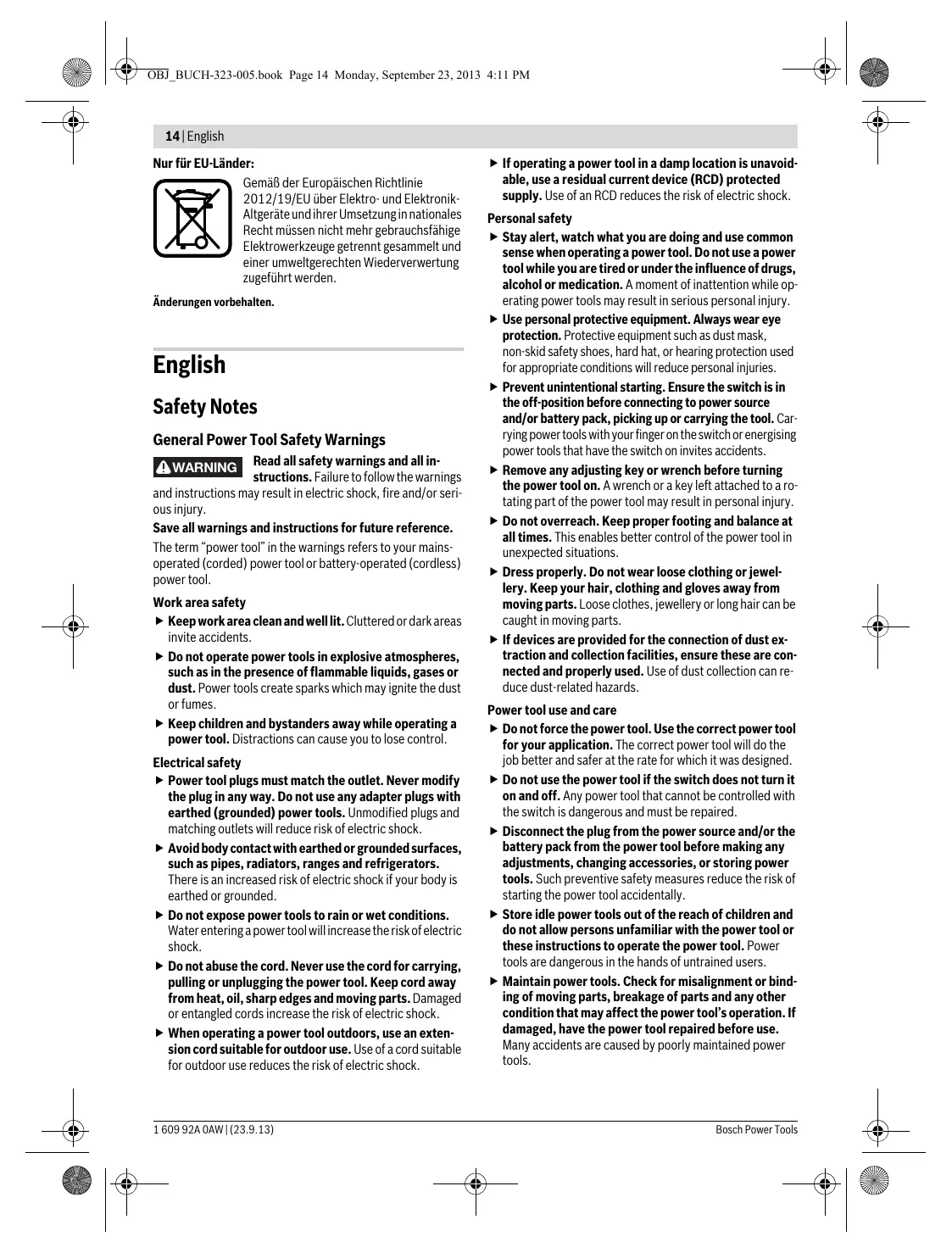

_e + 14] English Nur für EU-Länder: GemäB der Europäischen Richtlinie 2012/19/EU über Elektro- und Elektronik Altgeräte undihrer Umsetzunginnationales Recht müssen nicht mehr gebrauchsfähige Elektrowerkzeuge getrennt gesammelt und einer umweltgerechten Wiederverwertung zugeführt werden. Ânderungen vorbehalten. English Safety Notes General Power Tool Safety Warnings ENRRIS vessallsafety warnings andallin- structions. Failure to followthe warnings and instructions may result in electric shock, fire and/or seri- ous injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains: operated (corded) power tool or battery-operated (cordless) power tool. Work area safety > Keepworkarea clean andwellli. Clutteredor darkareas invite accidents. > Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. > Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety > Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. > Avoidbody contactwithearthedor grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. > Do not expose power tools to rain or wet conditions. Water enteringa power tool willincrease the riskofelectric shock. > Do notabuse the cord. Never usethe cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock. > When operating a power tool outdoors, use an exten- sion cordsuitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. > IFoperating a power tool in a damp location is unavoid- able, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety > Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you aretired or under the influence of drugs, alcohol or medication. À moment of inattention while op erating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Car- rying power tools with your finger onthe switchor energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. Awrench or a key left attached to a ro tating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at alltimes. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewel- lery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. > If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re duce dust-related hazards.

Power tool use and care > Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the ob better and safer at the rate for which it was designed. > Do notuse the power tool if the switch does notturn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. > Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. > Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. > Maintain power tools. Check for misalignment or bind- ing of moving parts, breakage of parts and any other condition that may affectthe power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. 1609 924 OAW1(23.9.13)

_e + > Keepcutting tools sharp and clean. Properly maintained cuttingtools with sharp cuttingedges are less likely to bind and are easier to control > Use the power tool, accessories and tool bits etc. in ac- cordance with these instructions, taking into account the working conditions and the work to be performed. Use ofthe power tool for operations different from those intended could resul in a hazardous situation Service > Have your power toolserviced by a qualified repair per- son using only identical replacement parts. This will en- sure that the safety of the povier tool is maintained. Safety Warnings for Routers > Hold power tool by insulated gripping surfaces, be- cause the cutter may contact its own cord. Cutting a “ve” wire may make exposed metal parts ofthe power tool “live” and shock the operator. > Use clamps or another practical way to secure and sup- port the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control. > Theallowable speed ofthe routerbitmustbe atleastas high as the maximum speed listed on the power tool. Accessories that rotate faster than permitted can be de- stroyed > Router bits or other accessories must fit exactly in the tool holder (collet) of your machine. Routingbits that do not fit precisely in the tool holder of the machine rotate ir regularly, vibrate heavily and can lead to loss of control. > Apply the machine to the workpiece only when switched on. Otherwise there is danger of kickback when the cutting tool jams in the workpiece. > Keep your hands away from the routing area andthe router bit. Hold the auxiliary handle or the motor hous- ing with your second hand. When both hands hold the machine, they cannot be injured by the router bit. > Never cut over metal objects, naîls or screws. The rout- er bit can become damaged and lead to increased vibra tions. > Use appropriate detectors to determine futilitylines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explo sion. Penetrating a water line causes property damage. > Do notuse blunt or damaged router bits. Blunt or dam aged router bits cause increased friction, can become jammed and lead to imbalance. > When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands. > Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool. Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal use (ASTA English|15 approved to BS 1362). Ifthe plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted inits place by an author ised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains sock etelsewhere. Products sold in AUS and NZ only: Use aresidual current de: vice (RCD) with a rated residual current of 30 mA or less. Product Description and Specifica- tions Read all safety warnings and all instruc- tions. Failure to follow the warnings and in structions may result in electric shock, fire and/or serious injury. Intended Use The machine is intended for routing grooves, edges, profiles and elongated holes as well as for copy routing in wood, plas- tic and light building materials, while resting firmly on the workpiece. With reduced speed and with appropriate routing bits, non- ferrous alloys can also be machined. Thelight ofthis power tool is intended to illuminate the power tools direct area of working operation and is not suitable for household room illumination. Product Features The numbering of the product features refers to the illustra- tion of the machine on the graphics page. 1 Lock-off button for On/Off switch Right handle (insulated gripping surface) Spindle lock button Wing bolt for guide rod of parallel guide (2x)* Chip shield Base plate Guide plate Seat for parallel guide rods Step buffer 10 Dust boot 11 Wing bot for depth stop adjustment 12 Slide with index mark 13 Depth stop 14 Scale for depth-of-cut 15 Left handle (insulated gripping surface) 16 Clamping lever for locking of routing depth 17 Scale for depth-of-cut fine adjustment (POF 1400 ACE) 18 Adjustment knob for depth-of-cut fine adjustment (POF 1400 ACE) 19 Mark for zeroing 20 Release lever for guide bushing Bosch Power Tools

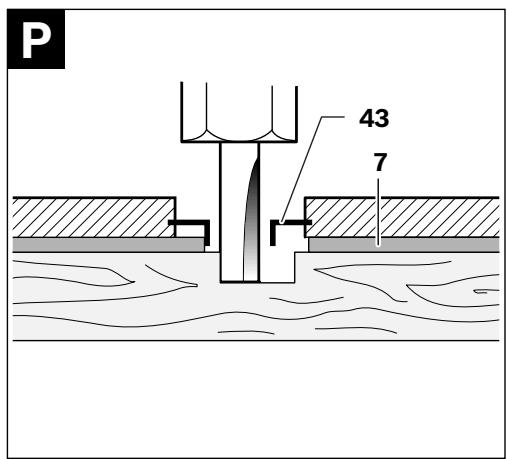

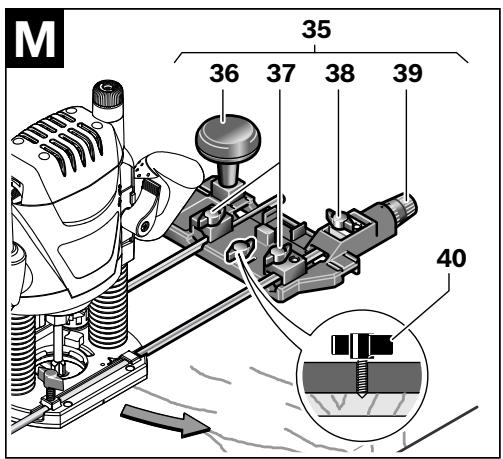

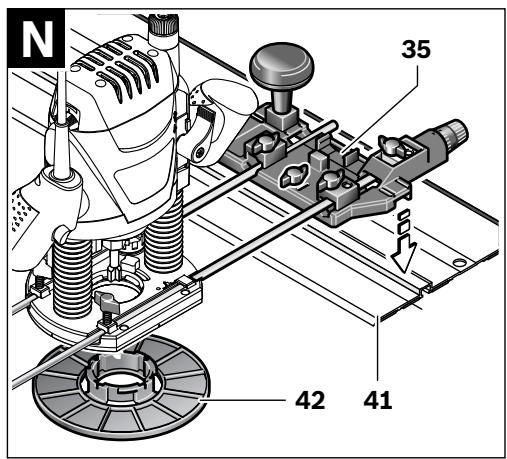

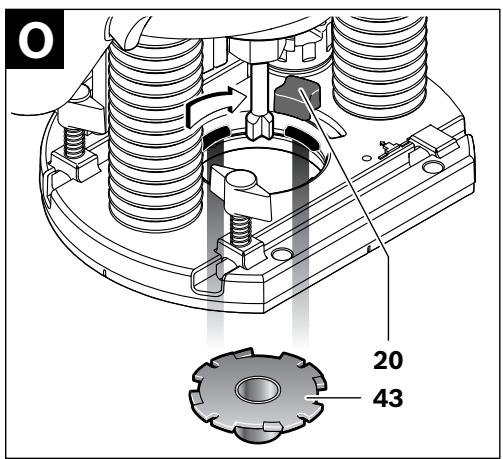

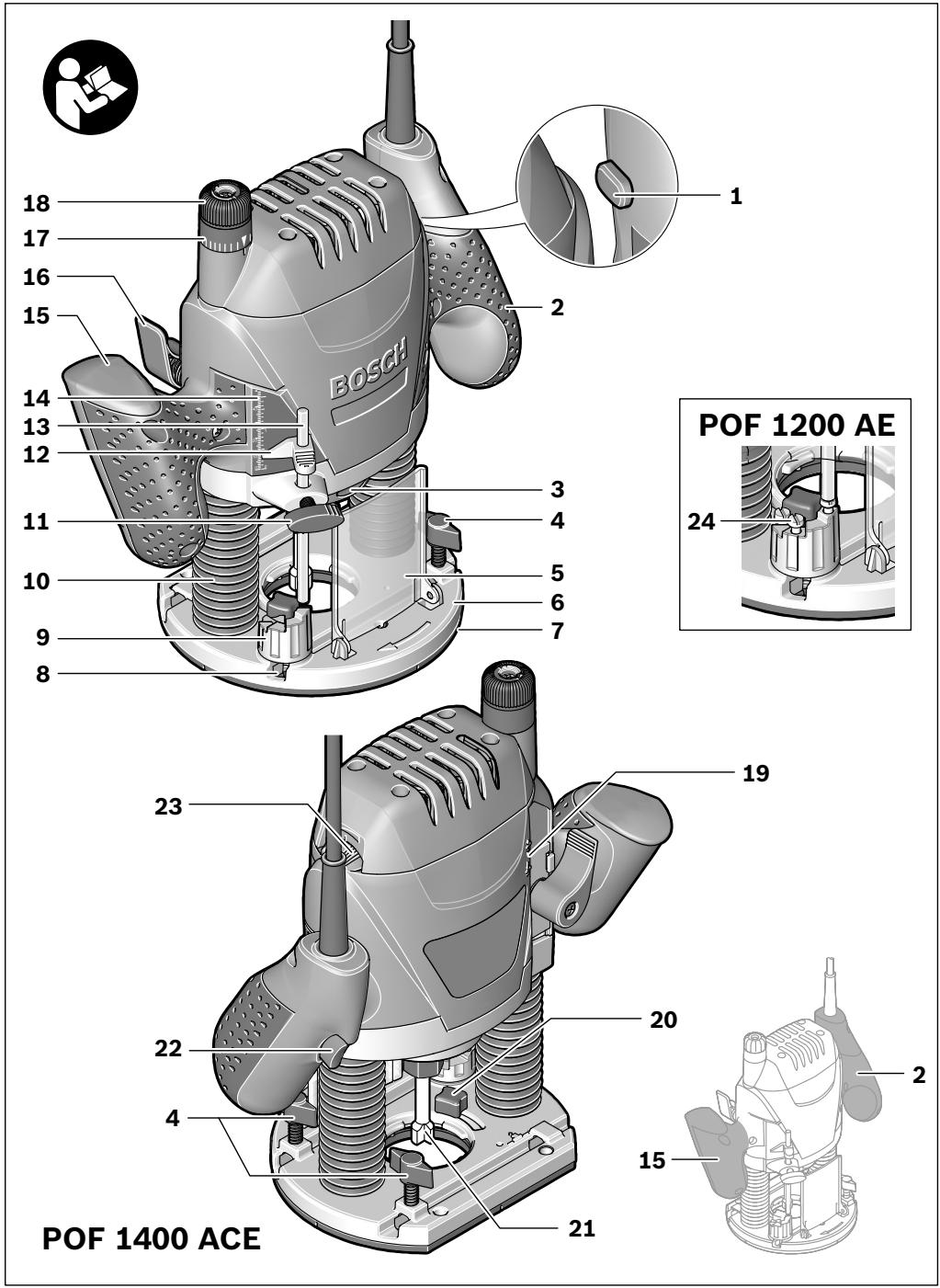

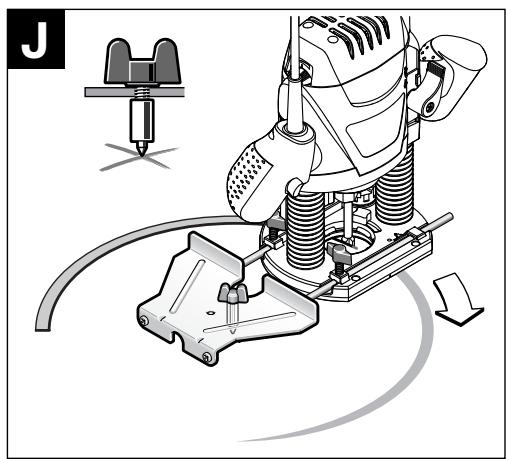

Router compass/guide-rail adapter* Router compass handle* Wing bolt for coarse adjustment of router compass (2x)* Wing bolt for fine adjustment of router compass (1x) * 39 Fine-adjustment knob for router compass* 40 Centring screw* A1 Guide rail" 42 Base spacer (included in the “router compass” set) * 43 Guide bushing* ‘Accessories shown or described are not part of the standard de- livery scope ofthe product. À complete overview of accessories can be found in our accessories program.

Article number 3603B6AO.1 3603B6C 7.1 Rated power input wW 1200 1400 No-load speed min? 11000-28000 11000-28000 Speed preselection . . Constant electronic control = O Connection for dust extraction e. . Tool holder mm 6/8 678 inch # % Plunge depth mm 55 55 Weight according to EPTA-Procedure 01/2003 ke 34 35 Protection class Eu Ey/n ‘The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary. Noise/Vibration Information Measured sound values determined according to EN 60745. Typically the Aweighted noise levels of the product are: Sound pressure level 77 dB(A); Sound power level 88 dB(A). Uncertainty K =3 dB. Wear hearing protection! Vibration total values a, (triax vector sum) and uncertainty K determined according to EN 60745: a,=6 m/s2, K=2 m/s. The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. Itmay be used for a preliminary assessment of exposure. The declared vibration emission level represents the main appli: cations of the tool. However if the tool is used for different ap- plications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or whenitis running but notactually doing the job. This may signif- icantly reduce the exposure level over the total working period. Identify additional safety measures to protecttheoperator from the effects of vibration such as: maintain the tool and the acces- sories, keep the hands warm, organisation of work patterns. Declaration of Conformity Ç€ We declare under our sole responsibility that the product de- scribed under “Technical Data” is in conformity with the fol- lowing standards or standardisation documents: EN 60745 according to the provisions of the directives 2009/125/EC {Regulation 1194/2012), 2011/65/EU, 2004/108/EC, 2006/42/EC. Technical file (2006/42/EC) at: Robert Bosch GmbH, Postfach 10 01 56, D-70745 Leinfelden-Echterdingen Henk Becker Helmut Heinzelmann Executive Vice President Head of Product Certification Engineering PT/ETM9 LE To il ue Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

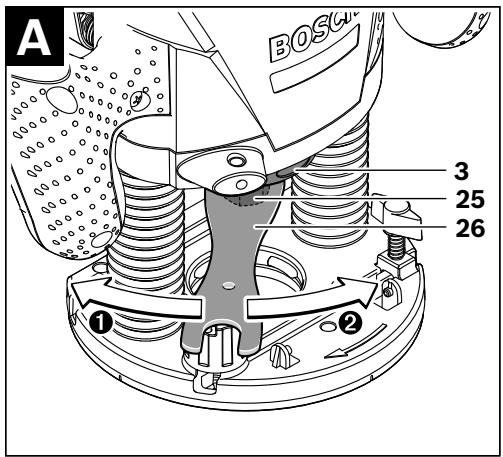

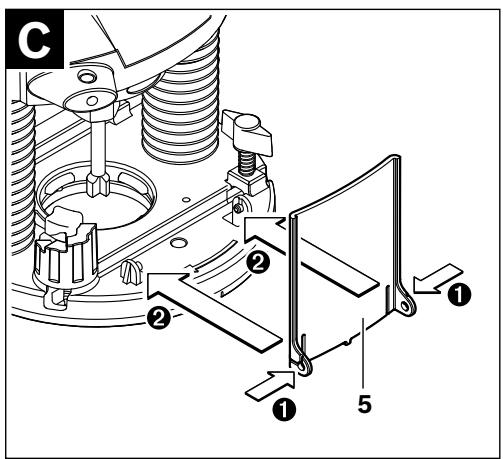

_e + Assembly > Before any work on the machine itself, pull the mains plug. Inserting a Router Bit (see figure A) > Itis recommended to wear protective gloves when in- serting or replacing router bits. Depending on the application, router bits are available in the most different designs and qualities. Router bits made of high speed steel (HSS) are suitable for the machining of soft materials, e. g. softwood and plastic. Carbide tipped router bits (HM) are particularly suitable for hard and abrasive materials, e. g. hardwood and aluminium Original router bits from the extensive Bosch accessories pro gram are available at your specialist shop. Only use clean router bits that are in perfect condition. Fold the chip shield 5 doun. — Push the spindl lock button 3 and keep it pressed. Ifre- quired, rotate the motor spindle by hand until it locks. Loosen the tightening nut 25 with the open-end spanner 26 (size 19 mm) by turning in rotation direction ©. = Insertthe router bit into the collet, The shank of the router bit must be immersed at least 20 mm into the collet. = Tighten the tightening nut 25 with the open-end spanner 26 (size 19 mm) by tuning in rotation direction @. Re- Iease the spindle lock button 3. = Foldthe chip shield 5 up again. > Do notinsert a router bit with a diameter larger than 42 mm when the guide bushing is not mounted. Such router bits do not fit through the base plate. > Donottighten the tightening nut of the collet without a router bitinserted. Otherise the collet can be damaged. Dust/Chip Extraction (see figure B) > Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health, Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dusts, such as ok or beech dust, are considered as carcinogenic, especially in connection with wood-treat- ment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. — As far as possible, use a dust extraction system suita ble for the material. — Provide for good ventilation of the working place. — Itis recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked. > Prevent dust accumulation at the workplace. Dusts can easily ignite. Mounting the Extraction Adapter The extraction adapter 28 can be mounted with the hose con- nection to the front or to the rear. When mounting with the hose connection in front, the chip shield 5 must be removed English |17 first. Fasten the extraction adapter 28 with the two knurled screus 29 to the base plate 6. To ensure optimum extraction, the extraction adapter 28 must be cleaned regularly. Connecting the Dust Extraction Insert an extraction hose (9 35 mm) 27 (accessory) into the mounted extraction adapter. Connect the extraction hose 27 ‘to a vacuum cleaner (accessory). The machine can be plugged directiy into the receptacle of à Bosch all-purpose vacuum cleaner with remote starting con- trol. The vacuum cleaner starts automatically when the ma- chine is switched on. The vacuum cleaner must be suitable for the material being worked When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner. Mounting the Chip Shield (see figure C) Insert the chip shield 5 from the front into the guide in such a manner thatit engages. To remove the chip shield, grasp it by the sides and pull it off toward the front. Operation Starting Operation > Observe correct mains voltage! The voltage of the pow- er source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230 V can also be operated with 220 V. Preselecting the Speed The required speed can be preselected with the thumbwheel 23 (also while running). 1-2 lowspeed 3-4 mediumspeed 5-6 highspeed The values shown in the chart are standard values. The neces- sary speed depends on the material and the operating condi- tions, and can be determined by practical testing. Material Roi it Thumbwheel 23] diameter (mm) Hardwood (Beech) 4-10 5 12-20 3 22-40 1 Softwood (Pine) 4-10 5 12-20 3 22-40 1-

É à & OBi_BUCH-323-005.book Page 18 Monday, September 23, 2013 4:11 PM

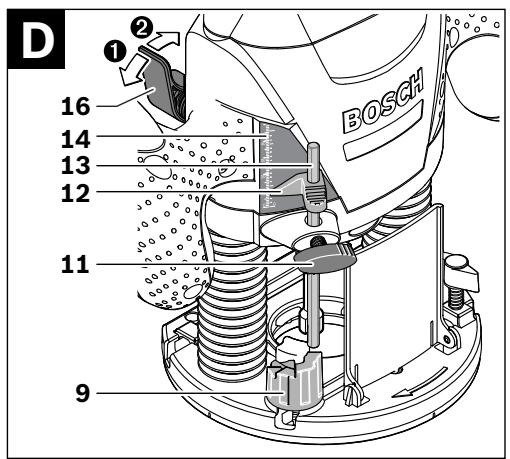

_e + 18] English Switching On and Off Adjust the depth-of-cut before switching on or off, see Sec- tion "Adjusting the Depthrof-cut” To start the machine, first push the lock-off button for the On/Off suitch 1 and then press the On/Off switch 22 and Keep it pressed. POF 1400 ACE: A lamp illuminates the routing area. To switch off the machine, release the On/Of switch 22. POF 1400 ACE: The lamp slowly g0es out. Note: For safety reasons, the On/Off switch 22 cannot be locked: it must remain pressed during the entire operation. Constant Electronic Control (POF 1400 ACE) Constant electronic control holds the speed constant at no load and under load, and ensures uniform working perfor- mance. Adjusting the Depth-of-cut (see figure D) > The adjustmentofthe depth-of-cut may only be carried out when the router is switched off. For coarse adjustment of the depth-of-cut, proceed as fol- lows: Place the machine with the router bit mounted on the workpiece to be machined — POF 1400 ACE: Setthefine-adjustment pathtothe centre position with the adjustment knob 18. For this, turn the adjustment knob 18 until the marks 19 match as shown in the figure. Afterwards, set the scale 17 to "0". = TOUT De |

Setthe step buffer 9 to the lowest position: the step buffer engages noticeably. POF 1200 AE: Screw the adjusting screws for the step buffer 24 halfwayin or out. —_ Loosen the ing bolt for the depth stop 11 so that the depth stop 13 can be moved freely. — Push the clamping lever for locking of routing depth 16 in rotation direction @ and and slowly lower the plunge rout- er untilthe router bit 22 touches the surface of the work- piece. Let g0 of the clamping lever 16 again to lock this plunging depth. Ifrequired, push the clamping lever 16 in rotation direc- tion @ to lock tin place. Push the depth stop 13 dounward until itrests onthe step buffer 9. Set the slide withthe index mark 12 tothe "0" po- sition on the scale for the depth-of-cut adjustment 14. Setthe depth stop 13 to the required depth-of-cut and tighten the wing bolt for the depth stop 11. Pay attention not to misadjust the slide with the index mark 12 again. = Push the clamping lever 16 in rotation direction © and guide the router to the uppermost position. For deep cuts, itis recommended to carry out several cuts, each with litle material removal. By using the step buffer 9, the cuttingprocess can be dividednto several steps. Forthis, adjustthe desired depth-of-cut with the lowest step of the step buffer and select the higher steps first for the initial cuts. POF 1200 AE: The clearance of the steps can be changed by screwingthe adjusting screws 24 further in or out. Fine Adjustment of the Depth-of-cut (POF 1400 ACE) After a trial cut, the depth-of-cut can be set exactly to the de- sired measure by turing the adjustment knob 18 turn in clockwise direction to increase the cutting depth and in anti- clockwise direction to decrease the cutting depth. The scale 17 can be used for guidance. One full turn corresponds with à settingrange of 2,0 mm: a graduation mark onthe top edge of the scale 17 corresponds witha 0,1 mm change ofthe setting range, The maximum setting range is + 8 mm Example: The desired depth-of-cutis to be 10.0 mm the trial cut resulted in a cutting depth of 9.6 mm. — Liftupthe router and place, e. g., a piece of scrap wood un: derthe guide plate 7 so thatthe router bit 21 cannot touch the workpiece when lowering it. Push clamping lever 16 in rotation direction @ and slowly lower the plunge router un- tilthe depth stop 13 faces against the step buffer 9. Turn the scale 17 to “0” and loosen wing bolt 11. — Turn the adjustment knob 18 by 0.4 mm/4 graduation marks (difference from set to actual value) in clockwise di rection and tighten the wing bolt 11. — Checkthe selected depthrof-cut by carrying out another trial cut. After adjustingthe depth-of-cut, do not change the position of the slide 12 on the depth stop 13 any more, so thatthe actual cutting depth can be read on the scale 14. Fine Adjustment of the Depth-of-cut (POF 1200 AE) Different depths-of-cut can be preset with the step buffer 9. The adjustmentis carried outin the same manner as previous- Iy described, with the difference that by screwing the adjust- ing screws 24 in or out, the height difference between the tops can be changed. Working Advice > Protect router bits against shock and impact. Direction of Feed and Routing Process (see figure E) > Theroutingprocess must always be carried out against the rotation direction of the router bit 21 (up-cutting tion of the router (down-cutting), the machine can break loose, eliminating control by the user. Adjust the required depth-of-cut; see Section “Adjusting the Depth-of-cut”. Place the machine with the router bit mounted on the workpiece to be machined and switch the power tool on. — Push clamping lever 16 down and slowly lower the plunge router until the adjusted depth-of-cut is reached. Let go of the clamping lever 16 again to lock this plunge depth Irequired, push clamping lever 16 up again to finall lock itin place. — Carry outthe routing process apphing uniform feed. 1609 924 OAW1(23.9.13)

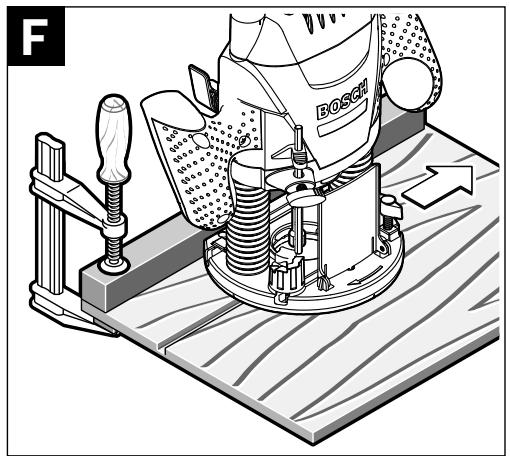

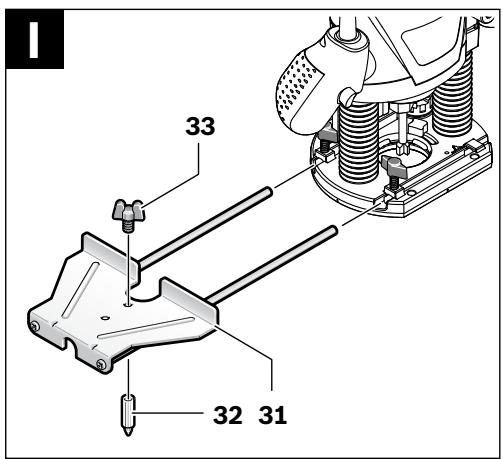

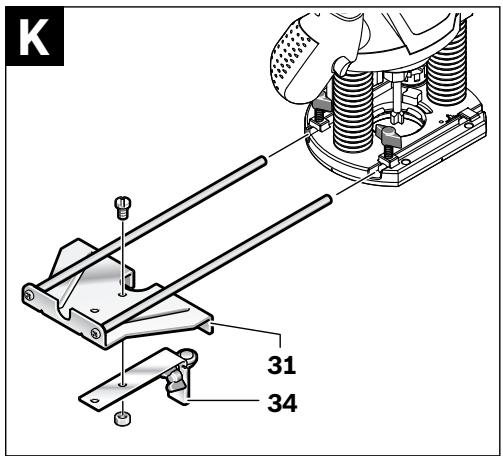

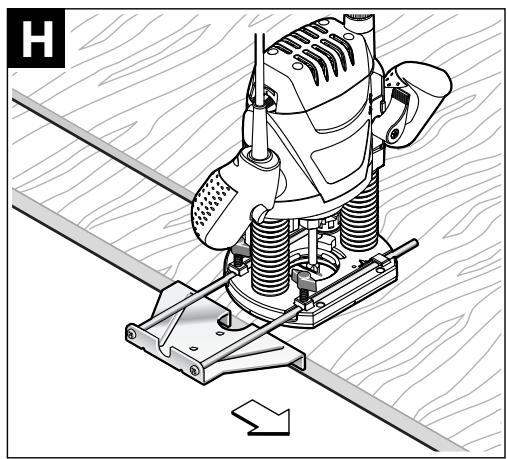

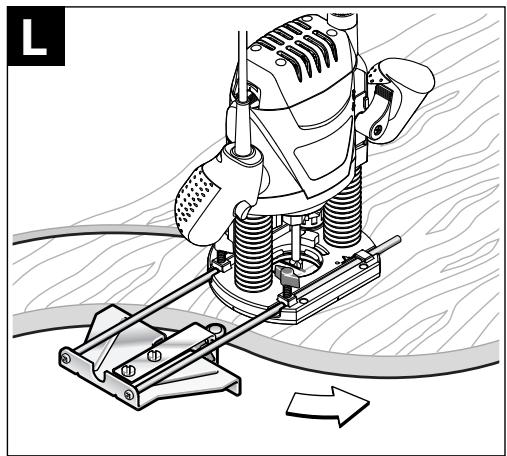

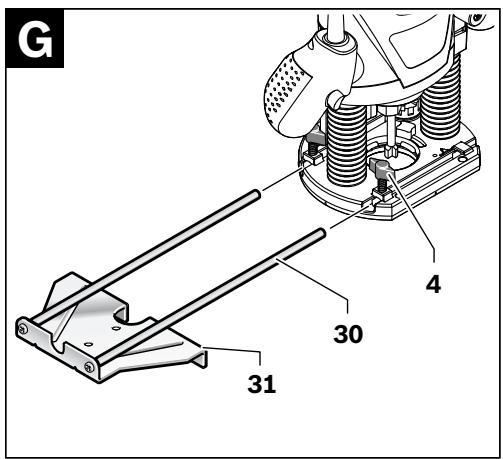

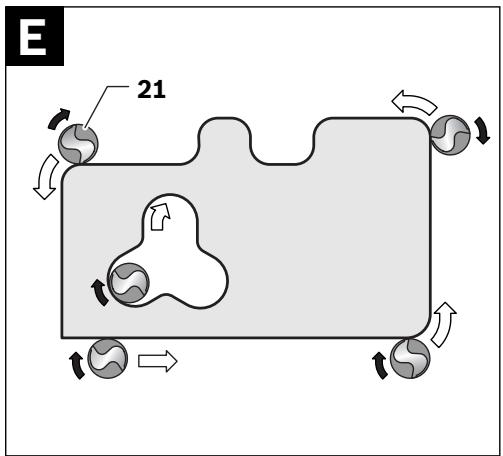

_e + — Afterfinishingthe cutting process, guide the plunge router upward again to the uppermost position. — Switch the power tool of. Routing with Auxiliary Guide (see figure F) For working large workpieces, e. g. when routing grooves, à board or wood strip can be fastened to the workpiece as an auxiliary guide alongside which the router can be guided. Guide the router with the flattened side of the guide plate along the auxliary guide. Shaping or Molding Applications For shaping or molding applications without the use of a par- allel guide, the router bit must be equipped with a pilot or à ball bearing. Guide the switched on power tool from the side towardthe workpiece untilthe pilotor the ball bearing ofthe router bit faces against the workpiece edge to be machined. Guide the power tool alongside the workpiece edge with both hands, paying attention that the router is positioned rectangular. Too much pressure can damage the edge of the workpiece. Routing with Parallel Guide (see figures G-H) Slide the parallel guide 31 with the guide rods 30 into the base plate 6 and tighten it as required with the wing bolts 4. Guide the switched on power tool with uniform feed and later- al pressure on the parallel guide alongside the workpiece edge Routing Cireular Arc Profiles (see figures 1 J) Turnthe parallel guide 31 around so that the facing surface of the parallel guide faces upward. Slide the parallel guide 31 with the guide rods 30 into the base plate 6 and tighten i as required with the wing bolts 4. Fasten the centring pin 32 with the wing bolt 33 through the hole in the parallel guide 31. Pierce the centring pin 32 into the marked centre of the arc profile and carry outthe routing process applying uniform feed. Routing with the Curve Guide (see figures K - L) Slide the parallel guide 31 with the guide rods 30 into the base plate 6 and tighten i as required with the wing bolts 4. Fasten the curve guide 34 with the guide roller mounted through the hole on the parallel guide 31. Guide the power tool with light lateral pressure alongside the workpiece edge. Routing with the Router Compass (see figure M) The router compass/guide-rail adapter 35 can be used for cir- cular routing jobs. Mount the router compass as shown in the figure. Screw the centring screw 40 into the thread on the router compass. Insert the point of the centring screw into the cen- tre ofthe circular arc to be routed, paying attention that point ofthe screw engages into the workpiece surface. Coarsely adjustthe required radius by movingthe router com- pass and tighten the wing bolts 37 and 38. English|19 The length canbe fine adjusted withthe fine-adjustment knob 39 after loosening the wing boit 38. One revolution corre- sponds with a setting range of 2.0 mm. One graduation mark onthe fine-adjustment knob 39 changes the setting range by 0.1mm. Guide the switched on power tool overthe workpiece with the right handle 8 and the router compass handle 36. Routing with Guide Rail (see figure N) Straight routing cuts can be carried out with help ofthe guide rail 41 The base spacer 42 mustbe mounted in order to compensate the height difference. Mount the router compass/guide-rail adapter 35 as shown in the figure. Fasten the guide rail 41 to the workpiece with suitable clamp: ing devices, e. g. screw clamps. Place the machine with the guide-rail adapter 35 mounted onto the guide rail. Routing with Guide Bushing (see figures O - P) The guide bushing 43 enables template and pattern routing on workpieces. Choose a suitable guide bushing, depending on the thickness ofthe template or the pattern. Because of the projecting height of the guide bushing, the template must have a mini- mum thickness of 8 mm. Actuate the release lever 20 and insert the guide bushing 43 from below into the base plate 6. Ensure that the encoding keys clearly engage in the grooves of the guide bushing. > Select a router bit with a diameter smaller than the in- terior diameter of the guide bushing. For routing with the guide bushing 43 proceed as follows Guide the switched on power tool with the guide bushing toward the template. Push clamping lever 16 doun and slowiy lower the plunge router until the adjusted depth-of-cut is reached. Let go of the clamping lever 16 again to lock this plunge depth Irequired, push clamping lever 16 up again to finall lock itin place. — Guide the switched on power tool with the protruding guide bushing alongside the template applying lateral pressure. Maintenance and Service Maintenance and Cleaning > Before any work on the machine itself, pull the mains plug. > For safe and proper working, always keep the machine and ventilation slots clean. > Inextreme conditions, always use dust extraction as far as possible. Blow out ventilation slots frequently andinstall a residual current device (RCD). When work- ing metals, conductive dust can settle in the interior ofthe power tool. The total insulation of the power tool can be im paired. Bosch Power Tools

É à & OBi_BUCH-323-005.book Page 20 Monday, September 23, 2013 4:11 PM

_e + 24] Français Henk Becker Helmut Heinzelmann Executive Vice President Head of Product Certification Engineering PT/ETM9

É à & OBi_BUCH-323-005.book Page 37 Monday, September 23, 2013 4:11 PM

& OBi_BUCH-323-005.book Page 43 Monday, September 23, 2013 4:11 PM

97 0BI_BUCH-323-005.book Page 44 Monday, September 23, 2013 4:11 PM NA

É à un 7 OBI_BUCH-323-005.book Page 45 Monday, September 23, 2013

É à & OBi_BUCH-323-005.book Page 57 Monday, September 23, 2013 4:11 PM

É à & OBi_BUCH-323-005.book Page 61 Monday, September 23, 2013 4:11 PM

É à & OBi_BUCH-323-005.book Page 62 Monday, September 23, 2013 4:11 PM

& OBi_DOKU-28024-002.fm Page 64 Wednesday, September 25, 2013 4:36 PM _à 7 &

É à & DBi_BUCH-323-005.book Page 76 Monday, September 23, 2013 4:11 PM

É à & OBi_BUCH-323-005.book Page 81 Monday, September 23, 2013 4:11 PM
