USER MANUAL LE32A450 SAMSUNG

Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre Web Site AUSTRIA BELGIUM imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Model Serial No. BN68-01425A-00 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.(See back cover for more information) Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. © 2008 Samsung Electronics Co., Ltd. All rights reserved. Book-.indb 1 2008-03-03 ¿ÀÈÄ 5:49:16 English Contents Connecting and Preparing Your TV List of Parts......................................................... 2 Installing the Stand.............................................. 2 Installing the Wall Mount Kit................................ 2 Viewing the Control Panel................................... 3 Viewing the Connection Panel............................ 4 Viewing the Remote Control................................ 7 Installing Batteries in the Remote Control........... 8 Switching On and Off.......................................... 8 Placing Your Television in Standby Mode........... 8 Viewing the Menus.............................................. 9 Using the TOOLS Button..................................... 9 Plug & Play........................................................ 10 Function Description Choosing Your Language.................................. 25 Melody / Entertainment / Energy Saving . ........ 26 Selecting the Source......................................... 27 Editing the Input Source Names....................... 28 Setting the PC Setting up Your PC Software (Based on Windows XP)................................... 29 Display Modes................................................... 29 Setting up the TV with your PC......................... 30 About Anynet+ Setting the Channels Storing Channels Automatically.........................11 Storing Channels Manually............................... 12 Adding / Locking Channels............................... 13 Sorting the Stored Channels............................. 14 Assigning Channels Names.............................. 14 Fine Tuning Channel Reception........................ 15 Setting the Picture Changing the Picture Standard......................... 16 Adjusting the Custom Picture............................ 17 Configuring Detailed Settings on the Picture.... 17 Resetting the Picture Settings to the Factory Defaults................................................ 18 Changing the Picture Options........................... 19 Viewing the Picture In Picture (PIP).................. 21 Setting the Sound What is Anynet+? ............................................. 31 Connecting Anynet+ Devices............................ 31 Setting Up Anynet+........................................... 32 Scanning and Switching between Anynet+ Devices............................................... 33 Recording.......................................................... 35 Listening through a Receiver............................ 35 Check Points before Requesting Service.......... 36 Recommendations For Use Teletext Feature................................................ 37 Wall-Mount Adjustment (Sold separately) (depending on the model)................................. 39 Using the Anti-Theft Kensington Lock (depending on the model)................................. 40 Troubleshooting: Before Contacting Service Personnel............................................. 41 Technical and Environmental Specifications .... 42 Sound Features................................................. 22 Selecting the Sound Mode................................ 23 Connecting Headphones (Sold separately)...... 23 Setting the Time Setting and Displaying the Current Time........... 24 Setting the Sleep Timer..................................... 24 Switching the Television On and Off Automatically..................................................... 25 Symbol Press Note One-Touch Button English - 1 Book-.indb 1 2008-03-03 ¿ÀÈÄ 5:49:17 List of Parts Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. M4XL16 Remote Control & Batteries (AAA x 2) Power Cord Owner’s Instructions

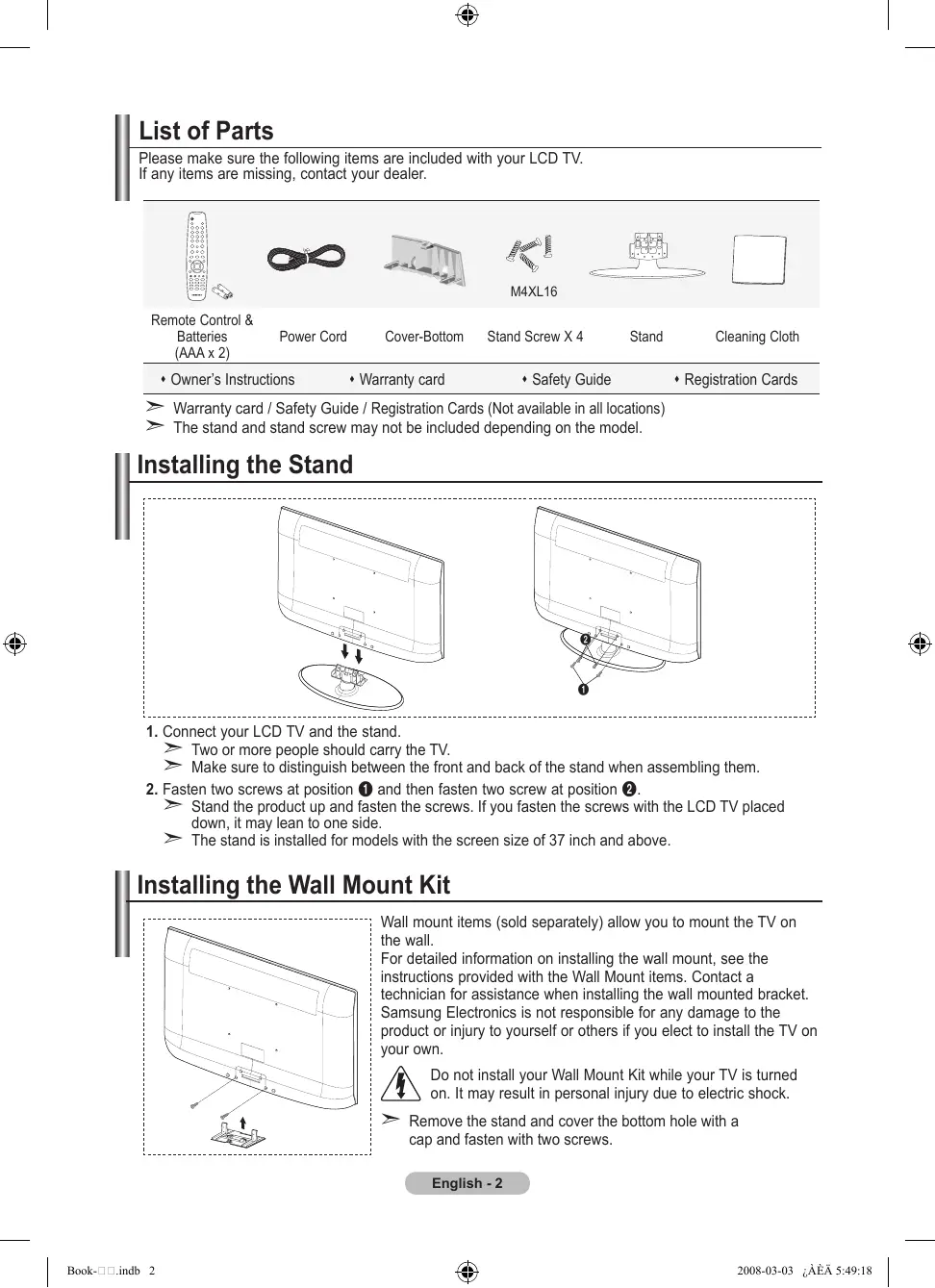

Cover-Bottom Stand Screw X 4 Warranty card Stand Safety Guide Cleaning Cloth Registration Cards Warranty card / Safety Guide / Registration Cards (Not available in all locations) The stand and stand screw may not be included depending on the model. Installing the Stand

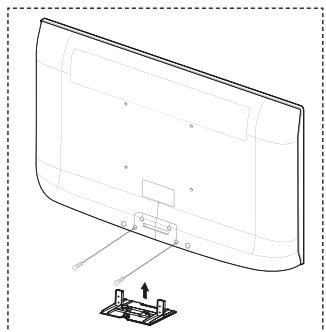

1. Connect your LCD TV and the stand.

➣ Two or more people should carry the TV. ➣ Make sure to distinguish between the front and back of the stand when assembling them.

2. F

asten two screws at position 1 and then fasten two screw at position 2. ➣ Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side. ➣ The stand is installed for models with the screen size of 37 inch and above. Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

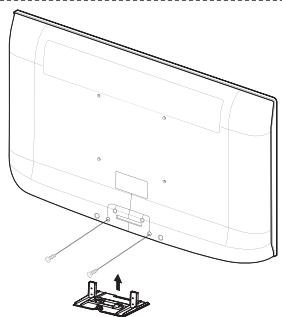

Remove the stand and cover the bottom hole with a cap and fasten with two screws. English - Book-.indb 2 2008-03-03 ¿ÀÈÄ 5:49:18 Viewing the Control Panel Side Panel buttons

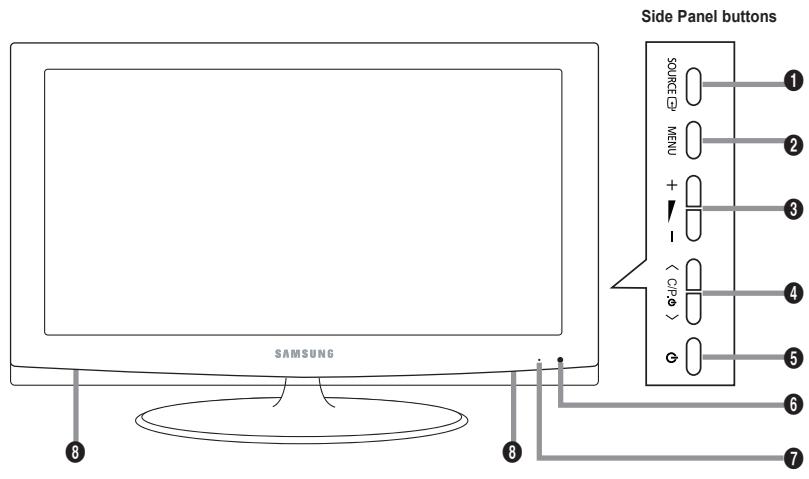

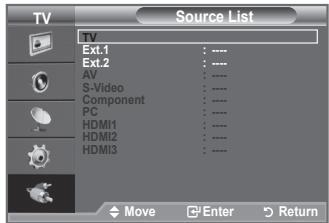

The product colour and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3). In the on-screen menu, use this button as you use the ENTER button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features.

(Power) Press to turn the TV on and off. 6 Remote Control Sensor Aim the remote control towards this spot on the TV. 7 Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode. 8 Speakers Press to decrease or increase the volume. In the on-screen menu, use the buttons as you use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the buttons as you use the ▲ and ▼ buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.) English - Book-.indb 3 2008-03-03 ¿ÀÈÄ 5:49:19 Viewing the Connection Panel LE40A450, LE40A451, LE40A454 [TV Side Panel] [TV Rear Panel]

The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable. English - Book-.indb 4 2008-03-03 ¿ÀÈÄ 5:49:19

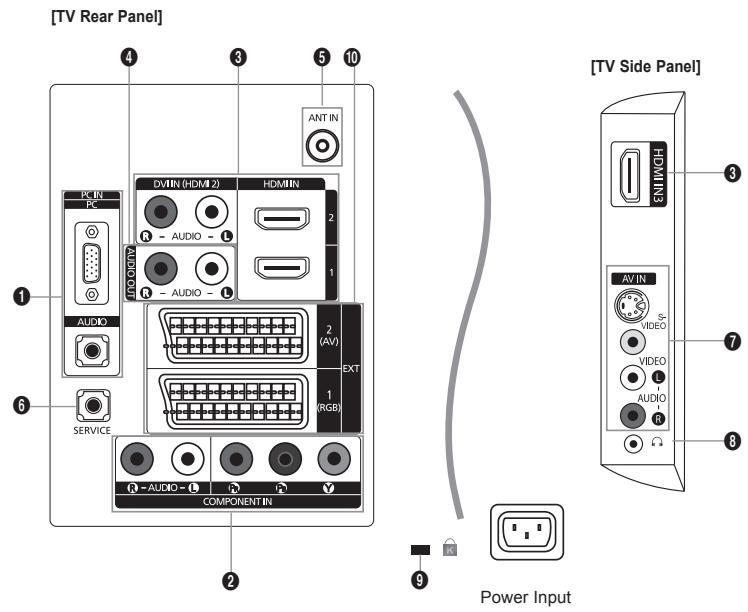

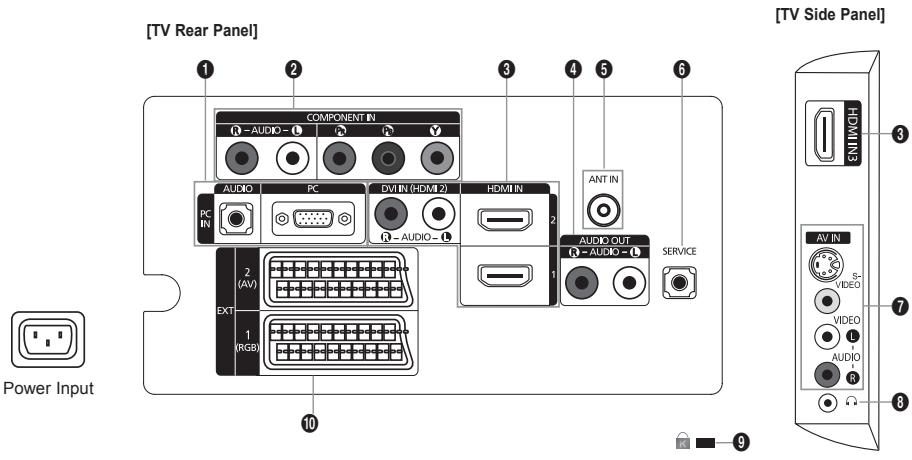

1 PC IN [PC] / [AUDIO]

- Connect to the video and audio output jack on your PC. 2 COMPONENT IN - Connect component video cables (optional) to component connector (“PR”, “PB”, “Y”) on the rear of your set and the other ends to corresponding component video out connectors on the DVD. - If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD and connect the DVD to component connector (“PR”, “PB”, “Y”) on your set. - The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. - Connect RCA audio cables (optional) to [R - AUDIO - L] on the rear of your set and the other ends to corresponding audio out connectors on the DVD

3 HDMI IN 1, HDMI IN 2, HDMI IN 3

- Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players) - No additional Audio connection is needed for an HDMI to HDMI connection. - When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. ➣ What is HDMI? - “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio. - The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

DVI IN(HDMI2) [R-AUDIO-L]

- DVI audio outputs for external devices. ➣ Supported modes for HDMI/DVI and Component HDMI/DVI 50Hz HDMI/DVI 60Hz Component 480i 480p 576i 576p 720p 1080i

4 AUDIO OUT [R-AUDIO-L]

- Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre. 5 ANT IN To view television channels correctly, a signal must be received by the set from one of the following sources: - An outdoor aerial / A cable television network / A satellite network 6 SERVICE - LE26A450, LE26A451 Connector for SERVICE only. - LE32A450, LE32A451, LE32A454, LE37A450, LE37A451, LE40A450, LE40A451, LE40A454 Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control. English - Book-.indb 5 2008-03-03 ¿ÀÈÄ 5:49:20 7 S-VIDEO or VIDEO / R-AUDIO-L - Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. - Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the A/V device. 8 Headphones jack - Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled. 9 Kensington Lock (depending on the model) - The Kensington Lock (optional) is a device used to physically fix the system when used in a public place. - If you want to use a locking device, contact the dealer where you purchased the TV. - The location of the Kensington Lock may be different depending on its model. 0 EXT 1, EXT 2 Connector EXT 1 EXT 2 Video

Output Video + Audio (L/R) Only TV output is available. Output you can choose. -Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players. English - Book-.indb 6 2008-03-03 ¿ÀÈÄ 5:49:20 Viewing the Remote Control 1 Television Standby button 2 Selects the TV mode directly 3 Number buttons for direct channel access 4 One/Two-digit channel selection 5 + : Volume increase : Volume decrease 6 Temporary sound switch-off 7 Displays the Channel List on screen 8 Use to quickly select frequently used functions. 9 Use to see information on the current broadcast 0 Colour buttons : Use these buttons in the Channel list, etc. @ Press to select the optional display and sound modes for sports, cinema and games. # Use these buttons in the DMA, and Anynet+. : This remote can be used to control recording on Samsung recorders with the Anynet+ feature) TOOLS $ Available source selection % Previous channel ^ P : Next channel P : Previous channel & Displays the main on-screen menu

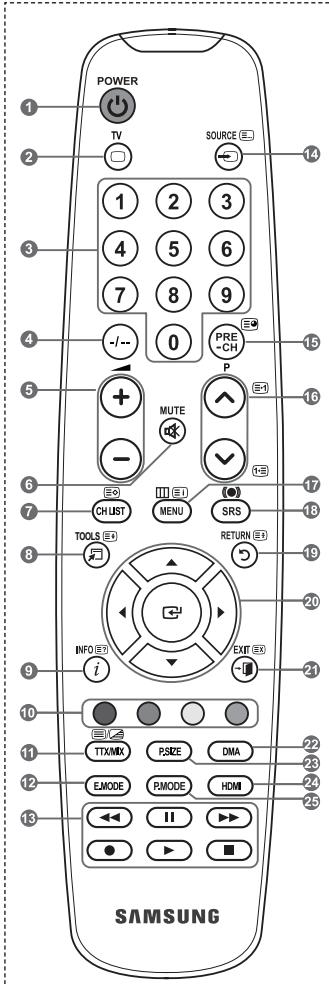

• SRS TS XT selection ( Returns to the previous menu ) Control the cursor in the menu

a Exit the on-screen menu b Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode.(The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet+(HDMI-CEC)" is “On” (see page 31) c Picture size selection d Selects the HDMI mode directly. icture effect selection Teletext Functions 2 Exit from the teletext display 7 Teletext store 8 Teletext size selection 9 Teletext reveal 0 Fastext topic selection ! Alternately select Teletext, Double, or Mix. $ Teletext mode selection (LIST/FLOF) % Teletext sub page ^ P : Teletext next page P : Teletext previous page & Teletext index ( Teletext hold a Teletext cancel TOOLS The performance of the remote control may be affected by bright light. English - Book-.indb 7 2008-03-03 ¿ÀÈÄ 5:49:20 Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

Replace the cover. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time.

If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off The mains lead is attached to the rear of your set.

Plug the mains lead into an appropriate socket. The standby indicator lights up on your set.

Press the button on your set. You also can press the POWER button or the TV button on the remote control to turn the TV on. ➣ The channel that you were watching last is reselected automatically

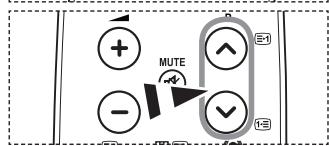

3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or

button on your set. ➣ When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

To switch your set off, press the POWER button again. Placing Your Television in Standby Mode Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

Press the POWER button on the remote control. The screen is turned off and a red standby indicator appears on your set.

2. To switch your set back on, simply press the POWER , numeric buttons (0~9), TV button or

channel up/down ( / ) button again. ➣ Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial. English - Book-.indb 8 2008-03-03 ¿ÀÈÄ 5:49:21 Viewing the Menus

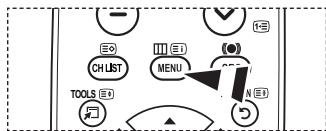

ith the power on, press the MENU button. The main menu appears on the screen. The menu’ s left side has icons: Picture, Sound, Channel, Setup, Input.

2. Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER button to access the icon’s submenu.

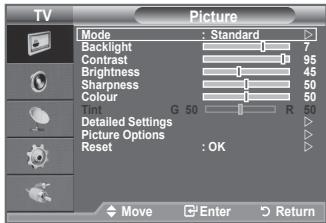

Picture Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Press the EXIT button to exit. Move he on-screen menus disappear from the screen after about one minute. Enter

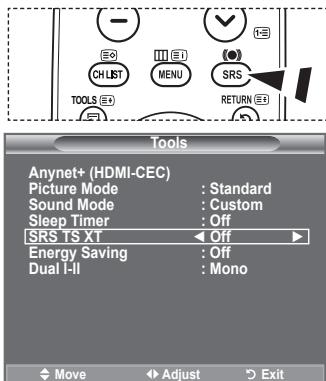

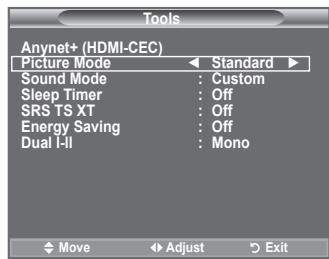

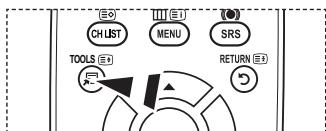

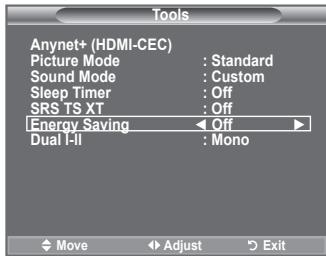

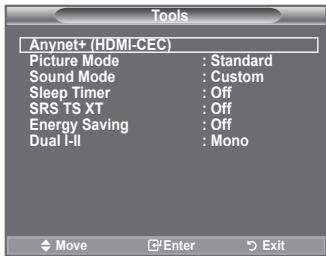

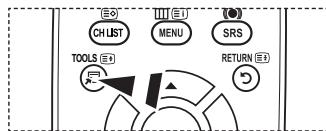

Return TOOLS Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.

1. P

ress the TOOLS button. The “Tools” menu will appear.

2. P

ress the ▲ or ▼ button to select a menu.

3. P

ress the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

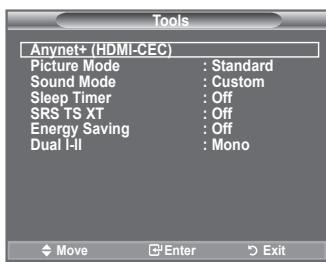

• Anynet+ (HDMI-CEC), see page 31
• Picture Mode, see page 16

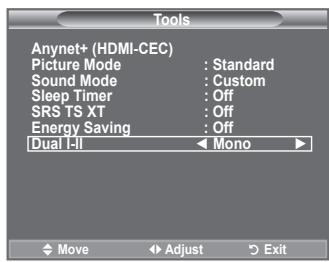

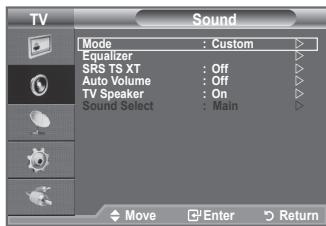

• Sound Mode, see page 22

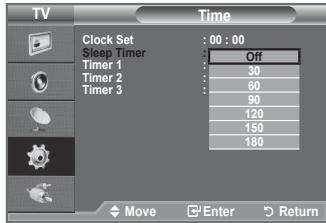

• Sleep Timer, see page 24
• SRS TS XT, see page 22
• Energy Saving, see page 27
• Dual l-ll, see page 23

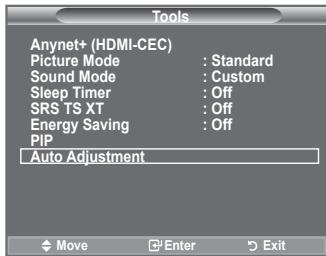

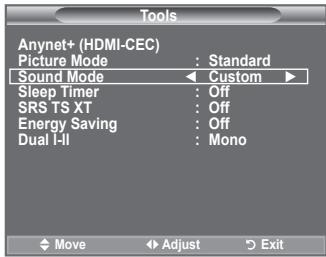

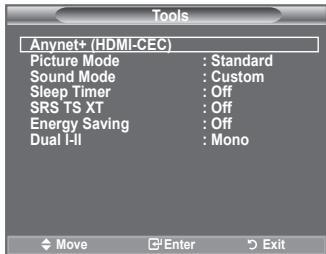

• Auto Adjustment, see page 30 Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move Enter Plug & Play When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1. Press the POWER button on the remote control.

The message "Start Plug & Play." is displayed with "OK" selected.

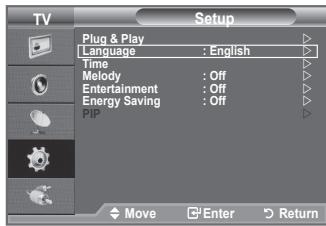

2. Select the appropriate language by pressing the ▲ or ▼

button. Press the ENTER button to confirm your choice.

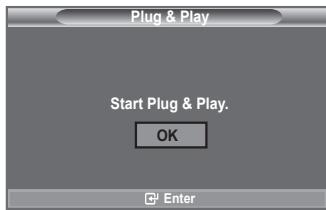

Plug & Play Start Plug & Play.

Enter Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the ENTER button. We recommend setting the TV to "Home Use" mode for the best picture in your home environment. "Store Demo" mode is only intended for use in retail environments. If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use” (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds

The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button. Please check that the antenna cable is connected correctly.

Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.

The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button. The channel search will start and end automatically. After all the available channels are stored, the "Clock Set" menu appears. Press the ENTER button at any time to interrupt the memorization process.

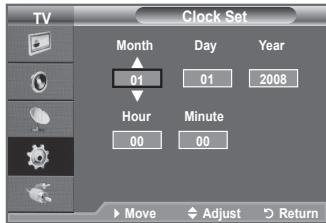

Press the ENTER button. Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ◄ or ► button. Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ▲ or ▼ button. You can also set the “Month”, “Day”, “Year”, “Hour” and "Minute" by pressing the number buttons on the remote control.

8. Press the ENTER button to confirm your setting. The message “Enjoy your viewing” is displayed.

When you have finished, press the ENTER button. Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Language: Select your language. Country: Select your country. Auto Store: Automatically scans for and stores channels available in the local area. Clock Set: Sets the current time for the TV clock. English - 10 Book-.indb 10 2008-03-03 ¿ÀÈÄ 5:49:22 If you want to reset this feature...

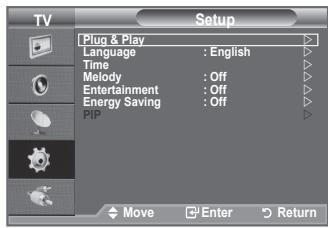

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup" then press the ENTER button.

2. Press the ENTER button again, to select "Plug & Play".

For further details on setting up options, refer to the page 10. ➣ The “Plug & Play” feature is only available in the TV mode. Storing Channels Automatically You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice. Press the ▲ or ▼ button to select "Auto Store", then press the ENTER

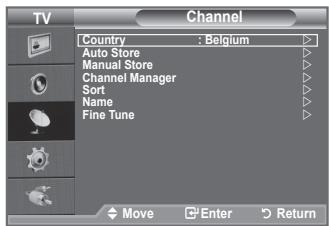

Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter

Return button to select "Country". button.

Press the ENTER button. ➣ The TV will begin memorizing all of the available channels. ➣ Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

After all the available channels are stored, the "Sort" menu appears. (refer to page 14) English - 11 Book-.indb 11 2008-03-03 ¿ÀÈÄ 5:49:23 Storing Channels Manually You can store television channels, including those received via cable networks. When storing channels manually, you can choose: ♦ Whether or not to store each of the channels found. ♦ The programme number of each stored channel which you wish to identify.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Manual Store", then press

3. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button. Channel

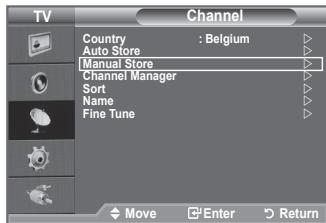

Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move

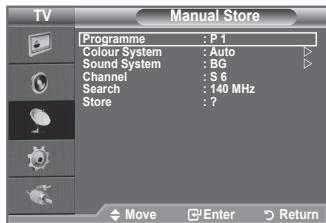

Return Manual Store Programme Colour System Sound System Channel Search Store

4. When you are satisfied with your setting, press the

Press the EXIT button to exit.

Programme (Programme number to be assigned to a channel) − Press the ▲ or ▼ button until you find the correct number. You can also select the channel number directly by pressing the numeric buttons (0~9).

olour System: Auto/PAL/SECAM/NTSC4.43 − Press the ▲ or ▼ button to select the required colour standard.

Channel (When you know the number of the channel to be stored) − Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). − Press the ► button, then press the ▲ or ▼ button to select the required number. You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required.

Search (When you do not know the channel numbers) − Press the ▲ or ▼ button to start the search. − The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number) − Set to "OK" by pressing the ENTER button. Channel mode

(Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

(Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.

(Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode. Move Enter Return English - 12 Book-.indb 12 2008-03-03 ¿ÀÈÄ 5:49:24 Adding / Locking Channels Using the Channel Manager, you can conveniently lock or add channels. Channel

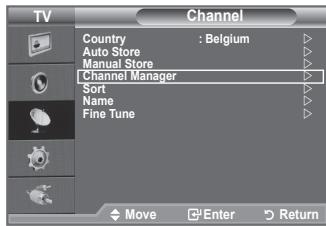

Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Channel Manager",

then press the ENTER button. ♦ Adding channels Using the Channel List, you can add channels.

3. Select "Channel List" by pressing the ENTER button.

4. Move to the ( ) field by pressing the ▲, ▼, ◄ or ►

button, select a channel to be added, and press the ENTER button to add the channel.

If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel is not added.

" " is active when "Child Lock" is selected to "On". ♦ Locking channels This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

5. Press the ▲ or ▼ button to select "Child Lock", then press

6. Select "On" by pressing the ▲ or ▼ button, then press the

7. Press the ▲ or ▼ button to select "Channel List",

then press the ENTER button.

8. Move to the " " field by pressing the ▲, ▼, ◄ or ► button,

select a channel to be locked, and press the ENTER button.

If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel lock is cancelled. ➣ A blue screen is displayed when "Child Lock" is activated.

9. Press the EXIT button to exit.

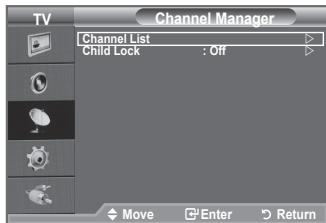

Return Channel Manager

Channel List Child Lock : Off Move Enter

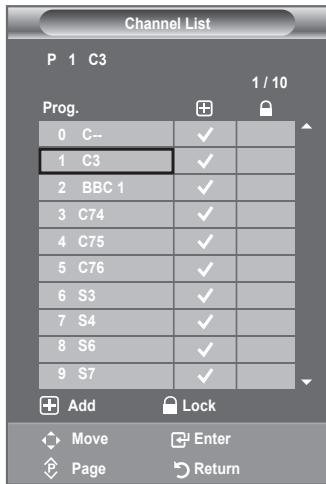

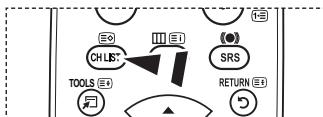

Return Channel List P 1 C3 1 / 10 Prog.

BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return elect "On" or "Off" in "Child Lock" to easily turn the channels which selected on " " to be active or inactive. You can select these options by simply pressing the CH LIST button on the remote control. TOOLS English - 13 Book-.indb 13 2008-03-03 ¿ÀÈÄ 5:49:25 Sorting the Stored Channels This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

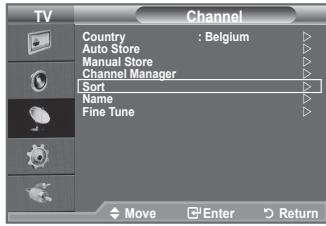

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Sort", then press the

3. Select the channel number that you wish to change by

pressing the ▲ or ▼ button repeatedly. Press the ENTER button. ➣ The selected channel number and name are moved to right side.

4. Press the ▲ or ▼ button to move to the position in which you

would like to change and then press the ENTER button. ➣ The selected channel is exchanged with the one previously stored to the chosen number.

5. Repeat steps 3 to 4 for another channel to be sorted.

6. Press the EXIT button to exit.

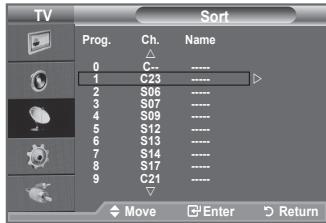

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move

Ch. C-C23 S06 S07 S09 S12 S13 S14 S17 C21

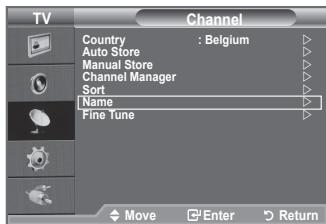

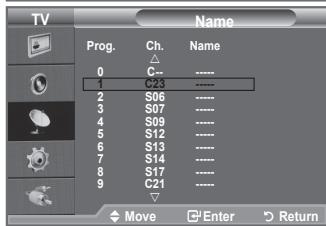

Enter Return Assigning Channels Names Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Press the ▲ or ▼ button to select "Name", then press the ENTER button. If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button. ➣ The selection bar is displayed around the name box. To... Then... Select a letter, number or symbol Move on the next letter Press the ► button Move back the previous letter Press the ◄ button Confirm the name Ch. C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Enter Return button The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space)

Repeat steps 3 to 4 for each channel to be assigned to a new name.

Press the EXIT button to exit. English - 14 Book-.indb 14 2008-03-03 ¿ÀÈÄ 5:49:26 Fine Tuning Channel Reception Use fine tuning to manually adjust a particular channel for optimal reception.

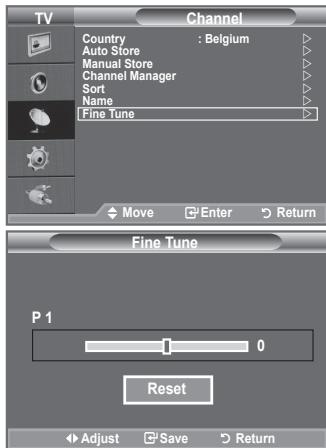

1. Use the number buttons to directly select the channel that

you want to fine tune.

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Press the EXIT button to exit.

Return Fine Tune Press the ◄ or ► button to adjust the fine tuning. Press the ENTER button.

Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red. To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.

Reset Adjust Save Return English - 15 Book-.indb 15 2008-03-03 ¿ÀÈÄ 5:49:27 Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements.

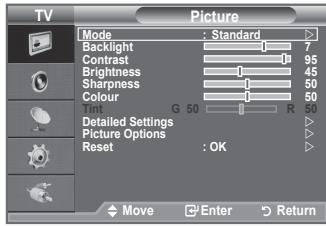

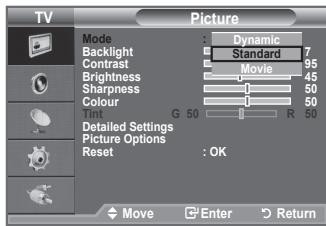

Press the ▲ or ▼ button to select the desired picture effect. Press the ENTER button.

Press the EXIT button to exit.

button again, to select "Mode". Picture Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Move ♦ Dynamic: Selects the picture for high-definition in a bright room. ♦ Standard: Selects the picture for optimum display in a normal environment. ♦ Movie: Selects the picture for comfortable display in a dark room. Enter

Return Picture Mode : Standard Dynamic Backlight Standard Contrast Movie Brightness 45 TOOLS Sharpness 50 Colour 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK

he Picture mode must be adjusted separately for each input source. Move Enter Return You can also press the P.MODE button on the remote control to select one of the picture settings. Easy Setting Tools

Press the TOOLS button on the remote control.

Press the ▲ or ▼ button to select "Picture Mode".

Press the ◄ or ► button to select the required option.

Press the EXIT or TOOLS button to exit. Standard ► Custom Off Off Off Mono Exit English - 16 Book-.indb 16 2008-03-03 ¿ÀÈÄ 5:49:28 Adjusting the Custom Picture Your set has several settings which allow you to control picture quality.

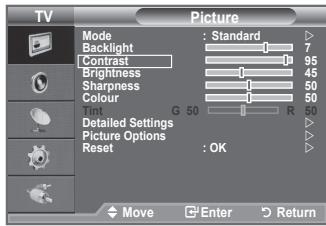

1. To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3. (On page 16)

2. Press the ▲ or ▼ button to select a particular item. Press the

3. Press the ◄ or ► button to decrease or increase the value of

a particular item. Press the ENTER button.

4. Press the EXIT button to exit.

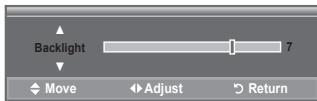

♦ Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0~10) ♦ Contrast: Adjusts the lightness and darkness between objects and the background. ♦ Brightness: Adjusts the brightness of the whole screen. ♦ Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. ♦ Colour: Adjusts the colours, making them lighter or darker. ♦ Tint: Adjusts the colour of objects, making them more red or green for a more natural look.

Picture Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Move Enter Return

Adjust Return The adjusted values are stored according to the selected Picture mode. In PC mode, you can only make changes to "Backlight", "Contrast" and "Brightness". (26, 32, 37 inch) In PC mode, you can only make changes to "Contrast" and "Brightness". (40 inch) In TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function. You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 18) Configuring Detailed Settings on the Picture You can set detailed picture settings.

1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

2. Press the ENTER button to select “Mode”.

Press the ▲ or ▼ button to select “Standard” or “Movie”, then press the ENTER button.

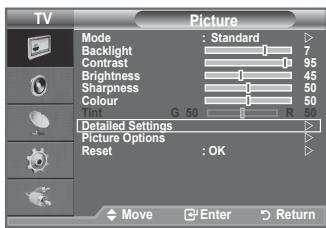

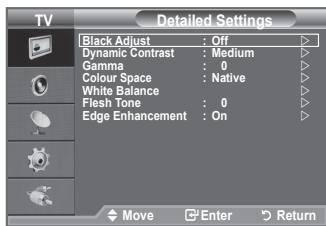

3. Press the ▲ or ▼ button to select "Detailed Settings", then

press the ENTER button.

4. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button.

5. When you are satisfied with your setting, press the

6. Press the EXIT button to exit.

"Detailed Settings" is available in "Standard" or "Movie" mode.

In PC mode, you can only make changes to “Dynamic Contrast”, “Gamma” and “White Balance” from among the “Detailed Settings” items.

Picture Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Move Enter

Return Detailed Settings

♦ Black Adjust: Off/Low/Medium/High You can directly select the black level on the screen to adjust the screen depth. ♦ Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided. ♦ Gamma: -3 ~ +3 You can adjust the Primary Colour (Red, Green, Blue) Intensity. Press the ◄ or ► button until you reach the optimal setting. ♦ Colour Space: Auto/Native/Custom Colour space is a Colour matrix composed of red, green and blue colours. Select your favourite Colour space to experience the most natural Colour. ♦ Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources. ♦ Native: Native Color Space offers deep and rich color tone. ♦ Custom: Adjusts the color range to suit your preference. Customizing the Colour Space Colour: Red/Green/Blue/Yellow/Cyan/Magenta Adjusts the Colour range to suit your preference. “Colour” is available when “Colour Space” is set to “Custom”. Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”. Press the ENTER button. Red/Green/Blue: In "Colour", you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select "Red", "Green" or "Blue" to change it. Press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. Reset: Resets the colour space to the default values. ♦ White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults. ♦ Flesh Tone: -15 ~ +15 You can emphasize the pink 'flesh tone' in the picture. Press the ◄ or ► button until you reach the optimal setting. Changing the adjustment value will refresh the adjusted screen. ♦ Edge Enhancement: Off/On You can emphasize object boundaries in the picture. Resetting the Picture Settings to the Factory Defaults You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3 on page 16.

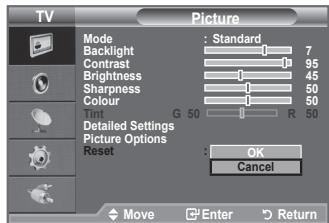

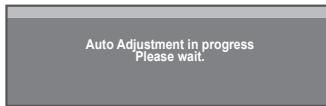

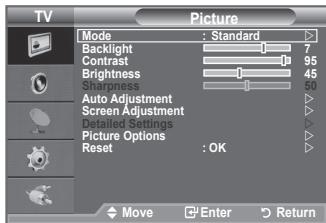

2. Press the ▲ or ▼ button to select "Reset", then press the

Press the ▲ or ▼ button to select "OK" or "Cancel". Press the ENTER button.

Press the EXIT button to exit.

Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK Cancel Move Enter Return The "Reset" will be set for each Picture mode. English - 18 Book-.indb 18 2008-03-03 ¿ÀÈÄ 5:49:30 Changing the Picture Options

Press the MENU button to display the menu. Press the ENTER button, to select "Picture".

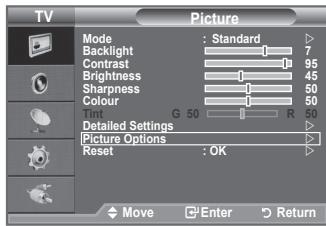

2. Press the ▲ or ▼ button to select “Picture Options”, then

press the ENTER button.

3. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button.

4. When you are satisfied with your setting, press the

5. Press the EXIT button to exit.

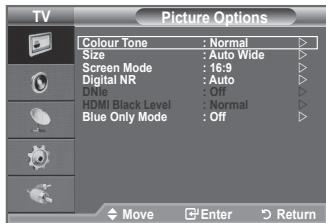

➣ In PC mode, you can only make changes to the “Colour Tone” and “Size” from among the items in “Picture Options”.

Picture Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Move

Return Picture Options Colour Tone Size Screen Mode Digital NR DNle HDMI Black Level Blue Only Mode ♦ Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2 You can select the most comfortable colour tone to your eyes. ➣ The adjusted values are stored according to the selected Picture mode.

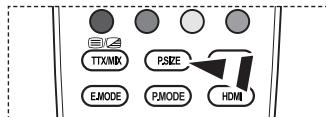

Move “Warm1” or “Warm2” is only activated when the picture mode is "Movie". Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan ou can select the picture size which best corresponds to your viewing requirements. ♦ Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio. ♦ 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. ♦ Wide Zoom: Magnify the size of the picture more than 4:3. ♦ Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size. ♦ 4:3: This is the default setting for a video movie or normal broadcasting. ♦ Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i) or Component (1080i) signals are input.

"Auto Wide" function is available only in "TV", "Ext.1", "Ext.2", "AV", and "S-Video" mode. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Settings can be adjusted and stored for each external device you have connected to an input of the TV. ➣ Temporary image retention may occur when viewing a static image on the set for more than two hours. ➣ When Double ( , ) mode has been set in PIP, the Picture Size cannot be set. ➣ Wide Zoom: Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ► or ENTER button. ➣ Zoom: Select by pressing the ◄ or ►button. TOOLS Use the ▲ or ▼button to move the picture up and down. After selecting use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. ➣ After selecting “Just Scan” in HDMI (1080i) or Component (1080i) mode: Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting. ou can select these options by simply pressing the P.SIZE button on the remote control. English - 19 Book-.indb 19 2008-03-03 ¿ÀÈÄ 5:49:31 ♦ Screen Mode: 16:9/ Wide Zoom/Zoom/4:3 When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it. ♦ 16:9: Sets the picture to 16:9 wide mode ♦ Wide Zoom: Magnify the size of the picture more than 4:3. ♦ Zoom: Magnify the size of the picture vertically on screen. ♦ 4:3: Sets the picture to 4:3 normal mode. This function is available in "Auto Wide" mode. This function is not available in “PC”, "Component" or "HDMI" mode. ♦ Digital NR: Off/Low/Medium/High/Auto If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. When the signal is weak, select one of the other options until the best picture is displayed. ♦ DNIe: Off/Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. DNIe™ (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™ technology will fit every signal into your eyes. “DNIe” is only available in “Dynamic” mode. ♦ HDMI Black Level: Normal/Low You can select the black level on the screen to adjust the screen depth. This function is active only when the external input connects to HDMI(RGB signals). ♦ Blue Only Mode: Off/On This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter. “Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”. English - 20 Book-.indb 20 2008-03-03 ¿ÀÈÄ 5:49:31 Viewing the Picture In Picture (PIP) You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

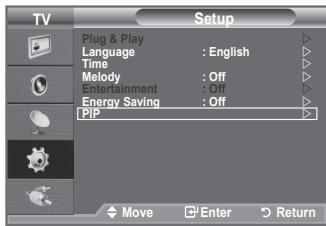

Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button. Press the ▲ or ▼ button to select "PIP", then press the ENTER button. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. When you are satisfied with your setting, press the ENTER button. Press the EXIT button to exit. You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke. Easy Setting

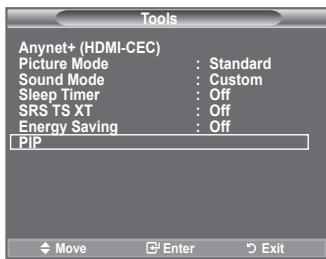

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “PIP”, then press the

3. Press the ▲ or ▼ button to select a particular item.

4. Press the ◄ or ► button to select the required option.

5. Press the EXIT or TOOLS button to exit.

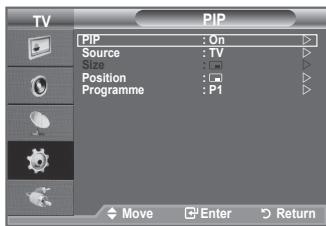

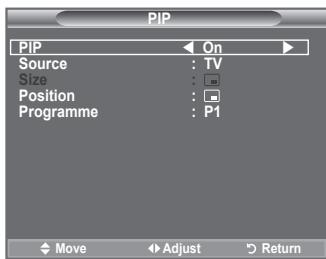

♦ PIP: On/Off You can activate or deactivate the PIP function. Main picture Component HDMI 1, 2, 3

PIP PIP Source Size Position Programme Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving PIP Move

Standard Custom Off Off Off Enter Exit ♦ Source You can select a source of the sub-picture.

♦ Size: You can select a size of the sub-picture. ➣ If main picture is in "HDMI" mode, "Size" is available. Move Adjust Return ♦ Position:

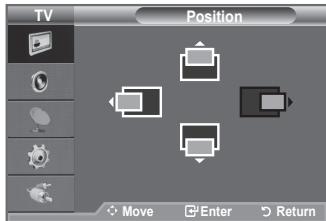

You can select a position of the sub-picture. ➣ In Double ( , ) mode, "Position" cannot be selected. ♦ Programme You can select a channel of the sub-picture only when the "Source" is set to "TV". English - 21 Book-.indb 21 2008-03-03 ¿ÀÈÄ 5:49:32

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button.

3. When you are satisfied with your setting, press the ENTER

4. Press the EXIT button to exit.

♦ Mode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select "Sound Mode".

3. Press the ◄ or ► button to select the desired sound mode.

4. Press the EXIT or TOOLS button to exit.

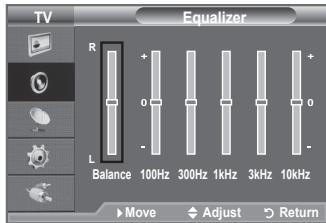

♦ Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz The sound settings can be adjusted to suit your personal preferences. ➣ If you make any changes to these settings, the sound mode is automatically switched to "Custom". Enter Return Tools Standard Custom ► Off Off Off Mono Adjust Exit Equalizer

Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return ♦ SRS TS XT: Off/On TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. O You can also set these options simply by pressing the SRS button on remote control. TOOLS Tools Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select "SRS TS XT".

3. Press the ◄ or ► button to select the "Off" or "On".

4. Press the EXIT or TOOLS button to exit.

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc.TruSurround XT technology is incorporated under license from SRS Labs, Inc. English - 22 Book-.indb 22 2008-03-03 ¿ÀÈÄ 5:49:33 ♦ Auto Volume: Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

TV Speaker: Off/On If you want to hear the sound through separate speakers, cancel the internal amplifier. ➣ The - and MUTE buttons do not operate when the "TV Speaker" is set to "Off". ➣ When "TV Speaker" is set to "Off", you can operate only “Sound Select” (in PIP mode) in Sound menu.

Sound Select: Main/Sub When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. − Main: Used to listen to the sound of the main picture. − Sub: Used to listen to the sound of the sub picture. Selecting the Sound Mode You can set the sound mode in the TOOLS menu. When you set to "Dual I-II", the current sound mode is displayed on the screen.

Press the TOOLS button on the remote control. Press the ▲ or ▼ button to select “Dual I-II". Press the ◄ or ► button to select required option. Press the ENTER button. Stereo NICAM Stereo Audio Type Mono Stereo Dual Mono Stereo Dual Default Automatic change DUAL 1 Automatic change Move Adjust

Exit DUAL 1 If the stereo signal is weak and an automatic switching occurs, then switch to the Mono. This function is only activated in stereo sound signal. It is deactivated in mono sound signal. This function is only available in TV mode. Connecting Headphones (Sold separately) You can connect a set of headphones to your set if you wish to TV Side Panel watch a TV programme without disturbing the other people in the room. ➣ When you insert the head set jack into the corresponding port, you can operate only “Auto Volume” and “Sound Select”(in PIP mode) in Sound menu. ➣ Prolonged use of headphones at a high volume may damage your hearing. ➣ You will not receive sound from the speakers when you connect headphones to the system. ➣ The headphone volume and TV volume are adjusted differently. English - 23 Book-.indb 23 2008-03-03 ¿ÀÈÄ 5:49:34 Setting and Displaying the Current Time You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

Press the ▲ or ▼ button to select "Time", then press the ENTER button.

button to select "Clock Set". Press the EXIT button to exit. Move Adjust Return If you disconnect the power cord, you have to set the clock again. ou can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control. Setting the Sleep Timer You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

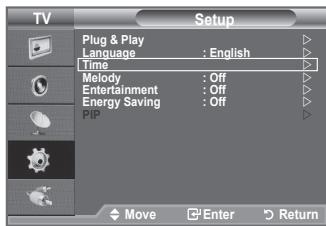

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Time", then press the

3. Press the ▲ or ▼ button to select "Sleep Timer", then press

4. Press the ▲ or ▼ button repeatedly until the desired time

appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.

5. Press the EXIT button to exit.

The TV automatically switches to standby mode when the timer reaches 0. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Sleep Timer”.

3. Press the ◄ or ► button to select the minute.

4. Press the EXIT or TOOLS button to exit.

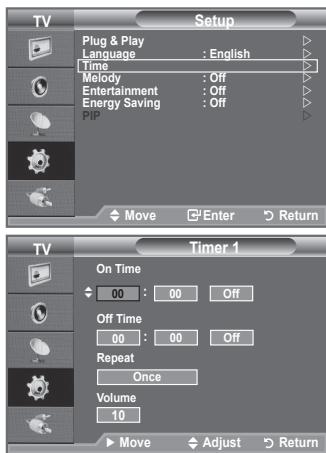

Switching the Television On and Off Automatically

Press the MENU button to display the menu. Setup Plug & Play Press the ▲ or ▼ button to select "Setup", then press the Language : English Time ENTER button. Melody : Off Entertainment : Off

2. Press the ▲ or ▼ button to select "Time", then press the

Energy Saving : Off PIP ENTER button.

3. Press the ▲ or ▼ button to select "Timer 1", "Timer 2",

"Timer 3", then press the ENTER button. Three different On/Off Timer Settings can be made. Move Enter Return ➣ You must set the clock first. Timer 1

4. Press the ◄ or ► button to select the required item below.

On Time Press the ▲ or ▼ button to adjust to the setting satisfied. Off 6 00 : Off Time n Time: Select hour, minute, and "On"/"Off". (To activate

Off timer with the setting satisfied, set to "On".) Repeat Once ff Time: Select hour, minute, and "On"/"Off". (To activate Volume timer with the setting satisfied, set to "On".)

epeat: Select "Once", "Everyday", "Mon~Fri", "Mon~Sat", ► Move Adjust Return or "Sat~Sun". ♦ Volume: Select the desired turn on volume level. You can set the hour and minute directly by pressing the number buttons on the remote control. Auto Power Off When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time. Choosing Your Language When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button.

Press the EXIT button to exit.

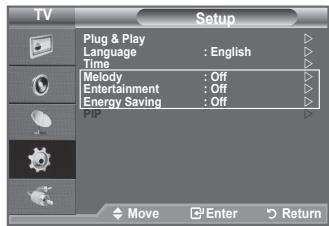

Melody / Entertainment / Energy Saving

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button.

3. When you are satisfied with your setting, press the

4. Press the EXIT button to exit.

Enter Return ♦ Melody: Off/Low/Medium/High The TV power on/off melody sound can be adjusted.

The Melody does not play - When no sound is output from the TV because the MUTE button has been pressed - When no sound is output from the TV because the (Volume) button has been pressed - When the TV is turned off by Sleep Timer function. ♦ Entertainment: Off/Sports/Cinema/Game The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema and games. - Off: Switch the "Entertainment" function off. - Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling Colour and sound. - Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer picture and enhanced sound. - Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.

If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment” mode must be turned off.

The “Entertainment” settings are saved for each input source. TOOLS If you set any of the three “Entertainment” modes to On, “SRS TS XT” function is not available.

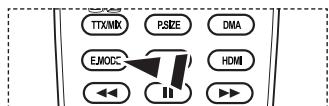

ou can press the E.MODE button on the remote control repeatedly to change the “Entertainment” setting. English - 26 Book-.indb 26 2008-03-03 ¿ÀÈÄ 5:49:37 ♦ Energy Saving: Off/Low/Medium/High/Auto This feature adjusts the screen brightness depending on the surrounding lighting conditions. − Off: Turns off the energy saving function. − Low: Sets the TV to low energy saving mode. − Medium: Sets the TV to medium energy saving mode. − High: Sets the TV to high energy saving mode. − Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Energy Saving”.

3. Press the ◄ or ► button to select the "Off","Low",

"Medium", "High" or "Auto".

4. Press the EXIT or TOOLS button to exit.

This function is not available in "PC" mode. (40 inch) Selecting the Source You can select among external sources connected to your TV’s input jacks.

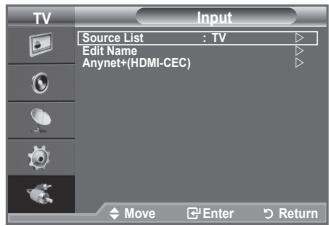

Press the ENTER button again, to select "Source List". Available signal sources: TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3. You can choose only those external devices that are connected to the TV. Select the required device by pressing the ▲ or ▼ button. Press the ENTER button.

O You can also watch HDMI mode simply by pressing the HDMI button on the remote control. English - 27 Return O Press the SOURCE button on the remote control to toggle between all the available source. TV mode can be selected by pressing the TV button, number buttons(0~9), and the P / button on the remote control. Enter Source List Enter Return TOOLS TOOLS TOOLS TOOLS Book-.indb 27 2008-03-03 ¿ÀÈÄ 5:49:38 Editing the Input Source Names Name the device connected to the input jacks to make your input source selection easier.

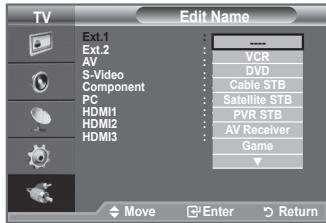

Press the ▲ or ▼ button to select the device that you wish to edit. Press the ENTER button. Press the ▲ or ▼ button to select the required device. Press the ENTER button.

Press the EXIT button to exit.

---------VCR ---DVD ------- Cable STB ----Satellite STB

---- PVR STB

----AV Receiver ---Game

Move Enter Return English - 28 Book-.indb 28 2008-03-03 ¿ÀÈÄ 5:49:39 Setting up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on "Control Panel" on the Windows start menu. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.

3. When the control panel window appears, click on "Display" and a display

dialog-box will appear.

4. Navigate to the "Settings" tab on the display dialog-box.

The correct size setting (resolution): Optimum- 1360 X 768 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box. Display Modes Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. D-Sub Input Mode IBM VESA Resolution 640x350 720×400 640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768 Sync Polarity (H/V)

Mode Resolution VESA 640×480 800×600 1024×768 1360 x 768 When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. English - 29 Book-.indb 29 2008-03-03 ¿ÀÈÄ 5:49:39 Setting up the TV with your PC Preset: Press the SOURCE button to select PC mode.

1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button.

3. When you are satisfied with your setting, press the

4. Press the EXIT button to exit.

Picture Mode : Standard Backlight Contrast Brightness Sharpness Auto Adjustment Screen Adjustment Detailed Settings Picture Options Reset : OK Move ♦ Auto Adjustment Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically. Enter

Return Auto Adjustment in progress Please wait. Tools Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Auto Adjustment”, then

press the ENTER button. Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

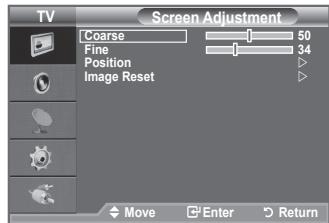

Energy Saving PIP Auto Adjustment Move ♦ Screen Adjustment: Coarse/Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Finetuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen. Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER button. Press the ◄ or ► button to adjust the screen quality. Press the ENTER button.

Position Adjust the PC’s screen positioning if it does not fit the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position. Press the ENTER button. Image Reset You can replace all image settings with the factory default values. Move

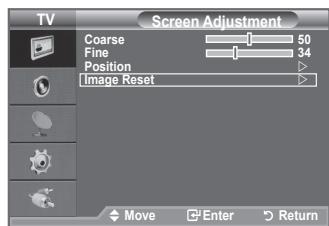

Enter Return Screen Adjustment What is Anynet+? Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected. Connecting Anynet+ Devices The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV.

To connect to Home Theater

HDMI Cable Home Theatre HDMI Cable

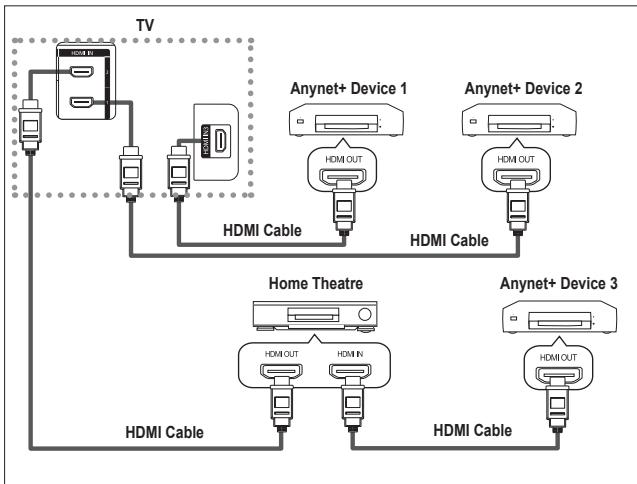

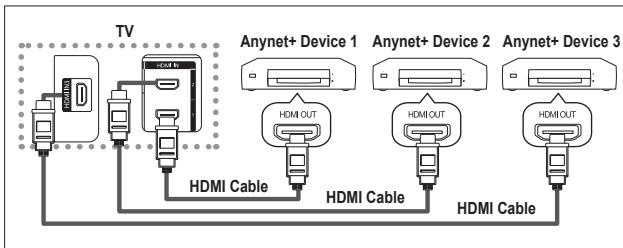

To directly connect to TV Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Anynet+ Device 2 Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. HDMI Cable Connect only one receiver. You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 8 AV devices in total. English - 31 Book-.indb 31 2008-03-03 ¿ÀÈÄ 5:49:41 The following settings are to use Anynet+ functions. Using the Anynet+ Function

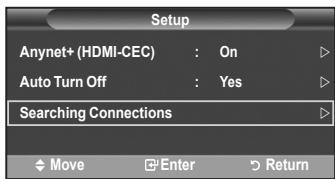

Press The TOOLS button. Then Press the ENTER button to select "Anynet+(HDMI-CEC)". Press the ▲ or ▼ button to select "Setup", then press the ENTER button. Press the ENTER button to select "Anynet+ (HDMI-CEC)", then press the ENTER button. Press the ▲ or ▼ button to select "On", then press the ENTER button. The "Anynet+ (HDMI-CEC)" function is enabled. If you select "Off", "Anynet+ (HDMI-CEC)" is disabled. When the "Anynet+ (HDMI-CEC)" function is disabled, all the Anynet+ related operations are deactivated. Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move

View TV Select Device

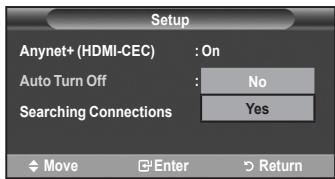

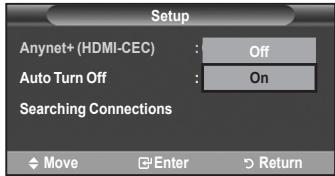

:Off Turning an Anynet+ Device Off Automatically when the TV is Turned Off

Press the ▲ or ▼ button to select "Auto Turn Off", then press Setup the ENTER button. Anynet+ (HDMI-CEC) : On Press the ▲ or ▼ button to select "Yes", then press the Auto Turn Off : Off ENTER button. ➣ The Auto turn off function is enabled. Yes Searching Connections ➣ If you select "No", the Auto turn off function is cancelled. Press the EXIT button to exit. Move Enter Return The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function. If you set "Auto Turn Off" to "No", connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off. English - 32 Book-.indb 32 2008-03-03 ¿ÀÈÄ 5:49:42 Scanning and Switching between Anynet+ Devices

Press the TOOLS button. Then press the ENTER button to

select "Anynet+(HDMI-CEC)". View TV Press the ▲ or ▼ button to select "Select Device", then press Select Device the ENTER button. Record Press the ▲ or ▼ button to select to a particular device and Menu on Device press the ENTER button. It is switched to the selected Device Operation device. Receiver :Off If you cannot find a device you want, press the ▲ or ▼ button Setup to select "Setup", then press the ENTER button. Move Move Enter EnterReturn Press the ▲ or ▼ button to select "Searching Connections", Return then press the ENTER button. Setup The message "Configuring Anynet+ connection..." is displayed. When searching devices completes, the connected devices are Anynet+ (HDMI-CEC) : On listed in the Anynet+ menu. Auto Turn Off : Yes Switching to the selected devices may take up to 2 minutes. Searching Connections

You cannot cancel the operation during the switching operation. Move Enter Return The time required to scan for devices is determined by the number of connected devices. When the device scan is complete, the number of found devices is not displayed. Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select "Searching Connections" menu to search devices. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button. English - 33 Book-.indb 33 2008-03-03 ¿ÀÈÄ 5:49:43 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Select Device Record Menu on Device Device Operation Receiver Setup Description Switches from Anynet+ to TV broadcast mode. Your TV connects to the corresponding device. Starts a recording. (This menu works only for a device supporting recording.) Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Sound is output through the receiver. TOOLS TOOLS TOOLS You can set the environment for using Anynet+. TOOLS TV Remote Control Buttons Available in Anynet+ Mode Device Type Operating Status After switching to the device, when the menu of the corresponding device is displayed on the screen. After switching to the device, while playing a file TOOLS Available Buttons Numeric buttons ▲/▼/◄/►/ENTER buttons Colour buttons EXIT button (Backward search)/ (Forward search)/ (Stop)/ (Play) (Pause) Device with built-in Tuner After switching to the device, when you are watching a TV programme P</>button Audio Device When Receiver is activated +/- button/ MUTE button TOOLS

TOOLS The Anynet+ function only works when the remote control is set to TV. button works only while in the recordable state. The You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control. The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device. The Anynet+ functions don’t operate for the products from other manufacturers. In Anynet+ mode, the colour buttons may not work properly. The operations may differ depending on the device. English - 34 Book-.indb 34 2008-03-03 ¿ÀÈÄ 5:49:43 Recording You can make a recording of a TV programme using a recorder. Press the button. Recording begins. (Only when the Anynet+ enabled recording device is connected.) ➣ The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. ➣ You can also record the source streams by selecting "Record" after pressing the TOOLS button. ➣ Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual. Listening through a Receiver You can listen to sound through a receiver instead of the TV speaker.

1. Press The TOOLS button. Then Press the ENTER button

to select "Anynet+(HDMI-CEC)".

Press the ▲ or ▼ button to select "Receiver", then press the View TV ENTER button. Select Device Record

2. Press the ◄ or ► button to select to "On", then press the

Menu on Device ENTER button. Device Operation Now you can listen to sound through the receiver. Receiver :Off

3. Press the EXIT button to exit.

Setup ➣ When the receiver is set to On, you can listen to the TV sound Move Enter through the 2-channel receiver. Return ➣ If the receiver is exclusively for a home theatre only (supporting audio only), it may not appear in the device list. ➣ In case of a content with copyright problem, listening through the receiver may not properly operate. ➣ If there is a power interruption to the TV when the “Receiver” is set to “On” (by disconnecting the power cord or a power failure), the “TV Speaker” may be set to “Off” when you turn the TV on again. (see page 23) English - 35 Book-.indb 35 2008-03-03 ¿ÀÈÄ 5:49:44 Check Points before Requesting Service Symptom Anynet+ does not work. Solution

I want to start Anynet+.

I want to exit Anynet+. ■

The Connecting to Anynet+ device… message appears on the screen. The Anynet+ device does not play. The connected device is not displayed. The TV programme cannot be recorded.

Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn’t work at a certain condition. (Searching channels, Plug & Play, etc.) When connecting or removing the HDMI cable, please make sure to search devices again or restart your TV. Check if the Anynet+ Function of Anynet+ device is set on. Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. Select View TV in Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press any of P / , CH LIST, PRE-CH, and such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete. You cannot use the play function when Plug & Play is in progress.

Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions. ■ If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan. Check whether the antenna jack on the recording device is properly connected. English - 36 Book-.indb 36 2008-03-03 ¿ÀÈÄ 5:49:44 Teletext Feature Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

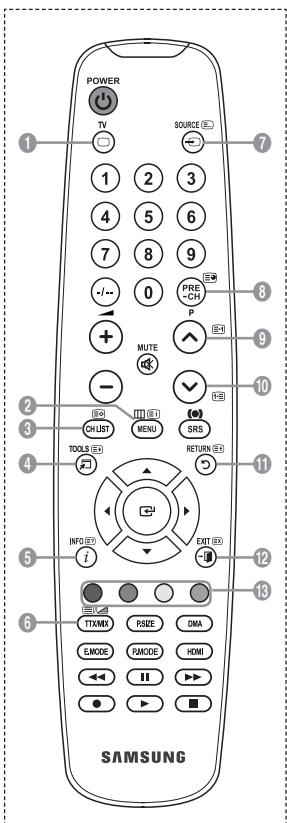

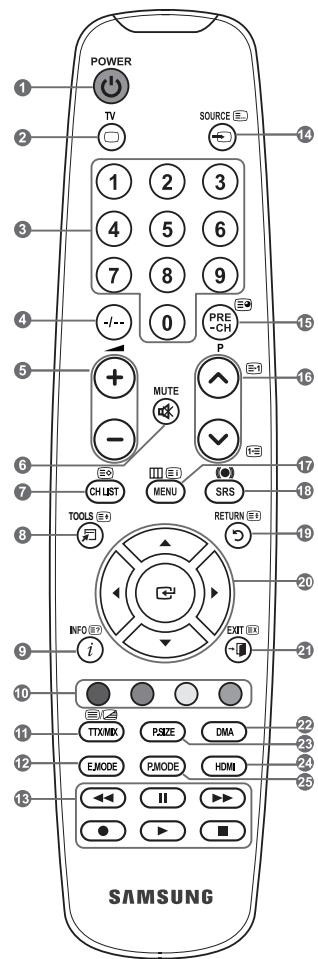

1. (exit)

Exit from the teletext display 2 6 (index) Used to display the index (contents) page at any time while you are viewing teletext.

3 8 (store) Used to store the teletext pages. 4 4 (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. 5 5 (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again. 6 / (teletext on/mix)

Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext

with the current broadcasting screen. 7 0 (mode) Press to select the teletext mode (LIST/FLOF). If you press it

in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the TOOLS 8(store) button. 8 1 (sub-page) Used to display the available sub-page. 9 2 (page up) Used to display the next teletext page. 0 3 (page down) Used to display the previous teletext page. ! 9 (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again. @ 7 (cancel) Used to display the broadcast when searching for a page. # Coloure buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. TOOLS You can change teletext pages by pressing the numeric buttons on the remote control. English - 37 Book-.indb 37 TOOLS 2008-03-03 ¿ÀÈÄ 5:49:44 The teletext pages are organized according to six categories: Part

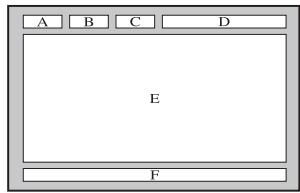

Contents Selected page number. Broadcasting station identity. Current page number or search status. Date and time. Text. Status information. FASTEXT information. Teletext information is often divided between several pages displayed in sequence, which can be accessed by: ♦ Entering the page number ♦ Selecting a title in a list ♦ Selecting a coloured heading (FASTEXT system) Press the TV button to exit from the teletext display. TOOLS English - 38 Book-.indb 38 2008-03-03 ¿ÀÈÄ 5:49:45 Wall-Mount Adjustment (Sold separately) (depending on the model) Once the auto wall mount is installed, your TV’s position can be easily adjusted. TV Rear Panel Auto Wall-Mount SERVICE Cable (Not supplied) Press the ▲, ▼, ◄ or ► button on your remote control. The Wall Mount Adjustment screen is displayed. If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

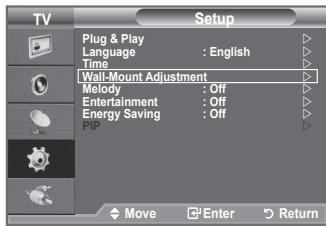

• Press the MENU butt on to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.
• Press the ▲ or ▼ button to select “Wall-Mount Adjustment”, then press the ENTER button.

Setup Plug & Play Language : English Time Wall-Mount Adjustment Melody : Off Entertainment : Off Energy Saving : Off PIP Move Remembering the Position

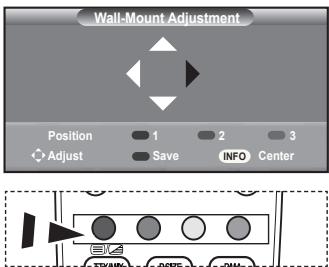

Adjust to the desired position using the ▲,▼,◄,► buttons. If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. ➣ Press the INFO button to reset. Press the ◄ or ► button to select “Yes”, then press the ENTER button. The position is initialized to the default setting.

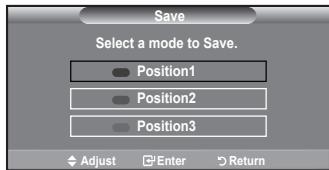

Press the blue button. Press the ▲ and ▼ buttons to select a save mode from either Position 1, Position 2 or Position 3 in order to save the current position. ➣ To not save the current position, press the RETURN button. ➣ When selecting a save mode, you cannot use the Colour buttons. Press the ENTER button to save. ➣ When Position1 is selected, the message "Current position saved as Position1" is displayed. Press the ENTER button. ➣ The saved Position appears on the left side of the OSD. Wall-Mount Adjustment TOOLS Position

Adjust Save INFO Center Save Select a mode to Save. Position1 Position2 Position3 Adjust Enter Return English - 39 Book-.indb 39 2008-03-03 ¿ÀÈÄ 5:49:46 Moving to the remembered position

Complete Step 1 of “Entering the menu”. Pressing a Colour (Red, Green, Yellow) button moves the auto wall mount to the saved position. ➣ You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons. ➣ If you adjust the Position after moving to a pre-set position, the position display will disappear. Position1 Position

Adjust Save INFO Center For installation, refer to the Installation Manual provided with the wall mount. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. The auto wall mount will not work when Anynet+ is operating. 37 and 40 inch models are not compatible with the old electrically powered wall mount model (WMN5090A*). Using the Anti-Theft Kensington Lock (depending on the model) The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The locking device has to be purchased separately.

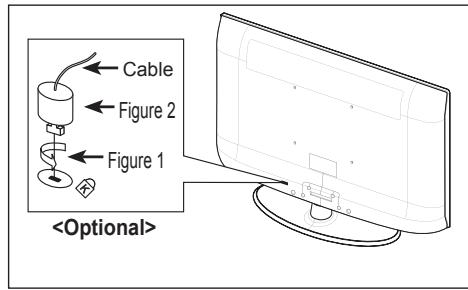

1. Insert the locking device into the Kensington

slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a heavy

stationary object. ➣ The location of the Kensington Lock may be different depending on its model. Cable Figure 2 Figure 1 <Optional> English - 40 Book-.indb 40 2008-03-03 ¿ÀÈÄ 5:49:46 Troubleshooting: Before Contacting Service Personnel No sound or picture. Check that the mains lead has been connected to a wall socket. Check that you have pressed the button on your set. Check the picture contrast and brightness settings. Check the volume. Normal picture but no Check the volume. sound. Check whether the MUTE button has been pressed on the remote control. Check if "TV Speaker" is on. Screen is black and power On your computer check; Power, Signal Cable. indicator light blinks steadily. The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard. No picture or black and Adjust the colour settings. white picture. Check that the broadcast system selected is correct. Sound and picture interference. Try to identify the electrical appliance that is affecting the set and move it further away. Plug your set into a different mains socket. Blurred or snowy picture, Check the direction, location and connections of your aerial. distorted sound. This interference is often due to the use of an indoor aerial. Remote control malfunctions. Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. 'Check signal cable.' Check that the signal cable is firmly connected to the PC or video sources. message is displayed. Check that the PC or video sources are turned on. On PC mode, 'Not Supported Check the maximum resolution and the frequency of the video adaptor. Mode.' message is displayed. Compare these values with the data in the Display Modes. The damaged picture appears If "Just Scan" is selected in some external devices, the damaged picture in the corner of the screen. may appear in the corner of the screen. This symptom is caused by external devices, not TV. The 'Resets all settings to This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults. the default values' message appears. The TFT LCD panel uses a panel consisting of sub pixels (3 133 440) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. English - 41 Book-.indb 41 2008-03-03 ¿ÀÈÄ 5:49:46 Technical and Environmental Specifications Model Name Screen Size (Diagonal) PC Resolution Sound Output Dimensions (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Stand Swivel (Left / Right) Model Name Screen Size (Diagonal) PC Resolution Sound Output Dimensions (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Stand Swivel (Left / Right) LE26A450 26 inch 1360 X 768 @ 60 Hz LE32A450 32 inch 1360 X 768 @ 60 Hz 5W x 2 10W x 2 670 X 75 X 446 mm 670 X 216 X 500 mm 800 X 79 X 522 mm 800 X 252 X 577 mm 10 kg 13 kg LE37A450 37 inch 1360 X 768 @ 60 Hz LE40A450 40 inch 1360 X 768 @ 60 Hz 10W x 2 10W x 2 916 X 82 X 598 mm 916 X 300 X 658 mm 990 X 82 X 636 mm 990 X 300 X 694 mm 18 kg Model Name Screen Size (Diagonal) PC Resolution Sound Output Dimensions (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Stand Swivel (Left / Right) Model Name Screen Size (Diagonal) PC Resolution Sound Output Dimensions (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Stand Swivel (Left / Right) LE26A451 26 inch 1360 X 768 @ 60 Hz LE32A451, LE32A454 32 inch 1360 X 768 @ 60 Hz 5W x 2 10W x 2 670 X 75 X 451 mm 670 X 216 X 500 mm 800 X 79 X 525 mm 800 X 252 X 577 mm 10 kg 13 kg LE37A451 37 inch 1360 X 768 @ 60 Hz LE40A451, LE40A454 40 inch 1360 X 768 @ 60 Hz 10W x 2 10W x 2 916 X 82 X 601 mm 916 X 300 X 658 mm 990 X 82 X 641 mm 990 X 300 X 694 mm 18 kg Design and specifications are subject to change without prior notice. This device is a Class B digital apparatus. For the power supply and Power Consumption, refer to the label attached to the product. English - 43 Book-.indb 43 2008-03-03 ¿ÀÈÄ 5:49:47 Installation du support

Installation du support mural Start Plug & Play.

Enter 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Ajouter Verrouil. Déplacer Entrer Page Retour Ch. Nom station C-----C23 ----S06 ----S07 ----S09 ----S12 ----S13 ----S14 ----S17 ----C21

Entrer Retour Ch. Nom station C-----C23 ----S06 ----S07 ----S09 ----S12 ----S13 ----S14 ----S17 ----C21

Déplacer Entrer Retour

PIP PIP Source Taille Position Programme Déplacer Régler les “Mois”, “Date”, “Année”, “Heure” ou “Minute” Bouton ou Polarité synchronisée (H/V)

Câble HDMI Home Theatre Câble HDMI

Appareil Anynet+ 2 Câble SERVICE (non fourni) Send. C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Balance 100Hz 300Hz 1kHz 3kHz 10kHz ---------VCR ---DVD ------- Kabel-STB ---- Sat STB

---- PVR STB

----AV-Receiver ---Game

Navig. Eingabe Zurück Deutsch - 28 Book-.indb 28 2008-03-03 ¿ÀÈÄ 5:50:34 640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768

Kanaal C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Enter Terug Kanaal C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Balans 100Hz 300Hz 1kHz 3kHz 10kHz Verpl. Instellen Terug 640x350 720×400 640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768

Modus Resolutie Apparaatbediening Receiver Instellingen Can C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Conferma Ritorno Can C-C23 S06 S07 S09 S12 S13 S14 S17 C21

100Hz 300Hz 1kHz 3kHz 10kHz Sposta Regola Ora Imposta Ora Timer stand-by Timer 1 Timer 2 Timer 3 Sposta Melodia/Entertainment/Risp. energia

640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768

31,469 31,469 70,086 70,087 25,175 28,322

Canal C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Restabl. Ajustar Guardar Volver Español - 15 Book-.indb 15 2008-03-03 ¿ÀÈÄ 5:51:49 Balance 100Hz 300Hz 1kHz 3kHz 10kHz Mover Ajustar Volver Figure 2 Figure 1 <Optional> Español - 40 Book-.indb 40 2008-03-03 ¿ÀÈÄ 5:52:09 Instalar a Base

Canal C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Enter Voltar Canal C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Balanço 100Hz 300Hz 1kHz 3kHz 10kHz 640x350 720×400 640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768 Cabo HDMI Home Theatre Cabo HDMI

Dispositivo Anynet+ 2 Cabo HDMI

4 AUDIO OUT[R-AUDIO-L]

Cs. C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Belépés Vissza Cs. C-C23 S06 S07 S09 S12 S13 S14 S17 C21

640x350 720×400 640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768

Enter 640x350 720×400 640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768

4 AUDIO OUT[R-AUDIO-L]

C-C23 S06 S07 S09 S12 S13 S14 S17 C21

C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Zadat Zpět ♦ PIP: Zapnuto/Vypnuto

------------- Video DVD ---Kabel. receiver -------Sat. receiver

---- PVR STB

---- AV receiver ---Hra

Posunutí Zadat Zpět Čeština - 28 Book-.indb 28 2008-03-03 ¿ÀÈÄ 6:42:31 640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768

Ch. C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Zadať Návrat Ch. C-C23 S06 S07 S09 S12 S13 S14 S17 C21

640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768

Vhod Avdio (L/R (L/D))

Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Move Enter

Return TOOLS Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move Enter Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Manual Store Programme Colour System Sound System Channel Search Store Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Channel List Child Lock : Off

Channel List P 1 C3 1 / 10 Prog.

BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move

Ch. C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Enter Return Pritisnite gumb ali Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move

Ch. C-C23 S06 S07 S09 S12 S13 S14 S17 C21

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter

Reset Adjust Save Return Slovenščina - 15 Book-.indb 15 2008-03-03 ¿ÀÈÄ 6:43:19 Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Move Enter

Return Picture Mode : Standard Dynamic Backlight Standard Contrast Movie TOOLS Brightness 45 Sharpness 50 Colour 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK Move Enter Return Standard ► Custom Off Off Off Mono Exit Slovenščina - 16 Book-.indb 16 2008-03-03 ¿ÀÈÄ 6:43:19 Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Move Enter Return

Adjust Return Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Move Enter

Return Detailed Settings

Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK Cancel Move Enter Return Slovenščina - 18 Book-.indb 18 2008-03-03 ¿ÀÈÄ 6:43:21 Picture Mode : Standard Backlight Contrast Brightness Sharpness Colour Tint G 50 Detailed Settings Picture Options Reset : OK Move

Return Picture Options Colour Tone Size Screen Mode Digital NR DNle HDMI Black Level Blue Only Mode Move PIP PIP Source Size Position Programme Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving PIP Move

Standard Custom Off Off Off Enter Exit Standard Custom ► Off Off Off Mono Adjust Exit Equalizer

Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return Nastavitev možnosti “Month”, “Day”, “Year”, “Hour” ali “Minute” Gumb ali . Potrdite nastavitve. Gumb ENTER Pomik na “Month”, “Day”, “Year”, “Hour” ali “Minute”

epeat: Izberite “Once”, “Everyday”, “Mon~Fri”, “Mon~Sat”, ali “Sat~Sun”. Adjust Return ---------VCR ---DVD ---Cable STB -------Satellite STB

---- PVR STB

----AV Receiver ---Game

Move Enter Return Slovenščina - 28 Book-.indb 28 2008-03-03 ¿ÀÈÄ 6:43:31 640x350 720×400 640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1360 x 768

Mode : Standard Backlight Contrast Brightness Sharpness Auto Adjustment Screen Adjustment Detailed Settings Picture Options Reset : OK Move Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving PIP Auto Adjustment

Auto Adjustment in Progress Please wait. Move Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move

View TV Select Device

View TV Select Device

:Off +/Gumb Gumb MUTE

Setup Plug & Play Language : English Time Wall-Mount Adjustment Melody : Off Entertainment : Off Energy Saving : Off PIP Move Wall-Mount Adjustment TOOLS Position 1 2 3 Adjust Save Center Save Select a mode to Save. Position1

Position2 Position3 Adjust Enter Return Slovenščina - 39 Book-.indb 39 2008-03-03 ¿ÀÈÄ 6:43:38 Ready-W EURO-L12-Weee.indd 1 2008-03-03 ¿ÀÈÄ 6:48:45 Ready-W EURO-L12-Weee.indd 2 2008-03-03 ¿ÀÈÄ 6:48:46
