Product type	Extractor hood
Brand	SAMSUNG
Model	NK86NOV9MSR/UR
Power supply voltage	220-240 V ~ 50/60 Hz
Motor power	250 W
Suction power	825 m³/h
Lighting	1 LED lamp of 4.5 W
Air outlet diameter	150 mm
Number of speeds	4 (including one intensive)
Special functions	Timer 15 min, Clean Air, Cleaning safety mode
Controls	Electronic with infrared sensors
Grease filter	Dishwasher safe (every 2 months)
Activated charcoal filter	Not washable, must be replaced
Filter saturation indicator	By LED flashing (30h/120h)
Electrical class	II (double insulation)
Installation type	Wall-mounted, external evacuation or recirculation
Minimum distance above cooking surface	Compliant with applicable standards (see manual)
Maintenance	Clean with damp cloth and mild detergent
Safety	Automatic shut-off after 10 min without activity, cleaning lock mode
LED lamp replacement	By qualified technician

Frequently Asked Questions - NK86NOV9MSR/UR SAMSUNG

How to install the NK86NOV9MSR/UR hood?

Installation must be carried by specialized personnel. The hood is fixed to the wall using suitable plugs and screws. Follow the steps in the manual: mark the lower edge, drill holes, fix the bracket, hang the hood and adjust the height. The minimum distance above the cooking plate must be respected according to standards.

What is the minimum distance between the hood and the cooking plate?

The minimum distance is not specifically indicated in the manual, but it must be compliant with applicable standards. Generally, for a gas plate, allow 65 cm, and for an electric plate, 45 cm. Consult the manual for exact values.

How to clean the grease filters?

Grease filters are dishwasher safe or can be washed by hand with mild detergent. It is recommended to clean them every 2 months to avoid any fire risk. After several washes, they may change color, which is normal.

When to replace the activated charcoal filter?

The activated charcoal filter is not washable nor regenerable. It must be replaced when the saturation indicator flashes rapidly (every 1 second), which corresponds to approximately 120 hours of operation. Use a suitable filter reference from the manufacturer.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, place your hand in front of sensor G for a few seconds until the LED turns off. The electronic memory resets for the 30h (grease filter) and 120h (charcoal filter) counters.

What to do if the hood does not turn on?

First check the power supply (plug, fuse). If the hood is in cleaning safety mode, deactivate it by placing your hand in front of sensor A for 4 seconds. If the problem persists, contact a qualified technician.

How to activate the cleaning safety mode?

Place your hand in front of sensor A for about 4 seconds. The LED turns on followed by a multiple sound signal. This mode locks all functions to prevent accidental activation during cleaning. To deactivate, repeat the same operation.

What does the flashing of the LED on sensor G mean?

A slow flash (every 2 seconds) indicates that the grease filters need to be cleaned (30h of operation). A fast flash (every 1 second) indicates that the activated charcoal filter needs to be replaced (120h).

Can I wash the activated charcoal filter?

No, the activated charcoal filter is not washable. It must be replaced with a new one. Washing would destroy its filtration capacity. Follow the instructions in the manual for replacement.

How to replace the LED lamp?

Replacement of LED lamps must be carried out by a qualified technician. Do not attempt to do it yourself as it requires disassembling the hood and handling electrical components. Contact after-sales service.

USER MANUAL NK86NOV9MSR/UR SAMSUNG

- Commandes (Fig.12):

Extracting power (m3/h): 825

voltage: 220 - 240V 50 / 60Hz

motor power consumption: 1x250W

air outlet diameter (mm): 150

bulbs: 1 × 4.5 W

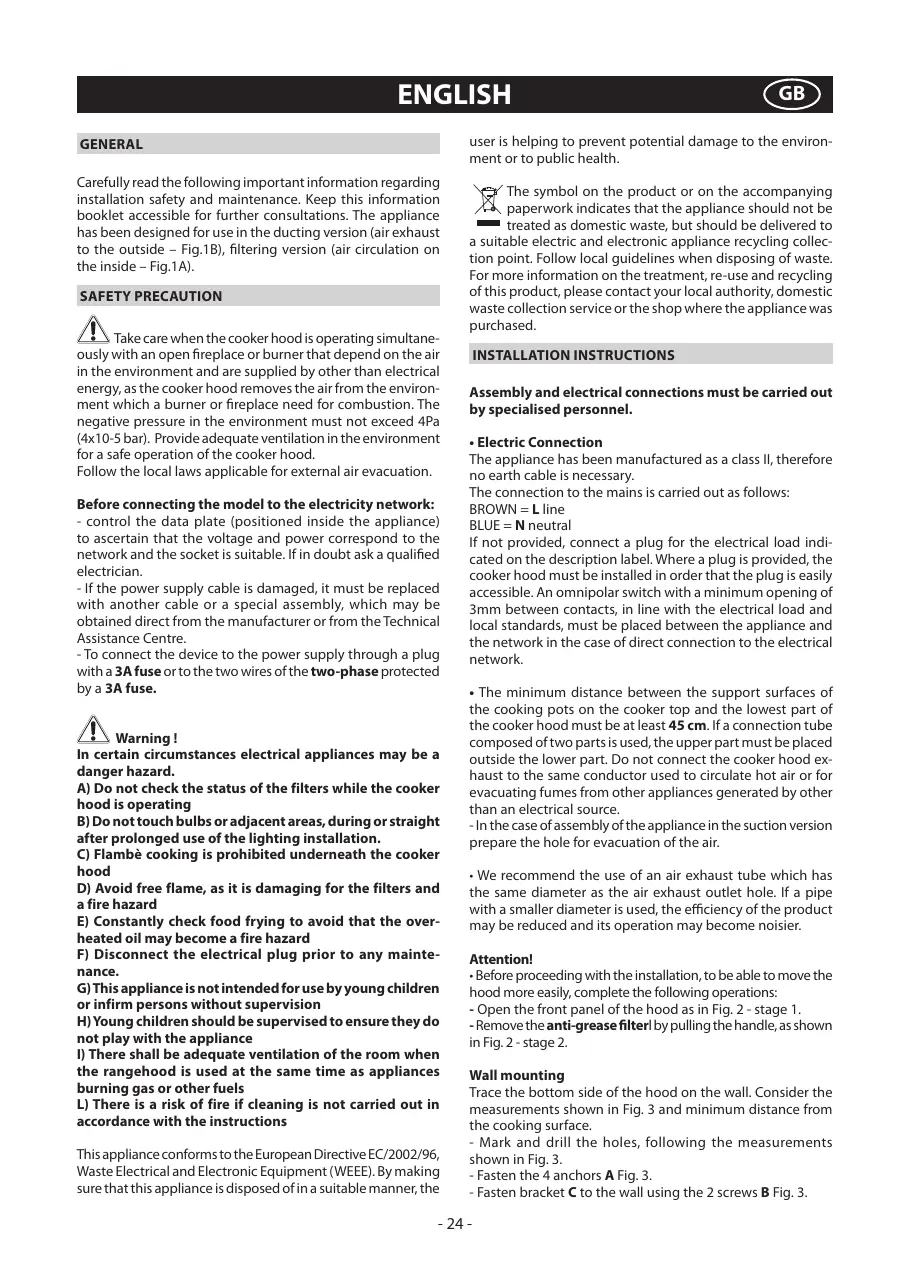

GENERAL

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside - Fig.1B), filtering version (air circulation on the inside - Fig.1A).

SAFETY PRECAUTION

Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air environment and are supplied by other than electrical supply, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion. The active pressure in the environment must not exceed 4Pa (1-5 bar). Provide adequate ventilation in the environment safe operation of the cooker hood.

Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network:

• control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.
• If the power supply cable is damaged, it must be replaced with another cable or a special assembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.
• To connect the device to the power supply through a plug with a 3A fuse or to the two wires of the two-phase protected by a 3A fuse.

Warning!

In certain circumstances electrical appliances may be a danger hazard.

A) Do not check the status of the filters while the cooker hood is operating
B) Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
C) Flambe cooking is prohibited underneath the cooker hood
D) Avoid free flame, as it is damaging for the filters and a fire hazard
E) Constantly check food frying to avoid that the overheated oil may become a fire hazard
F) Disconnect the electrical plug prior to any maintenance.
G) This appliance is not intended for use by young children or infirm persons without supervision
H) Young children should be supervised to ensure they do not play with the appliance
1) There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels
L) There is a risk of fire if cleaning is not carried out in accordance with the instructions

This appliance conforms to the European Directive EC/2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the

user is helping to prevent potential damage to the environment or to public health.

The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to

a suitable electric and electronic appliance recycling collection point. Follow local guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.

INSTALLATION INSTRUCTIONS

Assembly and electrical connections must be carried out by specialised personnel.

Electric Connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary.

The connection to the mains is carried out as follows:

BROWN = L line

BLUE = N neutral

If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the plug is easily accessible. An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

• The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the cooker hood must be at least 45cm . If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source.

• In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.

• We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.

Attention!

• Before proceeding with the installation, to be able to move the hood more easily, complete the following operations:
• Open the front panel of the hood as in Fig. 2 - stage 1.
• Remove the anti-grease filter by pulling the handle, as shown in Fig. 2 - stage 2.

Wall mounting

Trace the bottom side of the hood on the wall. Consider the measurements shown in Fig. 3 and minimum distance from the cooking surface.

• Mark and drill the holes, following the measurements shown in Fig. 3.
• Fasten the 4 anchors A Fig. 3.

• Fasten bracket C to the wall using the 2 screws B Fig. 3.

• Make sure that the 2 levelling screws D are not tightened; Fig.4 - stage 2.a.

• Take the hood, tilt it and hook it on to the bracket as shown in Fig. 4 - stage 1.
• Once the structure has been positioned, secure it to the bracket by coupling the nut with the screw; Fig. 4 - stage 2.
• Tighten the nut with a spanner, leaving a gap of at least 3mm between the nut and the bracket as shown in Fig. 4 - stage 3. Align the appliance horizontally using the two levelling screws D Fig.5 - stage 1.
• Once the adjustment is complete, fit the hood in a permanent manner with the screws B and nuts C Fig. 5 - stage 2 and 3.
• When carrying out the fixing operations, use only screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard etc.).

If the screws and screw anchors are supplied with the appliance, make sure that they are suited to the type of wall to which the hood must be fixed.

- Attention!

Before proceeding with the installation of decorative flues fit the electrical system box E.

• Lift the electrical system box; Fig. 6 - stage 1.

Position the bracket E in correspondence of the 3 screws G already arranged on the bushing and tighten them as shown in Fig. 6 - stage 2 - 3 - 4.

- Installation of models with decorative ducts - extractor hood

Make sure the electrical power supply is within the measurements of the decorative connector.

Adjust the width of the support bracket of the top connector (Fig. 7).

Then fix it to the ceiling so that it is on the same axis as the hood using screws A and observing the distance from the ceiling shown in (Fig. 7). Connect flange F to the air exhaust hole using flexible hose L (Fig.8).

Take care not to scratch the duct; wear gloves when removing the protective film. (Fig. 9)

Slide the top connector inside the lower duct and place this on the body (Fig. 10).

Pull out the top duct as far as the bracket and secure it using screws B (Fig. 7).

To transform the hood from a ducting version into a filtering version, ask your dealer for the charcoal filters and follow the installation instructions.

- Filtering version:

Install the hood and the two flues as described in the paragraph for installation of the hood in ducting version. To assemble the filtering flue refer to the instructions contained in the kit. If the kit is not provided, order it from your dealer as accessory. The filters must be applied to the suction unit positioned inside the hood. They must be centred by turning them 90 degrees until the stop catch is tripped (Fig. 2-stage 3).

USE AND MAINTENANCE

• We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air.
  The effective performance of the cooker hood depends on constant maintenance; the anti-grease filter and the active carbon filter (Fig. 2 - stage 3) both require special attention.
• The anti-grease filter is used to trap any grease particles

suspended in the air, therefore is subject to saturation (the time it takes for the filter to become saturated depends on the way in which the appliance is used).

• To prevent potential fire hazards, the anti-grease filters should be washed a minimum of every 2 months (it is possible to use the dishwasher for this task).
• After a few washes, the colour of the filters may change. This does not mean they have to be replaced.
  If the replacement and washing instructions are not followed, the anti-grease filters may present a fire hazard.
• The active carbon filters are used to purify the air which is released back into the room. The filters are not washable or re-usable and must be replaced at least once every four months. The active carbon filter saturation level depends on the frequency with which the appliance is used, the type of cooking performed and the regularity with which the anti-grease filters are cleaned.
• Clean the cooker hood frequently, both inside and outside, using a cloth which has been dampened with non-abrasive liquid detergents.
• The light on the cooker hood is designed for use during cooking and not for general room illumination. Extended use of the light reduces the average duration of LED lamp.

- Replacing LED lamps (Fig.11).

If the appliance version is with LED lamps, the intervention of a specialised technician is necessary to replace them.

- Commands (Fig.12):

• To activate the functions put your hand in front of the sensor at a distance of no more than 8 cm.

Sensor:

1-Indicated LED lamp = This lamp is will light on or off when IRed sensor is detected.
2 - IRed sensor = This sensor emits infrared light when an electric current passes through it.
3 - Photo transistor = This sensor receives the reflected infrared signal.

Sensor A = Activate the "ON/OFF" function or the "Cleaning mode" function.

-ON/OFF

Activates or switches off all functions.

• To activate it place your hand in front of the sensor.

• When the LED switches on the hood functions are ready to be activated.

Attention! If one interrupts hood operation with the relevant sensor and one does not activate any other function within 10 minutes, the hood switches OFF automatically. Therefore, if you wish to restart the hood again, you must place your hand in front of the sensor A (on/off).

• To disable the function repeat the operation.

- Cleaning Mode

Blocks all functions to prevent switching the product on accidentally during cleaning operations where are in front of the hood.

• To activate it put your hand in front of the sensor for approximately 4 seconds.
• When the LED lights up followed by a multiple sound signal the function is active.
• To deactivate the function repeat the operation.

Sensor B = Activates the "TIMER" function or the "CLEAN AIR" function.

-Timer

With any speed engaged (excluding Booster speed), by activating sensor B, the Timer function is activated.

• The LED relating to sensor B stays on followed by a sound signal, this means that the function is active.
• After 15 minutes, at the end of the count, the hood switches off (motor and any lights switched on).
• If one wishes to deactivate the function before the 15 minutes are up, activate sensors A or B.

- Clean Air

This function starts the motor for 10 minutes every hour at the first speed for proper air recirculation in the room.

• It is activated by putting your hand in front of sensor B, the corresponding LED switches on followed by a sound signal, this means that the function is active.
• the motor switches on for 10 minutes every hour at first speed during which the LED relating to sensor B and C stays fixed on.

In the remaining 50 minutes, with the motor not running, all LEDs are switched off.

• If one wishes to deactivate the function activate sensors A or B.

Attention: with the "clean air" function all functions are deactivated except for the LIGHTS and OFF sensor.

Sensor C = FIRST SPEED.

The motor starts at the first speed and is activated by putting your hand in front of sensor C.
- The function is active with low extraction when the LED relating to the sensor switches on followed by a sound signal.

Sensor D = SECOND SPEED.

The motor starts at the second speed and is activated by putting your hand in front of sensor D.

• The function is active with middle extraction when the LED
  relating to the sensor switches on followed by a sound signal.

Sensor E = THIRD SPEED.

The motor starts at the third speed and is activated by putting your hand in front of sensor E.

• The function is active with high extraction when the LED relating to the sensor switches on followed by a sound signal.

Sensor F = BOOSTER SPEED.

With the motor running at any set speed, by activating sensor F one engages the BOOSTER speed (4th speed) for 10 minutes

• The function is active when the LED relating to the sensor switches on followed by a sound signal.
  -With the function active the LED stays fixed on while the LED of the previously set speed switches off.
• After 10 minutes the hood sets itself at the third speed.
• If one wishes to deactivate the function before the 10 minutes are up, use sensors A or F.

The BOOSTER speed can be activated even with the hood switched off.

Sensor G = Switches the LIGHT on and off and indicates FILTER SATURATION.

-Lights

To switch the lights on, put your hand in front of sensor G..

• Anti-grease/active carbon filters saturation:

After 30 hours of operation the LED relating to sensor G starts to flash with a frequency of 2 seconds, this means that one must wash the anti-grease filters.

After 120 hours of operation the LED relating to sensor G

starts to flash with a frequency of 1 second, this means that one must wash or replace the active carbon filters.

Once the clean filter has been put back in place you must reset the electronic memory by putting your hand in front of sensor G and the 30h/120h setting restarts from zero.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.

AFZUIGKAP VOOR KEUKEN

NK86NOV9MSR

NK86NOV9MSR

INSTALLATIE INSTRUCTIES

Sensor C = EERSTE SNELHEID

Sensor D = TWEEDE SNELHEID.

Sensor E = DERDE SNELHEID.

MaKcImaJIbHaI npOu3BoUdTeJIbHoCTb (M³/uaC): 825

HapnxHeH: 220-240 B 50/60 T

Iotppe6nma MoocbTB Dvrgate:1x250BT

Dnametp BbIXoHOrO OTBepCTna (MM):150

JAmnbl:1x4.5W

OBUHE CBEENH

BHNMaTeIbHo npOHTaIte CoedpKaHne daHHoN IHCTpyKuIM, NOckONbky OHa CoEDpIX BaxhJIe Yka3aHnY,OTHOcIueNc K 6eOnaNoCHoctN yCTAHOBKn, 3KcIIyATAuTN i TeXo6CbNyKBaHn. CoxpaHnnte INCTpyKUIn dJeIaNBeHJwero IcNOpblsOBAHN. UCTPOICTBO p43pa60tHO B CneIyOuINx BapnaHTax IcNOJIeHn: BbITAAHKe OYCTIOCTBO (UdaneHHe BO3dyxA n3 NOMEHn -Pnc.1B). PhNbItpyOuEe YcTOIcTBO (peuNpKynraIaBO3dyxA BNYTPNI NOMeEHn -Pnc.1A).

MEPbI PPEOCTOPOXHOCTN

Bydbte BHNMaTeNbHbI,ecnblBtJxKa pa6oTaet B 10eTOBaO3dyxa OndOBpeMeHNO C OTOniTeNbHbIM IOBaOHaHm,IIaTAMn,pa6oTaIOUmmHa Ra3OBoM,IKnDn TBePdOM ToPnJIbe. B 3OTm CnyuBbXka ydaNaeT MeueHHO Bo3yX, HxJhBn I pyocecca CropanAH B x npri6opax. OtpuataTeNbHoe daBleHne B nomeuenn Hxho npBeBbAtb 4Pa (4× 10^-5 bar).Ina NaedxHoN i aChon pa6oTb CleJeYET o6cneuHTB BeHTINaIIO NoIa. PnI TOBoTe Bo3dyxa n3 nomeuHHe Heo6xOImo 0 co6bmoDaTdeEcbTuOuIe CTpOnTeNbHbIe HOpMbI n Ta (CHIN).

Ipeed nodklouehnem n3dennK cetn 3nektponntanra:

• npOBepbTe, qTO6bl HnpanjKeHne N MoUHocTb, yKa3aHHbIe Ha 3aBOADCKO Ta6JIncK (paCnONoKEHa BHYTpN n3denn) COOTBcTcBOBALn xapakTepNCtNKam Cetn 3JNEKTpOnNTaHnur n 3NeKTpMueCKo pO3eTKu. B cNyuae comHeHn 6pbATntecb K KBALnΦiunpoBAHOHOMy 3NeKTpKU.

• Ecnnpoobd 3eKTPonitnAHHOBpeJDeH,To BamE6hOxDmIO 3aMeHTb ero hIncpABHH.ДЯЗTOrOобрТeB bYyONHOUMOHcHbN CBEPUBCHN CEHTP kOMpanHn CamCyHr.

-ПодсоeДинИть устpoCTBO K элкгТрocETи NOspceIdCTBOM элкгТрчeбкови ВИКИ NII IN DByXxHnBHorO npOBaDA (eCIN annapat NOCTaBЯTcE63 BИКИ) CICNOLTOBAHmE 3aUHT- HORO ABTomaTA, paccuNTAHHOrA Na cHNY ToA Do 3A.

BHHMaHHe!

B HeKOTOpbIX CnyaJX 3NeKTpueeCKne pIn6OpbI MOrYT 6bItbOnaChbIMX.

A) He npobepaTe cOstOHaMe funltpOB npn pa6oTaoue BbITAAKKe
B) He npnkaaetaeB k lamnocham nnn K npneraoumM 3oHAM Bnpoccepepaobtbi CNTeMeHnOcBeueHnNnCp3y Jxne oocJe ee BbKJIouHEny
C) 3aPpeaaetcra roTOBnTb 6IIOda Ha OTKpbITOM PIIaMeHIN NOd KUxOHHO BbITXKoI
D) N36eraIte OTKpbItorO PnIaMeHn, TaK KaK OHO NOBpeXJa-et ΦNJIbTpbl I MOKeT npNBECTN K BO3ropaHIO
E) Bo Bpem Jxapkn nuih HnpepbIbHO cneJe 3a npoeccom BO n36eKaHHe BO3ropaHHe KInpaJero Macna
F) OToCoeHnHaIte BnIky Ot cTeBcO pO3eTKn nepeHa- yAnOM TExNHeCCKOrO 6cIyKuBaHnIa
G) Ⅲdennne 3anpeecho NO cnoNb3oBaT deTbMn Nnn He- dceecnoc6bHIMn liuamn 6e3 KOHTpOJIa
H) He papewaute deTm nrgpTaB c n3dennem
I)Ecnb bttjkka nCnObn3yETc OndHOBpeMeHNO cDpyfumnn np6opamn, B KOTOpbIX nCnObn3yETc TOnnINBHy rA3 nn DpyrIne BNDbTOnnIBa, B NOMEueHHN DonJXHa 6BtB

06ecneheHaIeKaaJaeBentnlaun

L) B cnyuae bblonneHnna onepaun no qntke 6e3 co6nIO- dHn HNCTpykun cyuectbyet Onachoctb Bo3ropaHnna

DaHHeu n3dennI mIeET mApKnOpBky COOTBeTCTBnE BpOneckOMy HopmatNBy 2002/96/EC, YtUInaZnI 3JIeKTPnHeCKNX uIeKToPOnHBx n3denn (WEEE). O6paTnte BmImaHne Ha To, yTObI daHoe n3dennI no OKoHNaHm Cpoka cnyXk6bl 6bIyoYtUNiINPobAoHO. 3TmB Bi NomOKeTe CoXPaHnTb OkpyKaioUyO cpey.

CmboHn3dennnnnB npnaaroueC K hemy

DOKyMeHTaUm O3Hauaet, YTO daHnoe n3dennie He D0JHXo paccmatPabTaCk Ka6 bItobBe OTXoDbI, a DOJHXo 6bTb CcAoH B CneuNaBbHbY CEHTp yTNiHa3aun, ZAHMaOoiCraYHuVTQeHNEM ENEKTPruecknx IN JIeKToPHHbIX np6OpOB. I3dennie DoJNHO 6bTb CdaHO B yTNiB b COBTBCTBMn C MeCTbIMn HOPMaTbAMn NO yTNiHa3aUN OTxoDb. 3a DoJONHInTeBbIMn CBedeHNMI KacaTeNbHO o6pa6OtKn, yTNiHa3aUN y HuVTQeHNHa DAHHoro n3dennia O6paAsaTeCB MeCTbEaDMNHCTpaTINBbIE opraHbI INB Maar3Hn, B KOTOpOM 6bIIO KynPiHo n3dennie.

MHCTPYKUNI NO YCTAHOBKE

MOnTaux n3eKtpnueckoe noKkIoucheHne doJKNbI BblnonHrTaC KBAInHnOuropoBaHHbIM TEXHNKOM.

-3neKtpueeckoe noKJIoueHne

Пибор ИмeelКлас II,�OTOMYΚЗАЕМLENEHNO He HANO NOДCOeINHArT bHKaKoI pROBOD,пОДСоEДИнEHNe K эЛeNTPocetTNbIOnHЯETCSTcJIeUOIMN O6pazOM:

KOpuHHeBbl-L-NNHNA

CHNH-N-HeITpaIbHbI

Ecnn Ha Ka6ene Het cetebO BnIKN, To Heo6xOJIMO, yctaHOBtB cetEBYIO BnIKY, paCCHTAHNY Ho PAbOTy C harpyr3KO, yka3AHNOH HA TabIuNKe XapakTepriuctK. Ecn BblTgKa OchaueHa cetEBM KBa6enEM C BnIKY, To, Oha YCTAHABINMaETc, npn ycNoBnx, UTO BnIKa 6byet JERko DOctynHO. B Cnyae pIpMArO IOLOeINHEnK JLEKTPOCTeH NHyXHO pA3MeCTITb MEkdy pIn6OpOM INCtio DByXIOJIOnCHb BblKlOHTeB C 3a3ZOPOM KOHTAKTOB MHNUMYM 3 MM, paCCHTaHbH Ma HNyHXyHO Harpry3K Y OTBeuaOsiM DeiCTBYUOIM HOpMAM.

-MNHImaHbHOe paCCTOHaHE MeJy BepXHeI ToKoN NOBepxHocTH KUxOHHOI nHIXHeI cAcbTO bIITRAKKn DIOJIHXo 6bIb He Me Hee4 45 cm.EcIn npmEHeTcR CoeHNHTbHaN TaBy6a I3DByXn 6IoJe UactEnToBepXHaTb OOnkHa npICcoEHNbT ChapryKn HIXHeY uactn. Henb3n IOCoEHNbTb BtAAKky K dblMOxOy, KOtOpbn INcONb3yeTcN IINpdyrNX ceJe, a TAKKe KaHaJAm, NcONb3yEmbIM IINBeHTnJIuHn NOMEueHn, B KOTOpbX yctAHOBHeHb NeH, KaMnHb, RopeKN nDpyroE OTOnIHbHOe OObpyObaHne, paBoTaIOuSe eT oRa3, XnuKdoro NTEpDO rTOIIHa.

B TOM CNYaee, ECSI pNIObOp yCTaHABINMaTecR B ApaHaTHe B BYTAKHO YCtPOCTBaTO HeO6XoIMNo PpeBaPteHbNOIOTOBITB N OMEUeHN BByXoHDoeOTBEpCTne.

• PeKOMeHdyEcTcNcONb3OBAtB Tpy6y dIra OTbOda Bo3Dyxa C tANkM JIe NcAmETPOM, cTO N BblXoHDoe OTBepCTne BblTJKK. IcONb3OBAHnE Tpy6bMeHbIero NcAmETpMa MoKet cOKpaTntb KPI D BblTJKKN yBvEBNIHTe eYpoBeH bUyMa.

Bhumahne!

• Pered BbINOJIHHeHMe ONEpaIIM NO MOHTaJy Iyra 6OJIeYeuHn MaHbEpeHHoCTN BbITaJkN BbIOJIHnTb CneDyIoUcHn ONEpaIIM:
  -OTKpbItbpeepHIOI naHeIb BbITraKKn, Pnc.2 - φ a3a1.
• CHMNTe XnpoBoi HnBtp,NOTaHyB 3a pyuKy,KaKaKa3aHo Ha Pnc.2 -fa3a 2.

• Cleaning Mode (PexkM oucctkn)

AKnBnPoBaTb pexM 6eOanachOCTn IaIy y6OpKn uOChTkn. 3a6IoknpoBaTb BCE cyHKuIN BO nI36EkaHne cNpyauHoro BKIOUpeHn BO Bpem pa60T no y6OpKe n OuchTe nepeD bByTKKoN.

-ДлnoPOKILOUeHnI 3ToI ΦyHKuIN,ДержаТьpyKу nepedДатчКOMВTeYeHne4CekYHd.
-Korda BkIIOHTcBcToIDnOIO nocJe npOOnJXntelbHOro 3ByKOBOrO CnHa,ФyHKUaA kTmBu3nIpOBaHa.
-ДлгOTKLOUeHnФyHKuIN,NOBTOpNTb OpeaunIO.

DaTnuK C = INEPUJA WBNDKICTb

Bnryh BMkAeTbCra Ha nepuW mbKocti i akTuBytbcra, kUO niDBcTn pyky HABPOTn DaTUnka C.
-Функляпрацioe,КOLN CBITIOJOD,IKиВIДNOBIDAЯТЧИКУ, BMNKaEТбСЯЛУНаE3BYKOBIN CnHаJI.

POKNY PRE INSTALÁCIU

Operación spojenés montázou a elektrické zapojenie moze vykonávat'len odborny personal.

MODRY = N nulovy vodic

Ak sučastou zariadenia nie je normalizovaná zăstrčka, na-montujte na kabel normalizovanú zăstrčku, vchodnu pre zataž uvedenu na identifikacnom stitku. Ak je zariadenie vybavené zăstrčkou, dbajte na to, aby bola po instalacii zariadenia laho pristupné.

.ogosolgws a
sG 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

sllw g sssggsg j 1g = G gssu w lglg ewl glg -G gssu w llao dr l gcsu w s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g s u g suu

glalai jai li aai yai jai ddoa ooiyaojw alil .yai

aasuususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususus

sJb jgjydsoslaawsl yuuiw g auiu w suiiog ulicaa oovgb osaiw slg g wos uogac
kaugioacgaaagbaayuivwglvcbosaiw
.60s

(1·J)Lpaol ● 4 JSL>0JALG Jg> Cwss LdSACUSSLg g- .sws wj jzaiuulw

:laS
9 wolg> gJ. 100 S > aS J, = Led - 1
8w s
8w
8w
8w> IRED oJgolo 2
. gblw jgi UjUj
uOgdo j OJUj
.

Cleaning" JAc U "ON/OFF" JAc A w* "s s u 1 (u s j c) "mode (wgs/ωg) ON/OFF - s u wgs L u s Jc l aJsc oJ .

ol sgs sgsJac .gWs o wg LED aSolld -

sLgUoIgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUg

！

sgljIwIyIeIgSlyjLigooUlaoc aolal jLg· :dssolilrJzUaLac

$$ . 1 \mathrm {d} l > 2 0 - 7 \mathrm {J S W} \mathrm {w i s} \mathrm {j l} _ {1} \mathrm {s g} \mathrm {s w g} > \mathrm {j l} _ {1} - $$

a sii j slaiogw sJilol, g w a e g w j I J
sJyol E sSsI
1 alo-y Jsw yu ly 1 ssjll aas uus -
jBviloaggol > sg as G ay r sdo J E cy
oslu oW r -r alo-y - f Jsw as gbolua g
.

Egi suiu sla aonogw u sludso sluaai

OoIsO

JLJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJSSJss

SΔD = SΔD = SΔD = SΔD = 12 × CD × CM

.

JgWgswwcls

sLwLbUgJdJoljgL oLsws JI Lb0

1. S_ΔACD = 12 · CD · AC = 12 × AC × 5

.3J3JgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

ssosolosgogolgsjgsjnsjao ples jlabP

JEC/4-4/9 Jg jolal gss L oolw 1
JGL WEEE)gsjg jgl 1
Jl g wioo 00000000000000000000000000000000000000000000000000000000000000000000000000

aaii aai iaii

wai slu Jauillgws

jolg jwbr bwsb y jyll luiail g joo

Jusil Jusil 1
Jusil Jusil 2
Jusil Jusil 3
Jusil Jusil 4

1 glasw g, wol owi asj olwos olraa a s jg 2
oogai cwlbl w y g ay bilaas y iy lju L
aocolwsl olraa a wlgsd y slai jog o w
wssds g w y a y y g w d g w
awu y uasil y w y uwl alw g dy
y xiau 4 uolws jdluy g s gsw. y
y jzglosjdlw g y sllj ly olra. la csliis .

g j5 1s g sgsb yu baw w y u aolal Jd. .45 Jd> 4y dgg cws yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yuu

sJgW,0uSo egi jD oBwSduoW W 0

Gogoc 155

QUESTIONS OR COMMENTS

COUNTRY	CALL	OR VISIT US ONLINE AT
BELGIUM	02-201-24-18	"www.samsung.com/be (Dutch) www.samsung.com/be_fr (French)"
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com
DENMARK	70 70 19 70	www.samsung.com
FINLAND	030 - 6227 515	www.samsung.com
FRANCE	01 48 63 00 00	www.samsung.com
GERMANY	01805 - SAMSUNG(726-7864 € 0,14/Min)	www.samsung.com
HUNGARY	06-80-SAMSUNG(726-7864)	www.samsung.com
ITALIA	800-SAMSUNG(726-7864)	www.samsung.com
LUXEMBURG	261 03 710	www.samsung.com
NETHERLANDS	0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com
NORWAY	815-56 480	www.samsung.com
POLAND	"0 801-1SAMSUNG(172-678) [phone]"	www.samsung.com
PORTUGAL	808 20-SAMSUNG (808 20 7267)	www.samsung.com
SLOVAKIA	0800 - SAMSUNG(0800-726 786)	www.samsung.com
SPAIN	902 - 1 - SAMSUNG (902 172 678)	www.samsung.com
SWEDEN	0771 726 7864 (SAMSUNG)	www.samsung.com
U.K	0330 SAMSUNG (7267864)	www.samsung.com
EIRE	0818 717100	www.samsung.com
AUSTRALIA	1300 362 603	www.samsung.com
SWITZERLAND	0848 - SAMSUNG(7267864, CHF 0.08/min)	"www.samsung.com/ch www.samsung.com/ch_fr (French)"
RUSSIA	8-800-555-55-55	www.samsung.com
UKRAINE	0-800-502-000	"www.samsung.com/ua www.samsung.com/ua RU"
TURKEY	444 77 11	www.samsung.com
SOUTH AFRICA	0860-SAMSUNG(726-7864)	www.samsung.com
U.A.E	800-SAMSUNG (726-7864)	www.samsung.com
MEXICO	01-800-SAMSUNG(726-7864)	www.samsung.com
