Product type	Kitchen hood
Brand	BAUKNECHT
Model	KVI1884
Height (cm)	85-110
Width (cm)	60 or 90
Depth (cm)	50
Exhaust duct diameter (cm)	12
Power supply	Voltage and frequency as indicated on the rating plate
Lighting type	LED, 2.5 W max, socket E14
Number of speeds	3 (minimum, average, maximum)
Grease filter	Metal, washable (monthly)
Charcoal filter	Activated carbon, replacement every 4 months max.
Minimum cooking distance (electric)	50 cm
Minimum cooking distance (gas/mixed)	65 cm
Use version	Extracting (external evacuation) or filtering (recirculation)
Recommended cleaning	Damp cloth, neutral liquid detergent, no abrasives or alcohol
Grease filter maintenance	Once a month, by hand or in dishwasher (short cycle, low temperature)
Charcoal filter replacement	Not washable, replace after saturation (max 4 months)
Important safety instructions	Disconnect before maintenance; do not use under the hood with an open flame; do not use as a support surface
Child protection	Prohibited for children under 3; from 3 to 8 years under supervision
Installation	By qualified personnel; do not plug in before complete installation
Disposal	Compliant with WEEE directive 2012/19/EC - do not dispose with household waste
Safety standards	EN/IEC 60335-1, EN/IEC 60335-2-31, EN/IEC 62233

Frequently Asked Questions - KVI1884 BAUKNECHT

How to install the KVI1884 hood?

Installation must be carried out by qualified personnel. Respect the minimum distances: 50 cm for an electric cooktop, 65 cm for a gas or mixed cooktop. Use the supplied screws and follow the installation guide. Only plug in the appliance after complete installation.

How often should the grease filter be cleaned?

The metal grease filter should be cleaned once a month (or as soon as the saturation indicator system signals). It can be washed by hand with a non-aggressive detergent or in the dishwasher at low temperature and quick cycle.

When to replace the charcoal filter?

The charcoal filter cannot be cleaned and must be replaced after a maximum of 4 months of use, or earlier if the saturation indicator lights up. This depends on the type of cooking and the frequency of cleaning the grease filter.

Can I use the hood in recirculation (filtering) mode?

Yes, the hood is supplied ready for extraction mode. To use it in filtering mode, you must install the accessory kit (charcoal filter). Check the first pages of the manual to see if the kit is supplied or needs to be purchased separately.

What to do if the hood does not work?

First check that there is no power cut, that a speed is selected, and that the main circuit breaker has not tripped. If the problem persists, unplug the plug for 5 seconds and then plug it back in. Contact customer service if needed.

How to replace the LED bulb?

Disconnect the appliance and make sure the bulb is cool. Replace it with an LED bulb of 2.5 W max, socket E14 (ILCOS code D '1e'). Reassemble the grid after replacement.

What is the minimum distance between the cooktop and the hood?

The distance must be at least 50 cm for electric cooktops and 65 cm for gas or mixed cooktops. If the cooktop manufacturer specifies a greater distance, follow it.

Can the hood be used by children?

Children under 3 years old must not be near the appliance. Children between 3 and 8 years old may use it under adult supervision. Cleaning and maintenance must not be performed by children without supervision.

How to clean the exterior of the hood?

Use exclusively a damp cloth moistened with neutral liquid detergent. Never use cleaning tools, abrasive products or alcohol. Avoid steam cleaning appliances.

Where to find the serial number for after-sales service?

The serial number is indicated on the rating plate located inside the hood. Contact customer service with this number for any assistance. You can also scan the QR code or visit the site docs.whirlpool.eu to download documents.

USER MANUAL KVI1884 BAUKNECHT

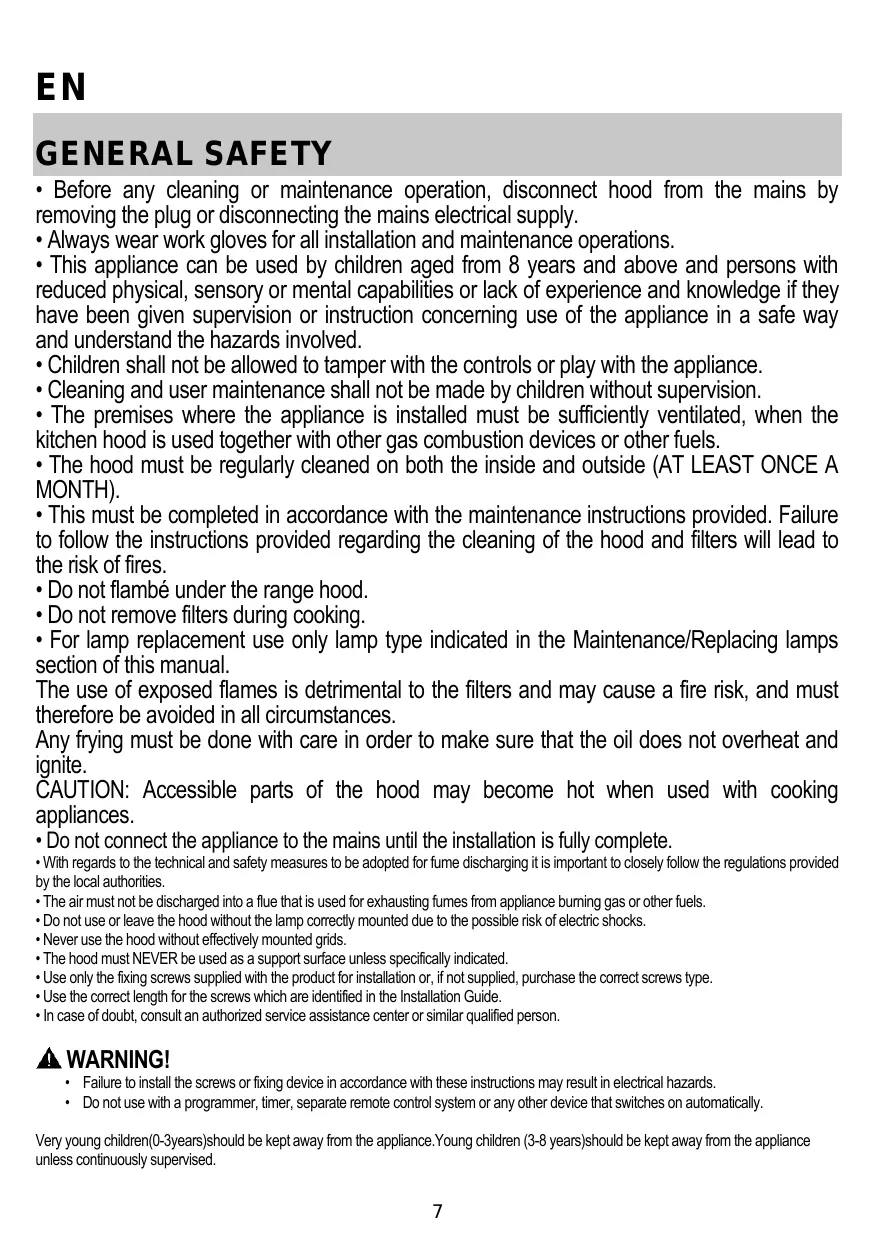

EN Instructions for use

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
• Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambe under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children(0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.

CAUTION:The appliance is not intended to be operated by means of an external switching device, such as a timer,or separate remote controlled system.
This appliance is not for professional use. Do not use the appliance outdoors.
The appliance must be handled and installed by two or more persons-risk of injury.
Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician.

Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation.

Do not use the appliance when you are wet or barefoot.

Never use steam cleaning equipment - risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
- Read the instructions carefully: there is important information about installation, use and safety.
- Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
- Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

N:blue

L:brown

Replacing the power cable

The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service.

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

Use a duct of the minimum indispensable length.
Use a duct with as few elbows as possible (maximum elbow angle: 90^ ).
Avoid drastic changes in the duct cross-section.
The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING ?

Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

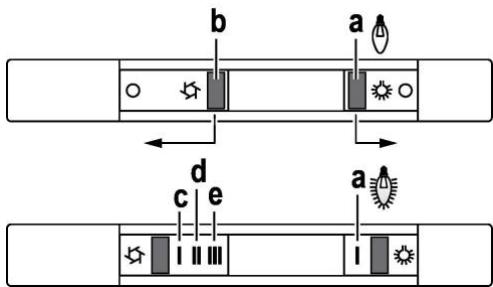

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

a. ON/OFF lighting
b. OFF motors
c.-d.-e. Minimum suction power (c.), medium (d.), maximum (e.).

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Maintenance of the anti-grease filters

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

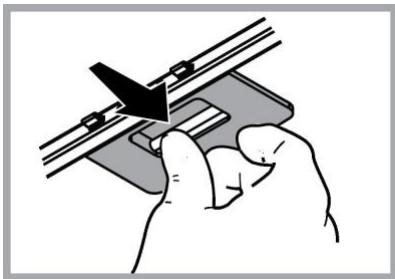

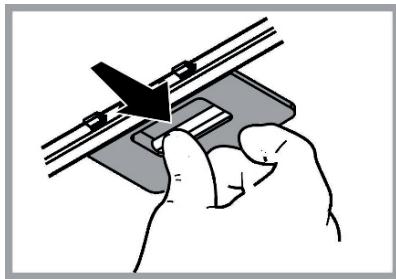

To remove the grease filter, pull the spring release handle.

Maintenance of the charcoal filter

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity). The charcoal filter may NOT be washed or regenerated.

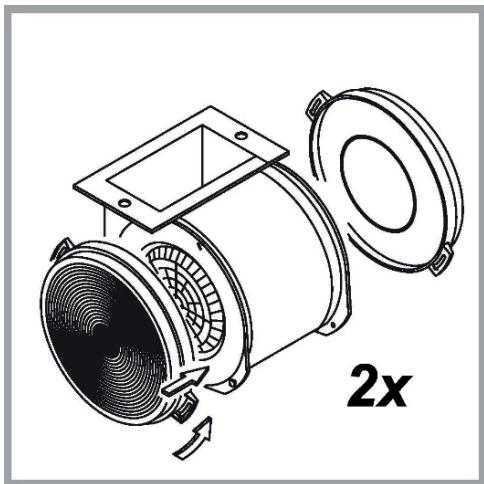

Circular charcoal filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, tum counter-clockwise.

Replacing lamps

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Put the grill back.

Replace the damaged lamp.

Use E14 2,5W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfan numeric position "1e").

Put the grill back.

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

If the hood is not working:

Check that:
- The power has not been disconnected.
- A speed has been selected.

If the hood performs inefficiently:

Check that:

• The motor speed selected is sufficient for the amount of smoke and vapours released.
• The kitchen is sufficiently ventilated to allow air intake.
• The charcoal filter is not worn (hood in filtering version).

If the hood has turned off during normal functioning:

Check that:

• The power has not been disconnected.
• the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Height (cm)	Width (cm)	Depth (cm)	Ø of the exhaust tube (cm)
85-110	60	50	12
85-110	90	50	12

CE

Components not provided with the product

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.whirlpool.eu
  Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

Inlocui becul defect.

Utilizati exclusiv becuri LED de max 2,5W-E14. Pentru mai multe detailii, consultati instructiunile atasate "ILCOS D" (pozitie alfanumerică "1e").

Okružno uhońy filter

aallll lglg aiallaag

docs.whirlpool.eu 品 _ 一 ^ 一

QR

（）

jS jUaiuiie. (uiuaill iik gle

aaii iiaaii gaii iiaai oiaia jiaai jiaai ai

.62233 IEC/EN EN/IEC 60335-2-31:EN/IEC 60335-1

EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13:

.EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301

EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000- :

13-3

o 1

jssjj jssssall aullllg lbcldl jao hdd gssall cllll g jjessll jessll gssll gssll

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

11 111111111111111111111111111111

( x - 1) ( x + 3) = 0

Jbc J1

jie jie jie ball jial jial jia

y 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aill aall aai (ll 1y j, laiill lbc jaiil aal (g. jia jai yj i j

a a a a a a a a a a a a a a a

aegil Lg, aylglaal 1000000000000000000000000000000000000000000000000000000000000000000000000

(1) a3 = 2a2 + 2a_1

aoluiol oie! olue j

g jd jn jn jn jn jn

oJzll glll aIgai yKuLil kla Jauil lulal 100 - aLwll oolil gellly dlld paae alal

Aclll 100000000000000000000000000000

a.b.c.1

ailllll l aaln aal n aln all

1

.0jJg jno 1

jol 2,5W-E14 jj j

juc juaia jai jz jz jz jz abw yuuiy uaoa yz jzai

j 1

a a a a a a a a a a a a a a a a a a a a a a a

a 1

C_10 = 70%

jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi jbi

Jusss

A

a a a a a a a a a a a a a a a a a a a a a a a a a a

Lgai jia yj g ailya

a 1

a 1111111111111111111111111111111111

jlll lisiunb iis juaia g gglll cllac n aaiilllr

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

a

jol 1 jol i 1 jol jil jil aolo clogdo g:clalail ayiei jil

aannn nnnn nnnn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

i 1

Soll

50 50 50

a blllall j llll Jellll gill gall g 65 a

i 1

gill

J 1

y

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

aJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

Jilll lalll lalil jill gill cllalgall bllblljll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll

a 1

！

a 1

Jll 4 J2

J 15

2

1 1

出 j : N

L

y

a a a a a a a a a a a a a a a a a a a a a a

pIJI JILALg AIDLL
