USER MANUAL ADARA 600 FALMEC
INSTRUCTIONS BOOKLET

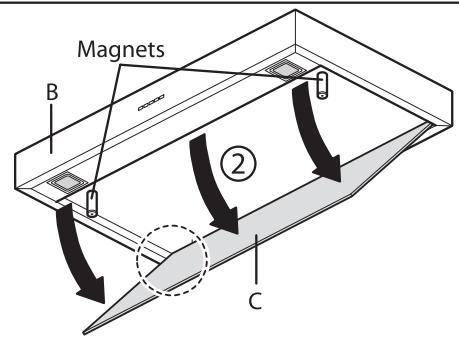

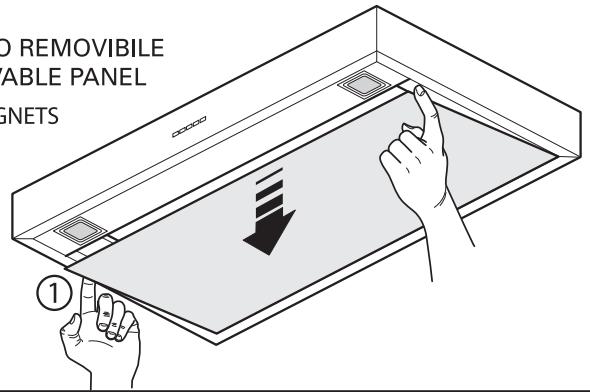

INSTRUCTIONS FOR REMOVABLE PANEL NEW FIXING SYSTEM WITH MAGNETS
Fig. H3
WARNINGS
6: Light - Remote Binding
3. REMOVABLE PANEL
This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings. These warnings have been provided for your safety and the safety of others. As a result, please read them carefully before installing and operating the appliance.
This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure they do not play with the appliance.
The appliance must be installed by qualified personnel, in accordance with the standards in force. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be required to the electrical system for the installation of the range hood must only be made by qualified electricians.
It is dangerous to modify or attempt to modify the characteristics of this system. In the event of malfunctions or if repairs are required to the appliance, do not attempt to solve the problems directly.
Repairs performed by unqualified persons may cause damage. For all repair and other work on the appliance, contact an authorized service/spare parts center.
Always check that all the electrical parts (lights, exhaust device) are off when the appliance is not being used. Read the entire instruction booklet before performing any operations on the range hood.
The range hood must only be used for the exhaust of cooking fumes in home kitchens. The manufacturer disclaims all liability for any other use of the appliance.
The maximum weight of any object placed above the hood, or hung to it (if possible) must not exceed 1.5 kilos. After installing the stainless steel hood, clean it in order to remove any residue of the protective glue, and stains of grease or oil. The manufacturer recommends its cleaning cloth available for purchase. The manufacturer accepts no liability in case of damage caused by the use of different detergent types.
SAFETY WARNINGS
The electrical system features an earth connection in compliance with international safety standards; furthermore, it is compliant with the European standard for electromagnetic compatibility.
Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains voltage corresponds to the values on the rating plate located inside the range hood. The minimum safety distance between the cooktop and the range hood must be at least 65 cm. Never cook on "open" flames under the range hood.
Check deep-fryers during use: superheated oil may be flammable.
- Ensure there is adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
- Do not flambe under the rangehood.
- The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
- Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance.
Before performing any cleaning or maintenance operations, disconnect the appliance by unplugging it or using the main switch. The manufacturer disclaims all liability for any damage that may be directly or indirectly caused to people, things and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installation, operation and maintenance of the appliance.
- There is a fire risk if cleaning is not carried out in accordance with the instructions.
CAUTION: Accessible parts may become hot when used with cooking appliances.
- Max. length screw for fixing the chimney is 10 mm (provided by the manufacturer).
WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
Warning only for Australia: hood width less than 90 cm: use max. 4 hobs.
TECHNICAL SPECIFICATIONS
The technical data pertaining to the electric appliance. The technical specifications of the appliance are shown on the rating plates located inside the range hood.
INSTALLATION
(Section reserved for qualified installers of the range hood)
The distance between the hob and the lowest part of the range hood is normally at least 65 cm (see figure C1). This distance is measured in the lowest part of the range hood not operating at safety voltage. Based on this detail provided by European Standards, the distance may be reduced in some models as specified in the general catalogue. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.
In the outside exhaust version, the diameter of the fume discharge duct must be no smaller than the range hood connection.
In the horizontal sections, the duct must slope slightly (around 10%) upwards, so as to better convey the air outside of the room.
Avoid using angled pipes, and make sure that the pipes are at least of the minimum length.
Comply with the current regulations on air discharge into the atmosphere.
If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time, make sure the room where the fumes are extracted is well ventilated, in compliance with the current regulations.
Mounting instruction: see section "0" of the booklet.
ELECTRICAL CONNECTIONS
(Section reserved for qualified installers)
WARNING! Before doing any work inside the range hood, disconnect the appliance from the mains power supply.
Check that the wires inside the range hood are not disconnected or cut; if this is the case, contact your nearest service centre. The electrical connections must be performed by qualified personnel.
The connections must be performed in compliance with the legal standards in force. Check that the relief valve and the electrical system are able to support the load of the appliance (see the technical specifications in point B).
Some types of appliance are supplied with a cable without plug; in this case, "standardised" plugs must be used, keeping in mind that:
- the yellow-green wire must be used for the earth,
- the blue wire must be used for the neutral,
- the brown wire must be used for the phase; the cable must not come into contact with hot parts (over 70°C ).
- fit a plug that is suitable for the load to the power cable, and connect it to a suitable power outlet.
For appliances that come supplied with cable and plug please ensure they are plugged into a circuit suitable for this appliance.
Please refer to a qualified person. (See technical specifications in point B).
The manufacturer declines all liability if the safety standards are not observed.
RANGE HOOD WITH OUTSIDE DISCHARGE (exhaust)
In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust duct.
The exhaust conveyor that protrudes from the upper part of the range hood must be connected to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted, should be removed; to do this, see the instructions in point F. There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels, according to the standard.
Deviation for Germany:
When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).
RECIRCULATING RANGE HOOD (with filter)
In this version, the air passes through charcoal filters for purification, and is then recirculated back into the kitchen.
Check that the charcoal filters are fitted to the motor, and if not, install them as described in the instructions in point H.
If the hood is of filtering type, remove the non-return valve fitted at the motor's outlet.
For maximum efficiency, the third speed should be used when there are strong odours or a lot of steam, the second speed in normal conditions, and the first speed for keeping the air clean with minimum energy consumption. The range hood should be switched on when starting to cook, and left on until the odours disappear.
OPERATION
1. FIVE BUTTON CONTROL PANEL
LIGHT- button
Pressed: the light is on
Released: the light is off
MOTOR button - 1, 2, 3, OFF
1: starts the motor at minimum speed 2: starts the motor at medium speed 3: starts the motor at maximum speed OFF: stops the motor
2. ELECTRONIC CONTROL PANEL
Light pushbutton
- ON: light on (the pushbutton is lit);
- OFF: light off;
Pushbutton -
Press to reduce motor speed
Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).
Pushbutton +
Press to increase motor speed
Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).
(In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set duration of time. After 15 minutes the motor returns to the third speed).
Mode pushbutton
Function: it turns hood motor on and off.
The function "desired speed" enables to start the motor at the speed that was selected before the hood was last turned off.
Optional: version with remote control (some versions only).
WARNING:
Install the hood away from sources of electromagnetic waves, as these could affect the correct operation of the electronic system.
Maximum operating distance: 5 metres. The maximum operating distance could be less than 5 metres in case of electromagnetic interference by other equipment.
Light pushbutton on remote control: light on/off.
- and + pushbutton: increase/decrease speed (to start the motor press either the + or the - pushbutton).
Timer pushbutton: see instructions below.
Timer and 'filter clogged' alarm pushbutton
- This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton shows a flickering light).
- After about 30 hours of running the pushbutton indicates the need for washing the metal filters (the pushbutton shows a solid red light). To disable the alarm press the pushbutton for a few seconds until the red light turns off. Then turn the hood off and on again to check that the alarm has disappeared.
3. ELECTRONIC CONTROL PANEL
1: Timer/Alarm filters
The steady RED light indicates that the fat filter alarm is activated (after 30 hours), to deactivate this alarm and zero the meters, maintain the Key pressed for 3 seconds.
Flashing RED light indicates that the timer function is activated. This function can only be activated if the motor is activated and running at any velocity when the Key is pressed (either prolonged or not). This function will cause the automatic switch-off of the hood after 15 minutes.
With the Timer function activated, the hood can be switched-off by the operator in any case and the function will be deactivated.
The Timer function remains associated to a velocity. A change in the velocity, with the Timer function activated, will deactivate it.
2: 1st Velocity
When the LED is switched off, a non-prolonged press of the key will switch on the hood at the 1st velocity and illuminate the respective LED. The function will switch on when the key is released.
When the LED is switched off and another velocity is activated, pressing the key will imply selection of the 1st velocity, switching on of the respective LED, and switching off of the LED associated with the velocity that was previously selected.
When the LED is on, pressing the key will imply the switching off of the LED and the motor.
When the LED is switched off, a prolonged press (at least 3 seconds) of the key will cause activation of the recirculation function.
During the recirculation function (with a duration of 24 hours), the LED will flash. From the activation of this function, the hood will remain switched on for one hour at the 1st velocity, after which it will switch off for 3 hours and then reactivate for another hour. These cycles are repeated until the timeout.
With this function activated, the other functions cannot be selected. To remove this function, keep Key 2 pressed for at least 3 seconds.
3: 2nd Velocity
When the LED is switched off and another velocity is activated, pressing the key (either prolonged or not) will imply the selection of the 2nd velocity, switching on of the respective LED, and switching off of the LED associated with the velocity that was previously selected.
When the LED is switched off and no velocity is activated, pressing the key will have no effect.
When the LED is switched on, pressing Key 3 will have no effect.
To switch the hood off, it will be necessary to firstly select the 1st velocity and then repress the same key.
4: 3rd Velocity
When the LED is switched off and another velocity is activated, pressing the key (either prolonged or not) implies the selection of the 3rd velocity, the switching on of the respective LED, and switching off of the LED associated with the velocity that was previously selected.
When the LED is switched off and no velocity is activated, pressing the key will have no effect.
When the LED is switched on, pressing Key 4 will have no effect.
To switch the hood off, it will be necessary to firstly select the 1st velocity and then repress the same key.
5: 4th Velocity
When the LED is switched off and another velocity is activated, pressing the key (either prolonged or not) implies the selection of the 4th velocity, switching on of the respective LED and switching off of the LED associated with the velocity that was previously selected.
When the LED is switched off and no velocity is activated, pressing the key will have no effect.
When the LED is switched on, pressing key 5 will have no effect.
The fourth velocity must remain on for a maximum of 14 minutes, after which one must return to the third.
To switch the hood off, it will be necessary to firstly select the 1st velocity and then repress the same key.
6: Light - Remote Binding
Light: Briefly pressing key T6 will turn the light on and off. The T6 key will light up if the light is on.
Remote Binding (optional): With motor and light turned off, applying prolonged pressure on the T6 key will activate remote binding mode. The T6 key will flash for a maximum of 10 seconds. During flashing, at least one radio control key must be pressed. The function will deactivate upon completion of the 10 seconds, or earlier if a compatible remote control is detected.
Key pressure management:
Prolonged pressure = finger pressed on key for at least 3 seconds, the function activates during pressure.
Non-prolonged pressure = finger pressed on key for less than 3 seconds, the function activates upon its release.
Radio control (optional): Place the device far from sources of electromagnetic waves which could interfere with the range hood's electronic functions.
Maximum operating distance 4 metres. This distance may vary in defect based on electromagnetic interference of other devices.
1. METAL FILTERS

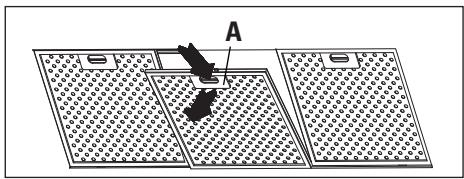

To remove the metal grease-trapping filter, simply pull handle A until it releases from the front guide; then tilt it slightly downwards and slide it out of the rear guide. To reposition the filter, repeat the operation in reverse order.
Hoods with perimeter suction:
- Open the panel (see fig. 1). Use handle A to remove the metal grease filter.
2. CHARCOAL FILTERS
To replace the charcoal filters, proceed as follows: remove the metal filters as described above. The two filters located at the ends of the motor can now be easily accessed.

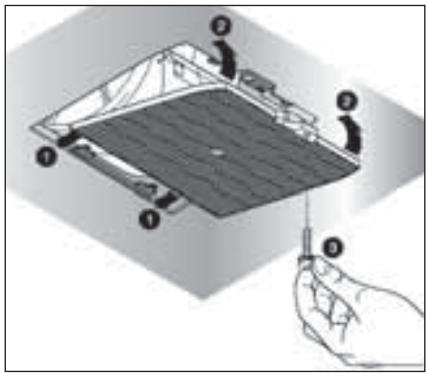

To install the new filters, see the picture.

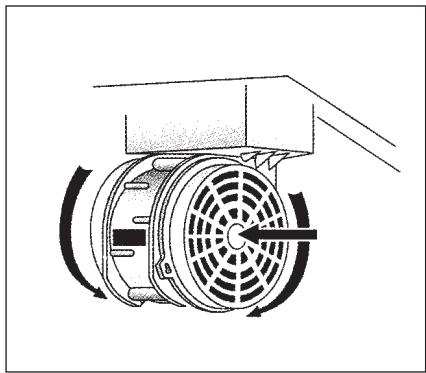

In case of a hood with the motor box, the filter is located on the bottom part of the motor box.
To install the new filters, see the picture.
To order new charcoal filters, contact the distributor/retailer.
VALID ONLY FOR ITALY: download the appropriate order form from: www.falmec.com (access the assistance drop-down menu).
3. REMOVABLE PANEL

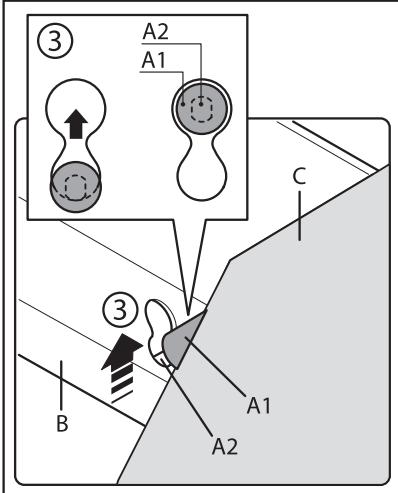

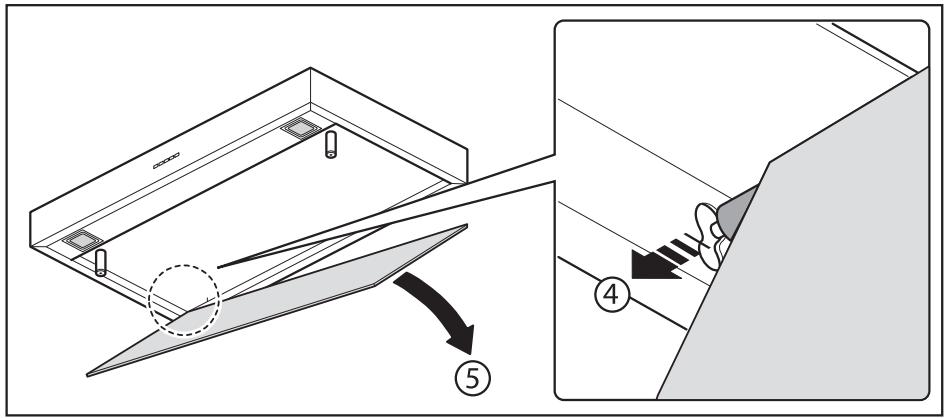

Follow the instructions in fig. H3 to remove the panel.
LIGHTING ASSEMBLY AND REPLACEMENT
1. SPOTLIGHT

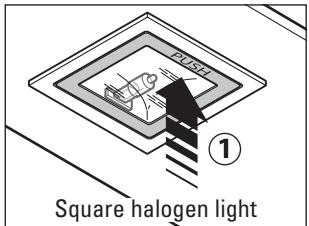

How to replace a square halogen light:
a) Check that the equipment is disconnected from the power supply. b) Open the panel completely to 90° (see figure) by pressing the PUSH button. c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection). d) Close the panel. If the panel does not close correctly, repeat the operation at point b.
2. LED SPOTLIGHT
In this case the hood is equipped with high efficiency, low power LED spotlights with extremely high durability under normal use conditions. LED spotlight replacement should only be carried out by qualified technicians using only original spare parts.
3. FLUORESCENT TUBE
Replacing the fluorescent tube:
a) Disconnect the device from the mains; b) Unscrew the fixing screws and remove the bottom panel; c) Remove the fluorescent tube by rotating it 90°, and replace it with one of similar features (8W-13W-21W-28W according to the model); d) Reconnect the device to the mains.
MAINTENANCE AND CLEANING
Constant maintenance ensures the correct operation and efficiency of the appliance over time. Special attention should be paid to the metal grease-trapping filters and the charcoal filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do not accumulate on the range hood, with the consequent risk of fire.
1. METAL GREASE-TRAPPING FILTERS
These trap the fat and grease particles suspended in the air, and therefore should be washed every month in hot water and detergent, without bending them. Wait until they are completely dry before repositioning them. To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals.
2. CHARCOAL FILTERS
These trap the odours present in the stream of air that passes through them. The air is purified by passing a number of times through the filters and being recirculated into the kitchen. The charcoal filters cannot be cleaned, and should be replaced on average every 3-4 months (according to use). To replace the charcoal filters, see the instructions in point H2.
3. CLEANING THE OUTSIDE OF THE APPLIANCE
It is advised to clean the external hood surfaces at least every 15 days in order to avoid that oily or greasy substances affect the steel surfaces.
The outside of the range hood should be cleaned using a damp cloth and neutral liquid detergent or denatured alcohol.
In case of fingerprint-less finish (fasteel) clean only with water and neutral soap using a clean, soft cloth, rinse and wipe dry thoroughly. Do not use products that contain abrasive substances, rough cloths or cloths specifically designed for cleaning steel. Using abrasive substances or rough cloths will inevitably damage the finish of steel. The steel surface will be irrevocably damaged if the instructions above are not complied with. Keep these instructions together with the instructions for use of your hood.
The manufacturer accepts no liability for any damage caused by non-compliance with the instructions above.
4. CLEANING THE INSIDE OF THE APPLIANCE
The electrical parts or parts of the motor assembly inside the range hood must not be cleaned using liquids or solvents.
Do not use abrasive products.
All the above operations must be performed after having disconnected the appliance from the mains power supply.
WARRANTY
The new equipment is covered by warranty.
The warranty conditions are provided by the distributor.
The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or transcription errors. The manufacturer reserves the right to modify its products as it considers necessary or in the interests of the user, without compromising their essential safety and operating characteristics.
MOUNTING INSTRUCTIONS, RANGE HOODS WITH BOX
Step 1
Step 2
Step 3
Step 4
- Rest the support bar against the wall (A-Fig. 1) at a height from the cooktop determined by the sum of the distance X + Y + 320 mm.
- Check the horizontal alignment with a spirit level and mark the 2 holes to be drilled at the ends of the bar.
- Drill the holes, insert 2 x 8mm dia. screw anchors, and fasten the bar using the corresponding screws.
- Hook the range hood to the support bar (Fig. 2).
- Adjust the alignment of the range hood using the screws on the brackets (Fig. 2). The top screw (B) adjusts the distance from the wall, the bottom screw (C) adjusts the height. Fix the hood on the wall with an expansion anchor and with a screw, using the holes on the back side of the hood or with the cover brackets, in order to prevent it from detaching due to the pressure below. In case of the suction version, connect the outlet fitting of the fan to the external discharge with appropriate pipes.
- Carry out the electrical connections after having disconnected the hood power supply.
- Insert the extension cable (H) in the cook hood stack (G) and fix the assembly on the hood body using the 8 screws as shown in (V1).
- Unfold the extension cable (H) until reaching the required length.
- Once the ideal position is reached, lay the bracket (L) on the wall and check the horizontal alignment using a spirit level and mark 2 holes at the edges.
- Drill the holes and insert 2 expansion anchors with a diameter of 4mm and fasten the bracket (L) with the screws.
- Tighten the extension cable (H) to the bracket (L) by means of the screws (M). Power the hood in compliance with the regulations in force (section D).
1: Timer/Filter alarm
6: Light - Remote Binding
6: Lighting - Remote Binding
6: Light - Remote Binding
6: Light - Remote Binding
INSTRUCTIONS FOR MOUNTING HOODS WITH BOX
Phase 1
SAFETY MEASURES
It is important that this instruction manual is kept with the appliance for future reference. If the appliance is sold or transferred to another person, the manual must be handed over so that the new user is aware of how to use the extractor hood and the necessary safety measures.
This manual has been compiled for the safety of both the user and others, so please read it carefully before installing and using the appliance.
Children and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, may use the appliance only under supervision or after having received instruction concerning safe use and understanding of the hazards involved. Children must not play with the appliance.
The responsible person must ensure that children do not play with the appliance.
Installation work must be carried out by competent, qualified personnel in accordance with current regulations.
Any necessary modification to the electrical system for the installation of the extractor hood must be carried out only by competent personnel.
Any necessary modification to the electrical system for the installation of the extractor hood must be carried out only by competent personnel.
Changing the characteristics of the device is dangerous! In case of incorrect operation, do not attempt to repair it yourself.
Repairs carried out by an incompetent person may cause damage.
The hood cannot be used for purposes other than extracting smoke from domestic kitchens. Any other use of the device removes all liability from the manufacturer.
The maximum total weight of items placed on the extractor hood or hung from it (where this is provided for) must not exceed 1.5 kg.
After installing the stainless steel extractor hood, it is necessary to clean the device to remove any residues of protective film and possible grease stains. For this, the manufacturer recommends using the supplied cleaning cloths.
The use of other types of cleaning agents removes the manufacturer's liability for any damage that may occur as a result.
SAFETY MEASURES AND PRECAUTIONS
The electrical circuit is equipped with an earth contact in accordance with international safety standards; moreover, it complies with European standards for protection against radio interference.
Do not connect the appliance to pipes that carry smoke from burning fuel (boilers, fireplaces, etc.). Make sure that the mains voltage matches that indicated on the rating plate attached inside the hood.
For safety reasons, the distance from the cooking surface to the hood must be at least 65 cm. Do not cook food over an open flame under the hood. Watch out for frying: overheated oil may catch fire. - Make sure that the room has adequate ventilation if the hood is used together with other appliances that operate on gas or other fuels. - Do not light an open flame under the hood. - Do not connect the appliance to pipes that carry smoke from burning fuel (boilers, fireplaces, etc.). - Make sure that all applicable regulations for exhausting air to the outside are observed before using the hood.
Before carrying out any cleaning or maintenance operations, switch off the appliance and unplug it from the socket or use the circuit breaker. The manufacturer is not liable for any damage, whether direct or indirect, to persons, property, or domestic animals resulting from failure to observe the instructions given in the user manual, especially regarding installation, use, and maintenance of the appliance.
The manufacturer accepts no liability if safety standards are not observed.
E EXTRACTOR WITH EXTERNAL AIR DISCHARGE
In this model, smoke and steam from cooking are expelled directly through the pipe.
The discharge pipe, which protrudes from the upper part of the hood, must be connected to the pipe that vents smoke and steam outside the room, see fig.
The hood can be removed for cleaning the activated carbon filter; how it is removed, see point F. If the hood is used with other gas or other fuel appliances, the room must have sufficient ventilation.
EXHAUST AIR OUTLET FOR AIR RECIRCULATION (FILTRATION)
In this mode, the air passes through the filters and is returned to the room.
Make sure that the carbon filters are installed on the motor, Fig. 6, otherwise install them as indicated in point F of the instructions.
It is recommended to use the third speed for strong odors or large amounts of steam, the second speed in normal conditions, the first speed for quiet operation and low energy consumption.
It is recommended to turn on the hood when you start cooking and to keep it running for a few minutes after cooking to eliminate residual odors.
OPERATION
1. REMOTE CONTROL
LIGHT - BUTTON
MOTOR - BUTTON 1,2,3,OFF
1: MOTOR TURNS ON AT MINIMUM SPEED 2: MOTOR TURNS ON AT MEDIUM SPEED 3: MOTOR TURNS ON AT MAXIMUM SPEED OFF: MOTOR TURNS OFF.
2. BUTTON WITH ELECTRONIC CONTROL
LIGHT BUTTON
- ON: LIGHT ON (BUTTON LIT);
- OFF: LIGHT OFF;
Button: light on/off.
Button - and +: decrease/increase speed (to set the motor speed, you can press either the + button or the - button).
Timer button: see instructions below.
Timer and saturation button
- This function allows the hood to automatically turn off after 15 minutes of operation at a previously set speed (button with flashing light). After approximately 30 seconds, the function is activated (the button lights up red). To turn off the indicator, press and hold the timer button for a few seconds until the red light turns off. Then turn off the hood and turn it on again to make sure the indicator has disappeared.
3. CONTROL WITH ELECTRONIC BUTTONS
1: Timer / Filter malfunction
The red light indicator is on, which means that the filter saturation alarm has been triggered (after 30 hours). To reset the alarm, press and hold the button for 3 seconds.
The flashing red light indicator means that the timer function is activated. This function is activated if, when pressing the button (long or short press), the motor is already running at any speed. This function provides automatic shutdown of the hood after 15 minutes.
If the light indicator is off and no speed is selected, pressing the button will not cause any action.
If the light indicator is on, pressing button 3 will not cause any action.
To turn off the hood, you must first select speed 1, then press the same button again.
4: 3rd speed
If the light indicator is off and speed 1 is selected, pressing the button (long or short press) will activate the 3rd speed, the corresponding light indicator will turn on, and the light indicator of the previous speed will turn off.
If the light indicator is off and the single-speed mode is not enabled, pressing the button will not result in any action.
With the light indicator on, pressing button 4 will not result in any action.
To turn off the extractor, first select speed 1, then press the same button again.
5: 4th speed
If the light indicator is on and the speed is on, pressing the button (with a long press) will activate the 4th speed, and the corresponding light indicator will turn on, while the light indicator of the previous speed will turn off.
If the light indicator is off and the single-speed mode is not enabled, pressing the button will not result in any action.
With the light indicator on, pressing button 5 will not result in any action.
The 4th speed can be activated for a maximum of 14 minutes, then it will return to the 3rd speed.
To turn off the extractor, first select speed 1, then press the same button again.
6: Light/Remote control
Light: A short press of button T6 turns the light on and off.
Remote control (only when the hob is on and the light is on): A long press of button T6 activates the remote control mode.
Remote control. Button T6 flashes for a maximum of 10 seconds. During the flashing, at least one remote control button must be pressed. The function turns off after 10 seconds, unless a compatible remote control device is detected.
Remote control (only)
Install the device away from sources of electromagnetic waves that could create interference with the electronic equipment of the extractor hood.
The installation height is 4 meters. The installation may vary depending on the level of electromagnetic interference created by other devices.
FILTERS INSTRUCTIONS FOR REMOVAL AND REPLACEMENT
1. METAL FILTERS
These rules should be kept together with the installation and maintenance instructions. The manufacturer accepts no liability in case of failure to comply with these rules.
4. CLEANING THE INTERNAL PART
Clean the electric or motor-related parts inside the hood using a solvent that dissolves grease.
Do not use abrasive chemicals.
Perform all operations with the device disconnected from the power supply.
WARRANTY
The device is under warranty.
The warranty conditions are fully detailed on the last page of this publication.
The manufacturer reserves the right to make changes to this publication, arising from manufacturing or supply. The manufacturer also reserves the right to modify its own products, as deemed necessary or useful, and in the interests of users, while maintaining the functional and safety characteristics.
FILTERS INSTRUCTIONS FOR REMOVAL AND REPLACEMENT
1. METAL FILTERS
(only in case of malfunction)
6: Lys - Remote Binding
6: Valo - Remote Binding
MAINTENANCE AND CLEANING
Constant maintenance ensures good function and performance over time. Special attention should be paid to the anti-grease metal filters with active carbon; in fact, frequent cleaning of the filters and their supports ensures that no flammable grease accumulates on the hood.
1. ANTI-GREASE METAL FILTERS
- WARNINGS
- LIGHT - REMOTE BINDING
- REMOVABLE PANEL
- SAFETY WARNINGS
- TECHNICAL SPECIFICATIONS
- INSTALLATION
- (SECTION RESERVED FOR QUALIFIED INSTALLERS OF THE RANGE HOOD)
- ELECTRICAL CONNECTIONS
- (SECTION RESERVED FOR QUALIFIED INSTALLERS)
- RANGE HOOD WITH OUTSIDE DISCHARGE (EXHAUST)
- RECIRCULATING RANGE HOOD (WITH FILTER)
- OPERATION
- FIVE BUTTON CONTROL PANEL
- MOTOR BUTTON - 1, 2, 3, OFF
- ELECTRONIC CONTROL PANEL
- PUSHBUTTON
- MODE PUSHBUTTON
- WARNING
- TIMER AND 'FILTER CLOGGED' ALARM PUSHBUTTON
- TIMER/ALARM FILTERS
- ST VELOCITY
- ND VELOCITY
- RD VELOCITY
- TH VELOCITY
- KEY PRESSURE MANAGEMENT
- METAL FILTERS
- CHARCOAL FILTERS
- LIGHTING ASSEMBLY AND REPLACEMENT
- SPOTLIGHT
- LED SPOTLIGHT
- FLUORESCENT TUBE
- MAINTENANCE AND CLEANING
- METAL GREASE-TRAPPING FILTERS
- CLEANING THE OUTSIDE OF THE APPLIANCE
- CLEANING THE INSIDE OF THE APPLIANCE
- WARRANTY
- MOUNTING INSTRUCTIONS, RANGE HOODS WITH BOX
- STEP
- TIMER/FILTER ALARM
- LIGHTING - REMOTE BINDING
- INSTRUCTIONS FOR MOUNTING HOODS WITH BOX
- PHASE
- SAFETY MEASURES
- SAFETY MEASURES AND PRECAUTIONS
- E EXTRACTOR WITH EXTERNAL AIR DISCHARGE
- EXHAUST AIR OUTLET FOR AIR RECIRCULATION (FILTRATION)
- REMOTE CONTROL
- BUTTON WITH ELECTRONIC CONTROL
- TIMER AND SATURATION BUTTON
- CONTROL WITH ELECTRONIC BUTTONS
- TIMER / FILTER MALFUNCTION
- RD SPEED
- TH SPEED
- LIGHT/REMOTE CONTROL
- REMOTE CONTROL (ONLY)
- FILTERS INSTRUCTIONS FOR REMOVAL AND REPLACEMENT
- CLEANING THE INTERNAL PART
- LYS - REMOTE BINDING
- VALO - REMOTE BINDING
- ANTI-GREASE METAL FILTERS
Brand : FALMEC
Model : ADARA 600
Category : Kitchen hood
